Paint Roughness Tester PCE-RT 10

Order no.: PCE-RT 10
GTIN (EAN): 4250348713933
1.322,90 €
1.574,25 €
price ex. (VAT / delivery)
:
4250348713933
PCE-RT 10
Delivery time: 1-2 working days
Paint Surface Roughness Testing

Description

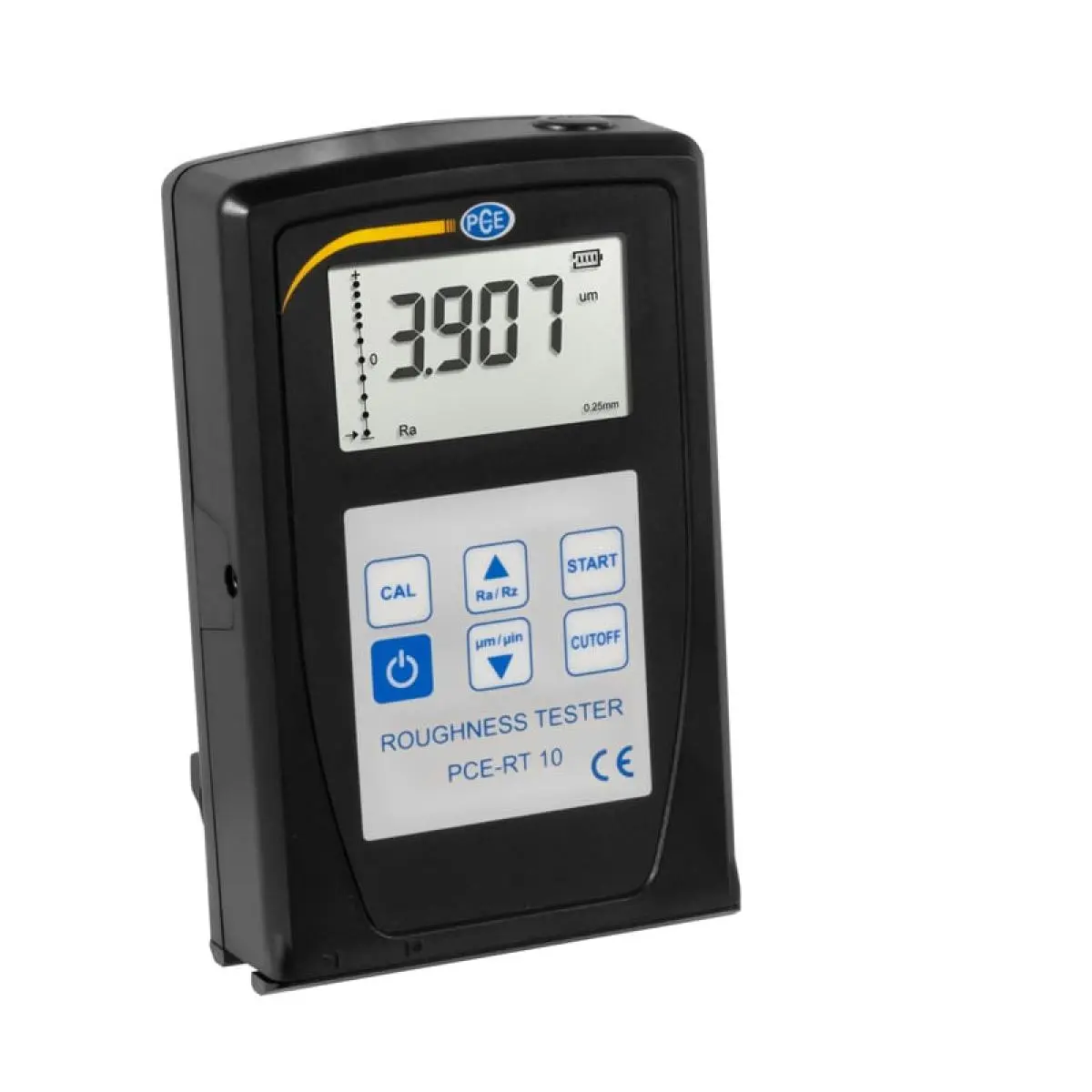

PCE-RT 10 Roughness Tester
Measurement range covers Ra and Rz /
LCD display with background light / Sensor made of a diamond / Induction principle

The Roughness Tester PCE-RT 10 is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.

Highlights

- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display

Specification

Standards GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Display LCD
Parameters Ra, Rz
Range Ra: 0.05~10.00 µm  Rz: 0.1~50.0 µm
Accuracy ±15 %
Fluctuation of Display Value 10 %
Resolution 0,001 / 0,01 / 0,1

Sensor
Radius of Probe Pin 10 µm
Material of Probe Pin Diamond
Measurement Force of Probe 16 mN(1.6gf)
Probe Angle 90º
Vertical Radius of Guiding Head 48 mm
Maximum Driving Stroke 12,5 mm / 0,5 inch
Cutoff length(l) 0,25 mm, 0,8 mm, 2,5 mm

Driving Speed
Sampling when Length = 0,25 mm,Vt = 0,135 mm/s
Sampling when Length =0,8 mm, Vt = 0,5 mm/s
Sampling when Length =2,5 mm,Vt = 1 mm/s
Returning Vt = 1 mm/s

Evaluation Length 1~2L Optional
Operating Conditions Temp: 0 ~ 50 ºC  Humidity: <80 % RH
Power Supply 4 x 1.5 V AA (UM-3) Battery
Dimensions 128 x 80 x 30 mm
Weight 280 g

Delivery Scope

1 x PCE-RT 10 Roughness tester
1 x Precision reference standard
4 x 1.5V AA batteries
1 x User manual
1 x Carrying case
