172,90 €

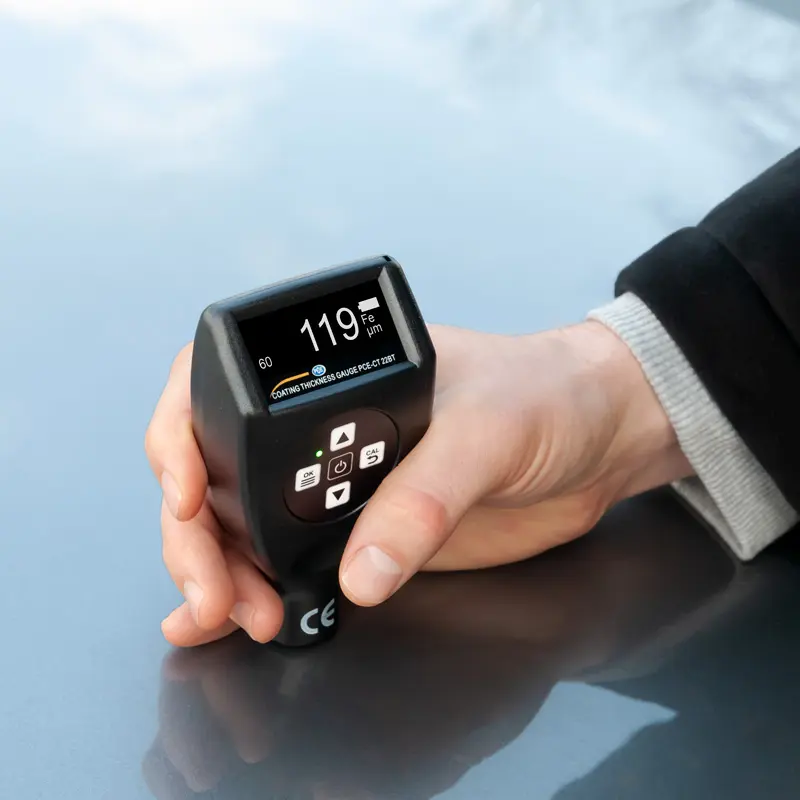

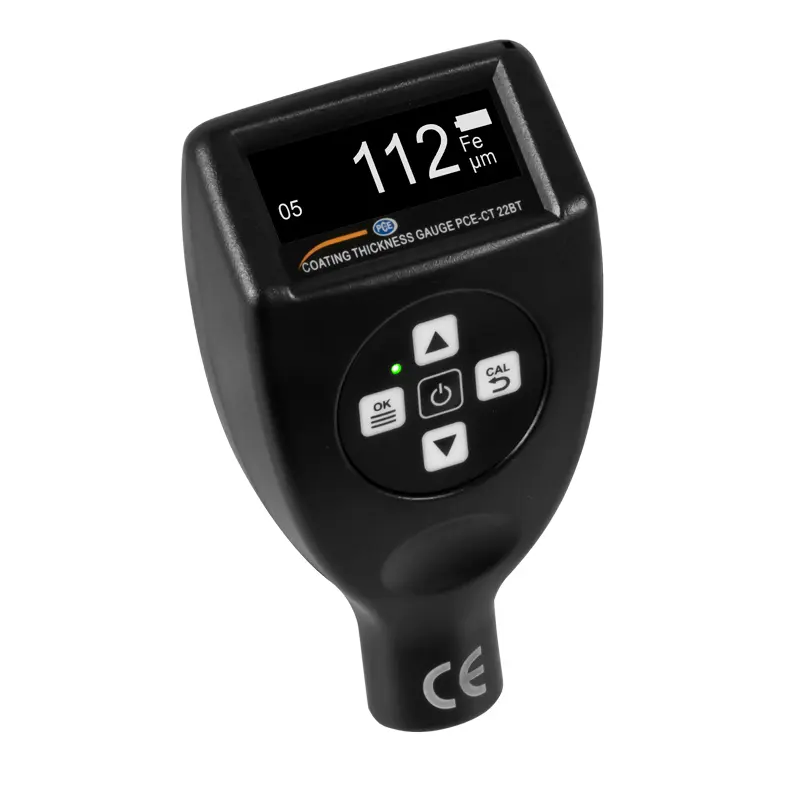

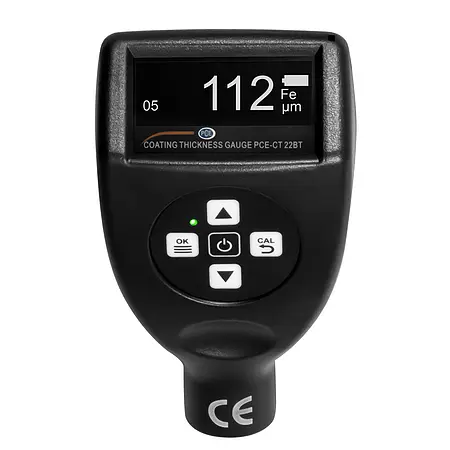

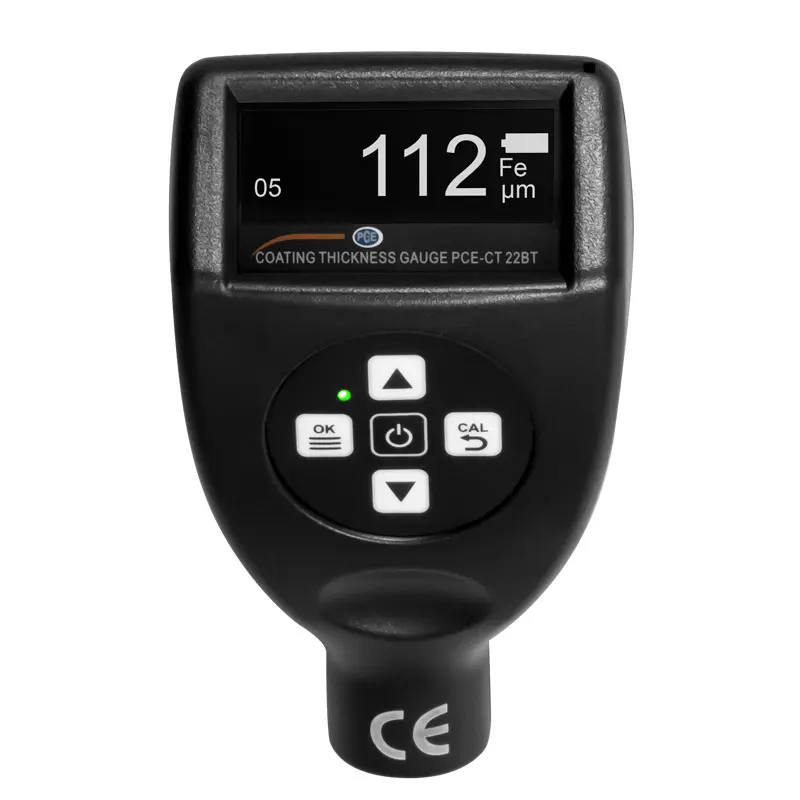

With this Coating Thickness Gauge, layer thicknesses on metallic surfaces can be reliably determined. The Coating Thickness Gauge has a measuring range of 1500 µm. This means that the Coating Thickness Gauge is used, for example, in a paint shop, for incoming goods inspection or for an expert.
With the Bluetooth interface on the Coating Thickness Gauge, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values is also possible via the free app with the Coating Thickness Gauge.

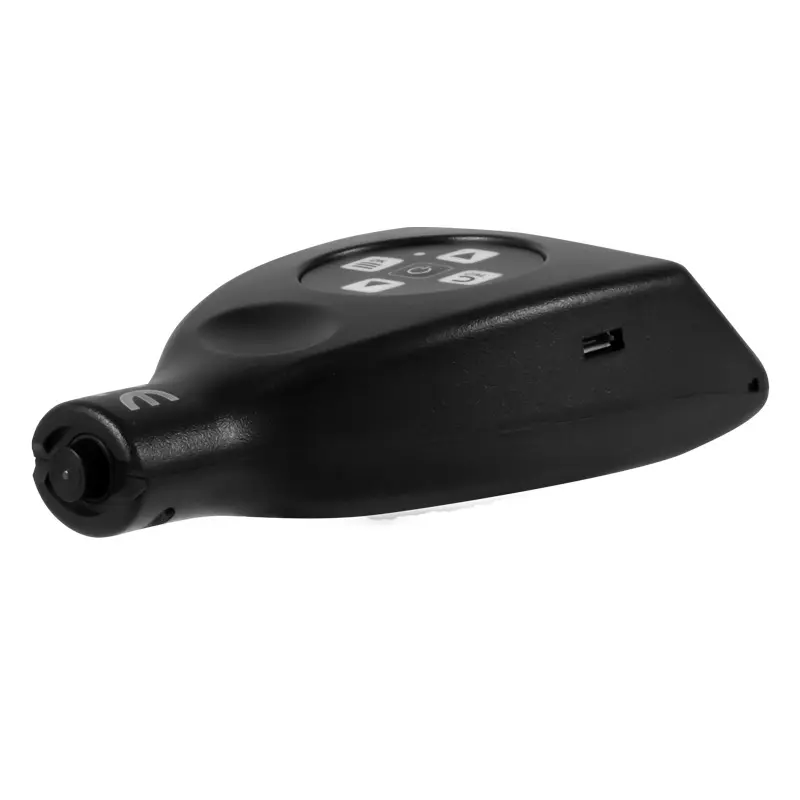

In addition to the Bluetooth interface, the Coating Thickness Gauge has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the Coating Thickness Gauge. Another special feature of this interface is that the Coating Thickness Gauge can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.
| Measurable substrates | Fe, NFe |
| Probe | internal |
| Measuring range | 0… 1500 µm |
| Resolution | 0.1 µm (in the measuring range 0… 99.9 µm) |
| 1 µm (in the measuring range 100… 1500 µm) | |
| Accuracy | ± (1 µm + 2% of the layer thickness) |
| Units | µm, mil |
| Smallest curvature | convex 5 mm, concave 5 mm |
| Smallest measuring area | 10 x 10 mm |
| Minimum thickness of the substrate | 0.4 mm |
| Interface | Bluetooth, micro USB |
| Memory | 10 groups with 60 measurements each |
| Power supply | 2 x 1.5 V AA batteries, 5 V USB interface |
| Environmental conditions | -10… 50 °C, 10… 85% RH |
| Dimensions | 126 x 69 x 35 mm (without sensor) |
| Weight | approx. 97 g (without batteries) |
