Air Flow Meter CWR 1

Order no.: CWR 1

GTIN (EAN):

Accessory

Dual Mounting Arm PCE-CW-T2

114,90 €

Description

Compact air flow meter with 4 … 20 mA output

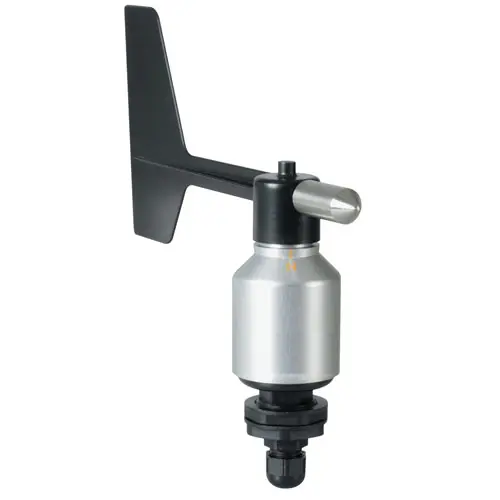

Compact air flow meter for weather monitoring. Basic wind vane meter with 4 … 20 mA output. Wind sensor with 4 … 20 mA output. Measurement of the horizontal wind direction with an analogue output signal. The vanes of the wind sensor are manufactured from synthetic material and the housing is made of anodized aluminium. For mounting purposes, the device is supplied with a threaded spigot (Page 21) with two fixing nuts.

Highlights

- Simple wind transmitter
- 12 m / 39 ft connection cable
- Easy assembly
- 4 … 20 mA output

Specification

Technical Specification
Output	4 … 20 mA
Measurement range	0 … 360°
Accuracy	11.25°
Load	max. 80 m/s short-term
Load	500 Ohm at 15 V operating voltage
Power supply	9 … 30 V AC / DC max. 50 mA
Assembly	on mast tube
Heating	max. 24 V DC/AC, max. 20 W
Ambient temperature	-25 … +60°C / -13 ... 140 °F (in ice-free conditions)
Cable	12 m; LiYY 6 x 0.25 mm²
Protection class	IP54
Weight	approx. 500g / 17. 6 oz
Approval	UL

Delivery Scope

1 x Air Flow Meter CWR 1
1 x Data Sheet
