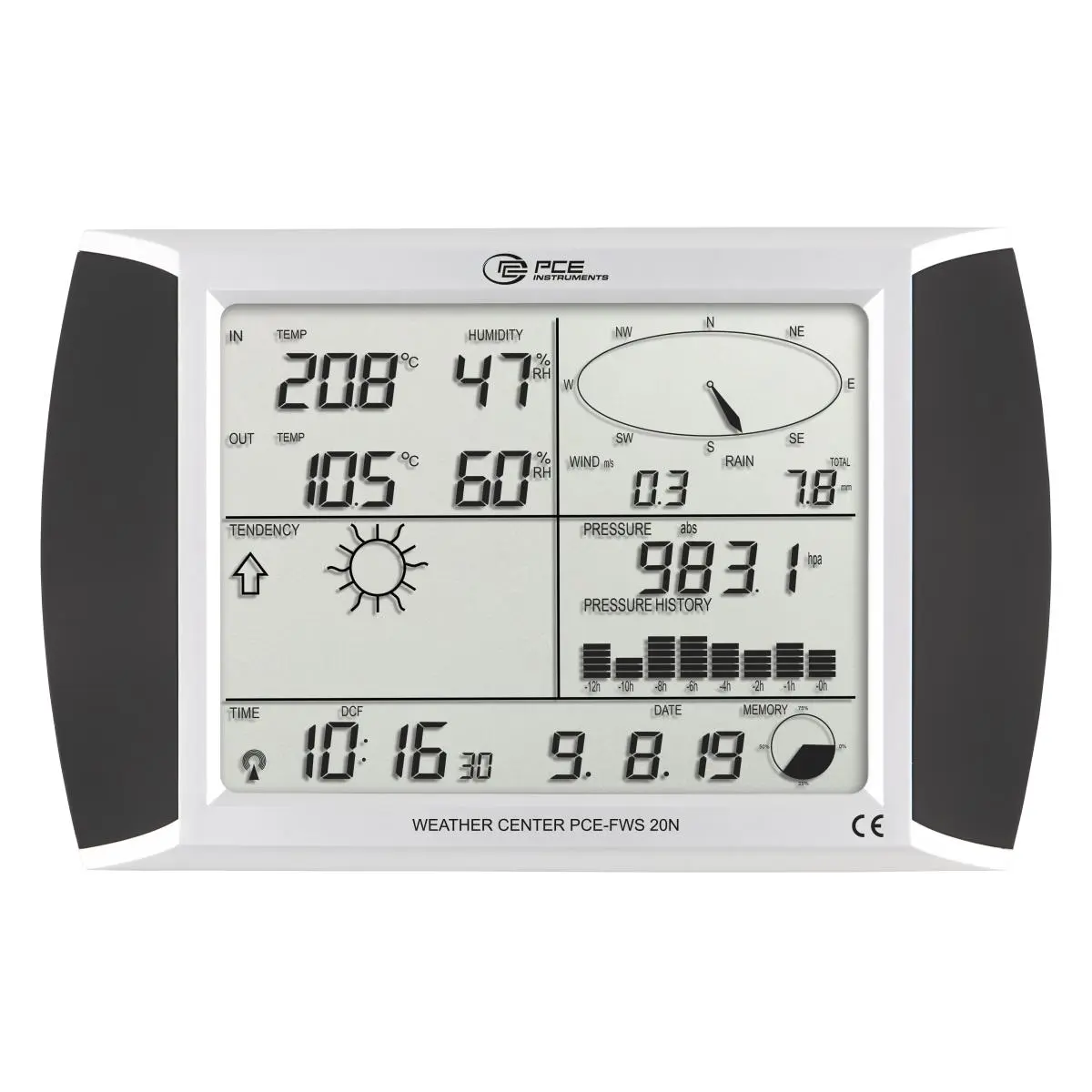

Air Flow Meter Station PCE-FWS 20N-2

Order no.: PCE-FWS 20N-2
GTIN (EAN): 4250348722140
270,90 €
322,37 €
price ex. (VAT / delivery)
:
4250348722140
PCE-FWS 20N-2
Delivery time: 1-2 working days
Home area

Description

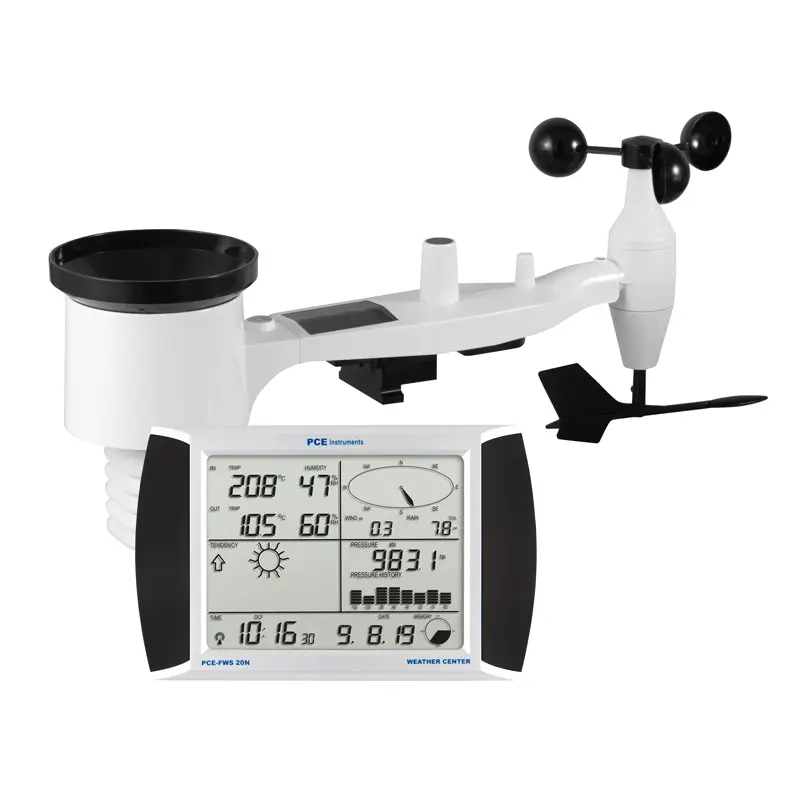

Radio air flow meter station to determine the wind direction, wind speed, temperature, relative humidity and rainfall / Adjustable alarm functions / USB interface / Analysis software / Solar module and batteries for powering the transmitter / Transmission frequency: 868 MHz

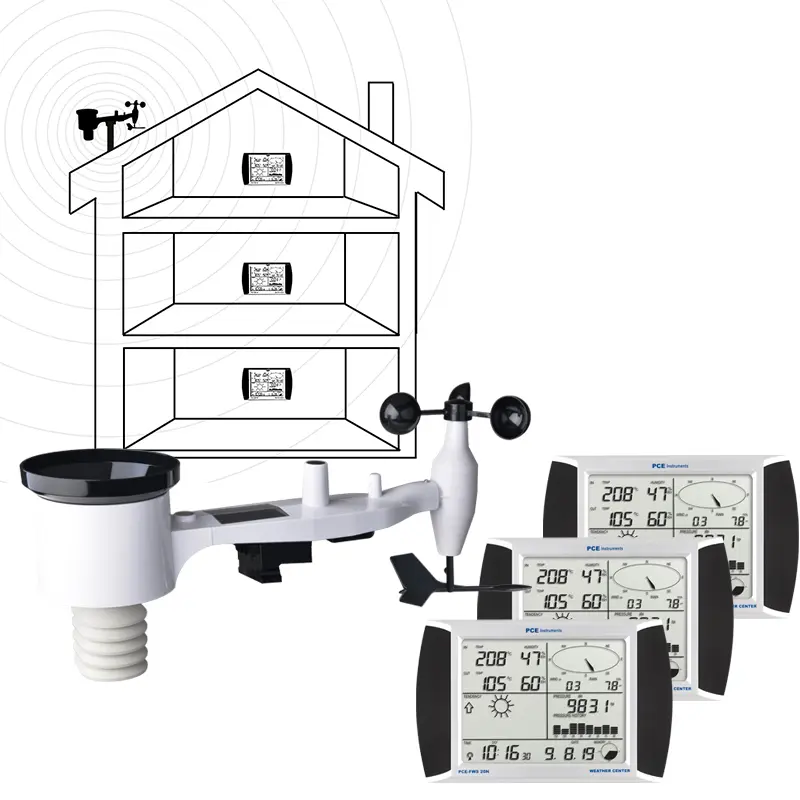

This wireless air flow meter station is a true all-rounder that leaves little to be desired. Whether at home or in the office, the wireless weather station will delight the operator with its versatility. This weather station allows accurate recording of wind direction, wind force, temperature, relative humidity and rainfall. This is just a small selection of the possibilities this weather station offers. In addition, the operator has the possibility to activate various alarm functions on the wireless weather station (wind speed, air pressure, ...). With the help of the values displayed on the weather station, the user can, amongst other things, decide which clothes are appropriate, or whether the garden must be watered, and much more. The weather data is sent up to 100 meters by radio signal to the main station.

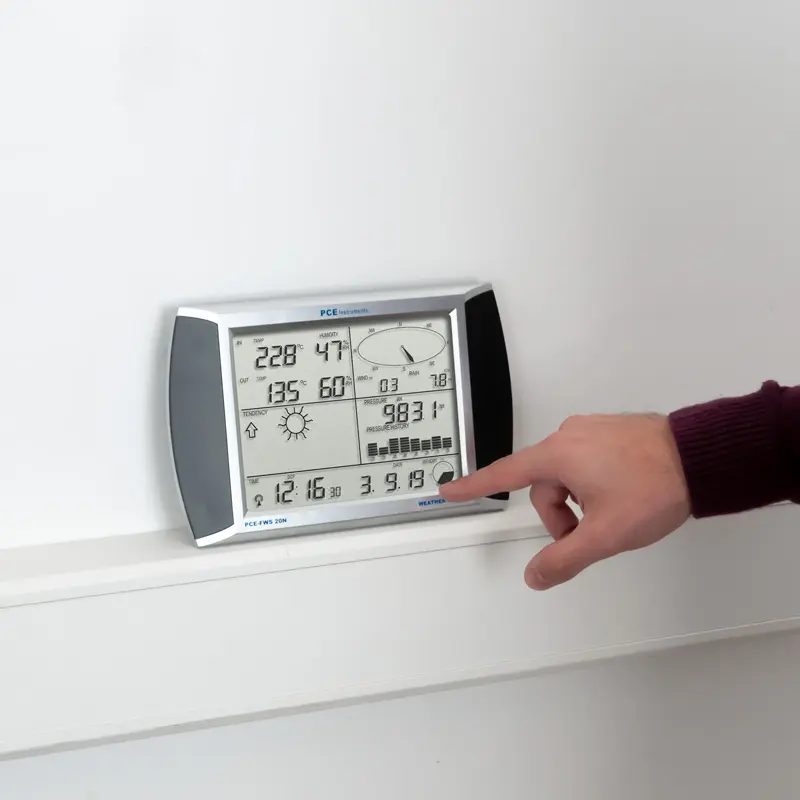

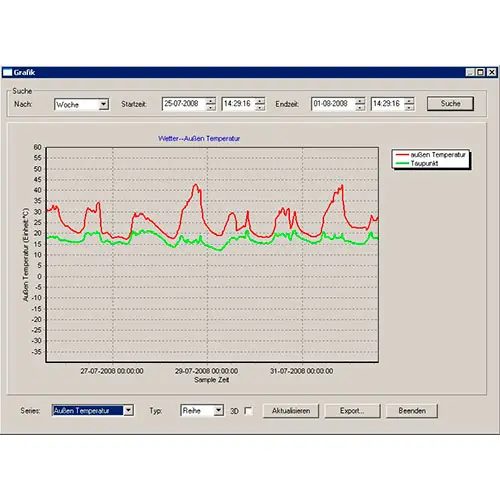

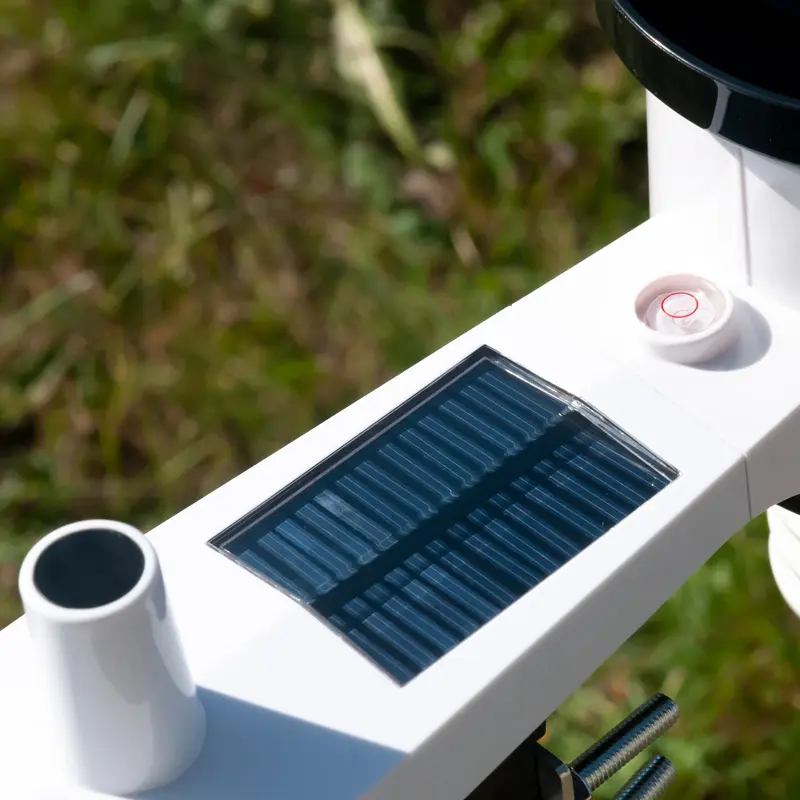

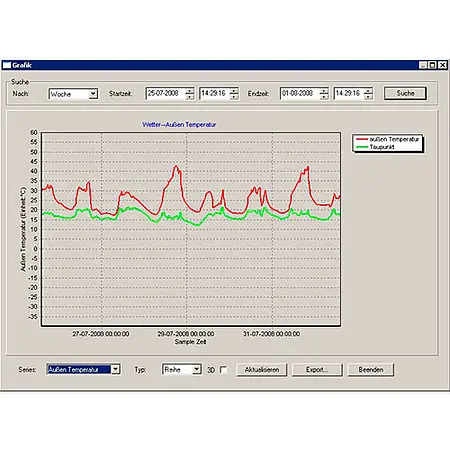

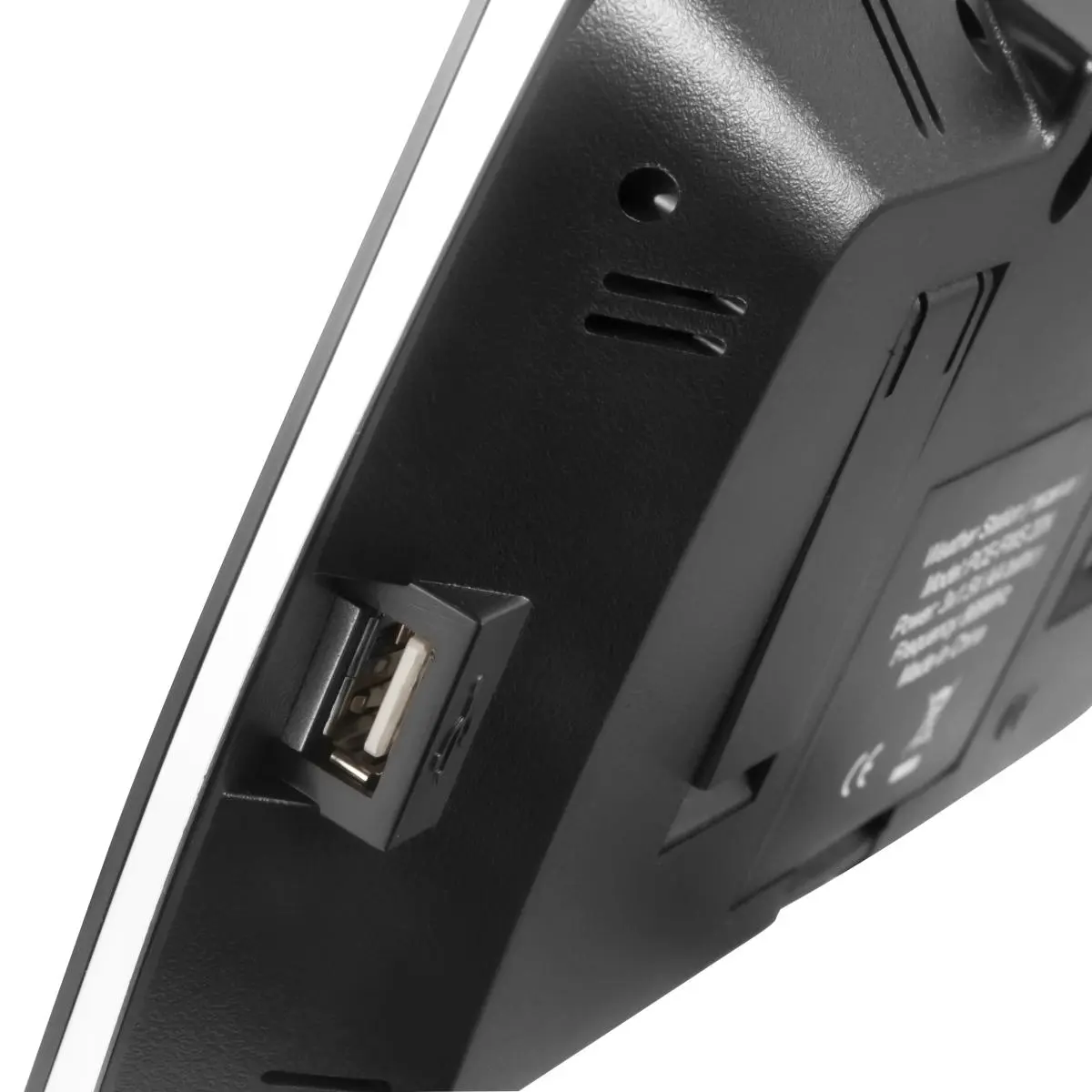

The wireless air flow meter station is equipped with the latest technology in weather analysis. The transmitter is powered by a solar panel and the batteries. With the newly developed touch screen display, the weather data can be easily accessed directly from the wireless weather station by simply tapping on the display. With the USB interface and the included USB cable, the weather data can be transmitted directly from the wireless weather station to a PC or laptop. These data are all provided with a time / date stamp in order to be able to assign them even after a longer period of time. Here the weather data can be stored indefinitely. The supplied analysis software then allows you to observe and compare the weather over a longer period of time using graphs and graphics. Everything the user needs for commissioning and use of this wireless weather station is included in the delivery.

Highlights

- Software for analyzing the stored data
- Backlit 7 inch touch screen
- Weather forecast function
- Automatic time setting thanks to DCF
- Adjustable alarms when the measured value is exceeded
- Wind direction and wind speed
- Temperature and humidity display
- Solar panel on the outdoor unit to the supply

Specification

Inside
Measuring function
Air temperature
Measuring range Resolution Accuracy
0 ... +50 °C 0.1 -
32 ... 122 °F

Measuring function
Rel. Humidity
Measuring range Resolution Accuracy
1 ... 99 % 1 % -

Measuring function
Air Pressure

Measuring function Resolution Accuracy
300 ... 1100 hPa 0.1 hPa ± 3 hPa
8.85 ... 32.5 inHg 0.01 inHg

Measuring interval: 48 seconds
Alarm time: 120 seconds

Outside
Measuring function
Air temperature
Measuring range Resolution Accuracy
-40 ... 60 °C 0.1 ±1 °C
-40 ... 140 °F

Measuring function
Rel. Humidity
Measuring range Resolution Accuracy
1 ... 99 % 1 % ±4 % within
20 ... 80 %
    ±6 % within
20 ... 80 %

Measuring function
Rainfall
Measuring range Resolution Accuracy
0 ... 9999 mm 0.3 mm at <1000 mm ±6 %
  1 mm at >1000 mm

Measuring function
Wind speed
Measuring range Resolution Accuracy
0 ... 50 m/s 0.1 ±1 m/s at <5 m/s
0 ... 100 mph   ±10 % at >5 m/s

Reception range 100 m, 300 feet
Frequency: 868 MHz (Europe)
Measuring interval: 48 seconds
Protection class: IP X3

Other specifications
7 inch touchscreen
Backlit illuminated display
Setting the time manual and automatic (DCF 77)
Power supply display 3 x 1.5 V AA
Power supply outdoor module 2 x 1.5 V AA
Dimensions display 230 x 150 mm
Dimensions outdoor module 400 x 117 mm
Weight display ca. 551 g
Weight outdoor module ca. 545 g

Display
- Indoor temperature in Celsius or Fahrenheit
- Outside temperature in Celsius or Fahrenheit
- Indoor humidity
- Outdoor humidity
- Air pressure gauge in inHg or hPa
- Absolute or relative air pressure display selectable
- Precipitation indication in mm or inch
- Rain gauge 1 hour, 24 hours, 1 week, 1 month, since the last reset
- Dew point temperature display
- Weather forecast
- Weather forecast trend display
- Storm warning
- Display of weather data
- Programmable alarms for different weather conditions
- Storage of the minimum and maximum values of the received weather data
- Wind speed in mph, km/h, m/s, knots or Beaufort selectable
- Wind direction indicator
- Wind chill temperature display (sensed temperature)
- LED backlight
- Battery life of the weather station about 1 to 2 years
- Radio clock
- 12 or 24 hours display
- Calendar
- Time zone adjustable
- Power saving function

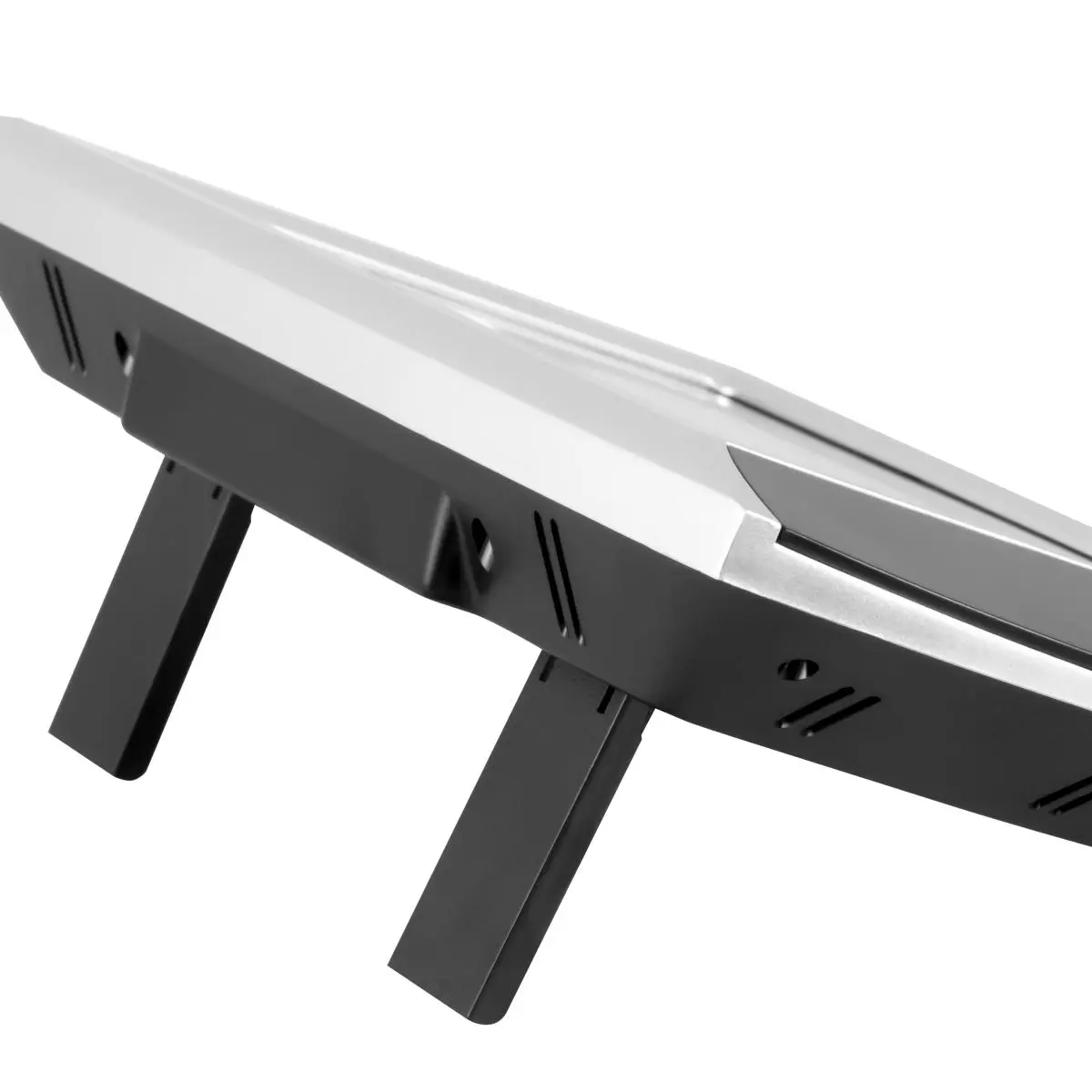

- The weather station display can be used as a wall model or stand model
- Permanent adjustment of weather data and radio clock signal
- Ring memory for 4080 complete weather records
(adjustable storage interval 5 to 240 min)

Adjustable alarm functions on the weather station
- Humidity inside max. alarm
- Temperature inside max. alarm
- Humidity outside max. alarm
- Temperature outside max. alarm
- Wind chill max. alarm
- Dew point max. alarm
- Air pressure max. alarm
- Wind speed max. alarm
- Wind gust speed max. alarm
- 1 hour of precipitation max. alarm
- 24 hrs precipitation max. alarm
- Humidity inside min. alarm
- Temperature inside min. alarm
- Humidity outside min. alarm
- Temperature outside min. alarm
- Wind chill min. alarm of the weather station
- Dew point min. alarm
- Air pressure min. alarm

Storable measured values via the weather station (with time / date)
- 1 hour of precipitation max.
- 24 hours of precipitation max.
- Week precipitation max.
- Month precipitation max.
- Humidity inside min.
- Temperature inside min.
- Humidity of the weather station outside min.
- Temperature outside min.
- Wind chill temperature min.
- Dew point temperatur min.
- Weather station air pressure min.
- Humidity inside max.
- Temperature inside max.
- Humidity of the weather station outside max.
- Temperature of the weather station outside max.
- Wind chill temperature max.
- Dew point temperature max.
- Air pressure max.
- Wind speed max.
- Wind direction
- Gusts of wind speed max.

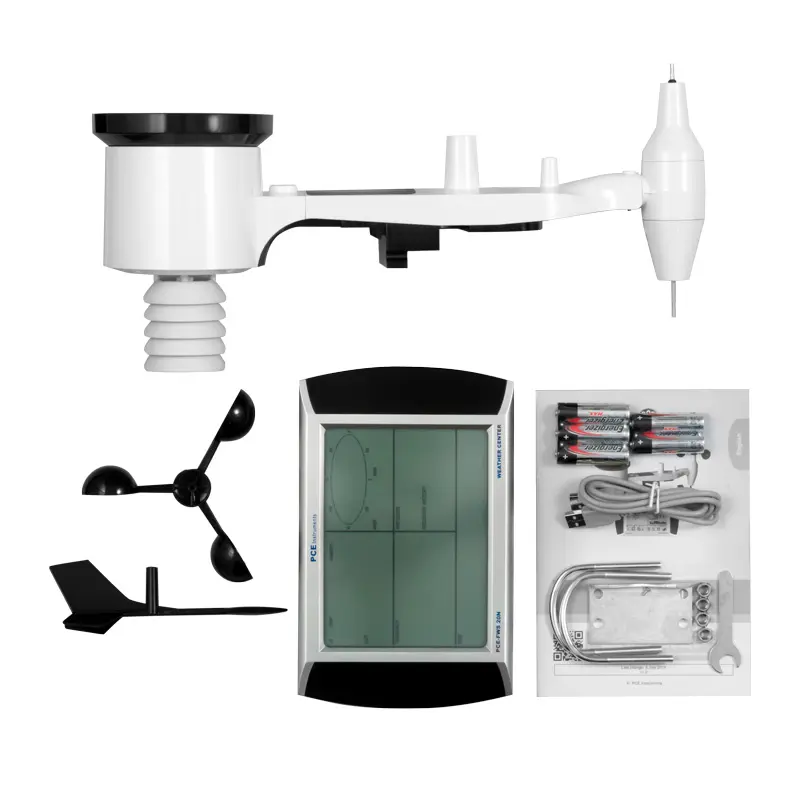

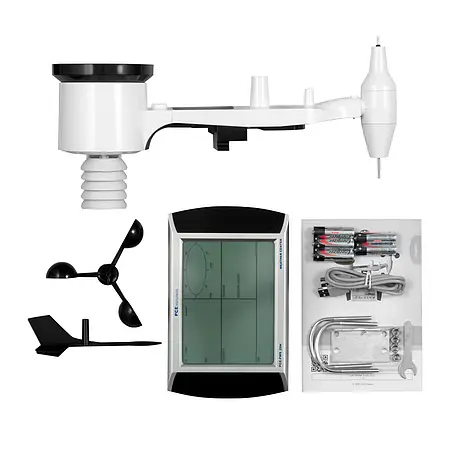

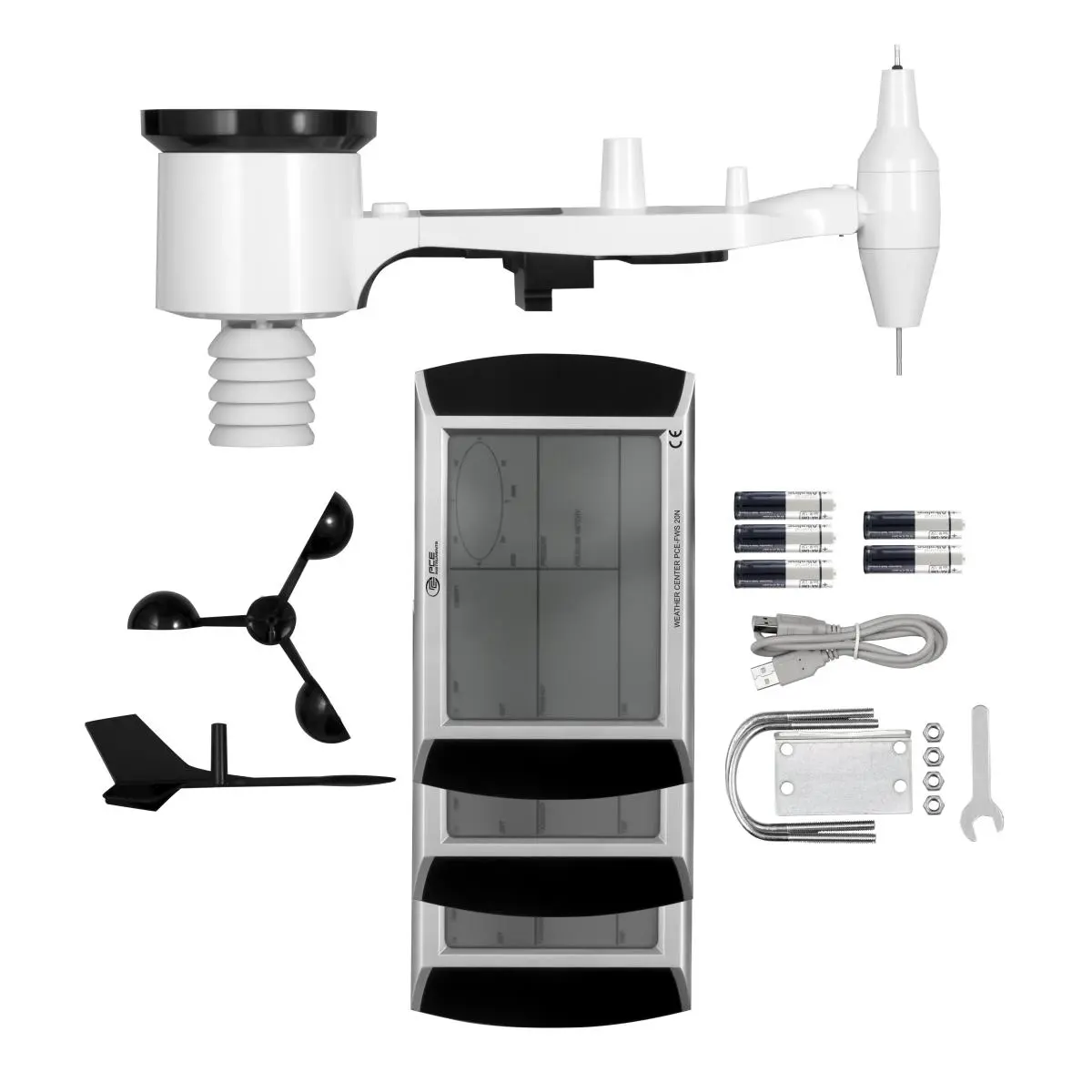

Delivery Scope

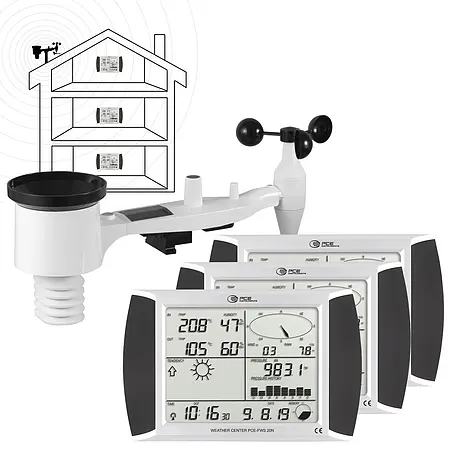

1 x Air Flow Meter Station PCE-FWS 20N with 3 touchscreen displays
1 x Transmitter
1 x Temperature sensor
1 x Humidity sensor
1 x Solar module
5 x 1.5 V AA batteries
1 x Rain sensor
1 x Wind speed sensor
1 x Wind direction sensor
1 x USB connection cable (approx. 1 m / 3.2 ft)
1 x Weather analysis software
1 x Instruction manual
