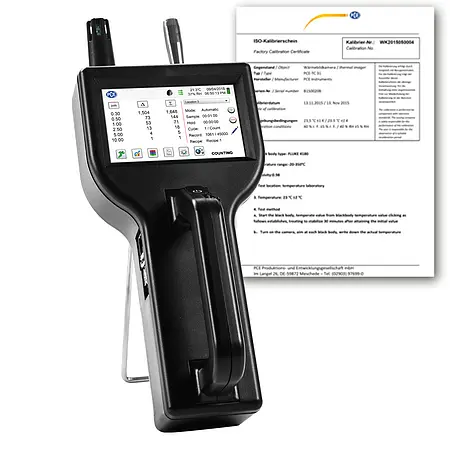

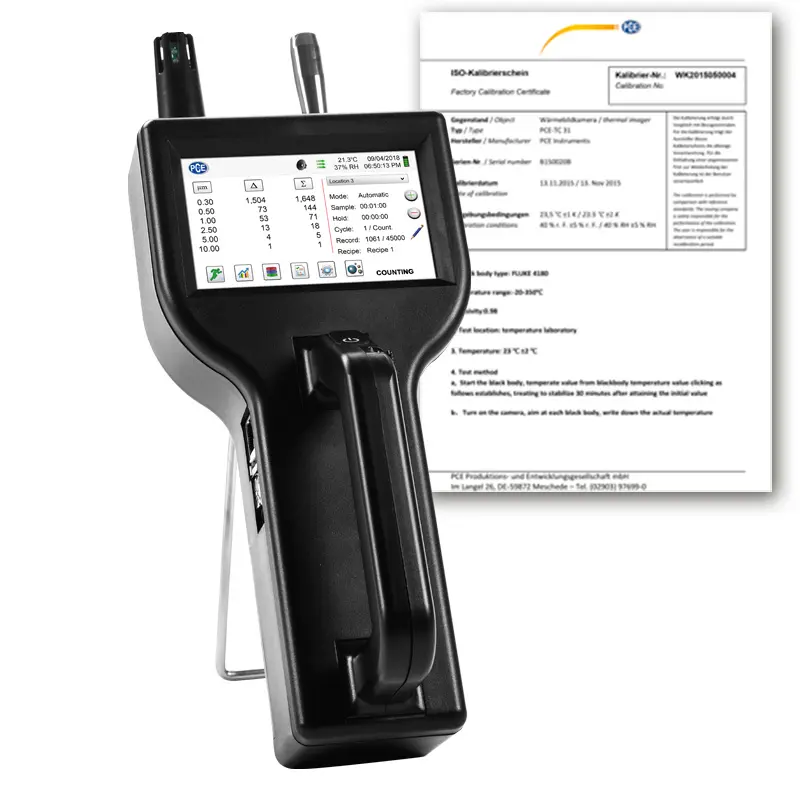

Air Quality Meter PCE-PQC 13EU Incl. Calibration Certificate

Order no.: PCE-PQC 13EU
GTIN (EAN): 4250348720368
2.956,90 €
3.518,71 €
ISO Calibration
price ex. (VAT / delivery)
:
4250348720368
PCE-PQC 13EU
Delivery time: 10 - 14 days

Description

Air Quality Meter PCE-PQC 1xEU series incl. calibration certificate
Measurement of particle sizes up to 25 μm / Up to 3 parallel measuring channels / Internal memory / Reporting according to ISO 14644-1, EU GMP Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ / USB or (optional) Ethernet or (optional) Wifi connection

The particle counters of the PCE-PQC 1xEU series measure the concentration of particles such as dust, soot, pollens and many other aerosols in the air. To accurately determine the degree of pollution of the air, the particle counters were developed. Pollution is mainly generated by combustion, material processing, manufacturing, power generation, vehicle engine emissions and the construction industry. With the help of the PCE-PQC 1xEU series particle counters the exact amount of dirt particles in the air can be measured.

Of greater importance is the degree of pollution of the air with pathogenic particles such as soot, which are released by the industry and especially by diesel vehicles without special filtering in the air. Such dispersion particles are responsible inter alia for reduced visibility, the inhalation of toxic substances and thus reduced labor productivity. It has also been known for some time that the particles also make a not inconsiderable contribution to many medical diseases such as asthma, bronchitis, skin and lung diseases. The particle counters are designed for easy and quick use. The particle counters of the PCE-PQC 1xEU series operate in different modes (real-time, cumulative, differential, mass concentration, ...) and display the results on the display,

Highlights

- Internal memory
- Particle sizes up to 25 μm
- Color display
- Handy
- 3 measuring channels
- ISO 14644-1, EU GMP Annex I, FS 209E
- Mass concentration
- USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Specification

Measuring range 0.5 ... 25 μm
Measuring channel sizes Factory calibrated at 0.5, 1.0, 5.0 μm
Counting efficiency 50% at 0.3 μm 100% at > 0.45 μm according to JIS

Flow 2.83 l / min (0.1 ft3 / min)
Random loss 5% at 4,000,000 particles / ft³
Battery 10 h
Light source Long-life laser diode
Zero count < 1 count / 5 min (< 2 particles / ft³)
  According to ISO 21501-4 and JIS
Counting modes Automatic, manual, real-time, cumulative /
  Differential, mass concentration
Alarms 1 ... 9999999 counts, adjustable
Calibration Traceable to NIST

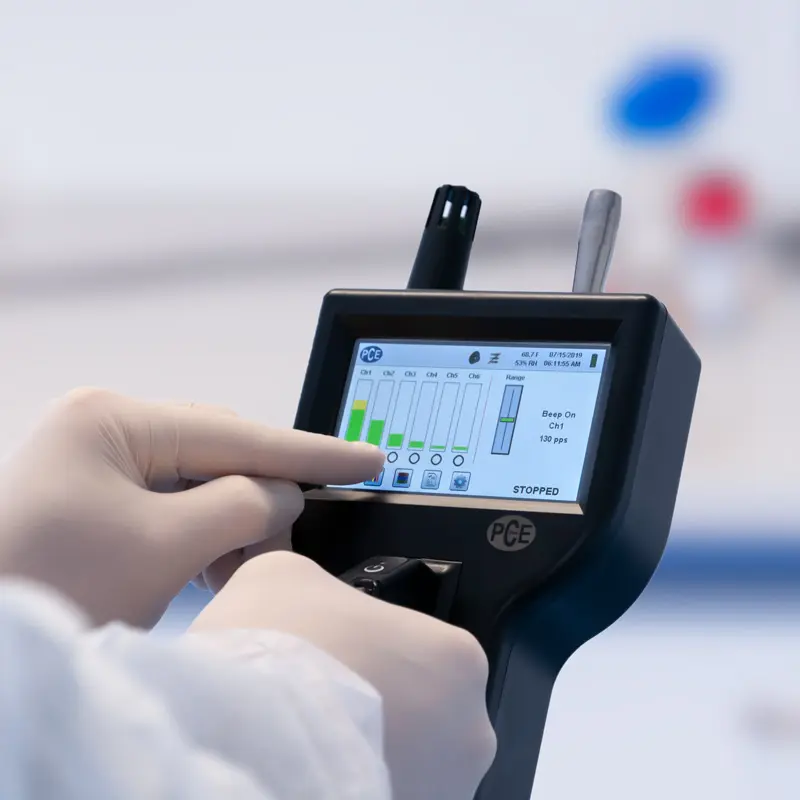

Display 4.3" WQVGA color touch display, 480x272 px
Printer External thermal printer
Aspiration Internal pump with automatic
  Flow control
Air outlet Internal HEPA filter
Battery pack Replaceable Li-Ion battery
Charging time About 4 hours
Reports ISO 14644-1
  EU GMP Annex 1
  FS 209E
Configuration Memory for 50 custom configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 25.4 x 12.9 x 11.4 cm
Weight 1.0 kg
Storage 45000 data sets (ring memory) consisting of
  Particle count, temp and humidity, locations and times
Sample locations Up to 1000 locations can be stored
Samples duration 1 s ... 99 h adjustable
Power supply 110 ... 240V AC 50/60 Hz
Operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH not condensing
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH not condensing

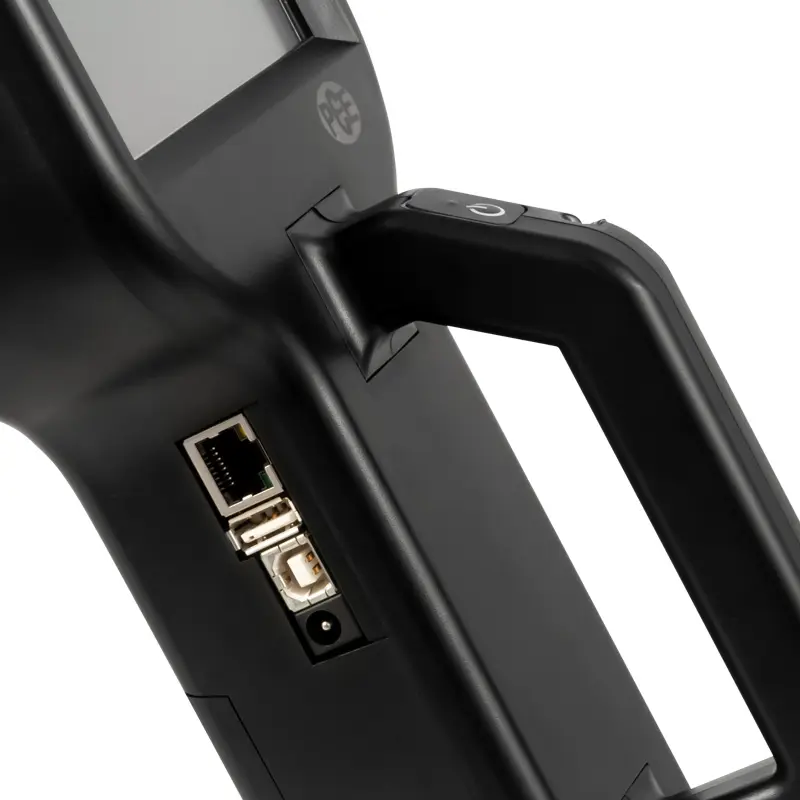

Interface USB
Optional interfaces Ethernet, WiFi 802.11 b/g, RS485 or RS232
Number of measuring channels           3

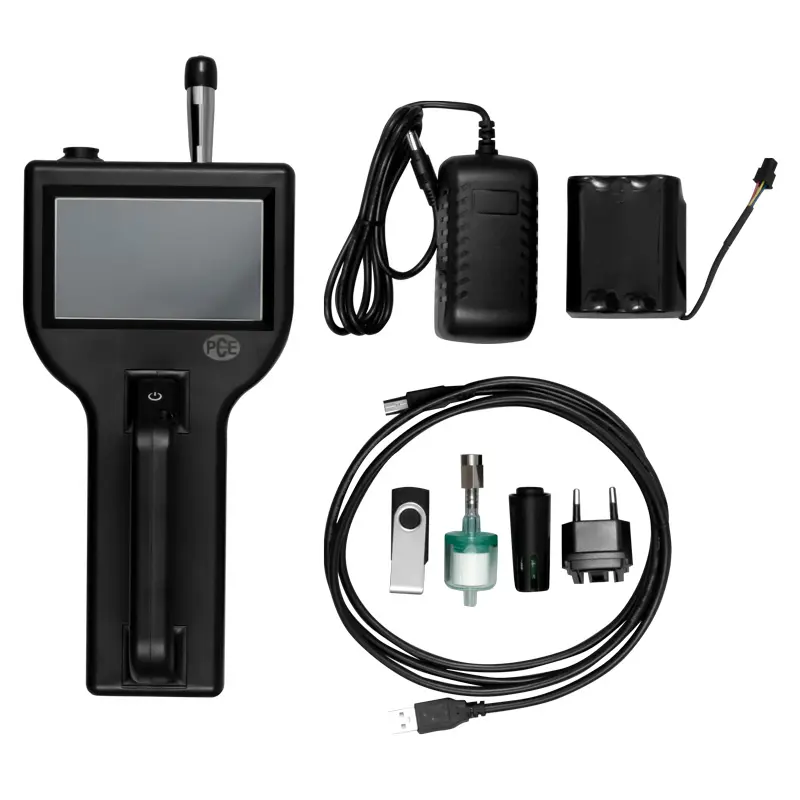

Delivery Scope

1 x Air Quality Meter PCE-PQC 13EU

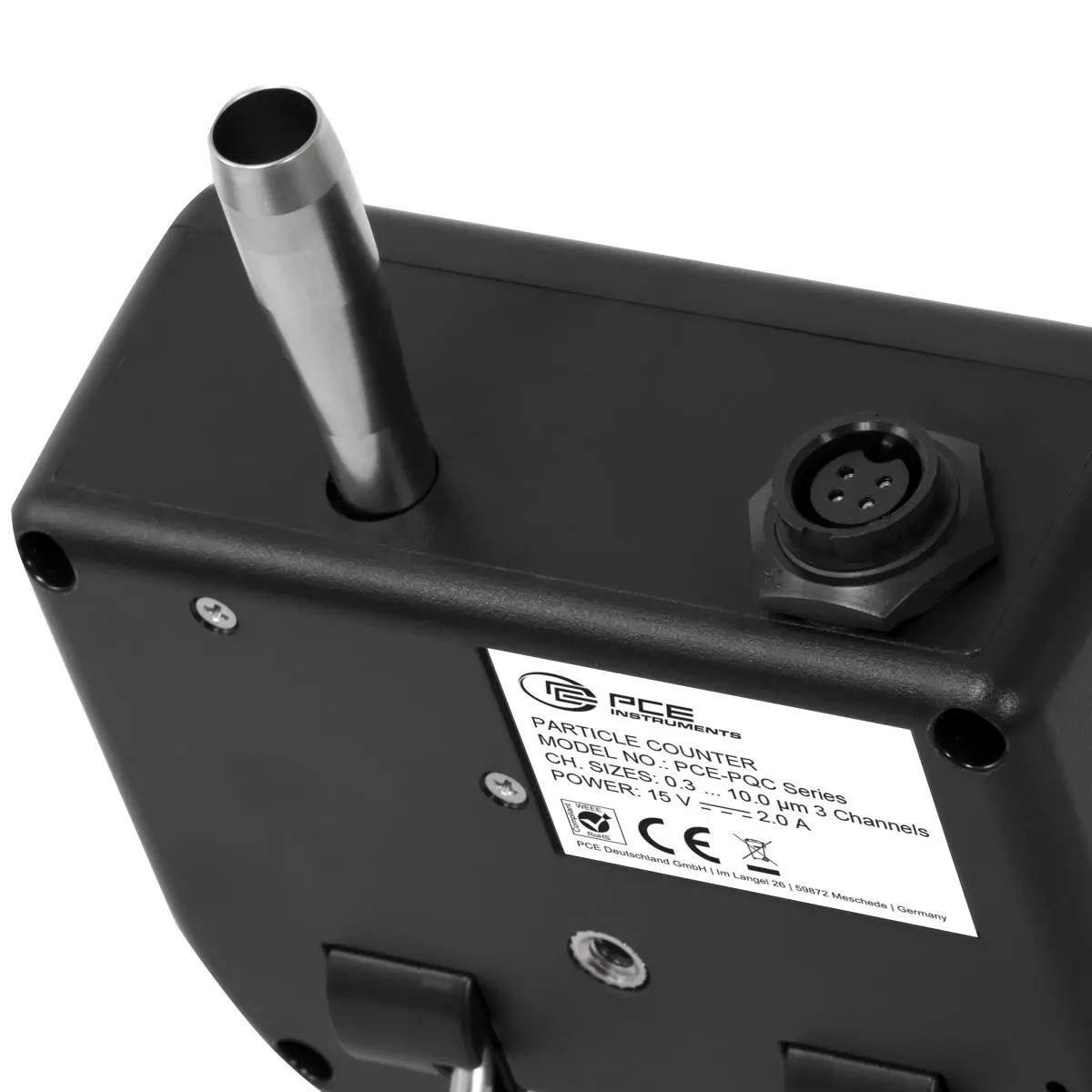

1 x Isokinetic probe
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
