Air Quality Temperature Humidity Meter PCE-G1

Order no.: PCE-G1

GTIN (EAN): 4250348702746

Accessory

ISO Calibration Certificate for PCE-G1

172,90 €

ISO Calibration Certificate for Temperature and Humidity

159,90 €

Calibration Certificate for humidity

151,90 €

Description

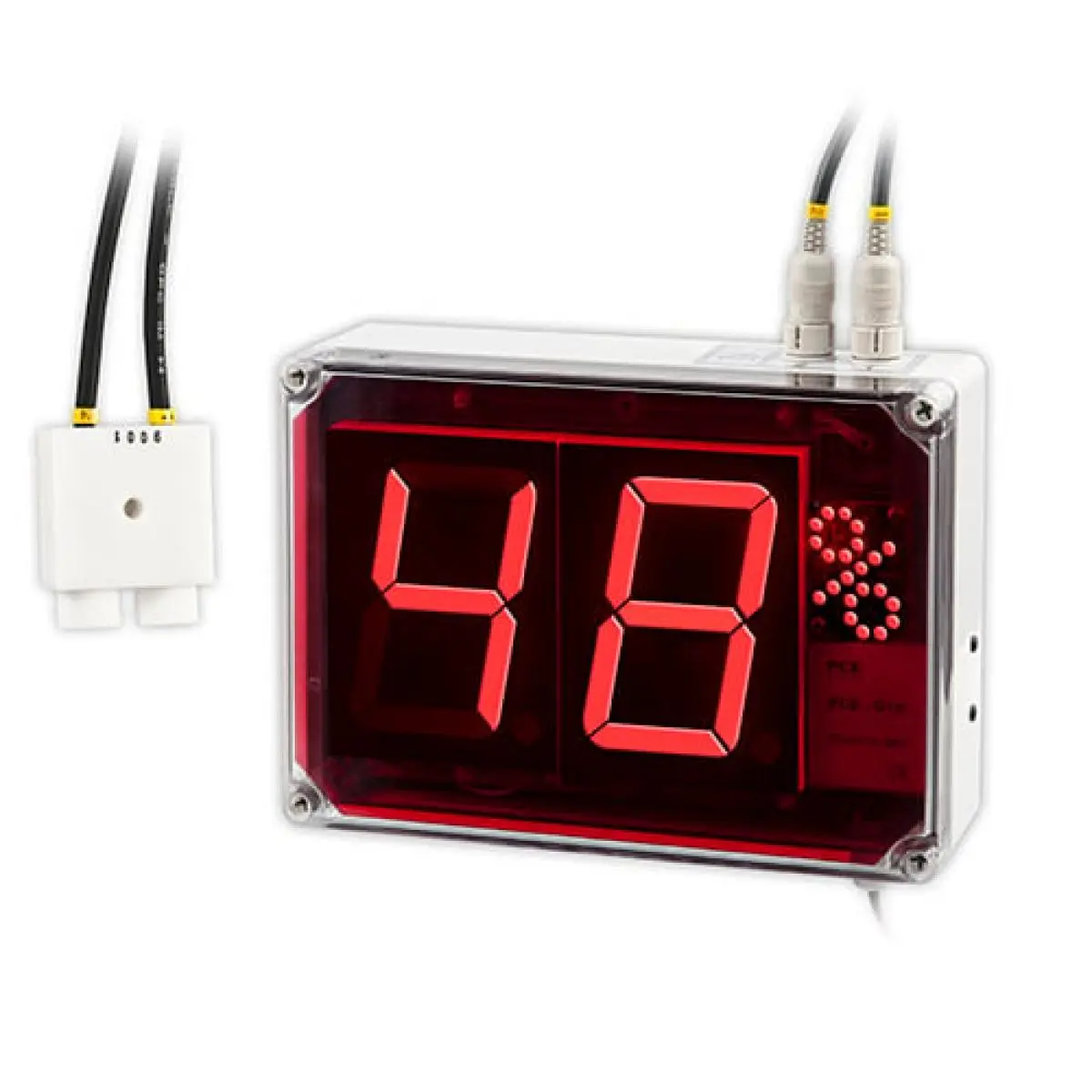

Air Quality Temperature Humidity Meter PCE-G1 for relative humidity and temperature with
a large display (values can be read up to 50 m)

The air quality temperature humidity meter is intended for stationary measurement of relative humidity and temperature and direct display on a large display. This large display consists of a large monochrome display and is protected according to IP 54.

The measured variables are displayed alternately: relative humidity (2 s) and temperature (2 s). The sensors of the humidity and temperature meter are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.

Highlights

- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm tall LED digits
- External sensor
- Temperature and relative humidity values are displayed every 2 seconds (in 2-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy

Specification

Technical specifications
Measurement ranges relative humidity / temperature	10 to 95% r.h. / 0 to 60°C
Resolution relative humidity / temperature	1% r.h. / 1°C
Accuracy relative humidity / temperature	±2% r.h. / 1°C
Visible distance	can be read from 50m away
Sensor type relative humidity / temperature	capacitive / PT1000
Response time T₉₀	approx. 4 seconds
Cable length (between sensor and display)	1 meter
Display	100mm high LED (alternates values)
Port	RS-232
Power	110V to 230V / 50 to 60Hz
Dimensions	Sensor: 50 x 70 x 20mm Display: 175 x 250 x 75mm
Protection	IP 54
Weight	1.3kg (with sensor and cable)

Delivery Scope

1 x Air Quality Temperature Humidity Meter PCE-G1
1 x Sensor for temperature and humidity with connection cable (in selected configuration)
1 x Mains power cable
1 x Instruction manual
