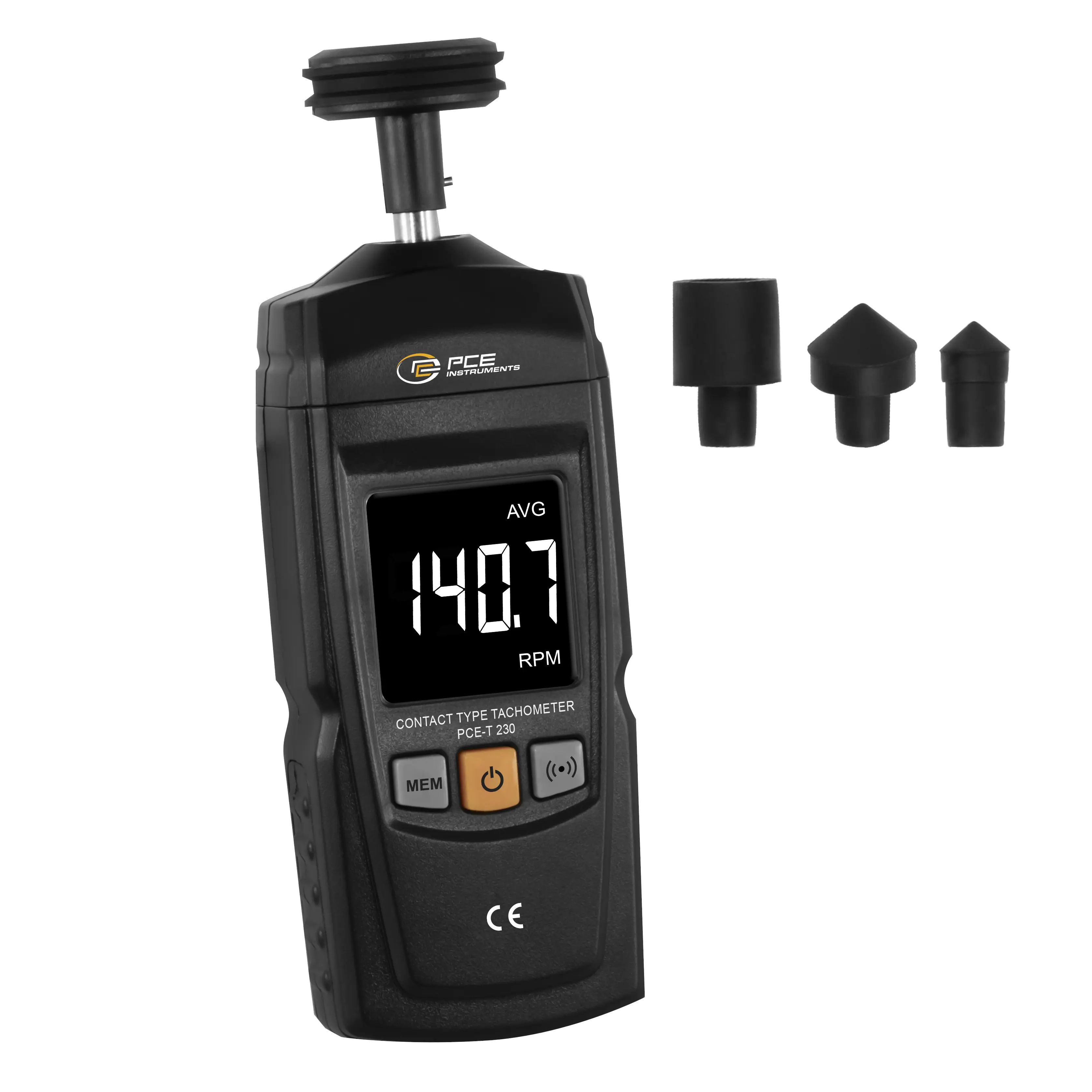

Our Automotive Tester with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Automotive Tester delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.
The Automotive Tester has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Automotive Tester fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

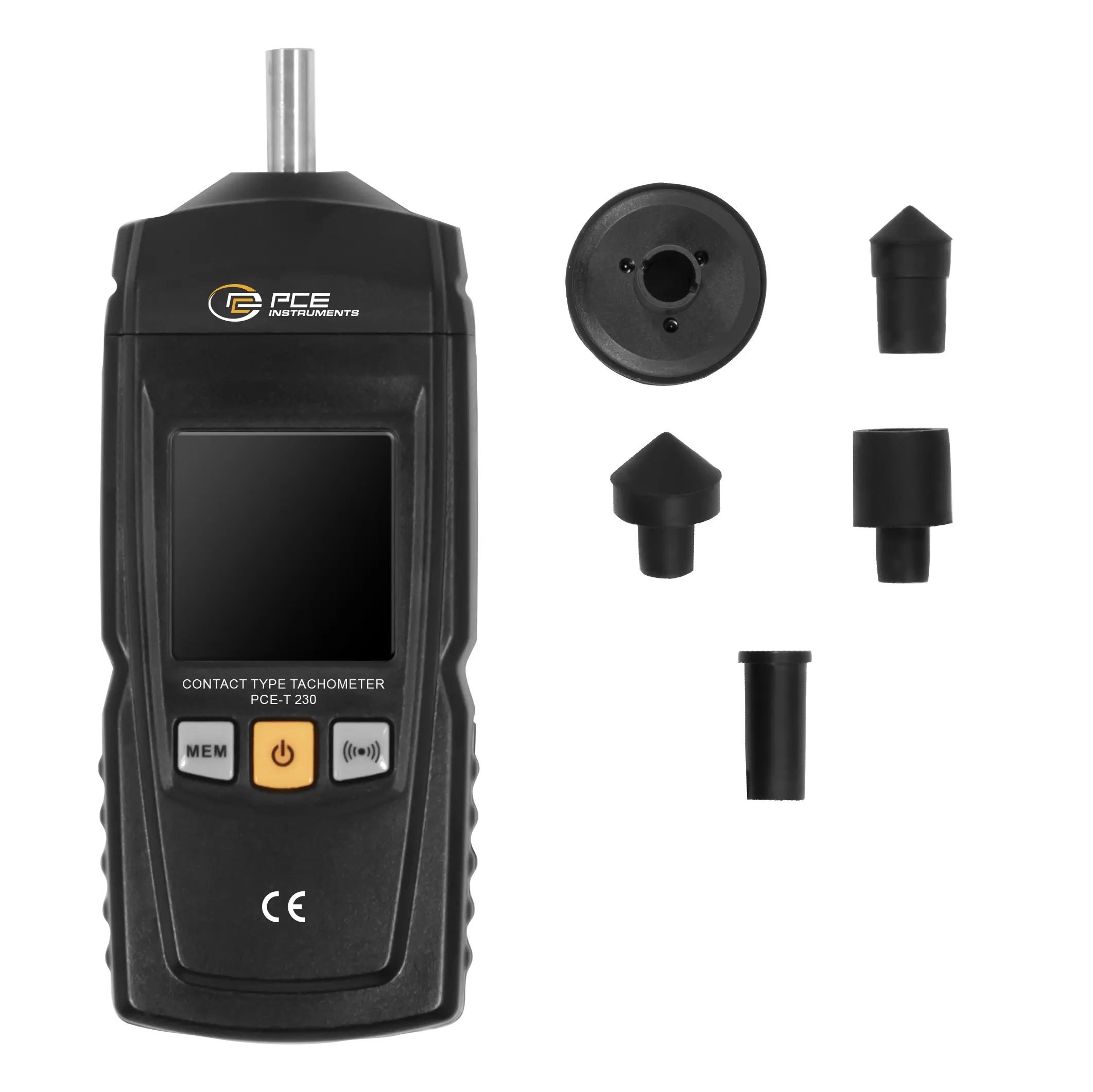

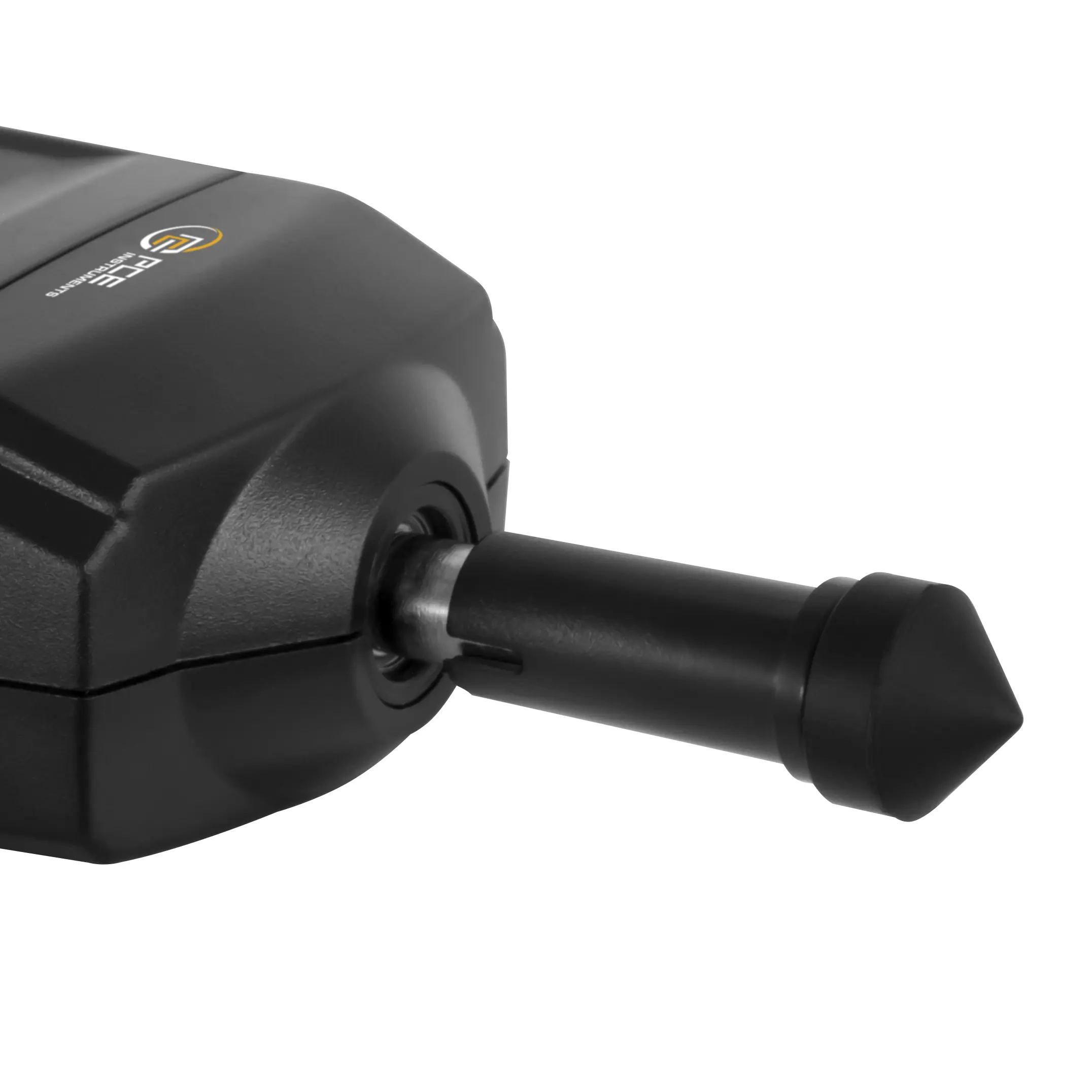

In addition to the Automotive Tester, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.
Optical speed | |
Measurement range up to | 0,5 ... 9999 RPM |
Resolution | 0,1 RPM |
Accuracy | 0.05 % of Rd + 1 digit |
Optical speed | |
Measurement range up to | 1000 ... 19999 RPM |
Resolution | 1 RPM |
Accuracy | 0.05 % of Rd + 1 digit |
General technical data | |
Measuring functions | MIN, MAX, LAST, AVG |
Units | ft/min, m/min, RPM |
Display type | LCD |
Display size | 1,8 Inch |
Measuring rate | 0,8 s |
Automatic power-off | 60 s |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Weight | 110 g |
Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
Storage conditions | -10 ... 80 °C , 10 ... 75 % RH |

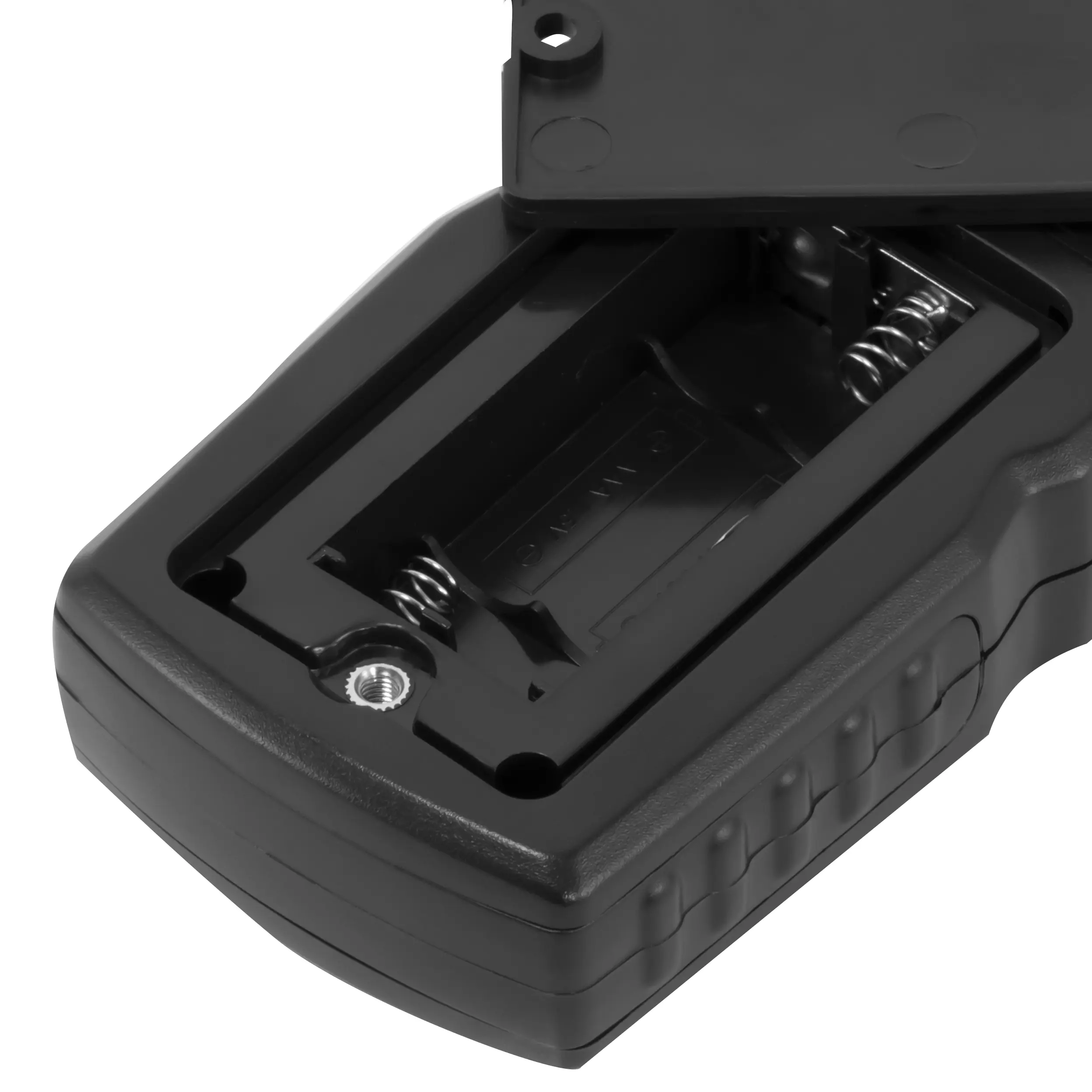

(Rechargeable) battery | 2 x 1,5 V AAA battery , Zinc carbon |
Capacity | 400 mAh |
Dimensions ( L x W x H ) | 144 x 51 x 30 mm |
