Price excl. VAT &. delivery
2 year Warranty
ISO calibration certificate for belt tension measuring device.
N.B. calibration certificates are excluded from the right of return as they are customer-specific.
Measuring range |
10 ... 900 Hz |
Accuracy | ± (1% of rdg. + 4 digits) |
Repeatability accuracy |
± 1 Hz |
Resolution | <100 Hz: 0.1 Hz |
>100 Hz: 1 Hz | |
Belt length | max. 9,999 m |
Belt mass | max. 9,999 kg/m |
Sensor length | 16 cm / 6,2 in |
Memory | 750 measured values |
15 sets of 50 measuring points | |
Menu languages | German, English, Spanish, |
French, Italian, Dutch | |
Power supply |
3 x 1.5 V AA batteries |
Operating conditions | 0 ... 50 °C / 32 ... 122 °F; max. 95 % R.H. |
Storage conditions | -20 ... 65 °C / -4 ... 149 °C; max. 95 % R.H. |
Dimensions | 150 x 80 x 38 mm / 5.9 x 3.1 x 1.4" |
Weight | ca. 200 g / 7 oz incl. batteries |

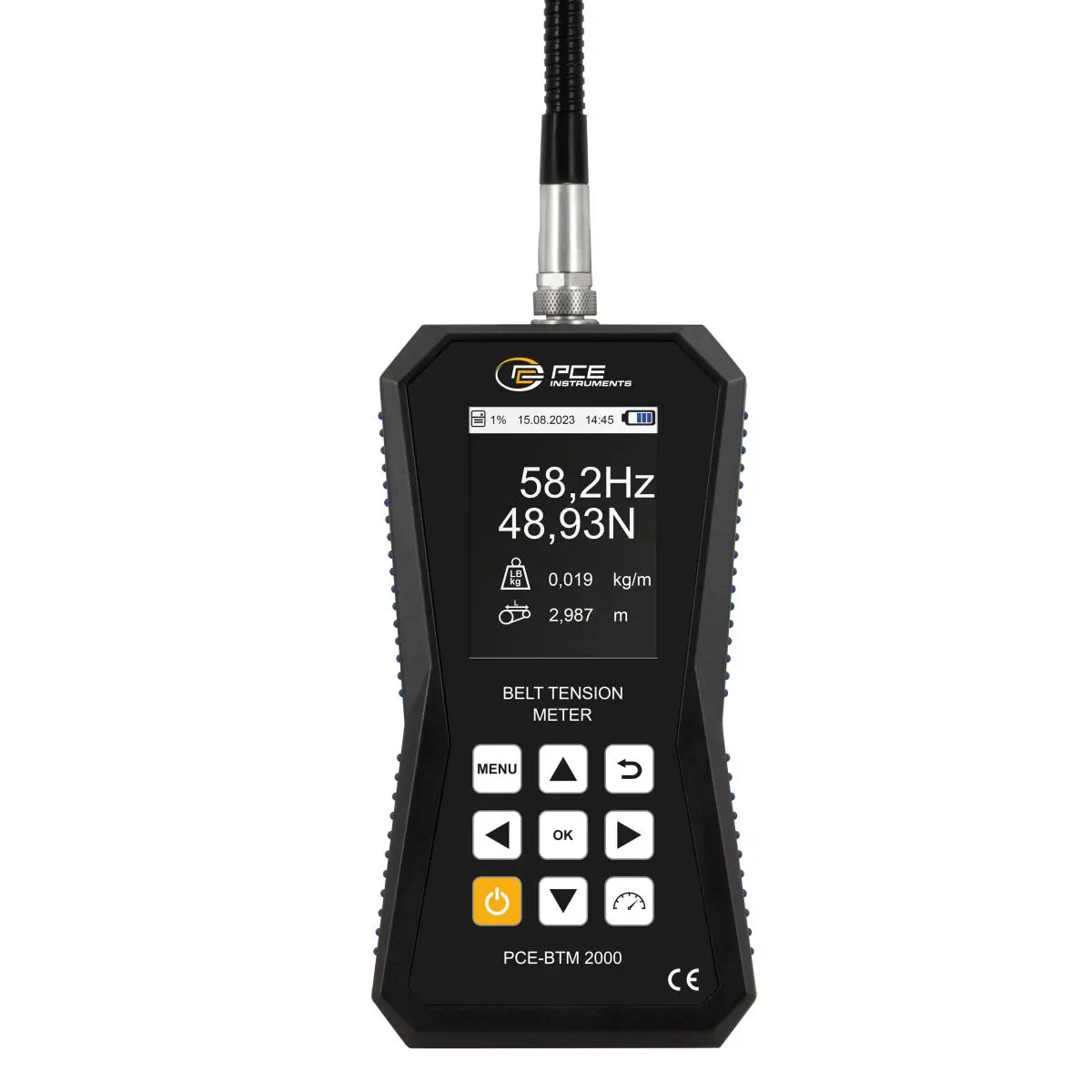

1 x Belt Tension Meter PCE-BTM 2000A-ICA
1 x Standard sensor head
1 x Magnetic holder
3 x 1.5 V AAA battery
1 x Operating instructions
1 x Carrying bag
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
ISO calibration certificate for belt tension measuring device.
N.B. calibration certificates are excluded from the right of return as they are customer-specific.
Price excl. VAT &. delivery
2 year Warranty

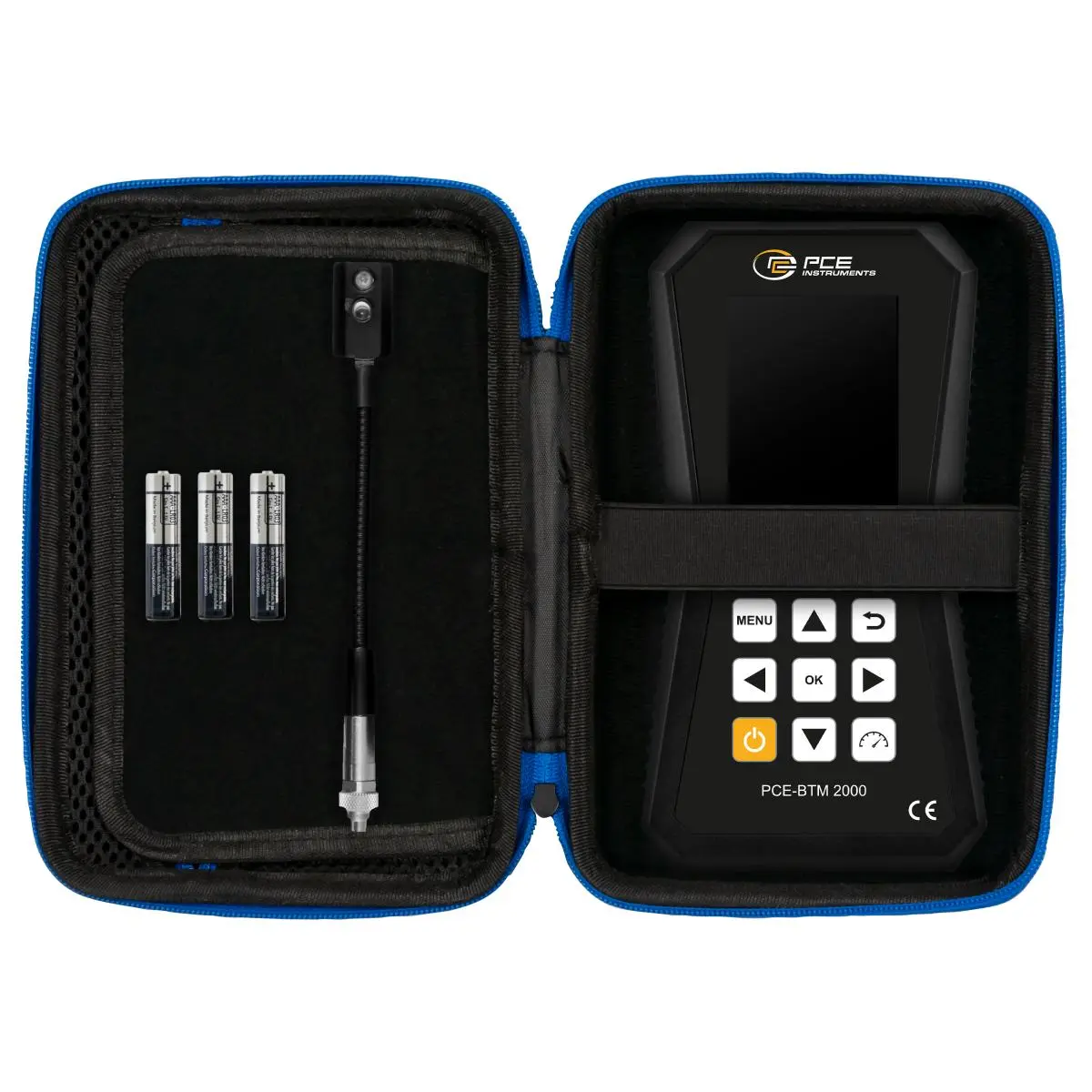

The instrument case is used for the safe storage of the PCE-BTM 2000 measuring device, the various sensors and other device accessories.
Price excl. VAT &. delivery
2 year Warranty
The optionally available PCE-BTM 2000 MALLET frequency mallet makes it easier to generate a suitable vibration on the belt to be measured. While you have the PCE-BTM 2000 measuring device fixed with the magnetic holder in an easily legible position near the belt, you can comfortably carry out a measurement with the gooseneck sensor and at the same time attach the belt with the other hand.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty

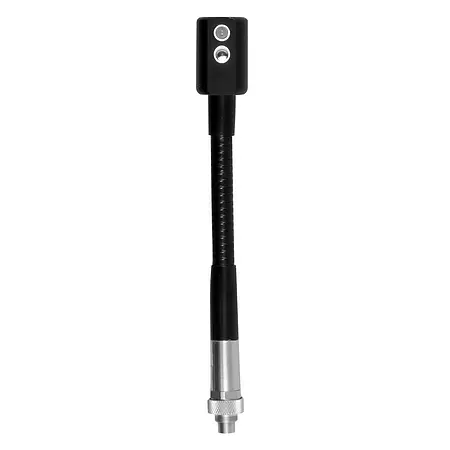

In order to be able to reach measuring points that are difficult to access in built-in systems, the sensor with extra long gooseneck and spiral cable offers optimal conditions to obtain the best possible measurement results.
Sensor head length: 250 mm
Price excl. VAT &. delivery
2 year Warranty
A tripod is recommended to ensure the accurate collection of measurement data. This tripod:
