171,90 €
Digital, electrical, current, voltage or process calibrator, tester or multimeter for simulation and measurement of standardized electrical signals / control signals as well as frequencies and temperature

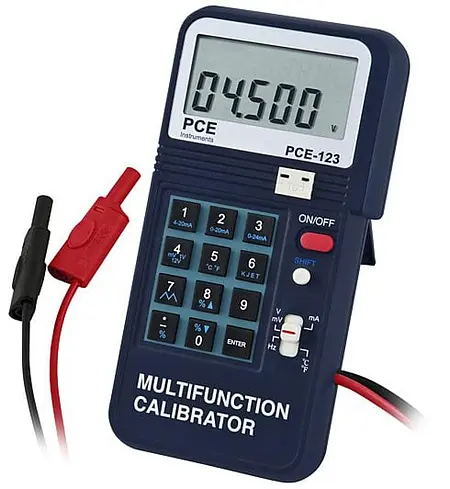

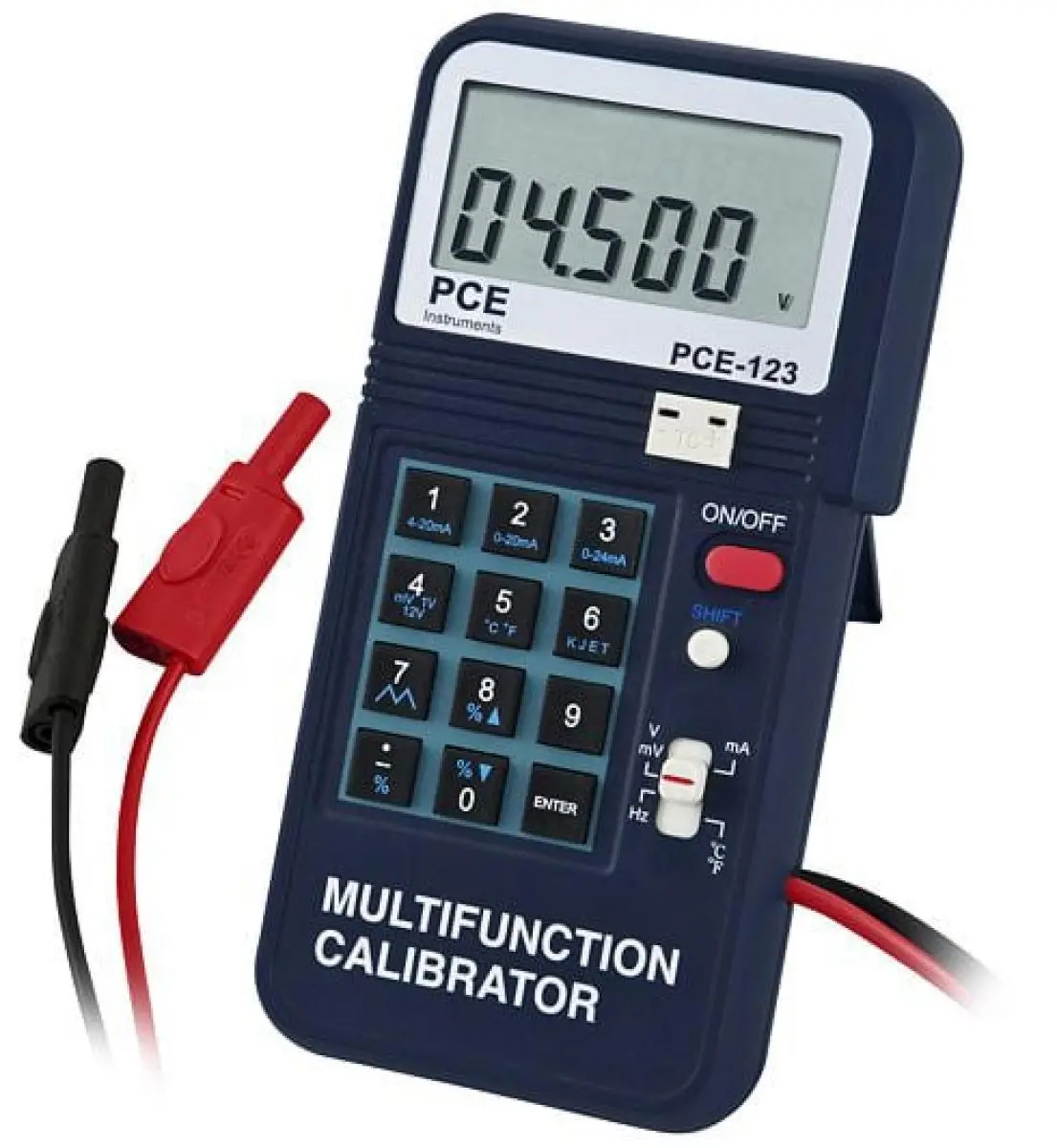

The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.
The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.
- 4 to 20mA (1kΩ, 24V power)
- 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
- Type-K, J, E, T temperature thermocouple sensors (°C or °F)
- Frequency range 1 to 62,500Hz
- Basic accuracy 0.025 %
- Easy operation via keypad
- Automatic ramp function
- Selectable between 0 to 20mA/ 0 to 24mA
- Input 0 to 100% (mA, mV, V )
- Alarm beep 'open' (mA) or 'short circuit' (mV, V)
|
mA DC current |
|
|
Ranges |
4 to 20mA / 0 to 20mA / 0 to 24mA |
|
Resolution |
1µA |
|
Accuracy |
±0.025% ±3µA |
|
Alert |
Beeps when there is a short circuit or output current > 1 mA |
|
mV current, V DC |
|
|
Ranges |
0 to 100.00 mV |
|
Resolution |
10 µV |
|
Accuracy |
± 0.05% ±30 µV |
|
Alert |
Beeps when there is a short circuit or ouput current >10mV. |
|
Thermocouple types K, J, E, T |
|
|
Ranges |
K: -200 to 0 °C and 0 to 1370 °C |
|
Resolution |
1 °C (across entire range) |
|
Accuracy |
K: ±1.1 °C and ±0.8 °C |
|
Frequency |
|
|
Ranges |
1 to 125 Hz |
|
Resolution |
1 Hz |
|
Accuracy |
±0.04 Hz |
|
Selection |
604 frequencies |
|
General specifications |
|
|
Display |
5-digit LCD |
|
Operating conditions |
0 to 50 °C; < 85 % r.h. |
|
Storage conditions |
-20 to 60 °C; < 85 % r.h. |
|
Power |
1 9 V battery or 6 x 1.5 V batteries |
|
Consumption |
60 mA to 180 mA (depending on output) |
|
Battery indicator |
5.5 V for 150 mA |
|
Approx. dimensions |
88 x 168 x 26 mm |
|
Approx. weight |
330 g |
1 x PCE-123 multifunction calibrator
1 x carrying case
1 x K-type thermocouple adapter
6 x batteries
1 x battery-pack holder
1 x set of test cables with alligator clips
1 x user manual
