Car Measuring Device PCE-VE 270HR

Order no.: PCE-VE 270HR

GTIN (EAN): 4250348722621

Accessory

Replacement Borescope Cable PCE-VE 270HR-SV-PROBE with side camera

2.870,90 €

Replacement Borescope Cable PCE-VE 270HR-2,1-PROBE extra thin

3.859,90 €

Spare Borescope Cable PCE-VE 270HR-PROBE

Replacement Borescope Cable PCE-VE 270HR-PROBE

2.499,90 €

Description

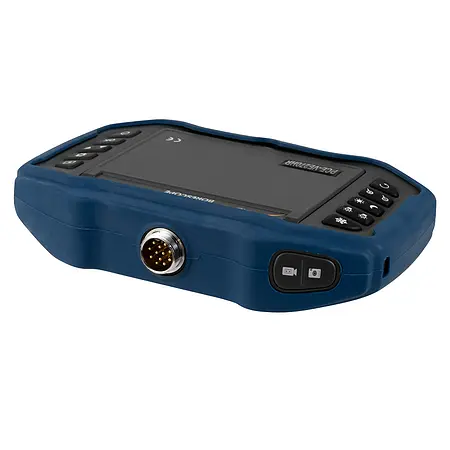

Car Measuring Device PCE-VE 270HR

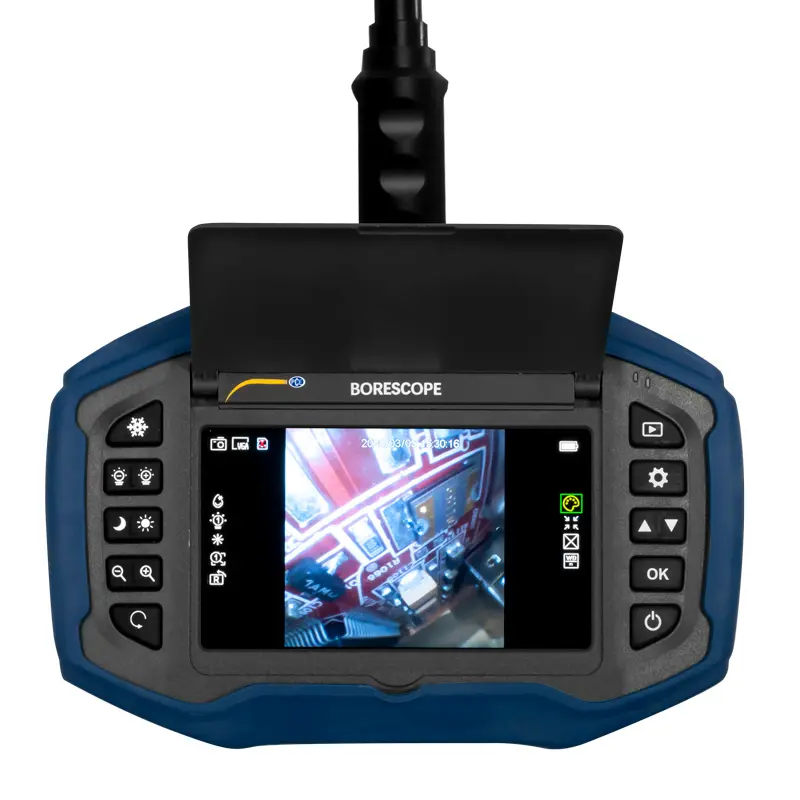

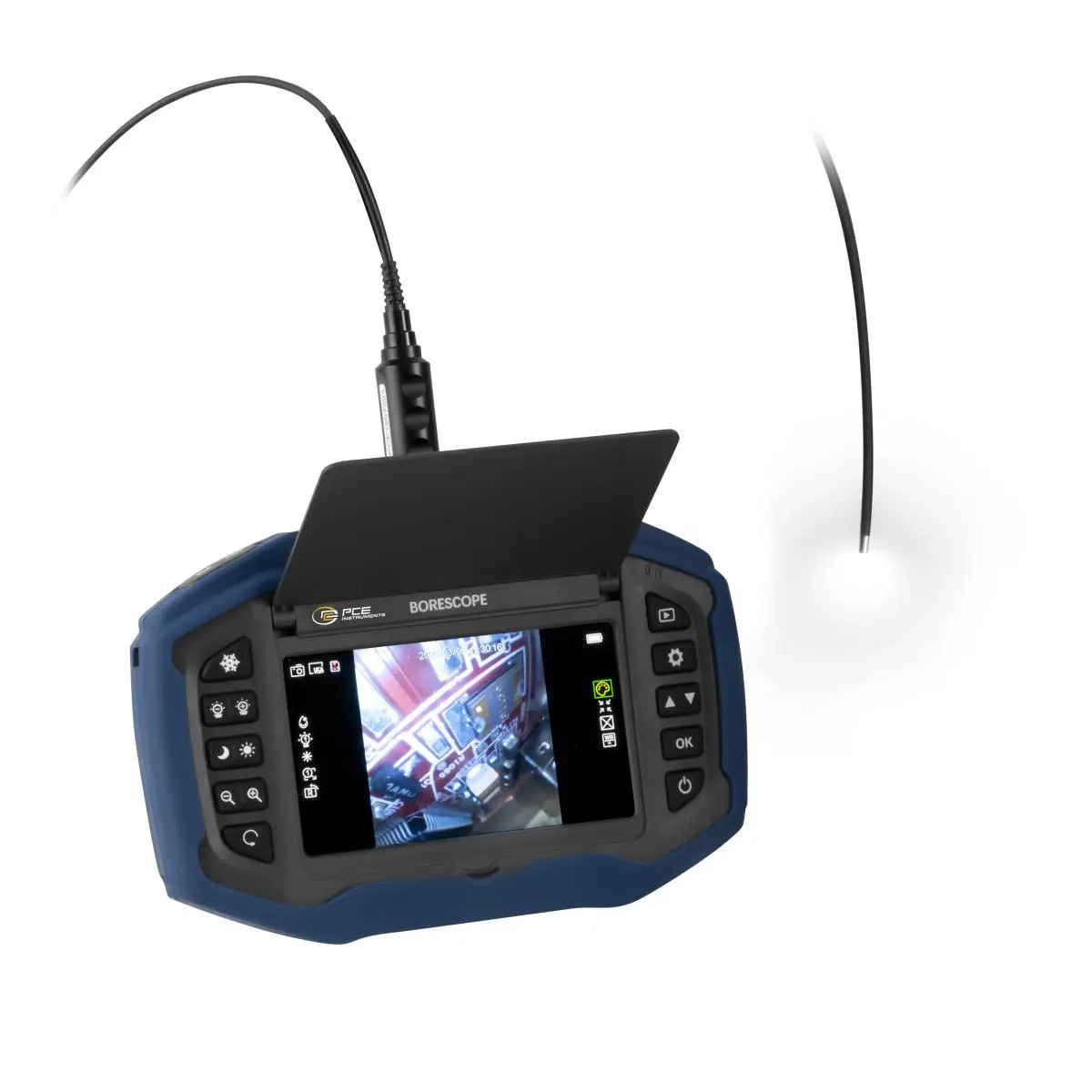

Battery-operated inspection camera with 2.8 mm (0.11 in) diameter / For inspecting motors and machine parts / Memory / HDMI output / Various camera cables

The car measuring device gives you new, visual insights into the interior of motors and systems. The inspection camera is the ideal tool for maintenance and repair in workshops or industrial companies. Optical analysis with an inspection camera has never been so easy. Guide the flexible cable through a hole or a cavity near the point to be inspected and look at everything on the display from the inspection camera. Thanks to the flexible guidance, the low weight and the excellent optics, you can use this inspection camera to identify weak spots and problem areas very easily and early and thus take preventive measures without having to carry out complex disassembly first.

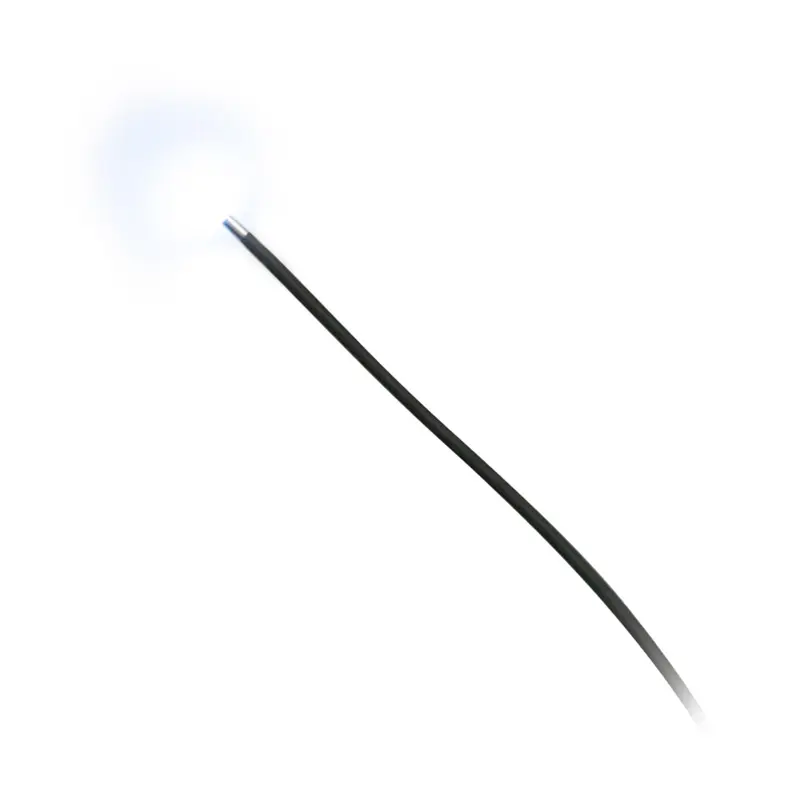

This car measuring device is extremely versatile, particularly due to the length of the flexible part (2000 mm) and the small diameter of 2.8 mm / 0.11 in. LEDs on the inspection camera illuminate the cavities. The waterproof lens and camera can also be used in liquids without hesitation. Make your daily work easier and use the inspection camera for the maintenance and inspection of your operational systems and machines. The inspection camera can be used to save images and videos for documentation on a memory card. The inspection camera can be connected to a monitor via the HDMI interface.

Highlights

- 2 m / 6.56 ft cable length

- 2.8 mm / 0.11 in cable diameter

- Storage function on micro SD card

- LED light

- 0° viewing angle

- Miniature probe cable with 90° viewing angle option

Specification

Cable length	2 m / 6.56 ft
Cable type	Flexible
Cable diameter	2.8 mm / 0.11 inch
Degree of protection	IP 67
Field of view	5 ... 50 mm / 0.2 ... 1.98 in
Field of vision	120°
Perspective	0°
Lighting	4 LEDs
Exposure	Automatically
Anti-reflective coating	Automatically
Image sensor	1/18" CMOS
Camera resolution / image sensor	400 x 400 px
Display	5" TFT screen
Interface	Micro USB, HDMI
Storage option	Image and video
Storage	Micro SD memory card
Picture format	JPEG (400 x 400 Px)
Video format	MP4 (400 x 400 Px)
Video output	HDMI
Menu navigation	German, English, Chinese, Spanish, Portuguese,
	French, Russian, Japanese, Korean
Operating and storage temperature	-10 ... 50°C / 14 ... 122°F
Power supply	3.7 V Li-ion battery, 5200-mAh
Battery life	Min. 6 h
Dimensions	200 x 130 x 58 mm / 7.9 x 5.1 x 2.3 inch
Weight	595 g / 1.3 lb
