127,90 €

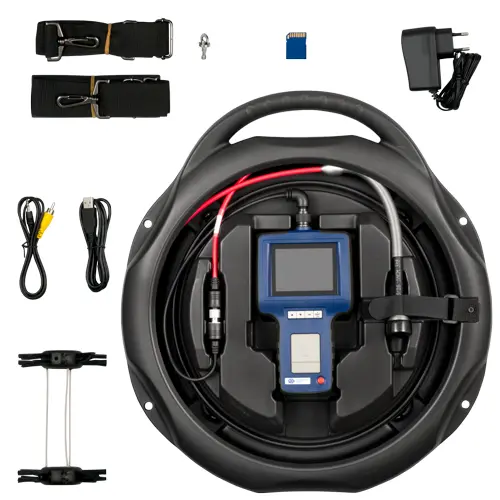

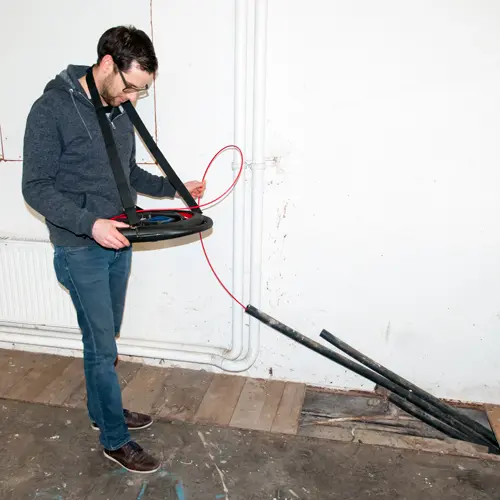

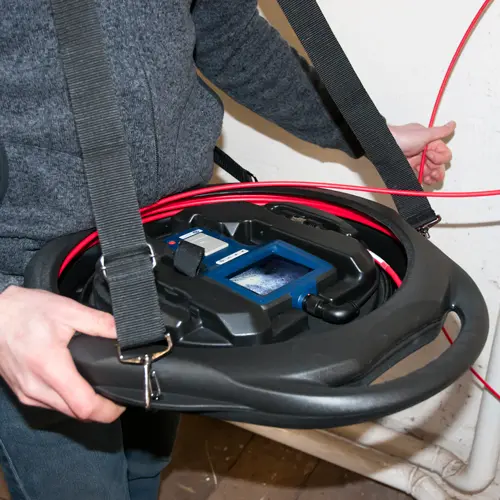

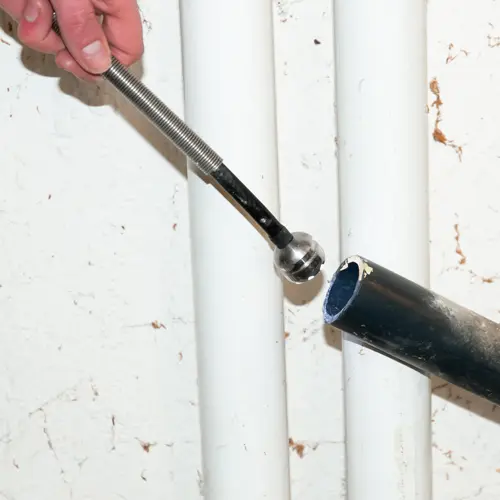

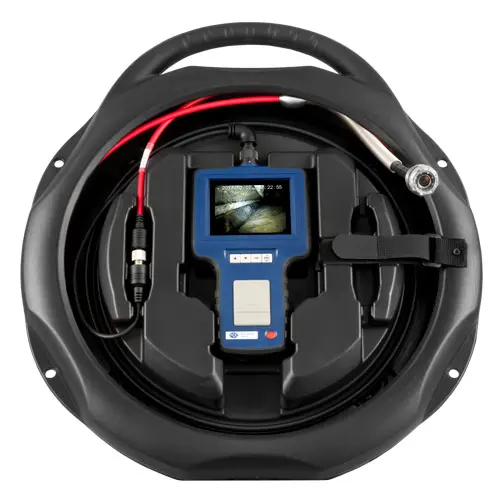

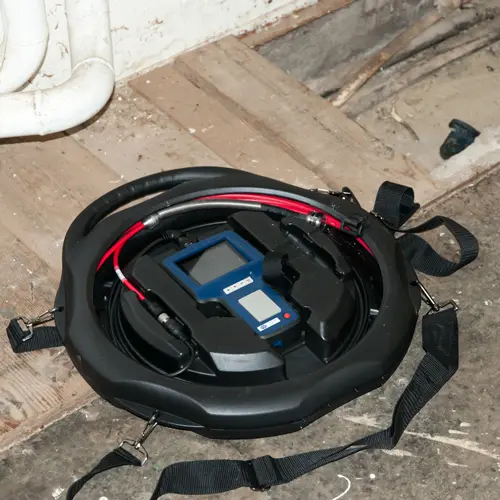

PCE-VE 390N is a car measuring device for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the car measuring device well suited for use in tough environments like construction sites and industrial installations.
Cable diameter |
28 mm / 1.11 in |
Cable length |
10 m / 32.8 ft |
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in. |

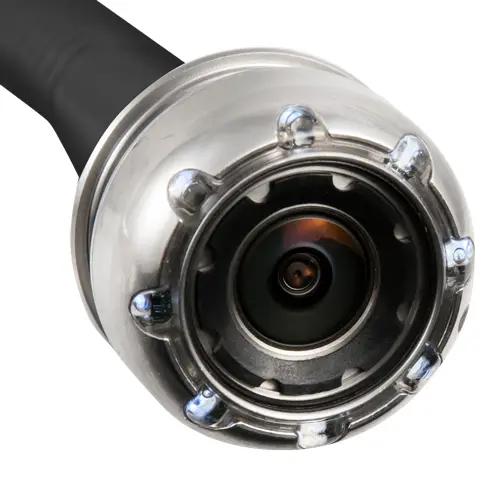

| Illumination | 8 LEDs |
| Image sensor | CMOS / 640 x 480 |
| Picture rate | 30 / sec. |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |
| Interface | Mini USB 1.1 / AV out |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 60°C / 14 ... 140°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
| Weight, incl. carrying case | 9.98 kg / 22 lbs |
| Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft |
|
|
|
