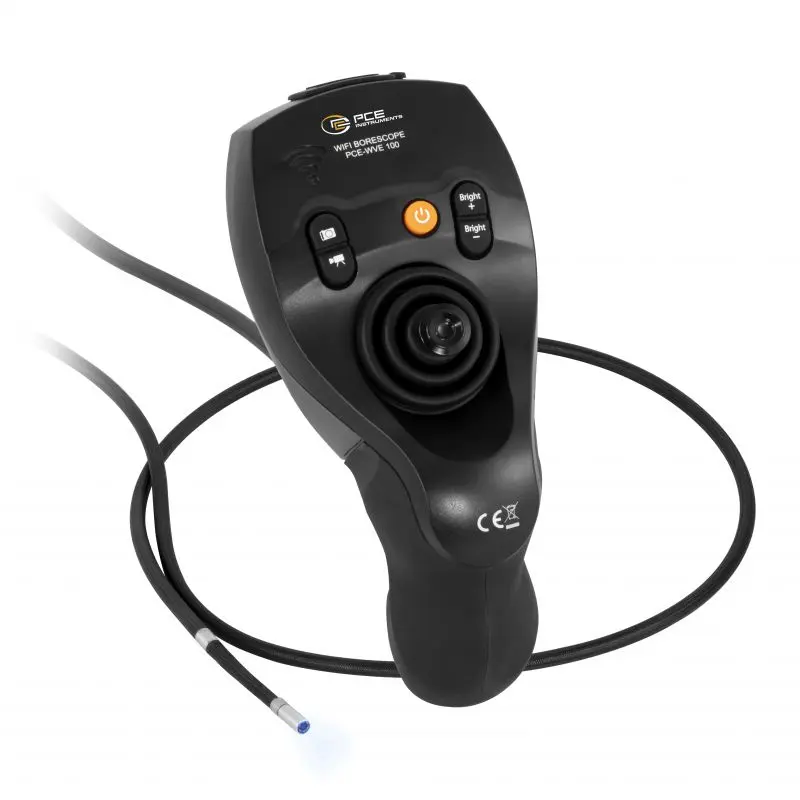

WiFi Car Measuring Device PCE-WVE 100

Order no.: PCE-WVE 100
GTIN (EAN): 4250348729927
346,90 €
412,81 €
Wireless
price ex. (VAT / delivery)
:
4250348729927
PCE-WVE 100
Delivery time: 5-7 working days

Description

WiFi Car Measuring Device for use with iOS and Android devices / 4-Way Camera Head / 1 m Cable Length / 6.5 mm Cable Diameter / Cable IP67

The WiFi car measuring device with the 4-way camera head is a versatile tool for visual inspection and image capture in hard-to-reach areas. With a flexible cable length of 1 meter, the boroscope provides the necessary reach to penetrate tight spaces and capture accurate images.

The boroscope's image transmission is done wirelessly via WiFi, allowing easy and convenient connection to iOS and Android devices. Using the corresponding app, you can control functions of the boroscope, view live images, and record videos. This makes inspection and documentation of hard-to-reach areas extremely efficient.
The app for the WiFi endoscope also offers the option to store images and videos directly on your mobile device. This facilitates the organization and access to the recordings made with the WiFi car measuring device, allowing you to easily share or archive important information.

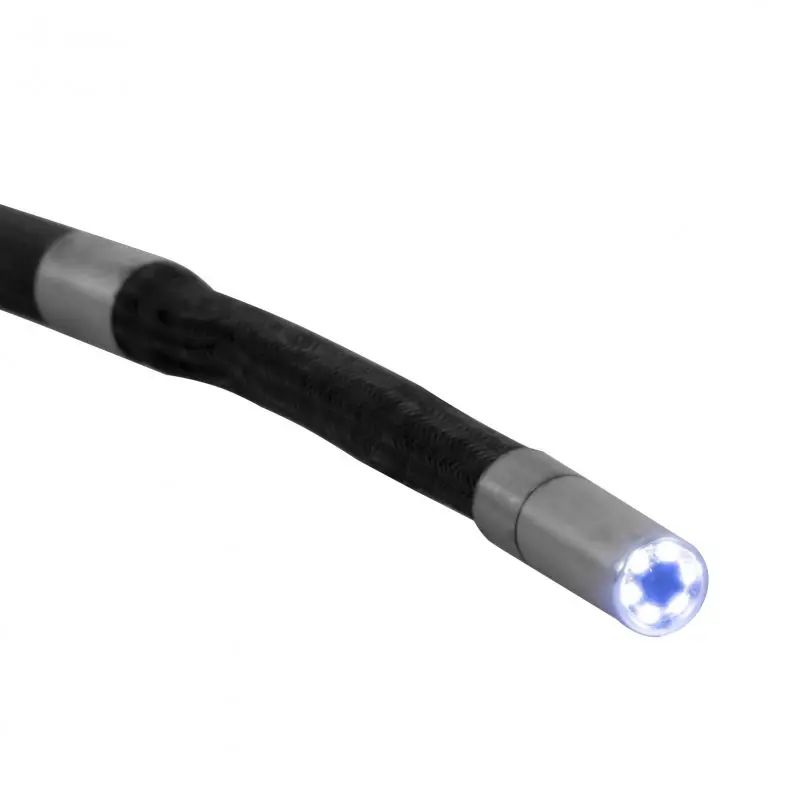

The camera head of the WiFi car measuring device has 6 dimmable LEDs mounted on the device's head. These LEDs provide sufficient illumination in dark or poorly lit environments, allowing you to adjust the light intensity on the boroscope as needed to ensure optimal image quality.

Overall, the boroscope with the 4-way camera head, its flexibility, wireless connectivity, storage, and lighting options is a useful tool for various applications, such as maintenance, inspection, and diagnosis in areas where conventional cameras cannot reach.

Highlights

- 4-Way Camera Head
- Flexible 1 m Cable Length
- Image Transmission via WiFi
- iOS and Android App
- Storage for Image and Video via App
- 6 Dimmable LEDs on the Camera Head

Specification

General Technical Specifications
Probe Length100 cm / 39.3 inch
Probe MaterialTungsten braided
Probe Movement4-Way
Probe Protection ClassIP67
Camera Head Diameter6.5 mm / 0.25 inch
Camera Resolution1280 x 720 pixels
Field of View75°
Field of View Depth4 ... 8 cm / 1.5 ... 3.1 inch
Bending Radius60 mm / 2.3
Menu LanguageSpanish, French, English
Protection Class (Device)IP54
Power SupplyPower supply, Battery
Weight415 g / 0.9 pf
Device Weight with Accessories1495 g / 3.2 pf
Device Weight with Accessories and Packaging    1695 g / 3.7 pf
Dimensions (L x W x H)180 x 84 x 130 mm / 7.0 x 3.3 x 5.1 inch
Operating Conditions0 ... 50 °C, 15 ... 90% r.H
Storage Conditions-20 ... 60 °C, 15 ... 90% r.H

Delivery Scope

1 x WiFi Car Measuring Device PCE-WVE 100

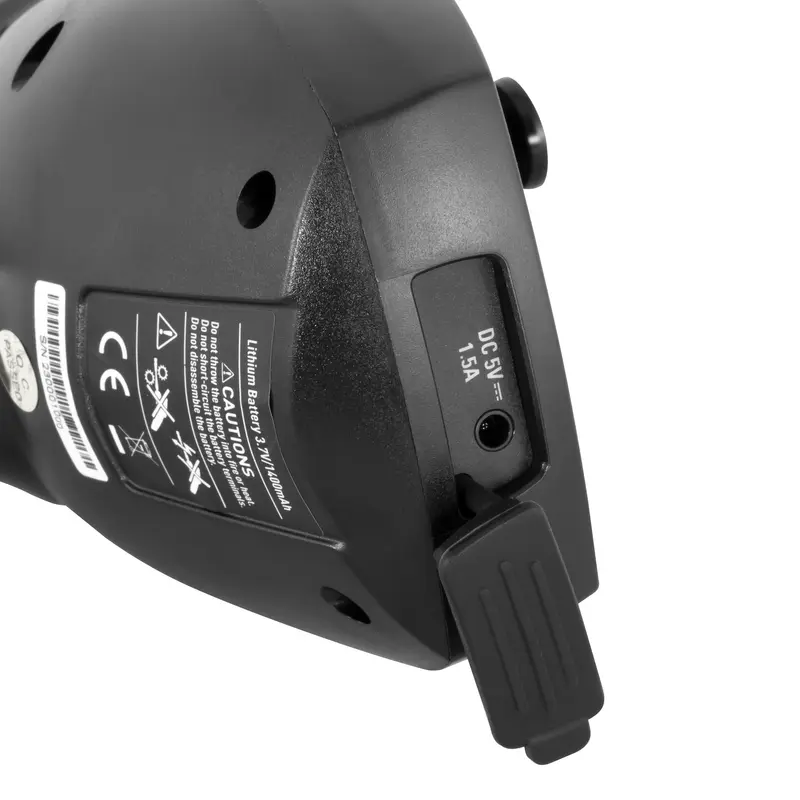

1 x Plug-In Power Supply 5V/1.5A

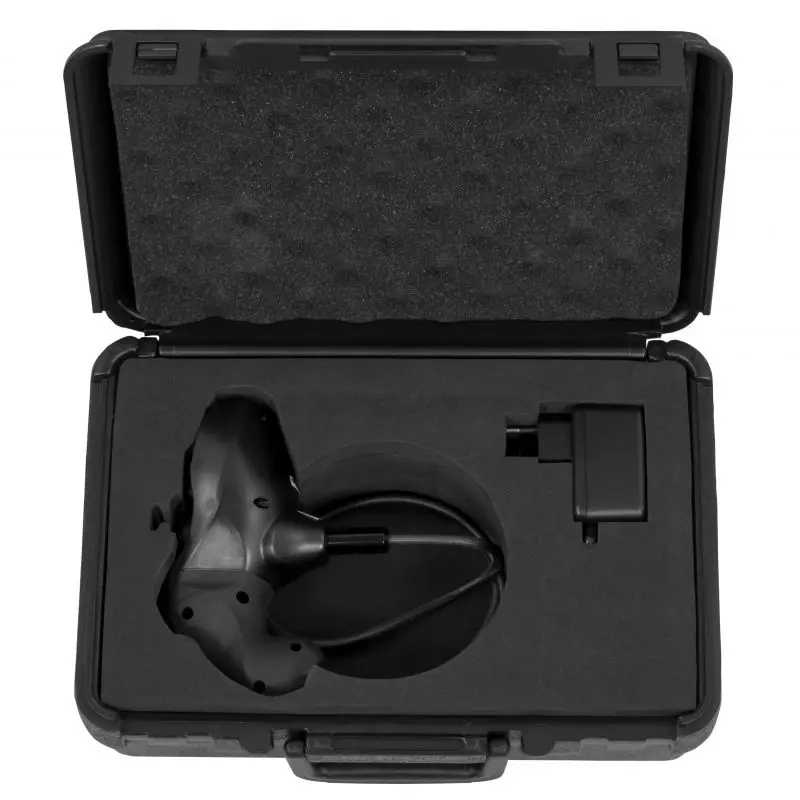

1 x Carrying Case
1 x User Manual
