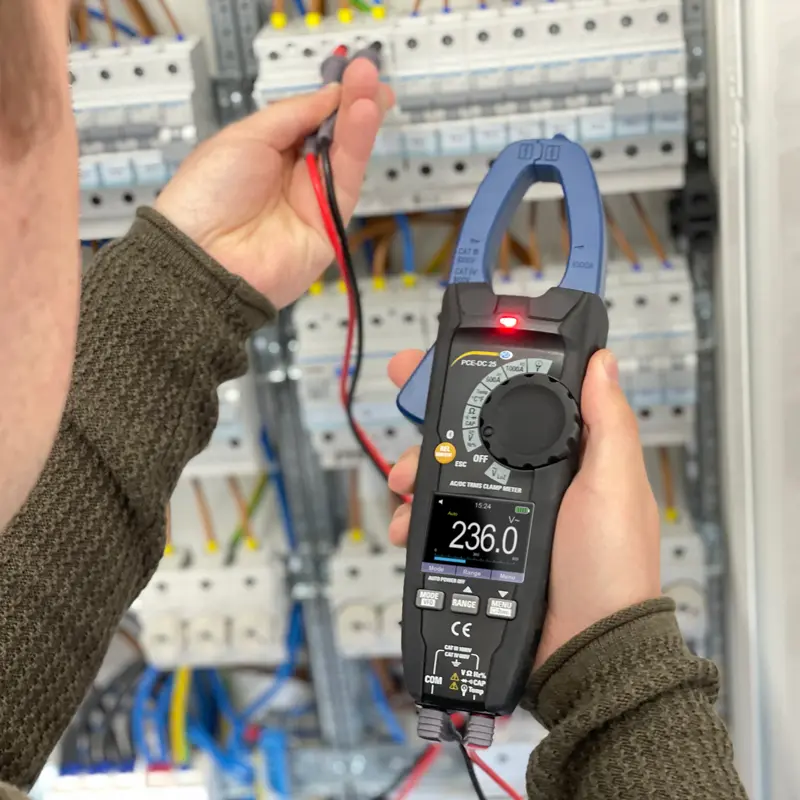

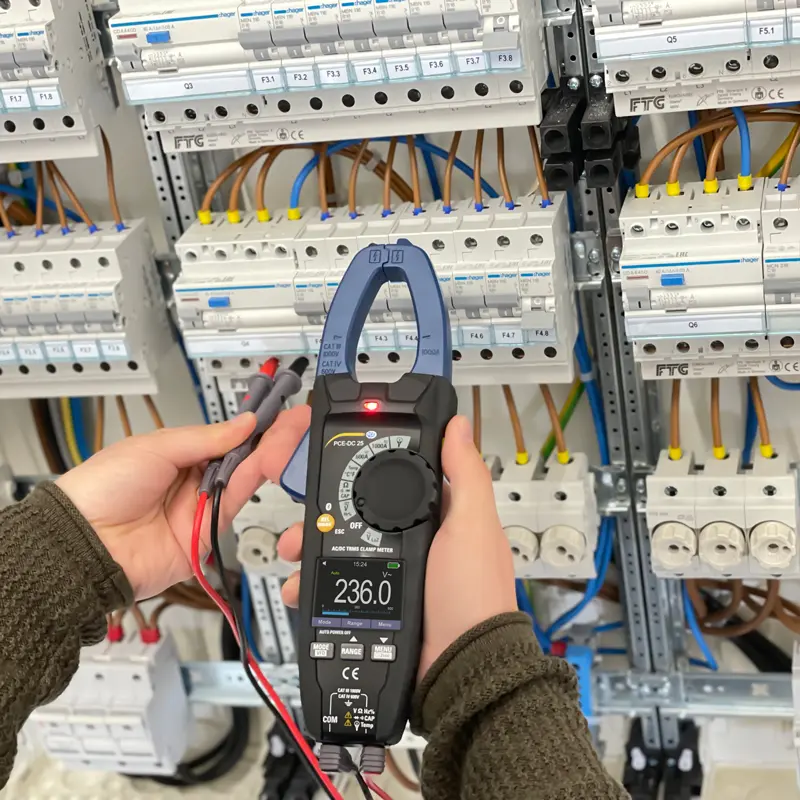

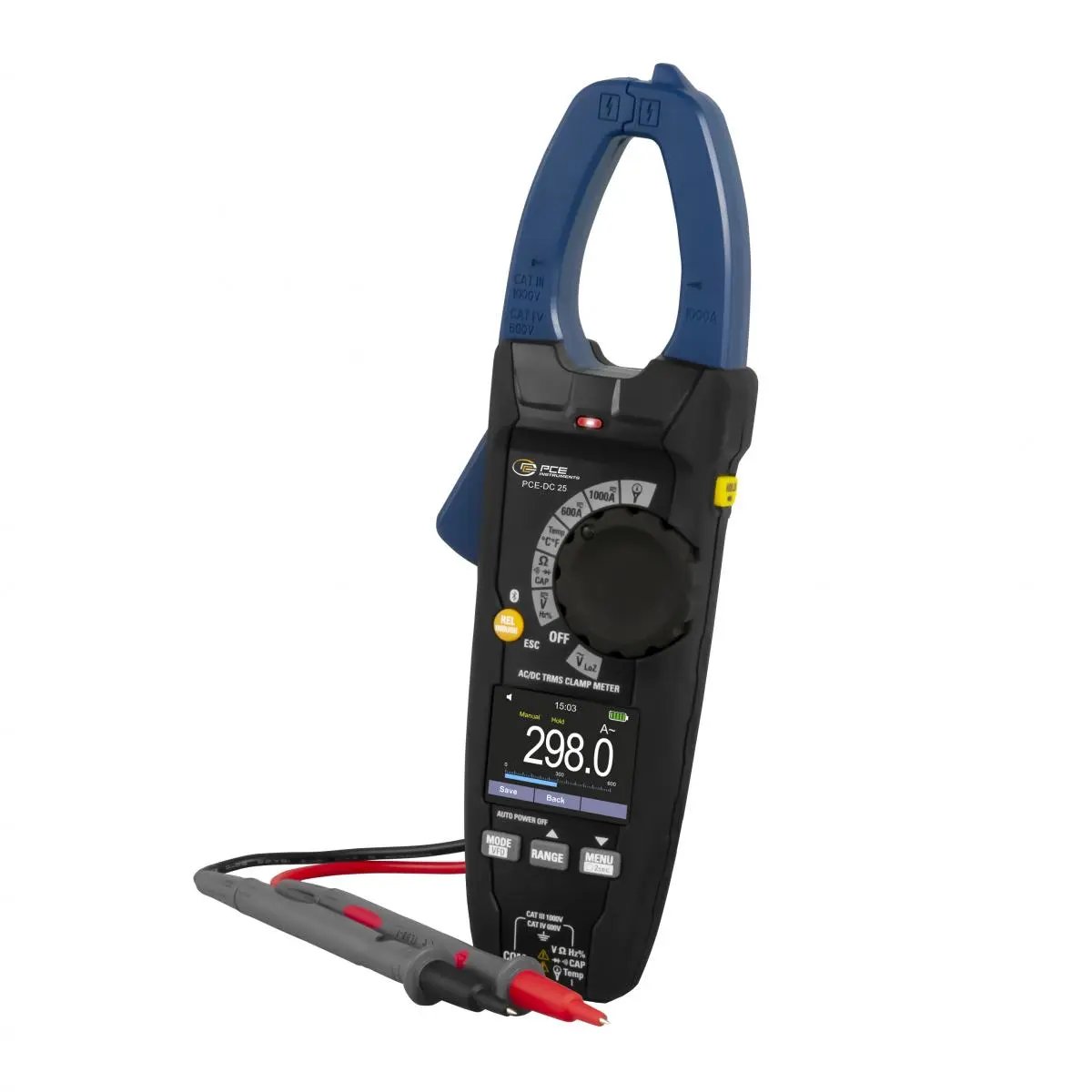

Clamp on Tester PCE-DC 25

Order no.: PCE-DC 25
GTIN (EAN): 4250348727534
192,90 €
229,55 €
Wireless
price ex. (VAT / delivery)
:
4250348727534
PCE-DC 25
Delivery time: 1-2 working days

Accessory

Calibration certificate CAL-PCE-DC for clamp meters
Calibration certificate CAL-PCE-DC for clamp meters
134,90 €

Description

Clamp on tester with Bluetooth interface / Current measurement 0 ... 1000 A AC/DC / Temperature measurement / NCV test / Clamp opening 34 mm (1.3") / Measuring rate of 3 Hz /
Optionally expandable with Rogowski coil for 3000 A AC / Automatic switch-off

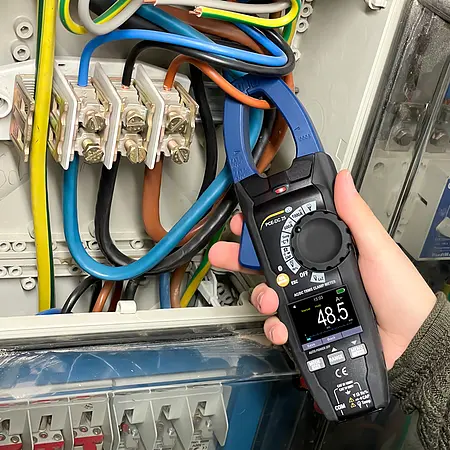

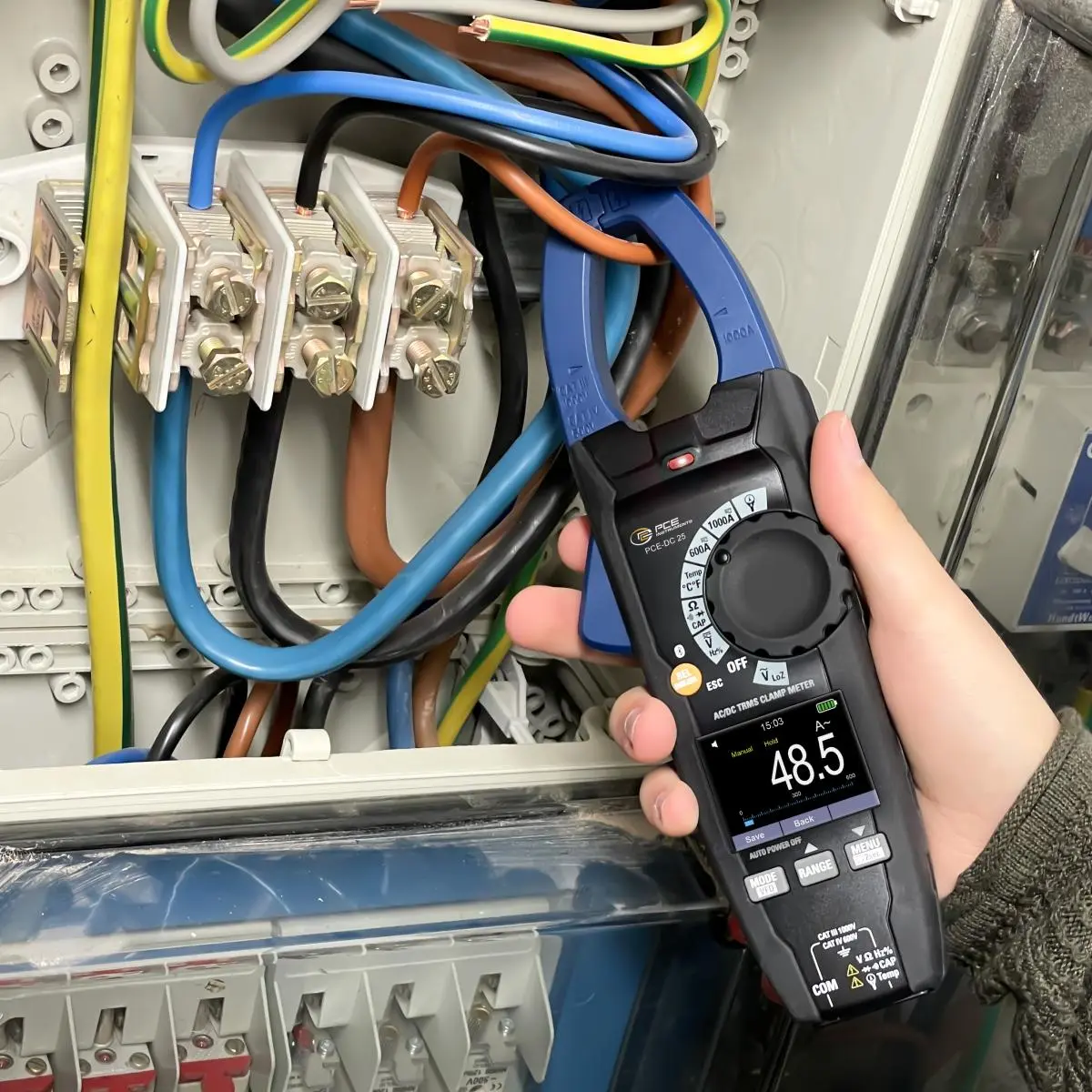

The clamp on tester has a measuring range of 0… 1000 A AC/DC. The current is measured inductively using the clamp on the measuring device. Live supply lines with a diameter of up to 32 mm (1.2") can be connected to the clamp meter. With the optional Rogowski coil, the measuring range of the clamp meter can be extended to up to 3000 A AC. The clamp meter has sub-functions for current measurement. The inrush current can be measured with the clamp meter. This is a particularly important function, as motors such as those installed in ventilation systems or hall lighting require a particularly high current when switched on.

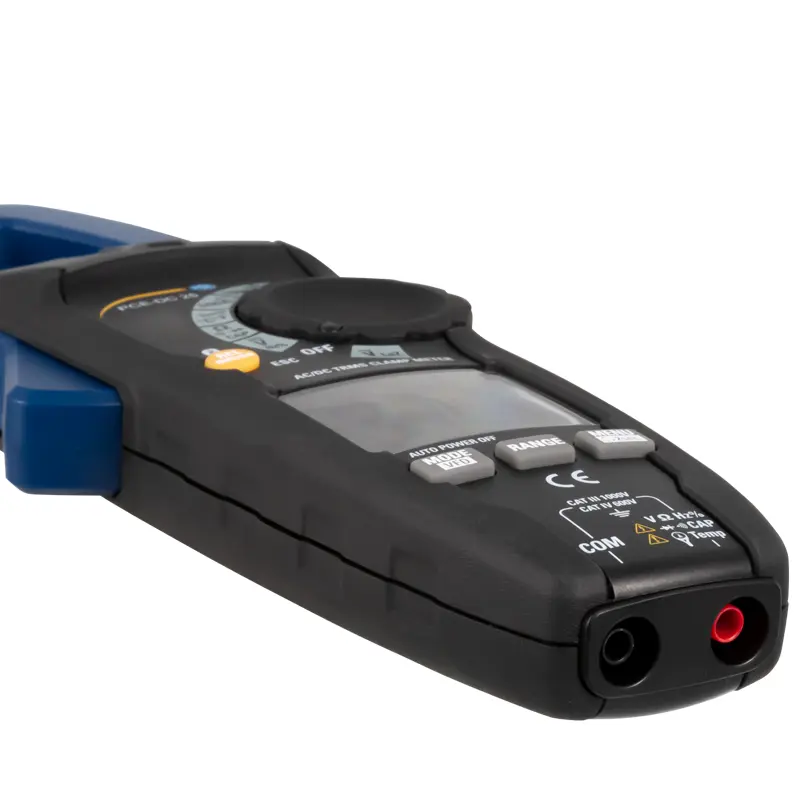

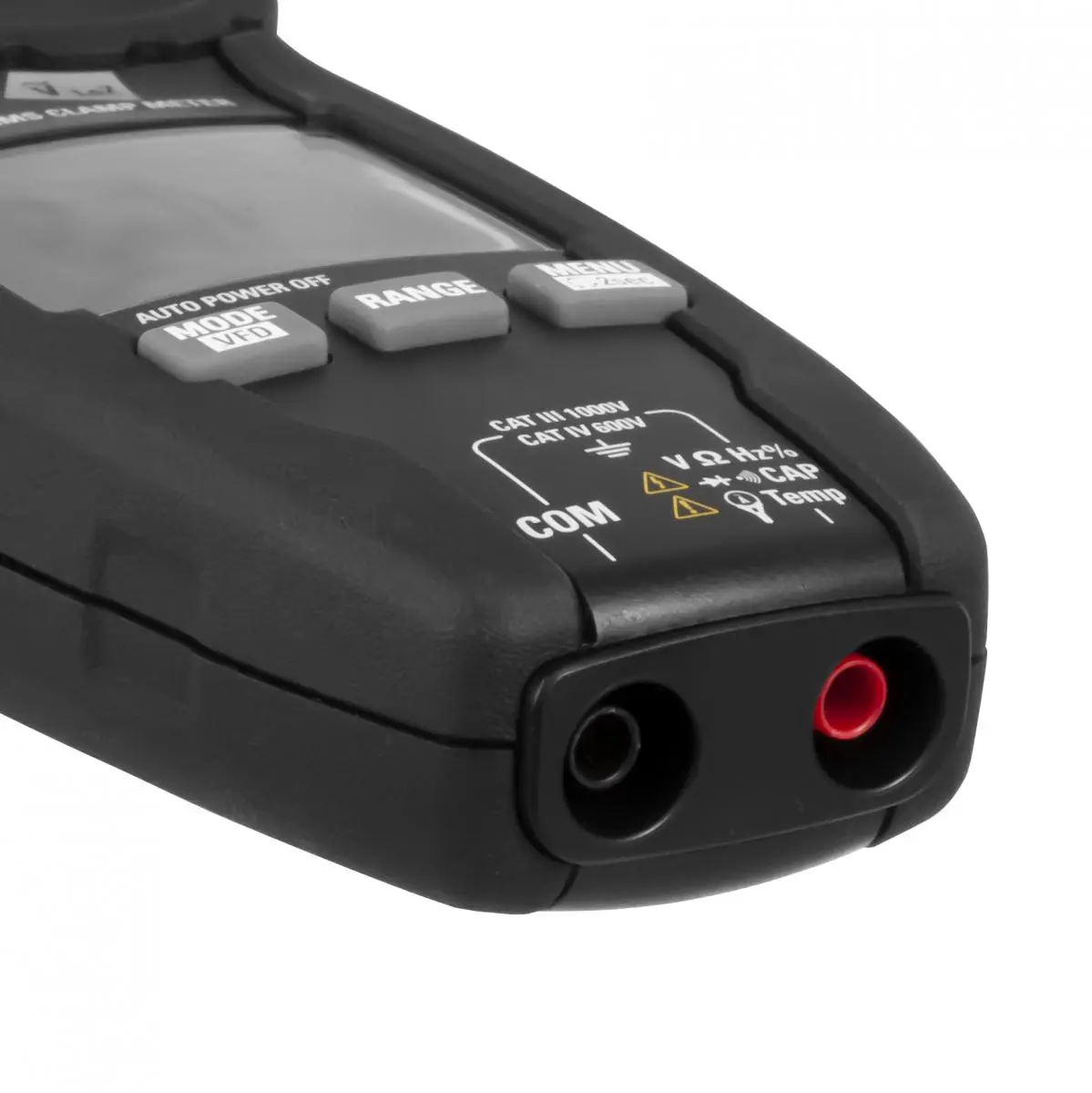

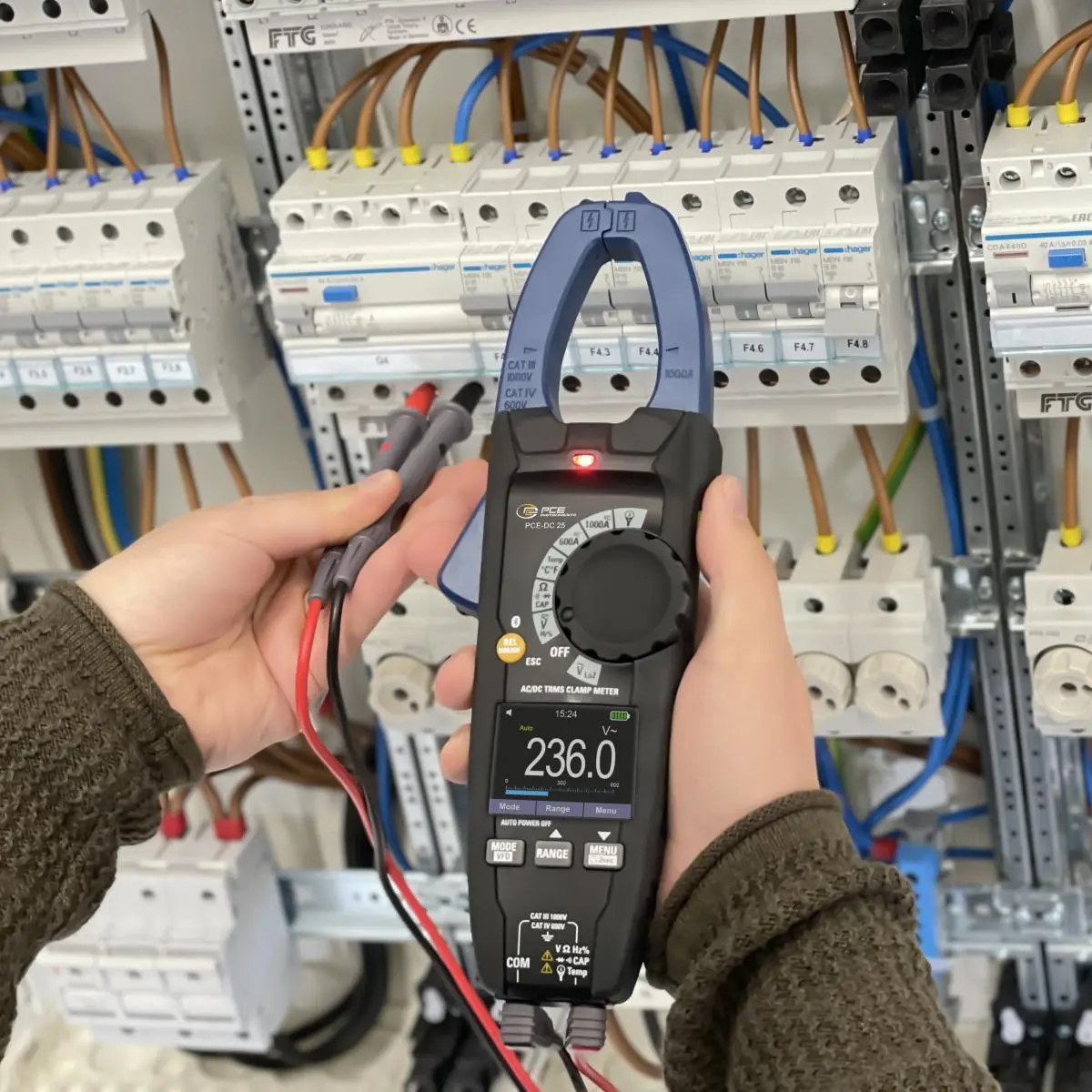

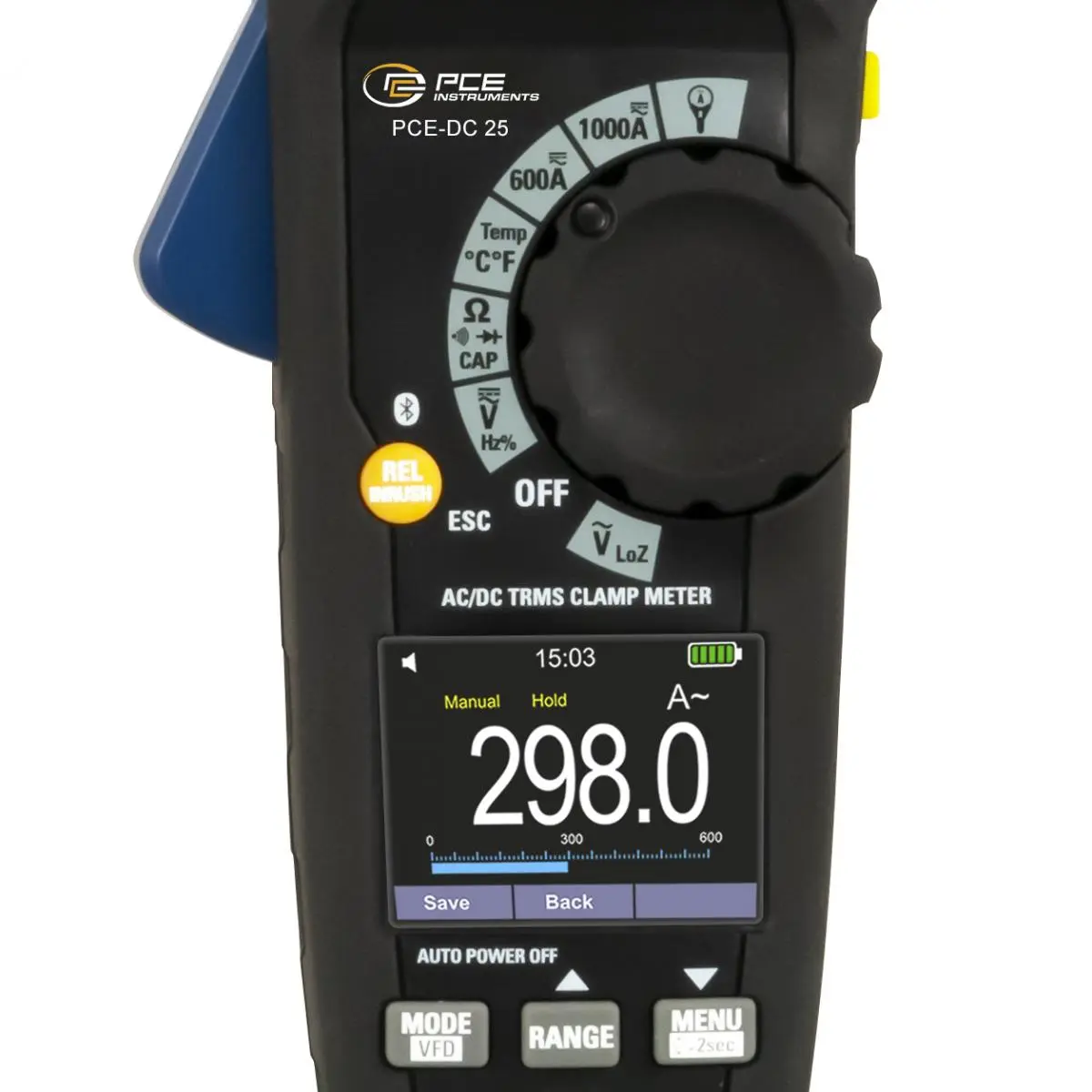

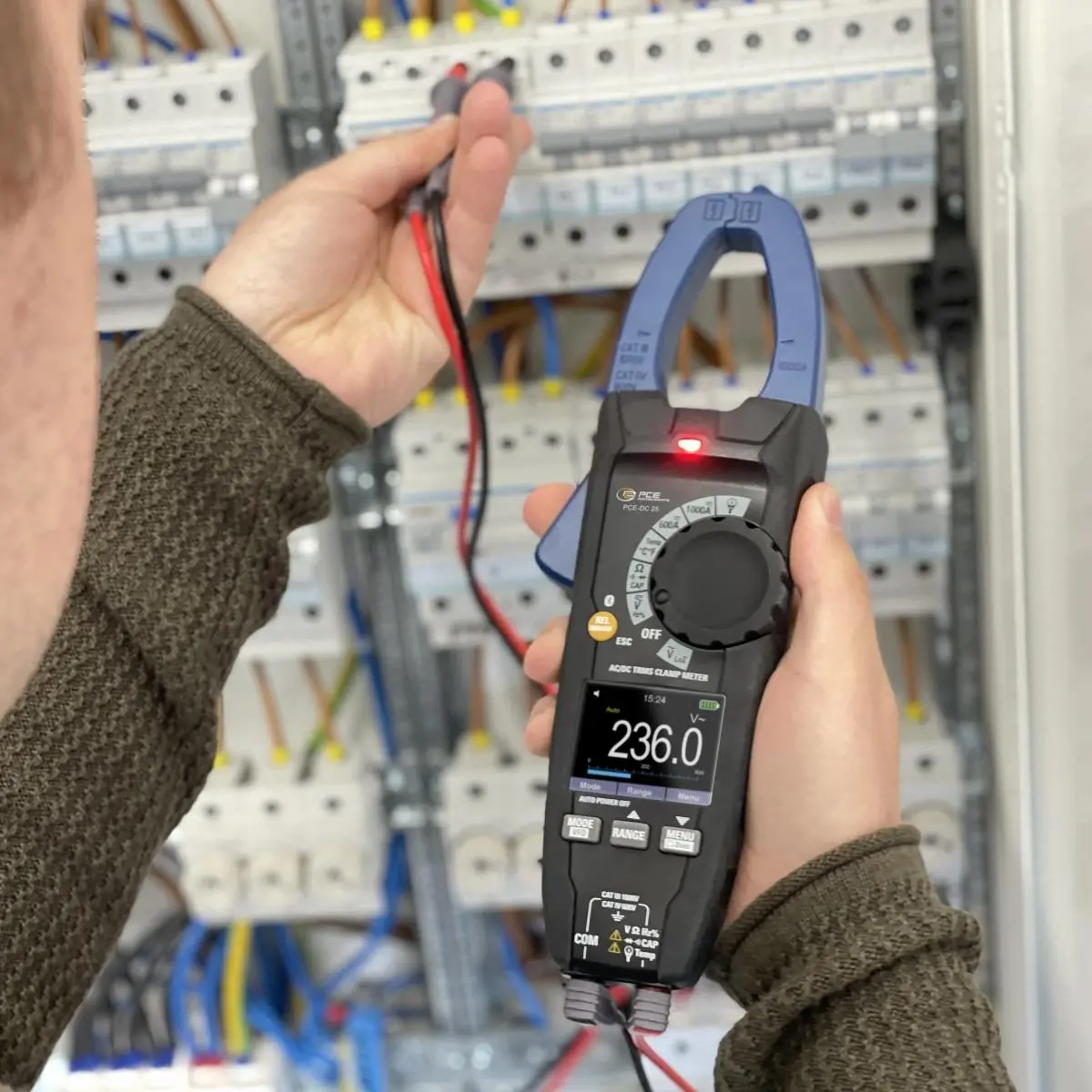

In addition to current measurement, the clamp on tester can also measure voltages from 0… 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the clamp meter. With the NCV function, the clamp meter can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the clamp meter for optimal illumination of the measuring point.

The clamp on tester can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the clamp meter, the measured values ​​can be displayed, saved and further processed. The clamp meter thus covers a wide range of measuring tasks due to the multitude of functions.

Highlights

- Measuring range 0 ... 1000 A AC/DC
- Bluetooth interface
- Inrush current measurement
- Not Connected Voltage function
- LC colour display
- Optionally with ISO certificate

Specification

DC voltage
Measuring range600.0 mV DC
Resolution0.1 mV DC
Accuracy±(0.5 % + 8 digits)

Measuring range6.000 V DC
Resolution0.001 V DC
Accuracy±(1.5 % + 5 digits)

Measuring range60.00 V DC
Resolution0.01 V DC
Accuracy±(1.5 % + 5 digits)

Measuring range600.0 V DC
Resolution0.1 V DC
Accuracy±(1.5 % + 5 digits)

Measuring range1000 V DC
Resolution1 V
Accuracy±(1.5 % + 5 digits)

Input impedance>10 MΩ
Overvoltage protection1000 V AC/DC

AC voltage
Measuring range6.000 V AC
Resolution0.001 V AC
Accuracy±(1.5 % + 5 digits)

Measuring range60.00 V AC
Resolution0.01 V AC
Accuracy±(1.5 % + 5 digits)

Measuring range600.0 V AC
Resolution0.1 V AC
Accuracy±(1.5 % + 5 digits)

Measuring range1000 V AC
Resolution1 V AC
Accuracy±(1.5 % + 5 digits)

Peak value (PEAK) accuracy±10 %
Peak value (PEAK) response time1 ms
Input impedance>10 MΩ
Overvoltage protection1000 V AC/DC

The accuracy relates to a measuring range of 10 ... 100 %
with a sine wave.
Low pass filter (LowZ)
(50 ... 400 Hz)
Measuring range6.000 V AC
Resolution0.001 V AC
Accuracy±(3.0 % + 40 digits)

Measuring range60.00 V AC
Resolution0.01 V AC
Accuracy±(3.0 % + 40 digits)

Measuring range300.0 V AC
Resolution0.1 V
Accuracy±(3.0 % + 40 digits)

Input impedance<300 kΩ
Overvoltage protection1000 V AC/DC

The accuracy relates to a measuring range of 10 ... 100 %
with a sine wave.
AC with DC voltage
(50 ... 400 Hz)
Measuring range6.000 V AC
Resolution0.001 V AC
Accuracy±(2.5 % + 20 digits)

Measuring range60.00 V AC
Resolution0.01 V AC
Accuracy±(2.5 % + 20 digits)

Measuring range600.0 V AC
Resolution0.1 V AC
Accuracy±(2.5 % + 20 digits)

Measuring range1000 V AC
Resolution1 V AC
Accuracy±(2.5 % + 20 digits)

Input impedance>10 MΩ

Direct current
Measuring range600.0 A DC
Resolution0.1 A DC
Accuracy±(2.5 % + 5 digits)

Measuring range1000 A DC
Resolution1 A DC
Accuracy±(2.8 % + 5 digits)

Overvoltage protection1000 A DC

Alternating current
(50 ... 60 Hz)
Measuring range600.0 A AC
Resolution0.1 A AC
Accuracy±(2.5 % + 5 digits)

Measuring range1000 A AC
Resolution1 A AC
Accuracy±(2.8 % + 5 digits)

Overload protection1000 A AC/DC

Flexible clamp meter
(50 ... 400 Hz)
Measuring range30.00 A AC
Resolution0.01 A AC
Accuracy±(3.0 % + 5 digits)

Measuring range300.0 A AC
Resolution0.1 A AC
Accuracy±(3.0 % + 5 digits)

Measuring range3000 A AC
Resolution1 A AC
Accuracy±(3.0 % + 5 digits)

Overload protection3000 A AC/DC

The accuracy relates to a measuring range of 10 ... 100 %
with a sine wave.
Resistance
Measuring range600.0 Ω
Resolution0.1 Ω
Accuracy±(1.0 % + 10 digits)

Measuring range6.000 kΩ
Resolution0.001 kΩ
Accuracy±(1.5 % + 5 digits)

Measuring range60.00 kΩ
Resolution0.01 kΩ
Accuracy±(1.5 % + 5 digits)


Measuring range600.0 kΩ
Resolution0.1 kΩ
Accuracy±(1.5 % + 5 digits)

Measuring range6.000 MΩ
Resolution0.001 MΩ
Accuracy±(2.5 % + 5 digits)

Measuring range60.00 MΩ
Resolution0.01 MΩ
Accuracy±(3.5 % + 10 digits)

Overvoltage protection1000 V AC/DC


Continuity test
Signal<50 Ω
Overvoltage protection1000 V AC/DC

Diode test
Test current<1.5 mA
Maximum tension when open
circuit		3.3 V DC

Frequency measurement
Measuring range9.999 Hz ... 99.99 kHz
Resolution0.01 ... 10 Hz
Accuracy±(1.2 % + 5 digits)

Overvoltage protection1000 V AC/DC

Sensitivity>5 Vrms with one duty cycle
  from 20 ... 80 %
Duty cycle
Measuring range10.0 ... 90.0 %
Resolution0.1 %
Accuracy±(1.2 % + 8 digits)

Pulse range40 Hz ... 10 kHz
Pulse amplitude±5 V (0.1 ... 100 ms)

Capacity
Measuring range60.00 nF
Resolution0.01 nF
Accuracy±(4.0 % + 20 digits)

Measuring range600.0 nF
Resolution0.1 nF
Accuracy±(3.0 % + 8 digits)

Measuring range6.000 µF
Resolution0.001 µF
Accuracy±(3.0 % + 8 digits)


Measuring range60.00 µF
Resolution0.01 µF
Accuracy±(3.0 % + 8 digits)

Measuring range600.0 µF
Resolution0.1 µF
Accuracy±(3.0 % + 8 digits)

Measuring range6000 µF
Resolution1 µF
Accuracy±(5.0 % + 8 digits)

Measuring range60.00 mF
Resolution0.01 mF
Accuracy±(5.0 % + 20 digits)

Measuring range100.0 mF
Resolution0.1 mF
Accuracy±(5.0 % + 20 digits)

Overvoltage protection1000 V AC/DC

Temperature measurement
(Thermocouple Type K)
Measuring range-40 ... 600.0 °C
Resolution0.1 °C
Accuracy±(1.5 % + 5 digits)

Measuring range600 ... 1000 °C
Resolution1 °C
Accuracy±(1.5 % + 5 digits)

Measuring range-40 ... 600.0 °F
Resolution0.1 °F
Accuracy±(1.5 % + 9 digits)

Measuring range600 ... 1800 °F
Resolution1 °F
Accuracy±(1.5 % + 9 digits)

Overvoltage protection1000 V AC/DC

The accuracy refers to the measuring device without temperature probe.
Specifications refer to a stable ambient condition of ±1 °C.
If the measurement lasts for a long time, the measured value increases by 2 °C

Further specifications

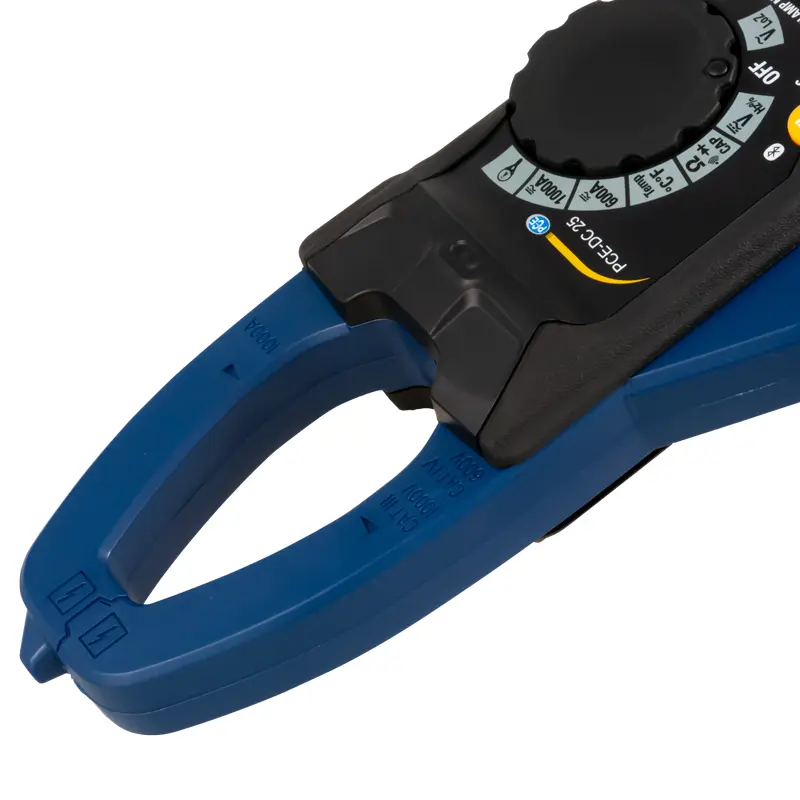

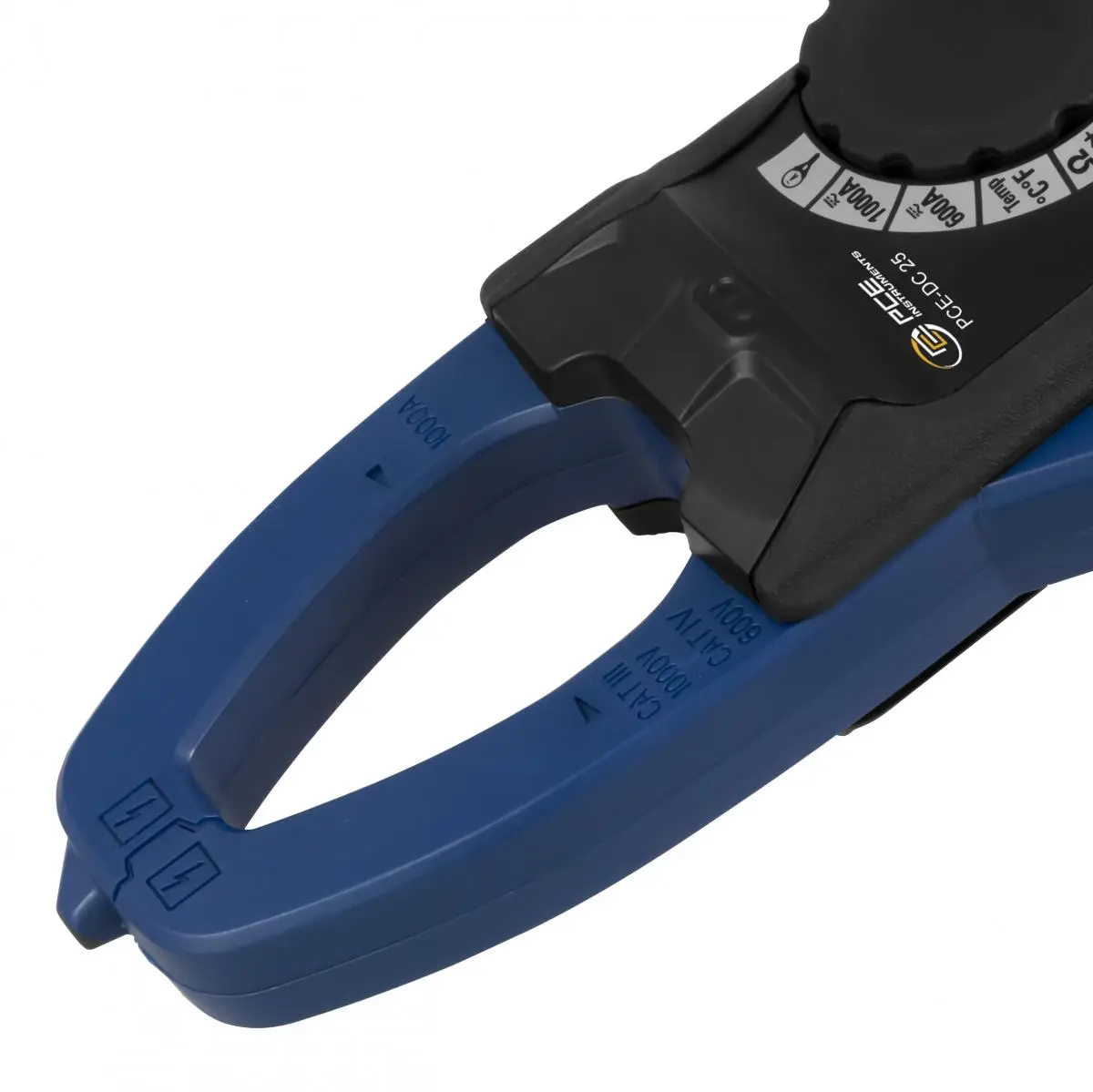

Clamp opening
34 mm / 1.3"
NCV>150 V AC
DisplayLC colour display
Display when measuring range exceeded  "OL" (overload)
Measuring rate3 measured values per second
InterfaceBluetooth
Operating conditions5 ... 40 °C / 41 ... 104 °F
 <80 % RH non-condensing at
 31 °C / 87 °F linearly decreasing to 50 % RH
 non-condensing at 40 °C / 104 °F
Storage conditions-20 ... 40 °C / -4 ... 140 °F <80 % RH
  non-condensing
Maximum working height2000 m / 7000 ft
Power supply3 x 1.5 V AAA batteries
Auto power offSwitched off, 15, 30, 45, 60 minutes
Dimensions250 x 80 x 40 mm / 9.8 x 3.1 x 1.5"
Weight365 g / 12.8 oz

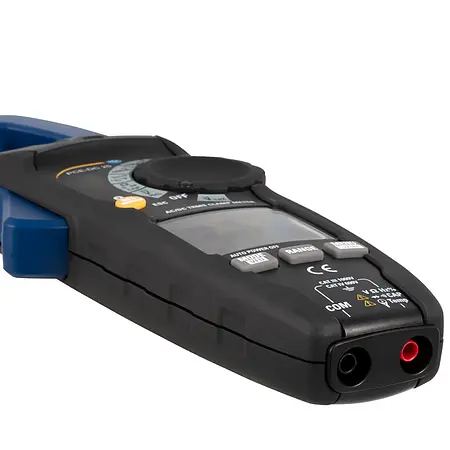

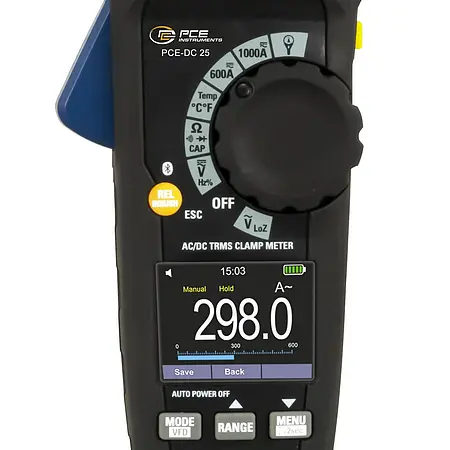

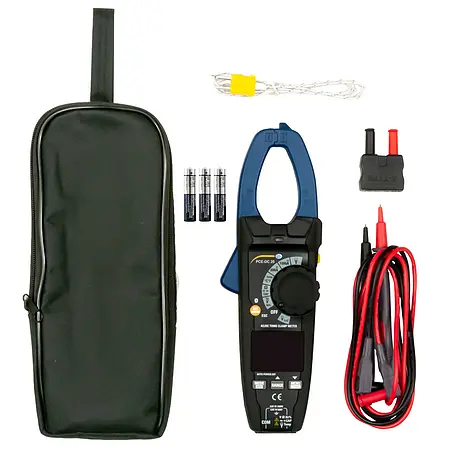

Delivery Scope

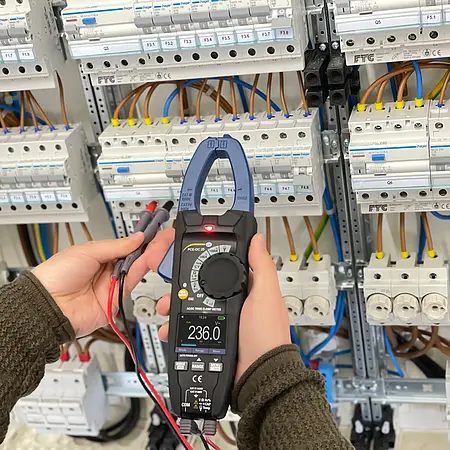

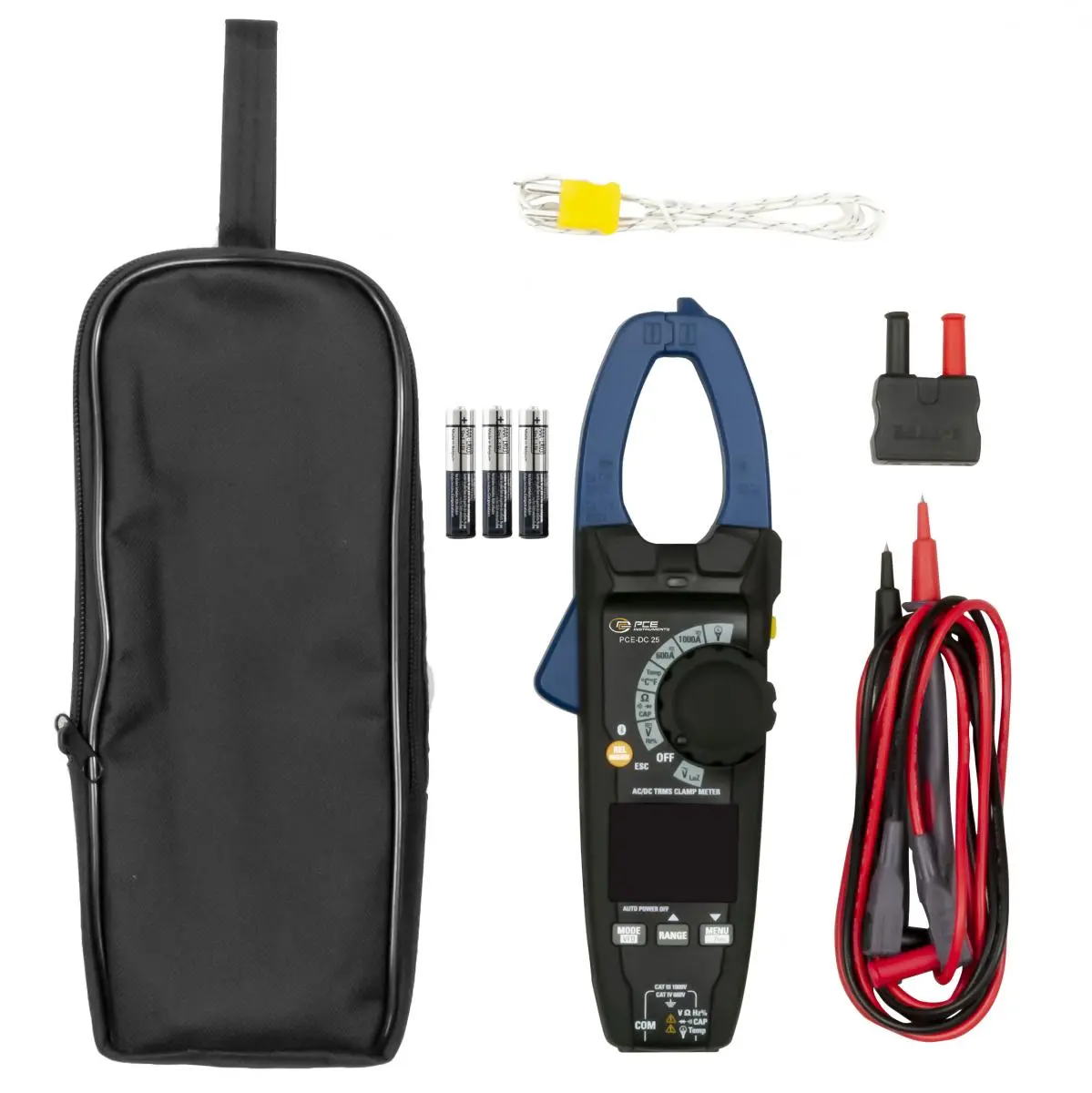

1 x Clamp on Tester PCE-DC 25
1 x Pair of test leads
1 x Type K thermocouple
1 x Thermocouple adapter
3 x 1.5 V AAA batteries
1 x Transport bag
1 x Instruction manual
