PCE-PA 8000 Power Analyser
Real-time current, voltage and power consumption measurement / Built-in data recorder with adjustable rate / Includes current clamps, alligator clips, test leads, SD card memory and 2-year warranty against manufacturer defects
PCE-PA 8000 is a portable handheld Clamp on Tester used for the testing and inspection of 3-phase / 4-wire, 3-phase / 3-wire, 1-phase / 2-wire and 1-phase / 3-wire electrical circuits. This handy power quality analyzer not only measures multiple electrical properties in real time, but also saves the measurement data in .xls format to the included SD card memory for quick and easy data transfer and analysis using Microsoft Excel.
The PCE-PA 8000 Clamp on Tester provides true RMS measurements of current and voltage. The Clamp on Tester also determines power factor (PF), phase angle (Φ), active power, apparent power and reactive power. The three current clamps included with the Clamp on Tester can be used on wires and cables with a diameter of 2.0" / 50 mm, allowing for use with the power grid. Also included in the delivery contents are four alligator clips, four test leads and an SD card. For real-time current, voltage and power consumption measurements at a glance, the PCE-PA 8000 features an easy-to-read 3.7" / 94 mm (320 x 240 pixel) LCD screen with backlight.
| Voltage (ACV) | ||
| Measurement range | Resolution | Accuracy |
| 10 V ... 600 V (phase to neutral) | 0.1 V | ±(0.5 % + 0.5 V) |
| 10 V ... 600 V (phase to neutral) | ||
| Current (ACA) | ||
| Measurement range | Resolution | Accuracy |
| 20 A |
0.001 A (< 10 A) 0.01 A (≥ 10 A) |
±(0.5 % + 0.1 V) |
| 200 A |
0.01 A (< 100 A) 0.1 A (≥ 100 A) |
±(0.5 % + 0.5 A) |
| 1200 A |
0.1 A (< 1000 A) 1 A (≥ 1000 A) |
±(0.5 A + 5 A) |
| Active power | ||
| Measurement range | Resolution | Accuracy |
| 0 KW ... 9.999 KW | 0.001 KW | ±(1 % + 0.008 KW) |
| 10 KW ... 99.99 KW | 0.01 KW | ±(1 % + 0.008 KW) |
| 100 KW ... 999.9 KW | 0.1 KW | ±(1 % + 0.8 KW) |
| 1 MW ... 9.999 MW | 0.001 MW | ±(1 % + 0.008 MW) |
| Apparent power | ||
| Measurement range | Resolution | Accuracy |
| 0 KVA ... 9.999 KVA | 0.001 KVA | ±(1 % + 0.008 KVA) |
| 10 KVA ... 99.99 KVA | 0.01 KVA | ±(1 % + 0.08 KVA) |
| 100 KVA ... 999.9 KVA | 0.1 KVA | ±(1 % + 0.8 KVA) |
| 1 MVA ... 9.999 MVA | 0.001 MVA | ±(1 % + 0.008 MVA) |
| Reactive power | ||
| Measurement range | Resolution | Accuracy |
| 0 KVAR ... 9.999 KVAR | 0.001 KVAR | ±(1 % + 0.008 KVAR) |
| 10 KVAR ... 99.99 KVAR | 0.01 KVAR | ±(1 % + 0.08 KVAR) |
| 100 KVAR ... 999.9 KVAR | 0.1 KVAR | ±(1 % + 0.8 KVAR) |
| 1 MVAR ... 9.999 MVAR | 0.001 MVAR | ±(1 % + 0.008 MVAR) |
| Active energy | ||
| Measurement range | Resolution | Accuracy |
| 0 KWh ... 9.999 KWh | 0.001 KWh | ±(1 % + 0.008 KWh) |
| 10 KWh ... 99.99 KWh | 0.01 KWh | ±(1 % + 0.08 KWh) |
| 100 KWh ... 999.9 KWh | 0.1 KWh | ±(1 % + 0.8 KWh) |
| 1 MWh... 9.999 MWh | 0.001 MWh | ±(1 % + 0.008 MWh) |
| Apparent energy | ||
| Measurement range | Resolution | Accuracy |
| 0 KVAh ... 9.999 KVAh | 0.001 KVAh | ±(2 % + 0.008 KVAh) |
| 10 KVAh ... 99.99 KVAh | 0.01 KVAh | ±(2 % + 0.08 KVAh) |
| 100 KVAh ... 999.9 KVAh | 0.1 KVAh | ±(2 % + 0.8 KVAh) |
| 1 MVAh... 9.999 MVAh | 0.001 MVAh | ±(2 % + 0.008 MVAh) |
| Reactive energy | ||
| Measurement range | Resolution | Accuracy |
| 0 KVARh ... 9.999 KVARh | 0.001 KVARh | ±(2 % + 0.008 KVARh) |
| 10 KVARh ... 99.99 KVARh | 0.01 KVARh | ±(2 % + 0.08 KVARh) |
| 100 KVARh ... 999.9 KVARh | 0.1 KVARh | ±(2 % + 0.8 KVARh) |
| 1 MVARh... 9.999 MVARh | 0.001 MVARh | ±(2 % + 0.008 MVARh) |
| Power factor | ||
| Measurement range | Resolution | Accuracy |
| 0 ... 1 | 0.01 | ±0.04 |
| Phase angle | ||
| Measurement range | Resolution | Accuracy |
| -180º ... 180º | 0.1º | ±1º |
| Frequency | ||
| Measurement range | Resolution | Accuracy |
| 45 Hz ... 65 Hz | 0.1 Hz | 0.1 Hz |
| General specifications | ||

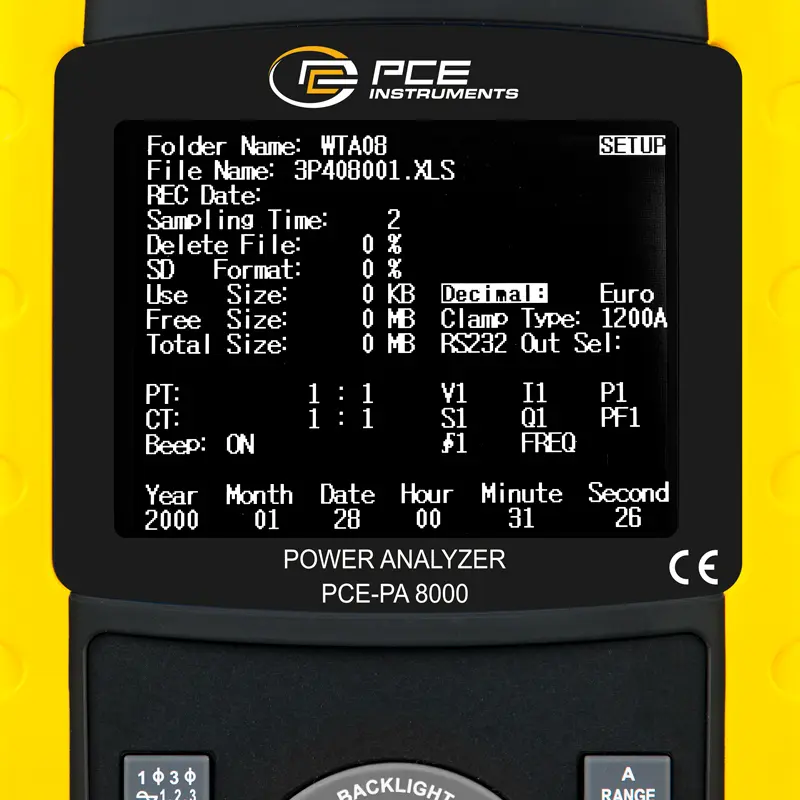

| Display | 3.7" / 94.0 mm LCD (320 x 240 pixel) with backlight | |
| Electrical properties | ACV, ACA, active power, apparent power, power factor, phase angle, mains frequency | |
| Voltage range | 10 ... 600 ACV, automatic range selection | |
| Safety standards | Complies with IEC 1010, CAT III 600 V | |
| ACV input resistance | 10 MΩ | |
| Operation frequency of current clamps | 40 Hz ... 1 kHz | |
| Tested operation frequency of current clamps | 45 Hz ... 65 Hz | |
| Overload protection | ACV / 720 V RMS | |
| ACA | 1300 A with current clamps | |
| Memory | SD card, up to 16 GB | |
| Real-time display refresh rate | 1 second | |
| Data logger | Yes, fully integrated | |
| Data logger sample rate | Adjustable, 2 ... 7,200 seconds | |
| Data output | USB or RS-232, depending on the connection cable | |
| Operating temperature | 0º C ... 50º C / 32° F ... 122° F | |
| Operating humidity | < 80 % RH | |
| Power supply | 8 x 1.5 V AA batteries / AC power adapter | |
| Input current | Meter: 300 mA DC Clamp: 34 mA DC |
|
| Max. diameter | 2" / 50 mm | |
| Weight |
Meter: 948 g / 2.09 lbs (with batteries) Clamp: 467 g / 1.03 lbs (with cable) |
|
| Dimensions | Meter: 225 x 125 x 64 mm / 8.8 x 4.9 x 2.5" | |
| Clamp: 210 x 64 x 33 mm / 8.2 x 2.5 x 1.2" | ||
| Jaw: 86 mm / 3.3" (exterior) | ||

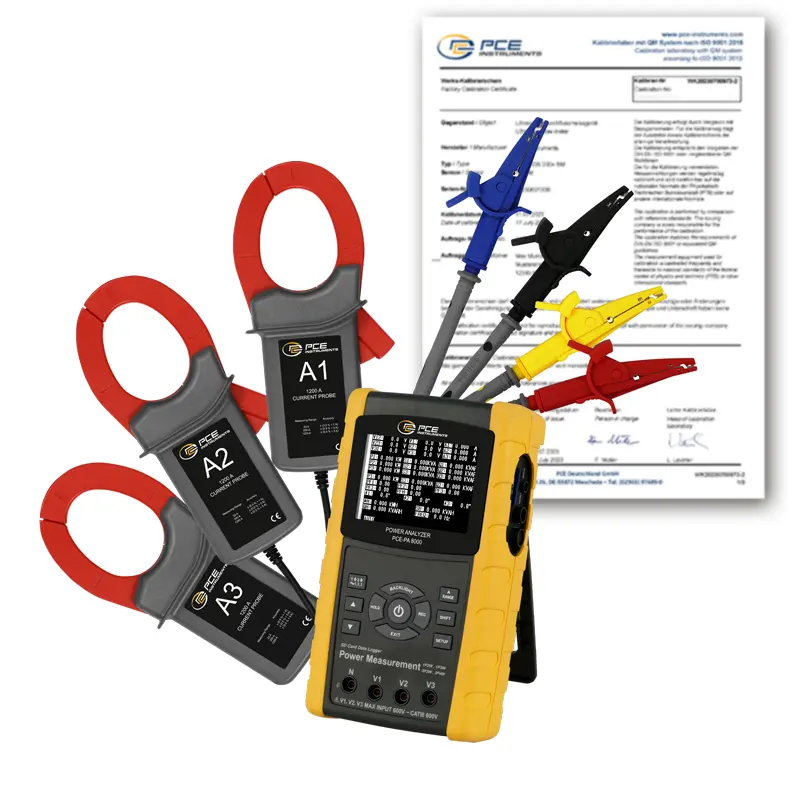

1 x PCE-PA 8000 Clamp on Tester
3 x Current clamps
4 x Alligator clips
4 x Test leads
1 x SD card
8 x 1.5 V AA batteries
1 x AC power adapter
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
