Closing Force Measuring Device BIA 600 for rail vehicle doors

Order no.: BIA600-SY-10-700
GTIN (EAN): 4260650210075
4.723,00 €
5.620,37 €
ISO Calibration
price ex. (VAT / delivery)
:
4260650210075
BIA600-SY-10-700
Delivery time: 10 - 14 days

Accessory

DAkkS calibration certificate for closing force measuring device (electronic)
DAkkS calibration certificate for closing force measuring device (electronic)
545,00 €

Description

Closing force measuring device / safety through closing force measurement

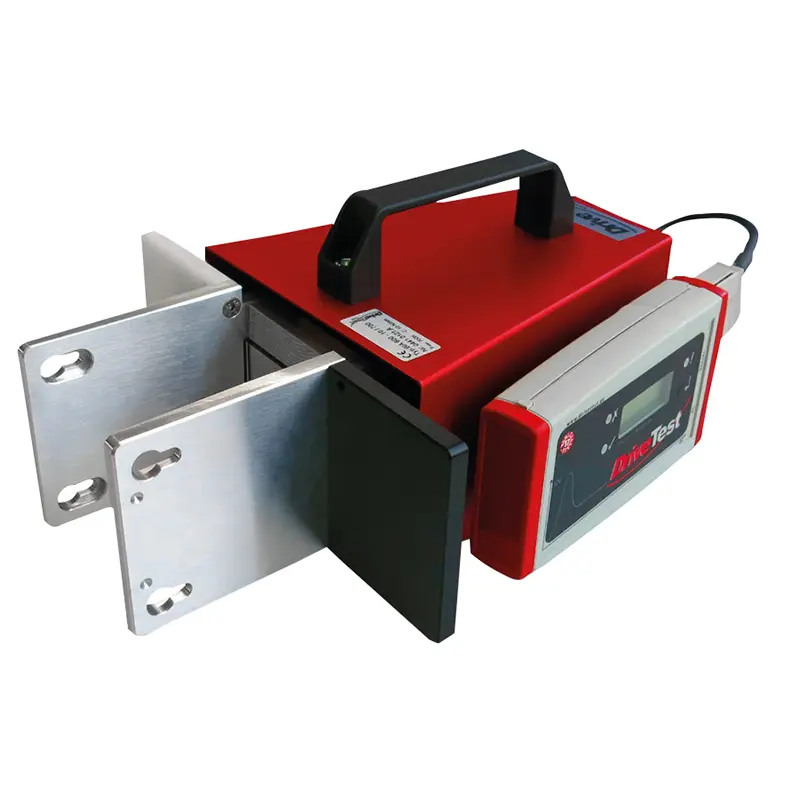

Closing force measurement system for rail vehicle doors

The closing force measuring device is an electronic measuring device for rail vehicle doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed for the clamping force measuring device, which drastically reduces the measurement process and the effort involved in documentation. With just a few operating steps, the measurements of a complete vehicle can be taken over, evaluated in tabular or graphic form and then printed out as a report.

We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.

Highlights

- Applicable standards DIN EN 14752:2015, DIN EN 14752:2005 (optional)
- Precise measurements
- Robust design
- Ease of use - One button operation or remote control via - Microsoft® DLL
   Interface or National Instruments® LabView library
- Professional PC software PinchPilot
- Spacers for all opening widths according to EN 14752:2015
- Automatic limit value setting by distance detection
- Complete scope of delivery of all components in a high-quality transport case
- Support for the management of large fleets

Specification

BIA600
Application of force on both sides
Measuring range 0 ... 700 N
Accuracy +/– 3 N (0–100 N)
  +/– 3 % (>100 N)
Spring rate 10 N/mm
Opening width 90 mm / 3.5"
Area 100 x 100 mm / 3.9 x 3.9"
Force sensor DMS bridge
Dimensions 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"
Weight 3.0kg / 6.6 lb

Display device SEB2
- Data logger unit with LCD display and LED status indicators, control button, serial
   interface
- Optional PC-controlled measurement
- 9 V battery supply
- Real time clock
- Memory for 100 measurements
- Sensor and PC interface
- Peak display
- Rating display i. O./n. i. O.

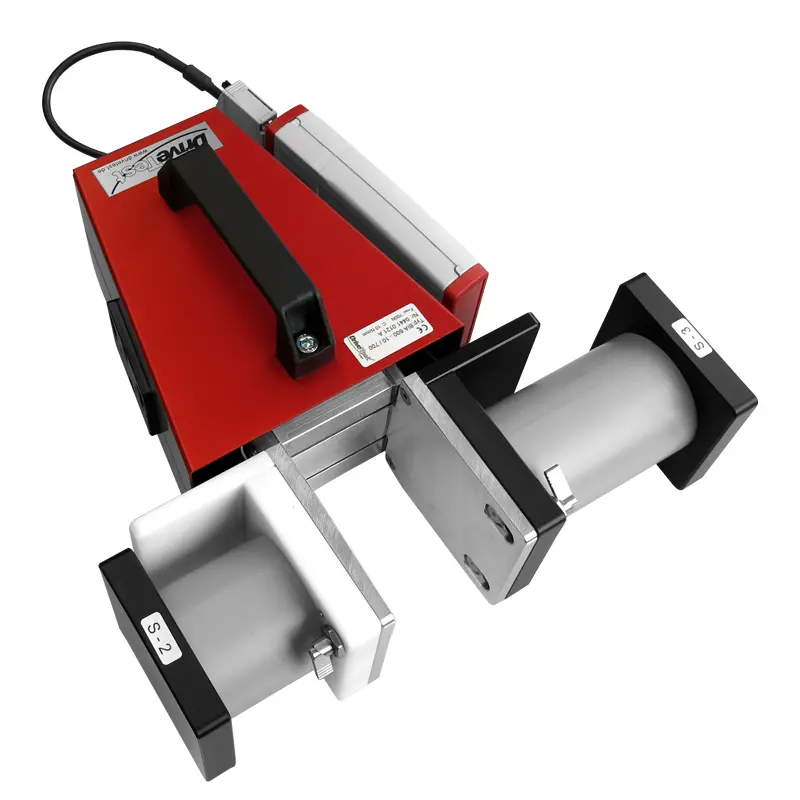

Spacers
- Complete set for all opening widths according to EN 14752:2015
- Automatic detection of the spacers used
- Automatic limit value adjustment according to opening width
- Easy to use, quick assembly without tools
- Robust design, low weight, POM
- Together with BIA 600 sensor, SEB2 in a carrying case

PC evaluation software PinchPilot
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of the standard-relevant characteristic values
- Evaluation according to different guidelines possible
- Custom policy adjustable
- Log printout
- Data export (Excel, CSV, PDF)
- Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope

1 x Closing force measuring device BIA600 incl. connection cable
1 x Indicator SEB2 data logger unit with LCD display and LED status indicators, control button, serial
       interface
1 x 9V battery

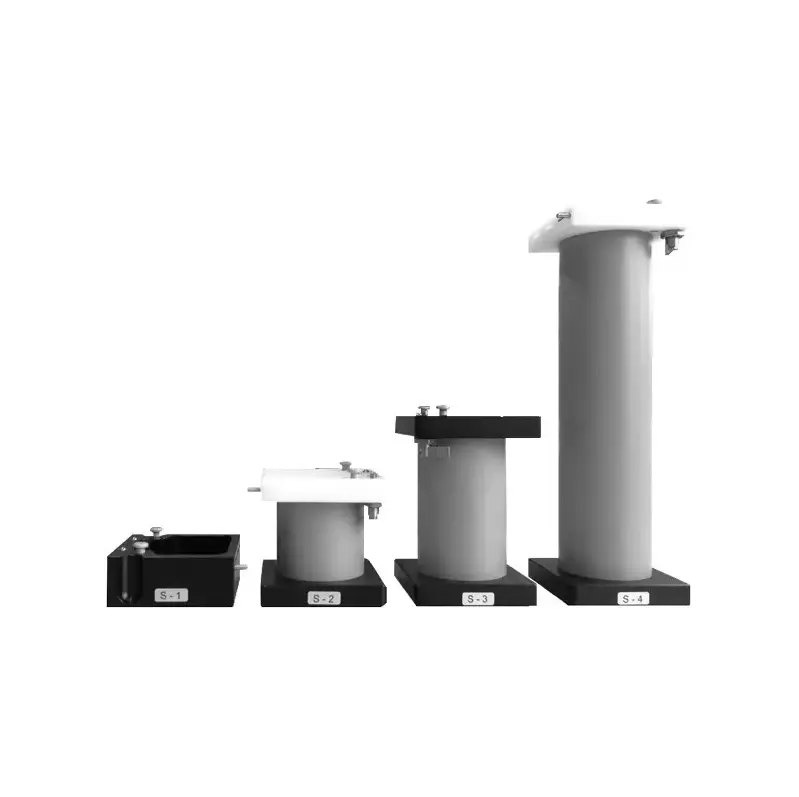

1 x Spacer (4 pieces) according to EN 14752:2015

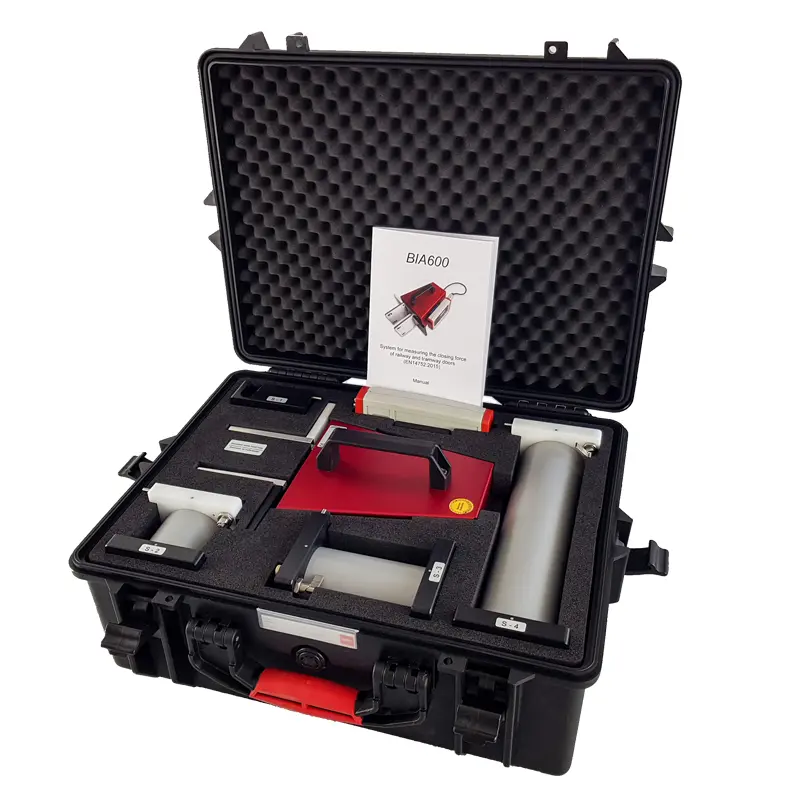

1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x PinchPilot PC software, suitable for Windows XP, Vista, W7, W8, W10
1 x User Manual

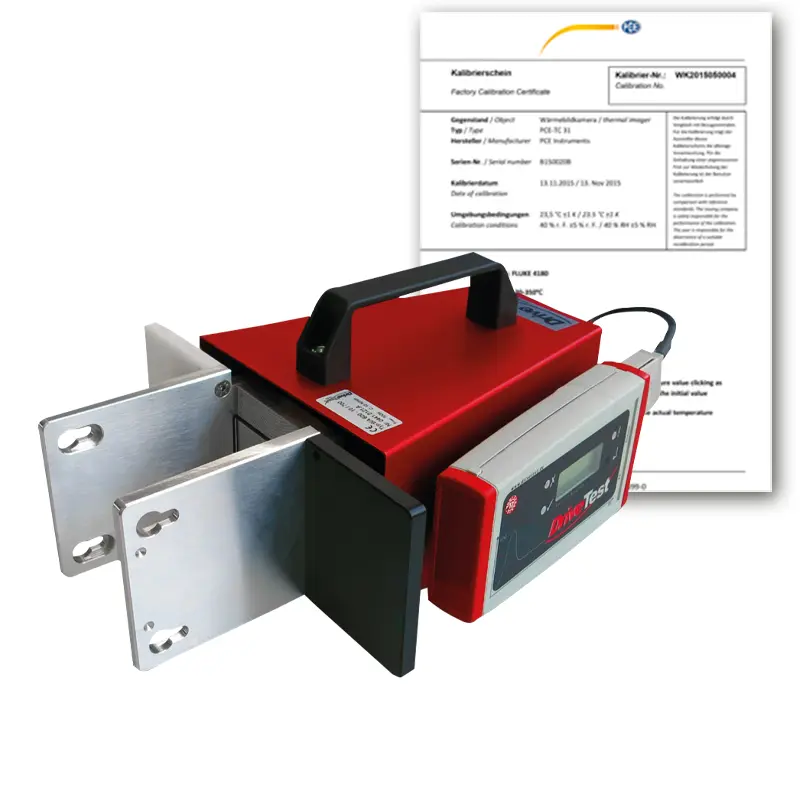

1 x ISO calibration certificate

Software / App

Description of software / technical requirements
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
    FM 205, FM 206, FM 207, FM 208, FM 300

PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.

Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:

Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)

Evaluation according to PinchPilot guidelines
The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.

Result documentation
There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.

The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
