Closing Force Measuring Device BIA Class 2 for bus doors

Order no.: BIA2-SE-10-300
GTIN (EAN): 4260650210129
678,00 €
806,82 €
ISO Calibration
price ex. (VAT / delivery)
:
4260650210129
BIA2-SE-10-300
Delivery time: min. 4 weeks

Accessory

ISO calibration certificate for closing force measuring device BIA Class 2
ISO calibration certificate for closing force measuring device BIA Class 2
97,90 €
DAkkS calibration certificate for closing force measuring device (mechanical)
DAkkS calibration certificate for closing force measuring device (mechanical)
306,90 €

Description

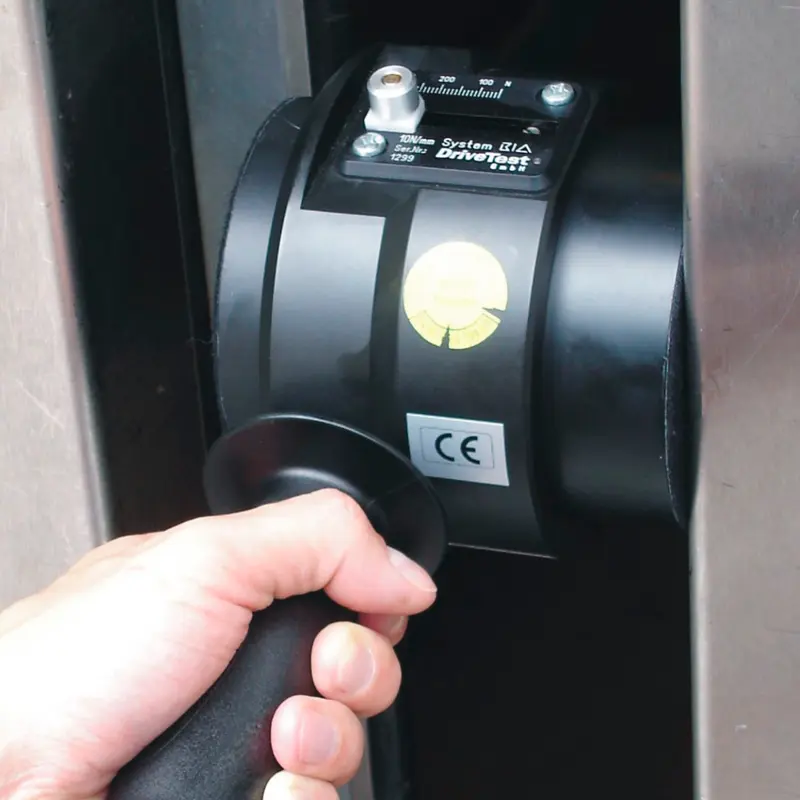

Measuring device for closing force / safety through closing force measurement

The original BIA class 2 is a mechanical closing force measuring device for bus doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

Highlights

- Precise measurements
- Robust design
- Easy to use
- Complete scope of delivery - including high-quality transport case
- Extensive user support
- Calibration service

Specification

Original BIA Class 2
Measuring rangemust be selected!
Accuracy +/– 10 N or 5% of reading
Stiffness 10 N/mm or 25 N/mm selectable!
Gap width 115 mm / 4.52"
Diameter 100 mm / 3.93"
Measuring principle slave pointer
Dimensions 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5"
Weight 2.1 kg / 4.6 lb

Delivery Scope

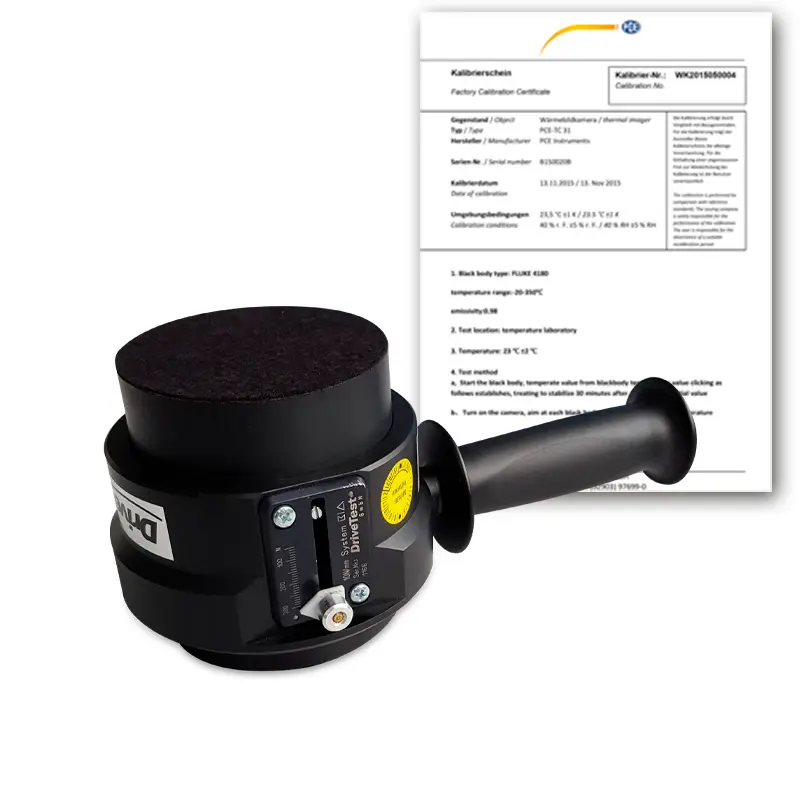

1 x Closing force measuring device original BIA class 2
1 x Transport case with foam insert for the complete scope of delivery
1 x Manual
1 x ISO calibration
