545,00 €

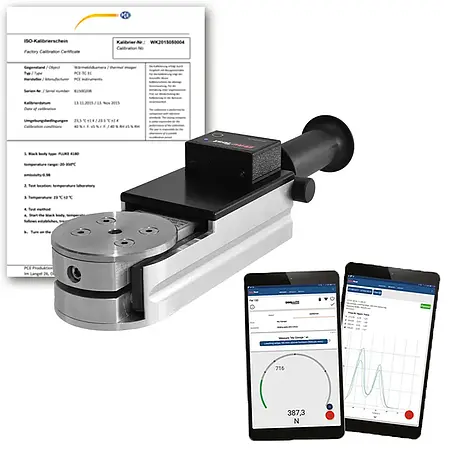

| FM100BT | Bluetooth |
| Measuring range | 0 ... 2000 N |
| Accuracy | +/– 3 N or 3% of reading |
| Stiffness | 500 N/mm |
| Gap width | 50 mm / 1.9" |
| Diameter | 80 mm / 3.1" |
| Measuring principle | DMS transducer |
| Power supply | 5 V DC via USB max. 500 mA |
| Lithium polymer battery 350 mAh | |
| Battery life under full load | more than 10 hours |
| (continuous measurement) | |
| Environmental conditions | |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | possible: -40 to +50 °C / -40 to 122 °F |
| ideal: +10 to +25 °C / 50 ... 77 °F | |
| Humidity | max. 90% rel. humidity, non-condensing |
| Dimensions | 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9" |
| Weight | 2.1kg / 4.6 lb |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of important parameters | |
| - Evaluation according to different guidelines (standards) | |
| - Possibility of entering self-defined guidelines | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| App downloadable from Google Play Store | |
| - Force Meter - easy-to-use app with automatic guidelines and standards updates | |
| - Time saving - immediate feedback on the measurement result including simpler report generatio | |
| - Paperless office - reduces paper and the associated costs and protects the environment | |
| - Can be used individually - integration of the customer's signature possible - System requirements software PinchPilot and App (see tab Software/App) | |
The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
Force Meter App / Description
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
- Download App in Google Play Store
- Android device
- for the following measuring devices: BIA-1 BT, BIA-600 BT, FM-100 BT, FM-300 BT
Technical requirements
- Mobile Android device (tablet/ smartphone)
- Android 5.0 or higher
- Bluetooth interface
- Bluetooth measuring device (wireless/ wireless)
Features of the Force Meter App for Android
Acquisition and visualization of measurement data
The app displays the data after the measurement in a graph. In addition, other parameters for the measurement are calculated and presented in tabular form. All data is stored in a local database on the device and can therefore be easily found again later.
Evaluation according to the standard
The app evaluates measurements according to predefined evaluation criteria. These are created on the basis of applicable regulations (laws, directives, norms, standards). The permissible values are shown in the measurement diagram or in tabular form and thus allow a quick assessment of the measurement. We keep the evaluation criteria up to date and users can easily get updates from the Google Play Store.
User guidance through measurement process
The user is guided intuitively through the measurement process if a corresponding standard or guideline has been selected before the measurement. Depending on the point to be measured, the app provides information on how to carry out the measurement.
All measuring points are displayed in a list and are marked as completed after the measurement. In this way, the user always has an overview of the measurement to be carried out.
Own measuring objects and measuring point identification
The user has the option of creating a measurement object and saving all relevant data such as designation, serial number, type or owner. In addition, a bar or QR code can be stored on the measurement object. Thanks to the device's integrated camera, measurement objects can be easily selected at a later point in time in order to carry out a new measurement. In the results window, these characteristic data can be filtered in order to obtain all measurements for a measurement object.
Report creation and data export
Immediately after the measurement, a PDF report is created for the measurement. The user has the option of forwarding this PDF directly via email or storing it in a storage location (device, cloud, etc.). If a printer is connected to the Android device, the report can also be printed immediately. The signature and comment functions are useful functions for creating reports for your customers. In addition, we offer a function for creating photos with the device's internal camera. These can be included in the report for documentation. In addition, there is the option of exporting the measurement data as ppdx (XML format). You can, for example, open and process these with our other software tools.
You can set the user language yourself: German, English, French, Italian and Spanish.
The following standards and guidelines can currently be evaluated:
ASR 1.7
EN 12453:2017
DHF-TS-011:2018
EN 16005:2012
EN 18650-1:2010
EN 14752
2000/4 EC
DIN EN 81-20
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
