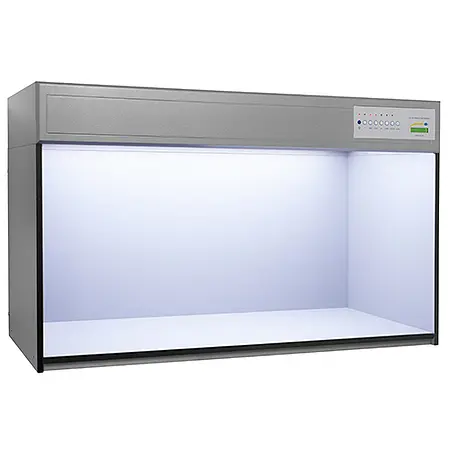

Color Viewing Box PCE-CIC 10-US

Order no.: PCE-CIC 10-US
GTIN (EAN): 4250348714510
1.674,90 €
1.993,13 €
price ex. (VAT / delivery)
:
4250348714510
PCE-CIC 10-US
Delivery time: Not in stock!

Description

Color lighting chamber for color matching / For use in quality control / Hour counter / Large viewing area / Easy to clean interior / Simulation of six light types

A color matching box is used wherever products need to have the same color characteristics during production. Thus, a color matching box contributes to quality control. The color matching box is a simulation tool, which is capable of representing certain situations in order to analyze the color characteristics of individual samples. The color matching box PCE-CIC 10-LED supports six possible lighting types. These colors are supplied as standard: "A/F", "D65", "TL84/F11", "UV", "CWF" and "TL83/U30".

Metamerism can thus be avoided by using a color matching box. As an aid to the measurement, the color matching cabinet has an hour counter installed, which makes it easier for the user to keep to the recommended running time of the lamps. The corresponding light type is selected by the user independently by the push of a button. The switch strip is located on the front side of the color matching box. If desired, several light types can also be switched on simultaneously in the color sample box. This is done by pressing the respective keys simultaneously.


Highlights

- color assessment under different light types
- with hour counter
- short warm-up time
- according to ASTM D1729, ISO3664, DIN, ANSI, BSI
- easy to clean housing
- large lighting area of the objects

Specification

Technical Specification
House light A / F
Artificial daylight D50
Fluorescent TL84 / F11
Ultraviolet UV
Office / business / storage room light     CWF
Business / office lighting in the USA TL83 / U30
Measurements 1310 x 600 x 800 mm
Weight 65 kg
Standards ASTM D1729
ISO3664
DIN
ANSI
BSI

Delivery Scope

Delivery Contents Color Sample Box PCE-CIC 10-US
1 x instruction manual

Downloads
