Conductivity Meter PCE-SM 5

Order no.: PCE-SM 5
GTIN (EAN): 4250348735966
78,90 €
93,89 €
price ex. (VAT / delivery)
:
4250348735966
PCE-SM 5
Delivery time: 1-2 working days

Description

Conductivity Meter / automatic temperature compensation / battery operation / one-key operation / waterproof

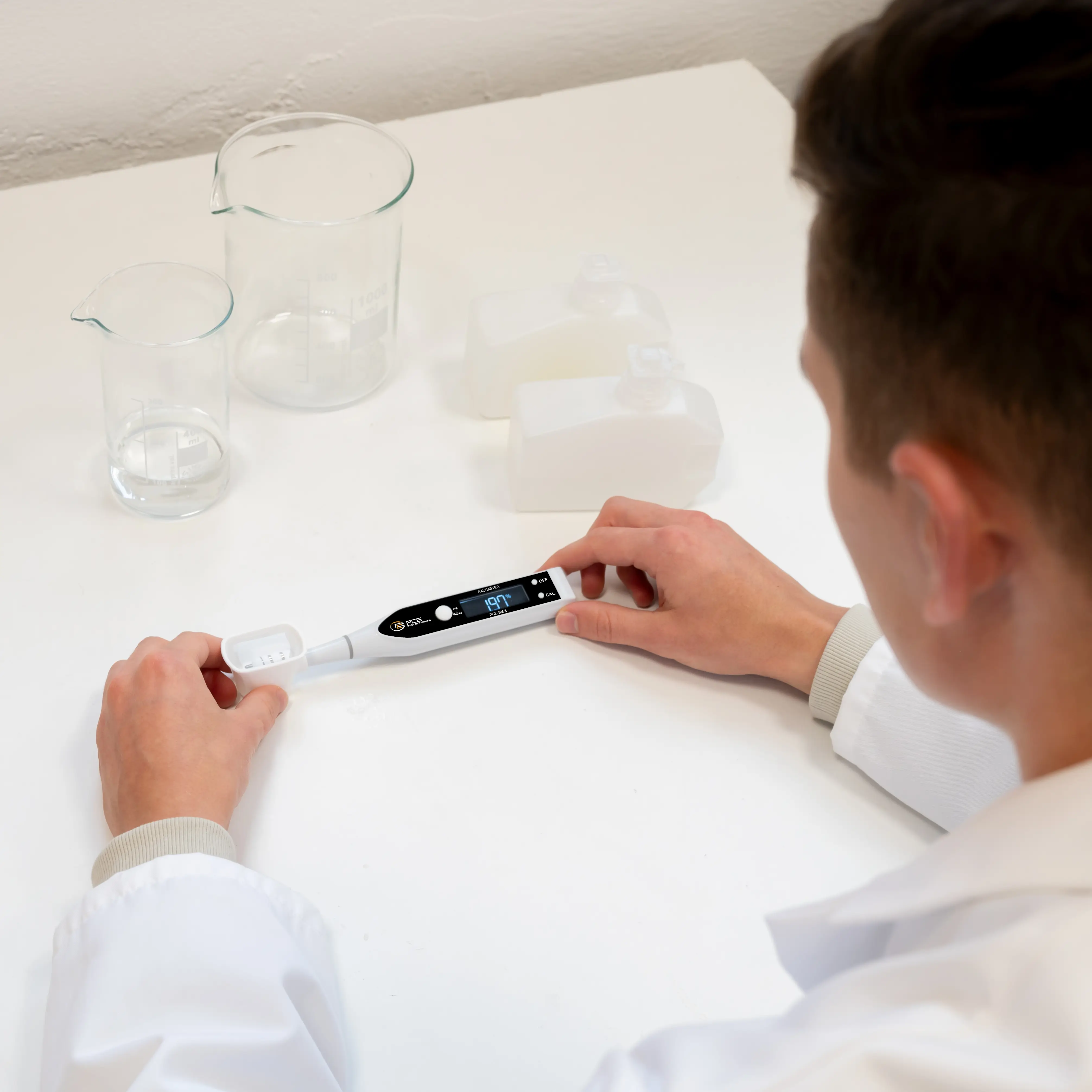

The Conductivity Meter is a precise and user-friendly instrument for determining the salt content in solutions, which measures in the units mg and %. This makes the Conductivity Meter versatile and ideal for applications in food processing, aquaristics or in the laboratory. The Conductivity Meter offers a measurement range of 0.01 to 5 % with a resolution of 0.01 %. The compact, handy device has automatic temperature compensation (ATC) for temperatures from 5 °C to 60 °C, ensuring accurate measurements even with temperature fluctuations.

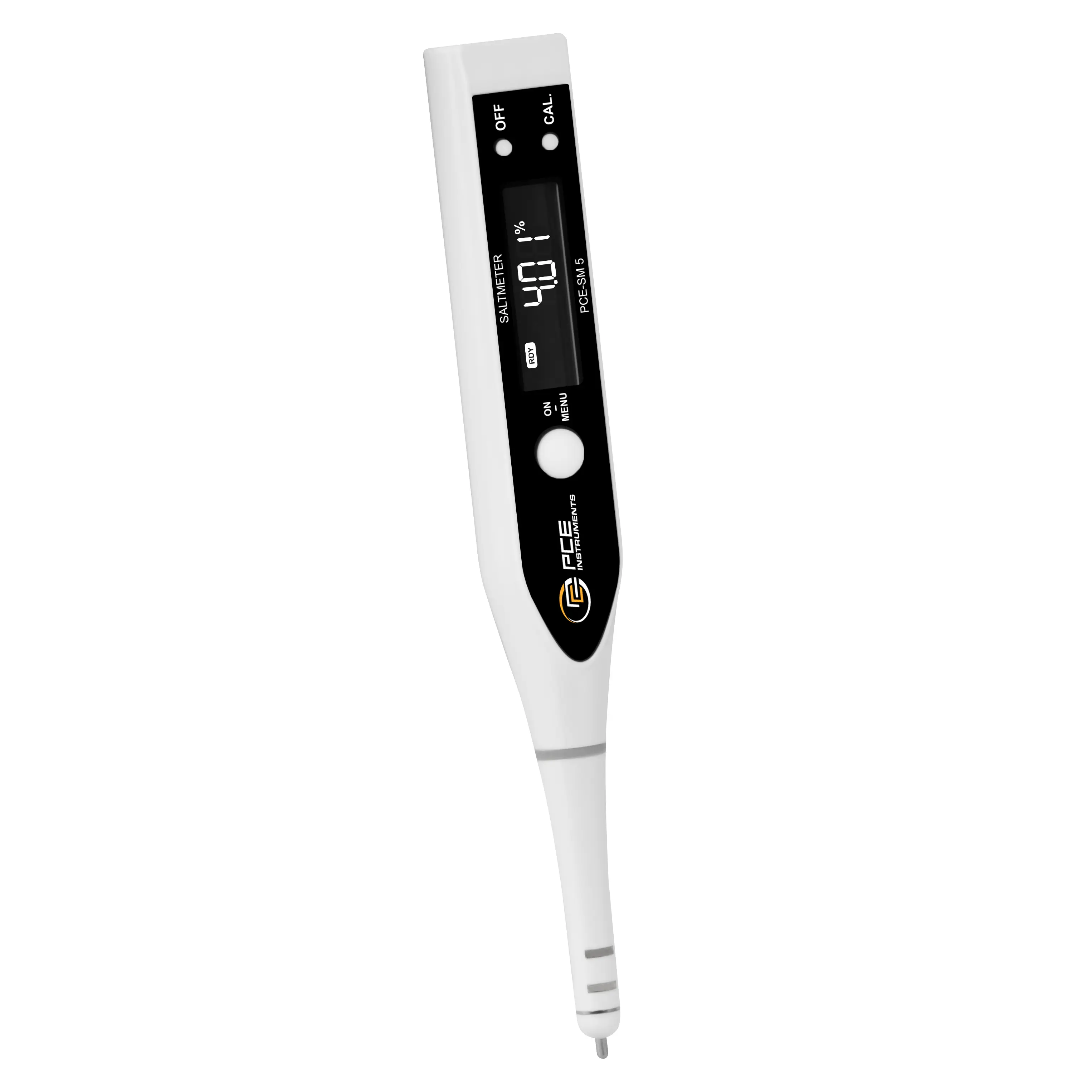

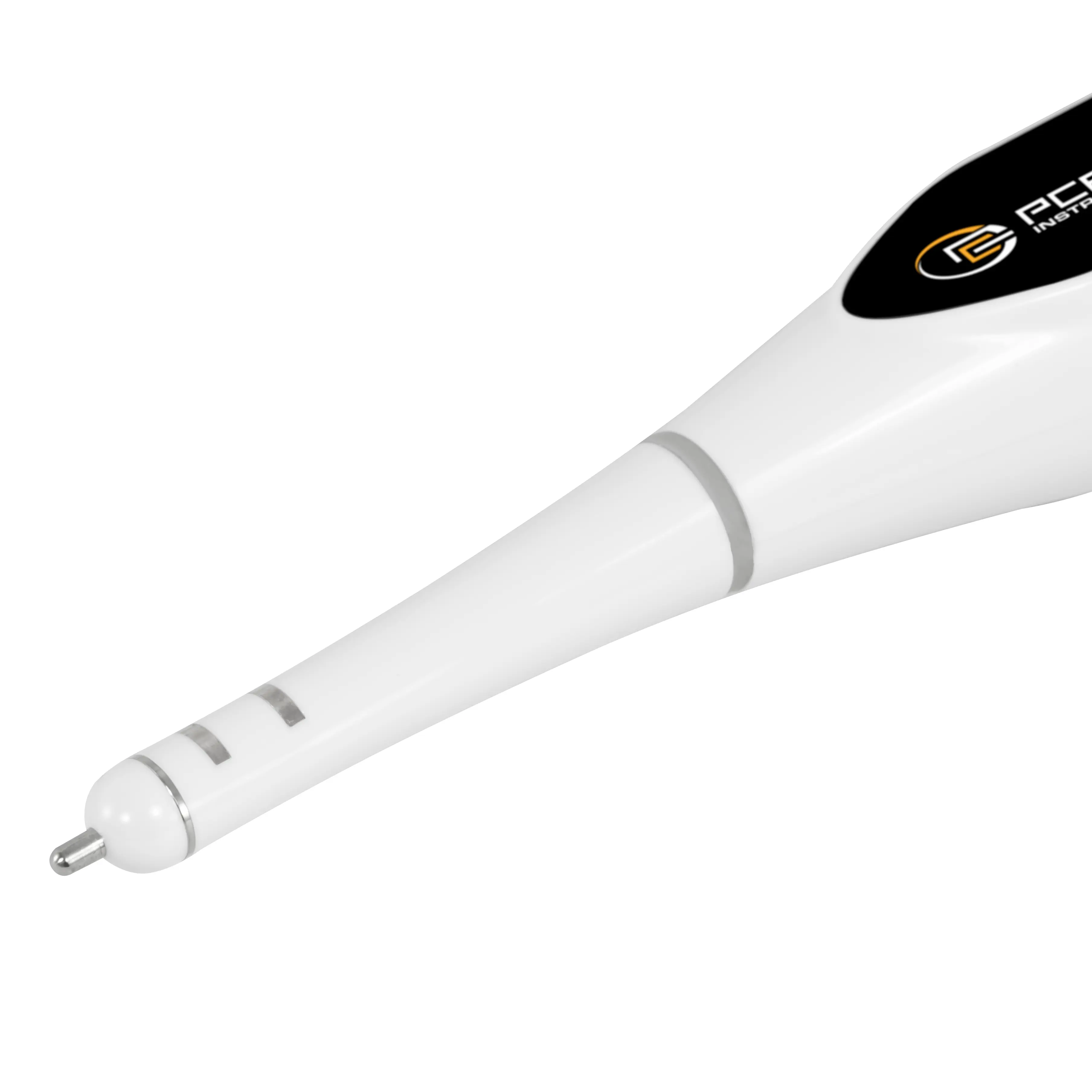

The 1.6-inch backlit LCD screen provides a clear indication of the results. Other features of the Conductivity Meter include automatic power off after 60 seconds and a temperature sensor for quick and accurate measurements. The Conductivity Meter is temperature resistant and offers simple one-key operation and the ability to measure continuously without switching off, making it ideal for both home and professional laboratory use.


Highlights

- measurement range up to 5 %
- automatic temperature compensation
- small and handy
- waterproof
- automatic power off

Specification

Salinity
Measurement range up to  0,01 ... 5 %
Resolution  0,01 %
Accuracy  ±0.05 % FS (<2 %), ±0.1 % FS (2 % ... 5 %)

Temperature
Measurement range up to  1 ... 99 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Temperature compensation  automatically from 5 ... 60 °C
Display type  LCD with backlight
Display size  1,6 Inch
Automatic power-off  60 s
Menu language  English, English (GB)
Protection class (device)  IP67
Weight  39 g
Operating conditions  5 ... 60 °C , 0 ... 95 % RH
Storage conditions  0 ... 60 °C , 0 ... 95 % RH

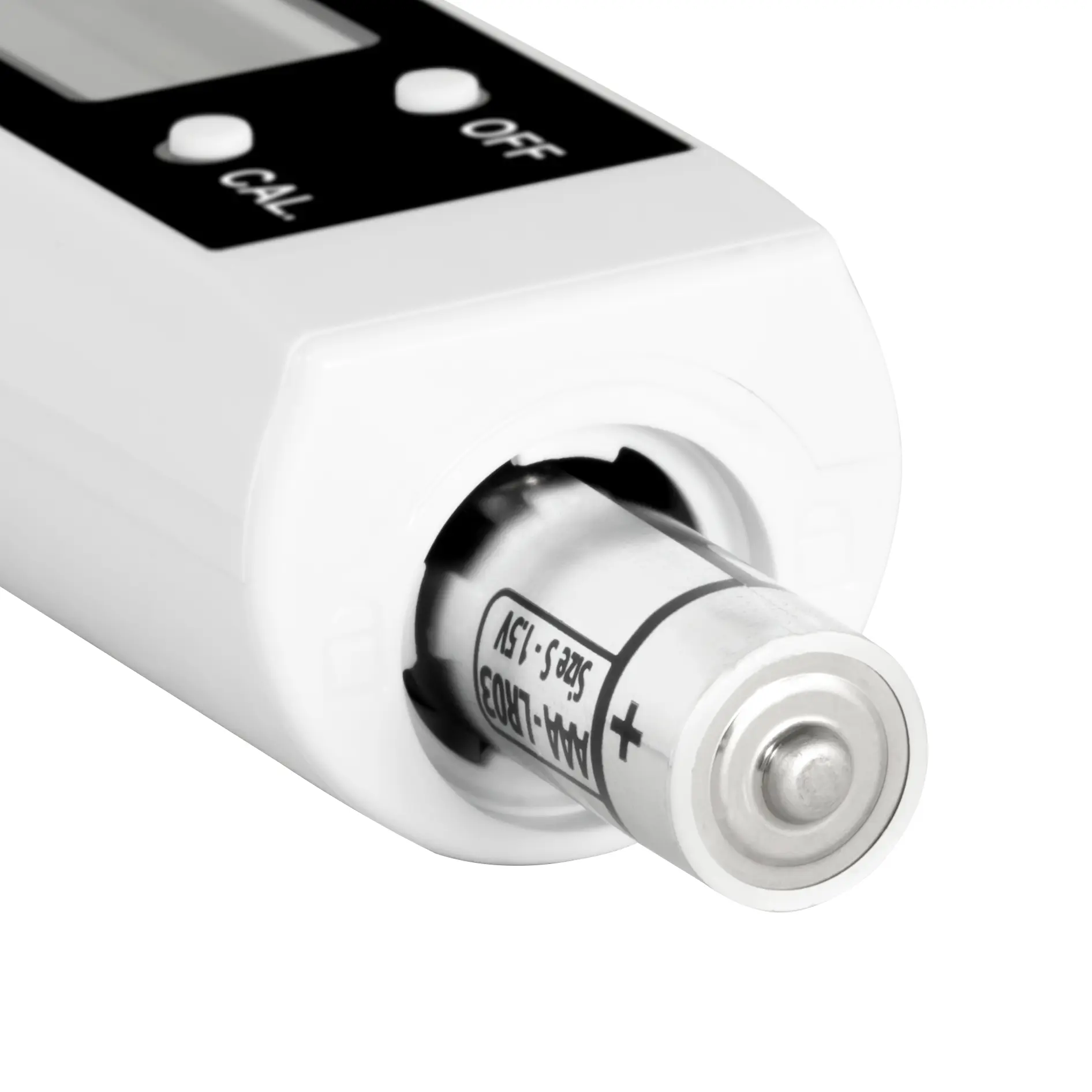

(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Dimensions ( L x W x H )  188 x 25 x 22 mm

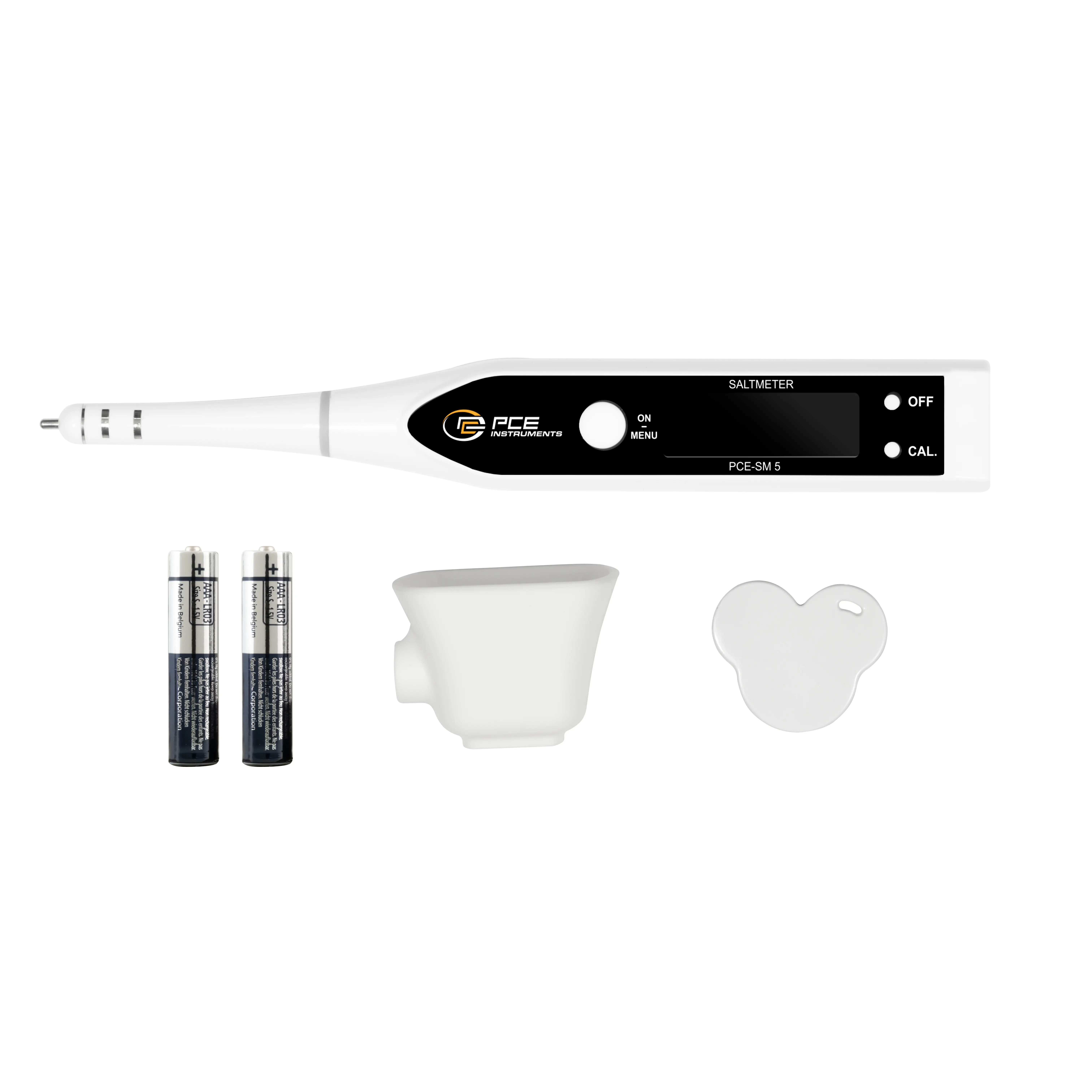

Delivery Scope

1 x Conductivity Meter PCE-SM 5
1 x measuring cup
2 x 1.5 V AAA battery
1 x key for battery compartment
1 x user manual
