Damp Meter

Here you will can find a damp meter for different types of materials. Using a damp meter is a very simple and comfortable task to detect the moisture of the materials both resistively and capacitively. A damp meter is used to determine moisture of walls, concrete, attics and wood. A damp meter is also used to detect absolute moisture in the field of agriculture to ascertain the correct time to plant a crop to achieve the highest yield.

The damp meter will control the process of drying in grain and animal feed by means of telling the user when it is appropriate to move onto the next stage of the drying process. Different moisture probes can be connected to the damp meter corresponding to the materials which are to be measured. For most of the materials you will find calibration curves within the internal memory of the damp meter. You then only need to select the appropriate calibration curve for the material that you wish to measure.

If there is no deposit characteristic curve for a material, the user is able to program specific characteristic curves (only possible with the FMD). In order to do this, tests for the correlation must be done with the help of a drying cupboard. With the appropriate software the user is able to document measured results of the damp meter and to use these results for further purposes.

Also in the field of renewable energy the damp meter is needed as the absolute moisture of solid biomass and wood can be determined, with the drying completed with a solar kiln as to provide a zero carbon energy source. Especially during the manufacturing of wood pallets the damp meter can be used to ensure quality guidelines.

If you have any questions, please contact us at or +49 (0) 2903 976 990 (Mo. - Fr. von 8.00 bis 17.00 Uhr).

Damp Meter PCE-PMI 1BT

116,90 €

Price excl. VAT &. delivery
2 year Warranty

The damp meter has a measuring range of 0.0 … 100.0%. For a measurement, the ball head is positioned on the test object by the damp meter. This guarantees a non-destructive measurement with the damp meter. The damp meter is therefore used, for example, for on-site inspections of buildings, wood and other surfaces.

Measuring range: 0.0 … 100.0%
Resolution: 0.1%
Measuring depth: 20 … 40 mm / 0.78 … 1.57"
Interface: Bluetooth 4.0
Free Android and iOS app

Damp Meter for Building Materials PCE-PMI 2

154,90 €

Price excl. VAT &. delivery
2 year Warranty

PCE-PMI 2 is a nondestructive concrete moisture meter or dampness instrument that measures the moisture content of concrete and other building materials. It offers many preset characteristic curves based on alternative material densities. This digital moisture device gives quick and accurate moisture measurement without causing any damage to the test material.

Offers high-frequency penetration up to 50 mm / 1.96 inches in depth
Features an alarm function when exceeding threshold levels
Includes a metallic sphere or ball sensor

Damp Meter for Wood PCE-WMT 200

556,90 €

Price excl. VAT &. delivery
2 year Warranty

With the Bluetooth damp meter for wood, up to 44 different types of wood can be checked for their moisture content. These include 36 hardwoods and 8 softwoods, such as beech, spruce, pine and maple, etc.

44 different types of wood
Ramming electrode with pairs of needles
Up to 150% moisture
Bluetooth 4.0 interface

Damp Meter PCE-PMI 3

259,90 €

Price excl. VAT &. delivery
2 year Warranty

The PCE-PMI 3 damp meter is a small and reliable measuring instrument for the determination of existing moisture in, for example, concrete and wood. Corresponding scales for measuring moisture are already stored in the library of the damp meter.

Relative scale: 0.0 … 99.9%
Accuracy: ± 0.5%
Resolution: 0.1%
For measurements on wood and concrete
Individually adjustable alarm limits
Setting in CM% possible
Numerical and graphical view
Results are delivered by Carbit method

Damp Meter for Soil PCE-SMM 1

306,90 €

Price excl. VAT &. delivery
2 year Warranty

PCE-SMM 1 is a damp meter for soil ideal for use in agriculture, crop science, horticulture, botany, landscaping, gardening and environmental testing applications. This portable handheld moisture meter or analyzer measures soil moisture or humidity quickly, easily and accurately.

Moisture measurement range: 0 … 50 %
Resolution: 0.1 %
Accuracy: ±5 % +5 digits
250 mm / 9.84" long probe

Damp Meter PCE-PMI 4

485,90 €

Price excl. VAT &. delivery
2 year Warranty

The damp meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the damp meter are pressed onto the surface to be tested. Within seconds, the damp meter will show the moisture content to the operator.

Relative scale: 0 … 100%
Accuracy: ± 0.5%
Resolution: 0.1%
For measuring the moisture in concrete and screed
Numeric and graphical view
Eight spring electrodes are used for the measurement

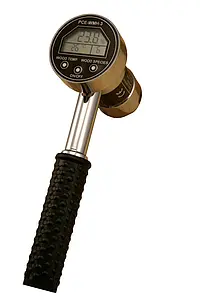

Damp Meter for Wood PCE-WMH 3

645,90 €

Price excl. VAT &. delivery
2 year Warranty

PCE-WMH-3 is a portable handheld digital damp meter or analyzer used to measure the moisture content of wood. This hammer-style wood moisture analyzer features preset characteristic curves for measuring moisture in 270 different wood types.

Measuring range: 6 … 60 % moisture content
Accuracy: ±1 % (within 6 … 12 % range), ±2 % (13 … 28 %), ±2 % (29 … 60 %)
Resolution: 0.1 %

Damp Meter PCE-W 3

645,90 €

Price excl. VAT &. delivery
2 year Warranty

Absolute Moisture Meter PCE-W3 for waste paper. The Absolute Moisture Meter can detect absolute humidity in waste paper in order to determine the exact humidity content in the collection centre or in the paper-making factory. All test instruments come manufacturer calibrated. ISO certification can be ordered as an option.

Test / Measurement range: 6 … 30 %
Resolution: 0.1 %
Accuracy: ±10 % of the measurement value
Long probes
Accurate measurement

Damp Meter for Wood PCE-WP24

726,90 €

Price excl. VAT &. delivery
2 year Warranty

PCE-WP24 is a damp meter for wood used to perform noninvasive, nondestructive moisture measurements of wood, timber and other construction or building materials. An ideal tool for assessing everything from lumber to floors and more, this moisture meter uses electromagnetic waves that penetrate approximately 50 mm / 1.96 inches to 60 mm / 2.36 inches deep (depending on substrate) to return a mean-value moisture content percentage.

Moisture content measuring range: 4% … 60% wood, 0% … 10% building materials
Resolution: 0.1%
Accuracy: ±0.7%

Moisture measurement finds its application in many spheres of life and industry. In fact, moisture is absolutely necessary, but from the other side, it may have a destroying effect. When it goes about use of the materials, like concrete or wood, the range of applications may be wide. For each particular case, there may be different requirement, which must be taken into account. Evaluation of moisture visually or tactile is not possible and must be carried out professionally with the help of the measuring equipment designed for this purpose.

Excessive amount of dampness in the wood or concrete may occur because of a number of reasons, starting from the wrong storage and preparation to the influence of the external factors, like weather, ambient conditions, excessive condensate etc. First of all, the dampness level should be measured and if the values go beyond the permissible limits, the reasons for the deviation must be detected and eliminated. Besides that, if the level of moisture is too high for a particular application it is necessary to wait, without hurrying up with the hope that it will dry in the process, till it reaches its normal level.

One of the brightest examples of concrete application is a construction site or renovation, when new flooring or walling is planned. In spite of the wide variety of floorings nowadays, when the decision is made about making a renewal of the floor, one of the most important procedures is not only the choice of the new covering, but the correct preparation of the base. Moisture measurement is a must for each professional, no matter what kind of covering will be applied finally.

For example, application of the linoleum or parkette flooring straight after the concrete or screed base has been finished is a serious mistake which will have serious and very cost consuming consequences. The base should not be too damp, and at the same time not too dry. Application of a small and very useful devices, such as damp meter from PCE Instruments, ensures correctness of construction works and flawless work on the floor, no matter what type of flooring it goes about.

Moisture content in the concrete or screed is a determining factor for a longevity of the construction they are used in. Even if it looks good optically, but has the wrong moisture content, the problems will start shortly after the job has been finished. To ensure that the concrete stays strong, resistant and without cracks for a very long time, the moisture measurement should not be neglected in any case, on the stage of concrete preparation, as well as after its application and before the final covering or paintwork is applied on it.

Wood is a popular material that is used in the construction. It is a natural material and has a number of advantages. Nevertheless, wood may also be subject to many destructive processes, and one of the reasons for this is wrong dampness content. It may lose its resistance, attractive optical looks, mold spores can multiply very fast, which leads to unpleasant smell and eventually even health problems. All this may be easily avoided with the help of a careful test at the beginning and subsequent regular maintenance checks later. The damp meter is easy to operate, but in spite of that it provides very accurate and reliable measurements which in no time help the user to understand whether there are any problems with the materials under check.

Damp meter is characterized, from the one side, by its simplicity, but from the other, by its ability to significantly improve the efficiency and performance of work. The professional as well as the inexperienced user equipped with the damp meter is protected from making mistakes at any stage of the construction.
