CO2 Data Logger PCE-AQD 10

Order no.: PCE-AQD 10
GTIN (EAN): 4250348719362
454,90 €
541,33 €
price ex. (VAT / delivery)
:
4250348719362
PCE-AQD 10
Delivery time: 1-2 working days
CO2 / Temp. / Humidity

Description

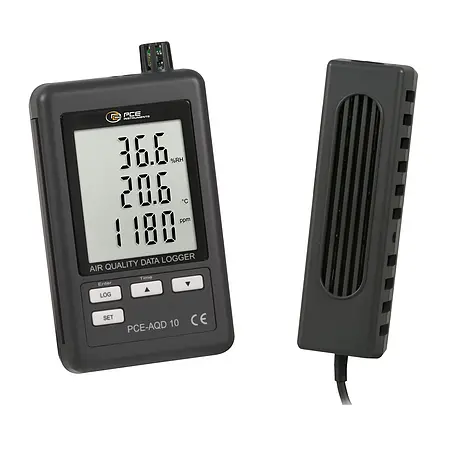

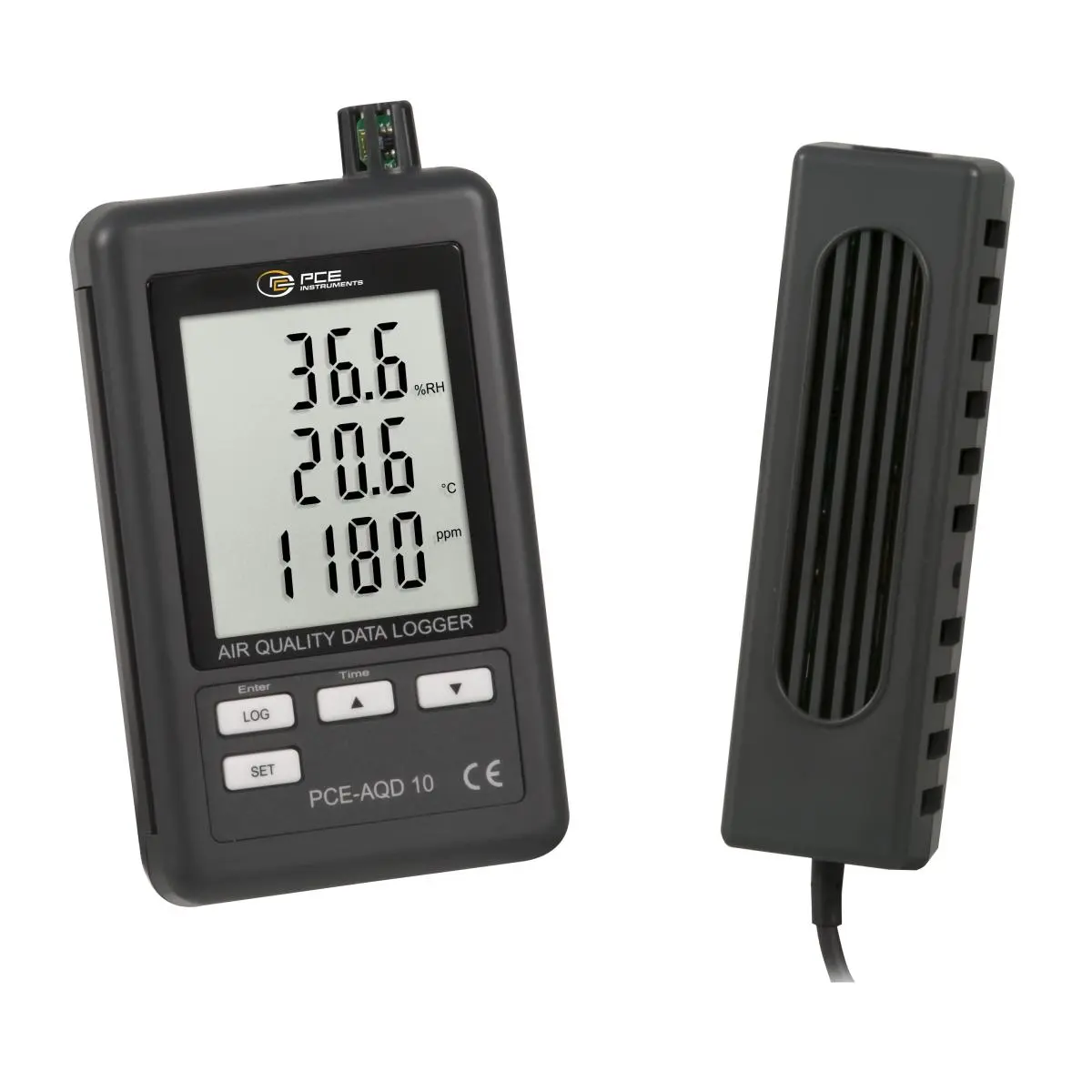

PCE-AQD 10 CO2 data logger
CO2 datalogger for air quality testing / Adjustable storage rate /  Backlit LCD / Storage on SD card / Storage as XLS

The CO2 data logger PCE-AQD 10 is used to measure air quality. The CO2 data logger measures carbon dioxide, temperature and humidity. The CO2 sensor from the CO2 data logger is separated from the main unit with a connection cable. The measured values ​​are displayed on the large display of the CO2 data logger. The air quality measurement data is stored on an SD card. The CO2 data logger can set the measured data in adjustable intervals of 1 ... 600 seconds.

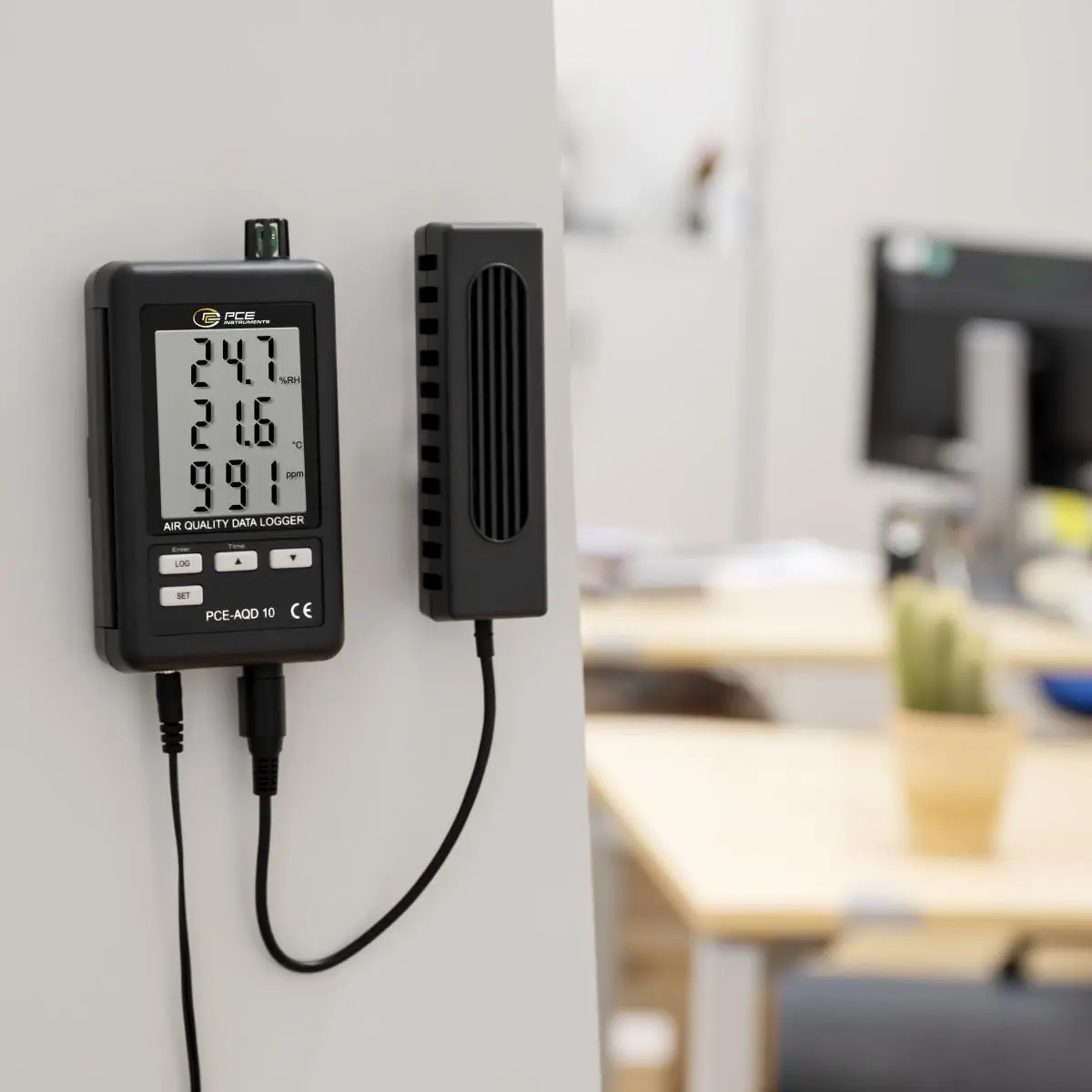

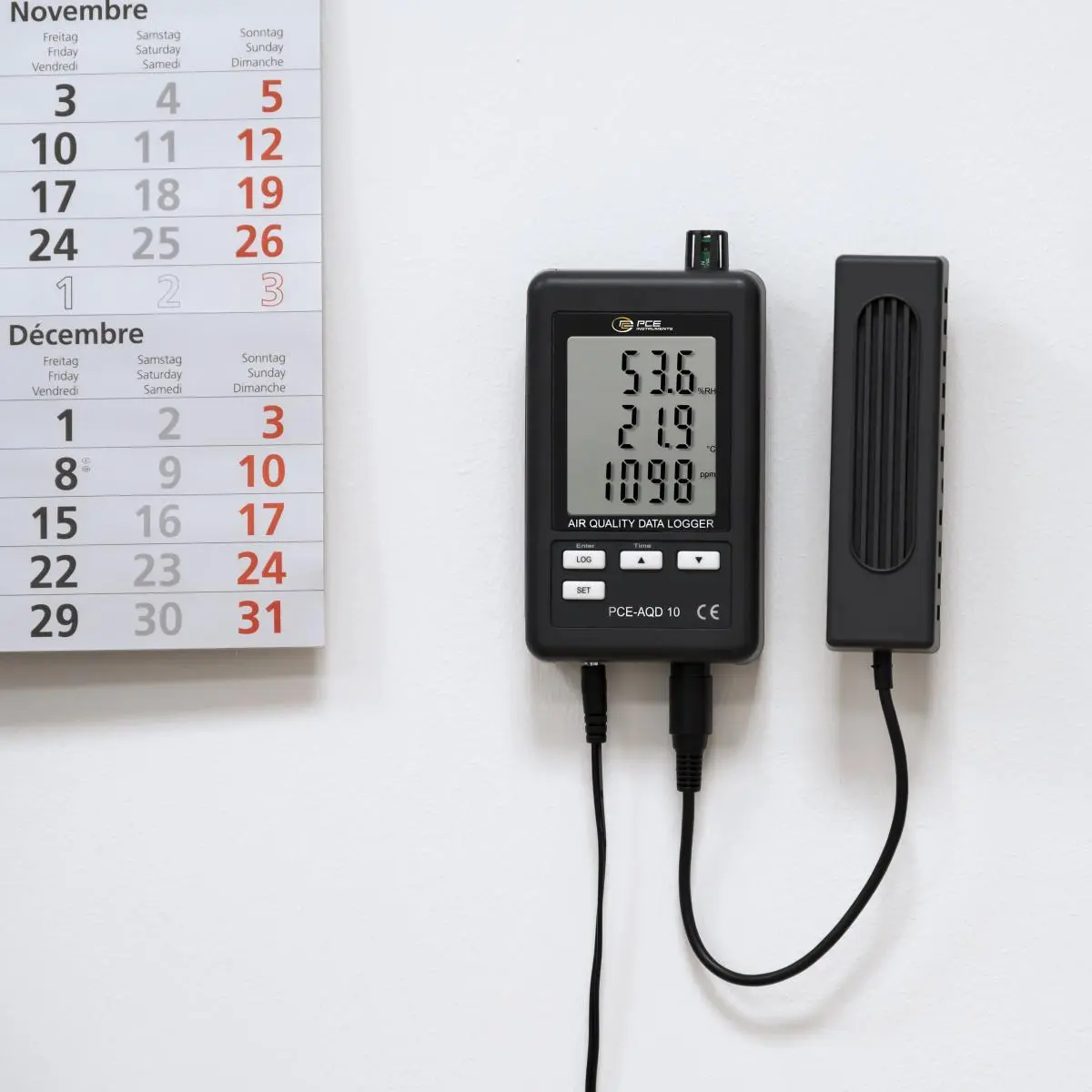

The CO2 data logger is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.

Highlights

- Memory on SD card
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting

Specification

Measured quantity CO2
Measuring range0 ... 4000 ppm
Resolution1 ppm
Accuracy± 70 ppm (<1000 ppm)
  ± 5% of rdg. (<3000ppm)
 ± 250 ppm (> 3000 ppm)
Measured air humidity
Measuring range10 ... 90% rh
Resolution0.1% RH
Accuracy± (4% of rdg. + 1% rh) (> 70% rh)
 ± 4% RH (<70% RH)
Measured variable temperature
Measuring range 0 ... 50°C / 32 ... 122°F
Resolution 0.1°C / 0.18°F
Accuracy ± 0.8°C / 1.4°F

Storage rate 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds

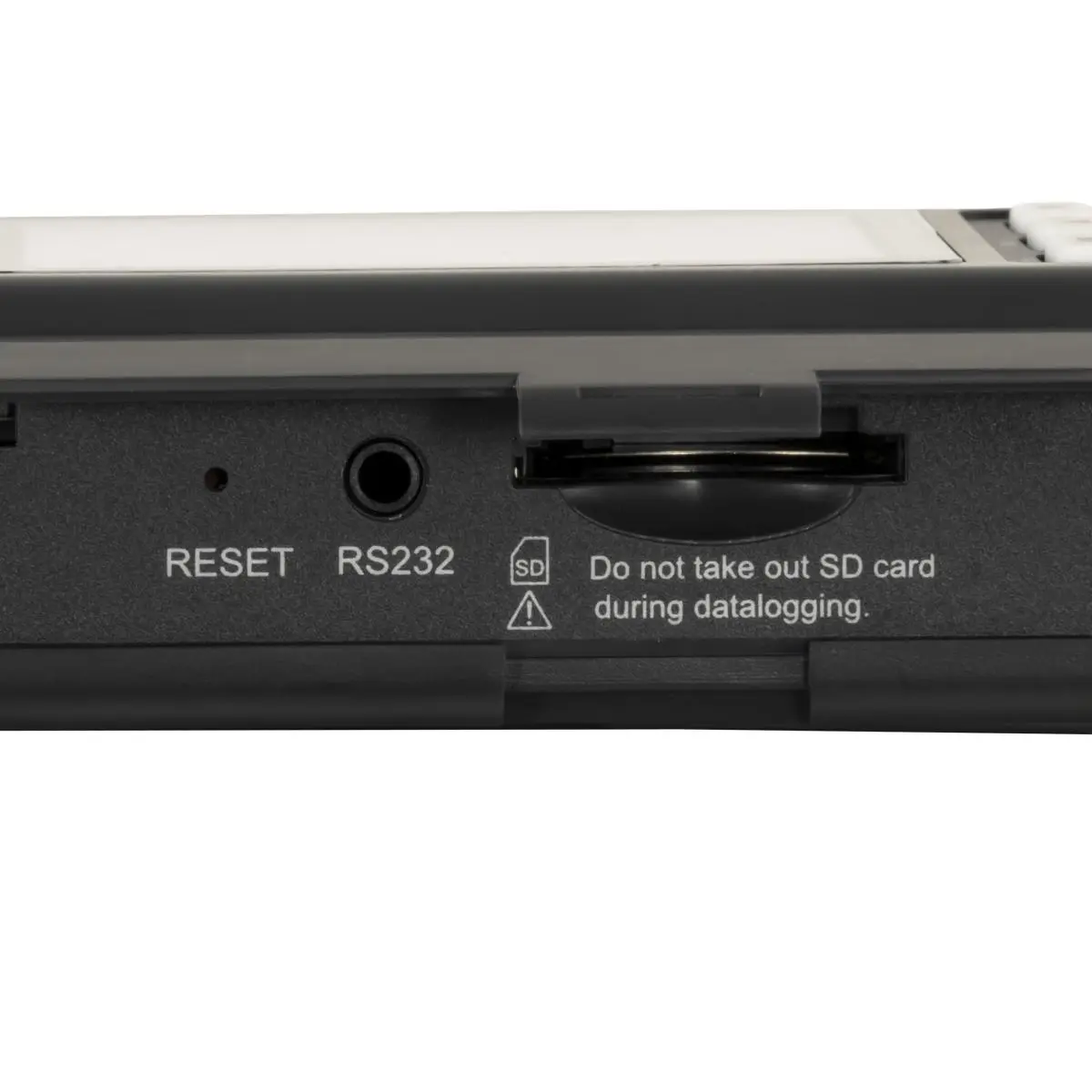

Storage SD card up to 16 GB
Display LCD with lighting
Refresh rate display 1s
Power supply 6 x 1.5V AA battery (for time back-up only)

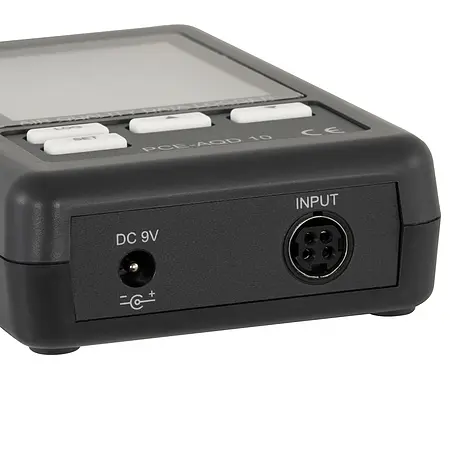

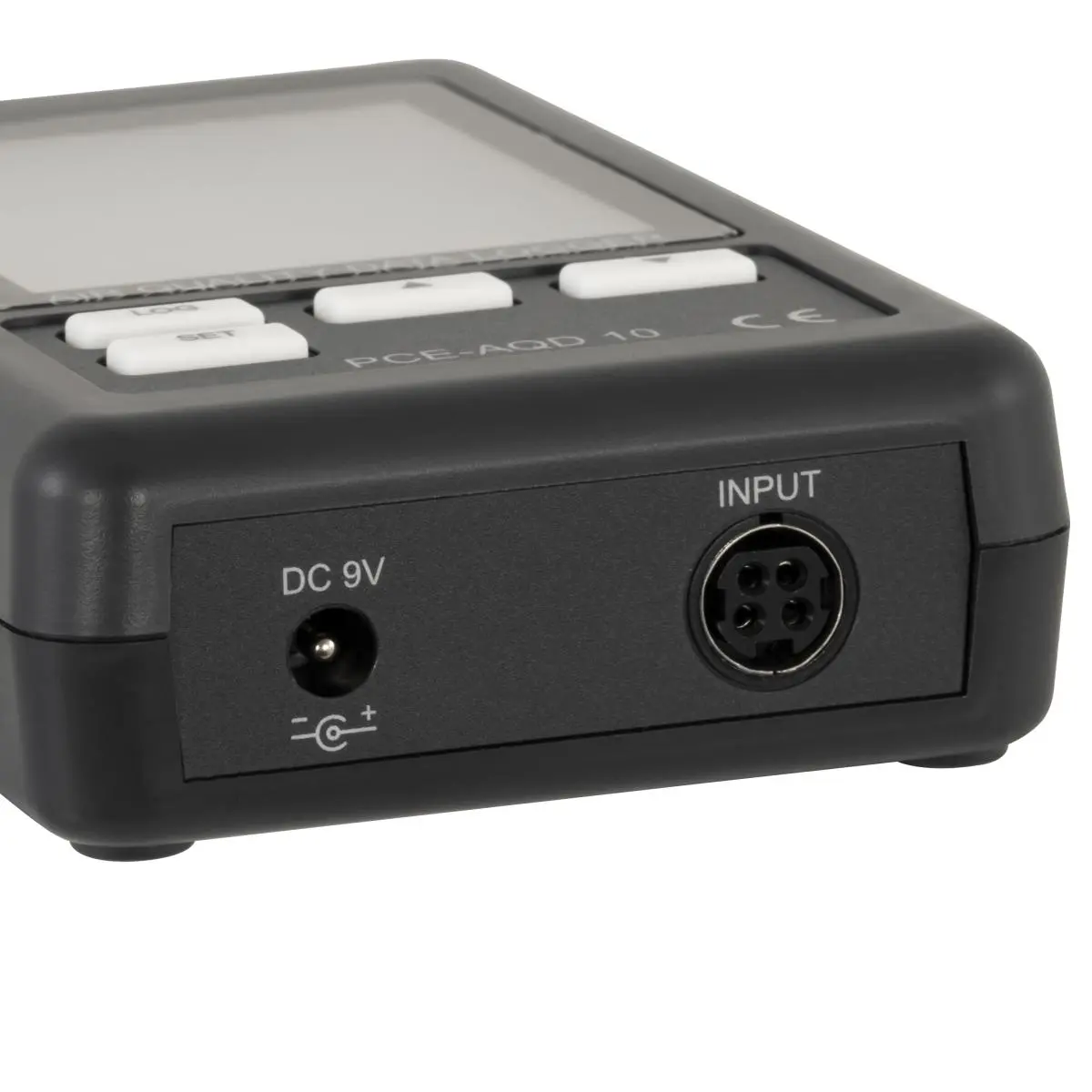

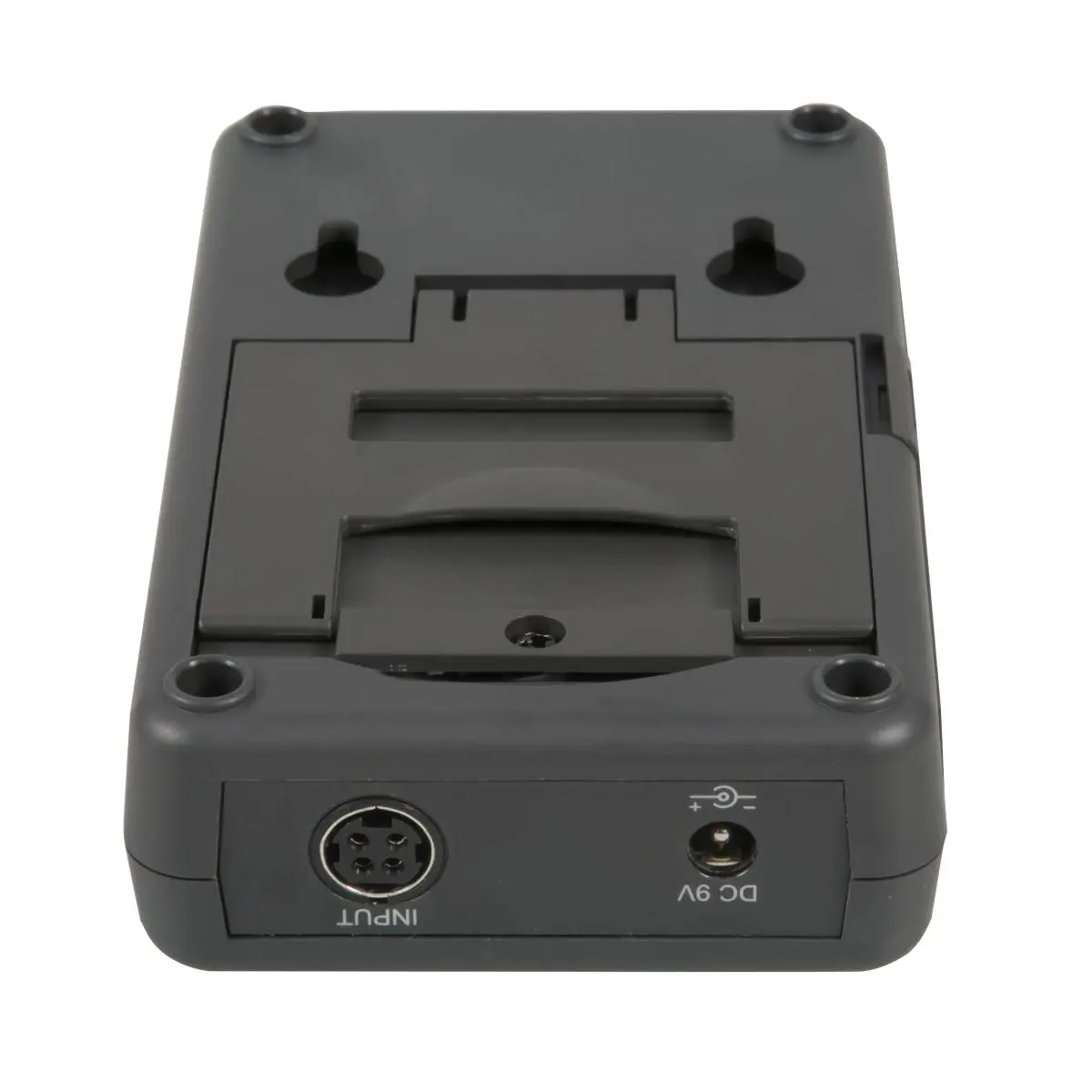

  Plug-in power supply 9V / 800-mA
Operating conditions 0 ... 50°C / 32 ... 122°F, <85% rh
Dimensions Main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in
  CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3 in
Weight Approx. 390 g / < 1 lb (total)

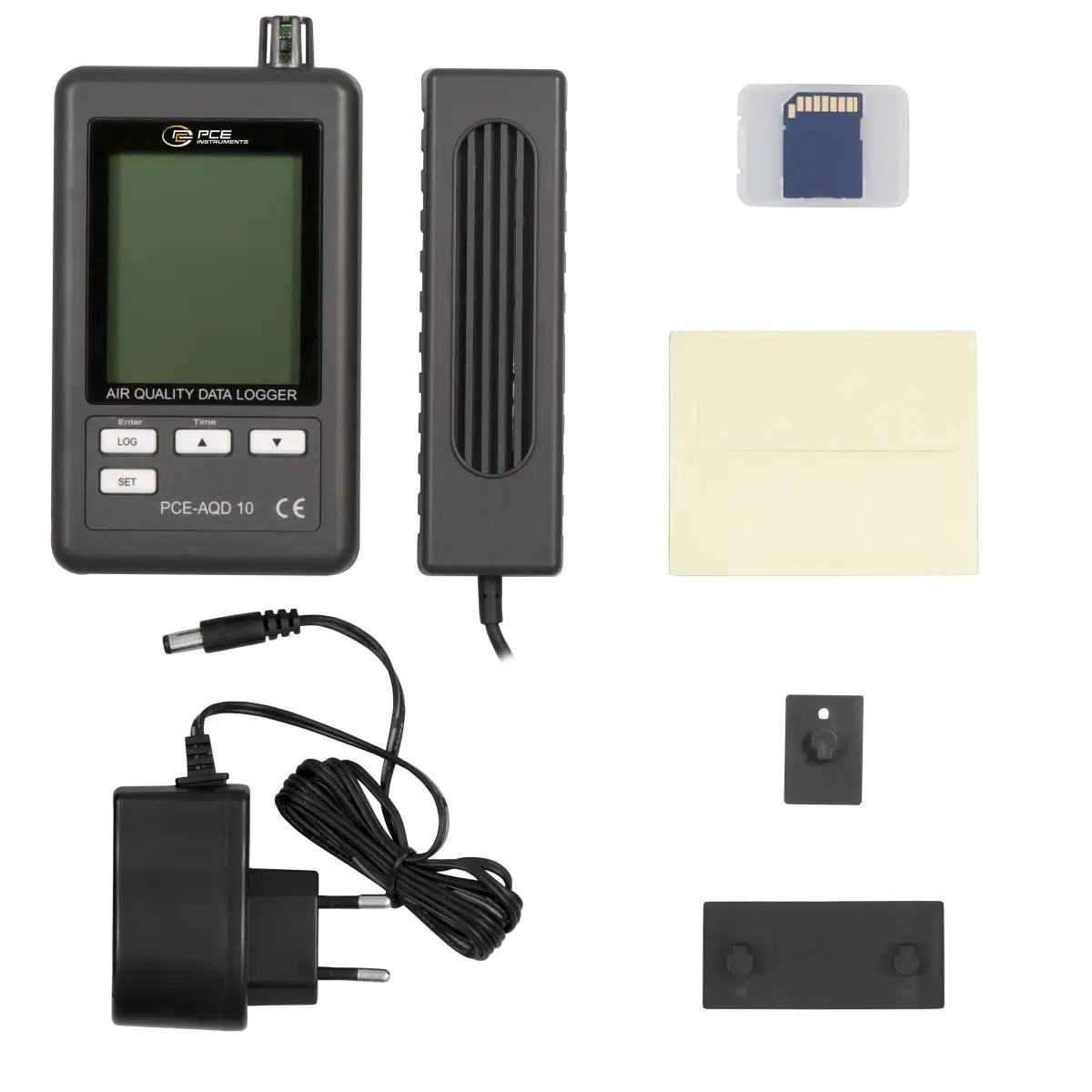

Delivery Scope

1 x CO2 data logger PCE-AQD 10
1 x CO2 sensor
1 x Mains power adapter
1 x SD memory card
2 x Wall holder
1 x Adhesive pad
1 x User manual
