Data Logger / Data Logging Instrument PCE-RAM 7

Order no.: PCE-RAM 7
GTIN (EAN): 4250348735317
191,90 €
228,36 €
price ex. (VAT / delivery)
:
4250348735317
PCE-RAM 7
Delivery time: 1-2 working days

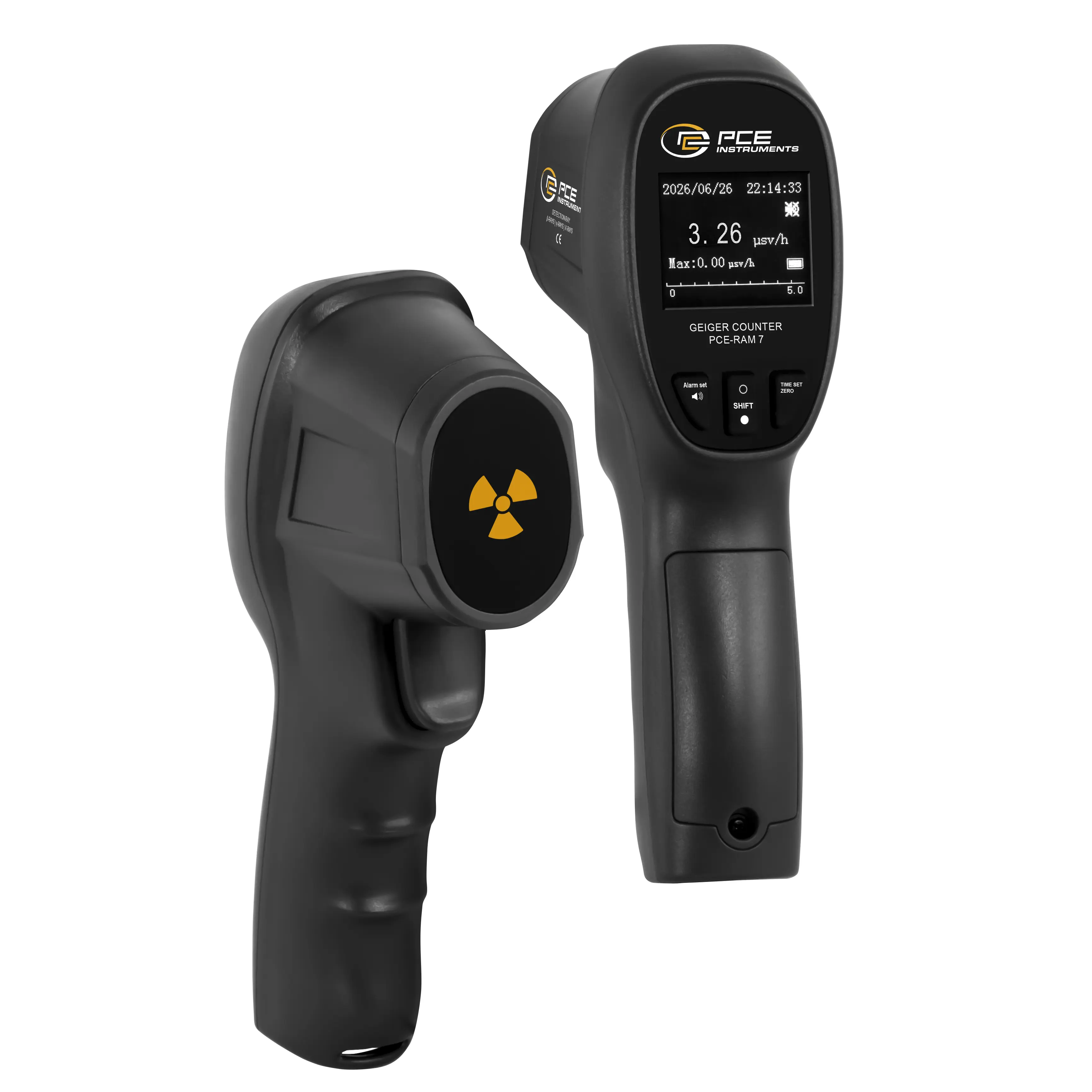

Description

Data Logger / Data Logging Instrument with Geiger-Müller counter tube / gamma, beta and X-rays / time and date display / units µSv/h, CPM, CPS / dark mode / one-hand operation

The Data Logger / Data Logging Instrument with a measurement range of 0 to 9999 μSv/h and a resolution of 0.01 μSv/h is a powerful and precise instrument for detecting beta (β), gamma (γ) and X-ray radiation. Equipped with an energy-compensated Geiger-Müller tube, it offers a high sensitivity of 80 CPM/μSv (for Co-60) and a flexible display in μSv/h, CPM and CPS.

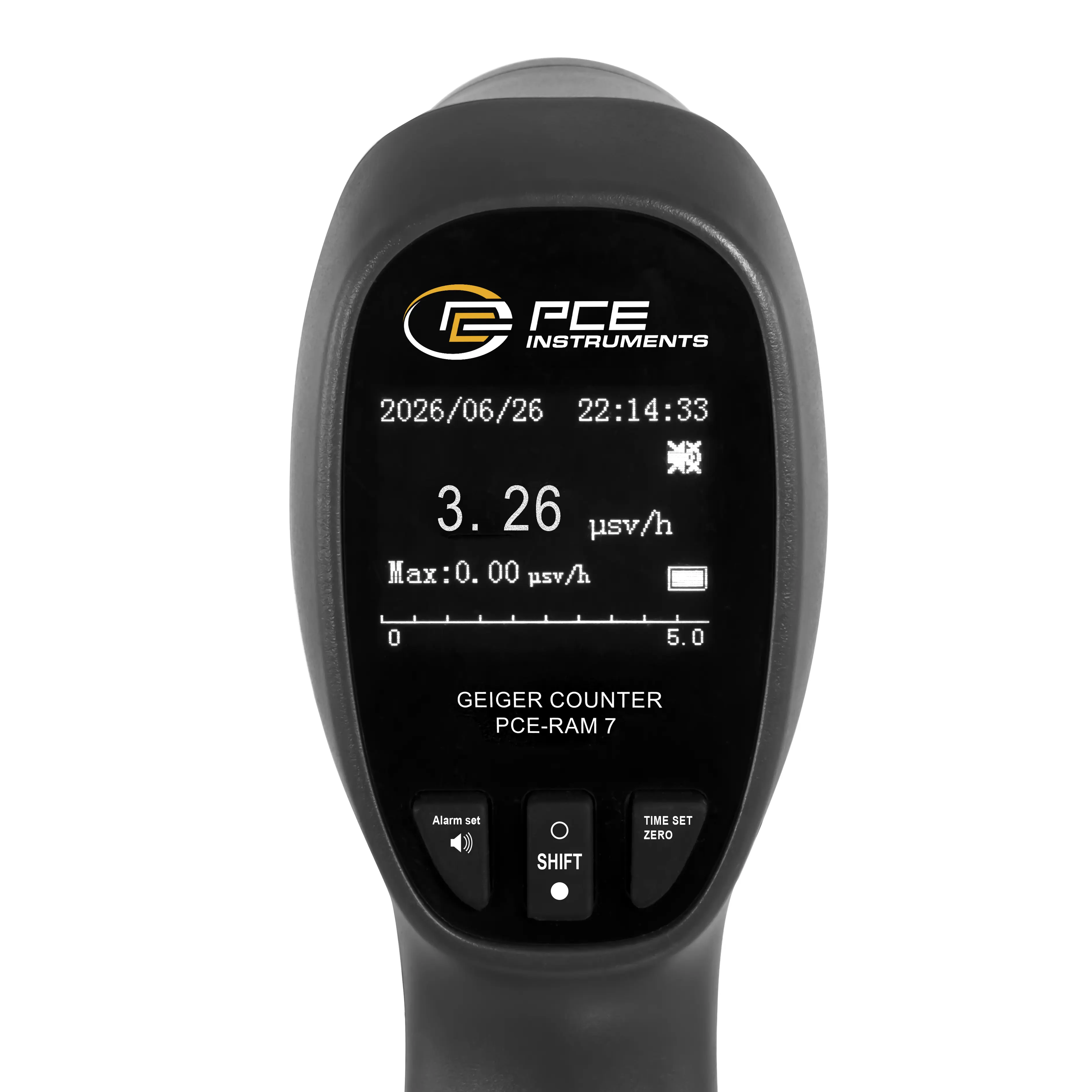

Thanks to its compact and handy design, the Data Logger / Data Logging Instrument is easy to use and is ideal for measuring small changes in radiation values. Our Data Logger / Data Logging Instrument is equipped with a display that shows the date and time and offers the option of switching the display from white to black to optimise readability under different lighting conditions. An adjustable audible alarm provides additional safety by making you aware of increased radiation levels. Battery operation allows flexible use in different areas. The charging time of the device is only approx. 1-2 hours.

The Data Logger / Data Logging Instrument is used, for example, in environmental protection by security forces, in the medical sector and also by private individuals to monitor their living environment.


Highlights

- gamma, beta and X-rays
- display in µSv/h, CPM, CPS
- sensitivity of 80 CPM / μSV/(Co-60)
- adjustable audible alarm
- sensor: Geiger-Müller counter tube
- display of time and date
- battery operation
- ergonomic handle

Specification

Radiation
Measurement range up to  0 ... 9999 µSv/h
Resolution  0,01 µSv/h
Accuracy  ≤3 % of Rd

Radiation
Measurement range up to  0 ... 9999 cps
Resolution  1 cps
Accuracy  ≤3 % of Rd

Radiation
Measurement range up to  0 ... 9999 cpm
Resolution  1 cpm
Accuracy  ≤3 % of Rd

General technical data
Measuring functions  Gamma rays, X-rays, Beta radiation
Energy range  20 ... 3000 keV
Display type  TFT colour display
Display size  1,8 Inch

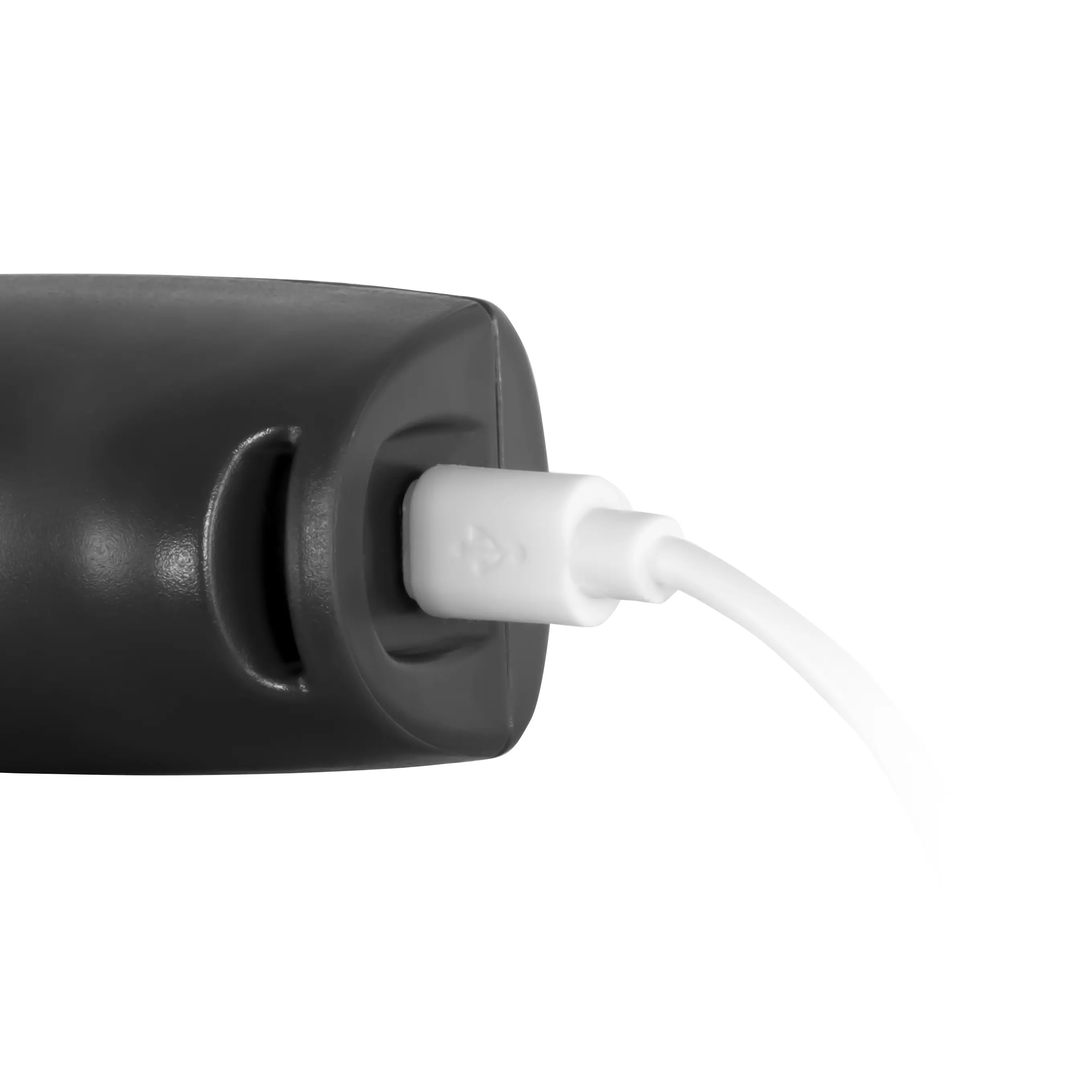

Interface  Micro-USB
Sensor  Geiger-Mueller counter tube
Alarm  Acoustic
Sensitivity  80 cpm/µsV (Co-60)
Menu language  English
Protection class (device)  IP54
Power supply  5 V
Weight  170 g
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 60 °C , 10 ... 90 % RH
Capacity  1100 mAh
Dimensions ( L x W x H )  180 x 55 x 80 mm

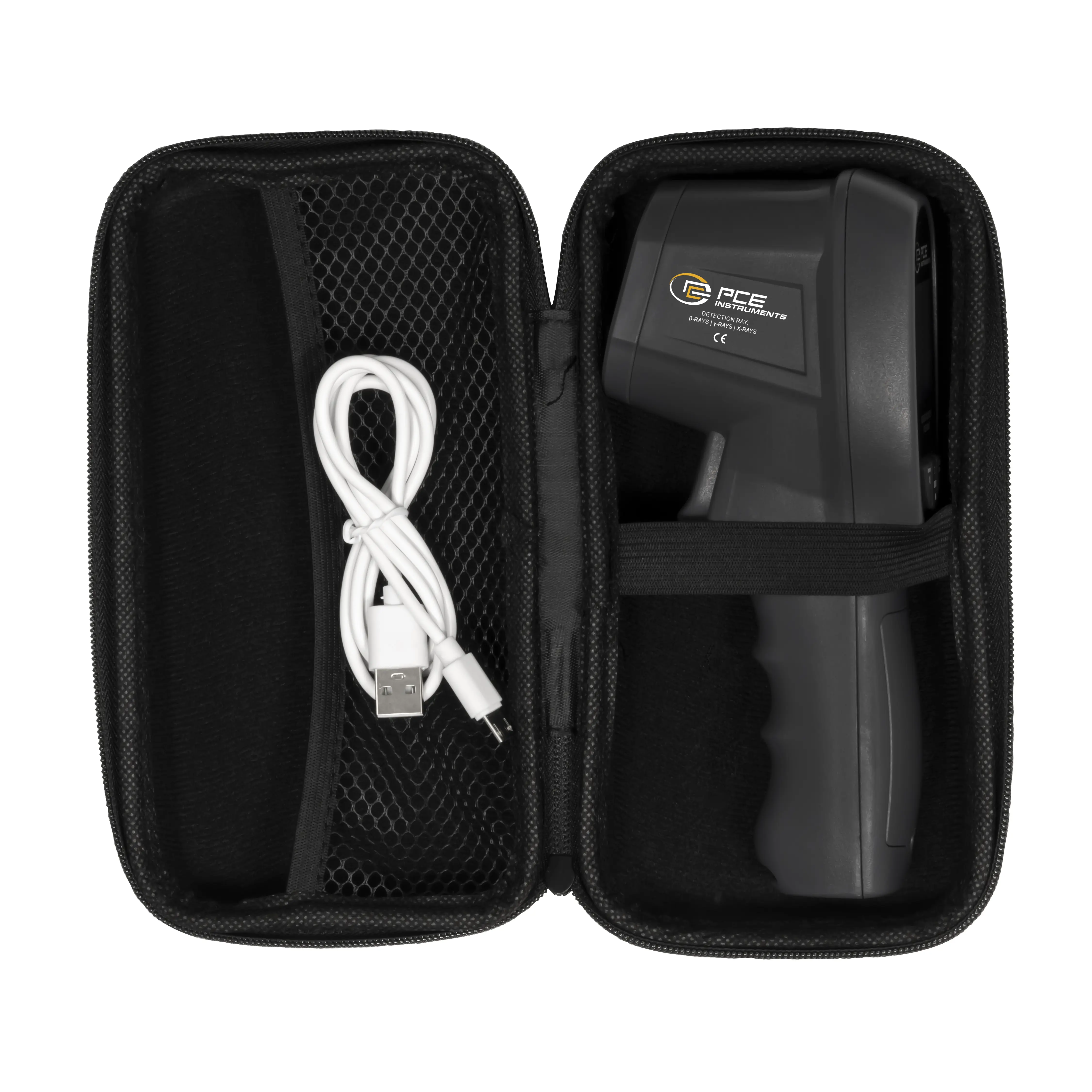

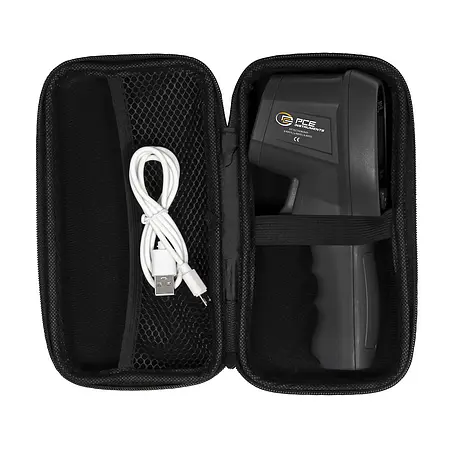

Delivery Scope

1 x PCE-RAM 7 Data Logger / Data Logging Instrument
1 x micro USB cable
1 x user manual
1 x service bag
