151,90 €

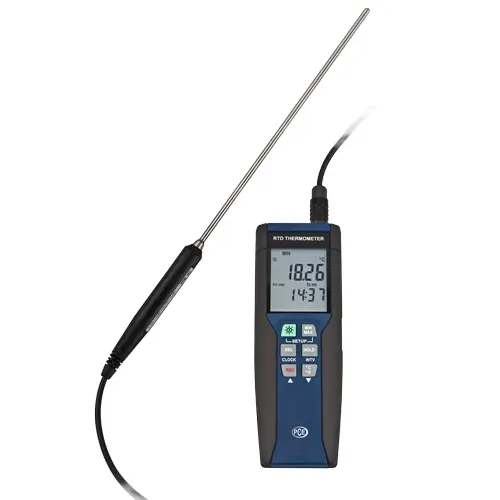

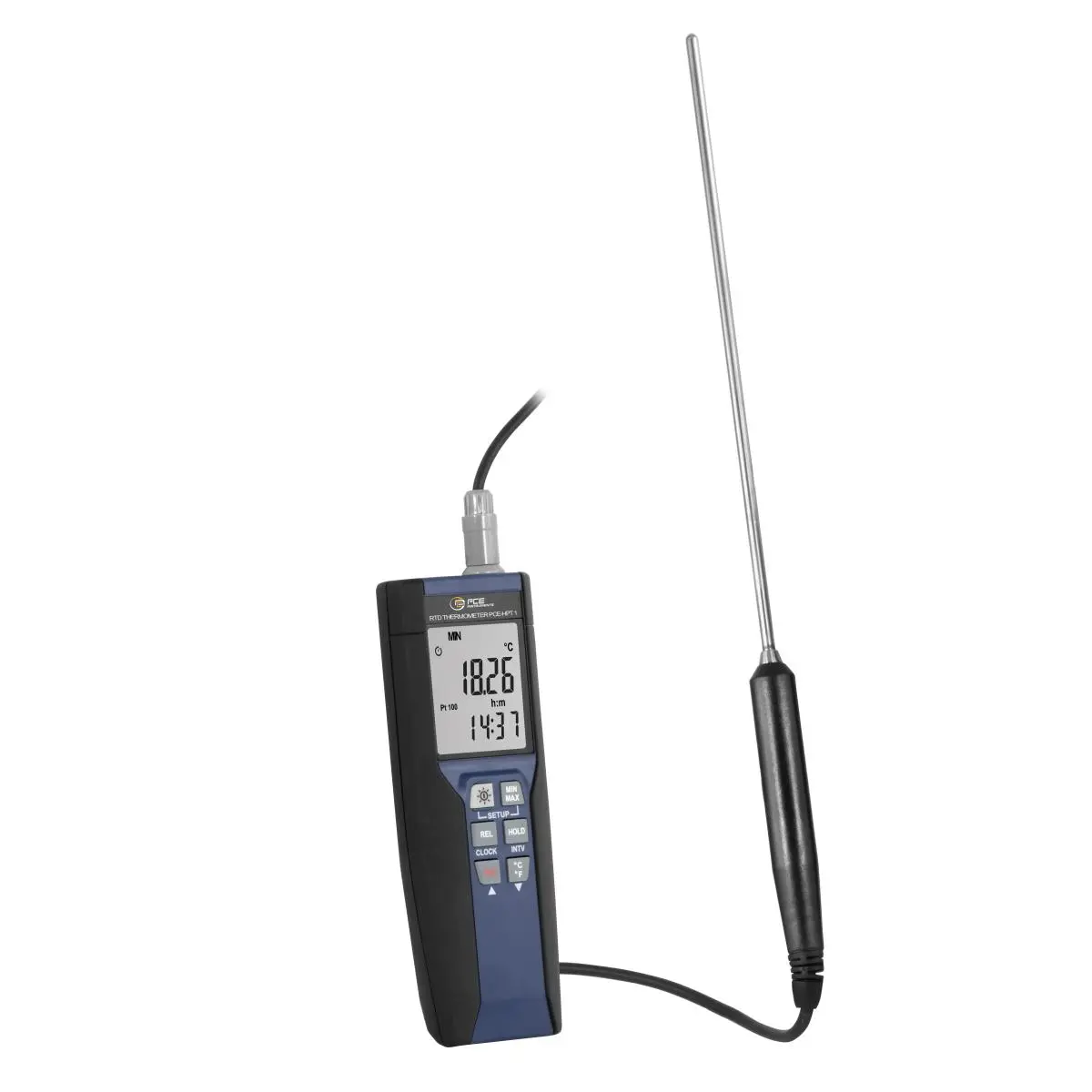

The Data- Logger with microprocessor is a high precision 1-channel temperature gauge. The Data- Logger with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology, it has a very fast response time and precision. Therefore, the sensors of the Data- Logger with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the Data- Logger with microprocessor reaches of -100 to 400ºC / -148 ... 752ºF. The comprehensive software and easy to use Data- Logger with the microprocessor allows a simple assessment to see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The Data- Logger has an internal Data- Logger with adjustable measuring range.
| Technical Data | ||
| Measurement range | -100 ... 400 °C / -148 ... 752 °F | |
| Accuracy | ±0.05% + 0.1 °C / 0.18 °F (between 18 ... 28 °C / 64.4 ... 82.4 °F) only the device | |
| Resolution | 0.01 °C / 0.018 °F | |
| Sensor | Class A, 4-wire Pt100 sensor | |
| Display | 5 digits, LCD | |
| Data transmision | USB | |
| Data memory | up to 5000 measuring points | |
| Reproducibility | a measurement value every 0.5 s | |

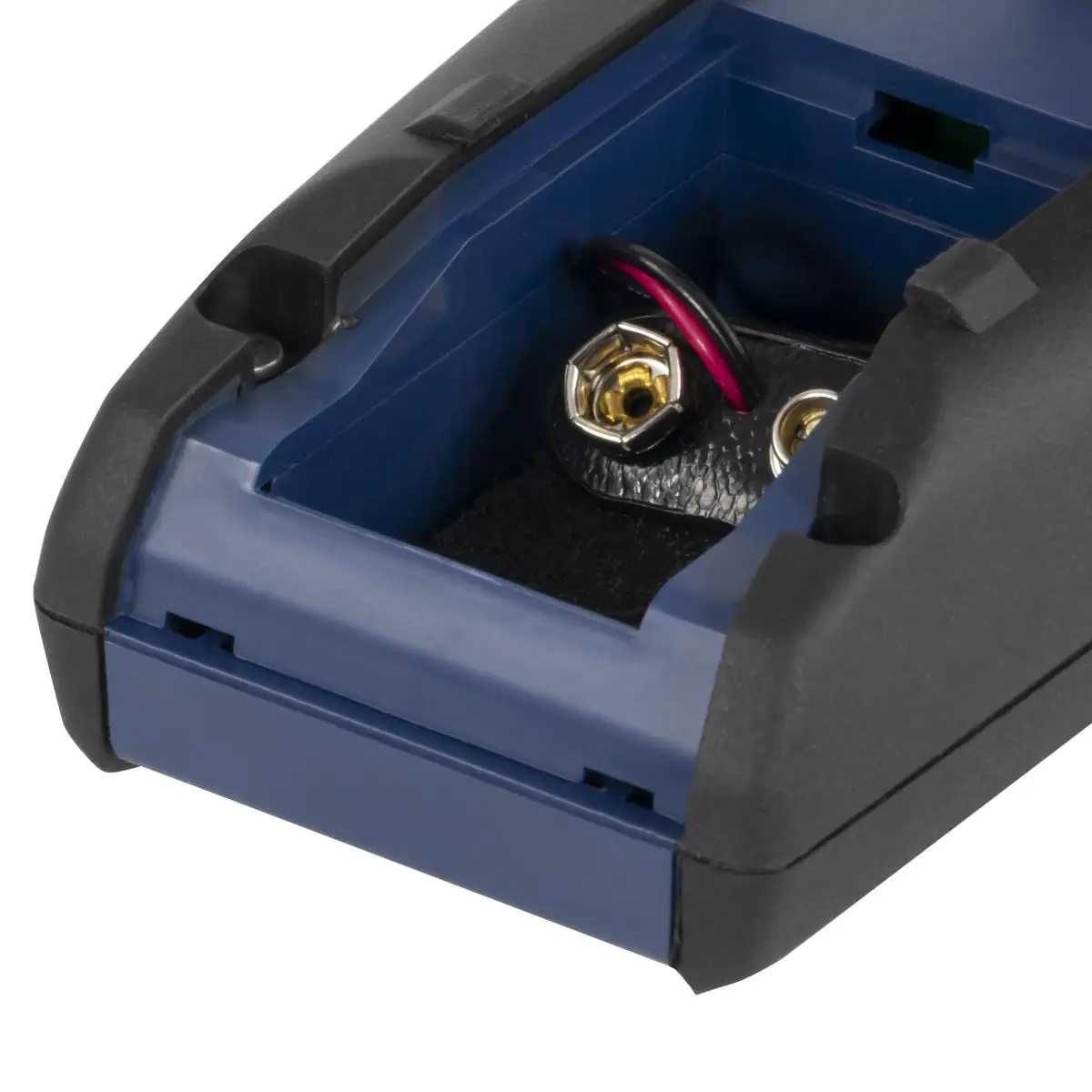

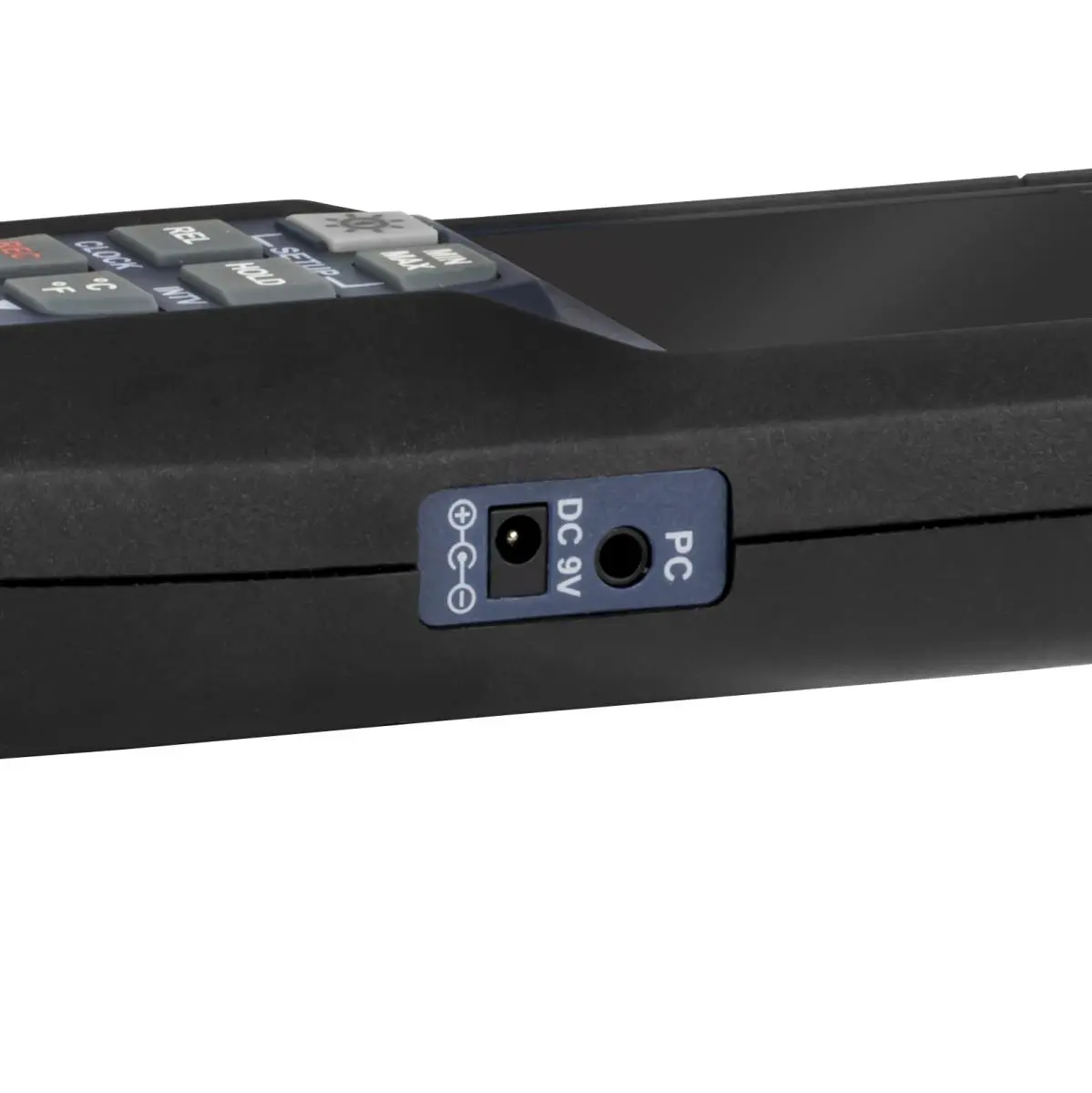

| Power supply | 1 x 9V battery or network adapter (optional) | |
| Dimensions device | 185 x 65 x 36 mm / 7.3 x 2.6 x 1.4" | |
| Dimensions sensor | 235 x 5 mm / 9.25 x 0.19" | |
| 123 mm / 4.84" handle | ||
| 1.5 m / 4.9 ft connection cable | ||
| Weight | 360 g / < 1 lb | |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, 80% R.H. | |
| Storage conditions | -10 ... 60 °C / 14 ... 140 °F, 80% R.H. | |
