Data Logger with USB Interface PCE-HT 72

Order no.: PCE-HT 72
GTIN (EAN): 4250348719195
83,90 €
99,84 €
price ex. (VAT / delivery)
:
4250348719195
PCE-HT 72
Delivery time: 1-2 working days

Description

Data Logger with USB Interface PCE-HT 72
PDF data logger for temperature and humidity / Report as PDF file / Software for programming / Data logger with display / Export as CSV possible

The data logger with USB interface is a data logger for temperature and humidity. A memory of 20,010 sets of measurements allows the data logger to be used for up to several months. The data logger is particularly suitable for measuring tasks where it is not possible for the user to install a software for reading the measured values. The data logger automatically generates a measurement protocol that can be printed or saved directly.

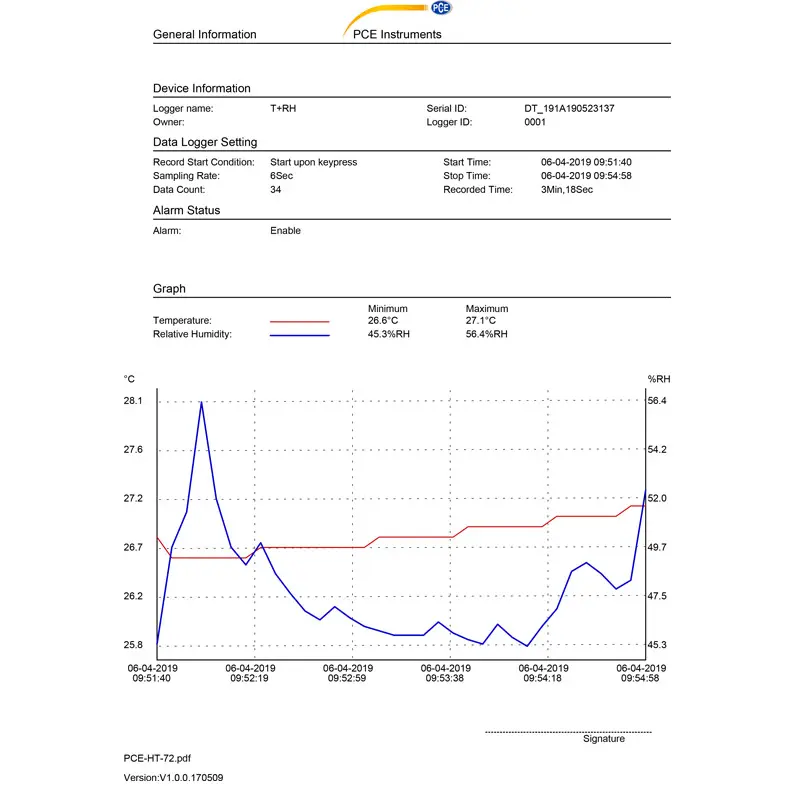

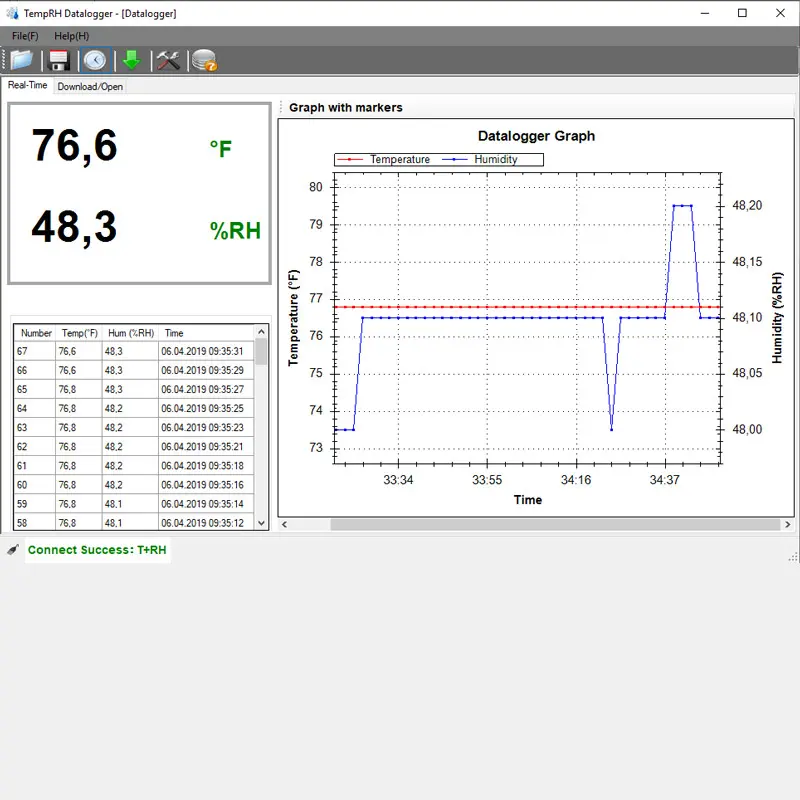

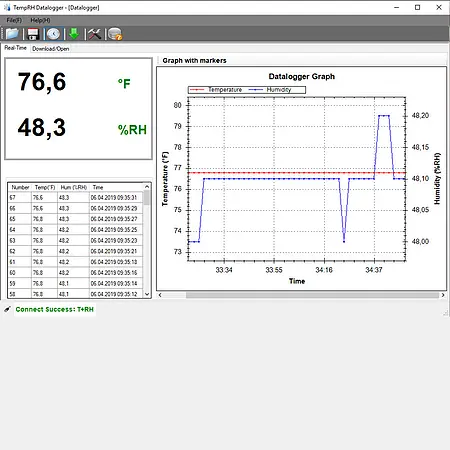

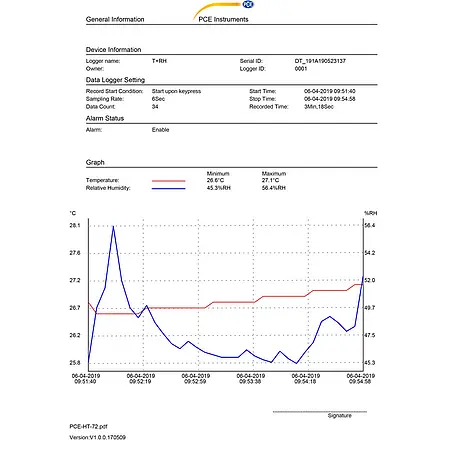

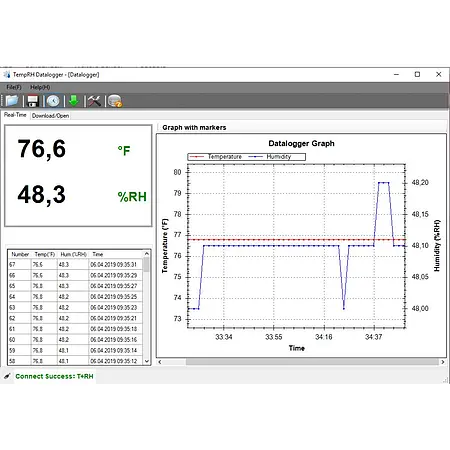

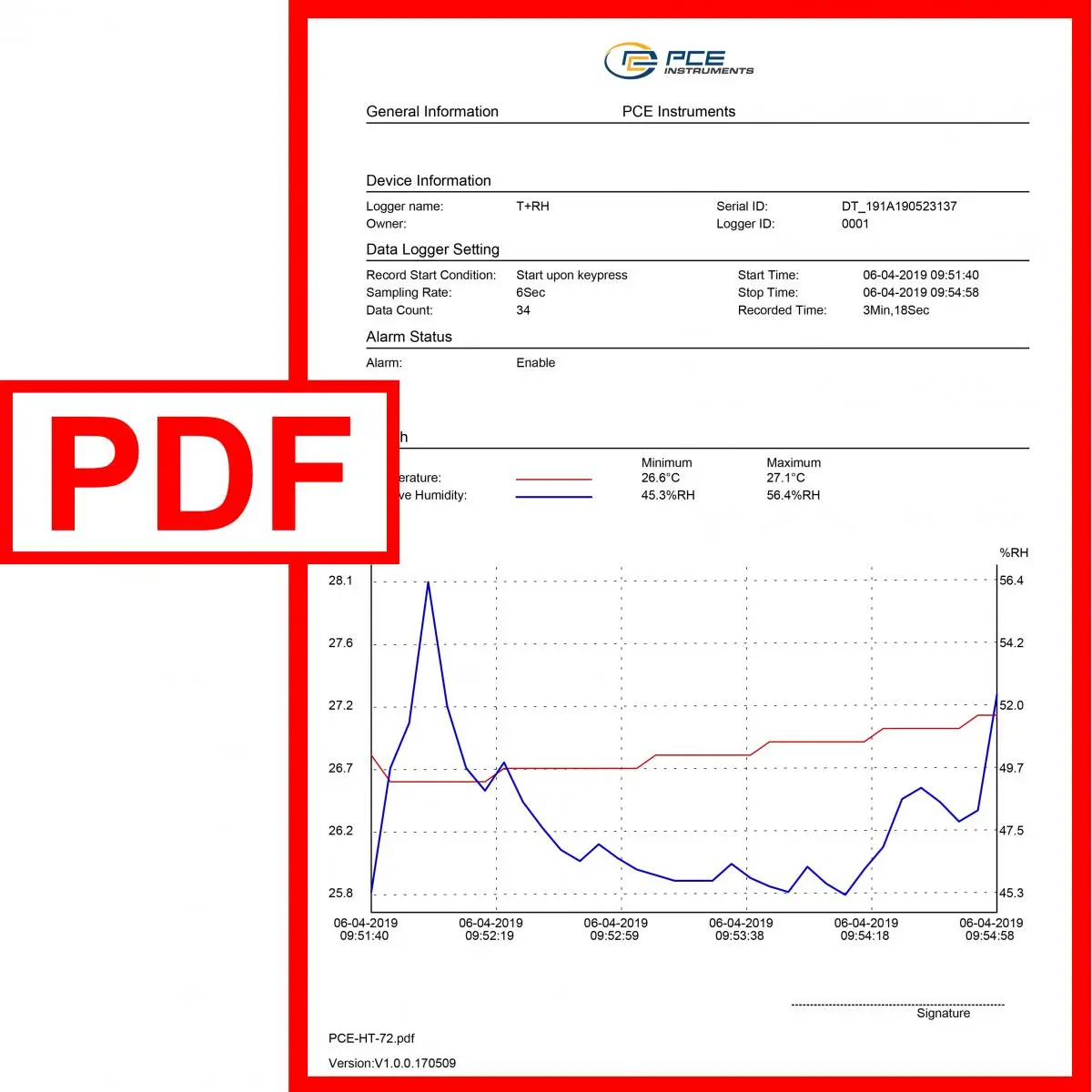

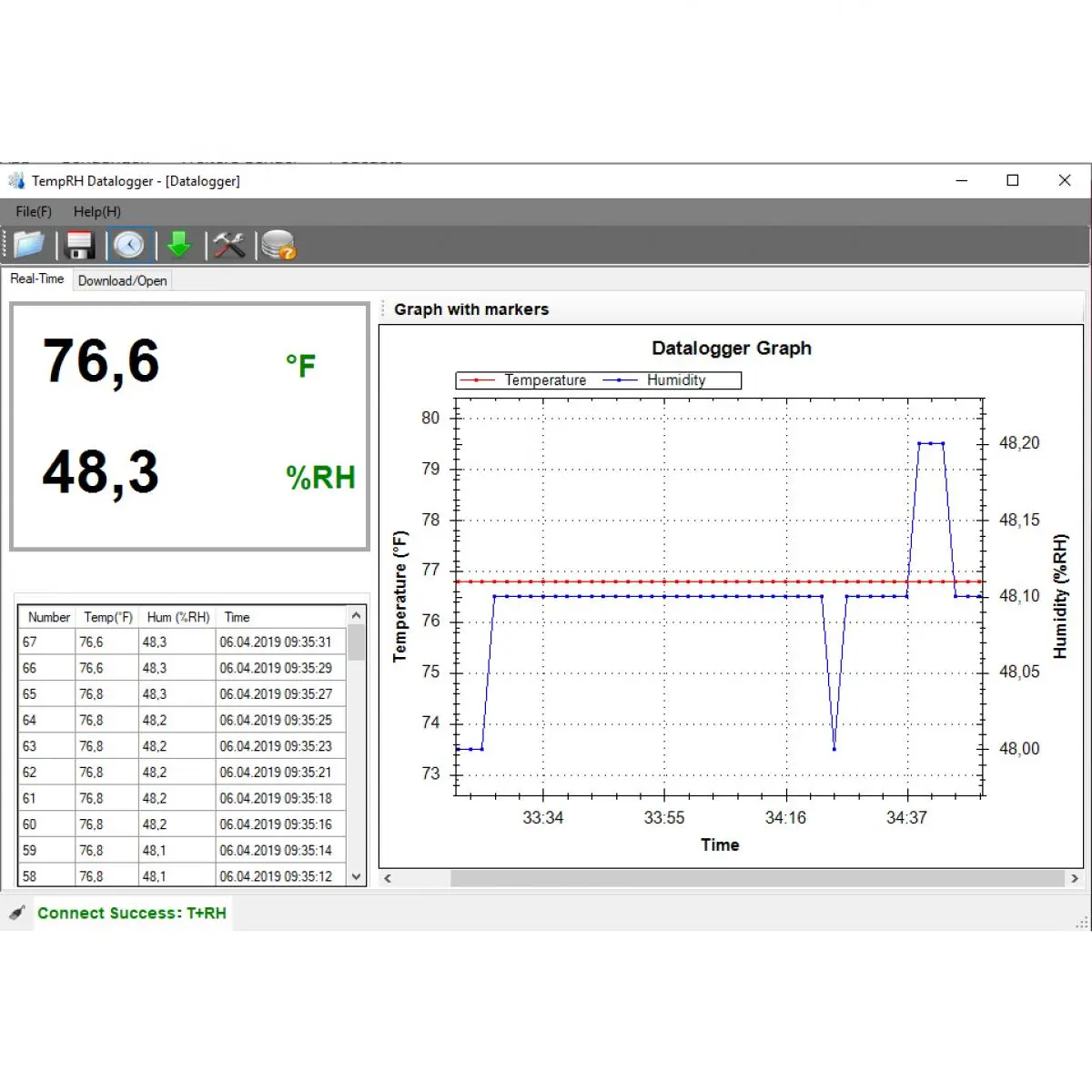

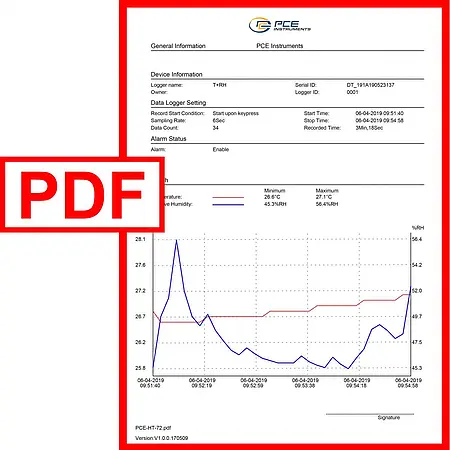

The measurement log of the data logger with USB interface contains the maximum and minimum measured values ​​for temperature and humidity, as well as a graph showing the course of the measurement. The data logger stores the measured values ​​in its memory until it is full or a new measurement is started via the software. In the software, the user has further options for analyzing the measured data. So it is also possible with the help of the software to export the measurement data as a CSV file from the data logger.

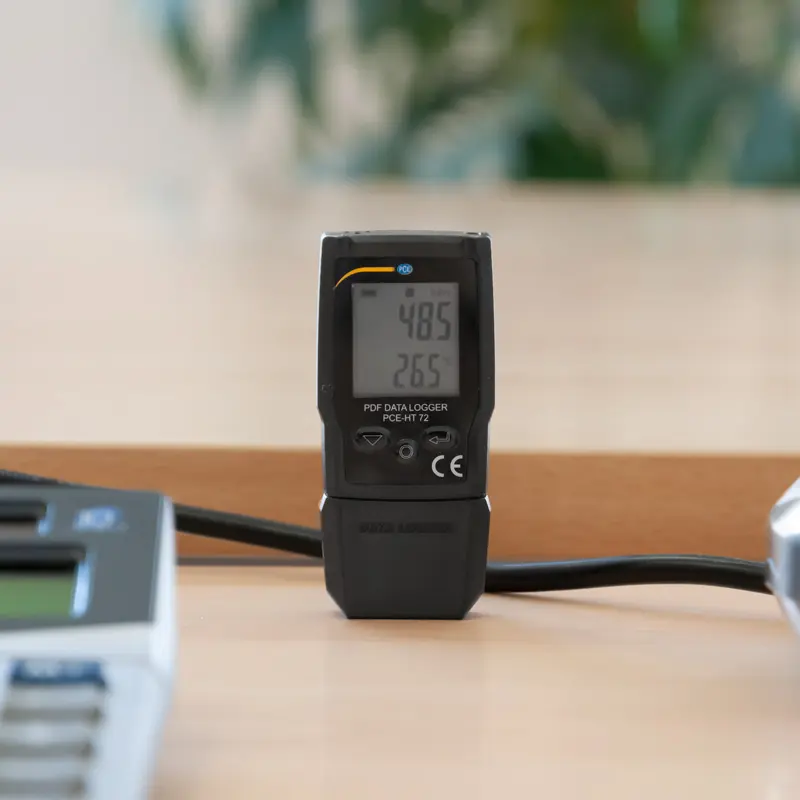

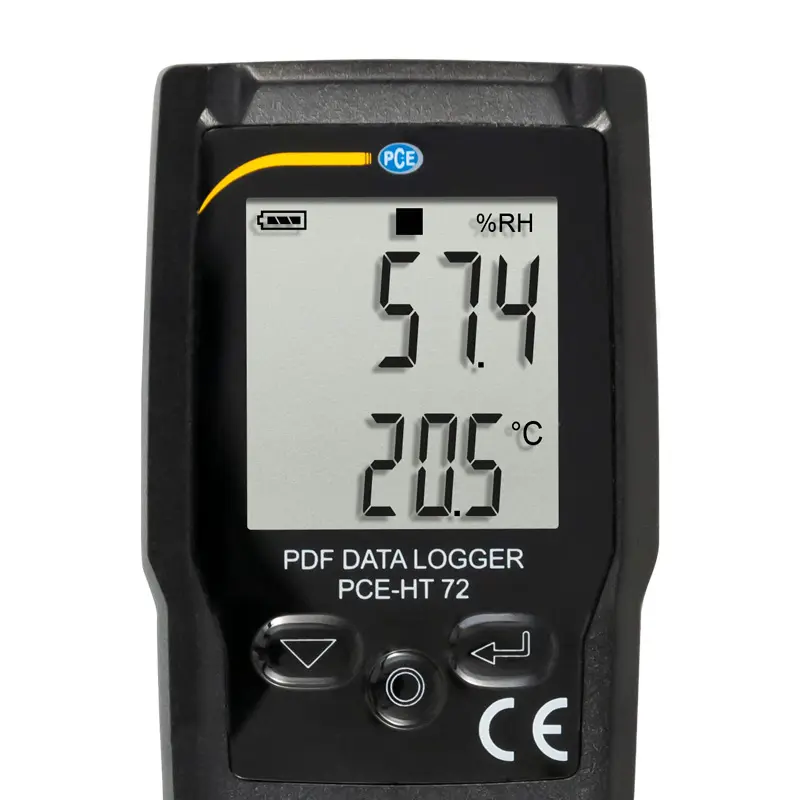

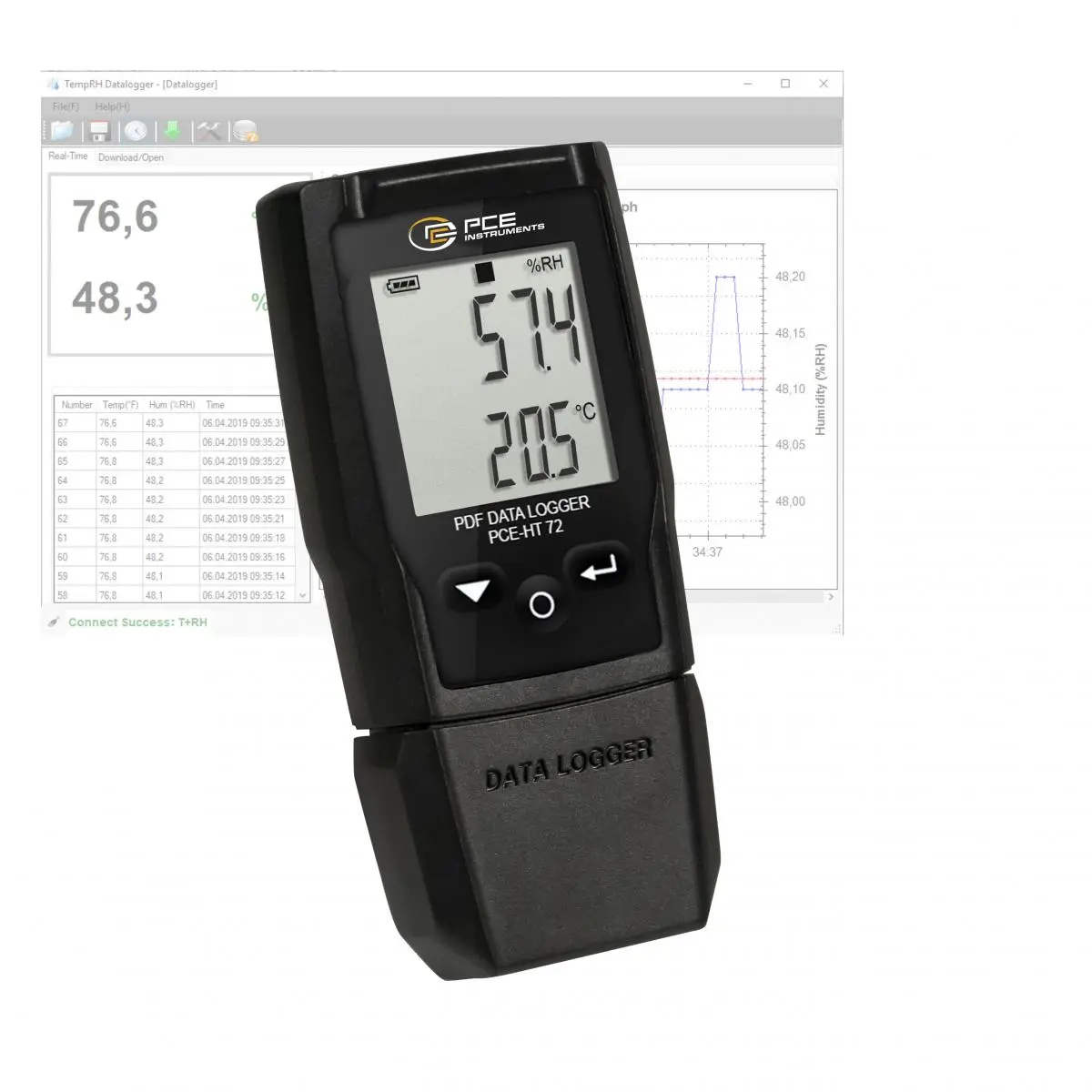

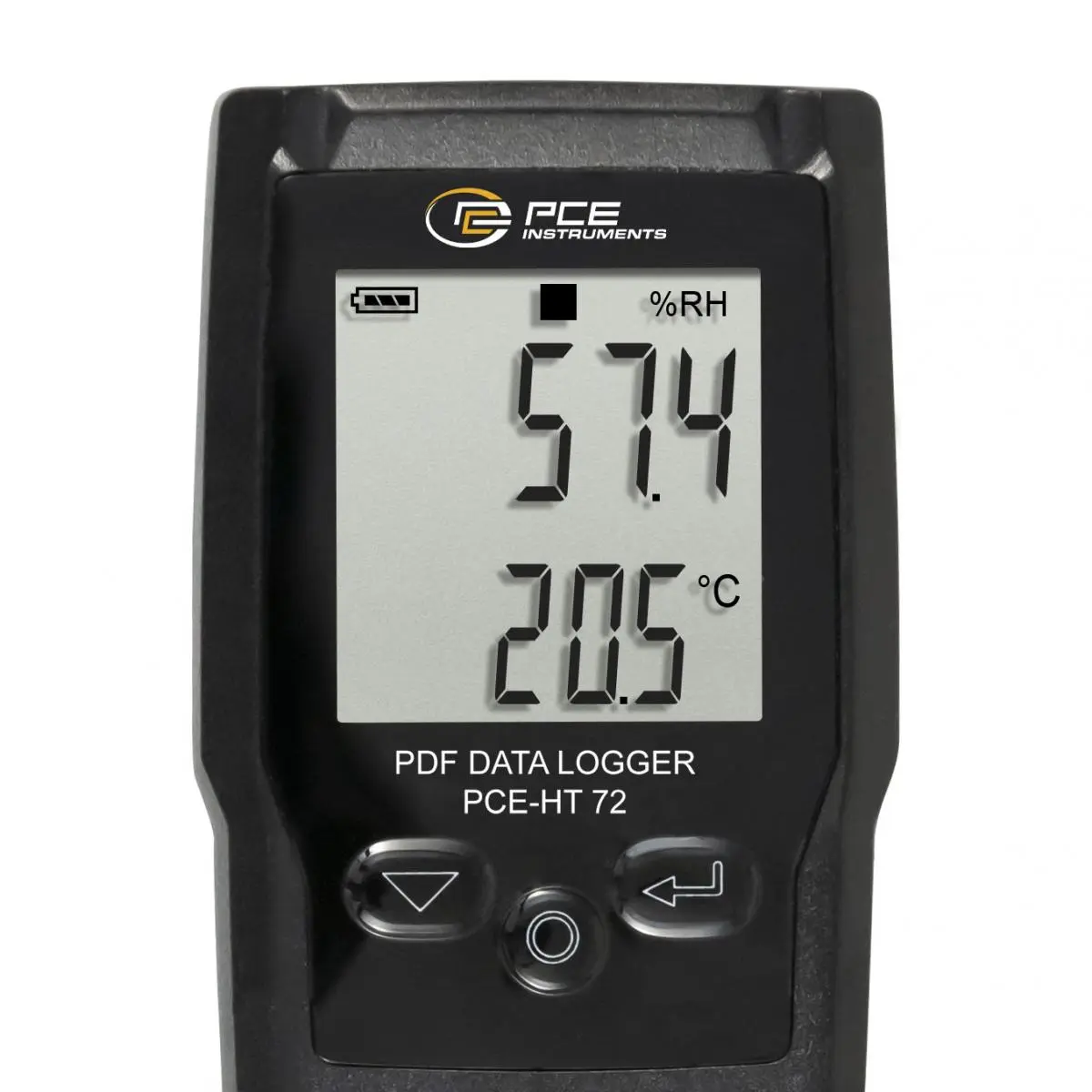

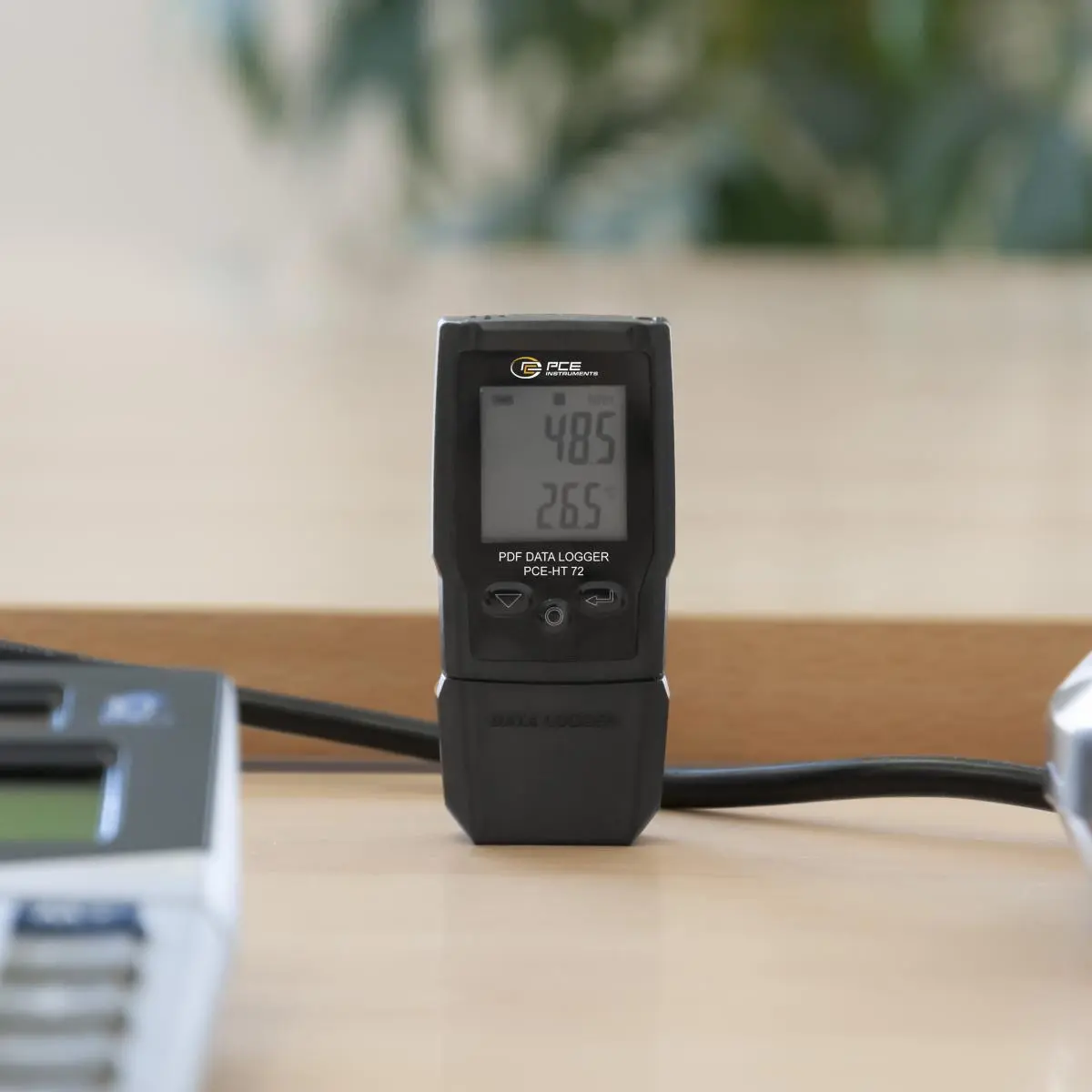

So that the user of the data logger with USB interface always has an overview of the measured values, the datalogger is equipped with an LCD. The display informs continuously about temperature and humidity, which is measured by the data logger, as well as the battery status and the memory status. At the touch of a button, the maximum and minimum measured values ​​can also be called up directly on the data logger.

Highlights

- Measurement protocol as PDF
- Readable without software
- Data logger for temperature and humidity
- LC display
- Min-Max memory
- Compact dimensions
- 20,010 sets of measured values ​​can be stored
- Data export possible as CSV

Specification

Measuring function Temperature
Measuring range -30 ... 60°C / -22 ... 140°F
Resolution 0.1°C / 0.18°F
Accuracy < 0°C / 32°F: ± 1°C / 1.8°F
  < 60°C / 140°F: ± 0.5°C / 0.9°F

Measuring function Humidity
Measuring range 0 ... 100% rh
Resolution 0.1% RH
Accuracy 0 ... 20% RH: 5%
  20 ... 40% RH: 3.5%
  40 ... 60% RH: 3%
  60 ... 80% rh: 3.5%
  80 ... 100% RH: 5%

Storage 20,010 readings
Measuring rate / storage interval          Adjustable 2 s, 5 s, 10 s ... 24h
Start-Stop Adjustable, immediately or by pressing a button
Status display By a symbol in the display
Display
LC display
Power supply CR2032 battery

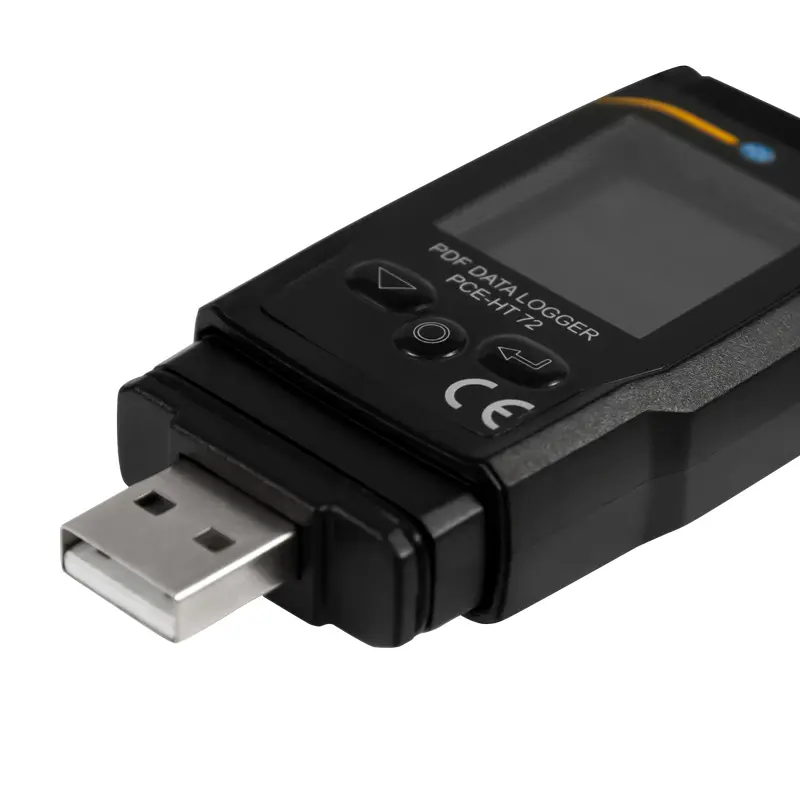

Interface USB

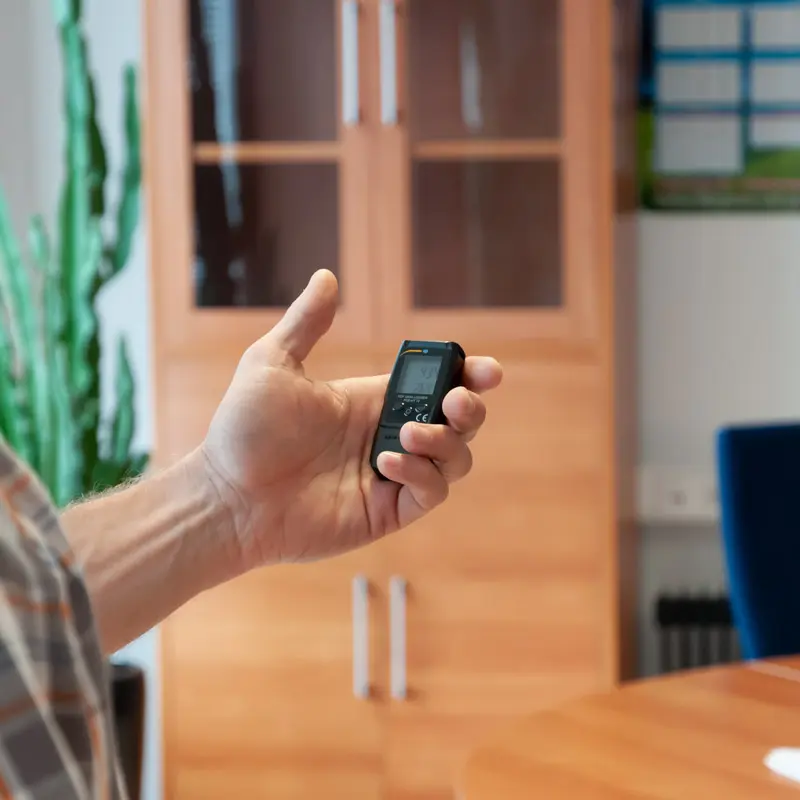

Dimensions 75 x 35 x 15 mm / 3 x 1.4 x 0.6 in
Weight About 35 g / < 1 lb

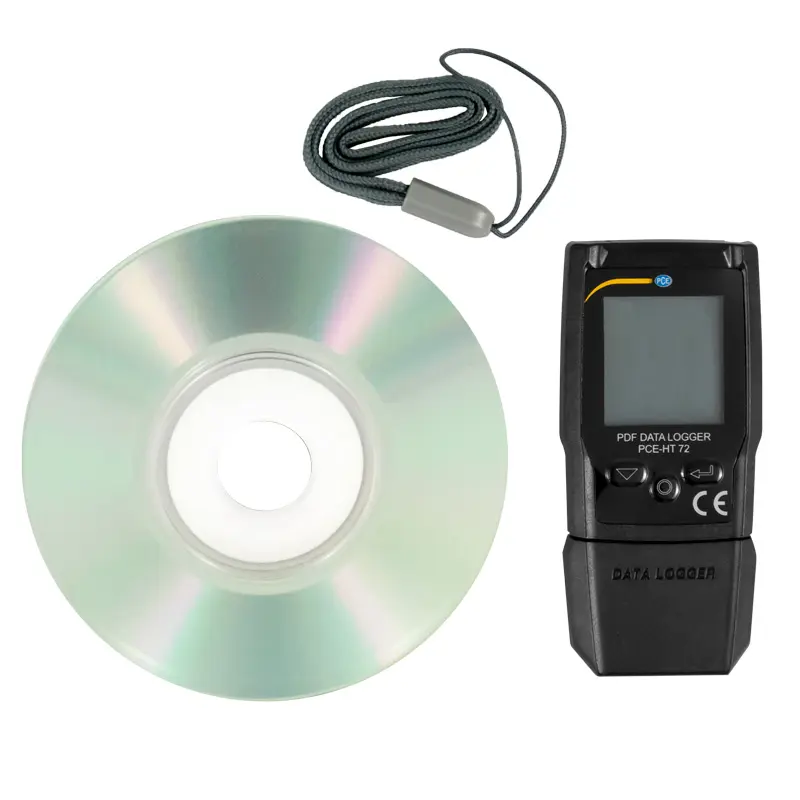

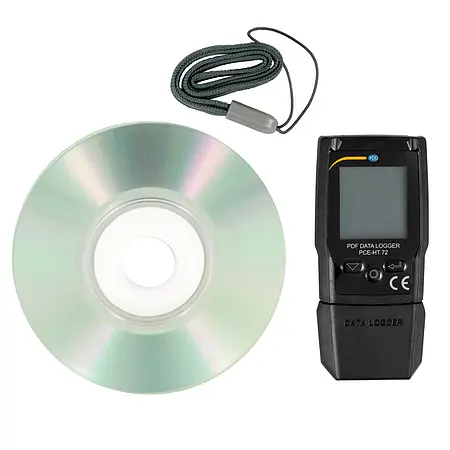

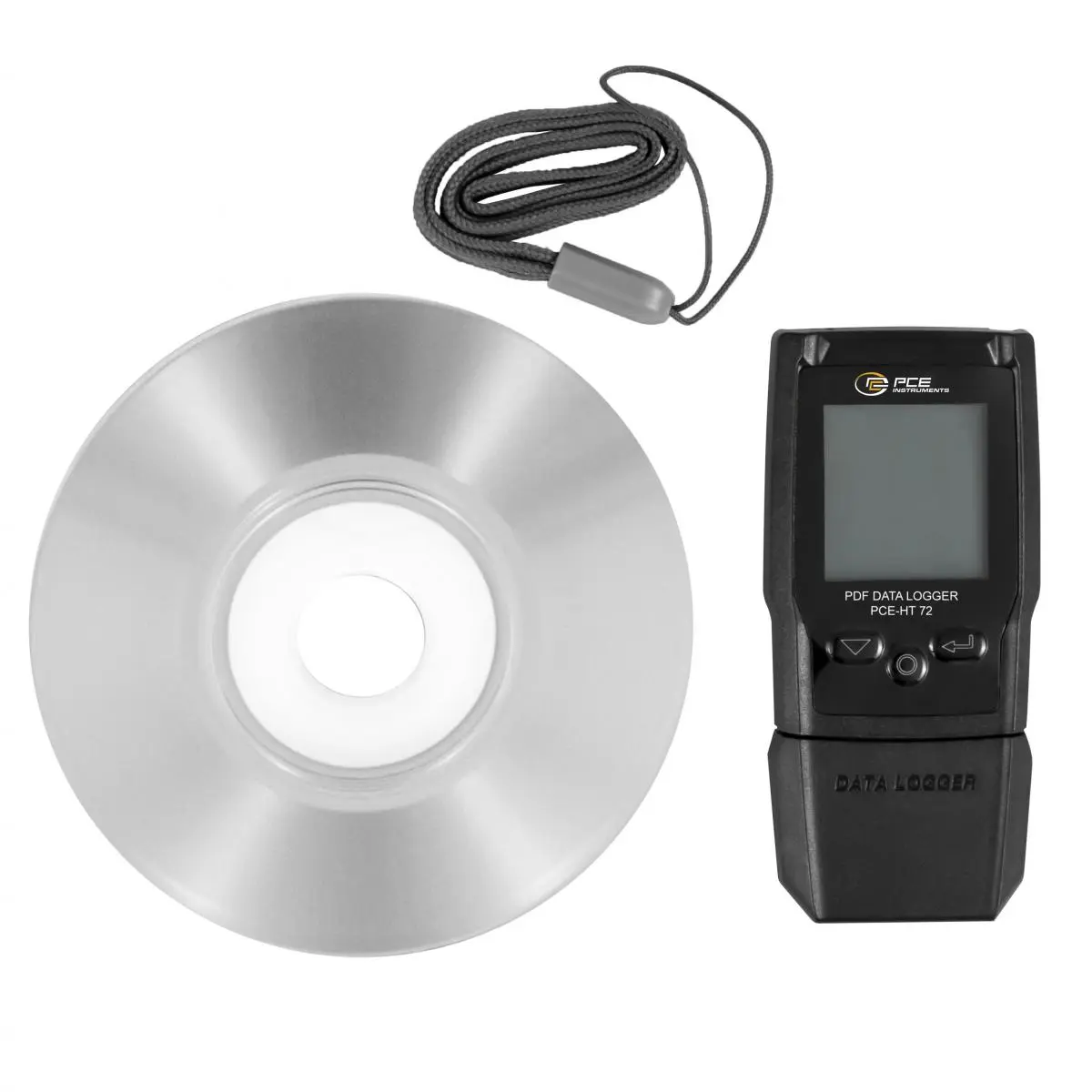

Delivery Scope

1 x Data Logger with USB Interface PCE-HT 72
1 x Wrist strap
1 x CR2032 battery
1 x Software (available for download on our website)
1 x User manual
