15,90 €

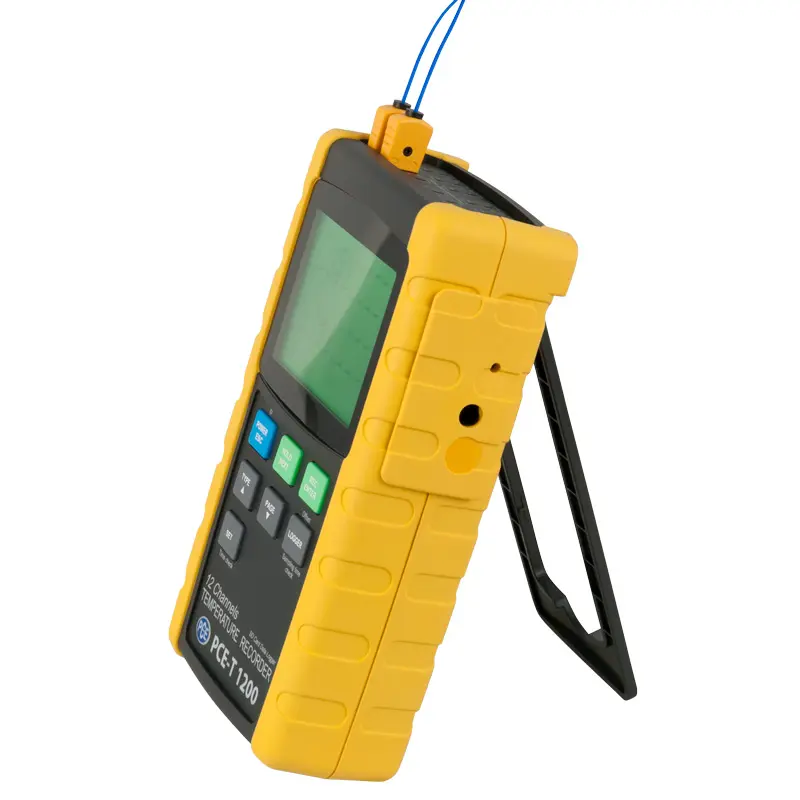

Data Logger with USB Interface PCE-T 1200
Multichannel datalogging temperature meter with a backlit display, SD card memory and automatic temperature compensation (ATC)
The data logger with USB interface is a 12-channel temperature data logger that accommodates SD cards up to 16 GB in size. The optional software allows the data logger to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5" LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 ... CH 8). With just the press of a button, the remaining channels (CH 9 ... CH 12) can be viewed. The data logger works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.
- 12-channel datalogger for temperature (°C / F)
- Includes 2 Type K sensors 1-meter in length
- 4.5" graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
- Adjustable data recording timer interval

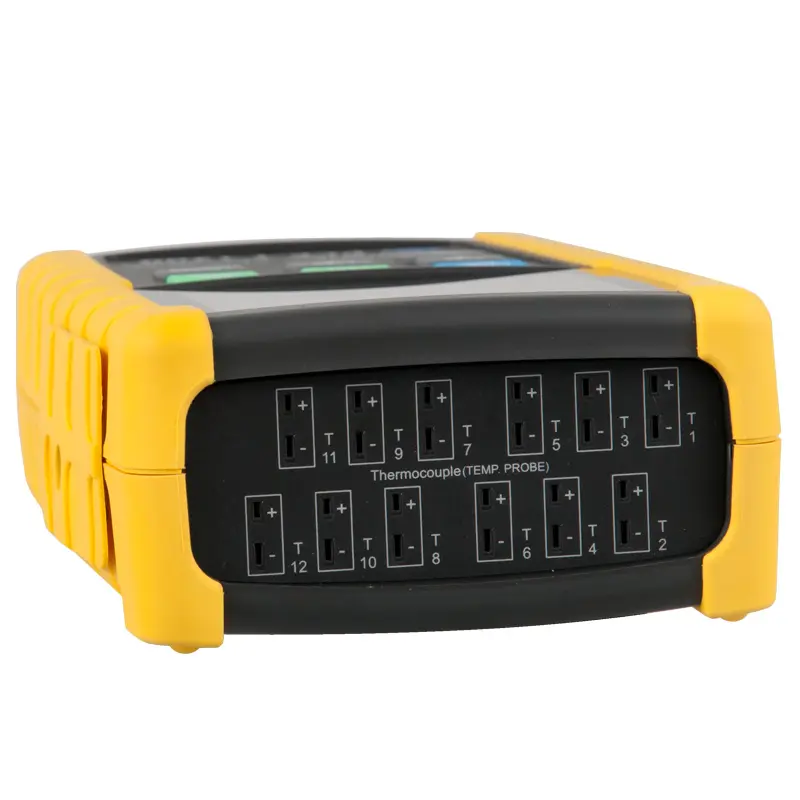

- Compatible with 6 different types of thermocouples
- High and low alarm for each inputbr/>
- Indication of maximum and minimum values
- Accommodates up to 16 GB SD memory card to save measured data
- Integrated calendar
- Automatic temperature compensation (ATC)
- Hold function to freeze the values indicated
- Integrated stand
| |||||||||||||||||||||||||||||||||||||||||||
| Power consumption (lights off / logging off) | 7.5-mA | ||||||||||||||||||||||||||||||||||||||||||
| Power consumption (lights off / logging on) | 25-mA | ||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in | ||||||||||||||||||||||||||||||||||||||||||
| Weight | 827 g / 1.8 lbs (excl. battery) | ||||||||||||||||||||||||||||||||||||||||||
| Operation conditions | 0°C ... 50°C / 32 ... 122°F, 85% rH | ||||||||||||||||||||||||||||||||||||||||||
1 x Data Logger with USB Interface PCE-T 1200-ICA
2 x Type K sensor
8 x 1.5V AA batteries
1 x SD memory card

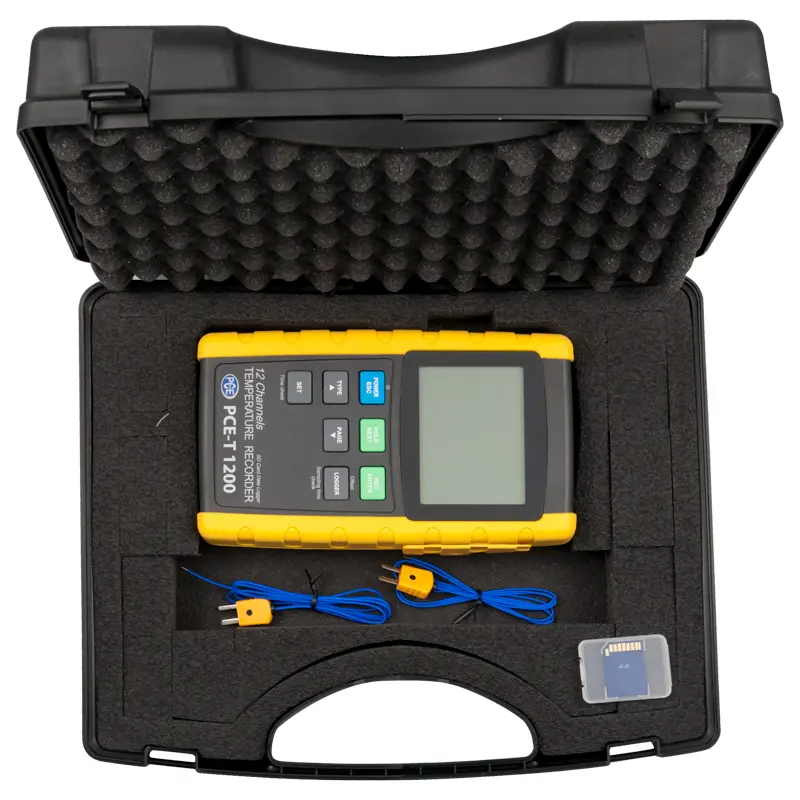

1 x Carrying case
1 x User manual

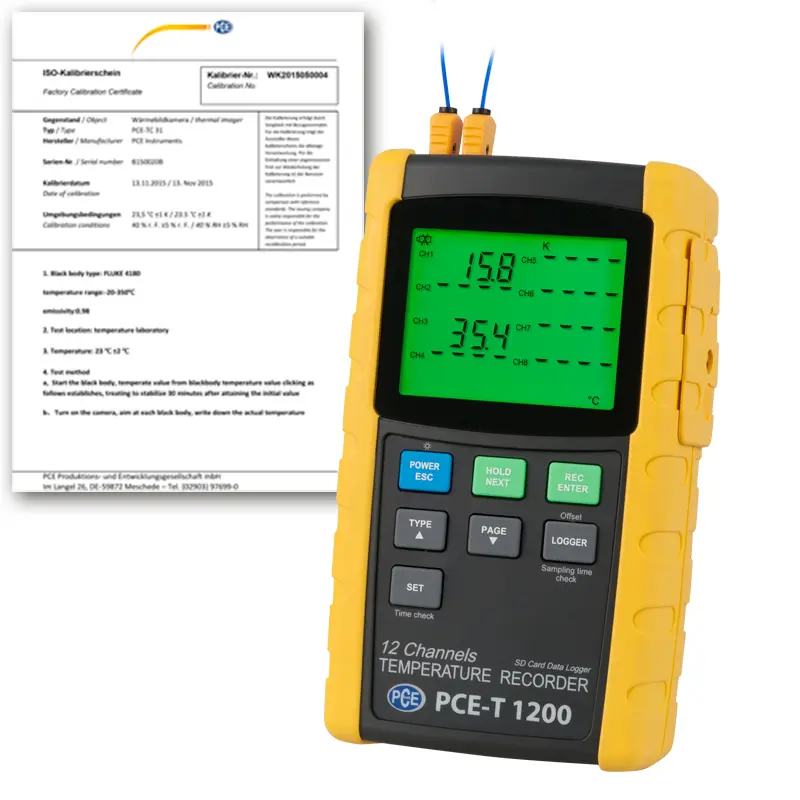

1 x ISO Calibration Certificate
