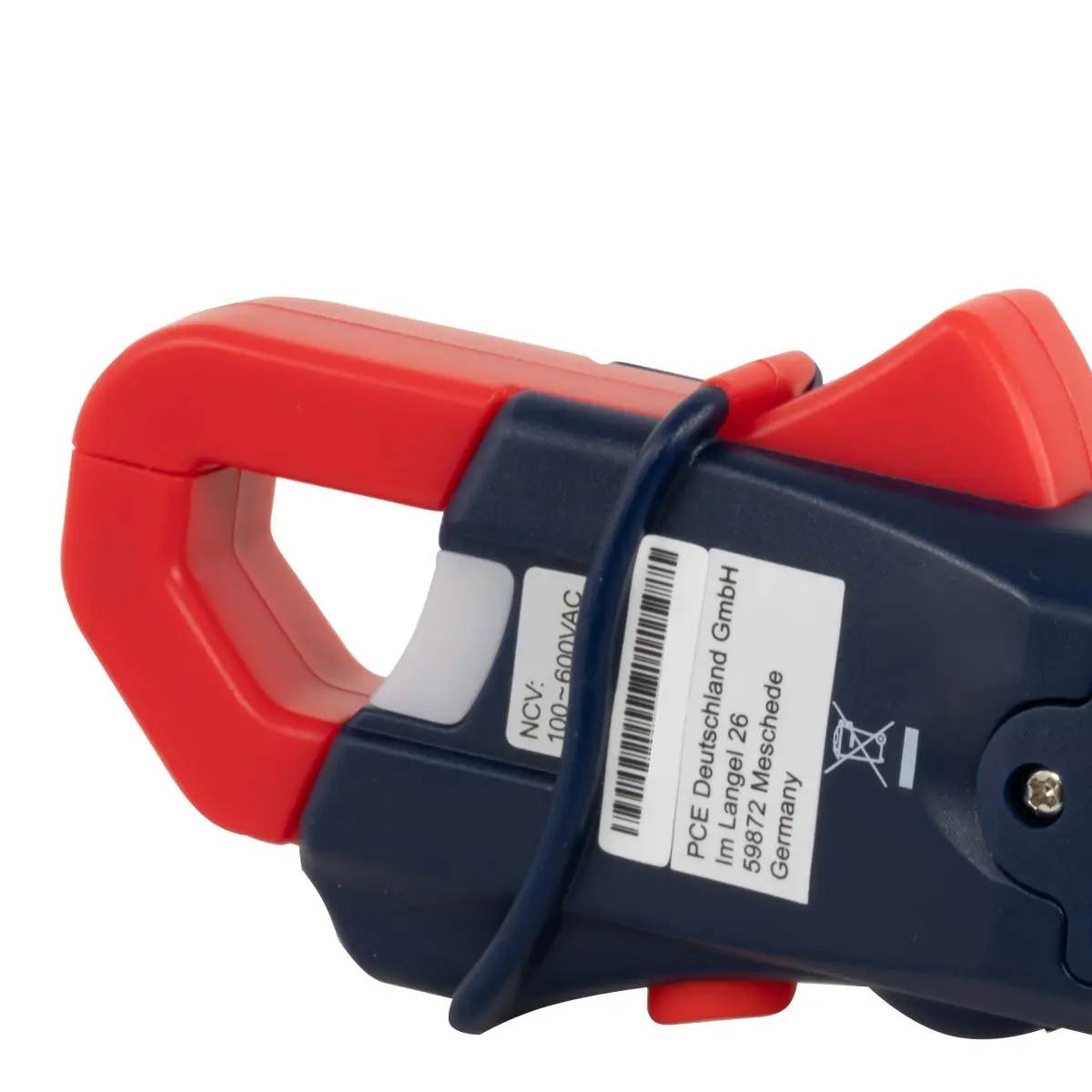

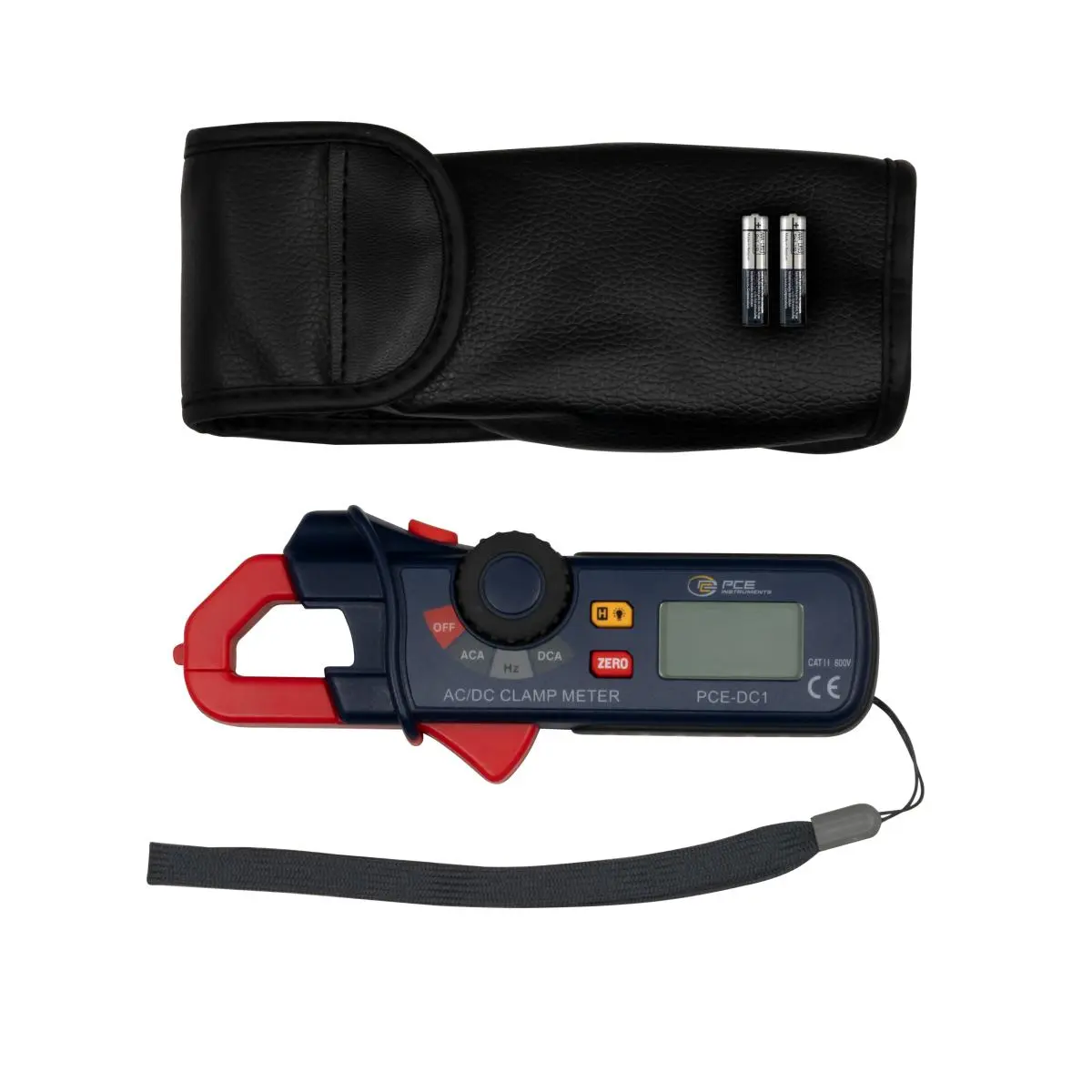

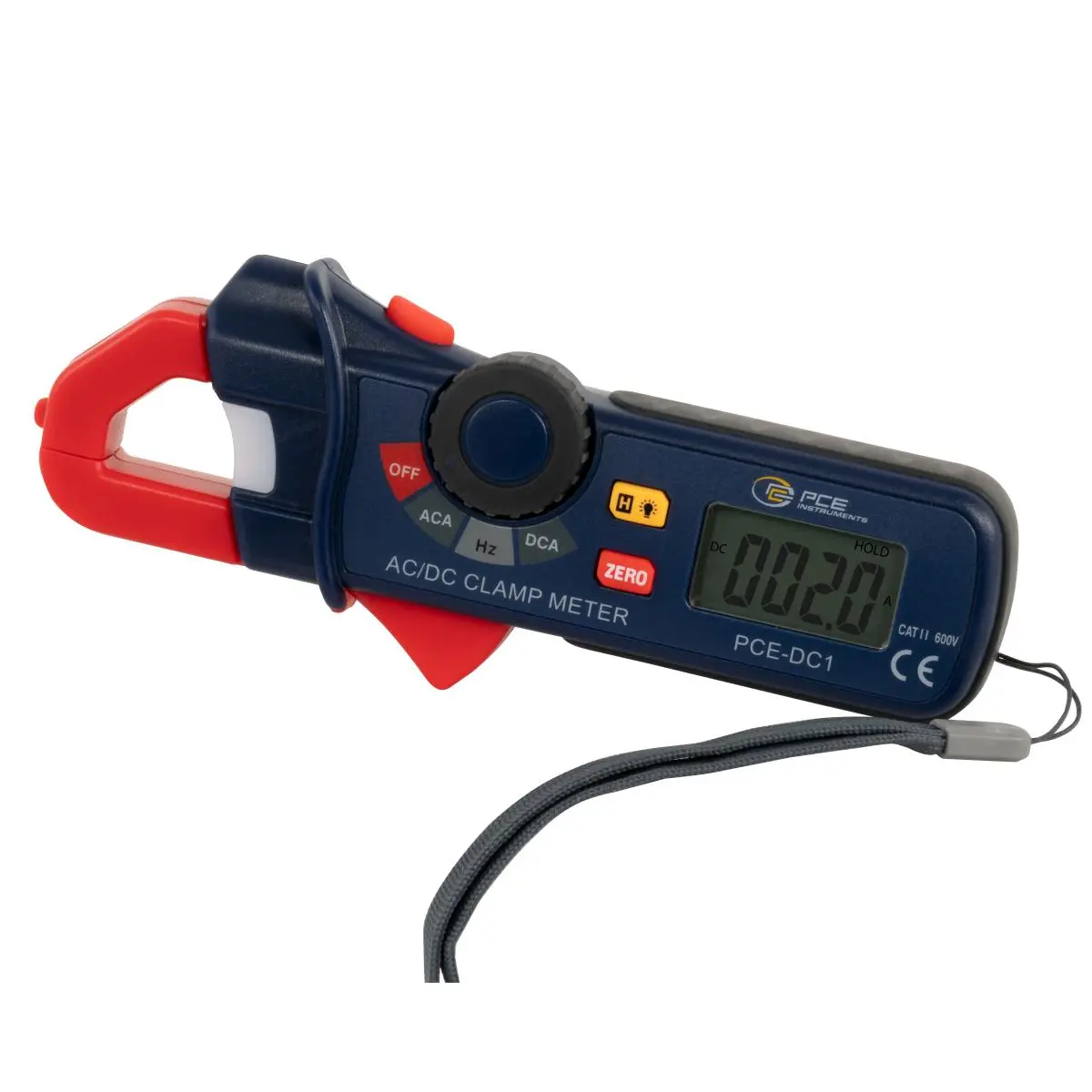

The Mini Digital Multimeter has been designed to detect, indirectly, AC/DC current and frequency. The Mini Digital Multimeter has one white LED integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it makes it easier to detect the location of cuts in power lines.
AC current (50/60 Hz) | Sector /
resolution / accuracy 200 A / 100-mA / ±3.0% + 8 digits |
DC current | Sector /
resolution / accuracy 200 A / 100-mA / ±2.8% + 8 digits |
AC test voltage (without contact) | 100 VAC ... 600 VAC 50 / 60 Hz |
Frequency | Sector /
resolution / accuracy 40 ... 50 Hz / 0.01 Hz / ±1.2% + 5 digits 51 ... 510 Hz / 0.1 Hz / ±1.2% + 3 digits 0.51 ... 1 kHz / 0.001 kHz / ±1.2% + 3 digits |
Illumination of the measurement area | white LEDs |
Diameter of the conductor | Max. 18 mm / .7 in |
Display | With white LEDs, backlit LCD with 3 2/3 positions |
Power | 2 AA batteries |
Enclosure | PVC |
Dimensions | 155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in |
Weight | 155 g / < 1 lb |
