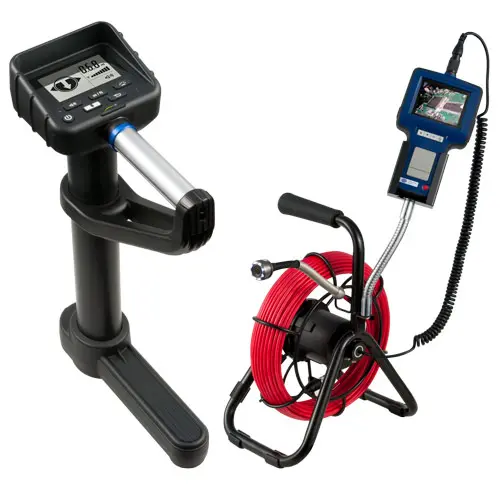

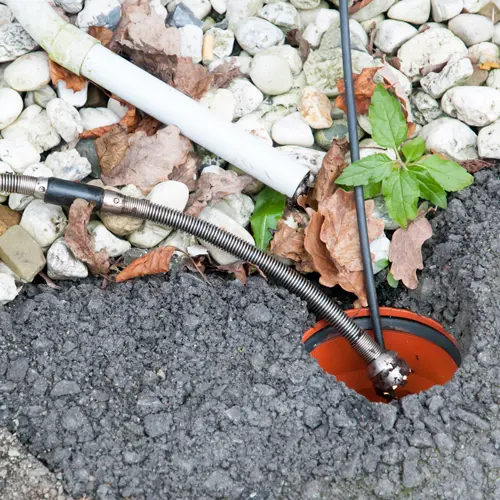

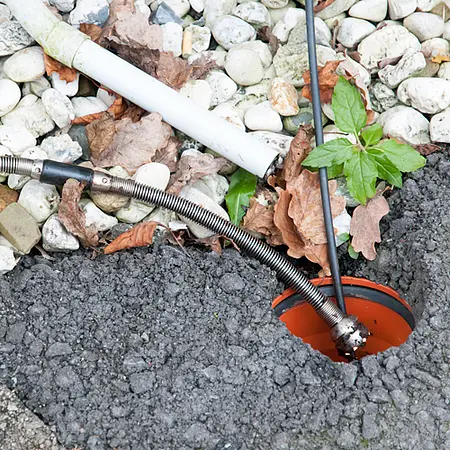

The PCE-VE 380N-LOC drain camera provides you with new, optical insights into the inner workings of machines and systems as well as in cavities, ventilation ducts, down pipes, chimneys, sewage pipes, etc. The drain camera PCE-VE 380N-LOC is the ideal tool for maintenance and repair in any industrial area, craft or workshop. Never was optical analysis with a drain camera so easy.

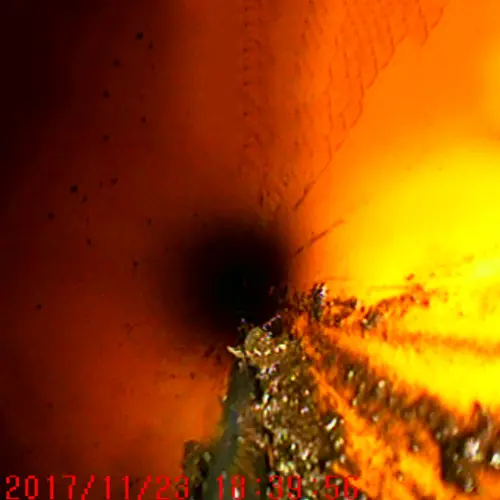

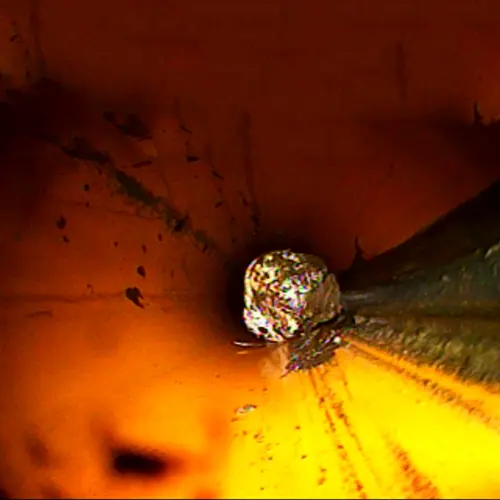

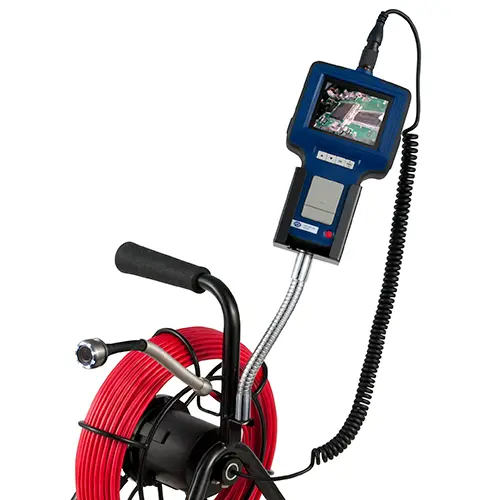

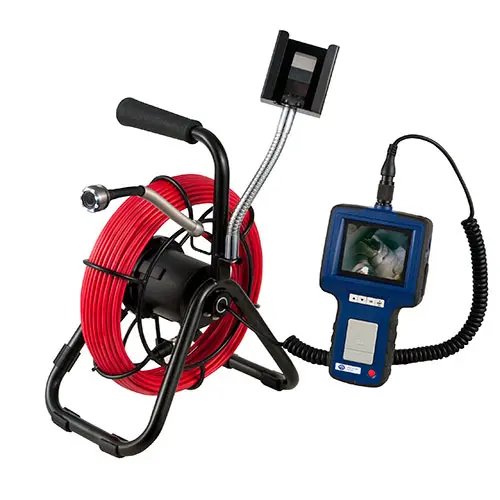

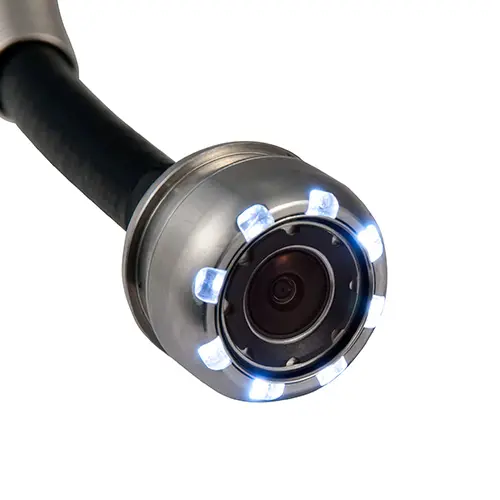

This drain camera offers you entry into professional video inspection. Simple and network-independent, you can inspect damaged areas in machines and systems, pipes and other cavities. The sturdy camera head with a diameter of only 28 mm / 1.1 in masters bends even in pipes with a diameter of just 50 mm / 2 in. With the drain camera, images and video sequences of the components to be inspected can be stored directly in the device on an SD card.
Cable diameter | 28 mm / 1.11 in |
Cable length | 30 m / 98 ft |
Depth of field | 10 mm … ∞ / 0.4 in to infinity |
Field of view | 150.8° |
Illumination | 8 LEDs |
Exposure | Automatic |
White balance | Fixed |
Image sensor | CMOS |
Image sensor | 640 x 480 |
Picture rate | 30 / s |

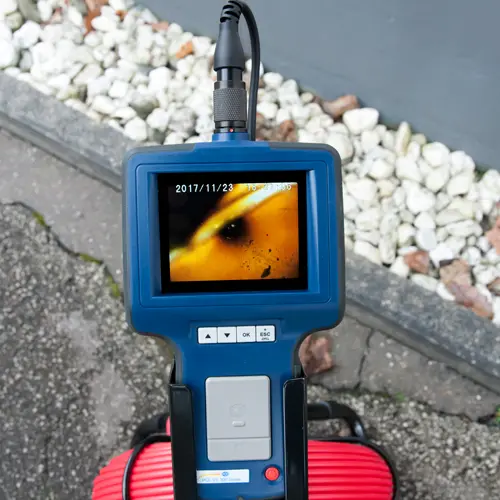

Display | 3.5" / 88.9 mm TFT screen |
Interface | Mini-USB 1.1 and AV out |
Storage options | image and video |
Image storgae | 8 GB SD memory card (incl.) |
Compression format | MPEG4 |
Picture format | JPEG (640 x 480) |
Video output format | NTSC & PAL |
Video format | ASF (320 x 240) |
Menu navigation | yes |
Operation & storage temperature | -10 ... 70°C / 14 ... 158°C |
Power supply | rechargeable 3.7V lithium-ion battery |
Dimensions, handheld device | 207 mm x 118 mm (79 mm) x 37 mm / 8.15 x 4.65 x 1.46 in |
Protection type, camera | IP 68 |
