- Radius: 11 … 13mm
- Only for PCE-900, PCE-1000 and PCE-2000
Measuring ranges | 170 ... 960 HLD 17.9 ... 69.5 HRC 19 ... 683 HB 80 ... 1042 HV 30.6 ... 102.6 HS 59.1 ... 88 HRA 13.5. .. 101.7 HRB |

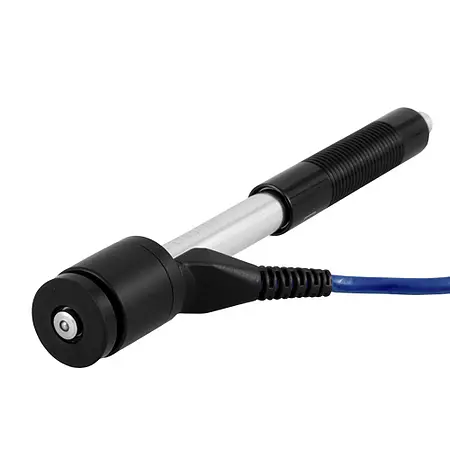

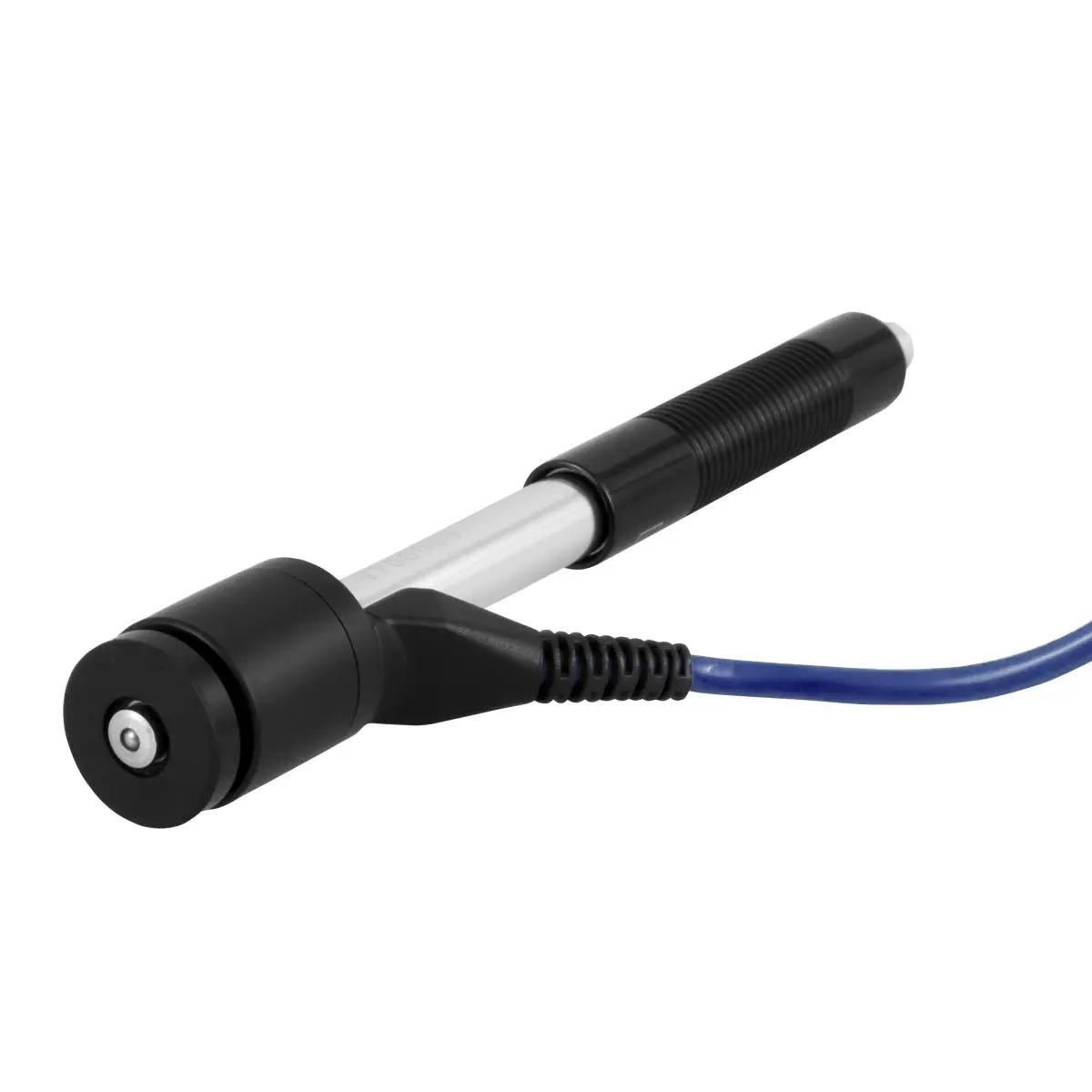

Impact device included (optional impact devices) |
D (DC, D + 15, C, G, DL) |
Cable length impact device | About 1.5 m / 4.9 ft |
Accuracy | ± 0.5% (@ 800 HLD) |
Repeatability | 0.8% (@ 800 HLD) |
Hardness scales | HL (Leeb) HV (Vickers) HB (Brinell) HS (Shore) HRA (Rockwell A) HRB (Rockwell B) HRC (Rockwell C) |
Measurable materials | Steel Cast steel Alloy steel Stainless steel Gray glacé Ductile iron Cast aluminum alloy Cu-zinc (brass) Copper-tin alloy, Copper |

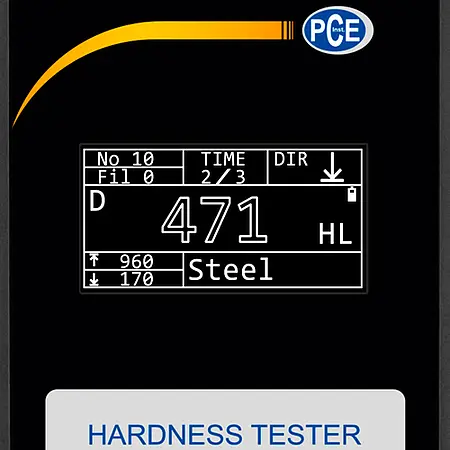

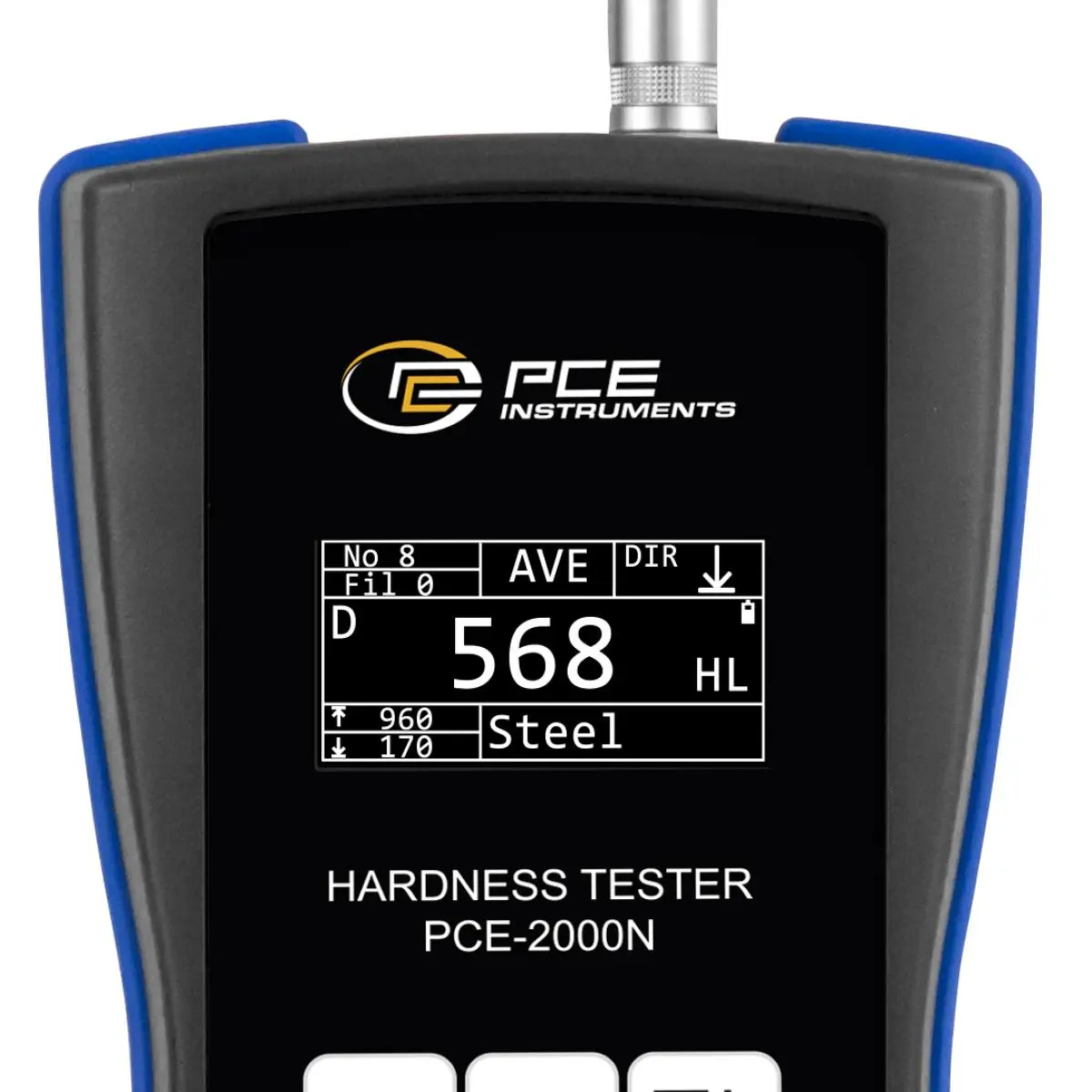

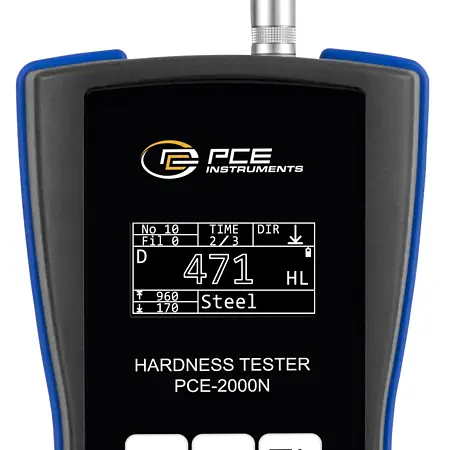

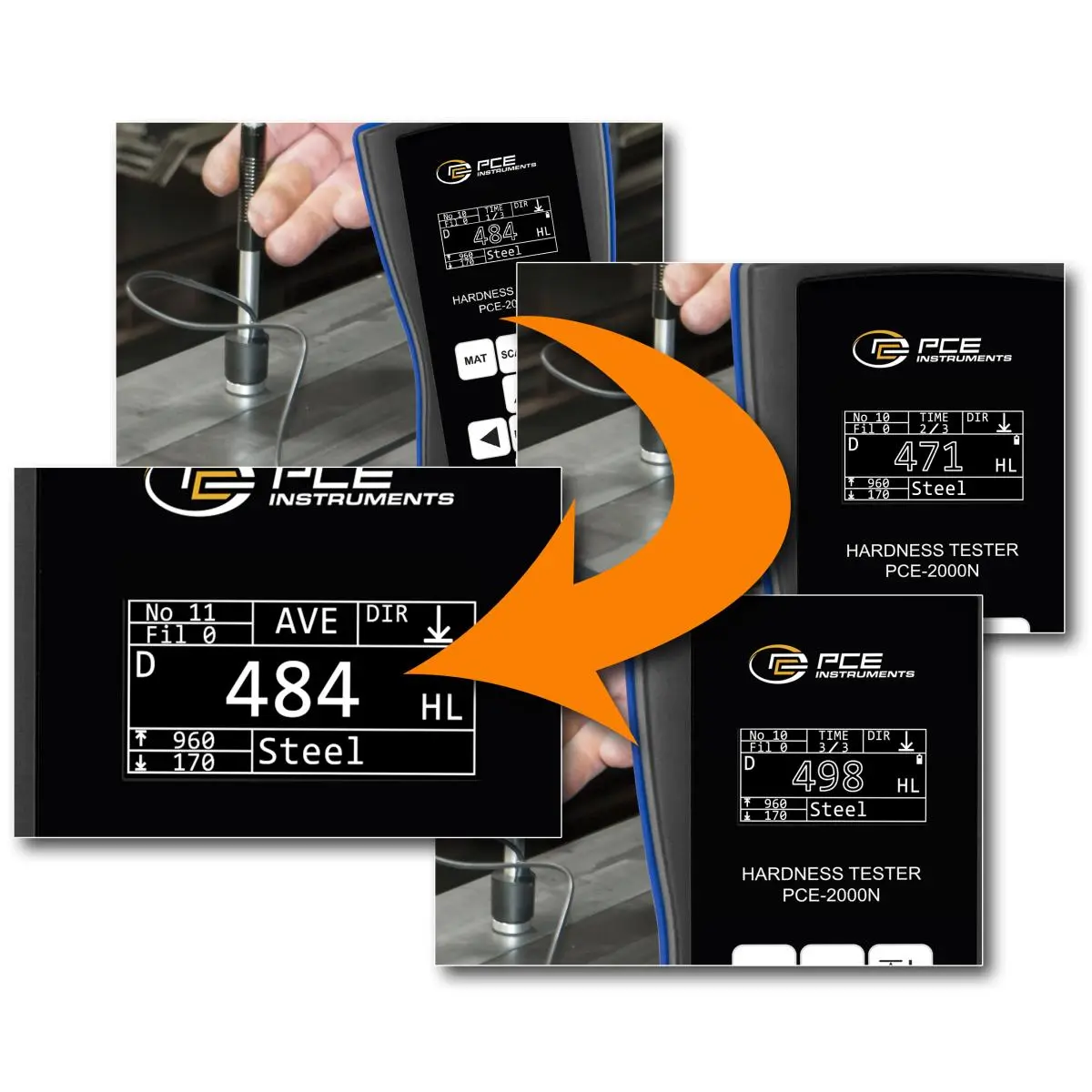

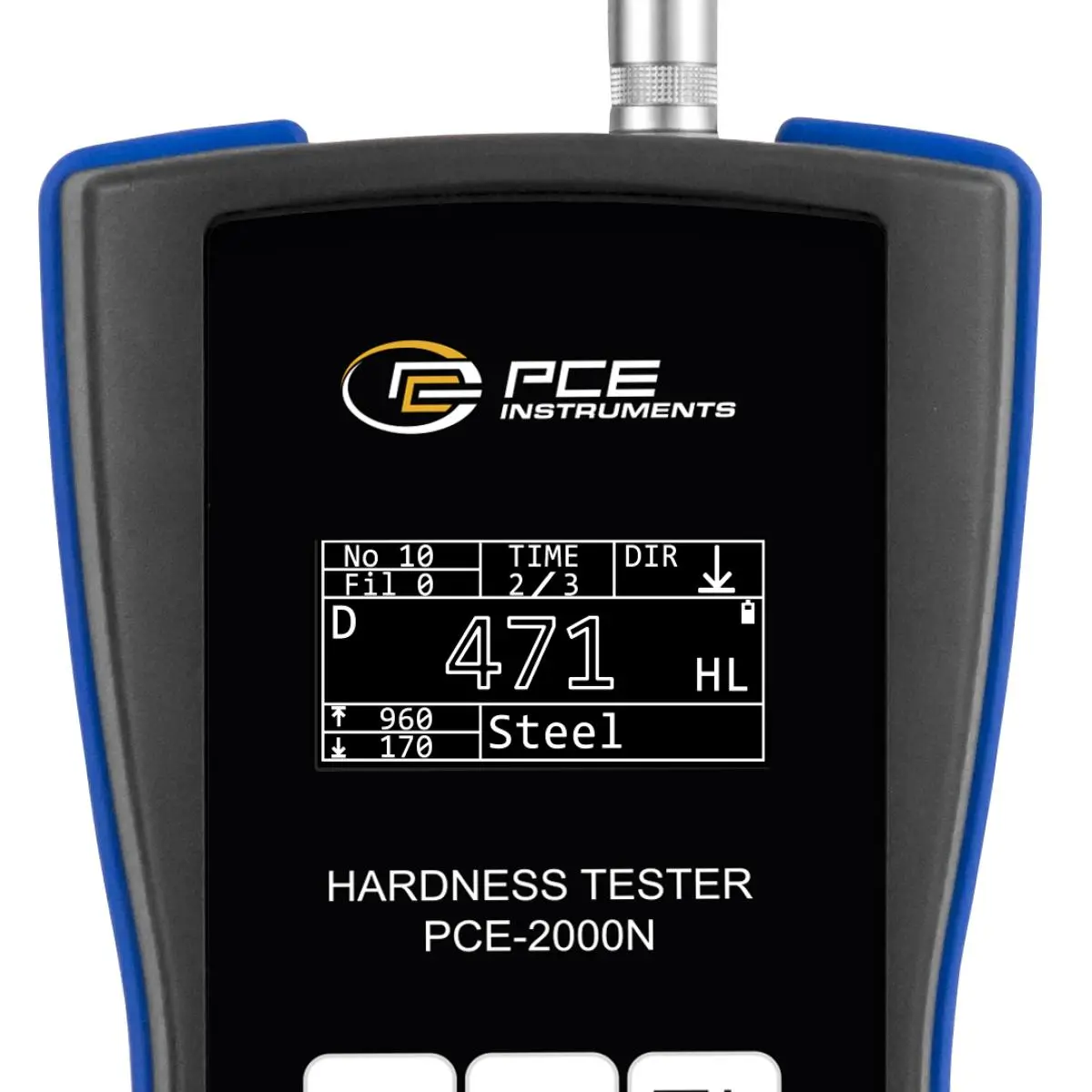

Display resolution | 128 x 64 pixel OLED |
Data storage | 600 averages in 6 data groups |

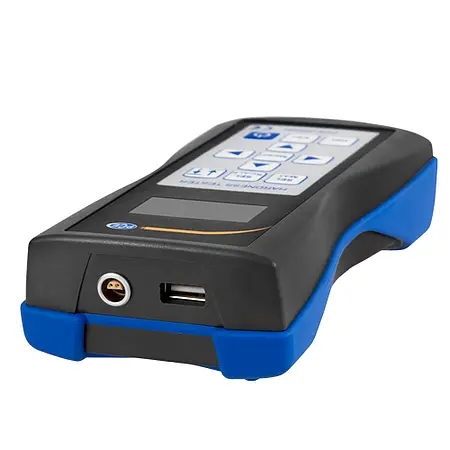

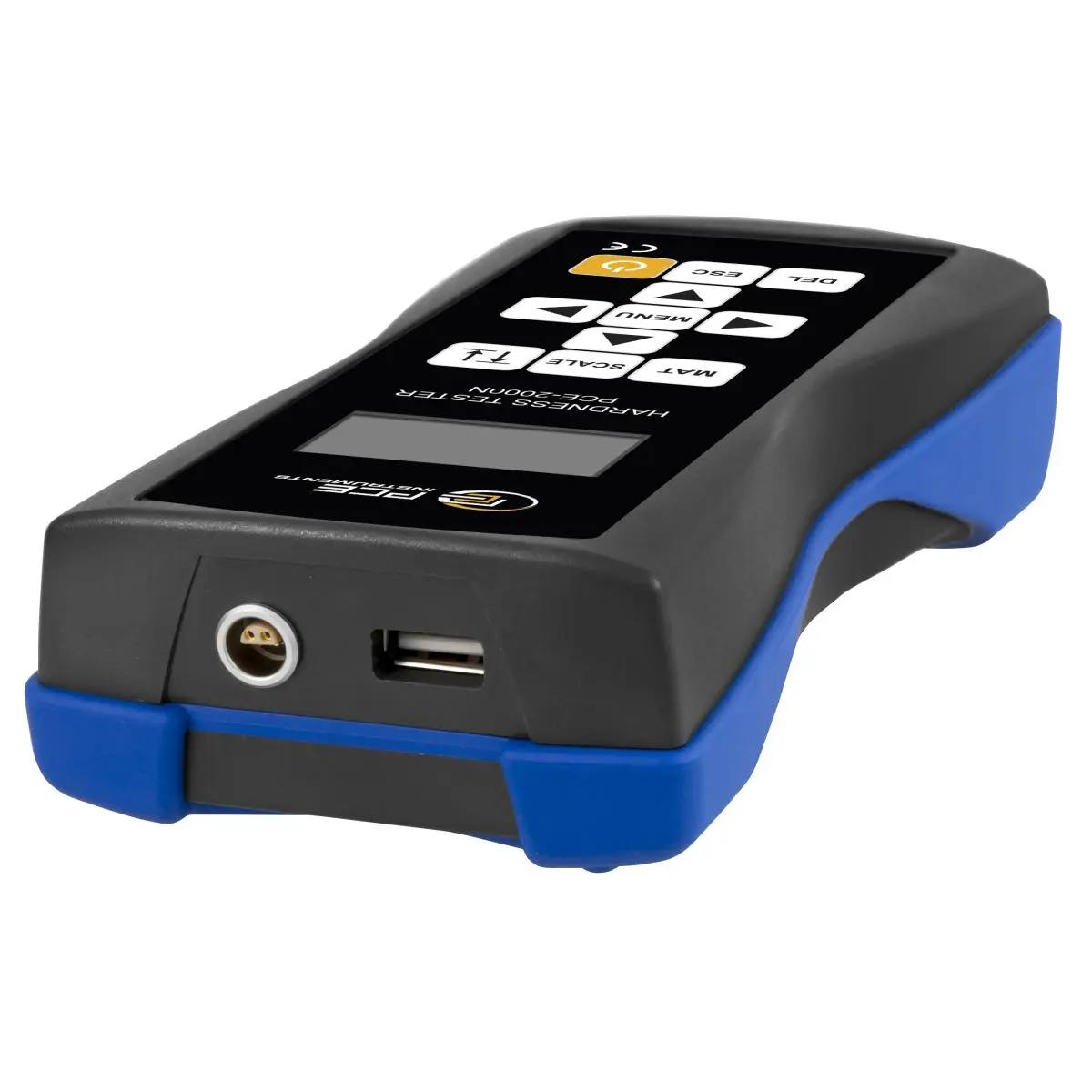

Data output | USB stick |
Power supply | 3 x AA 1,5V-batteries |
Auto Power-Off | if not in use, the device shuts off automatically after 12 minutes |
Operating conditions | 10 ... 50°C / 50 ... 122°F, 20 ... 90% rh |
Storage conditions | -30 ... 60°C / -22 ... 140°F |
Dimensions | 160 x 80 x 40 mm / 6.3 x 3.1 x 1.6 in (H x W x D) |
Weight | Measuring device with batteries: approx. 300 g / < 1 lb Impact device : approx. 75 g / < 1 lb |
Material | |
Steel / cold rolled steel | HRA 59.1 ... 85.8 HRC 20 ... 68.5 HRB 38.4 ... 99.6 HB 127 ... 651 HSD 32.2 ... 99.5 HV 83 ... 976 |
Alloyed tool steel | HRC 20.4 ... 67.1 HV 80 ... 898 |
Stainless steel | HRB 46.5 ... 101.7 HB 85 ... 655 HV 85 ... 802 |
Cast iron | HB 93 ... 334 |
Ductile iron | HB 131 ... 387 |
Cast aluminum | HRB 23.8 ... 84.6 HB 19 ... 164 |
Brass | HRB 13.5 ... 95.3 HB 40 ... 173 |
Bronze | HB 60 ... 290 |
Copper | HB 45 ... 315 |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
Price excl. VAT &. delivery
2 year Warranty
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
Price excl. VAT &. delivery
2 year Warranty
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
Price excl. VAT &. delivery
2 year Warranty
Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Consisting of:
HZ12.5-17 Mounting adapter concave, 12.5 … 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 … 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 … 30 mm (inside)
Z10-15 Mounting adapter convex, 10 … 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 … 30 mm (outside)
Z25-50 Mounting adapter convex, 25 … 50 mm (outside)
HK11-13 Ball mounting adapter ball, 11 … 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 … 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 … 30 mm (inside)
K14.5-30 Mounting adapter ball, 14.5 … 30 mm (outside)
K10-15 Mounting adapter ball, 10 … 15 mm (outside)
