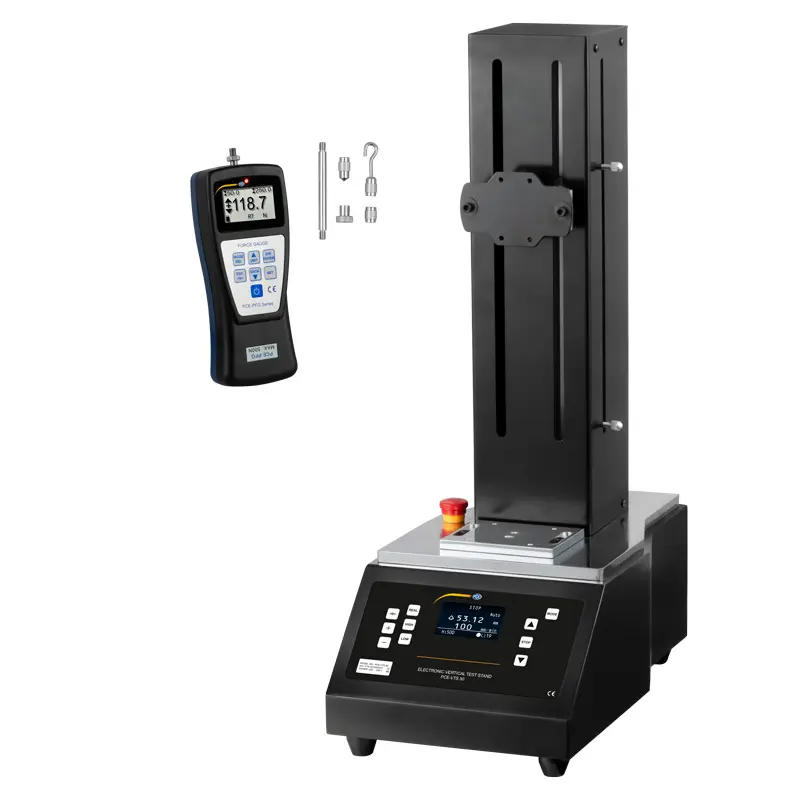

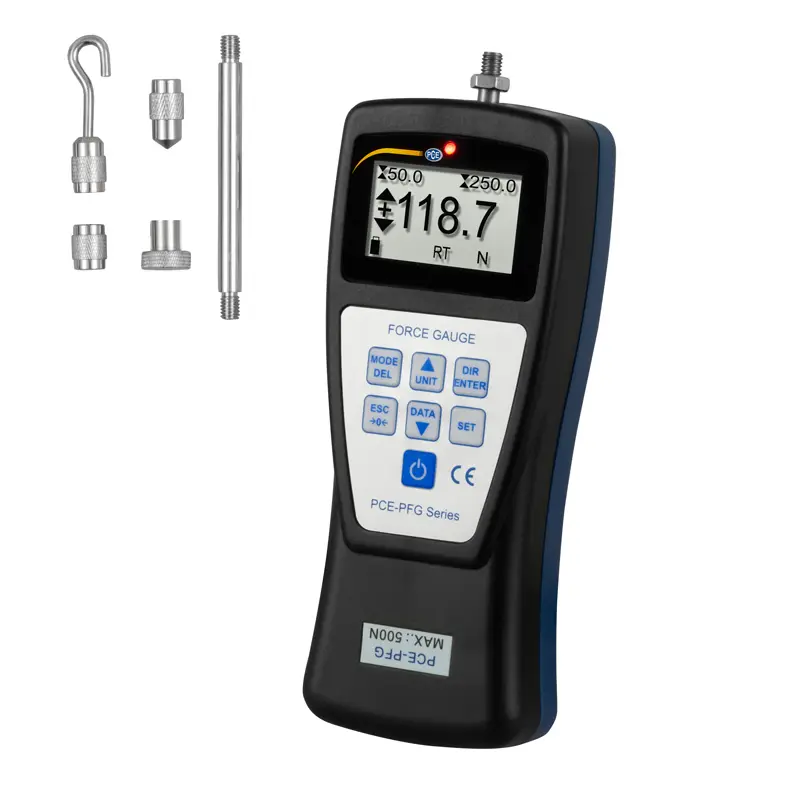

The PCE-PFG Durometer is a handy, digital measuring device for measuring tensile and compressive forces. The force measuring device offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.

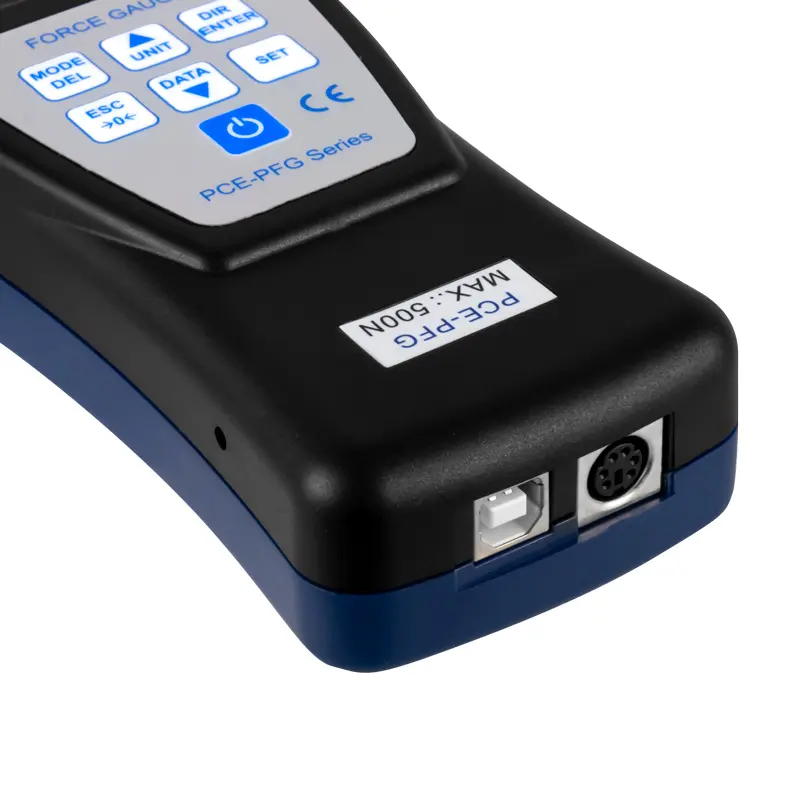

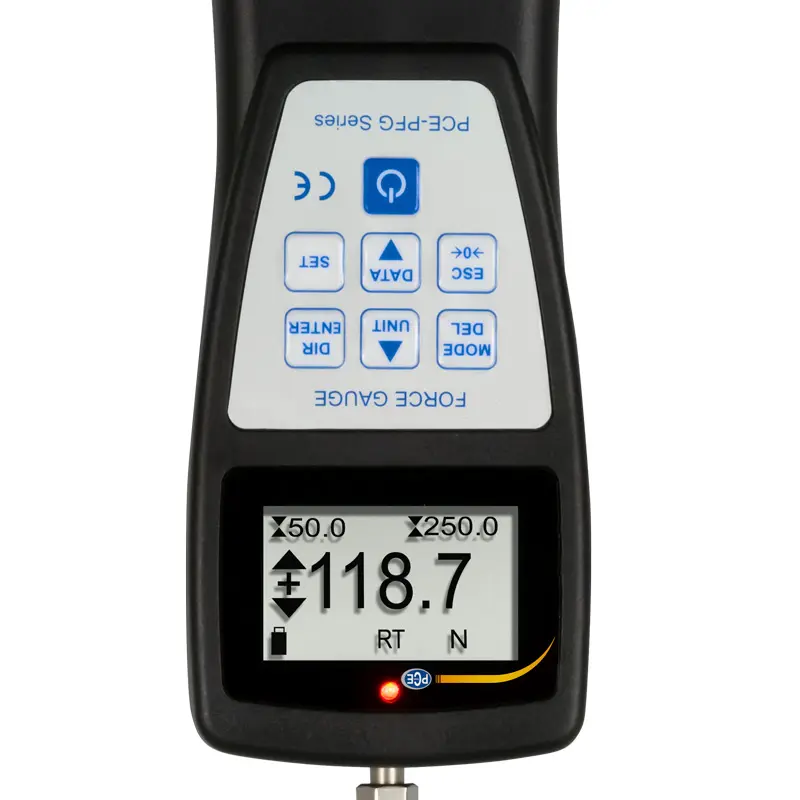

The measurement data and a statistical evaluation of the data stored in the Durometer (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.

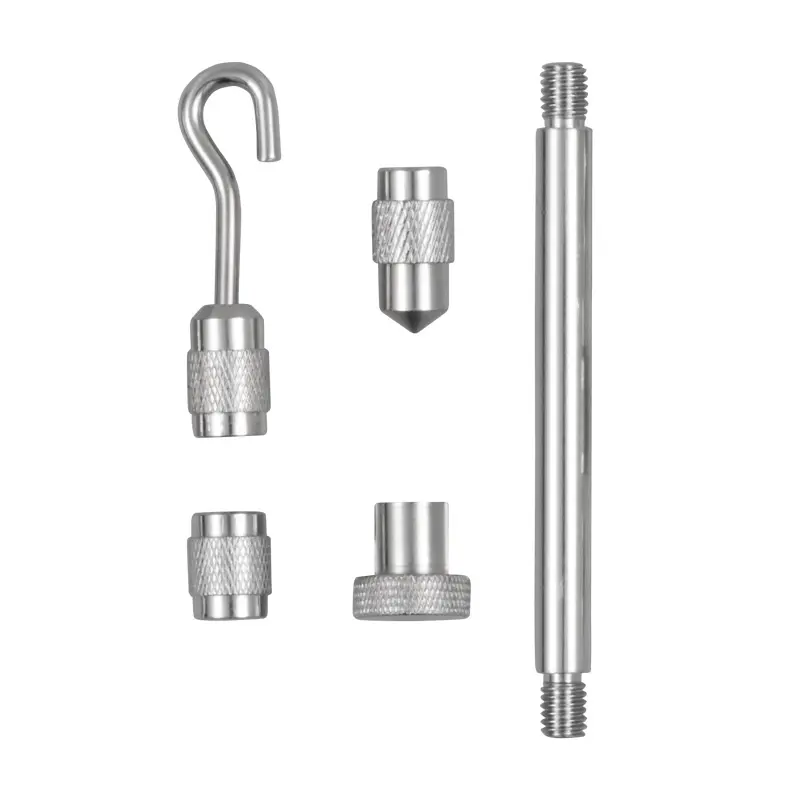

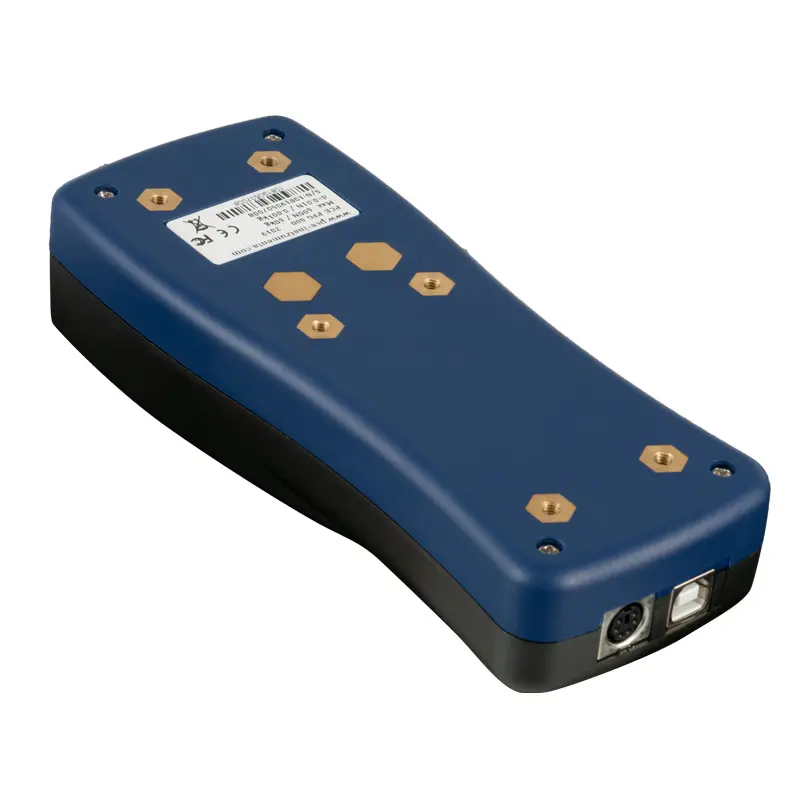

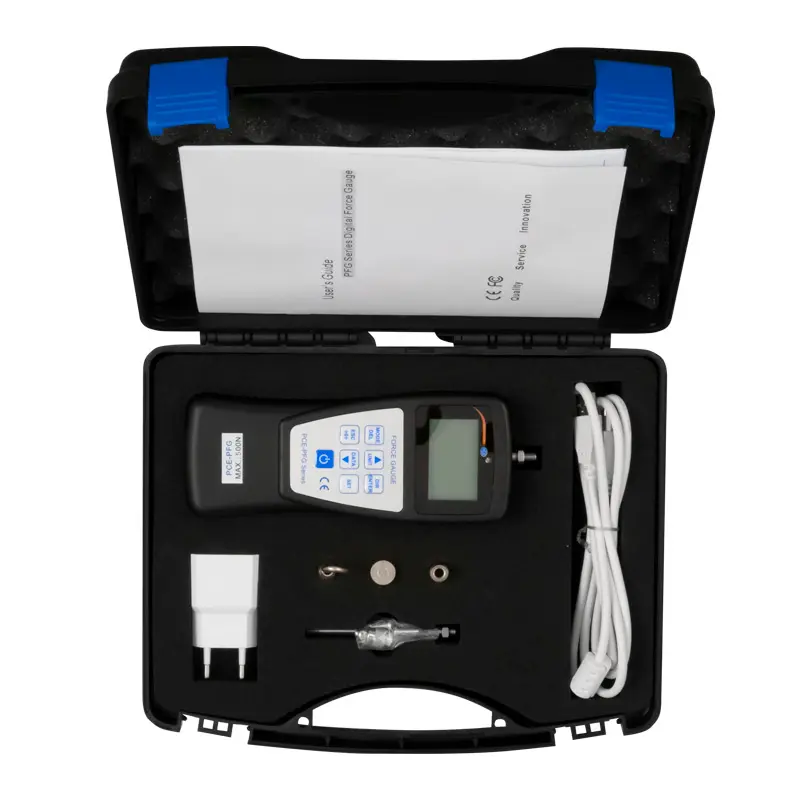

The graphic display can be rotated and the Durometer can be securely attached to a test stand using the M4 threaded holes on the back. The force is introduced into the internally installed load cell via an M6 threaded rod. Various mounting pieces are included in the scope of delivery of the force measuring device. The force measuring device can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.
Measuring range | 0 ... 500 N |
Resolution |
0.1 N |
Accuracy |
±0.3 % of the measuring range |
Measurement units | N, kgF, lbF |
Display | 1.8" graphic display |
Alarm modes | Below, Inside, Outside |
Sampling rate | 500 Hz |
Memory |
100 measurements |
Power supply | lithium battery 3.7 V / 1500 mAh |
Battery life | up to 36 hours |
Power supply / USB charging adapter | 5 V / 1 A |
Outputs |
interface: USB B Switching output / alarm modes: MD6 with 2.85 V if active |
Protection class | IP 54 |
Operating and storage conditions |
5 ... 45 °C 35 ... 65 % r.H. not condensing |
Force application | M6 x 10 mm thread |
Dimensions |
189 x 707 x 34 mm |
Weight | 450 g |

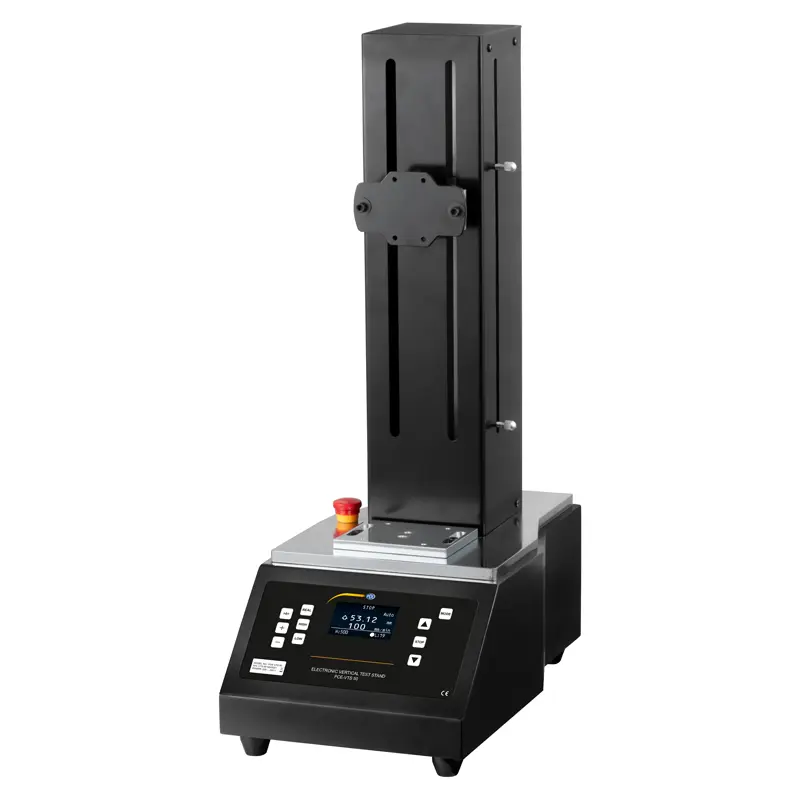

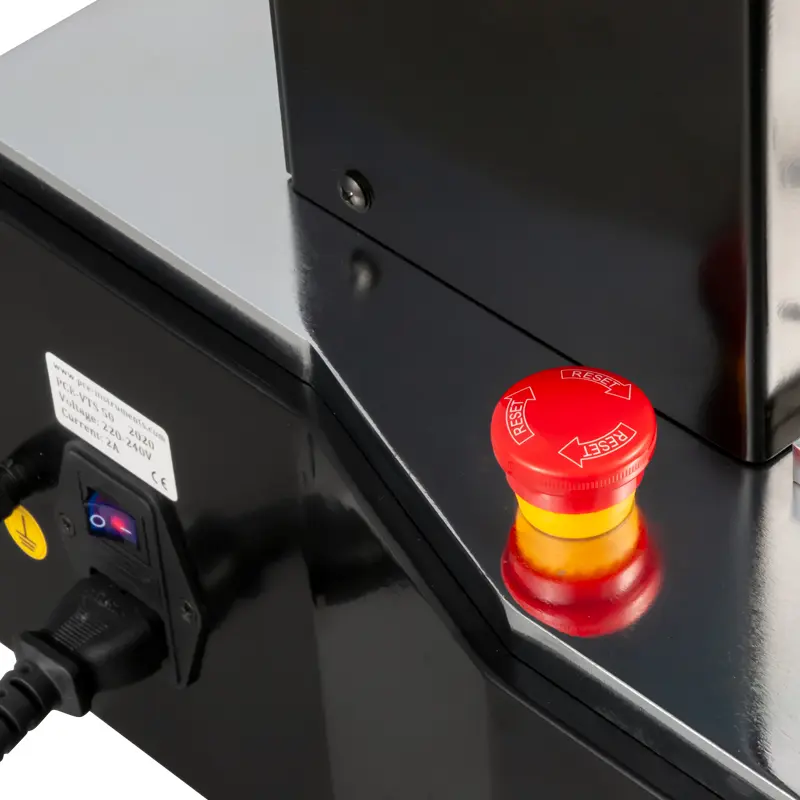

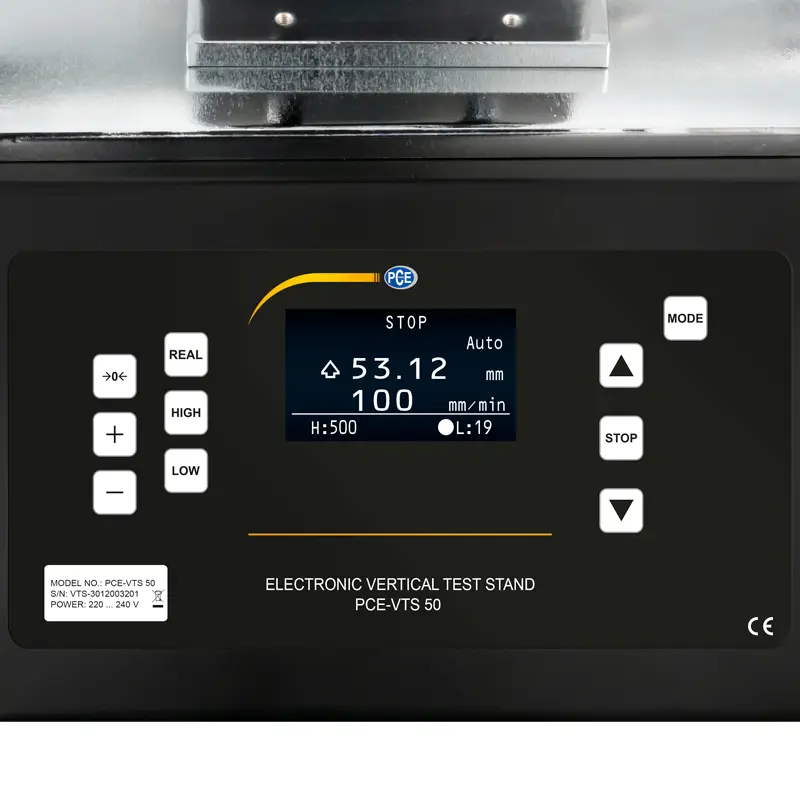

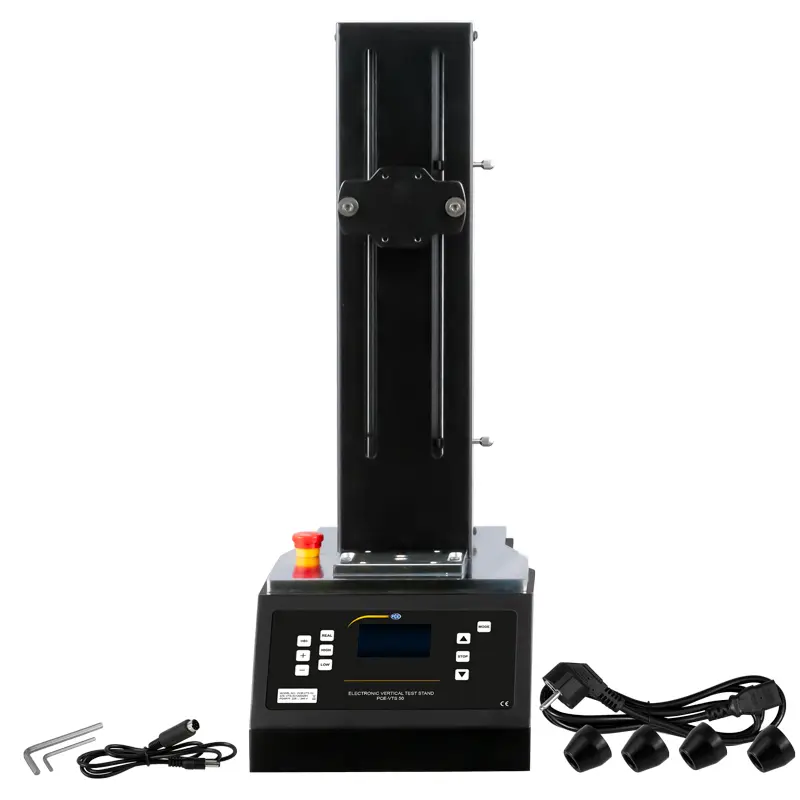

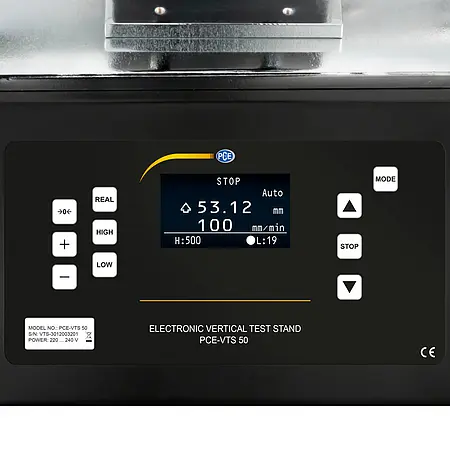

Motorised Force Test Stand |
|
Force range | 500 N / 50 kg / 110 lb |

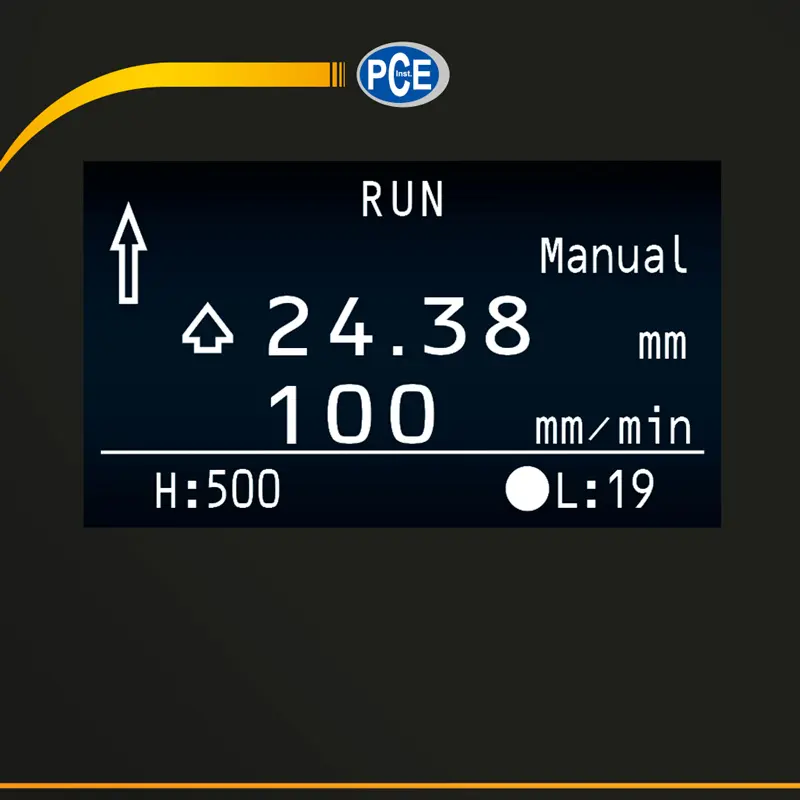

Distance display resolution | 0.02 mm |
Travel path | 270 mm / 10.6" |
Speed | 1 ... 500 mm/min |
Resolution | 1 mm/min |
Speed accuracy |
2 % |
Power supply | 220 ... 240 V AC, 1.5 A |
Fuse | 2 A |
Ambient conditions | 20 °C ±10 °C, 15 ... 80 % RH |
Dimensions | 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7" |
Weight | 35 kg / 77 lb |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.
Price excl. VAT &. delivery
2 year Warranty
ISO re-calibration incl. certificate for force gauge max. 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
Price excl. VAT &. delivery
2 year Warranty
The motorized tension-compression test stand is a motorized test station with a force range of up to 500 N. With the help of the horizontal test stand, it is possible to to carry out tension-compression tests.
Price excl. VAT &. delivery
2 year Warranty

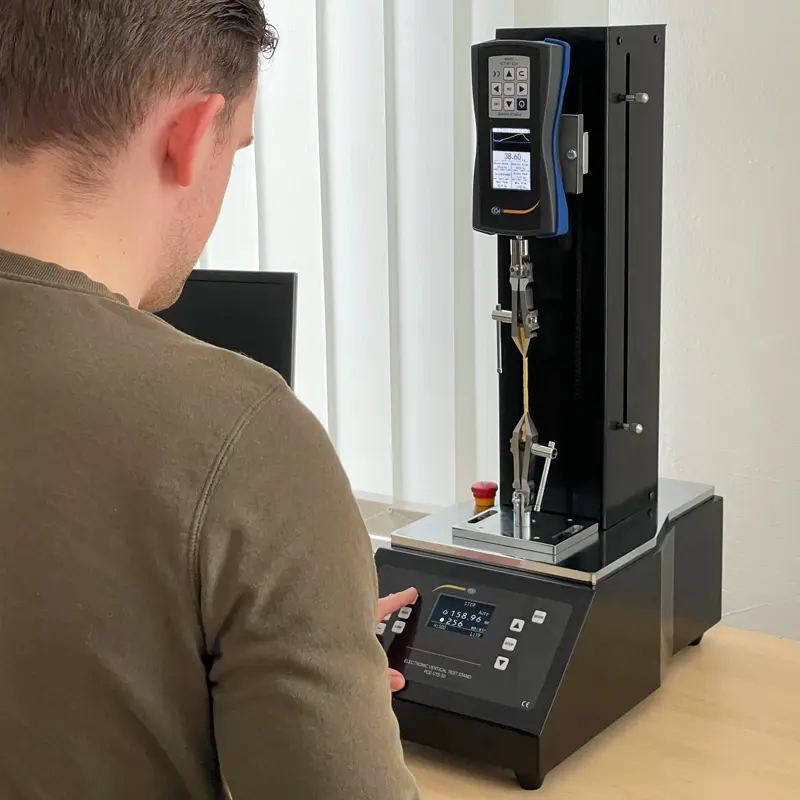

This vertical force test stand is a motorized test station with a force range of up to 500 N. In addition to setting the speed, the vertical force test stand also offers the option of switching between automatic and manual mode.
Price excl. VAT &. delivery
2 year Warranty
PCE-MTS50 is a motorized material test stand for use with PCE-series force gauges. The motorized material test stand offers enhanced control and stability during force testing. It also helps to ensure the accuracy and repeatability of vertical tension and compression force test results.
Price excl. VAT &. delivery
2 year Warranty
Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.
