Dust Measuring Device PCE-RCM 02

Order no.: PCE-RCM 02
GTIN (EAN): 4250348735096
131,90 €
156,96 €
price ex. (VAT / delivery)
:
4250348735096
PCE-RCM 02
Delivery time: 1-2 working days

Description

Dust Measuring Device / PM1, PM2.5, PM10 / measurement of CO2, formaldehyde, TVOC, temperature and room humidity / WiFi connection / data retrievable via app / USB-C interface / battery status display

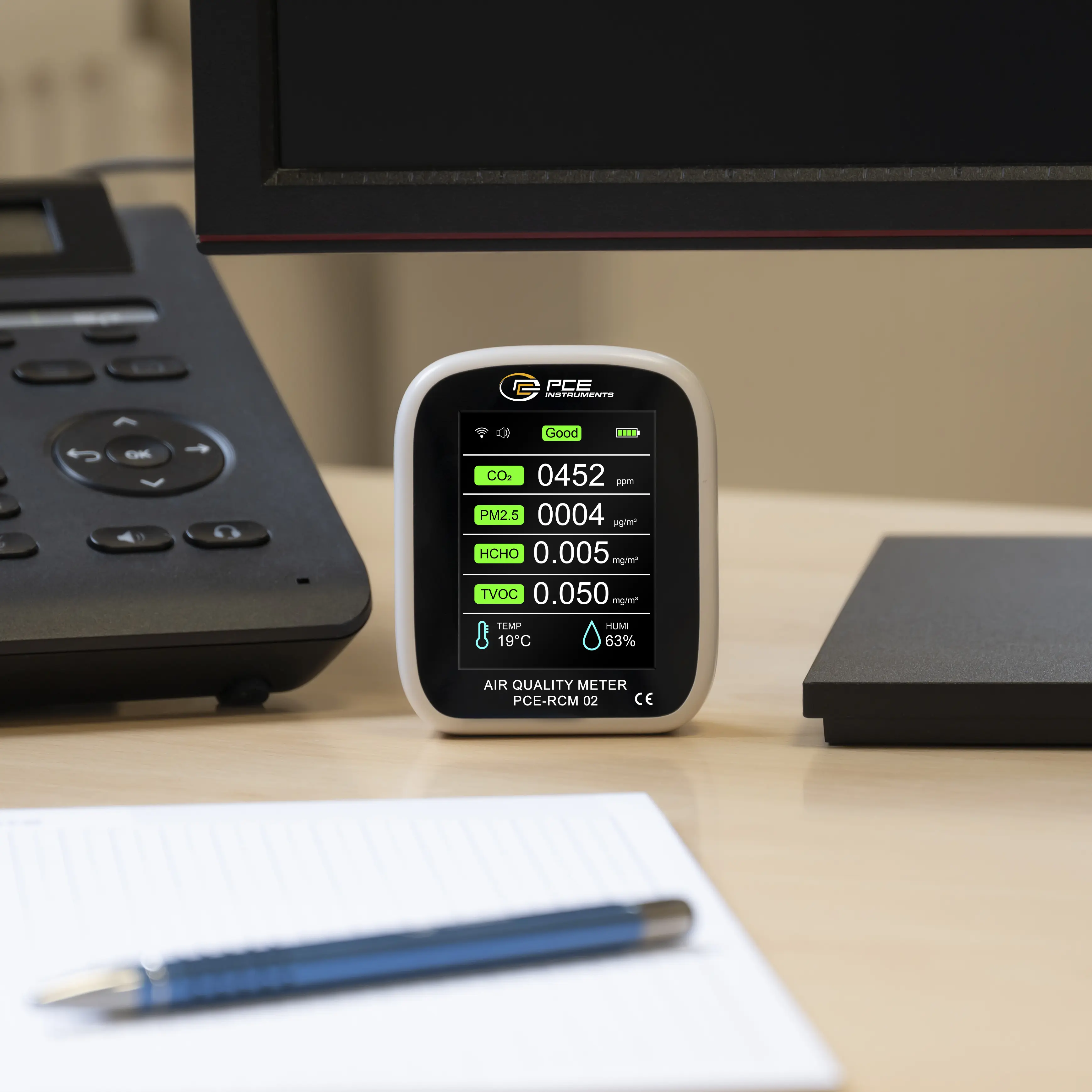

Our Dust Measuring Device is the ideal solution for monitoring air quality in homes, businesses or public buildings. The Dust Measuring Device impresses with its modern design and compact size. This makes it versatile and easy to use.

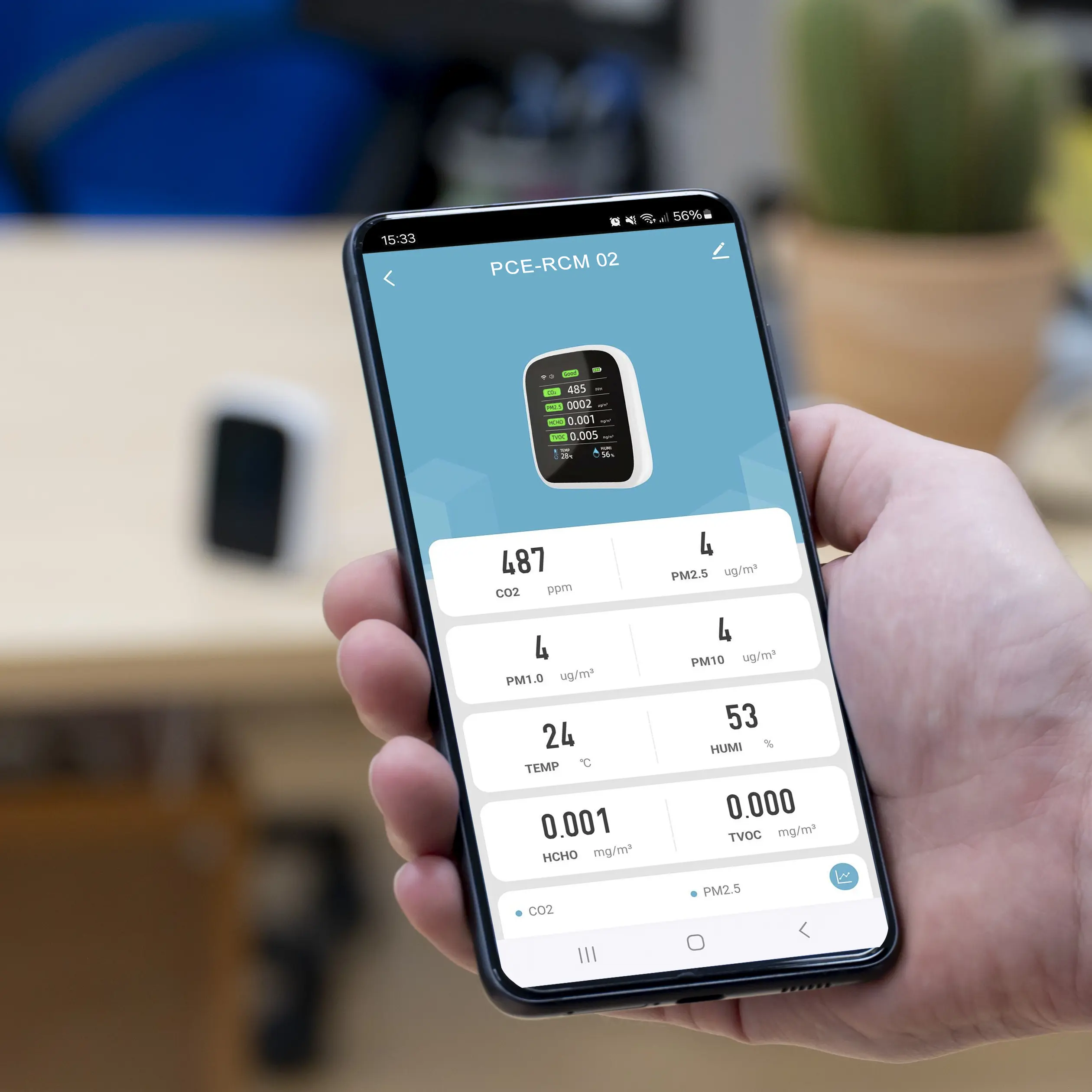

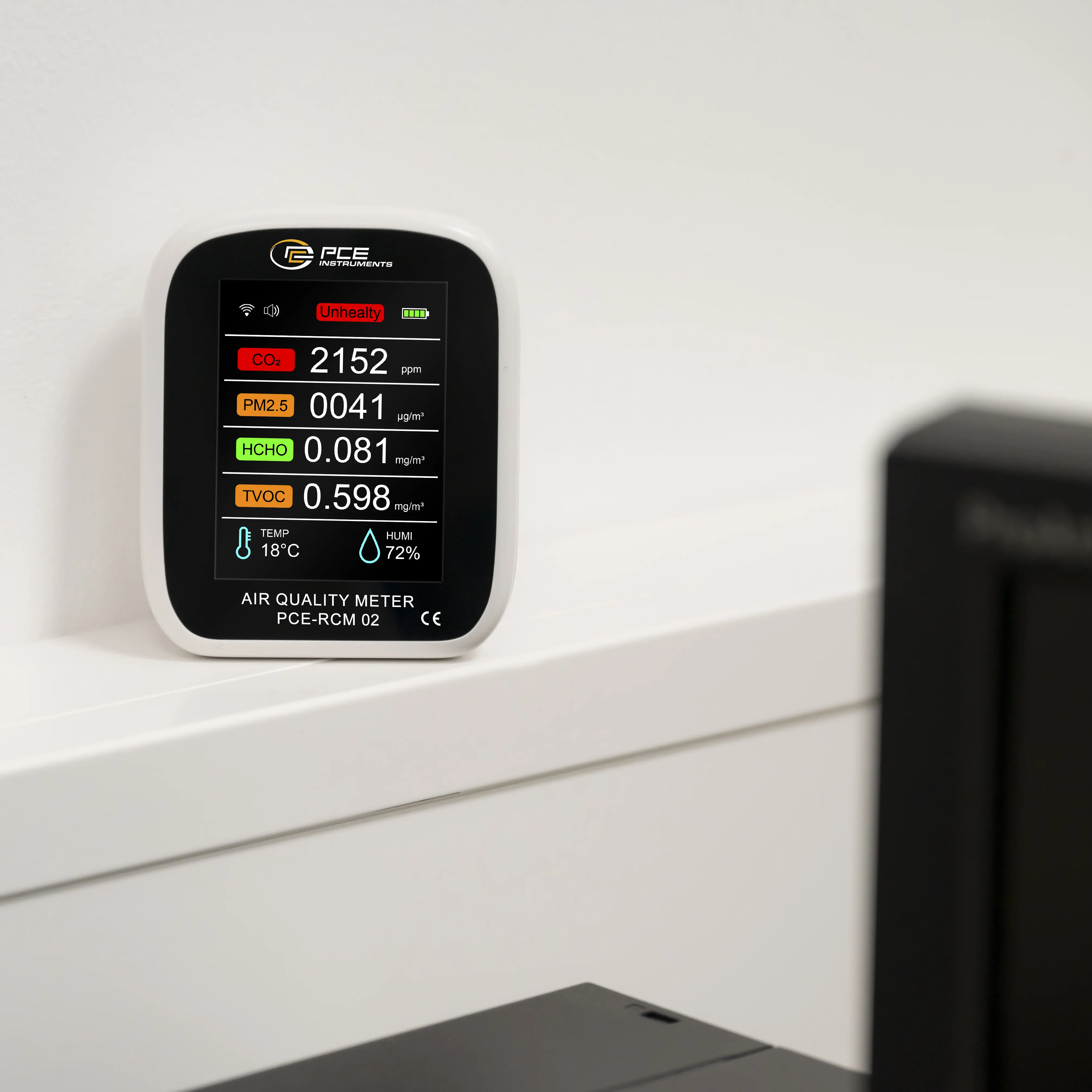

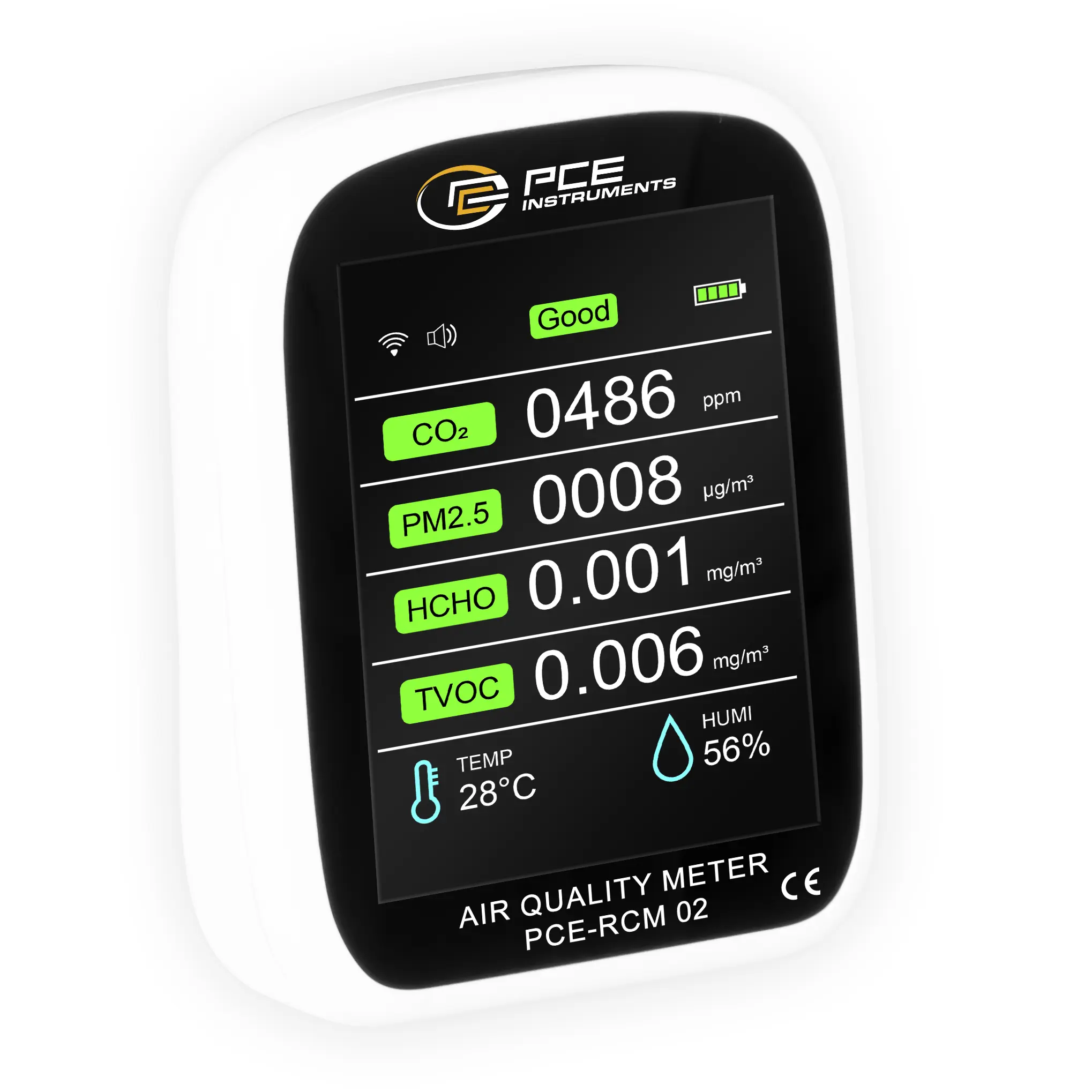

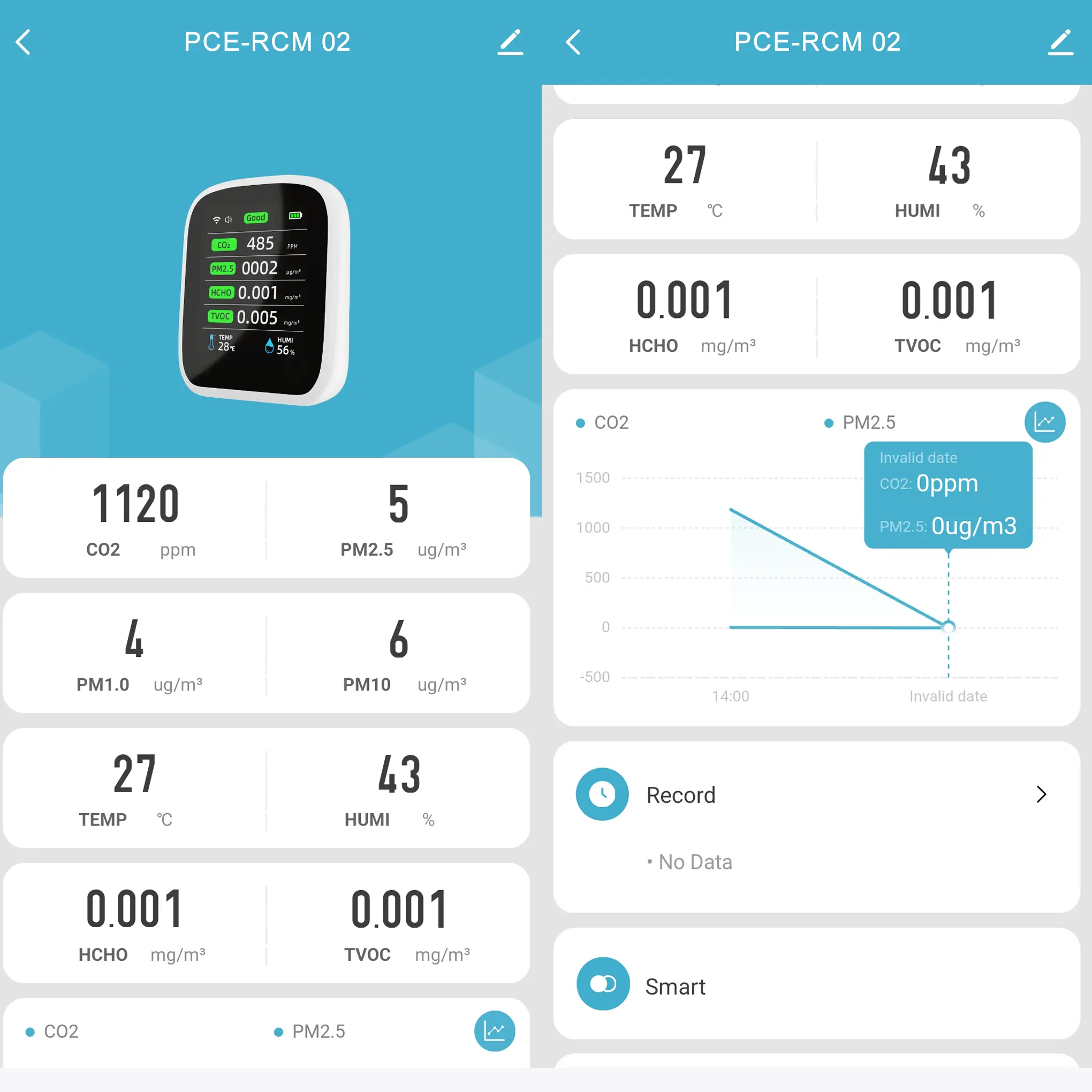

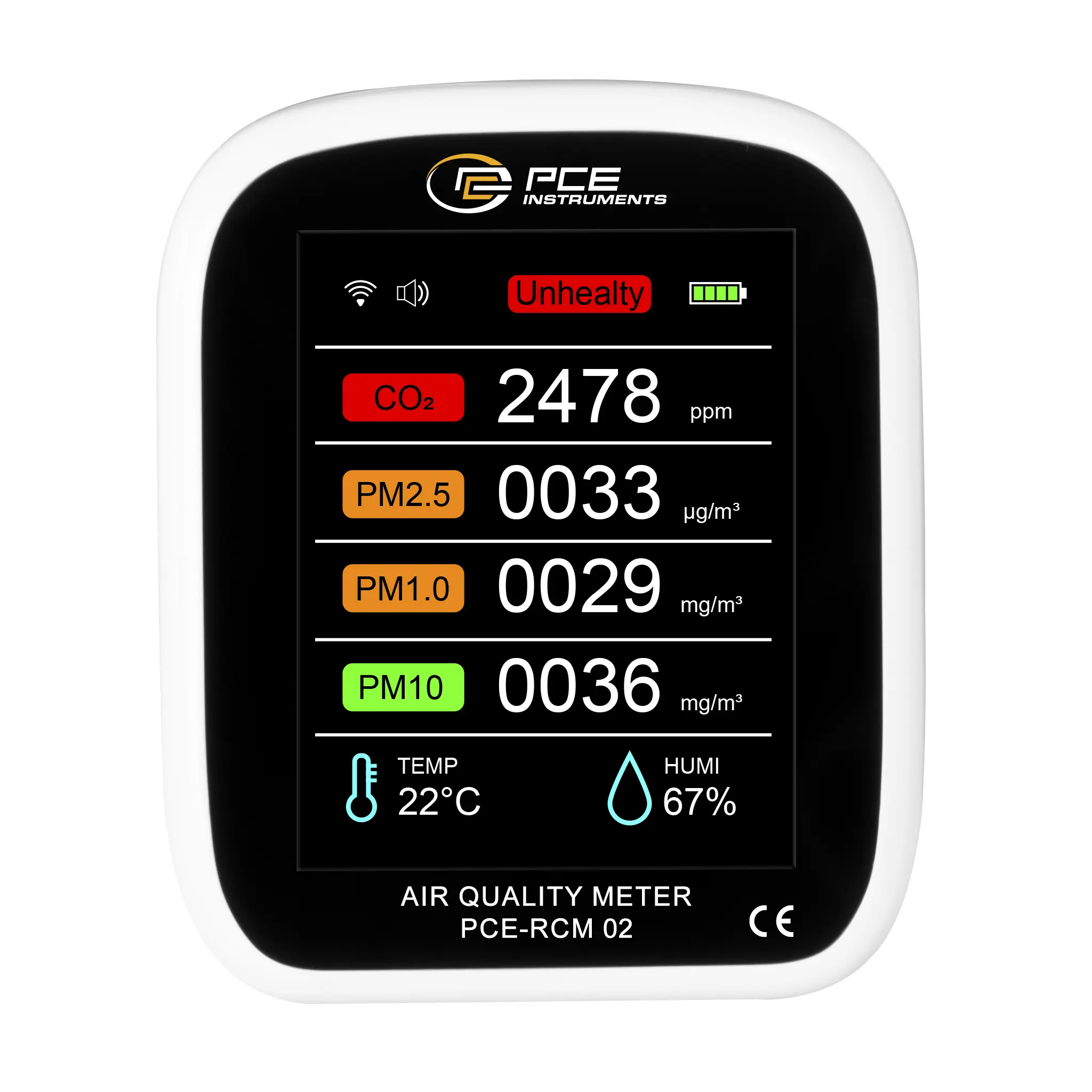

Various measurement parameters such as CO2, formaldehyde and TVOC can be read on the 3.5-inch LC display. In addition, the Dust Measuring Device displays room temperature and humidity and measures particulate matter (PM 1 / PM 2.5 / PM 10). The display uses three colours - green, orange and red - to show the user immediately when the values become critical. The Dust Measuring Device enables a Wi-Fi connection with other devices and allows the user to make individual settings via the Smart Life app. Thanks to the Smart Life app, the Dust Measuring Device can be accessed from anywhere. In addition, the data can be called up as values and displayed as a curve. This data shows the progression of the measurements and can be called up on a daily, weekly or monthly basis. This allows the user to track the development of air quality over a certain period of time.

The Dust Measuring Device is also equipped with a wake-up sensor. This wakes up the display from sleep mode when approached or by waving. This function can be deactivated in the app. The brightness of the display cannot be adjusted to increase the battery life. The same data is sent to the smartphone for evaluation. The operating time with a fully charged battery is approx. 4 hours.


Highlights

- LCD screen 3.5"
- WiFi connection
- data retrievable via app
- wake - up sensor

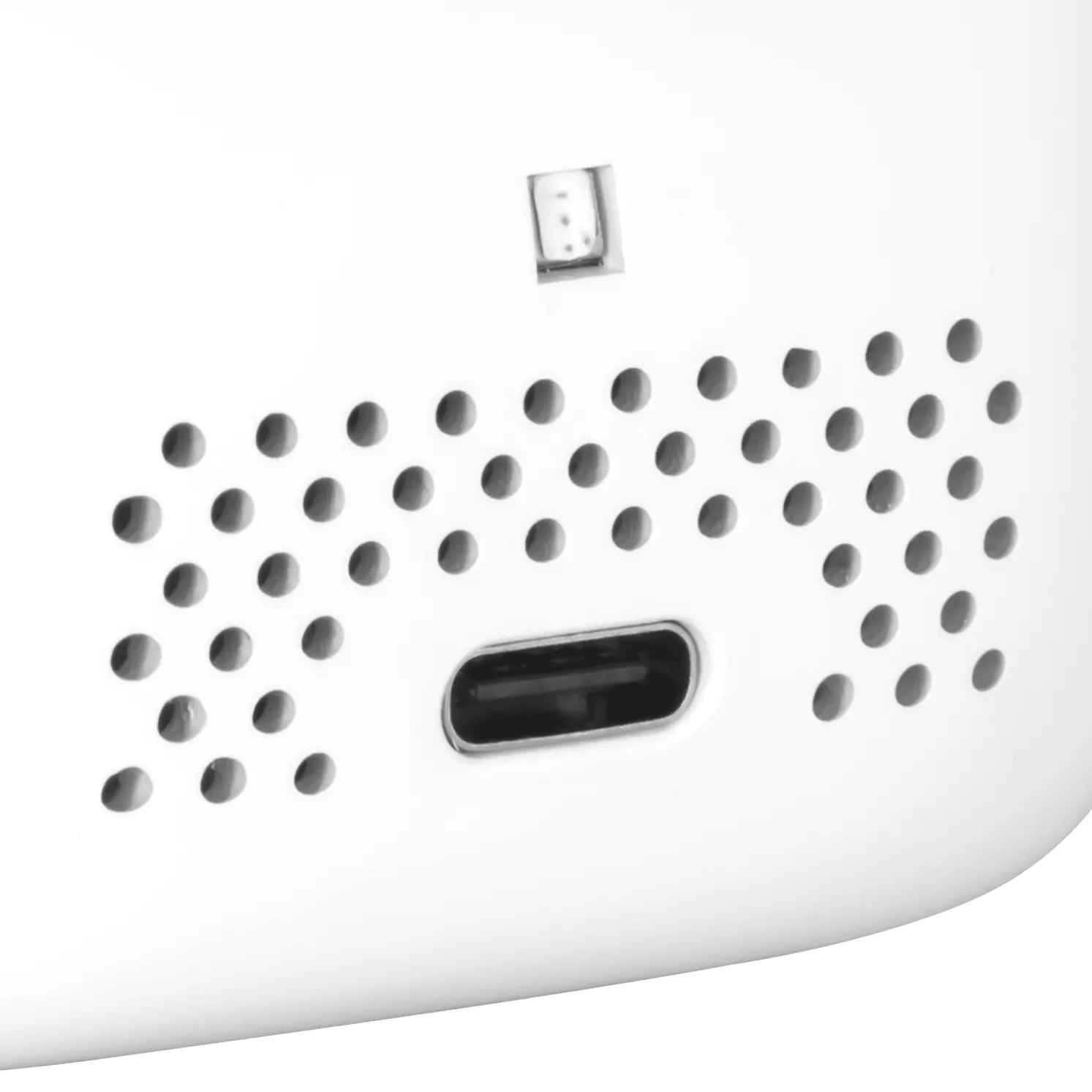

- battery rechargeable via USB-C
- compact size
- modern design
- fine dust measurement (PM 1 / PM2.5 / PM10)
- measurement of CO2, formaldehyde, TVOC
- adjustable alarm for CO2 and PM2.5

Specification

CO2
Measurement range up to  400 ... 5000 ppm
Resolution  1 ppm
Accuracy  ± (50 ppm + 5 % of Rd)

Relative humidity
Measurement range up to  0 ... 99 % RH
Resolution  1 % RH
Accuracy  ± 5% r. F.

Formaldehyde
Measurement range up to  0 ... 1,999 mg/m³
Resolution  0,001 mg/m³
Accuracy  15 % of Rd

Particles
Measurement range up to  0 ... 1000 µg/m³
Resolution  1 µg/m³
Accuracy  ±10 μg/m³ (0 ... 100 μg/m³)
±10 % of Rd (0 ... 500 μg/m³)
Measuring channel sizes  1.0, PM2,5, PM10

TVOC
Measurement range up to  0 ... 9,999 mg/m³
Resolution  0,001 mg/m³
Accuracy  15 % of Rd

Temperature
Measurement range up to  0 ... 50 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Display type  LCD
Display size  3,5 Inch
Interface  USB-C
Alarm  optical, Acoustic
Sensors  NDIR, Semiconductor TVOC, Laser scattered light
Menu language  German, English
Protection class (device)  IP20
Power supply  5 V DC, 2 A
Weight  107 g
Operating conditions  0 ... 50 °C , 0 ... 99 % r.F
Storage conditions  0 ... 50 °C , 0 ... 99 % r.F
Capacity  5 V DC, 2 A
Dimensions ( L x W x H )  85 x 70 x 35 mm

Delivery Scope

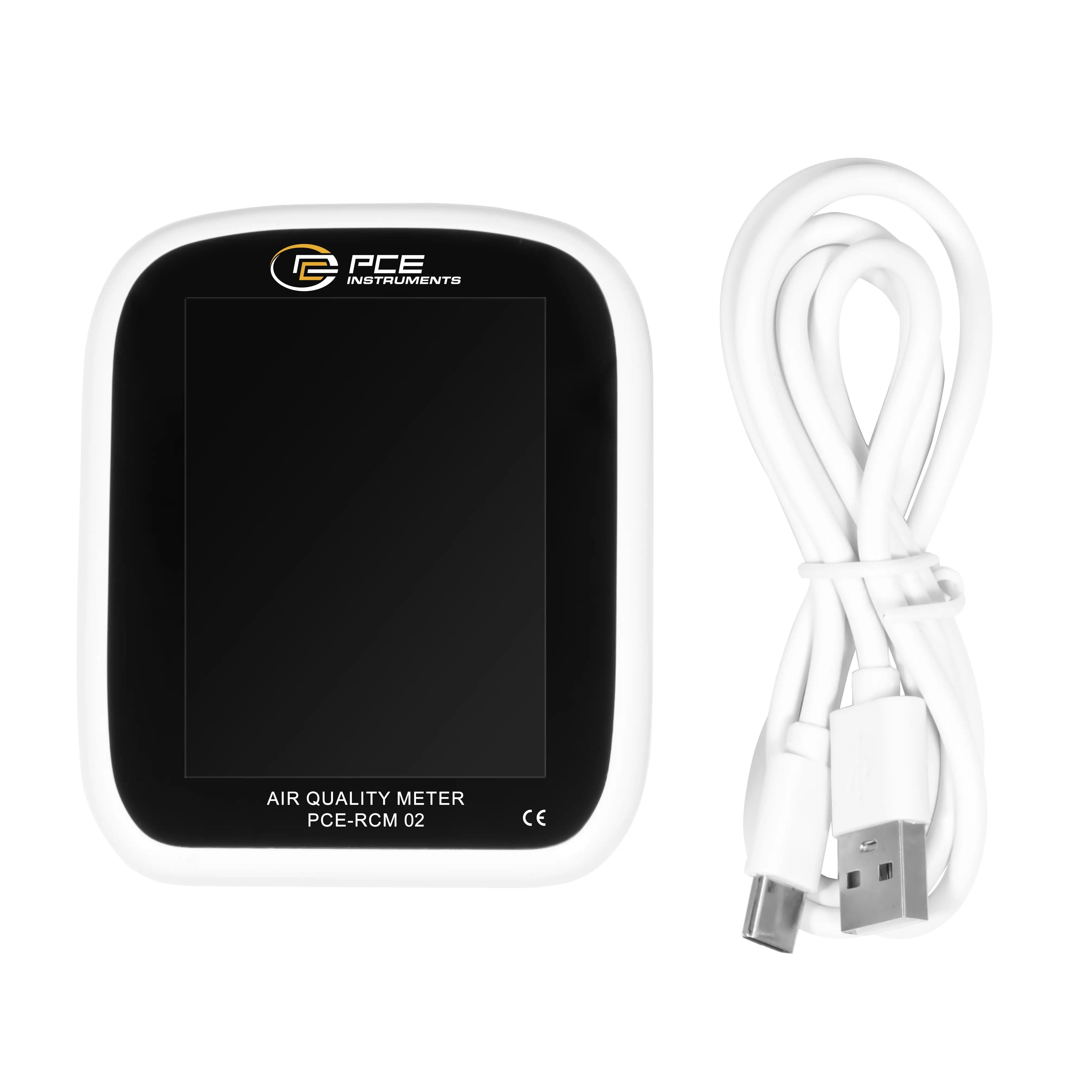

1 x PCE-RCM 02 Dust Measuring Device
1 x USB-C cable
1 x user manual
The Smart Life app can be downloaded from the store.
