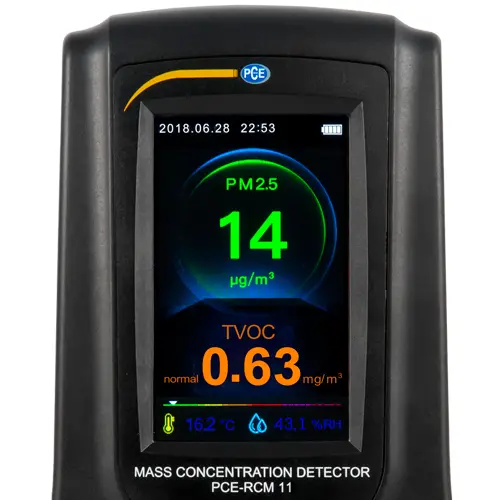

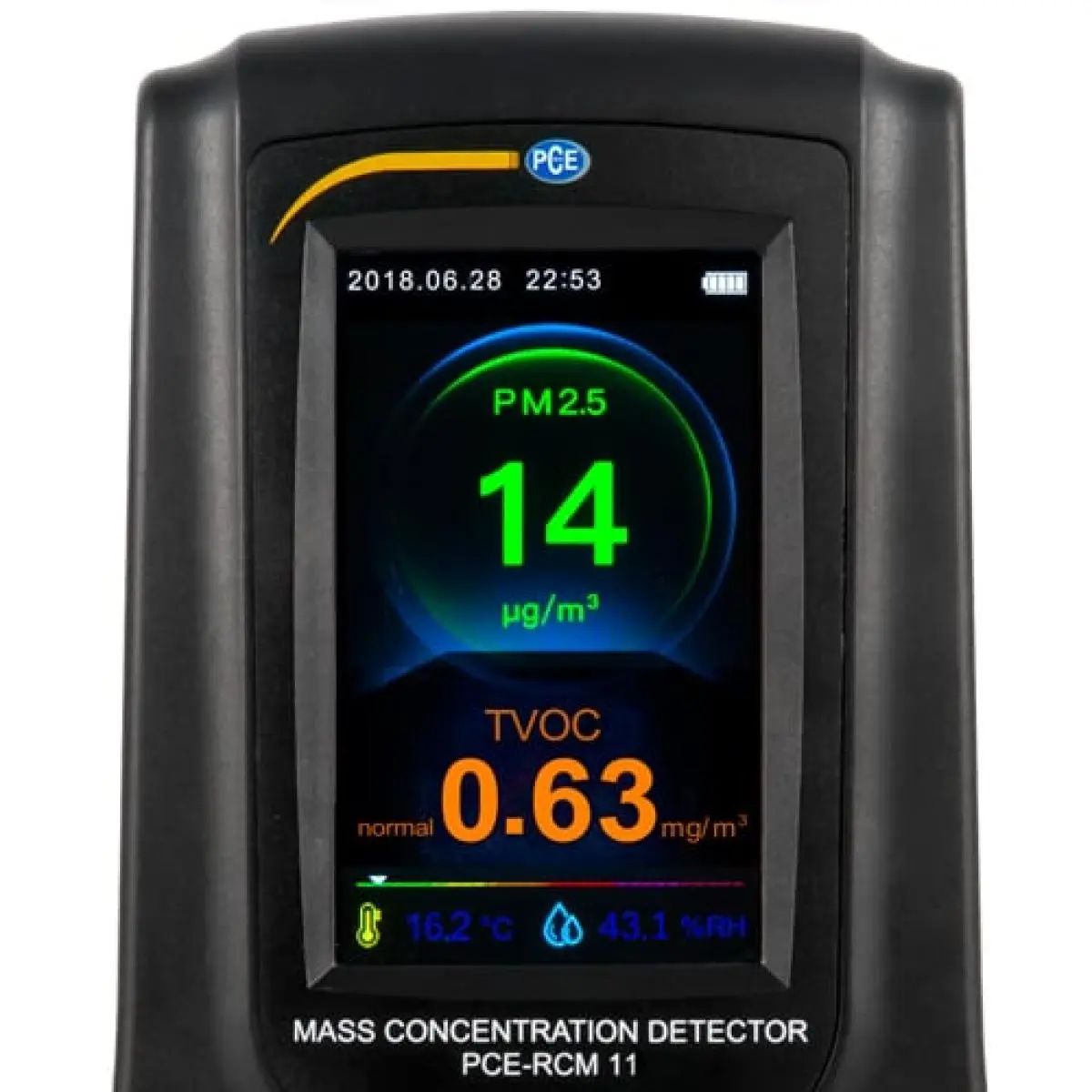

For permanent measurement, the air quality monitor can be connected to the mains via a USB interface. The rechargeable battery will be recharged within two hours if the air quality monitor is turned off. The display of the concentrations is further simplified by the use of a color rating scale, as this directly provides information about the air quality to the user.

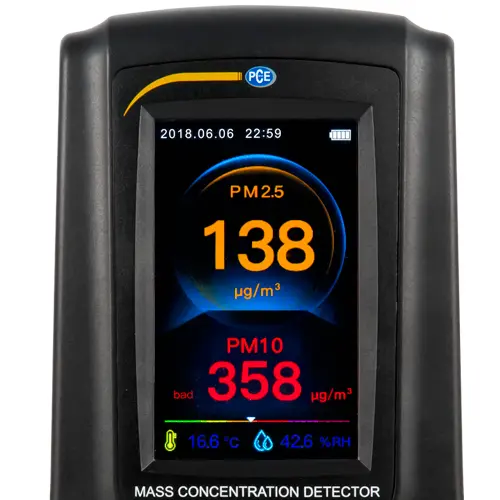

In addition to the indicative measurement of formaldehyde, which can be harmful to health, there is also an orienting measurement of particulate matter pollution to be carried out. A distinction is made between particles with a maximum diameter of up to 10 μm (PM10) and particles up to a diameter of 2.5 μm (PM2.5).
| Measuring range fine dust | PM2.5 / PM10 |
| Measuring range particle measurement | 0 ... 2000 μg / m³ |
| Resolution particle measurement | 1 μg / m³ |
| Measuring range TVOC (Volatile Organic Substances) |
0.00 ... 9.99 mg / m³ |
| Accuracy TVCO | ± 5% of the measuring range |
| Resolution TVCO | 0.01 mg / m³ |
| Measuring range formaldehyde | 0.00 ... 5.00 mg / m³ |
| Accuracy formaldehyde | ± 5% of the measuring range |
| Dissolution formaldehyde | 0.01 mg / m³ |
| Measuring range humidity | 0 ... 100% rh |
| Accuracy of humidity | ± 3.5% RH (at 20 ... 80% RH) ± 5% RH (at 0 ... 20% RH / 80 ... 100% RH) |
| Resolution Humidity | 0.1% RH |
| Measuring range temperature | -20 ... 70°C / -4 ... 158°F |
| Accuracy temperature | ± 2°C / 3.6°F |
| Resolution temperature | 0.1°C / 0.18°F |
| Sound sensor | Wake up to APO |
| Power supply | 2400-mAh, rechargeable battery |
| Battery life | Continuous measurement for up to 5 hours |
| Charging | Via USB 5V / 1 A |
| Charging time | 2 hours (when switched off) |
| Automatic sleep mode | Adjustable if necessary |

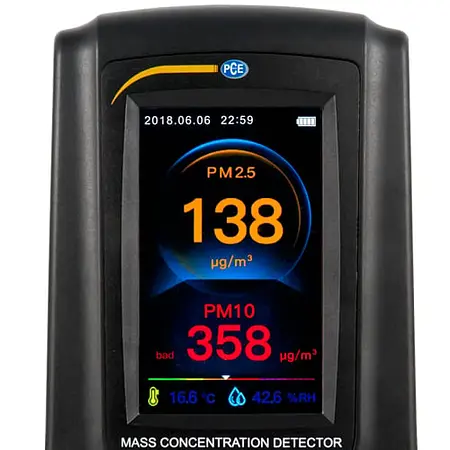

| Display | 3" TFT LCD display, 240 x 400 pixels |
| Data storage | 5000 measuring groups |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | -10 ... 60°C / 14 ... 140°F |
| Dimensions | 85 x 75 x 155 mm / 3.3 x 3 x 6.1 in |
| Weight | 360 g / < 1 lb |
