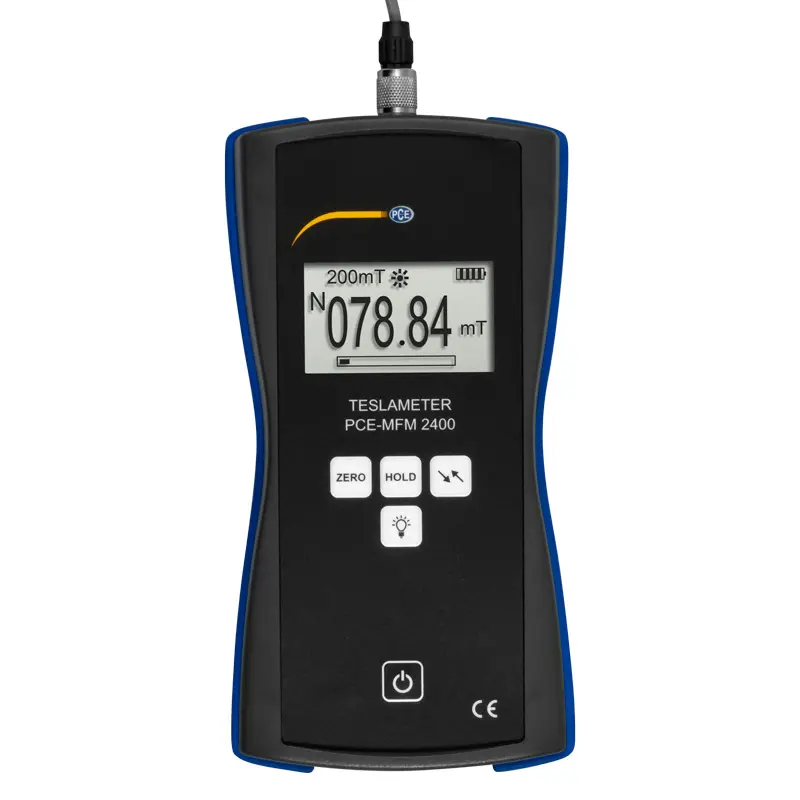

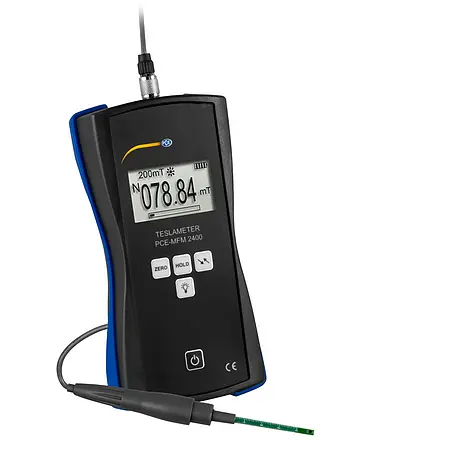

Electromagnetic Field Meter PCE-MFM 2400

Order no.: PCE-MFM 2400
GTIN (EAN): 4250348722096
786,90 €
936,41 €
price ex. (VAT / delivery)
:
4250348722096
PCE-MFM 2400
Delivery time: 1-2 working days

Accessory

Plastic case for magnetic field tester PCE-MFM 2400
Plastic case for magnetic field tester PCE-MFM 2400
49,90 €
ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
222,90 €

Description

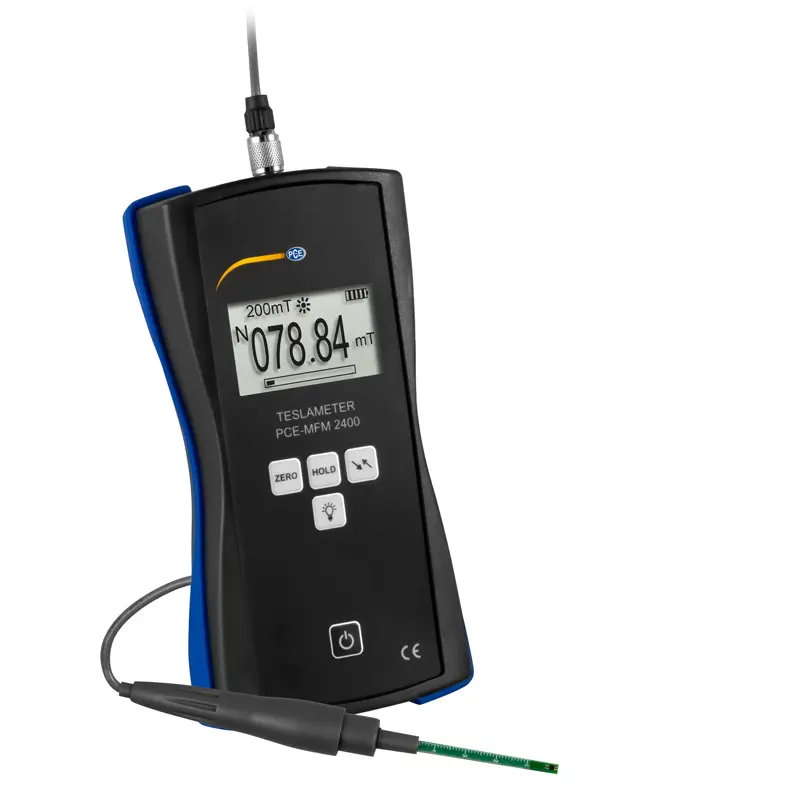

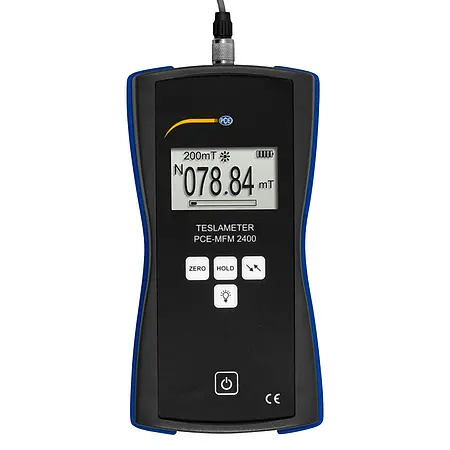

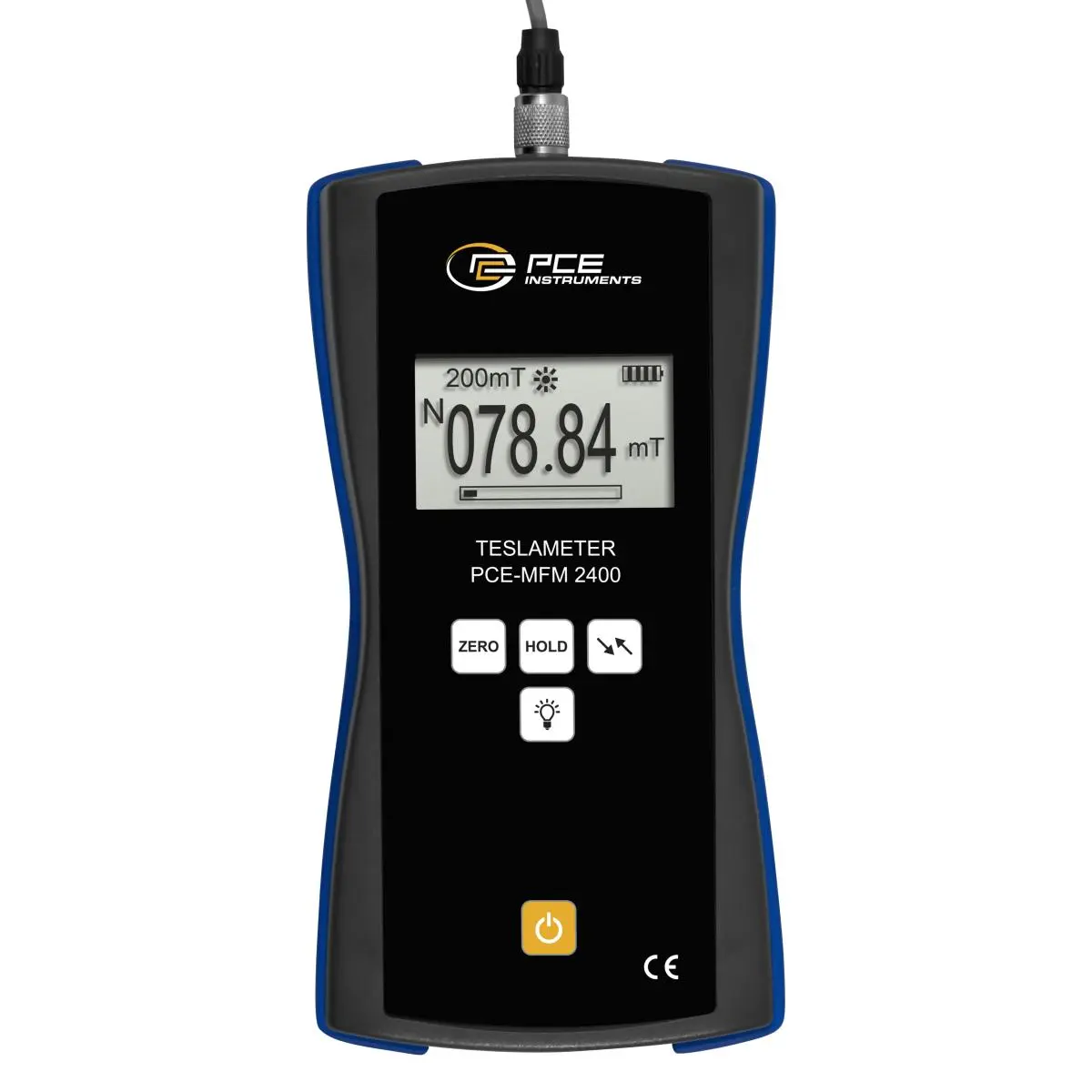

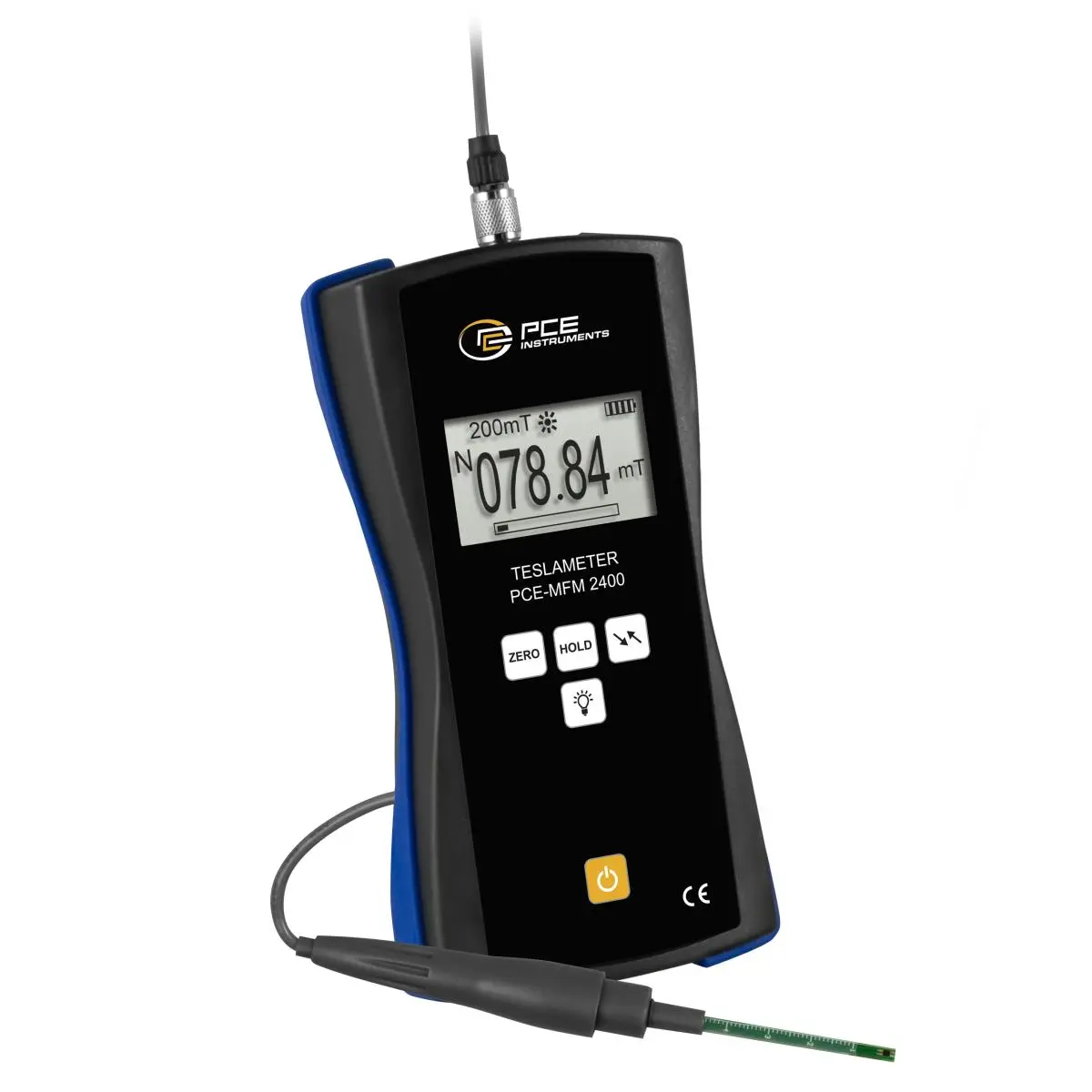

Electromagnetic Field Meter PCE-MFM 2400
Electromagnetic field meter with an accuracy of 1% / Tesla and Gauss measurement / For static magnetic fields

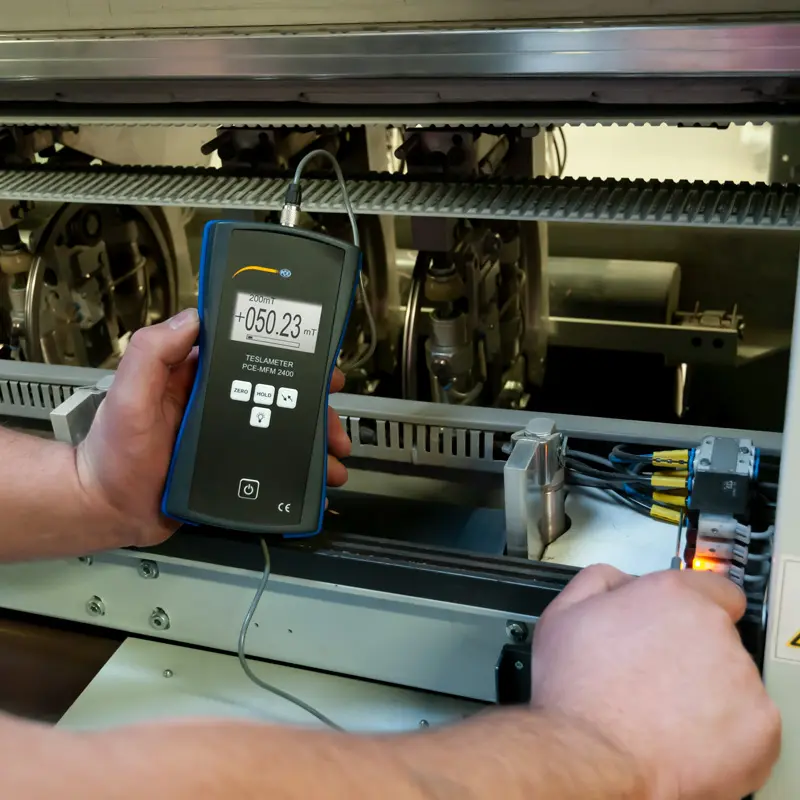

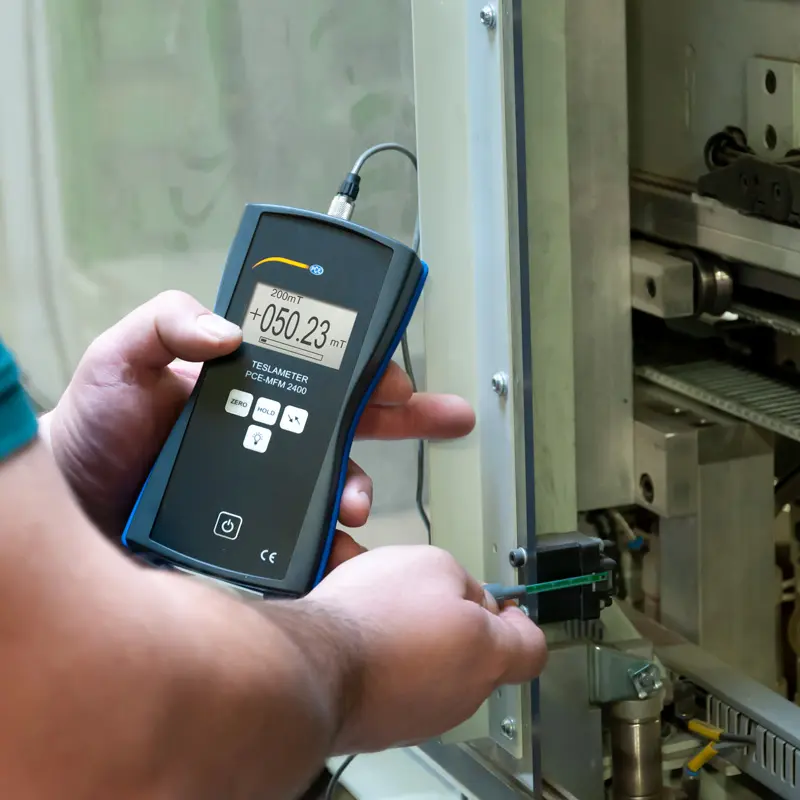

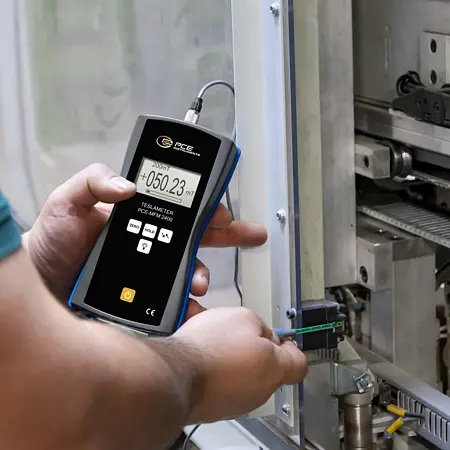

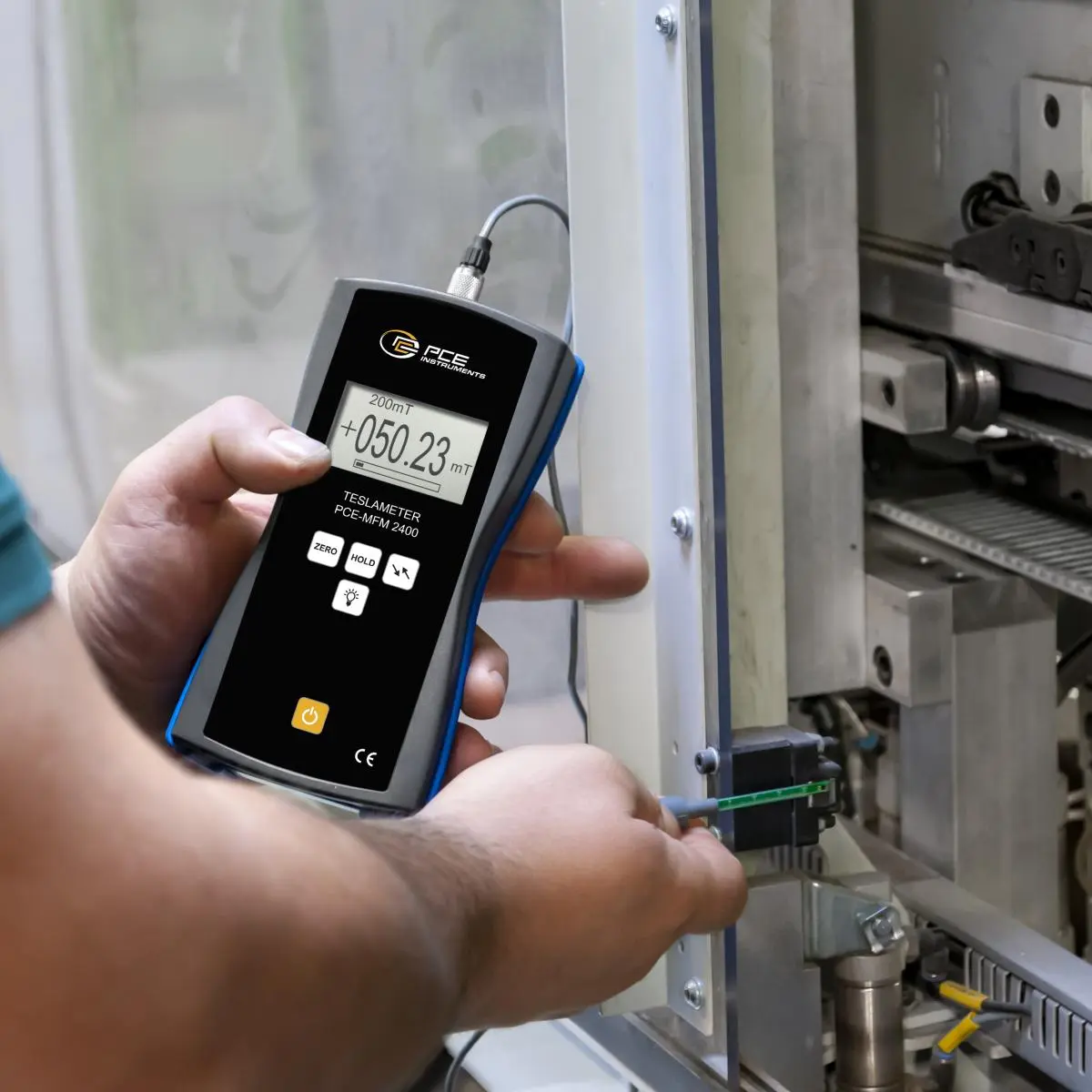

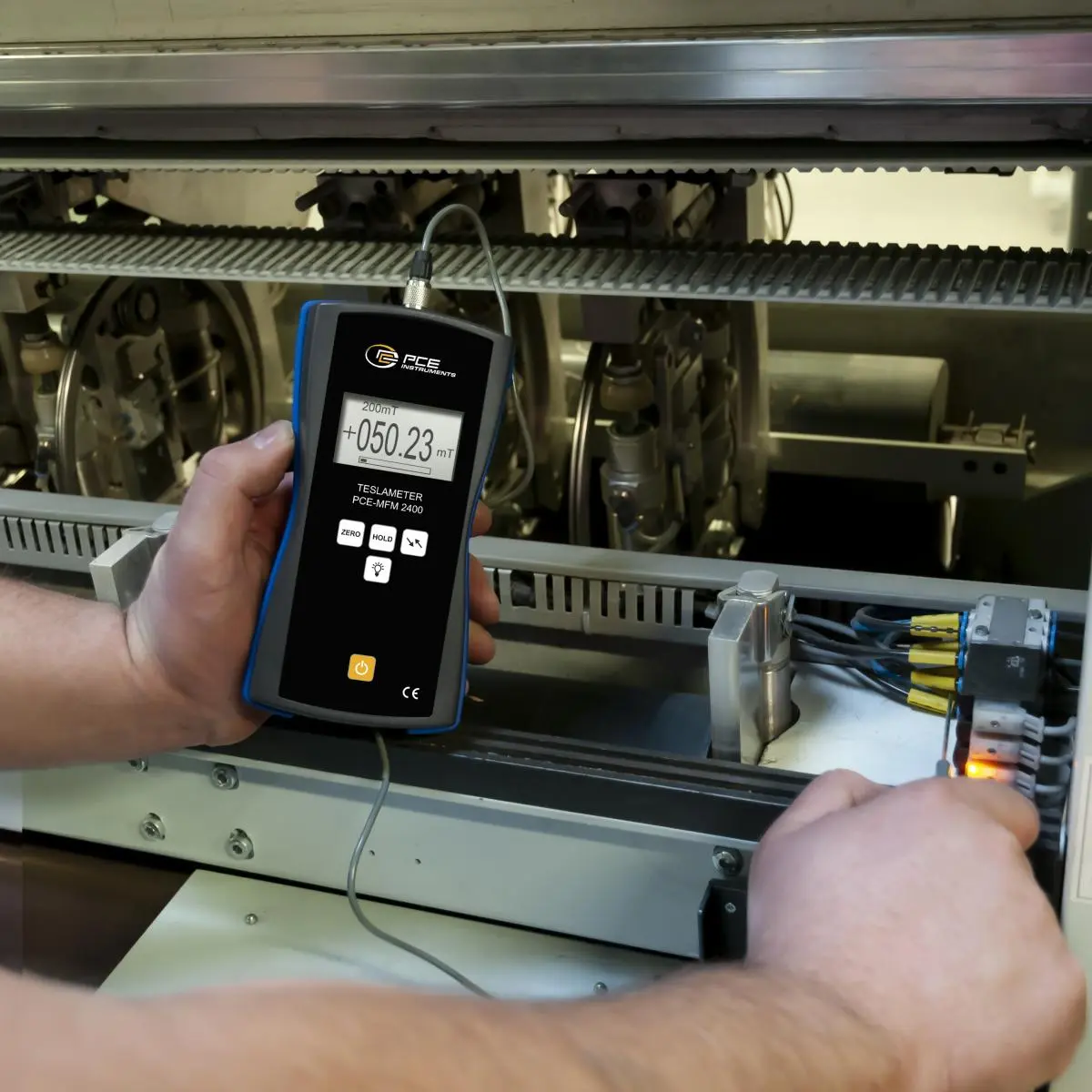

With a measuring range of 2,400 mT, the Electromagnetic Field Meter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Field Meter a very precise measuring device. For example, the Electromagnetic Field Meter can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Field Meter is therefore used in production processes or in quality control.

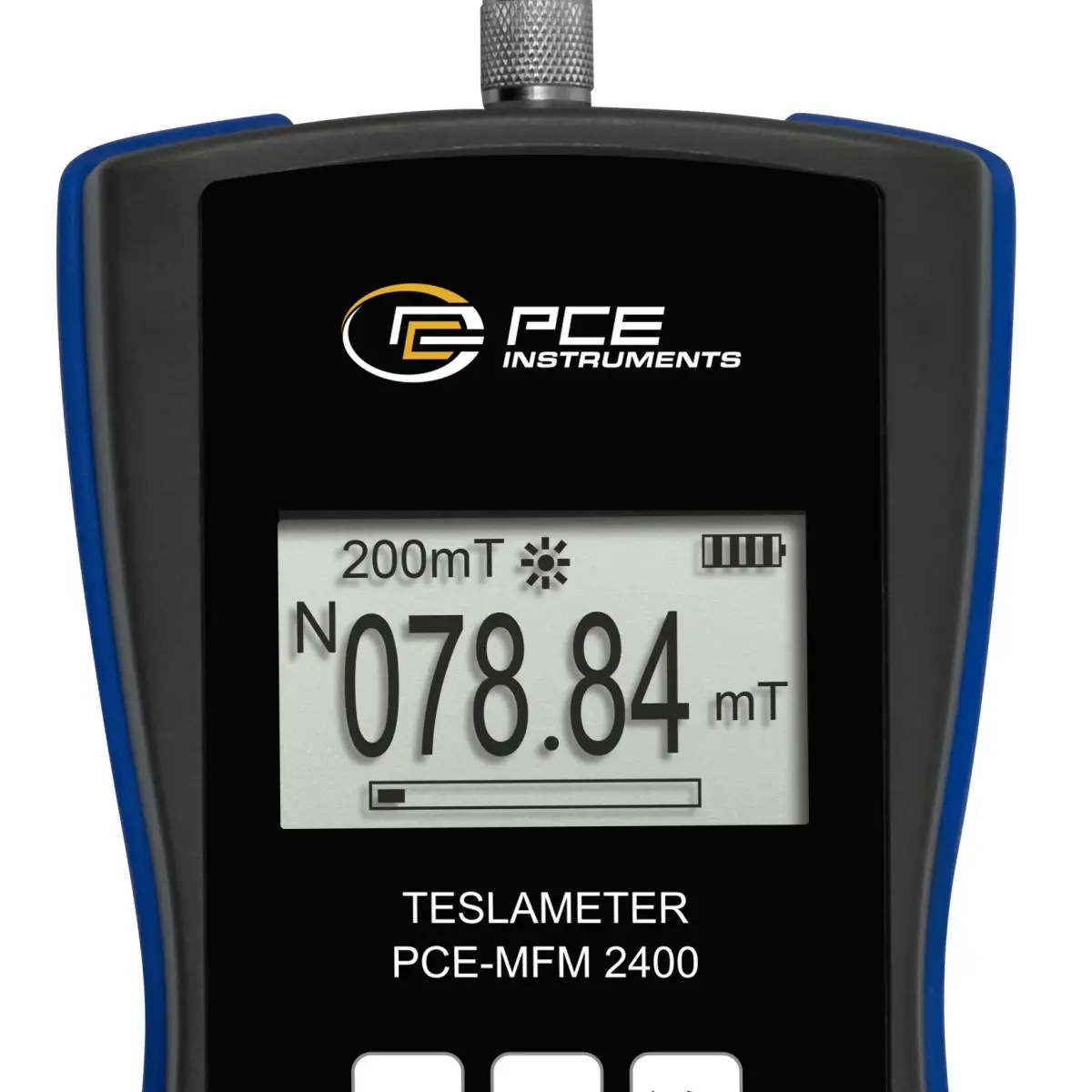

With the backlight on the Electromagnetic Field Meter, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Field Meter automatically switches itself off after 5 minutes. This ensures that the battery of the Electromagnetic Field Meter does not discharge completely.


Highlights

- Very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT
- Transverse sensor
- For measuring static magnetic fields
- Automatic shutdown

Specification

Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

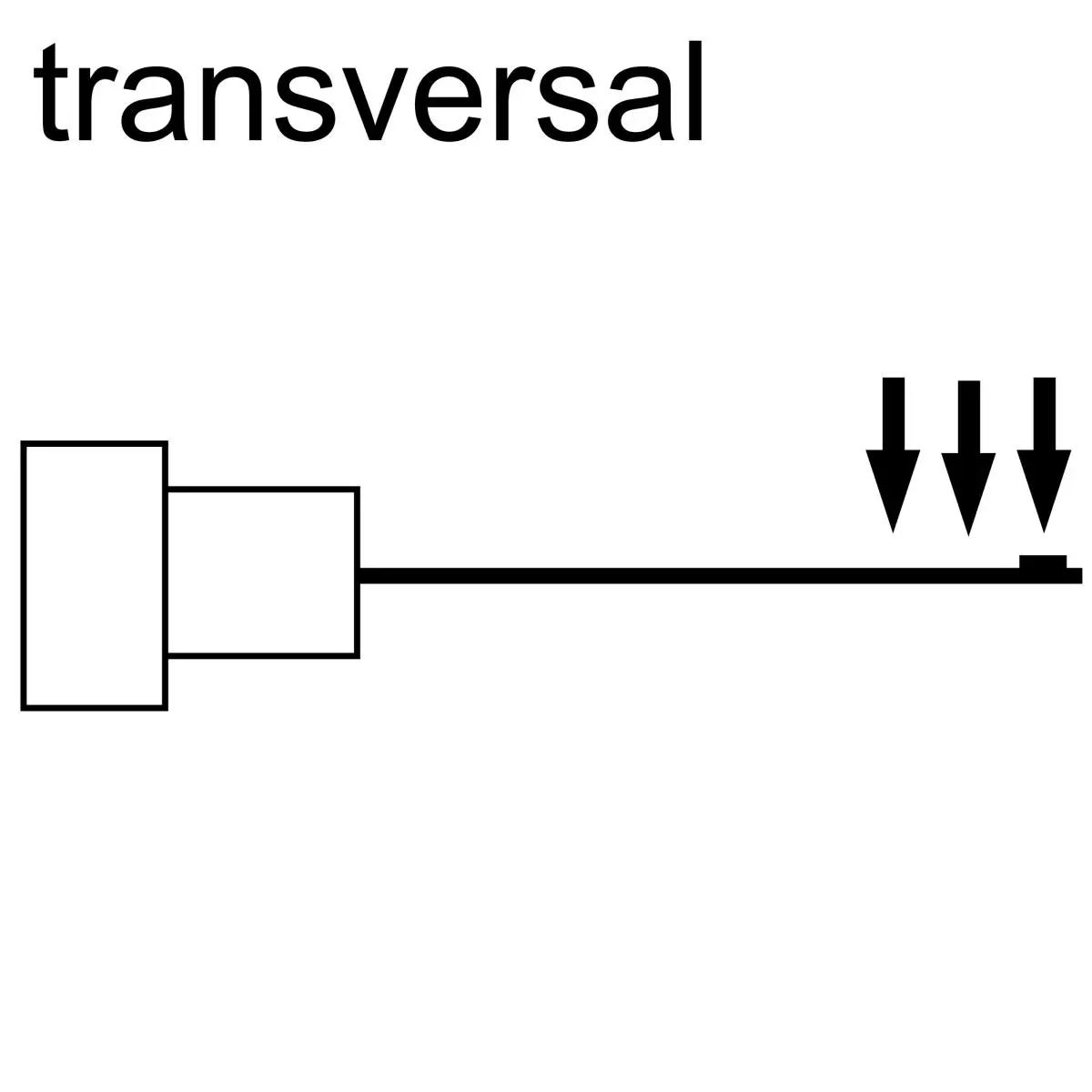

Measuring direction Transversal
Magnetic field Static (DC)
Unit mT, G

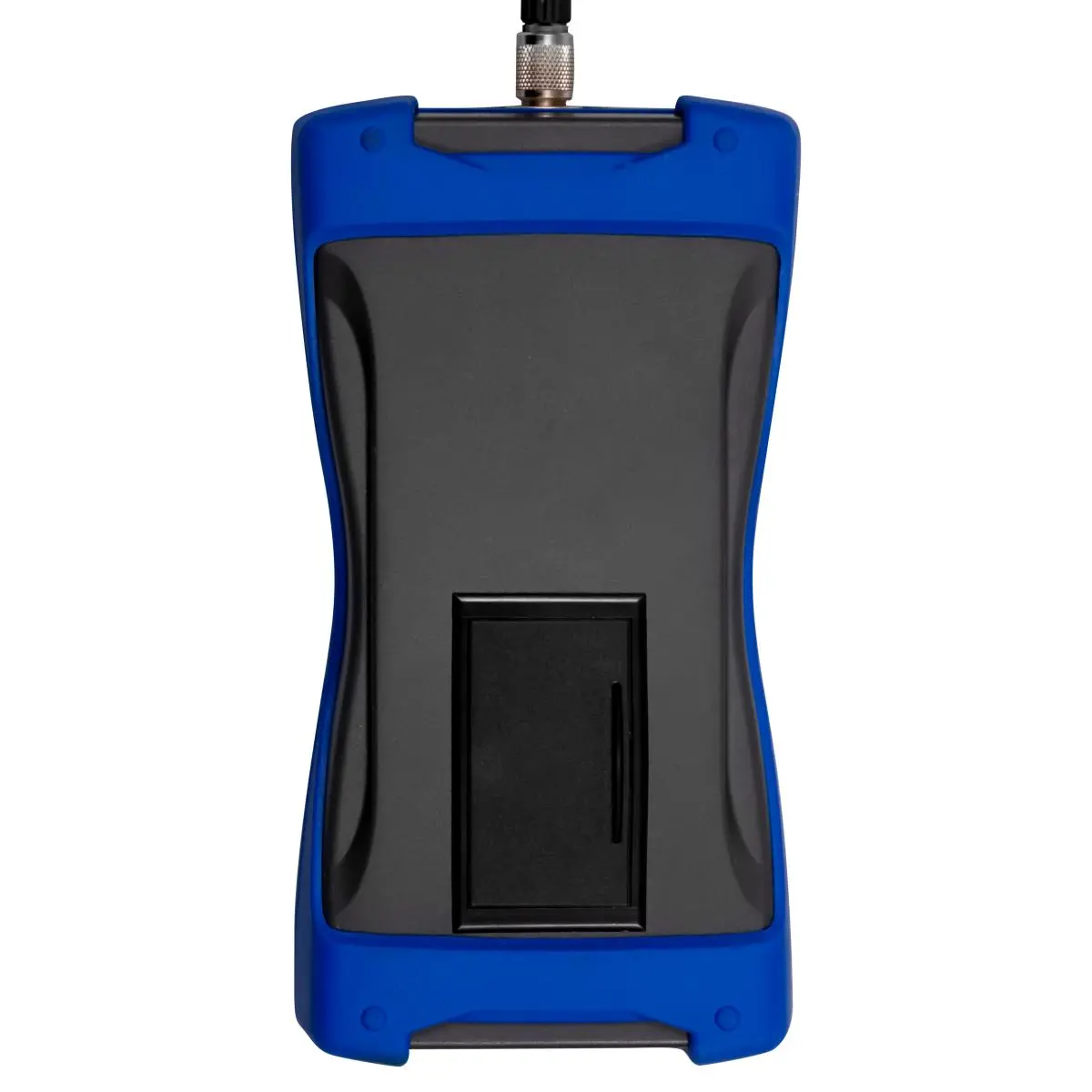

Power supply 1 x 9V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes Hold mode, measurement mode

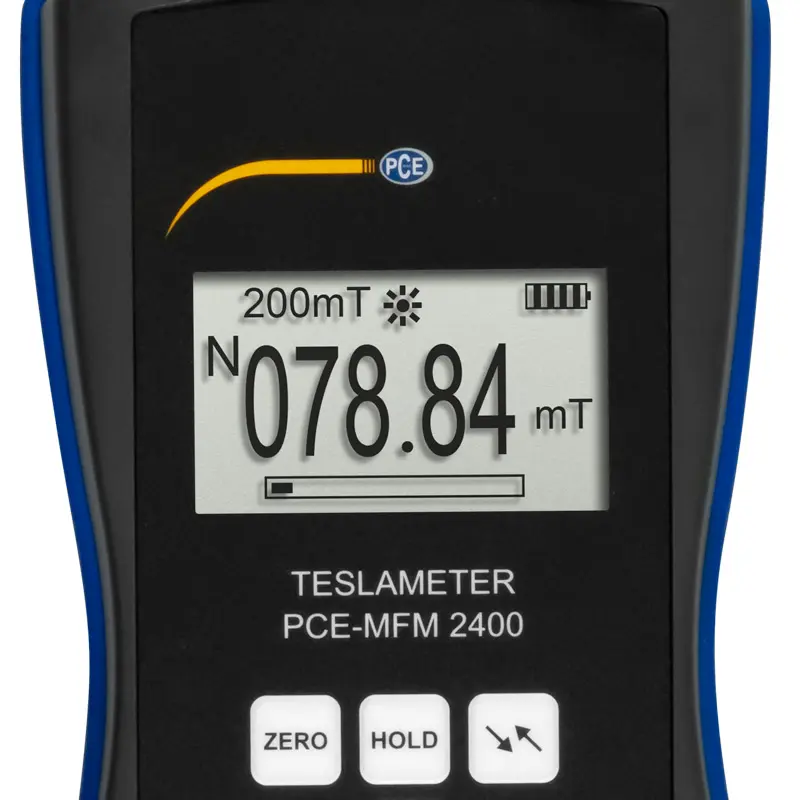

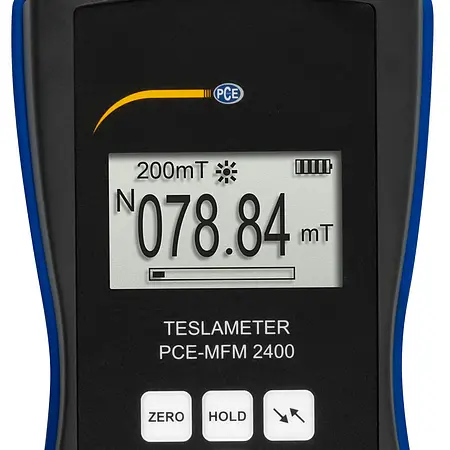

Display
 Backlight digital 4-digit value display
Operating temperature 32 ... 122° F, / 0… 50°C
Storage temperature -4 ... 122°F / 20… 50°C
Dimensions 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 in
Weight 0.68 lb, 310 g

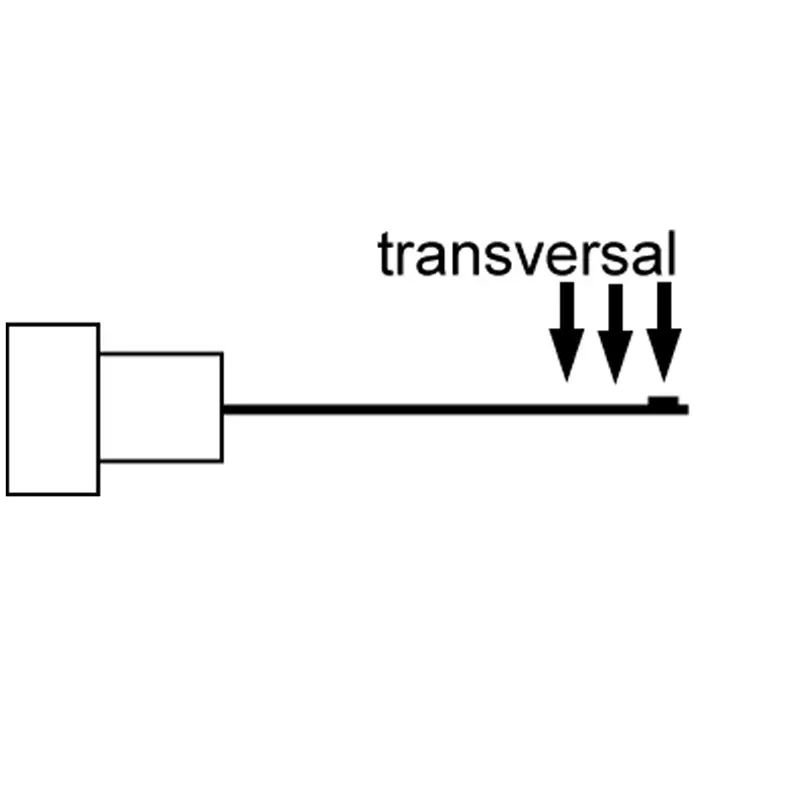

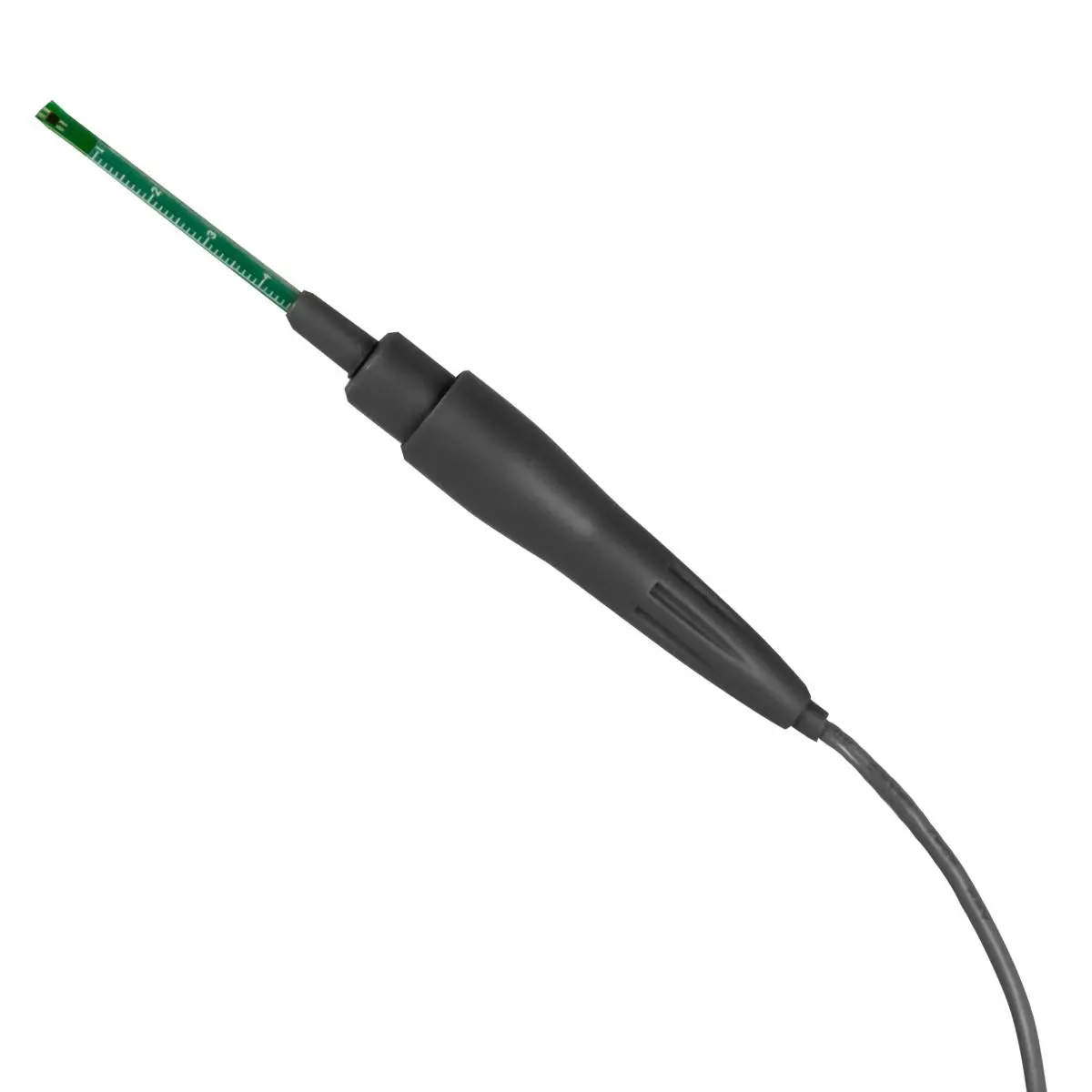

Sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

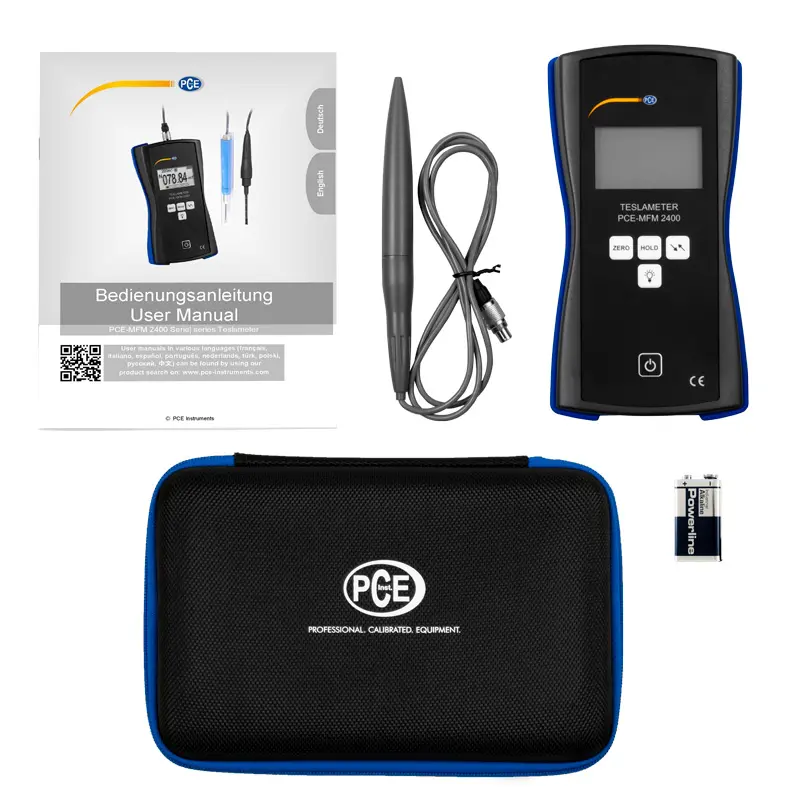

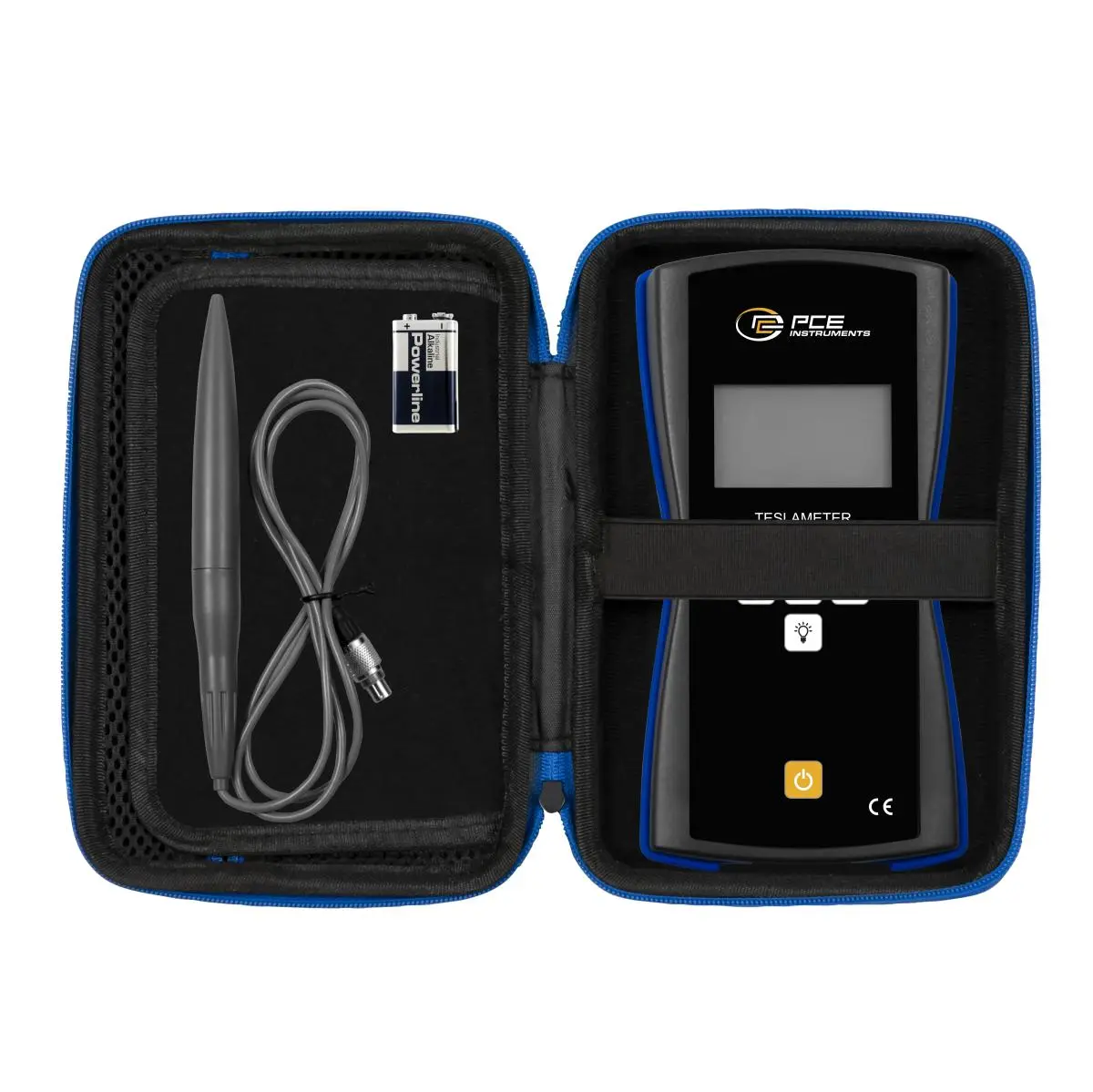

Delivery Scope

1 x Electromagnetic Field Meter PCE-MFM 2400
1 x Hall sensor (transverse)
1 x Service bag
1 x 9V block battery
1 x Instruction manual
