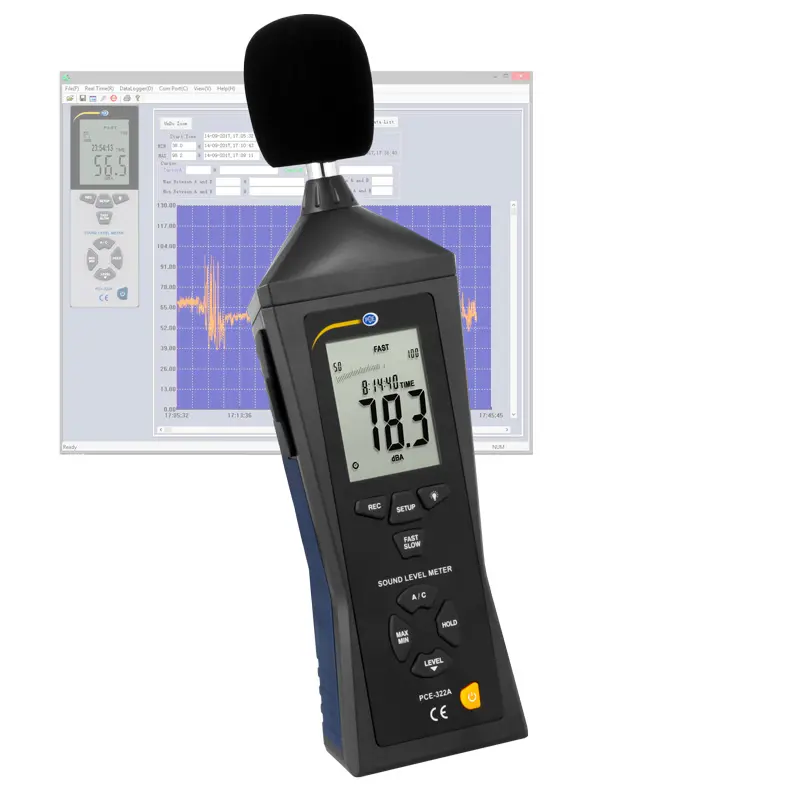

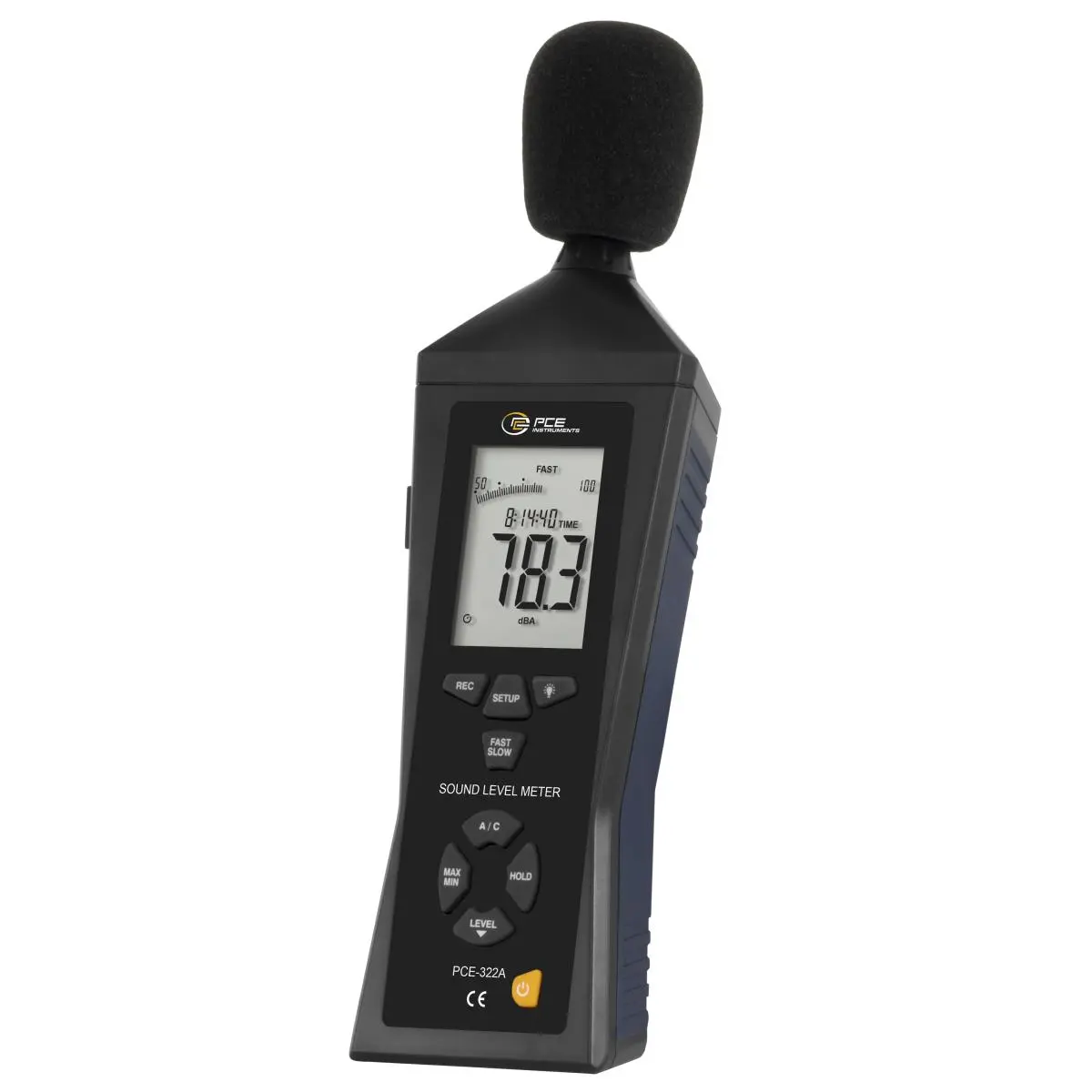

PCE-322A Environmental Meter
Class II decibel (dB) meter with data-logging functionality / Measuring range: 30 ... 130 dB / Memory stores up to 32,700 readings / USB port / Microsoft Excel compatible / Analog output

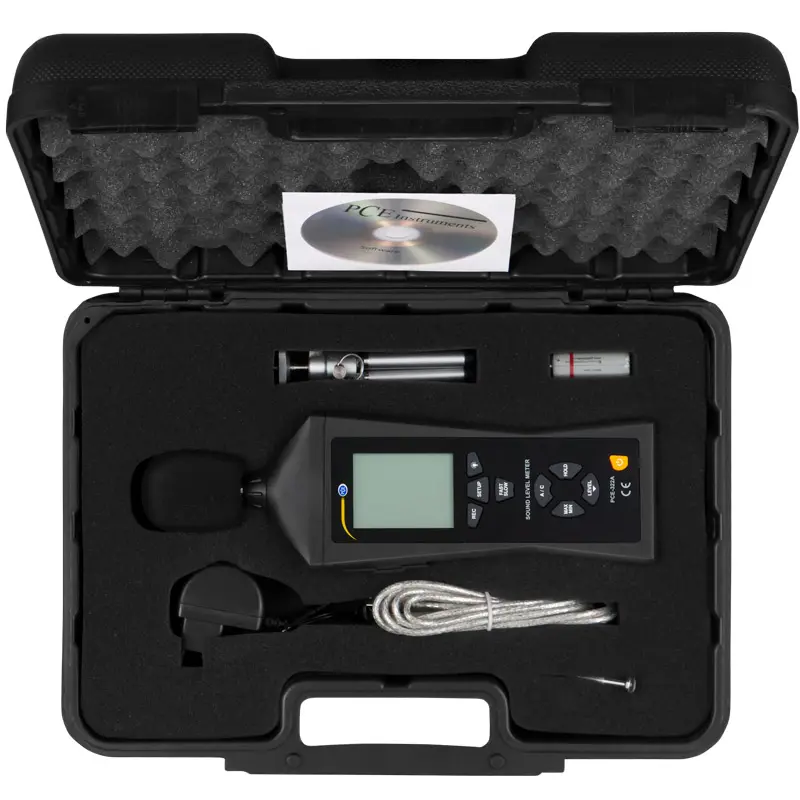

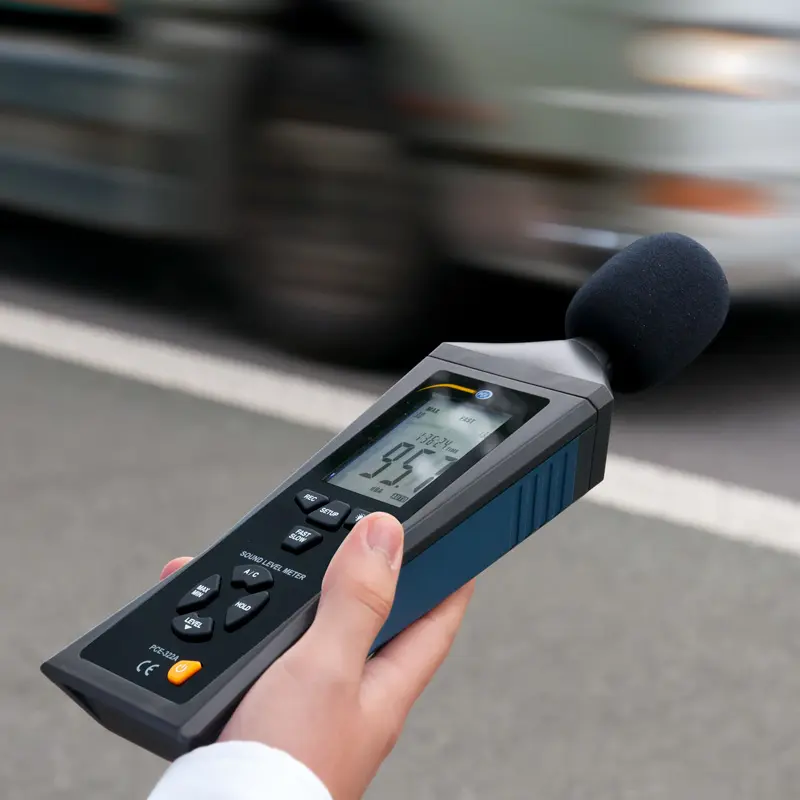

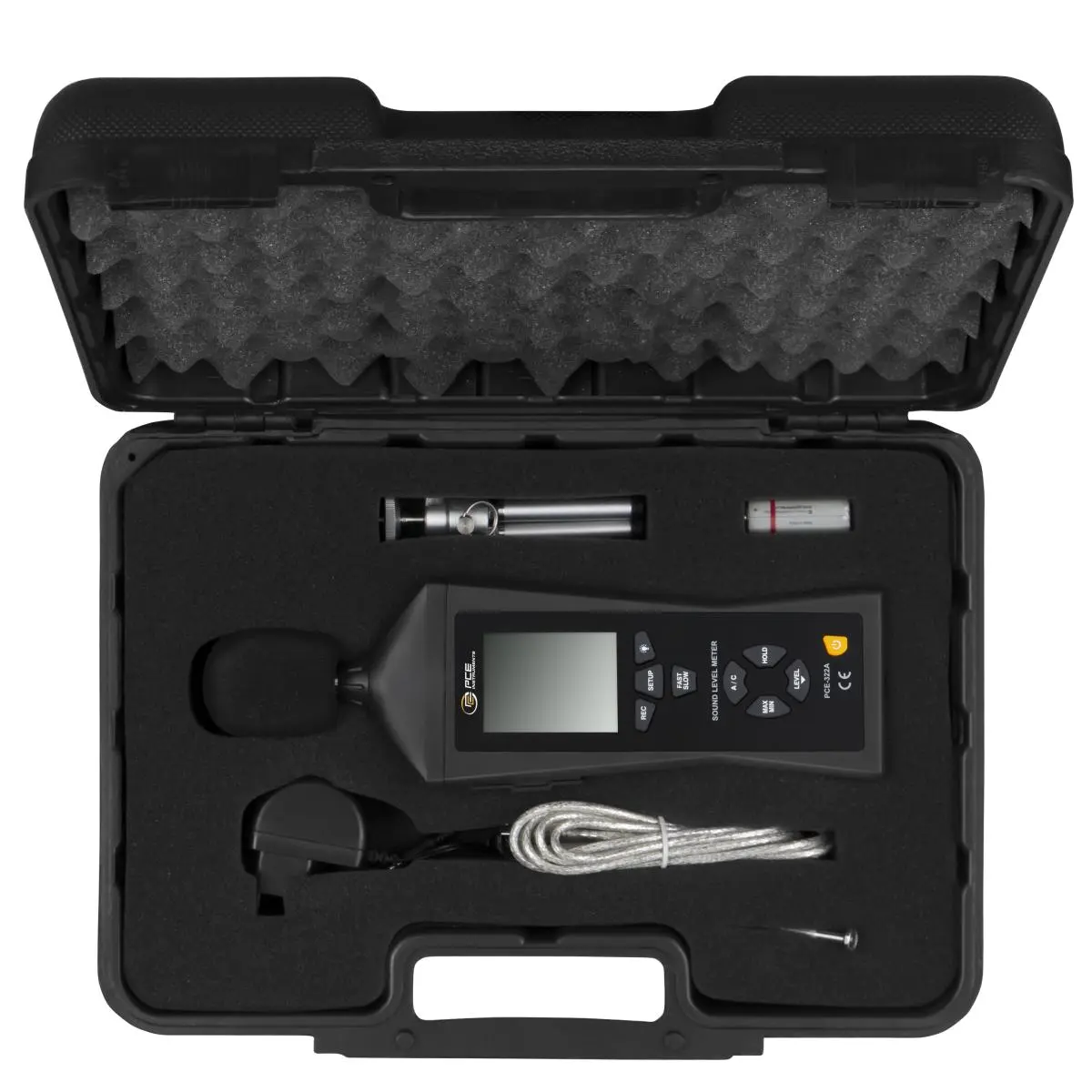

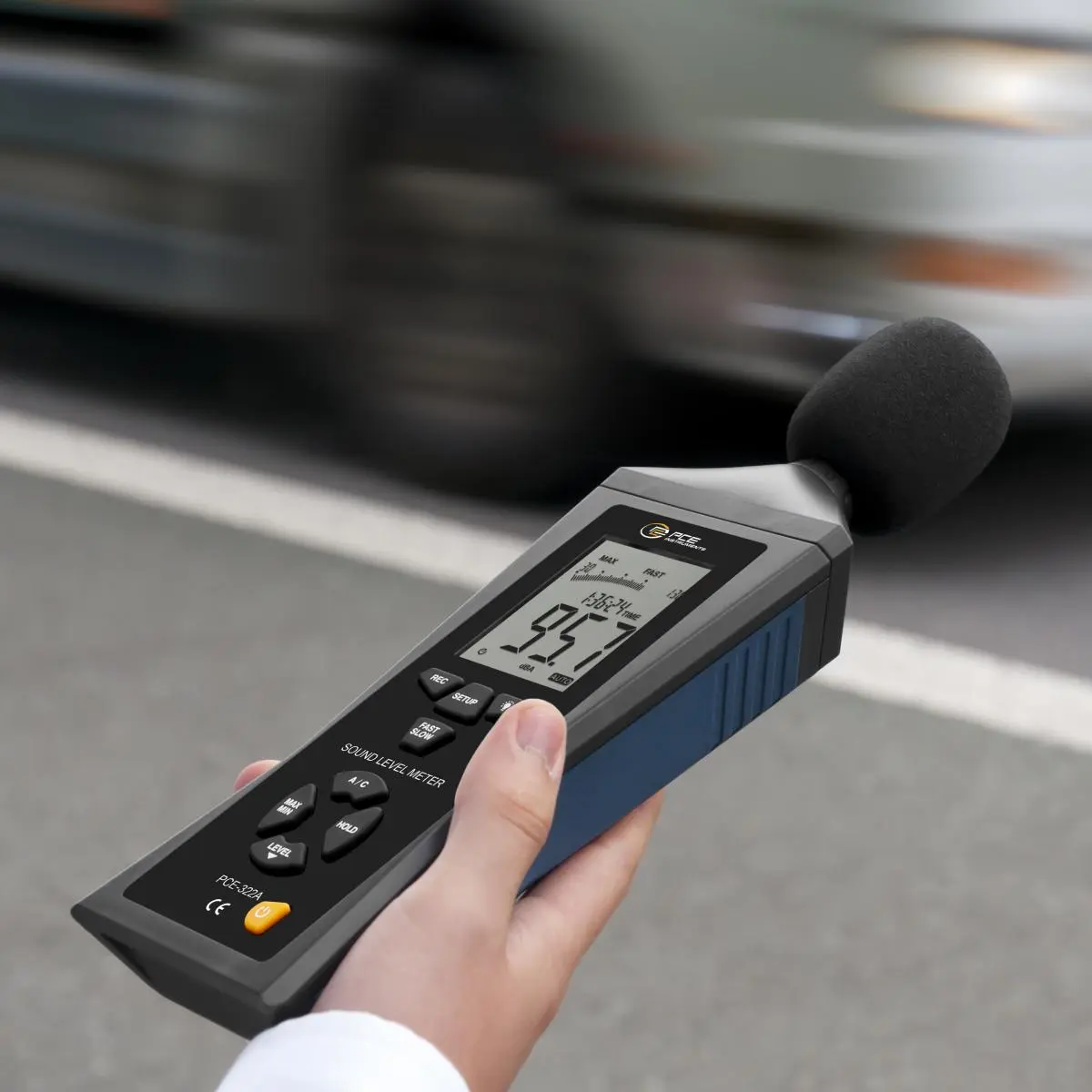

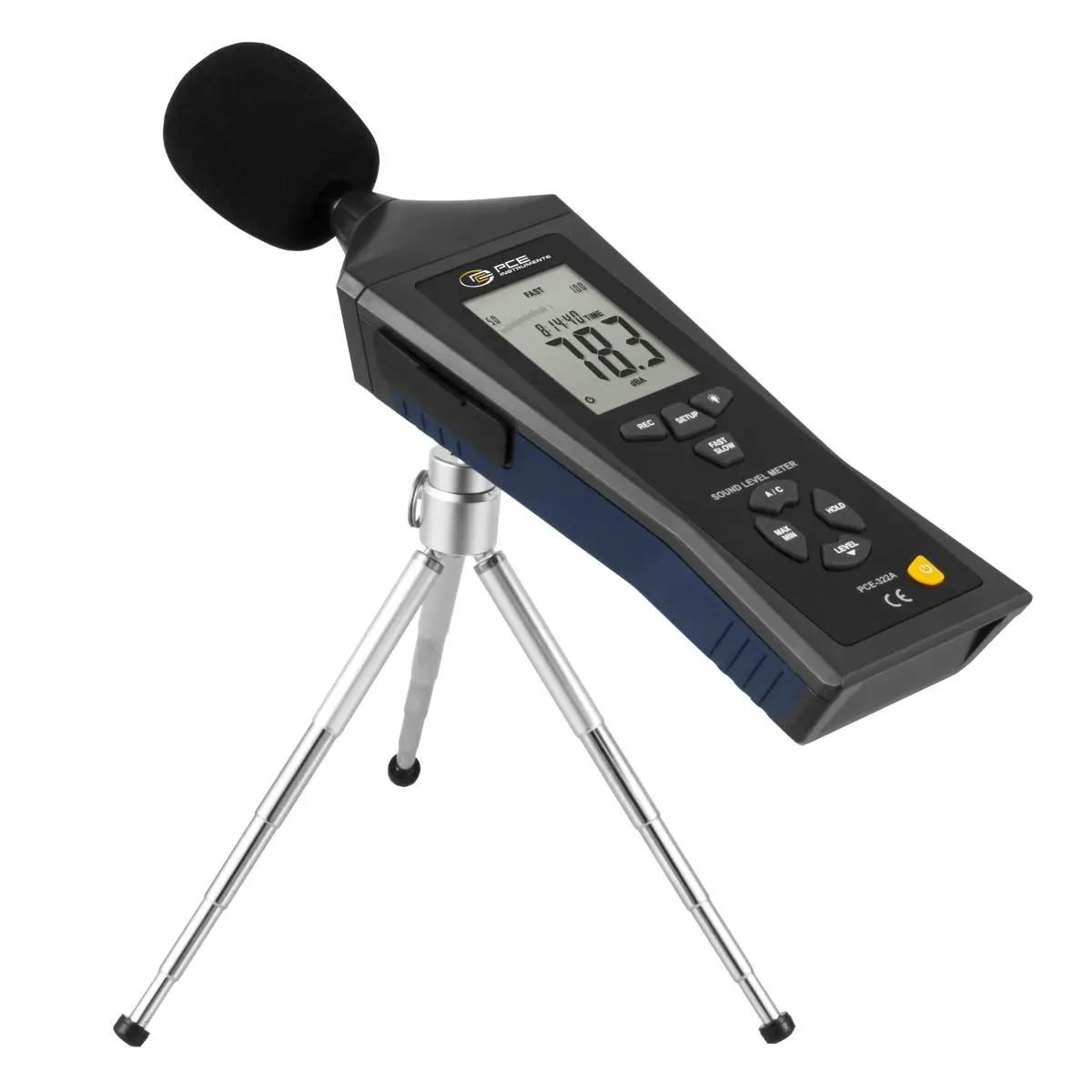

PCE-322A is a handheld, portable, professional Class II sound level meter or decibel meter with built-in data-logging or data-recording functionality for environmental testing. Thus, PCE-322A is ideal for real-time noise measurement as well as for long-term noise exposure monitoring over time. A mini tripod is included in the delivery contents, as is a wind noise suppressor. The recorded decibel readings help users determine if and what protective measures need to be taken to ensure overall health, safety and productivity in industrial, commercial, occupational, educational and residential environments. The sound level meter can also be used to evaluate acoustics for audio installations.

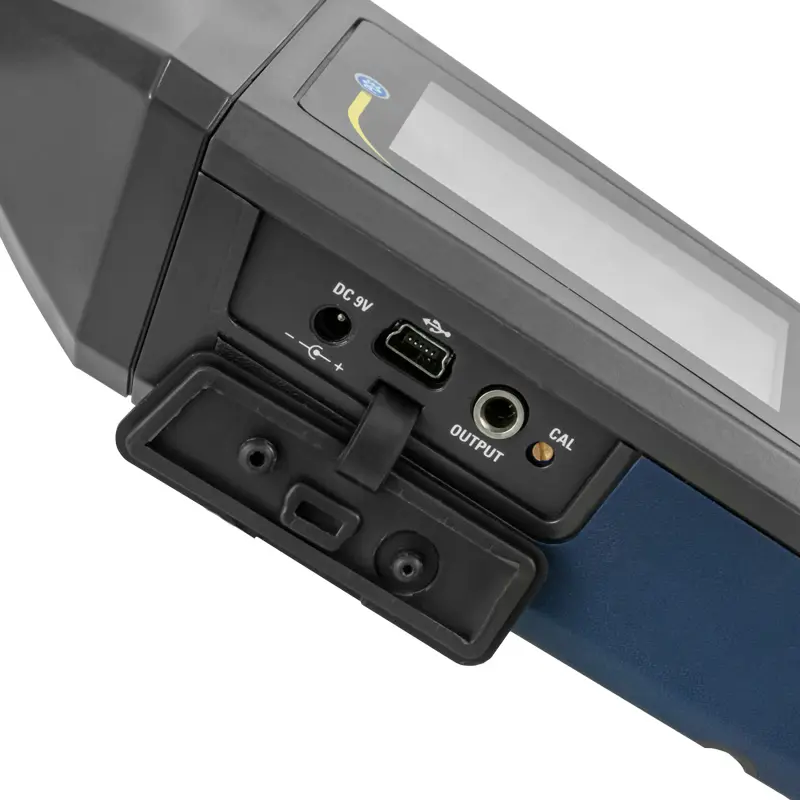

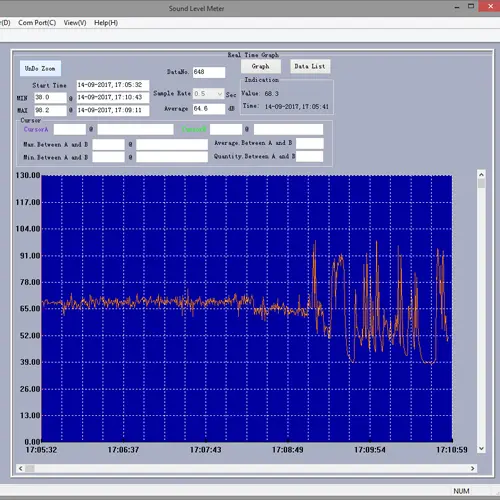

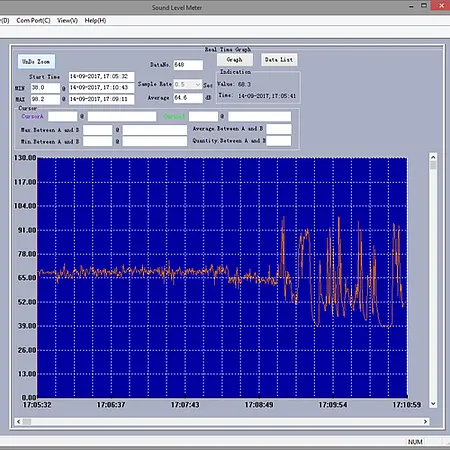

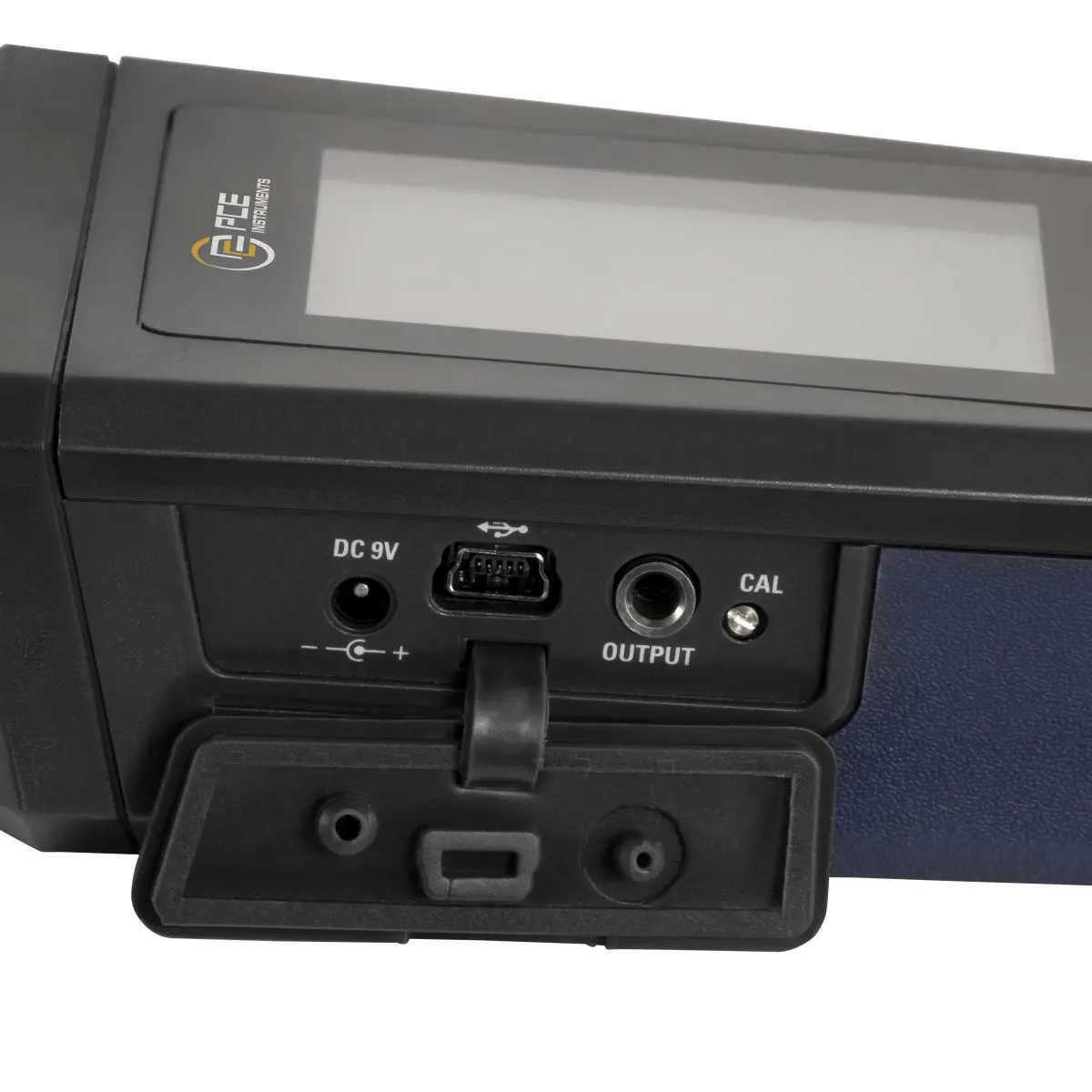

The sound level meter can be connected to a PC via the USB port. This allows the recorded decibel readings to be transferred to a PC for detailed analysis using Microsoft Excel or the included downloadable proprietary software. The sound level meter also features an millivolt analog output for connecting to a frequency analyzer or X-Y shaft recorder.
PCE-322A | |
Noise levels | Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB |
Dynamic range | 50 dB |

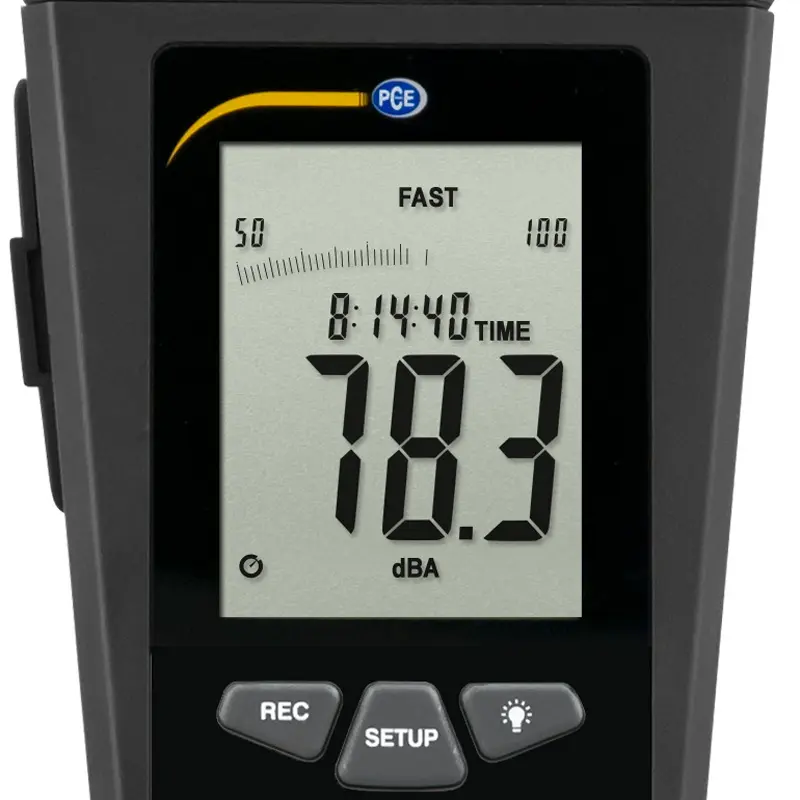

Display | 4-digit LCD |
Resolution | 0.1 dB |
Accuracy | ±1.4 dB |
Sampling rate | 2 x per second |
Frequency | 31.5 Hz ... 8 kHz |
Storage capacity | 32,700 readings (9 hours @ 1 second interval) |
Frequency weighting | A and C |
Time weighting | Fast (125 ms) Slow (1 sec.) |

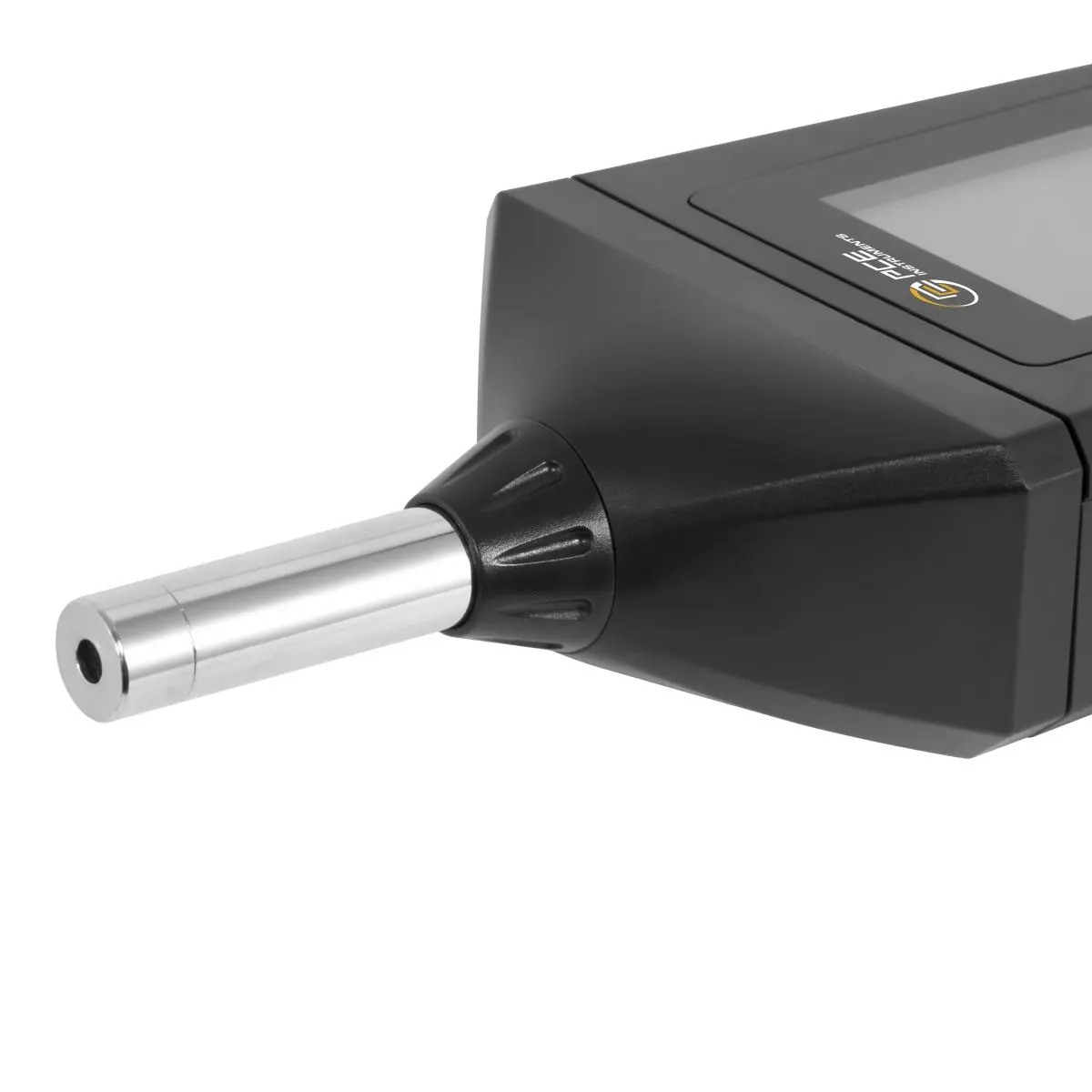

Microphone type | Electret condenser |
Functions | MIN, MAX, HOLD, ALARM |
Analog output | AC/DC millivolt Headphone |
Data interface | USB port |
Automatic shutdown | After 15 minutes inactivity |
Operating conditions | 0 ... 40°C / 32 ... 104°F, < 90% RH |
Storage conditions | -10 ... 60°C / 14 ... 140°F, 10 ... 75% RH |

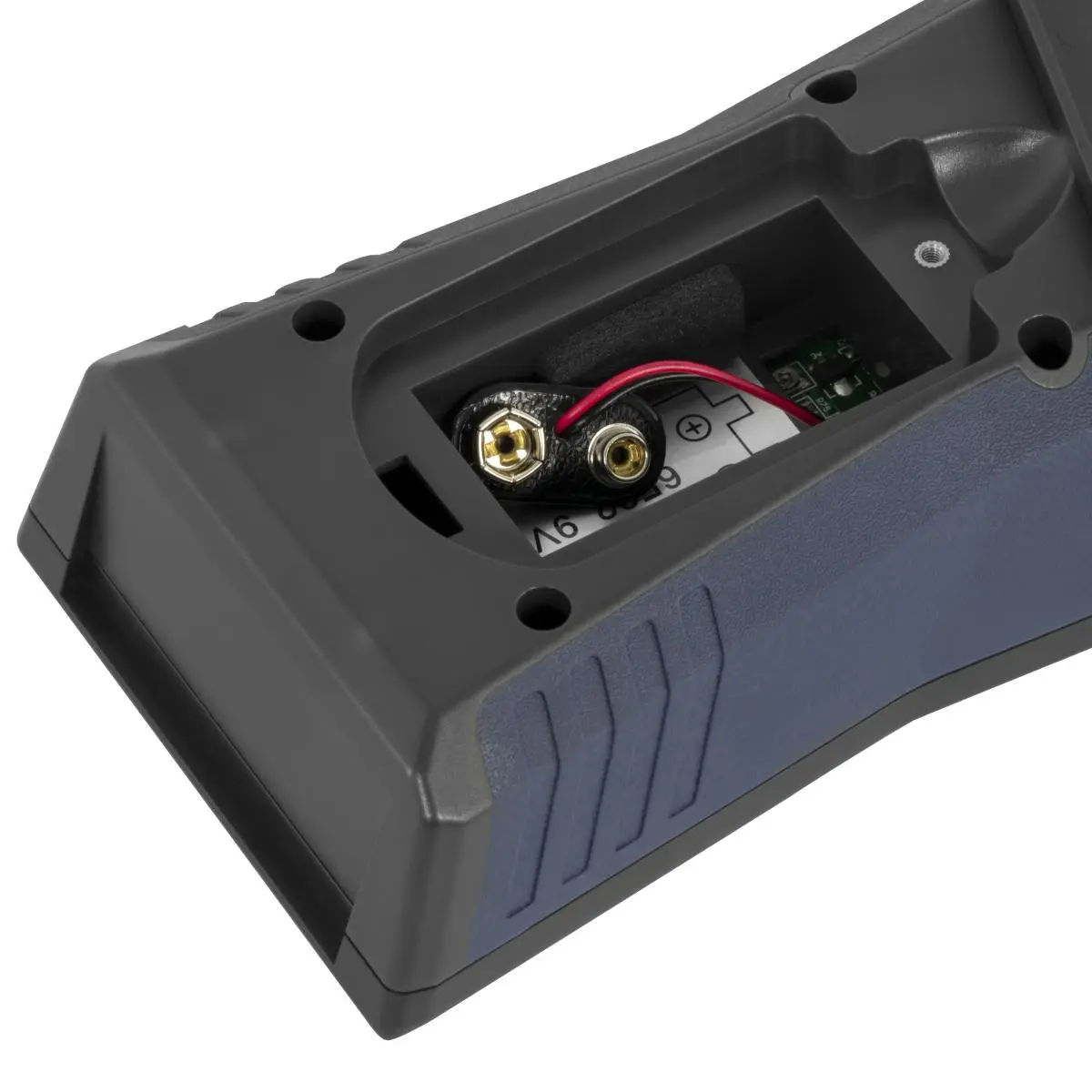

Power supply | 9V block battery (for approx. 30 h continuous operation) AC power |
Dimensions | 280 x 95 x 45 mm / 11.02 x 3.74 x 1.77 in |
Weight | Approx. 350 g / 0.78 lb |
Standards | IEC 61672-1 Class II |
Price excl. VAT &. delivery
2 year Warranty
ISOcalibration certificate fora sound levelmeters, e.g. PCE-322 A and PCE-4XX series.It is oftenrequiredto comply with DINISO9000in companies. Normal lab test is 2 data points for sound meters.
*US calibration certificate is ISO 17025**
N.B. The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The calibration frequency for the class II sound level meter calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II sound level meter calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II sound level meter calibrator.
Price excl. VAT &. delivery
2 year Warranty

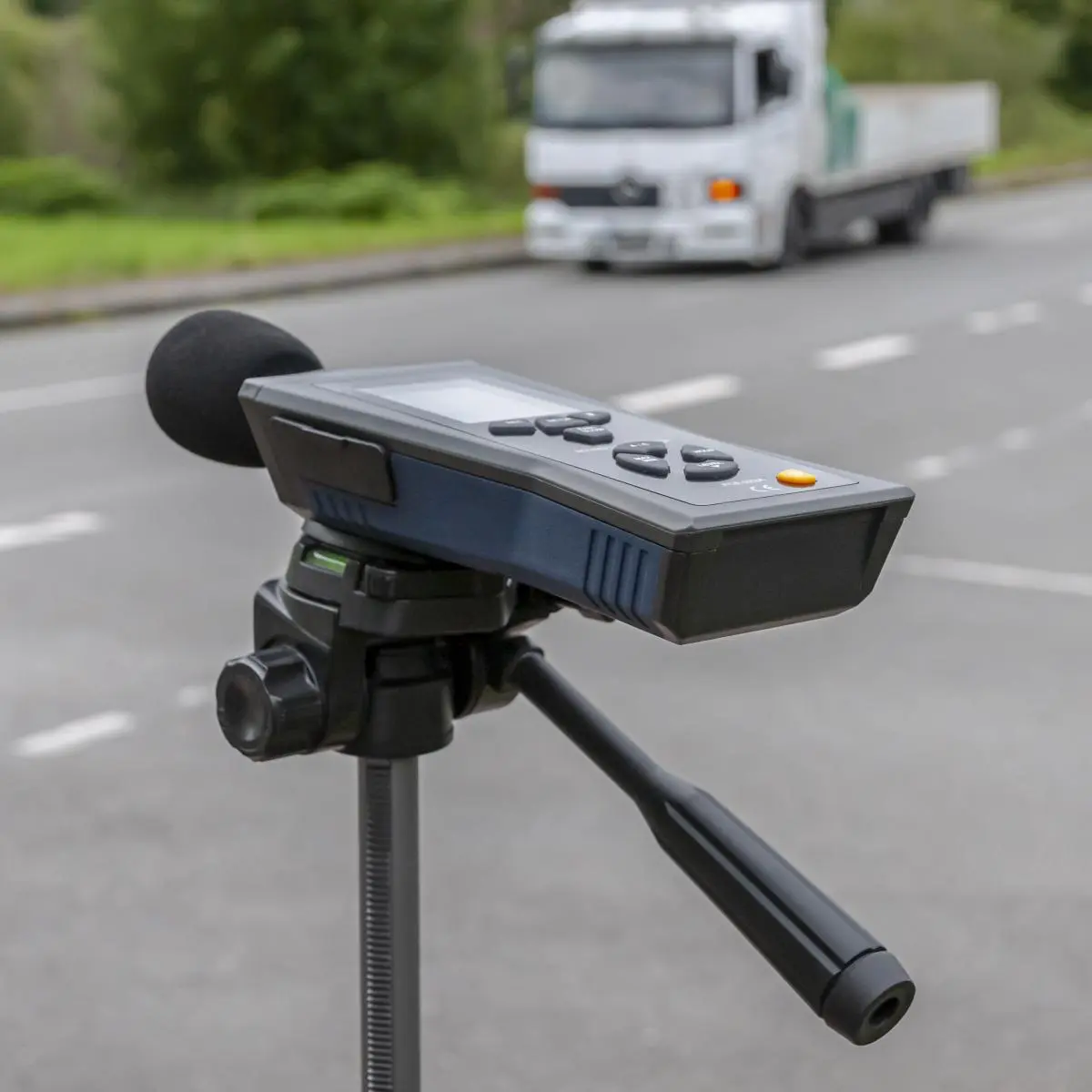

The tripod is equipped with a 3/8" tripod thread and is suitable for many measuring devices. Ideal for precise and long-term measurements.
Price excl. VAT &. delivery
2 year Warranty
Software for PCE-322ALEQ and PCE-322ALEQ-ICA. Software for sound level meters for reading the data and transmitting to a PC or laptop. The requirements are:
Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop!
