244,90 €

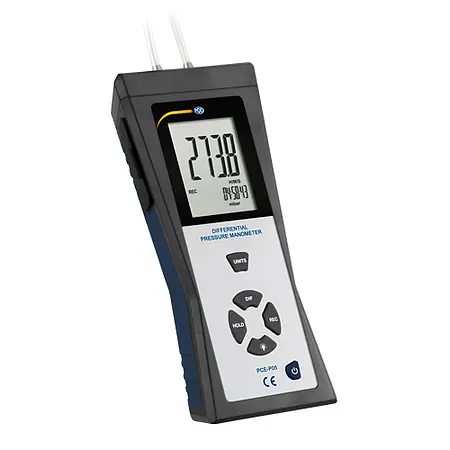

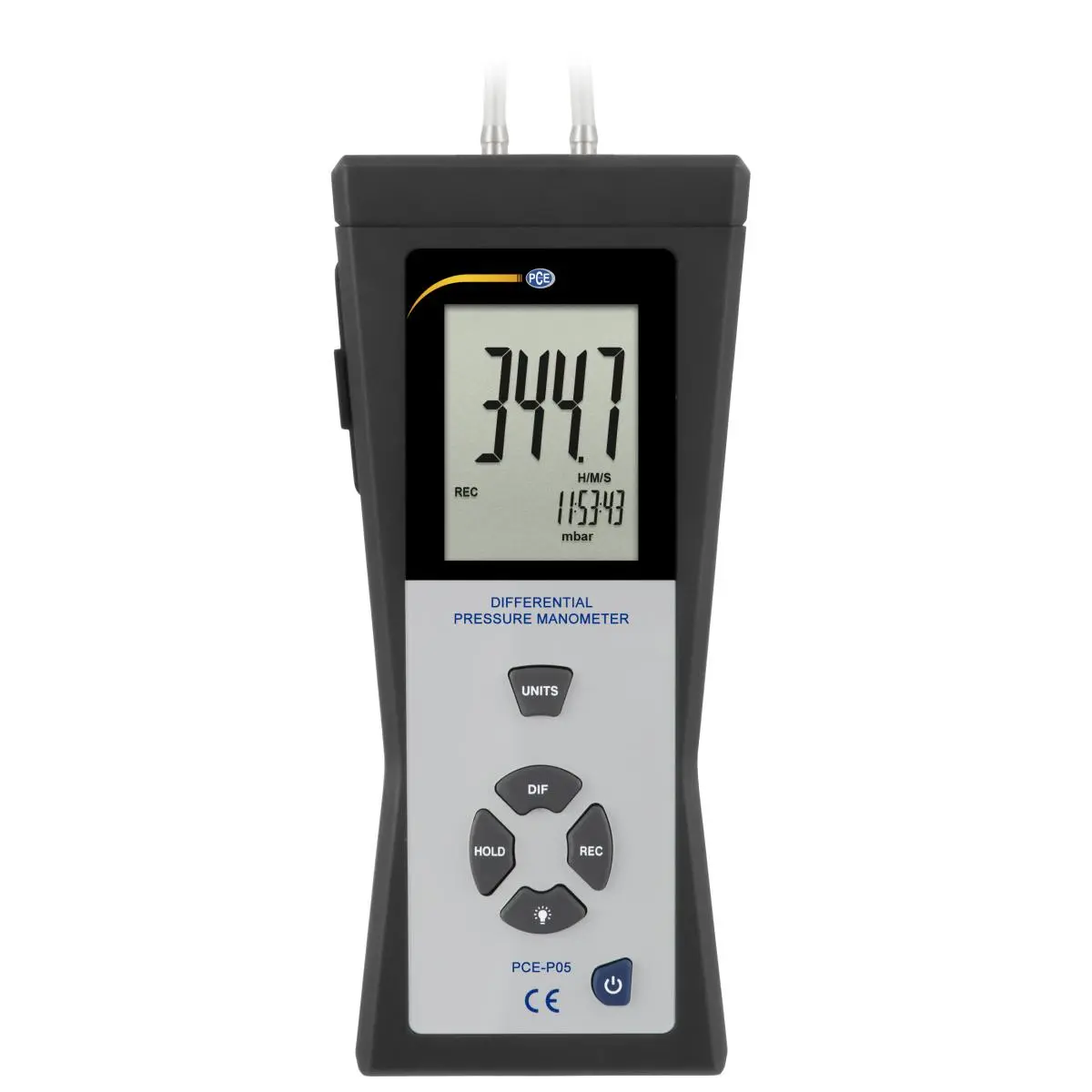

Environmental Meter PCE-P05 incl. ISO calibration certificate
Portable handheld manometer measures differential pressure from 0.001 to 0.344 bar (0.001 to 5.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

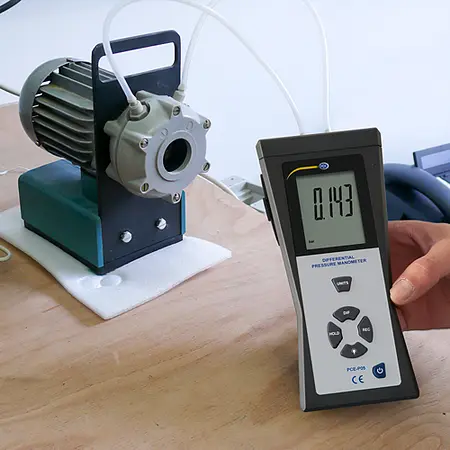

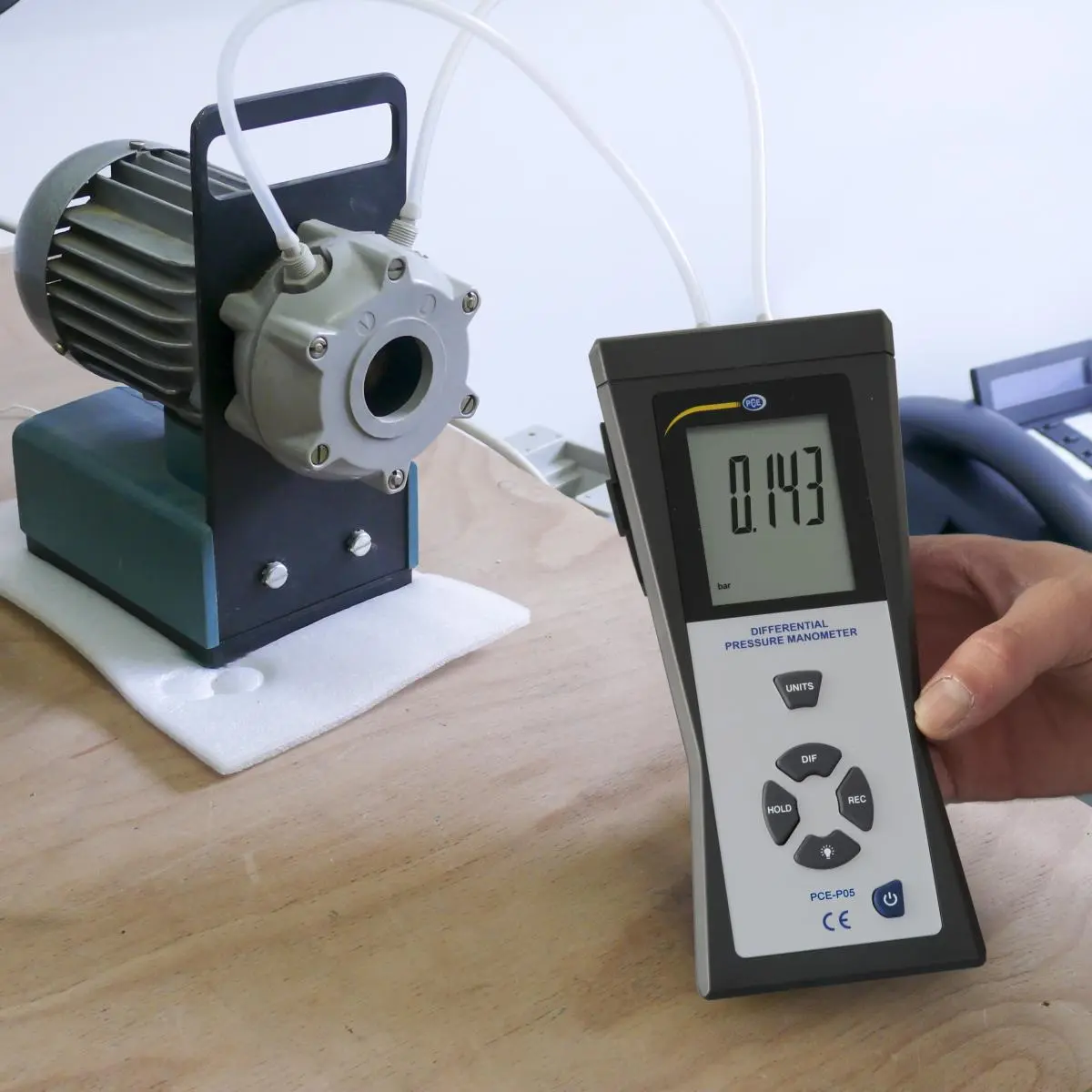

The PCE-P05 is a portable handheld digital environmental meter or differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The environmental meter displays min / max / average values right on the meter's screen for comparison against current measurement values.

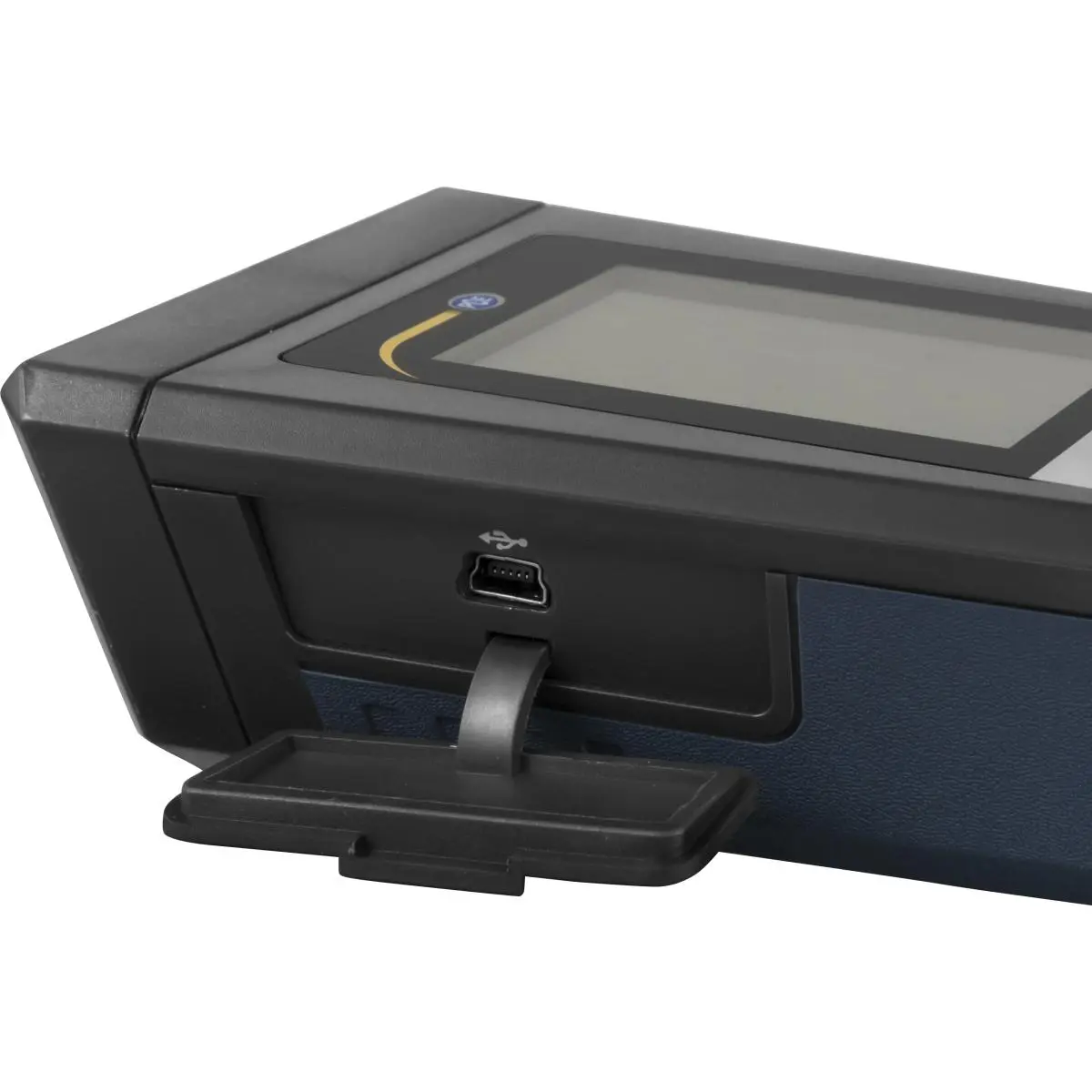

In addition, the environmental meter features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the environmental meter via USB to your computer, and save the measured values according to your selected time interval. You can then calculate average values directly in the software or export the saved data to Microsoft Excel.
| Measuring range inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | (±) 138.30 5.000 344.7 34.47 1.018 258.5 80.00 11.53 351.5 0.351 0.344 |
Resolution inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | 0.1 0.001 0.1 0.01 0.001 0.1 0.01 0.001 0.1 0.001 0.001 |
| Accuracy (at +25 °C / +77 °F) | ± 0.3% of measuring range |
| Linearity | ± 0.2% |
| Response time | Approx. 0.5 sec. |
| Max. pressure | 1378 mbar |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | -10 ... 60°C / 14 ... 140°F |
| Media | Air and non-explosive gases |
| Real-time data-logging interval | 1 sec. to 24 h adjustable |

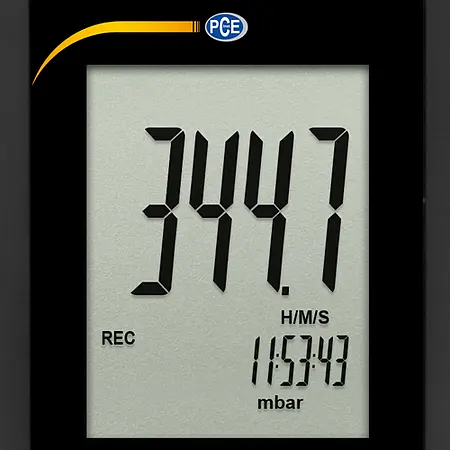

| Display | Dual LCD |
| Dimensions | 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D) |
| Weight (without batteries) | 650 g / 1.44 lbs |

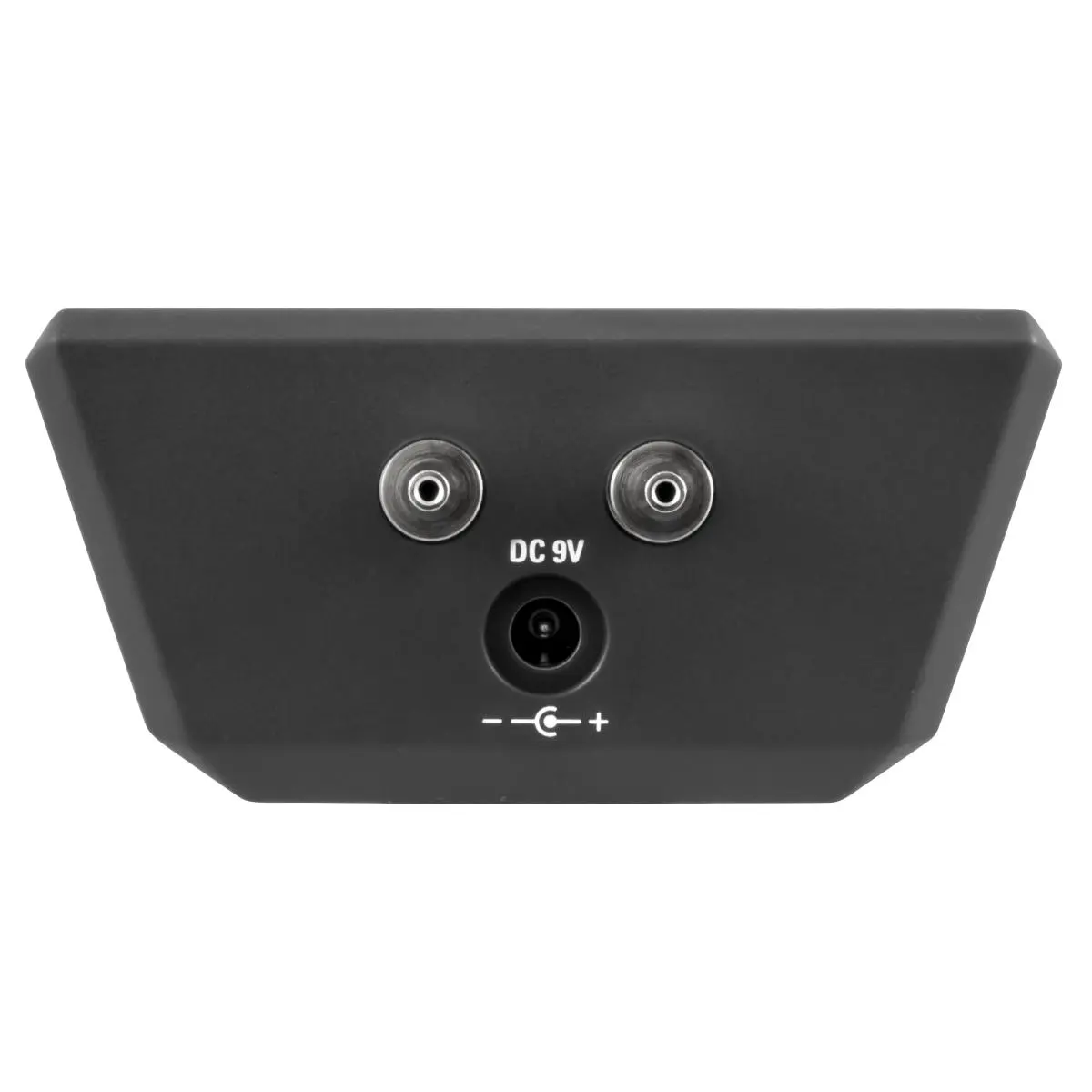

| Power supply | Battery: 1 x 9V block AC adapter: 9V DC / 500-mA |

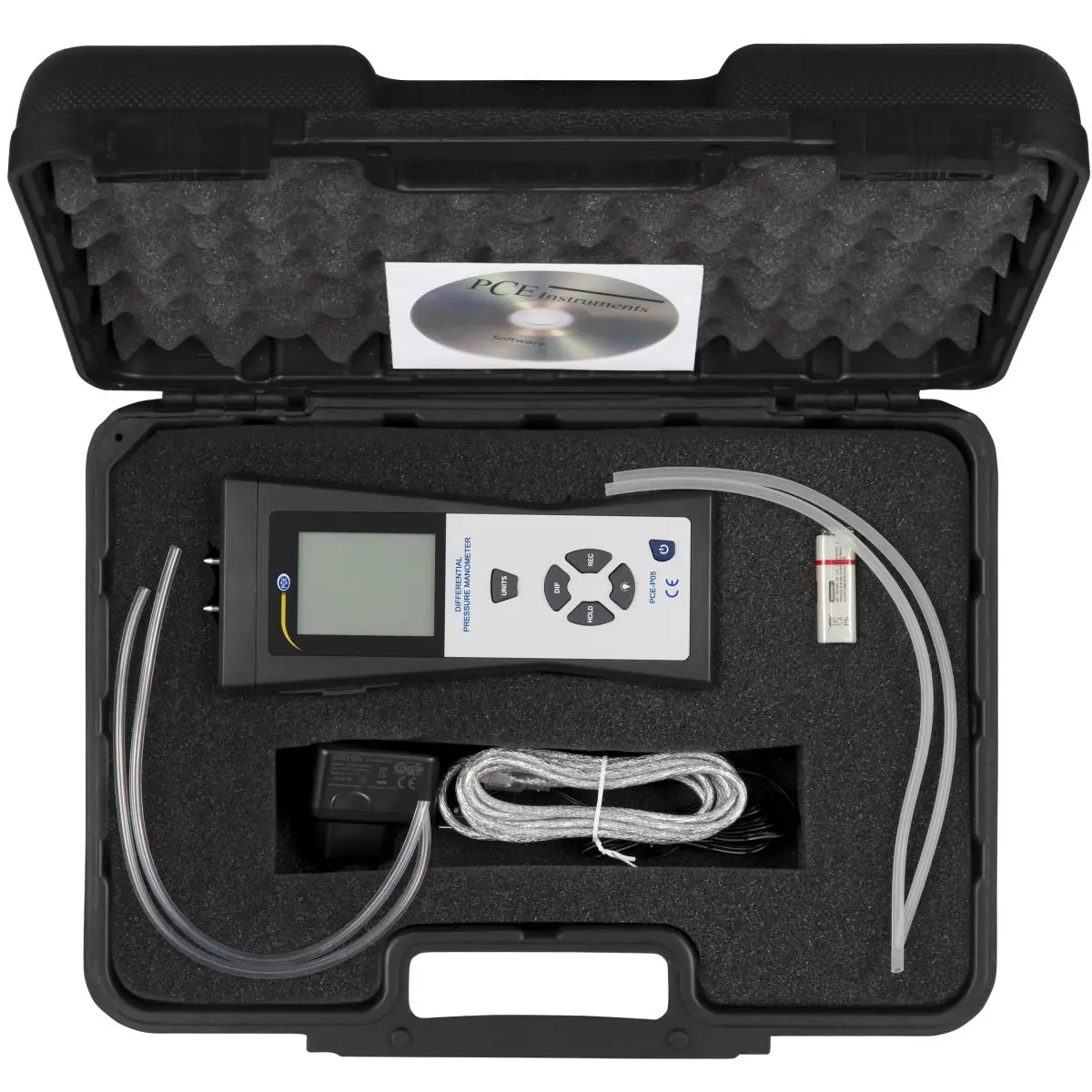

1 x Environmental Meter PCE-P05 Differential Pressure

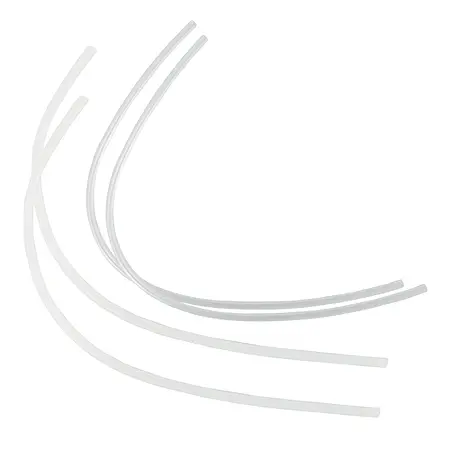

4 x 30cm / 11.8" silicone hose
1 x Software including USB cable

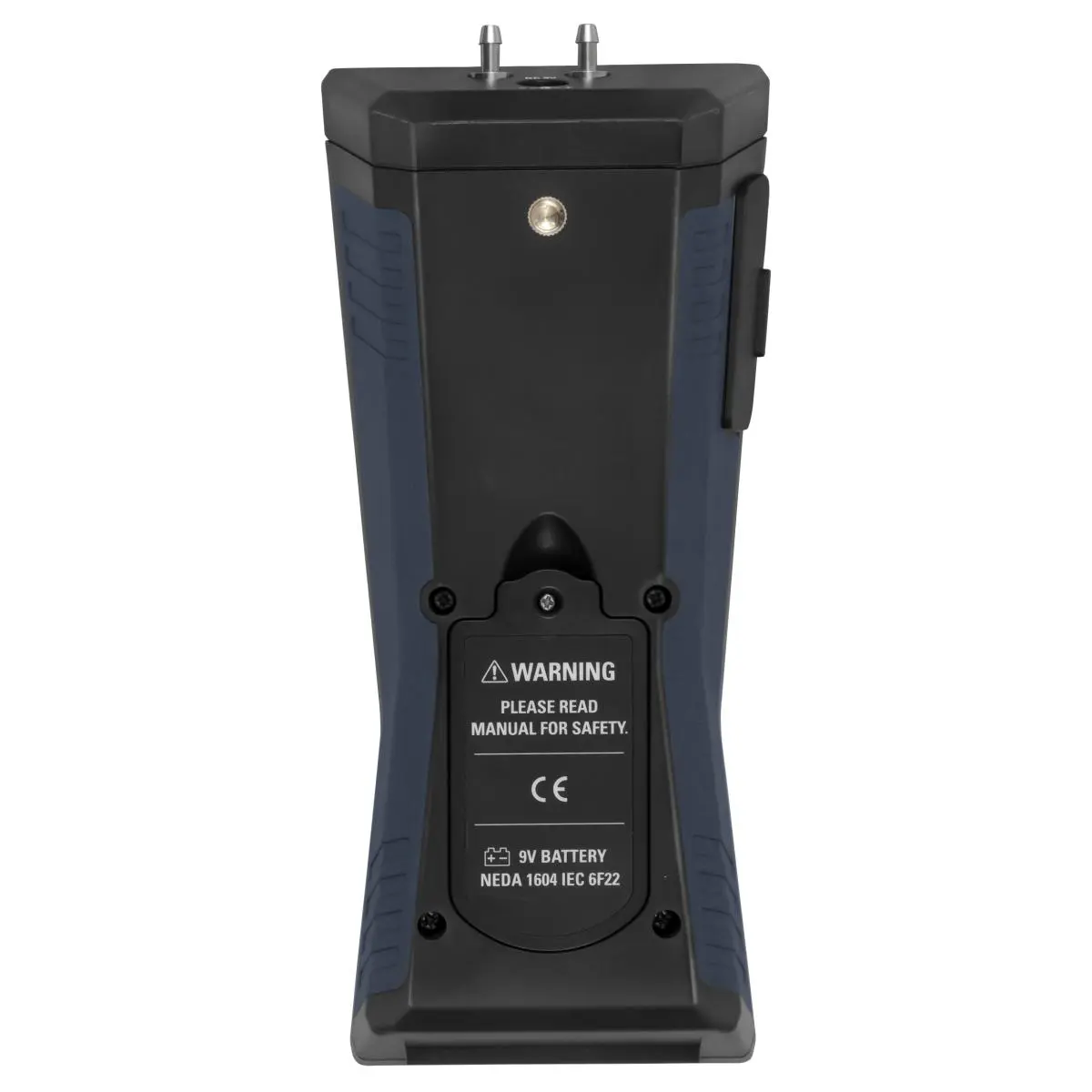

1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual

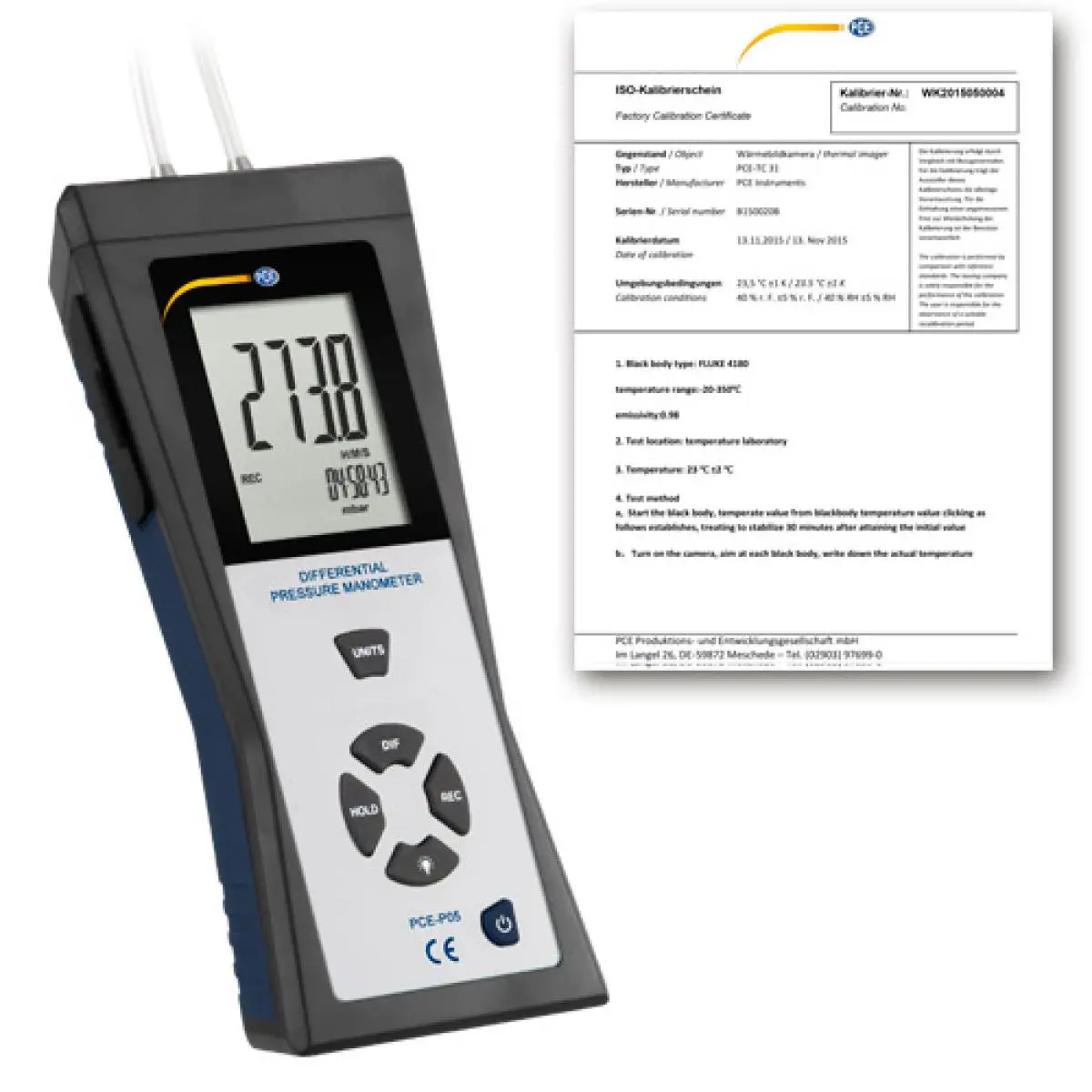

1 x ISO Calibration Certificate
