Environmental Meter PCE-WS V

Order no.: PCE-WS V
GTIN (EAN): 4250348721945
199,90 €
237,88 €
No-Shopping
price ex. (VAT / delivery)
:
4250348721945
PCE-WS V
Delivery time: 1-2 working days

Accessory

Panel Indicator PCE-DPD-U
Panel Indicator PCE-DPD-U
179,90 €
Digital Universal Indicator PCE-N20U
Digital Universal Indicator PCE-N20U
113,20 €
Digital Universal Indicator PCE-N24S
Digital Universal Indicator PCE-N24S
96,86 €
Digital Universal Indicator PCE-N25S
Digital Universal Indicator PCE-N25S
93,36 €
Optional Mounting Kit PCE-WS/MOUNT
Optional Mounting Kit PCE-WS/MOUNT
69,90 €

Description

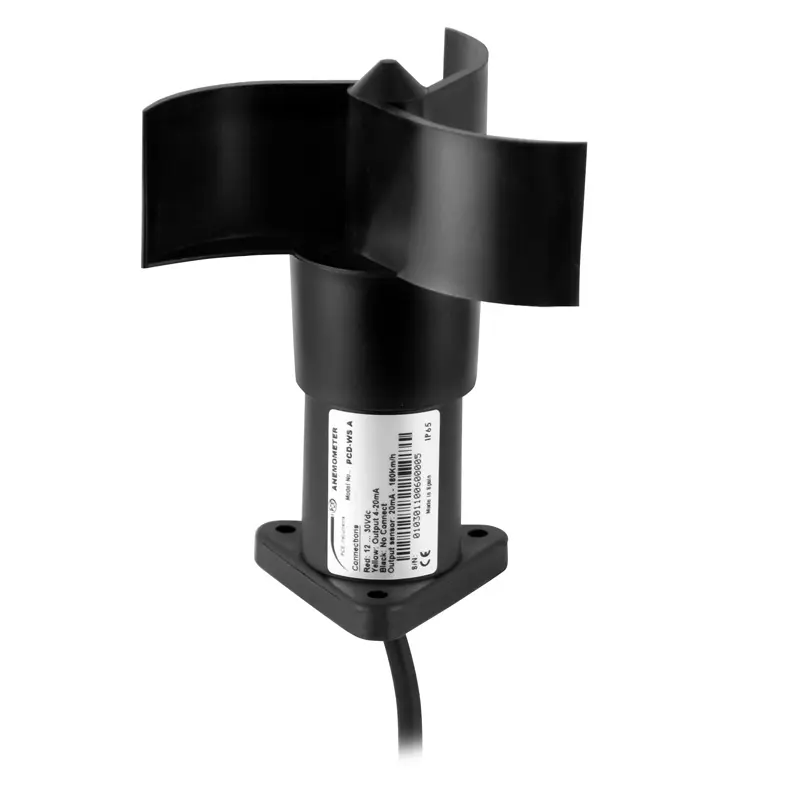

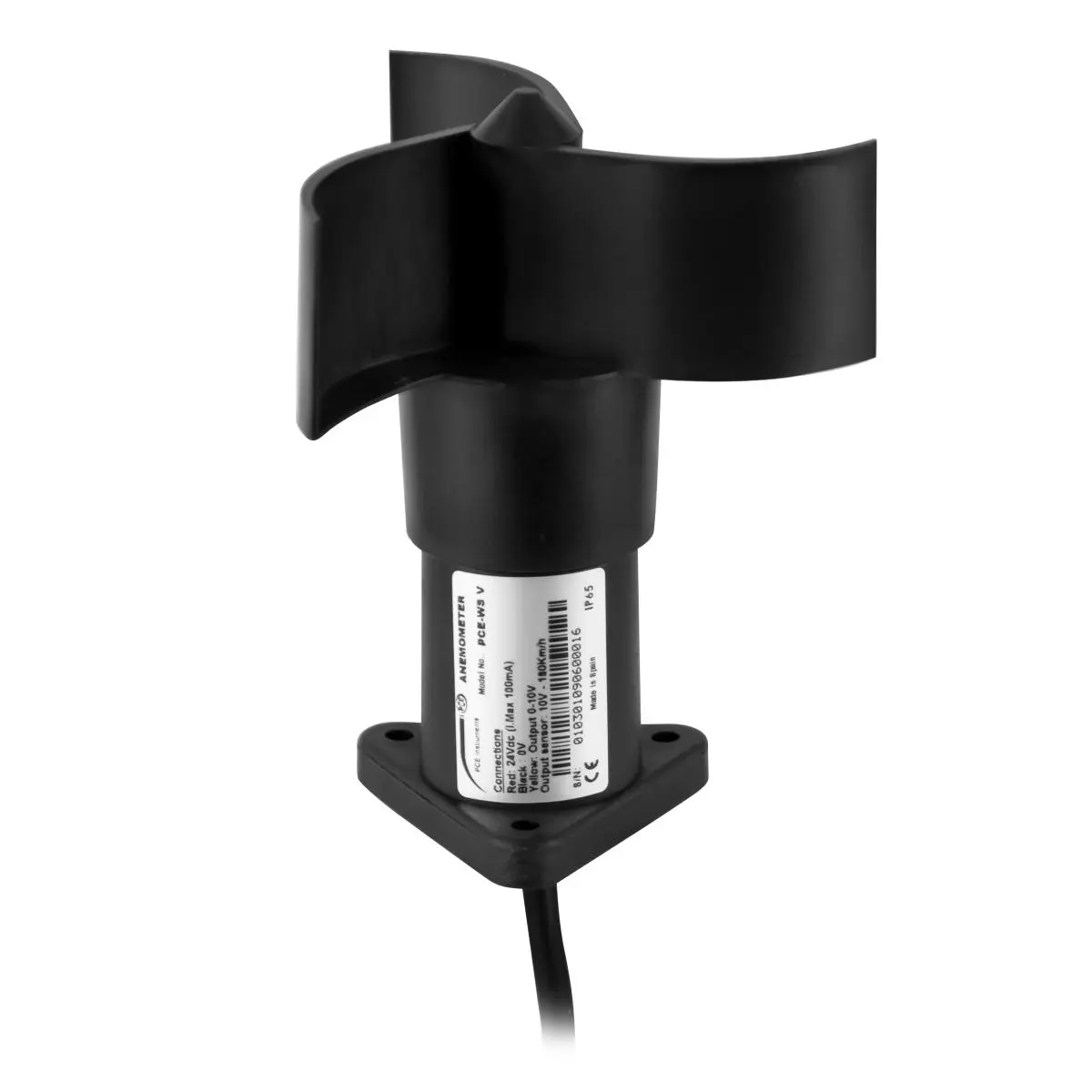

Robust Environmental Meter for fixed installation / various output signals /
for wind warning systems, building services and building automation

The Environmental Meter impresses with its compact design and various output signals. The Environmental Meter can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Meter, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Meter is designed as a star, so that operation independent of the wind direction is guaranteed.

The Environmental Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Meter is also protected to IP65. The design of the Environmental Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Meter is optionally available.

Highlights

- Robust PA plastic housing
- IP 65 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from≤2.62 ft/s, 0.8 m / s
Output0 ... 10 V
Accuracy<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
 > 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage12 ... 30 V DC
Operating temperature range -4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed   180.45 ft/s, 123 mph, 55 m / s
Electrical connection65 ft, 20 m connection cable
Protection classIP65

Delivery Scope

1 x Environmental Meter PCE-WS V
1 x instruction manual

Downloads
