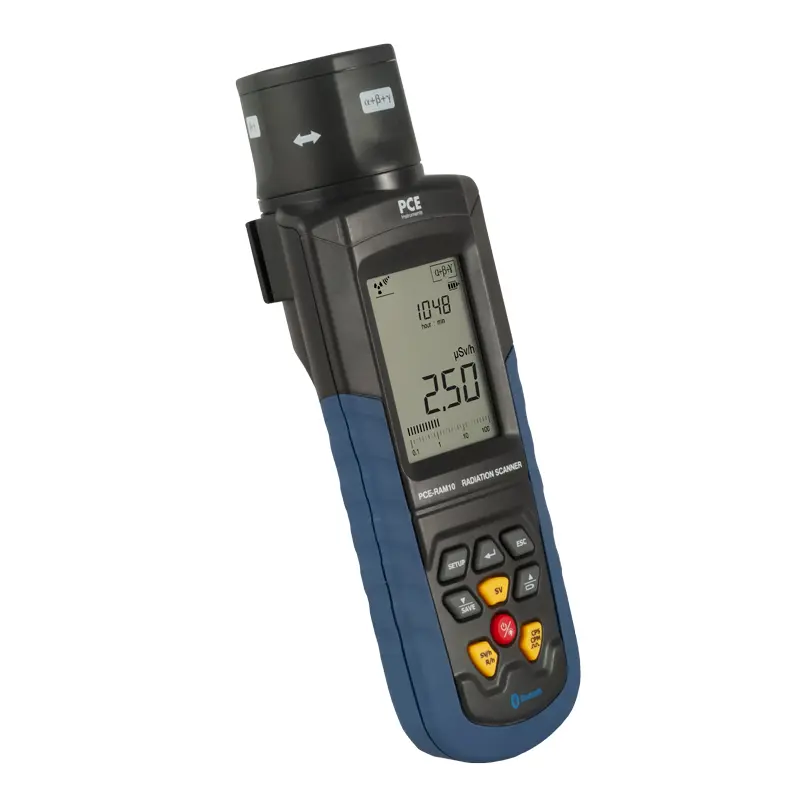

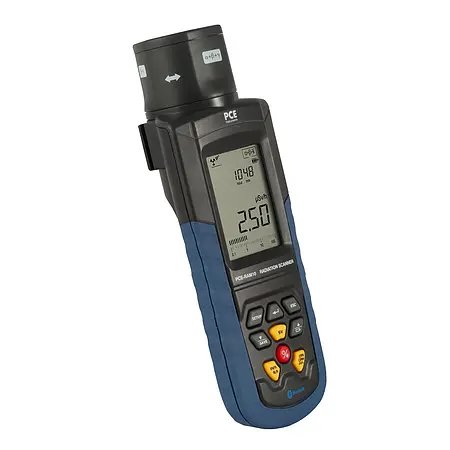

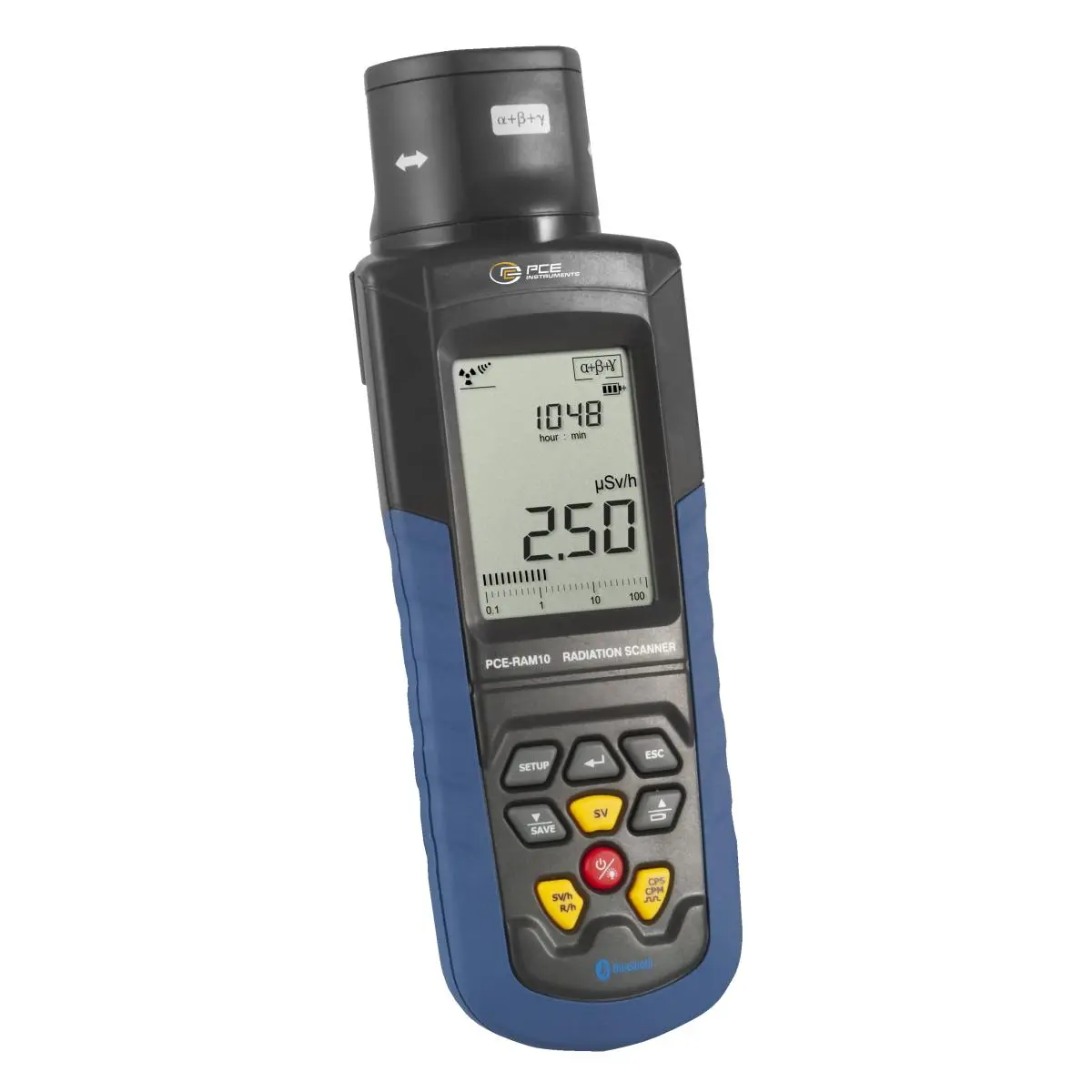

Environmental Tester PCE-RAM 10

Order no.: PCE-RAM 10

GTIN (EAN): 4250348714701

Description

Environmental Tester to detect α-, β-, γ- and x- radiation / High accuracy / Internal data memory / Large LCD display / Data transfer to computer / Bluetooth interface

The Environmental Tester was developed to detect α-, β-, γ- and x- radiation. The Environmental Tester provides many features including a large, high-resolution LCD display with background lights and many indicators. The Environmental Tester has an internal data storage for up to 2000 data sets, which are saved either manually or automatically. Furthermore the Environmental Tester is equipped with a Bluetooth interface to transfer the measured data in real-time to a computer.

With the software that is included in the delivery, the data can then be further processed and reviewed. The Environmental Tester stands out with its high accuracy and practical design. The Environmental Tester can be applied in the pharmaceutical industry, laboratories, power plants, quarries, the emergency services, metal industries, petroleum reservoirs, environmental protection etc.

Highlights

- α-, β-, γ- and x- radiation
- High measuring accuracy
- Internal data storage for 2000 values

- Large LCD display
- Bluetooth interface
- Software for data processing

Specification

Types of radiation	α-, β-, γ- and x- radiation
Measurement ranges	Radiation dose rate: 0.01 ... 1000 μSv / h Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps Radiation dose accumulation: 0.001 ... μSv ... 9.999 Sv Pulse dose accumulation: 0 ... 9,999
Sensitivity	108 pulses or 1000 cpm / mR / hr in Cobalt-60 irradiated environment with current of 1 μSv / h Alpha rays: from 4 MeV Beta rays: from 0.2 MeV Gamma rays: from 0.02 MeV X-rays: from 0.02 MeV
Accuracy	<10% (less than 500 μSv / hr) <20% (less than 600 μSv / hr)
Radiation selection	Combination of α-, β-, γ- and X-rays
Sensor	Halogen compensation accumulator
Output port	Bluetooth
Average process time	Manual or automatic, adjustable between 2 ... 12 seconds

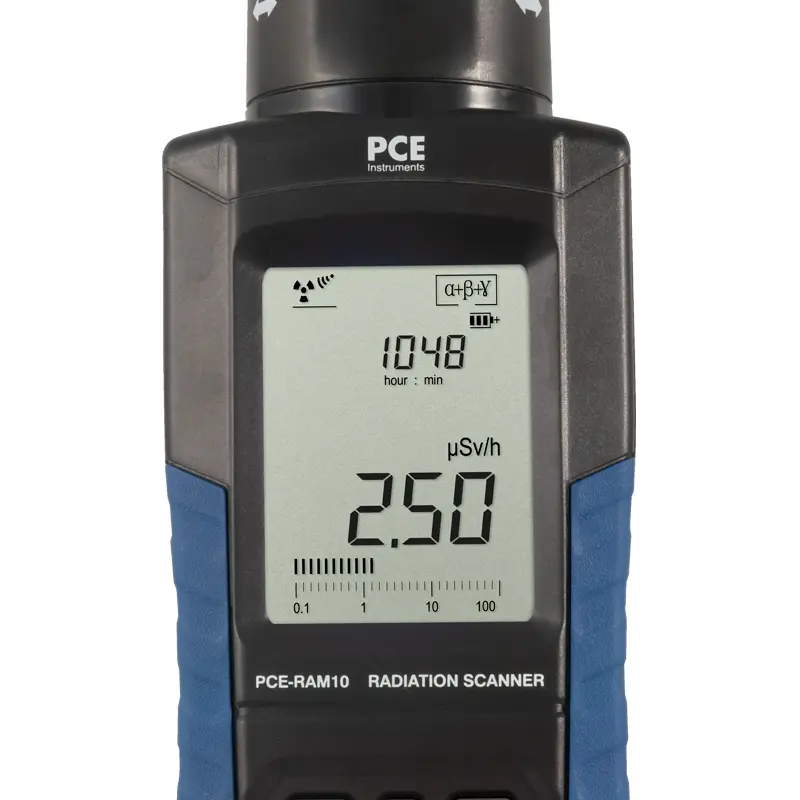

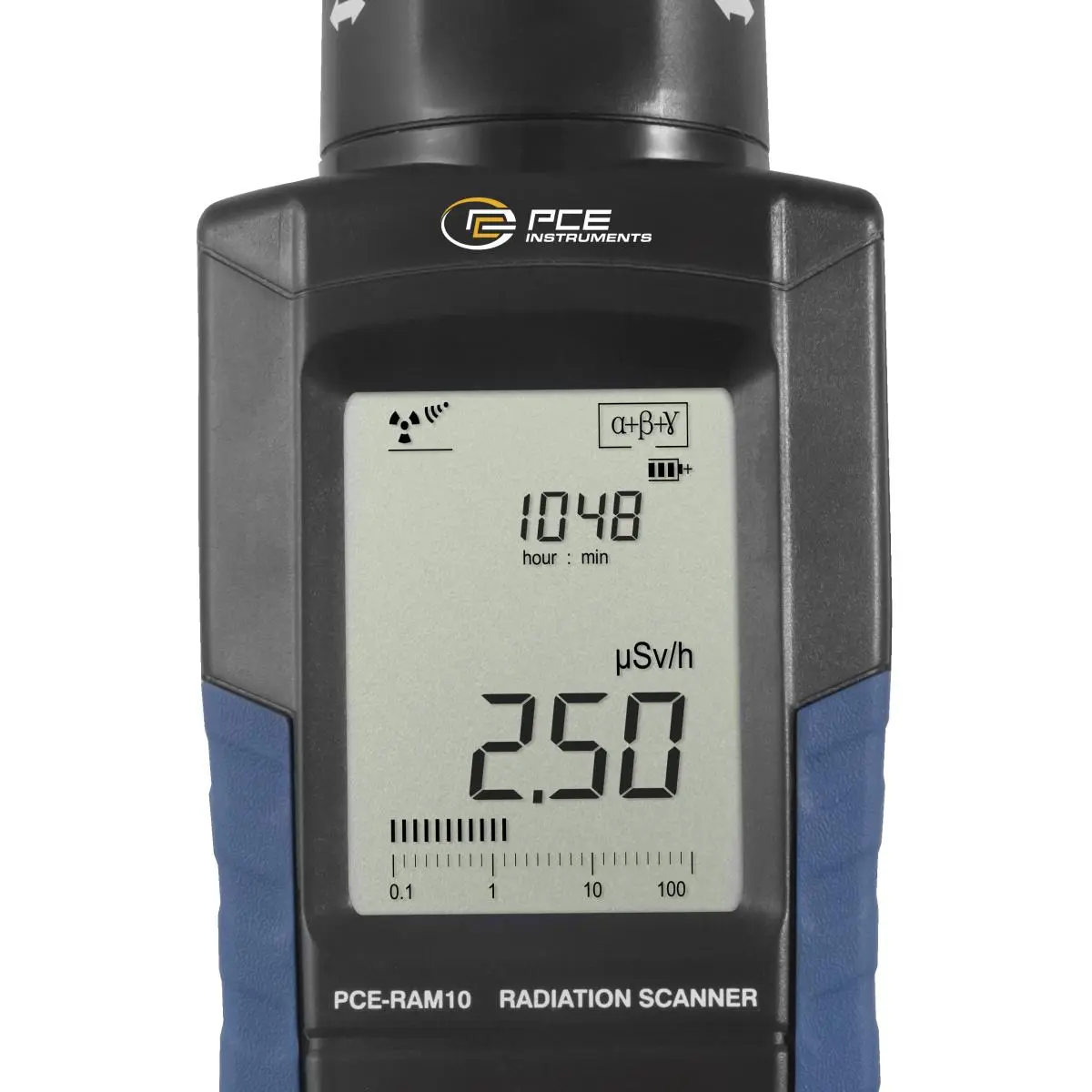

Display	Digital LCD display, with bar graph display
Alarm function	Acoustic alarm for manually selected value
Normal radiation value of natural environment	Less than 0 ... 0.2 μSv / h
Internal data storage	Automatic memory for <2000 measured values
Software	Data transmission in real-time, analysis and recording
Operation temperature	0 ... +50°C / 0 ... 122°F
Power supply	4 x 1.5V AA Batteries
Dimensions	200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in
Weight	206 g / < 1 lb

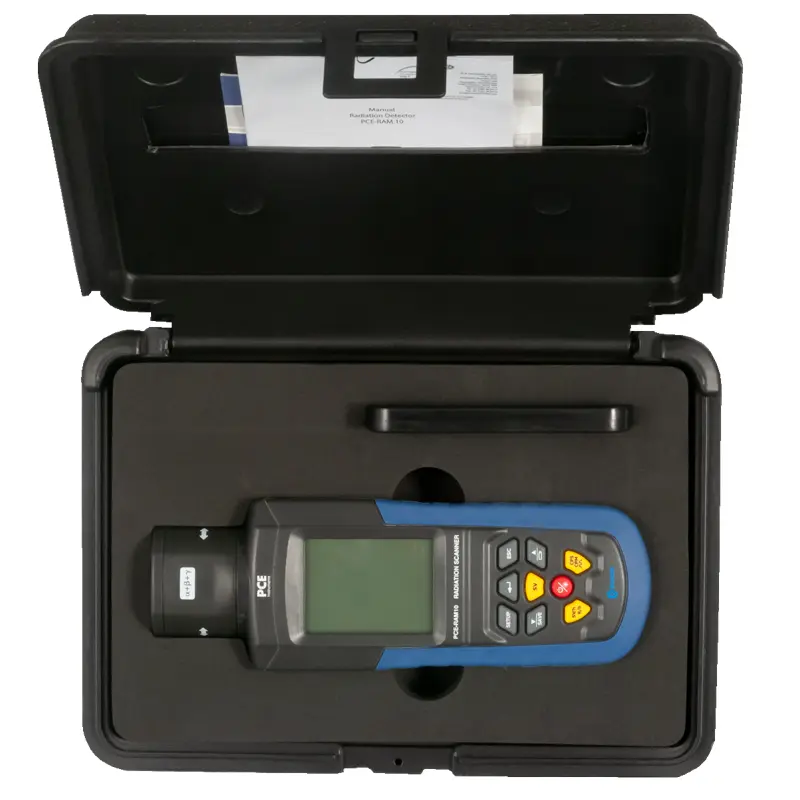

Delivery Scope

1 x Environmental Tester PCE-RAM 10
1 x Software
4 x 1.5 V AA Batteries

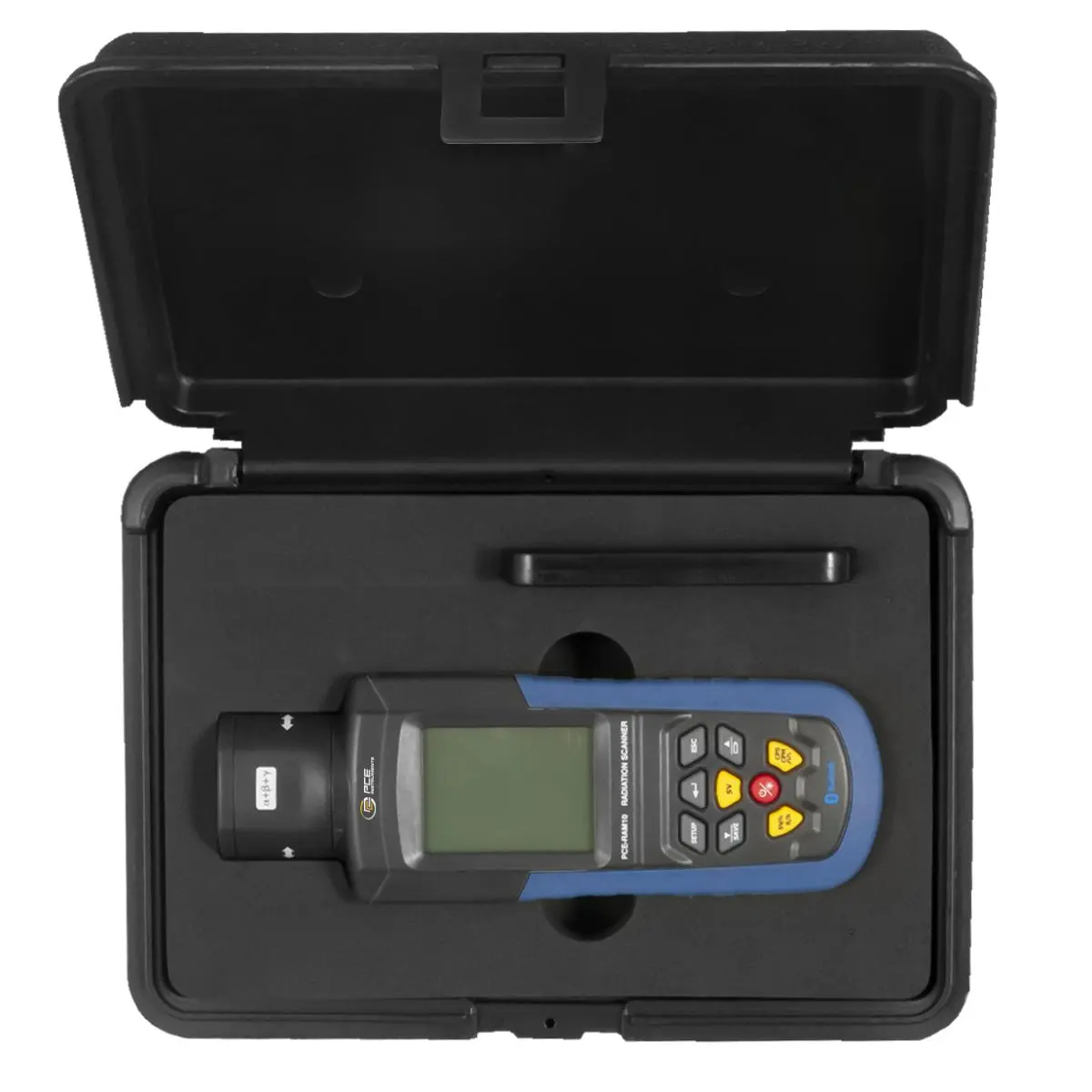

1 x Carrying case
1 x User manual
