125,00 €

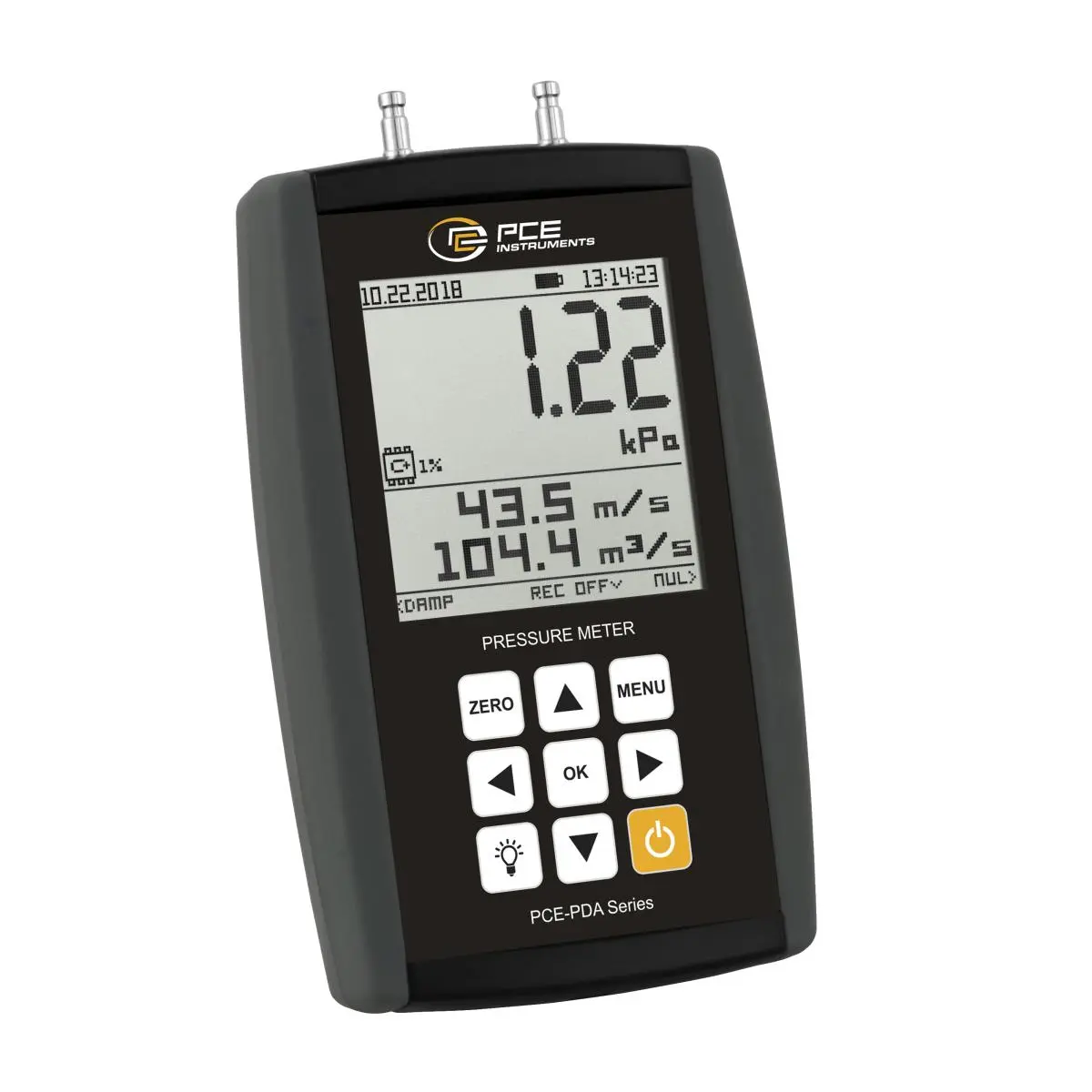

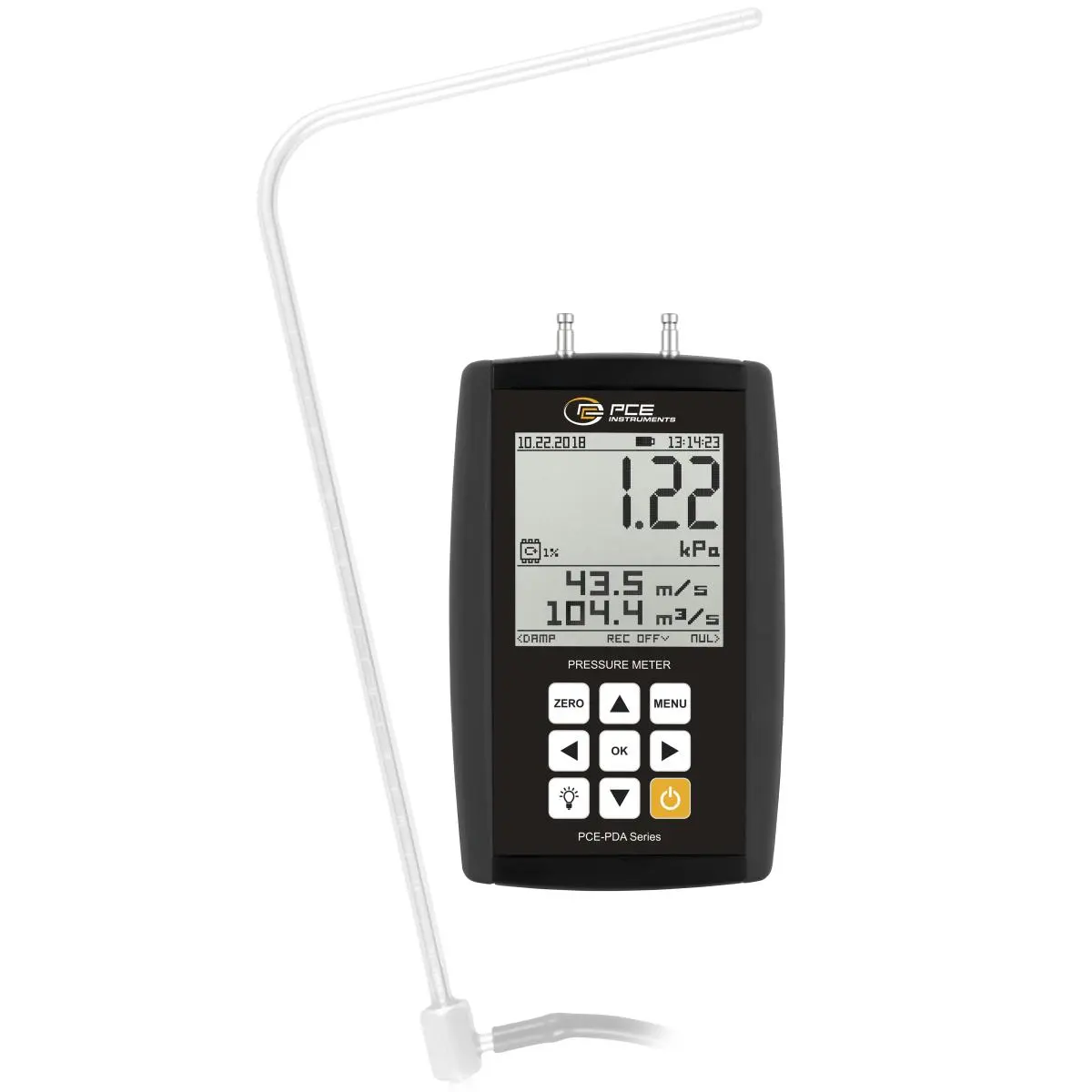

PCE-PDA 10L Flow Meter for relative and differential pressure / Pitot tube adaptable to differential pressure gauge / MAX MIN function / Data logger

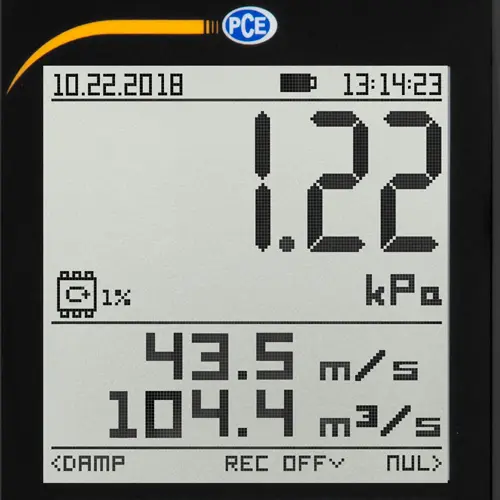

The Flow Meters of the PCE-PDA series are reliable differential pressure gauges for pressure measurement of gases in the range of ± 200 kPa, ± 2 kPa and 20 kPa depending on the model. The Flow Meter has many different pressure measuring functions. This gives the user more than 16 units. Furthermore, the Flow Meter measures in addition to the differential pressure, the temperature, flow velocity and volume flow. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can optionally be switched. The Flow Meter incorporates a high-precision mode that increases the resolution tenfold.

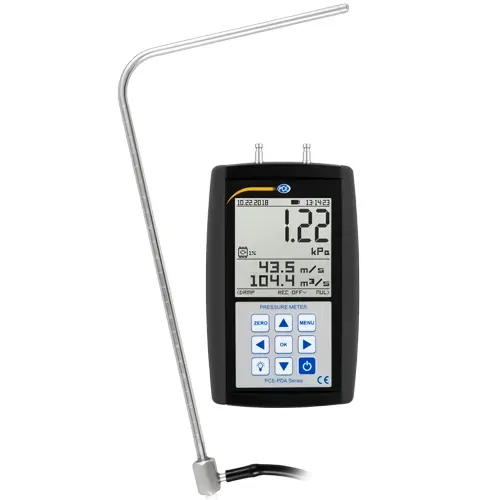

The PCE-PDA Flow Meter has a data logger function. This makes it possible to carry out a leak test on pressure lines in addition to the continuous storage of the measured values. In the data logger mode, it is possible to set the differential pressure gauge to a duration in which the data is stored at a previously selected interval. In the leakage measurement mode, the user must specify the measurement duration and the differential pressure level. After the measurement, the Flow Meter then displays the deviation from the set point. In addition to these two functions, the Flow Meter, with optional pilot pitot tubes, can determine the flow velocity or volume flow in pipes.
| Measuring range temperature | 0 ... 50°C / 32 ... 122°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 1°C / 1.8°F |
| Measuring range pressure | ± 20 kPa |
| Resolution | 1/ 10 Pa |
| Accuracy | ± 0.5% of final value |
| Nominal pressure | 20 kPa |
| Overpressure | 40 kPa |
| Burst pressure | 100 kPa |
| Media | Liquids, air |
| Measuring rate | 10 Hz |
| Measurement units | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Pressure | Differential Pressure relative pressure (if neg. Pressure connection open) |
| Pressure connections | 5 mm nipple for quick connectors |
| Max, Min and Hold function | Yes |
| Data logger | 1024 memory slots 1 s ... 255 h Recording time per memory location 1 s ... 24h recording interval |
| Medium | For air and non-explosive gases |
| Zero correction | Yes, with a zero key |
| Averaging | Yes, between 0.1 ... 9.9 s |

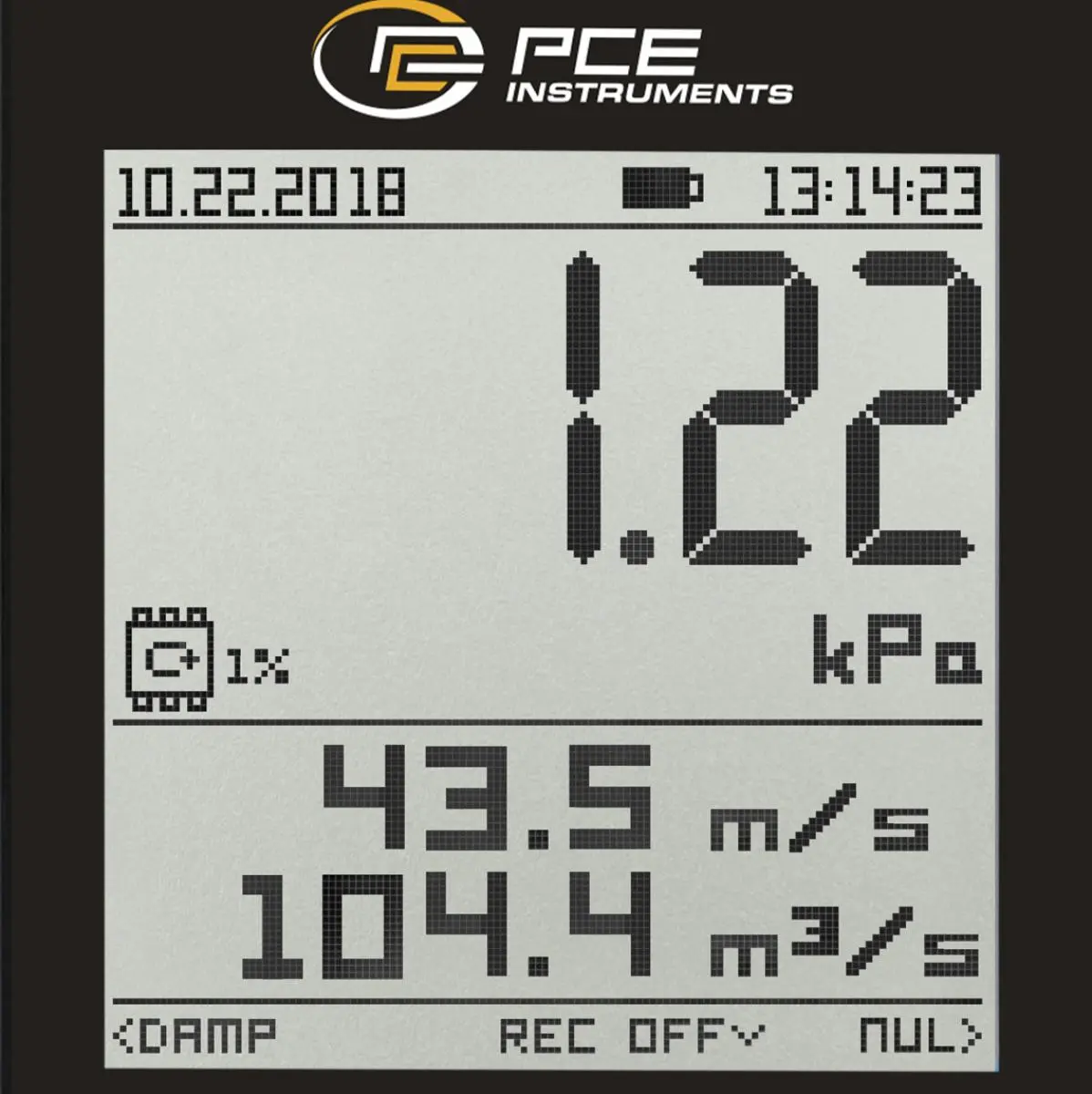

| Display | Graphic LCD with backlight |
| Protection | IP41 |

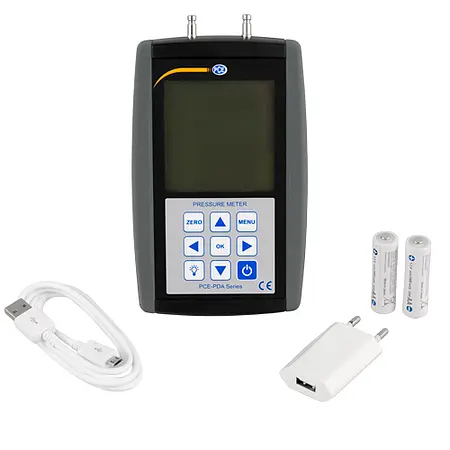

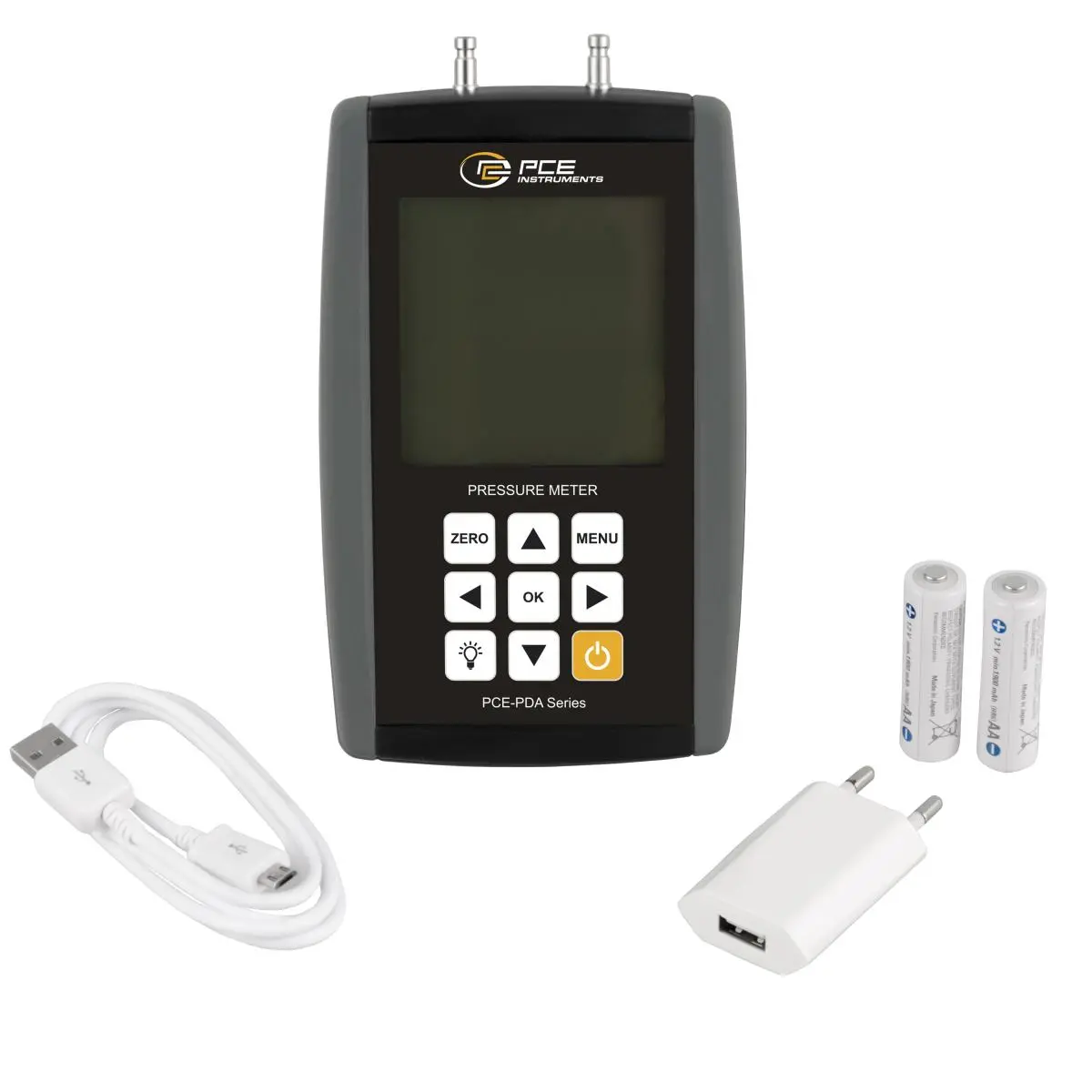

| Power supply | 2 x 1.5V AA battery / 1.2V NiMh battery 5V / 500-mA USB power adapter |
| Current consumption | 50-mA (with backlight) 10-mA (without backlight) |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | 10 ... 55°C / 50 ... 131°F |
| Dimensions | 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in |
| Weight | About 285 g / < 1 lb |
