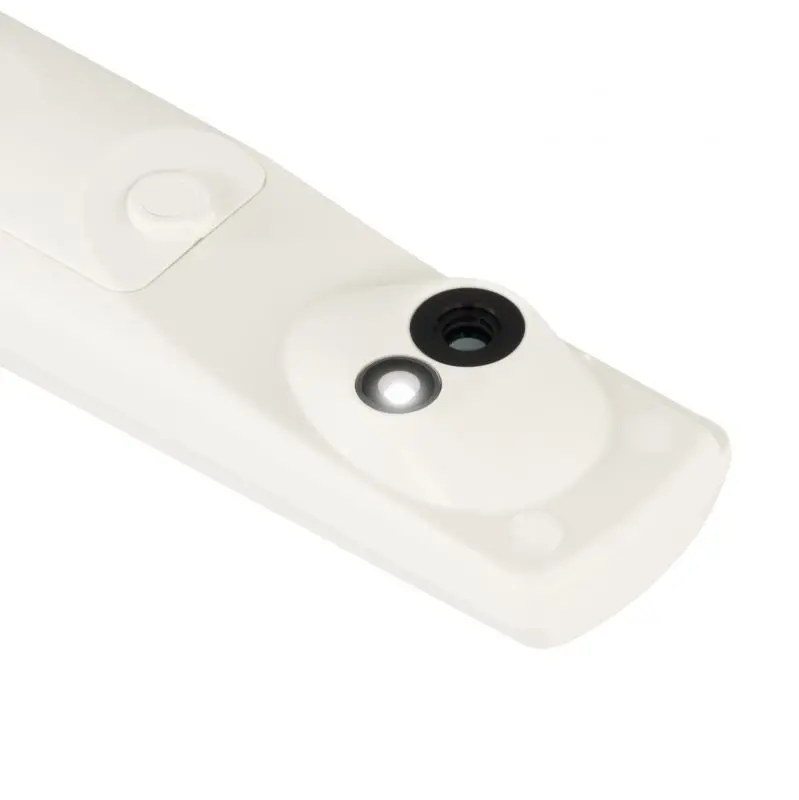

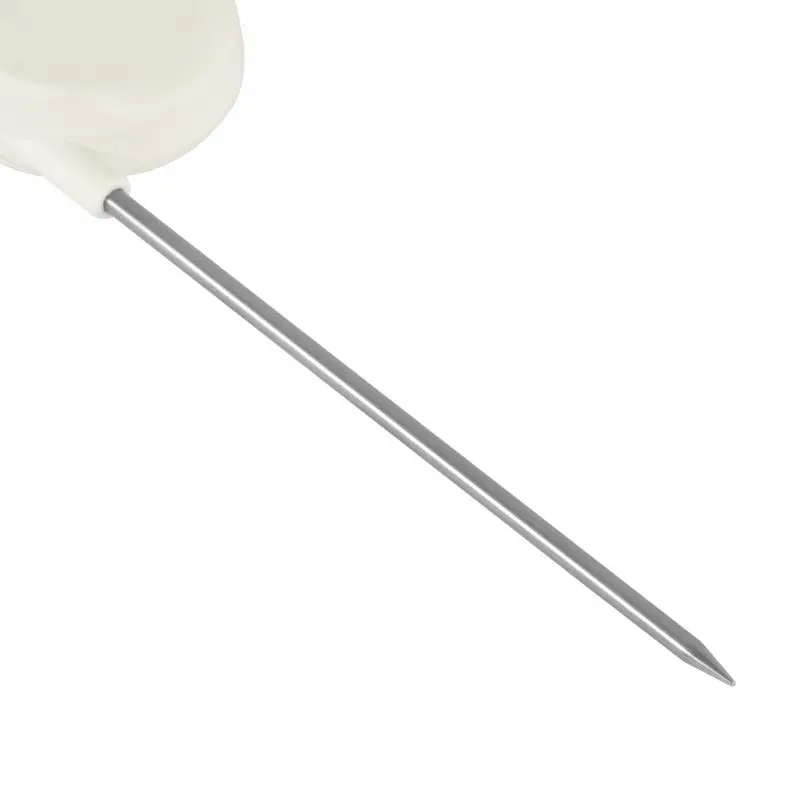

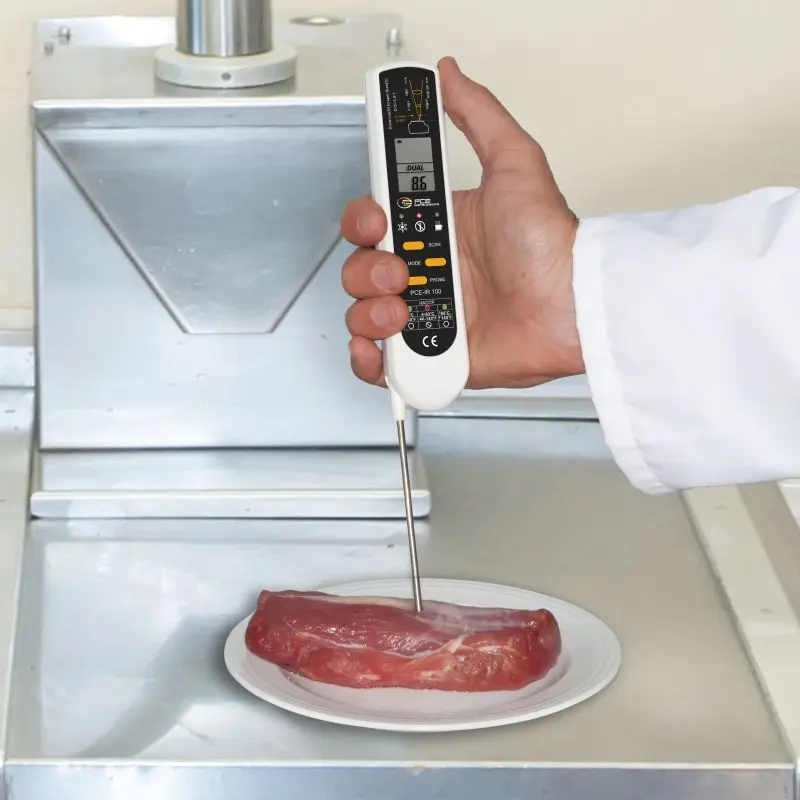

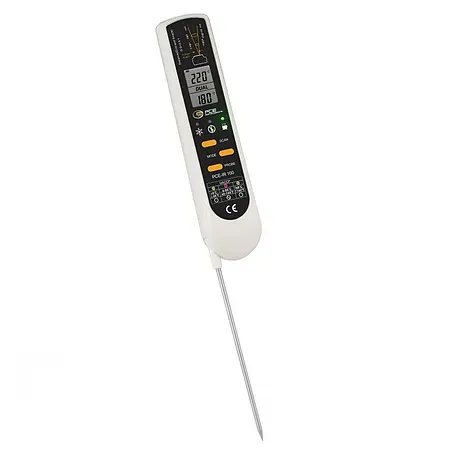

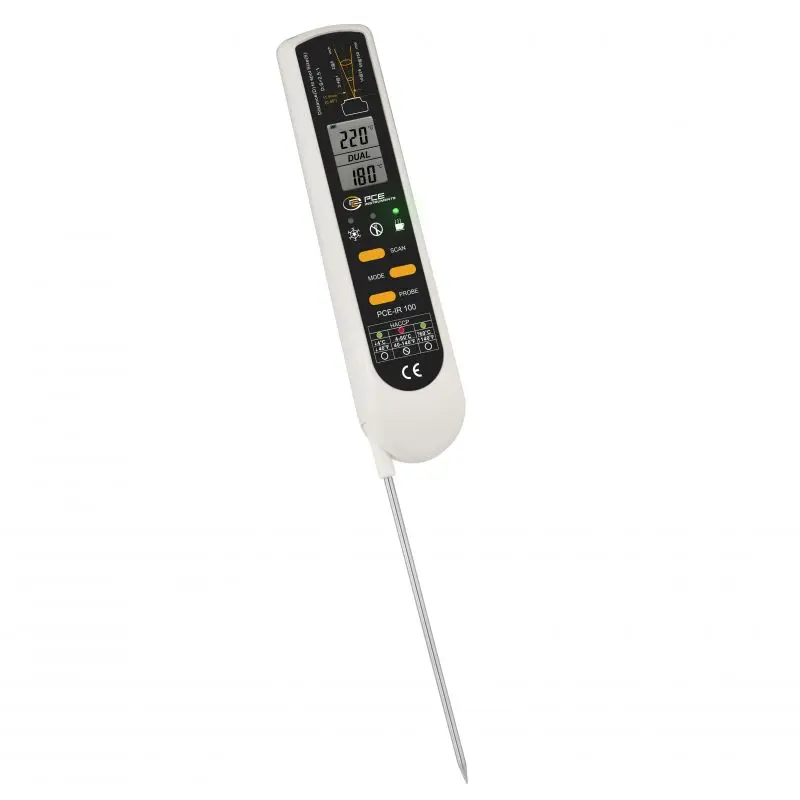

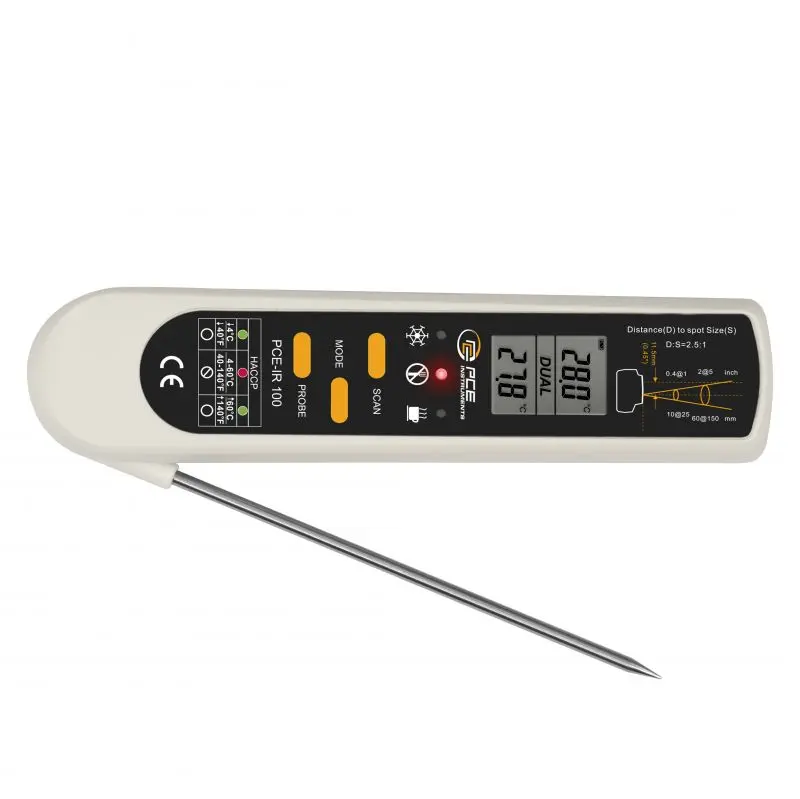

PCE-IR 100 is both an infrared non-contact thermometer for measuring surface temperature and a contact thermometer with probe for measuring core temperature of food. This food-grade thermometer allows for quick and easy testing of food surface temperatures without contamination using the infrared sensor, while also offering the possibility of testing food internal temperatures using the food-quality sensor probe, making the thermometer a useful tool for complying with the hazard analysis and critical control points (HACCP) system.
The HACCP system was established to ensure food safety and consistent product quality. Food cannot be put into circulation if it doesn't meet strict safety standards like those in the HACCP. Temperature checks should be made frequently throughout the food supply chain. It is particularly important to test perishable food temperature during transport, as food products can travel significant distances to reach their final destination.
Highlights
- Ideal for use in food processing, food inspection, food safety, food quality control, food preparation and food catering applications
- Aids in compliance with the hazard analysis and critical control points (HACCP) system
- Sensor probe folds into unit for convenient storage
- Accurately covers a wide measurement range
- Quick response time
- Minimum, maximum and lock functions
- Enables continuous measurement over a period of time
- IP 65 ingress protection rating allows hygienic cleaning

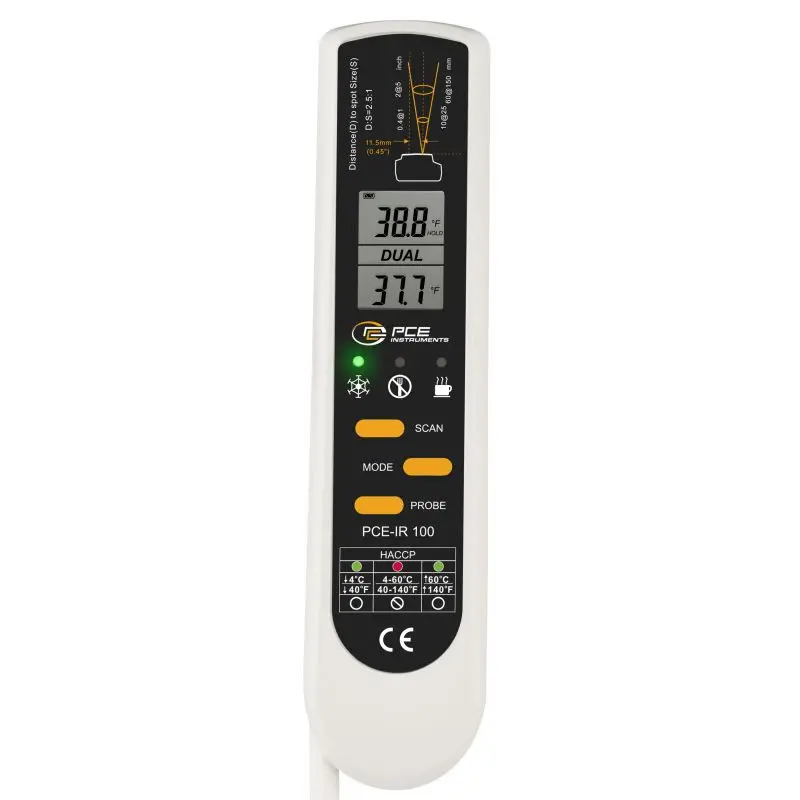

- Easy to use: LEDs indicate temperatures below 4 ºC / 39.2 ºF, temperatures between 4 ºC / 39.2 ºF and 60 ºC / 140 ºF, and temperatures above 60 ºC / 140 ºF
Specification
|
Non-contact measurement with infrared sensor |
Temperature range | -33 ... +220 °C / -27 ... +428 °F | Resolution | 0.2 ° | Accuracy | -33 ... 0
°C: ± 1 °C + 0.1 / degree
0 ... 65 °C: ±
1 °C
65 ... 200 °C: ± 1.5 % of reading
| Response time | < 500 ms | Wavelength | 8 ... 14 µm | Emissivity | Adjustable in intervals of 0.1 ... 1.0 (default is 0.95 - ideal for food) | Distance to target ratio | Spot (FOV) = 2.5:1 | Minimum diameter of the measurement point | 11.5 mm / 0.44" |
Contact measurement with sensor probe
| Temperature range | -55 ... + 330 °C / -67 ... +626 °F | Resolution | 0.2 ° | Accuracy | Below -5 °C: ±
1°C
Between -
5 °C ... +65°C: ±
0.5 °C
Above 65 °C: ± 1.0 % of reading
| Response time | 7 ... 8 seconds | Sensor dimensions | Diameter:
3.2 mm / 0.13", Length: 150 mm / 5.91" | Sensor type | Thermal element (type-K) |
General characteristics
| Repeatability | Within the accuracy of the device | Functions | Max / Min / Lock | Operating temperature | 0 ...
+50 °C / +32 ... +122 °F
| Dimensions (with battery) | 190 x
22 x
38 mm / 7.48 x 0.87 x 1.5"
| Power | 2 x 1.5 V AAA batteries | Operating time | Approx. 40 hours of continuous use | Measurement point illumination | LED | Holding of values on the display | 15 seconds | Display | 4 positions | Ingress protection rating | IP 65 |
|
|

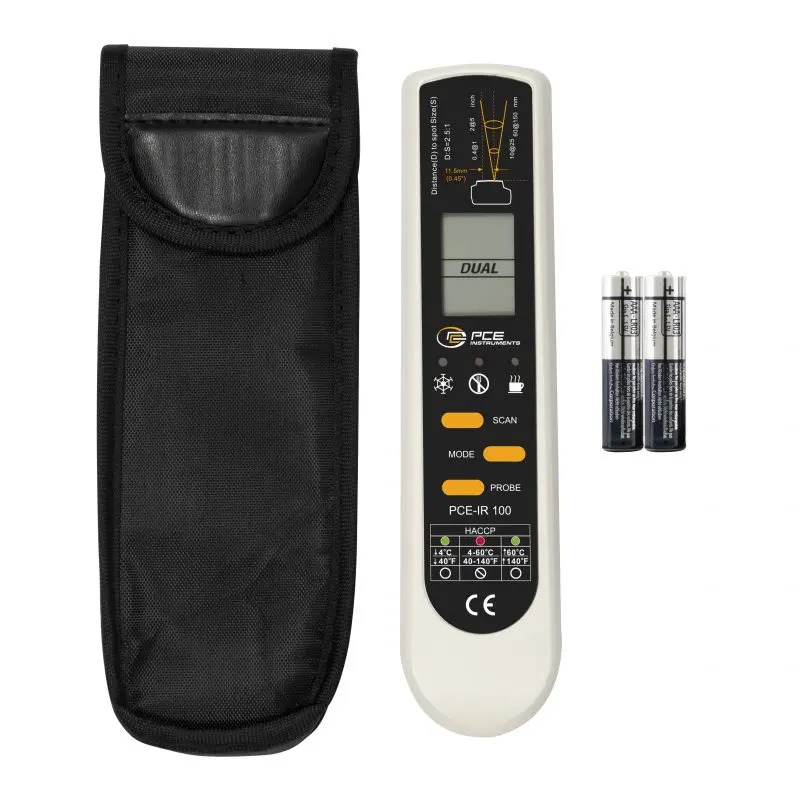

Delivery Scope
1 x PCE-IR 100 Food / Hygiene Meter
2 x batteries
1 x user manual
