Force Gage PCE-DFG N 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-DFG N 10-ICA
GTIN (EAN): 4250348725561

956,90 €
1.138,71 €
ISO Calibration
price ex. (VAT / delivery)
:
4250348725561
PCE-DFG N 10-ICA
Delivery time: 10 - 14 days
digital
internal
yes
yes

Description

Digital Force Gage PCE-DFG N 10-ICA incl. ISO Calibration Certificate
For tensile force measurement and pressure force measurement up to 10 N / Very high accuracy / Sampling rate 1600 Hz / 6 different measuring tips / USB interface / Software / Calibration certificate

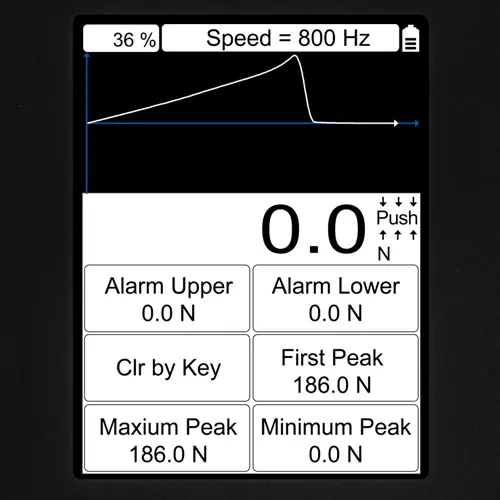

A digital force gage for tensile and compressive force measurements up to 10 N is available with the PCE-DFG N 10. The PCE-DFG N 10 is a digital force meter for precise measurements with a resolution of 0.005 N. The measured values ​​are displayed on a large, illuminated, 180° rotatable display, a correct reading of the measured values ​​is thus guaranteed at all times. The outstanding accuracy of ± 0.1% is confirmed with the calibration certificate provided.

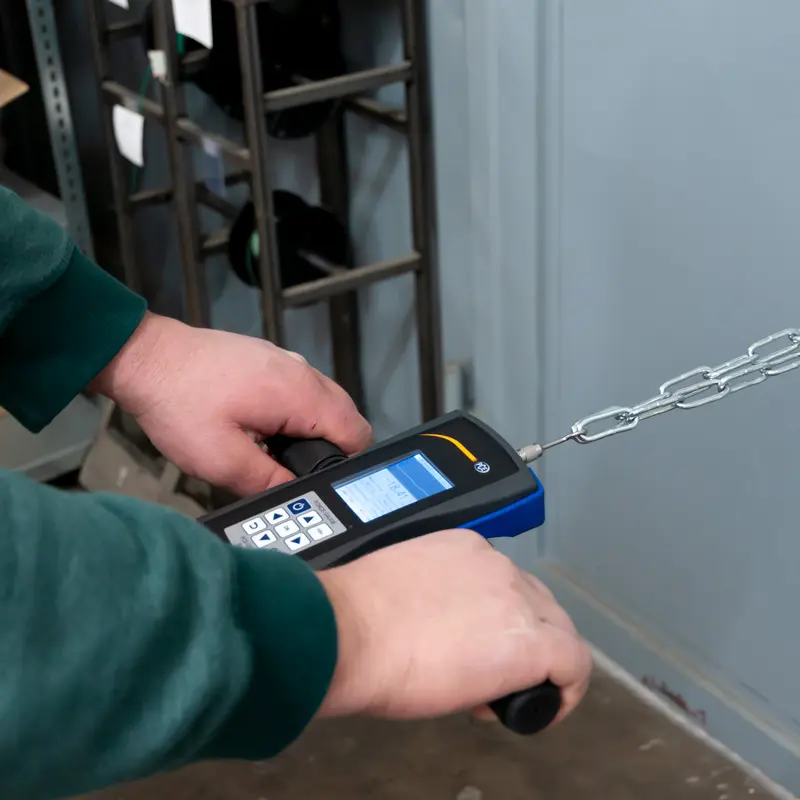

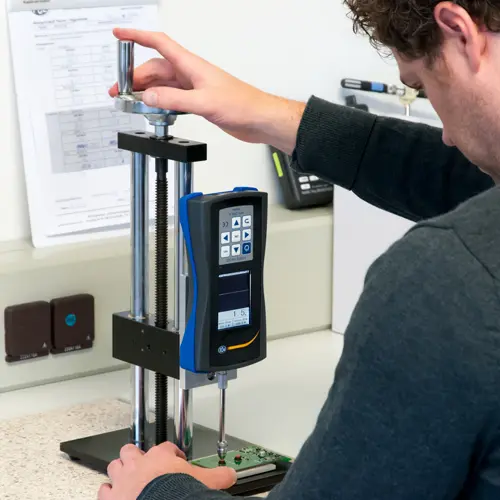

In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values ​​can be saved on a computer for later evaluation. Due to its robust housing, a sensible menu navigation and the simple operation via 8 keys, the digital force gage is characterized by a high degree of user-friendliness. The power supply of the force gage is via batteries, which can be charged via a included charger and allow a continuous operation of the device of 10 hours. With these characteristics, the digital force gage is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of new components or for testing safety-relevant components.


Highlights

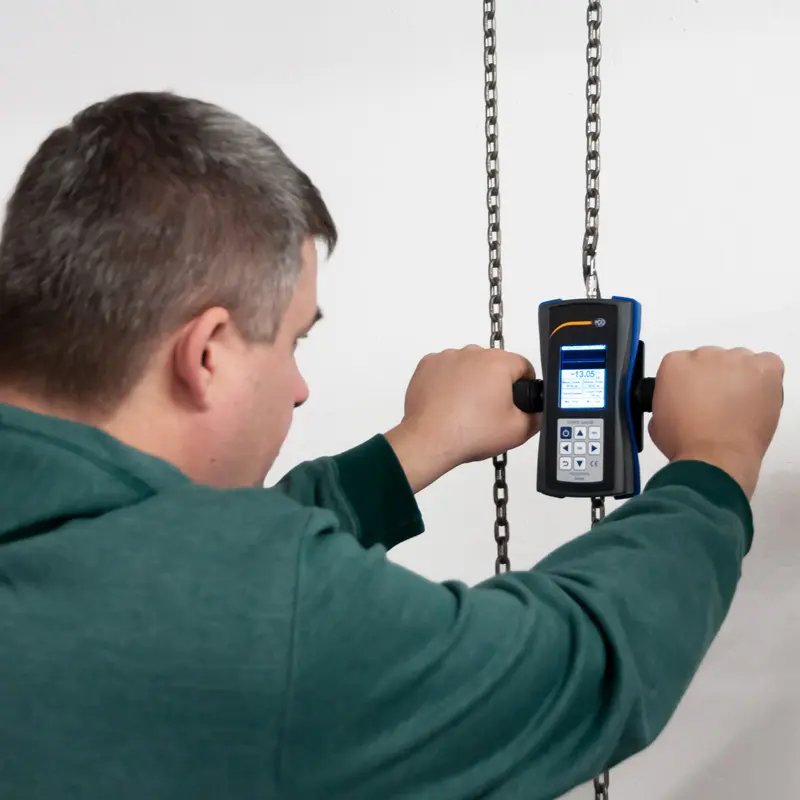

- Pull and pressure force measurement
- 1600 Hz sampling rate
- Error limit 0.1% of the measuring range
- PEAK function (MIN / MAX)
- Limit value function
- Different measuring units
- Automatic or manual storage
- Graphical analysis
- Automatic orientation display
- Time date
- Control and evaluation software
- Automatic shutdown adjustable
- Battery status indicator
- Network operation possible
- Store 100 readings internally or unlimited to PC

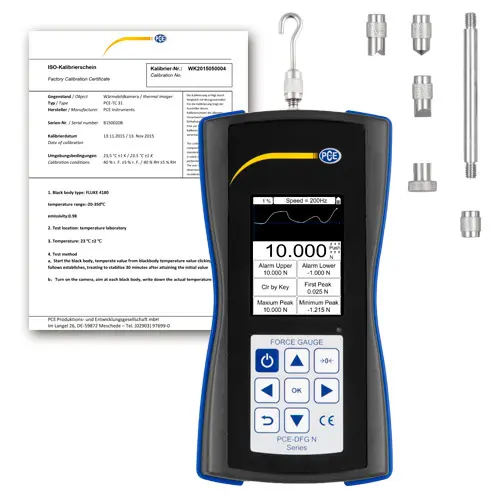

- Incl. ISO calibration certificate

Specification


Measuring range 0 ... 10 N, 0 ... 2.25 lbs
Accuracy ± 0.1% of the measuring range
Resolution 0.005 N

Measurement units N, kg, lb, KPa

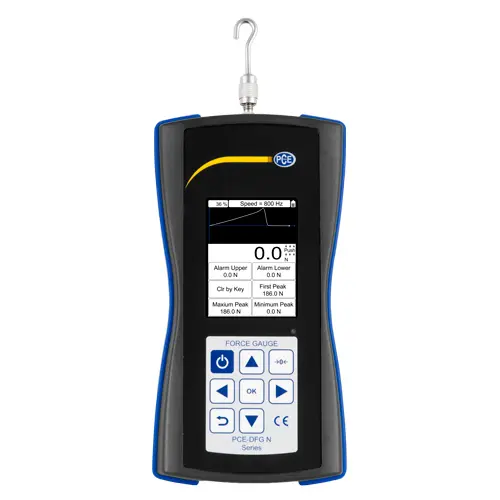

Display 2.8" TFT graphic display
Alarm Modes Inside, Outside, Crack, Shutdown
Sampling rate 6 ... 1600 Hz
Storage 100 measurements
Power supply NiMh battery 6V / 1600-mAh
Battery life About 10 hours
Charging adapter 12V / 1A
Outputs Interface: USB
Switching output: 12V / 50-mA
Protection class IP 54
Operating and storage conditions      -10 ... 50°C / 14 ... 122°F
5 ... 95% rh non-condensing

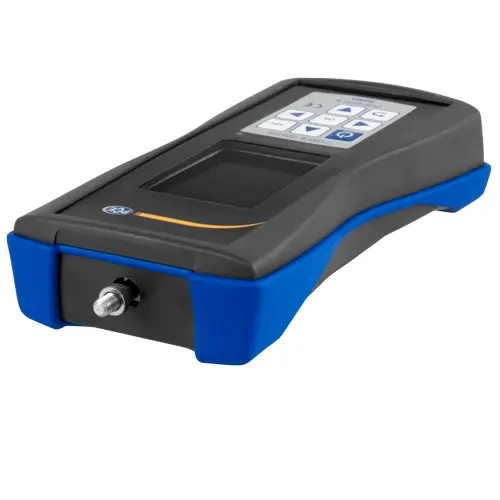

Force-receiving piece M6 x 7 mm
Dimensions 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight 540 g / 1.2 lbs

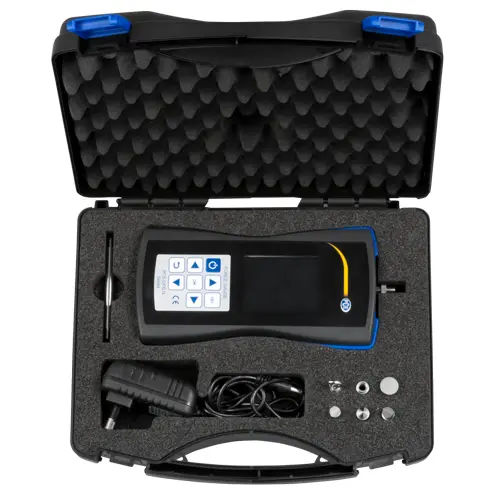

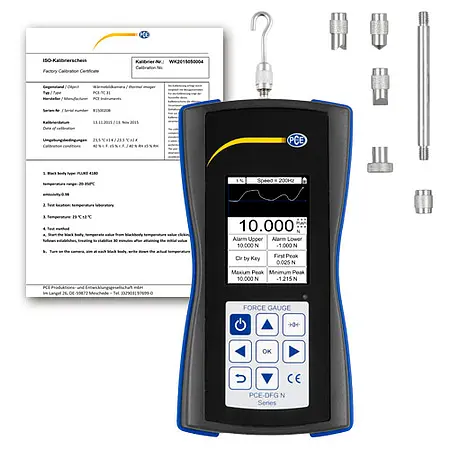

Delivery Scope

1 x PCE-DFG N 10-ICA Force Gage

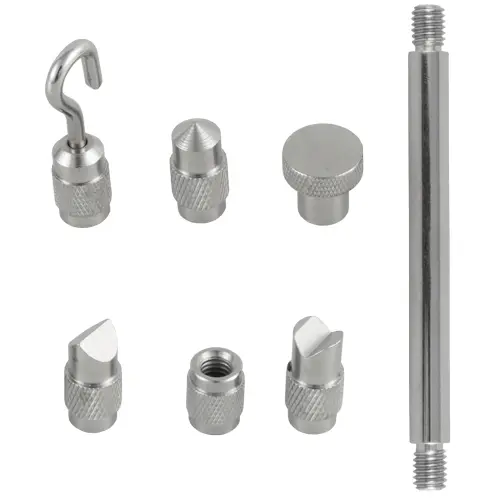

1 x Chisel head adapter
1 x Flat head adapter
1 x Pointed head adapter
1 x Hook adapter
1 x Notched head adapter
1 x Extension bar (90 mm / 3.5 in)
1 x PC software
1 x USB data cable
1 x Power supply
1 x Carrying case
1 x User manual
1 x ISO calibration certificate
