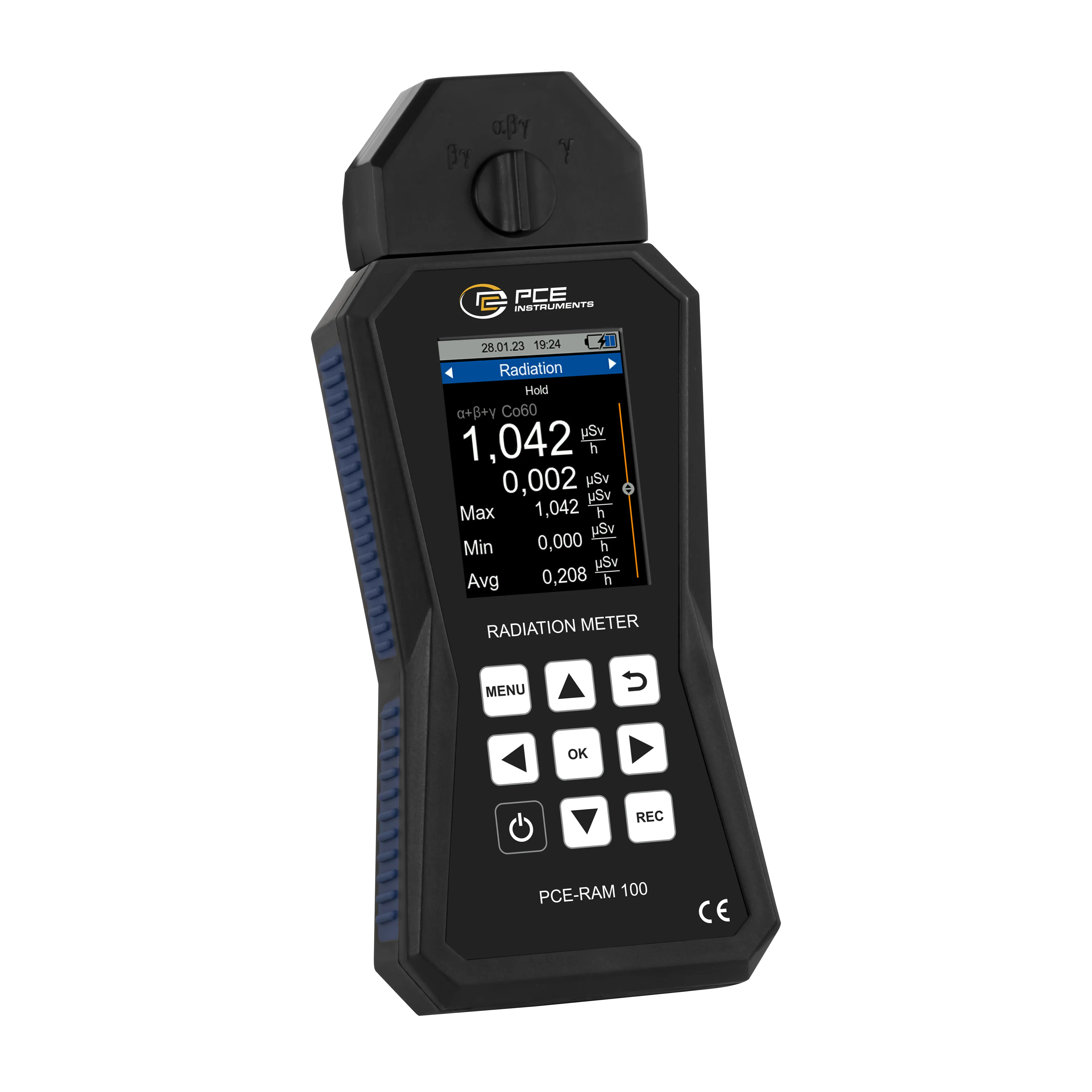

Geiger Counter PCE-RAM 100

Order no.: PCE-RAM 100
GTIN (EAN): 4250348736703
456,90 €
543,71 €
price ex. (VAT / delivery)
:
4250348736703
PCE-RAM 100
Delivery time: 1-2 working days

Description

Geiger Counter for α, β, γ radiation / internal memory for 10 million measuring points / units µSv and mrem / pulse counting in cps and cpm / MAX, MIN, AVG / 13 menu languages

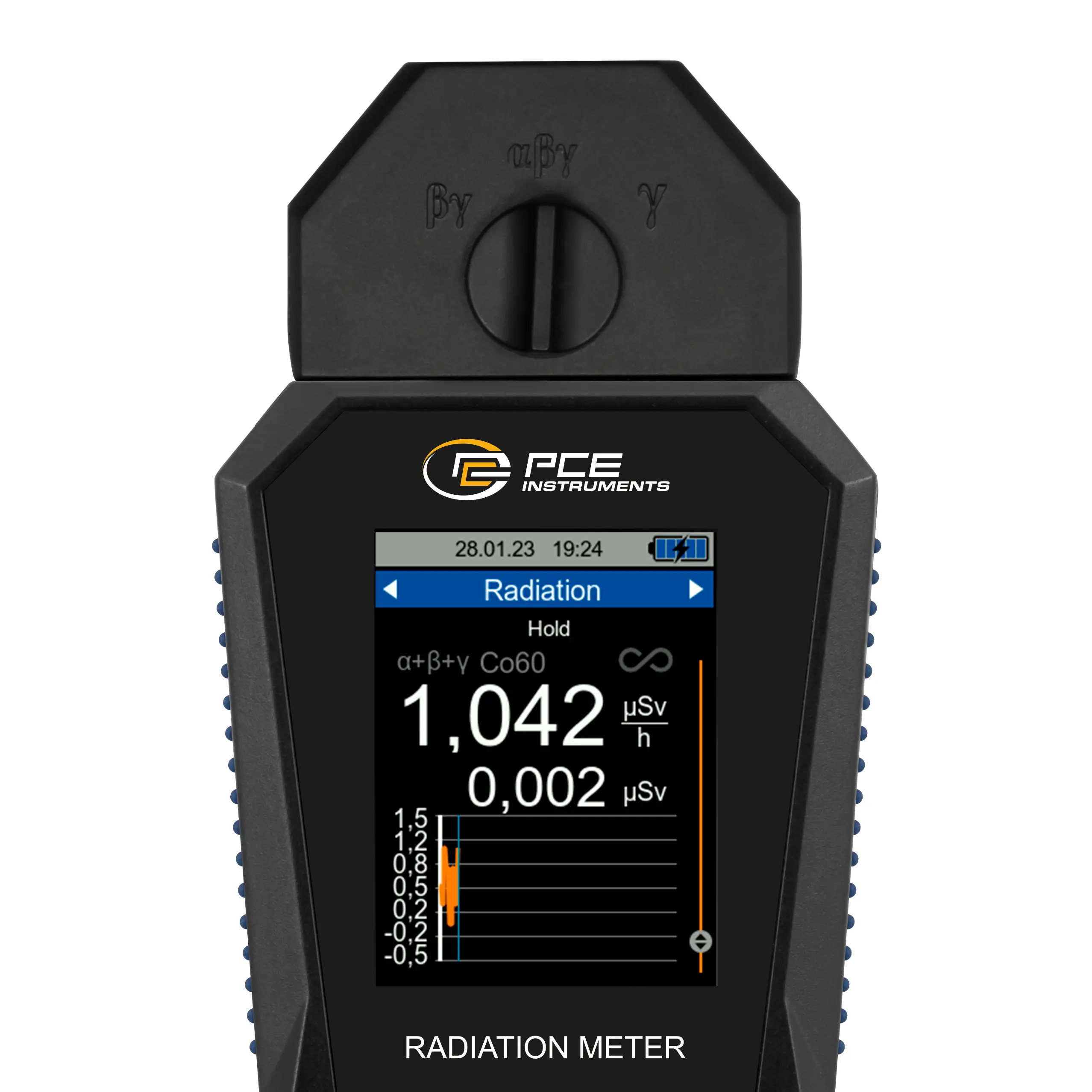

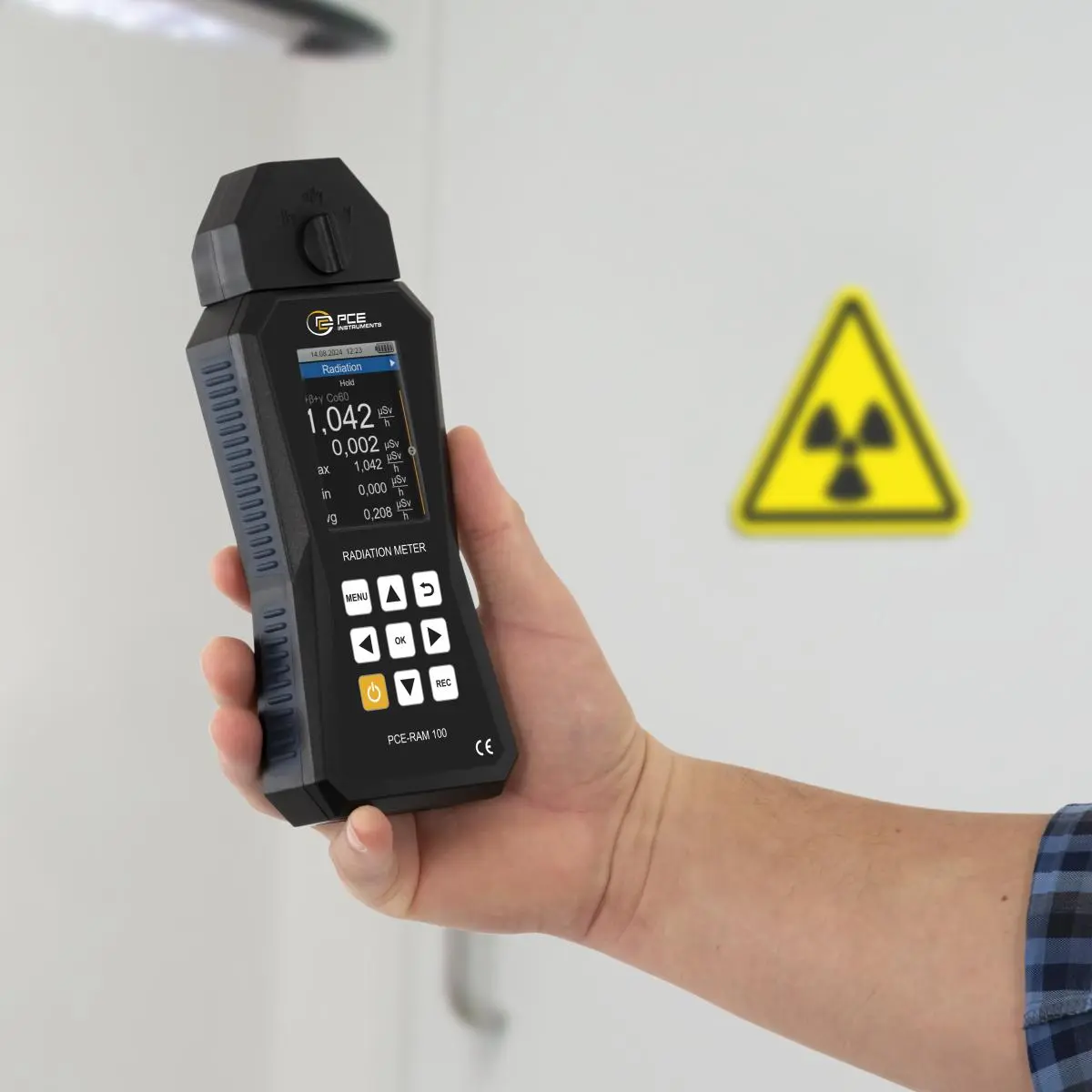

The Geiger Counter offers comprehensive measurement functions for α, β and γ radiation and is the test instrument of choice for professional radiation measurements. With the ability to precisely record the accumulated radiation dose and count the radiation in both cps (counts per second) and cpm (counts per minute), the Geiger Counter provides accurate and reliable measurement data at all times. The integrated data logger with 32 GB memory saves the measured values and allows them to be analysed in detail. The measurement history is shown graphically on the TFT colour display. Individual alarm limits can also be set in the Geiger Counter: a warning message appears if a certain radiation value or a defined radiation dose is exceeded.

Another feature of the Geiger Counter is the acoustic radiation pulse output. Each detected radiation pulse is made audible by a sound, which provides immediate feedback on the radiation activity in the environment. This function can also be deactivated. The integrated data logger can record up to 10 million measuring points at the touch of a key or after entering a start time.

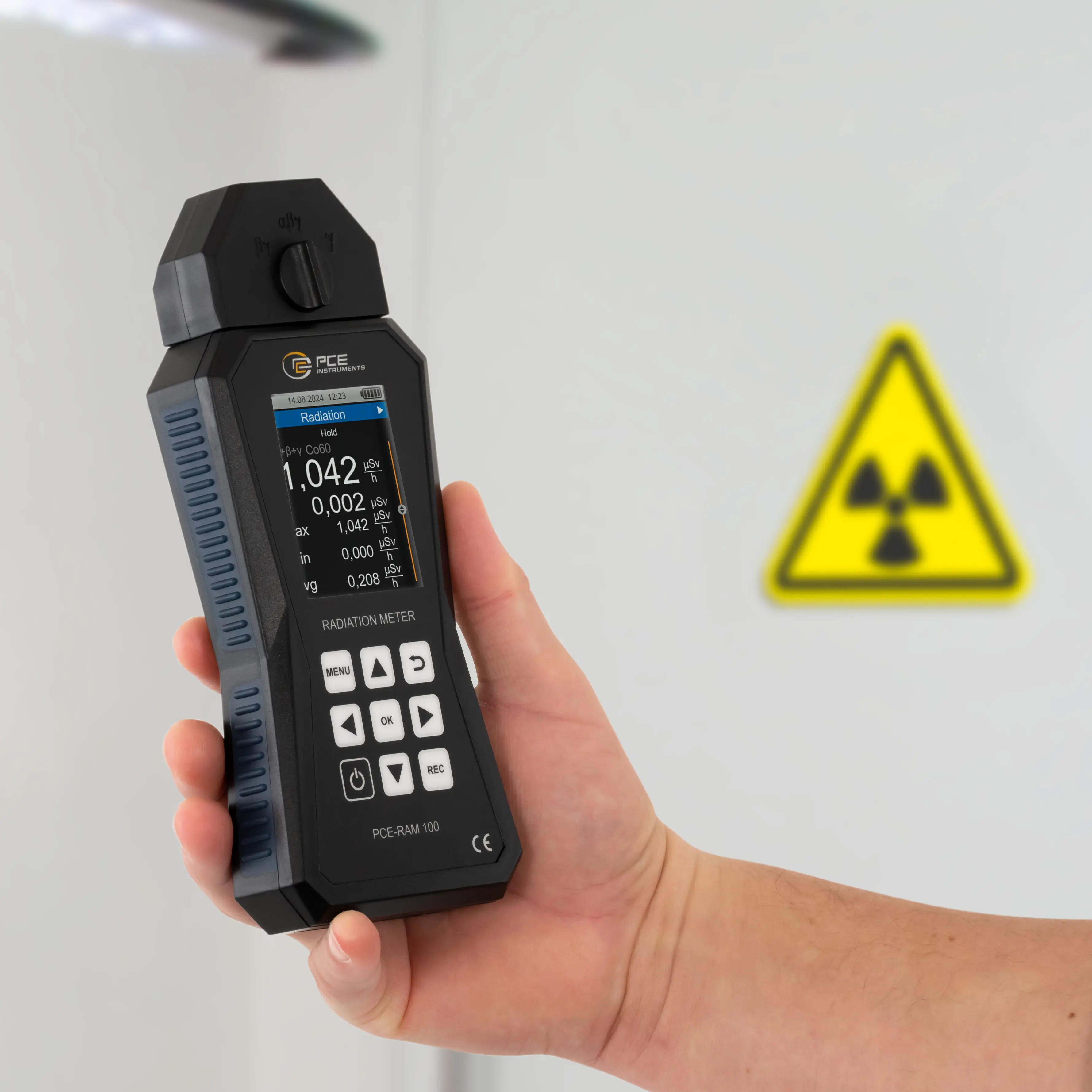

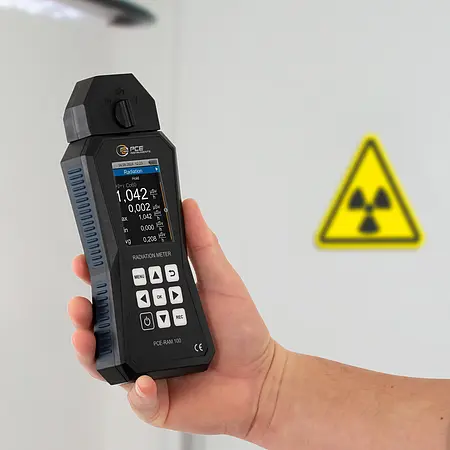

This Geiger Counter combines precision, ease of use and innovative technology - an indispensable tool for the safe handling of radioactive materials. Radiation protection officers and safety specialists use the Geiger Counter when they are exposed to radioactive environments but it can also be used quickly in scientific fields such as nuclear research, medical physics or for simple environmental monitoring.


Highlights

- α, β, γ radiation
- accumulated radiation dose

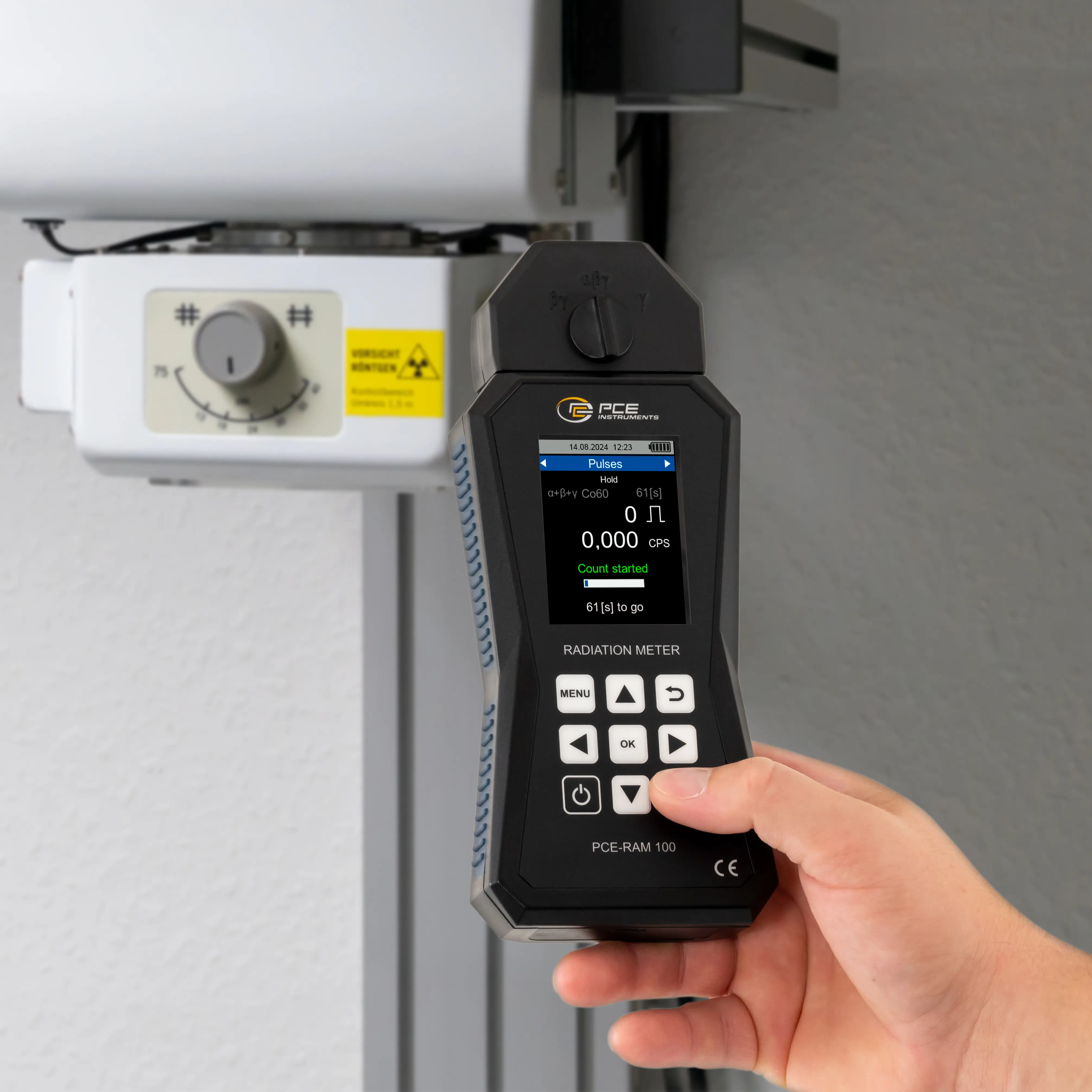

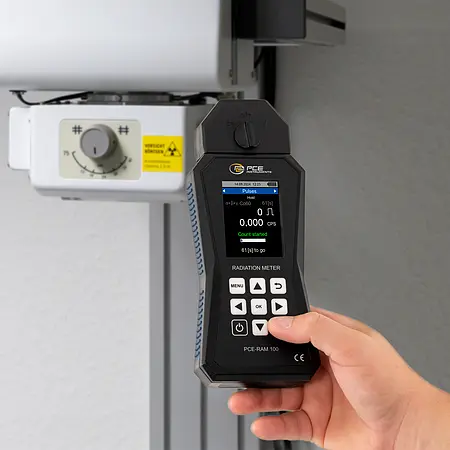

- pulse counting in cps and cpm
- data logger with 32 GB memory
- adjustable alarm
- graphical measurement history
- audible radiation pulse

Specification

Radiation
Measurement range up to  0 ... 1500 µSv/h
Resolution  0,001 µSv/h
Accuracy  <10 % of Rd (<1000 µSv/h)

Radiation
Measurement range up to  0 ... 150 mrem/h
Resolution  0,001 mrem/h
Accuracy  <10 % vof Rd (< 100 mrem/h)

Radiation
Measurement range up to  0 ... 9,9 Sv
Resolution  0,1 Sv
Accuracy  <10 % of Rd (< 100 µSv)

Radiation
Measurement range up to  0 ... 167000 cps
Resolution  1 cps
Accuracy  <10 % of Rd

Radiation
Measurement range up to  0 ... 9999999 cpm
Resolution  1 cpm
Accuracy  <10 % of Rd

General technical data
Measuring functions  MIN, MAX, Average value
Display type  TFT colour display
Display size  2,8 Inch
Storage medium  Internal memory
Storage capacity  32 GB
Memory capacity (additional information)  10 million measuring points
Storage interval from  1 s
Storage interval to  12 h

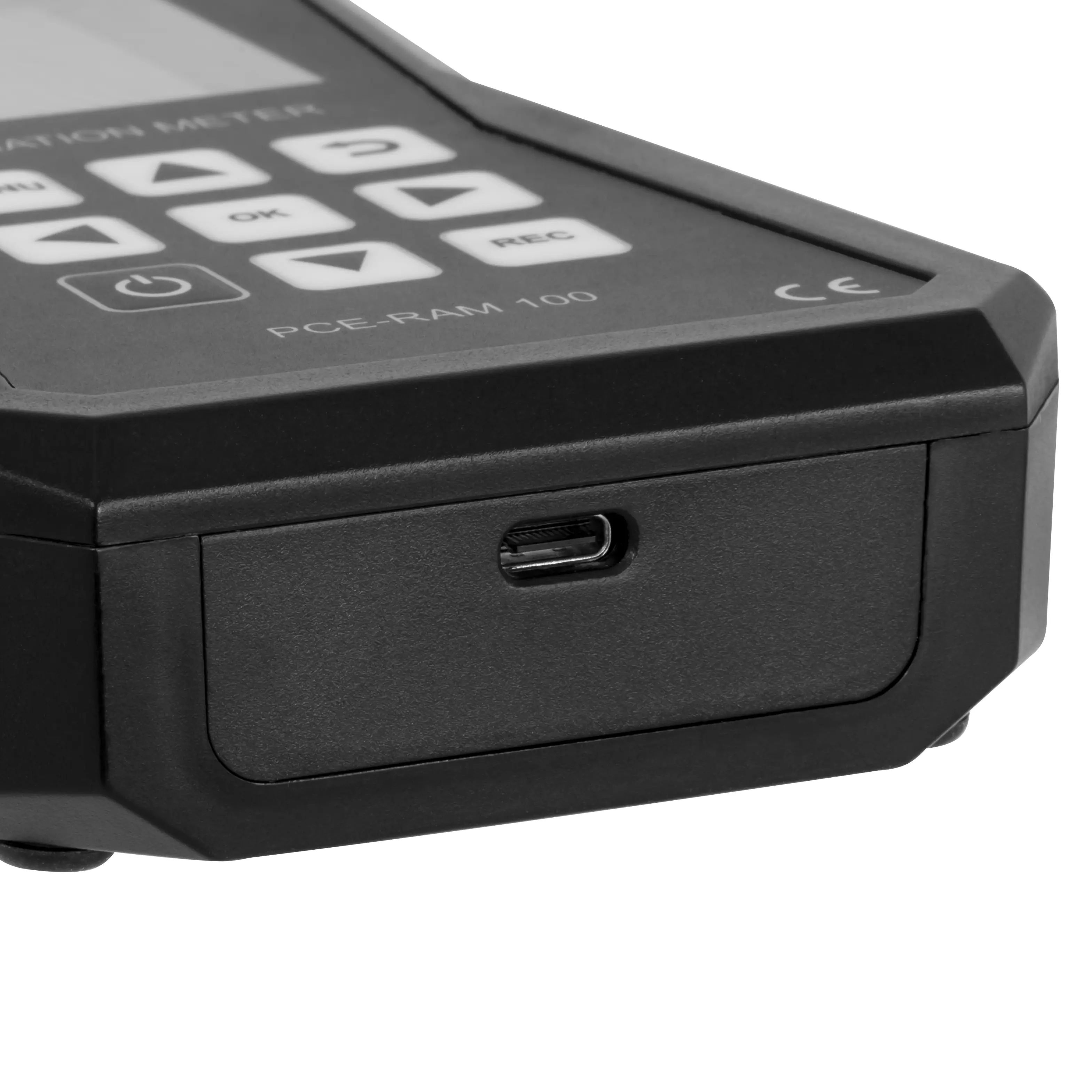

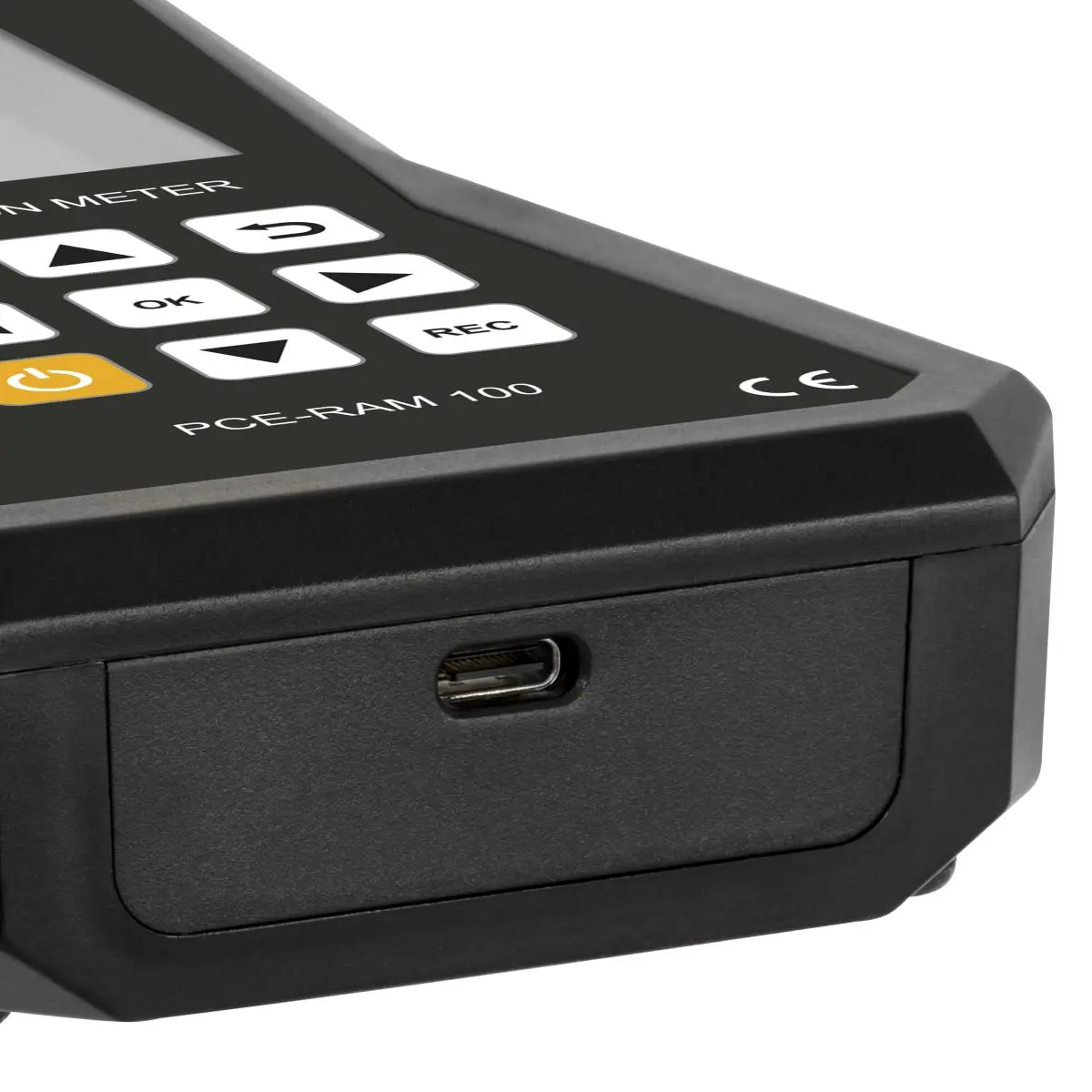

Interface  USB-C

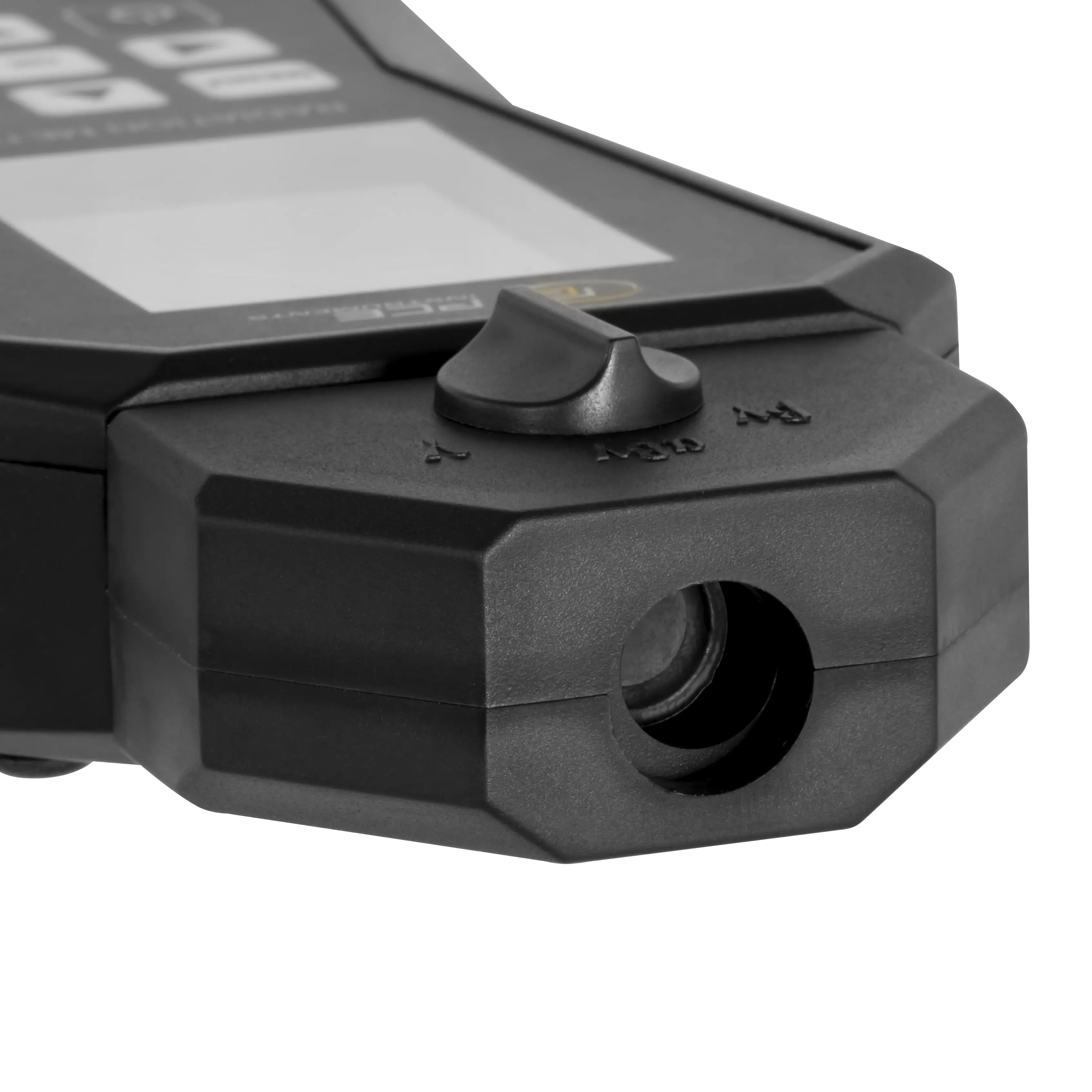

Sensor  Geiger-Mueller counter tube
Operating time  24 h
Operating time additional information  depending on display brightness and data logger settings
Automatic power-off from...to  1 ... 15 min.
Automatic power-off can be deactivated  Yes
Alarm  optical, Acoustic
Alarm modes  Radiation, radiation dose, number of pulses
Sensitivity  α-rays from 4 MeV
β-rays from 0.2 MeV
γ-rays from 30 keV
Menu language  German, English (GB), English, French, Spanish, Italian, Danish, Portuguese, Turkish, Polish, Russian, Chinese, Dutch, Japanese
Protection class (device)  IP52
Power supply  5 V DC, 500 mA (USB)
Weight  280 g
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Capacity  2500 mAh
Dimensions ( L x W x H )  208 x 85 x 37 mm

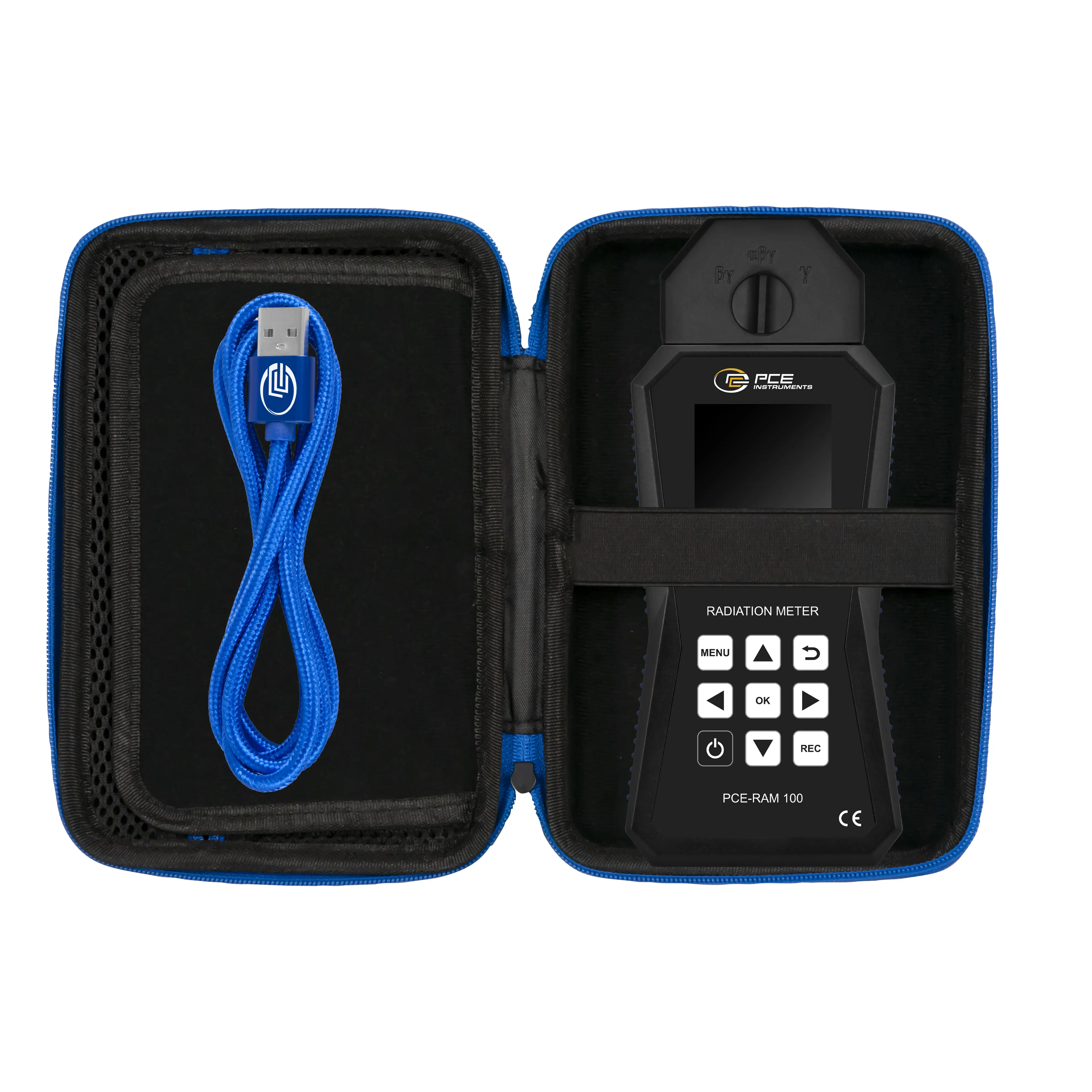

Delivery Scope

1 x PCE-RAM 100 Geiger Counter
1 x USB-C cable
1 x quick start guide
1 x service bag
