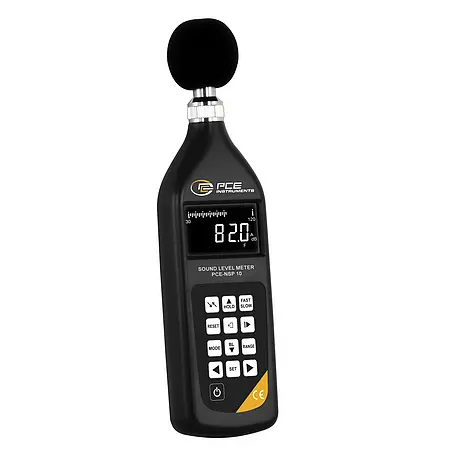

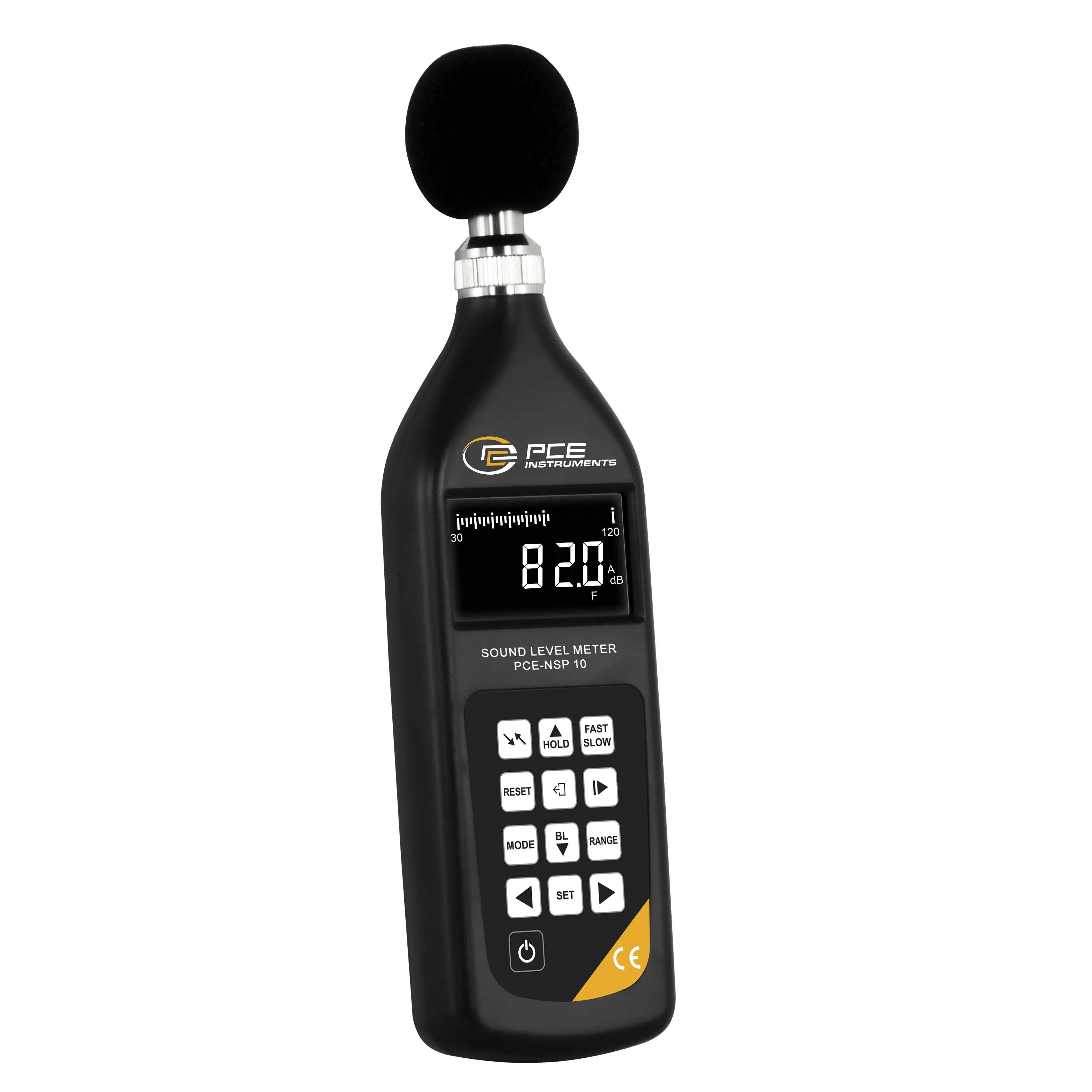

Health & Safety Sound meter PCE-NSP 10

Order no.: PCE-NSP 10
GTIN (EAN): 4250348733269
829,90 €
987,58 €
price ex. (VAT / delivery)
:
4250348733269
PCE-NSP 10
Delivery time: 1-2 working days

Description

Health & Safety Sound meter / measurement range: 20 ... 130 dB / measurement functions: HOLD, MAX and LEQ / time weighting: F, S and I / frequency weighting: A, C and Z / battery and mains operation

Thanks to its wide measurement range and versatile functions, our Health & Safety Sound meter is suitable for noise measurements in industry, the environment, occupational health and safety, at events and in research. Our Health & Safety Sound meter records and visualises sound levels within a range from 20 to 130 dB in three manual measurement ranges and offers various measurement functions such as Hold, Max and Leq value. The Health & Safety Sound meter supports time weighting F, S and I as well as frequency weighting A, C and Z and can record sound within a frequency range from 25 to 130 dB.

With operation modes for Leq, 1/1 and 1/3 octave filter measurements, it covers a wide range of measurement requirements. The internal memory function enables automatic storage of up to 12 data groups for octave band measurements. In addition, up to 800 individual measurements and regular measurements can be saved over a period of up to 6 days. These functions make Health & Safety Sound meter indispensable tools in acoustics to ensure both the protection of people and the quality of rooms and products. An RS232 interface can transfer the data via the optional software. An AC output is also available.

The Health & Safety Sound meter fulfils several standards, including IEC 61672-1, GB/T3785.2-2010 and IEC 1260-2014, all in class II, making it the ideal choice for standard-compliant measurements. The Health & Safety Sound meter is supplied with a windscreen in a practical carrying case.


Highlights

- measurement functions: HOLD, MAX, LEQ
- time weighting: F, S and I
- octave band measurement
- frequency range: 20 ... 8000 Hz
- frequency weighting: A, C and Z
- battery and mains operation

Specification

Sound level
Measurement range up to  20 ... 90 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB

Sound level
Measurement range up to  40 ... 110 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB

Sound level
Measurement range up to  60 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB

General technical data

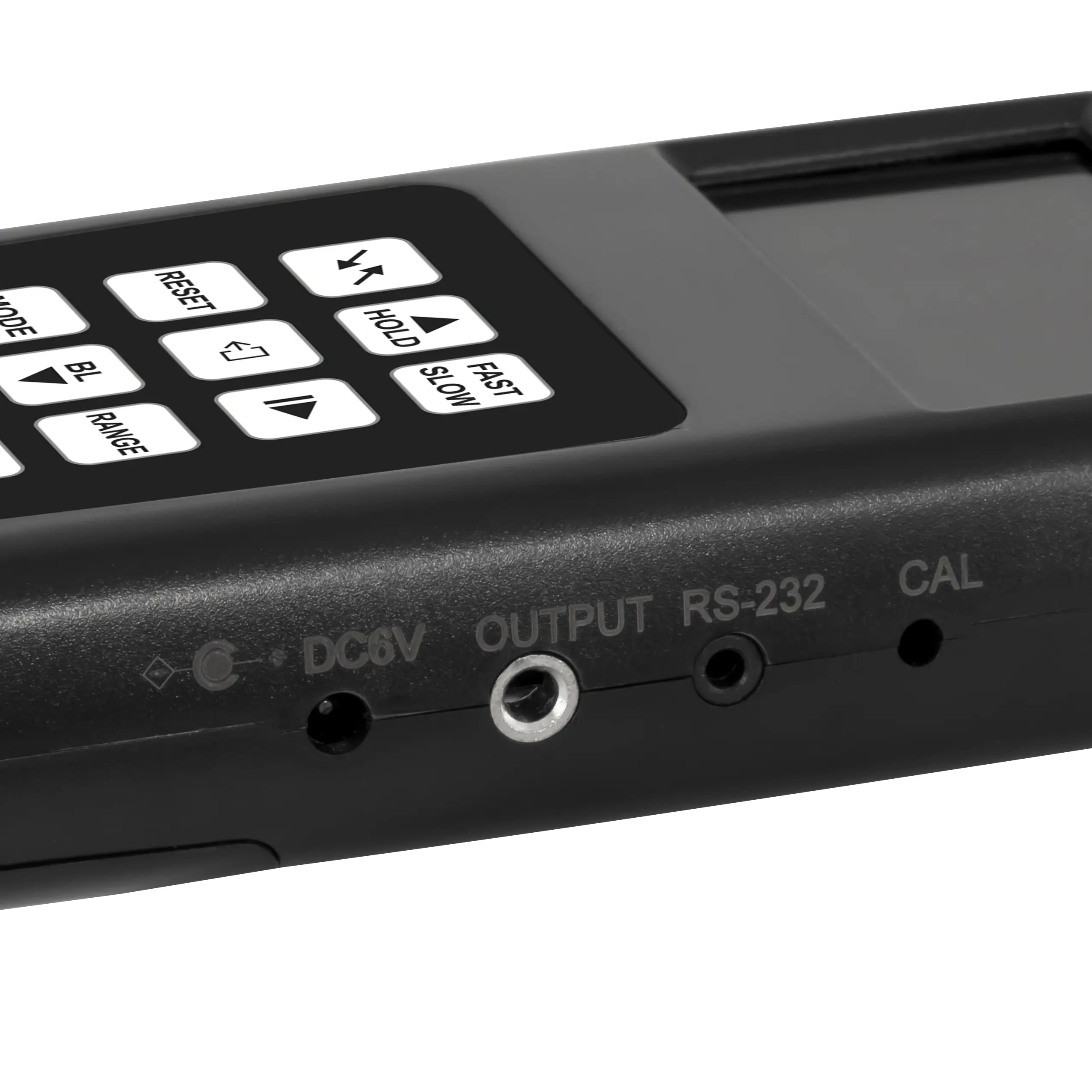

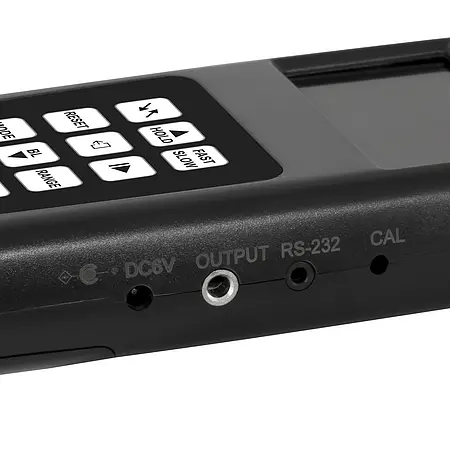

Outputs  AC signal (3.5 mm jack)
Measuring functions  HOLD, MAX, Leq
Measuring functions (additional information)  Working mode selection between:
- Leq
- 1/1-octave filter measurement
- 1/3-octave filter measurement
Connections  1/2 inch microphone
Time weighting  fast (125 ms), slow (1 s), Pulse (35ms)
Frequency  20 ... 8000 Hz
Frequency weighting  A, C, Z
Display type  LCD with backlight
Display size  2,2 Inch
Storage medium  Internal memory
Storage capacity  800 Data records
Memory information  - Frequency octave band measurement: automatic storage of up to 12 data groups
- Integration and statistics function: storage of up to 800 individual measurements

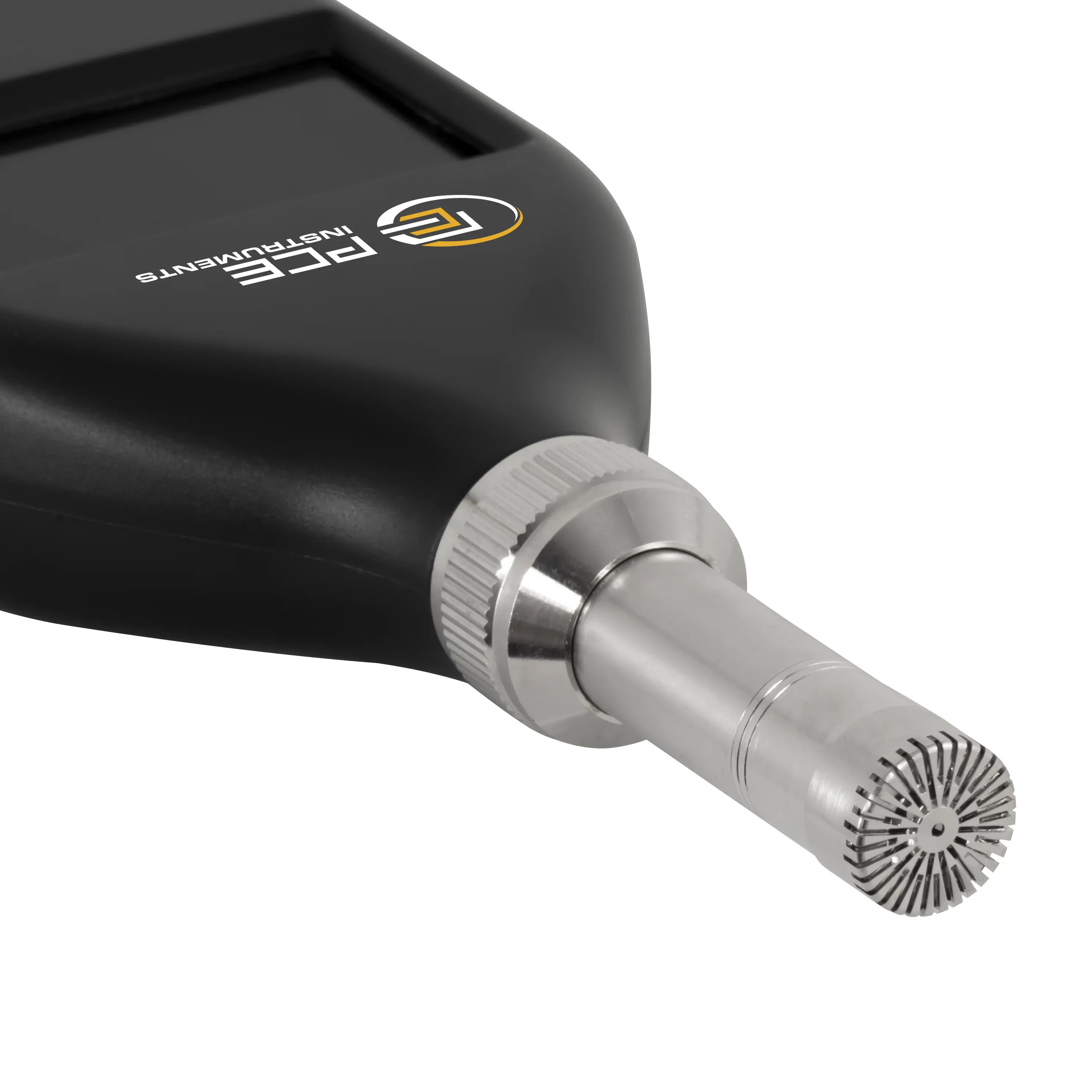

Microphone type  Condenser microphone
Interface  RS232
Standard(s)  IEC 61672-1 (Class II), GB/T3785.2-2010, JJG 188-2017, GB/T 3241-2014 (class II), IEC 1260-2014 (class II)
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  6 V DC
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  -10 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  230 x 65 x 25 mm
Weight  186 g

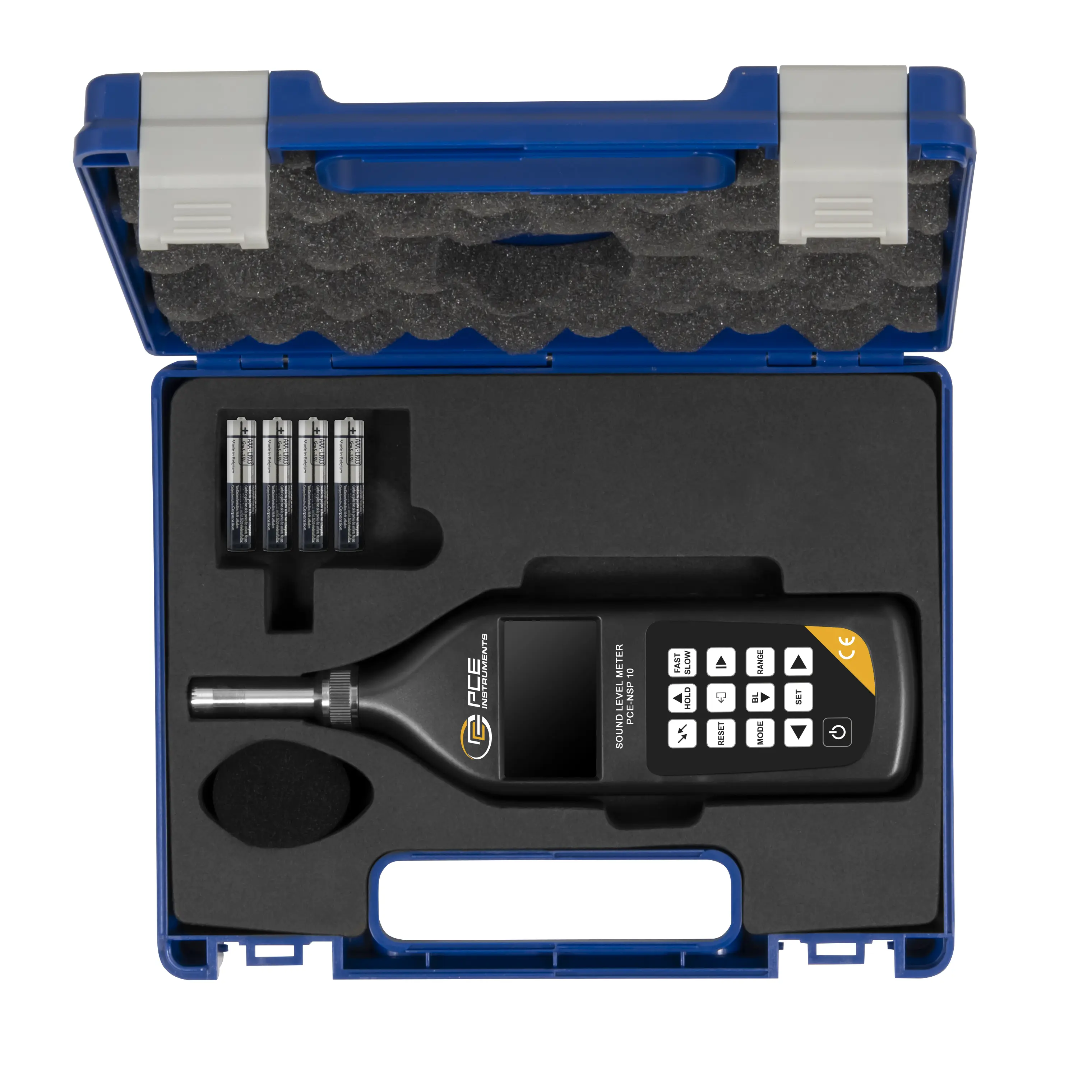

Delivery Scope

1 x Health & Safety Sound meter PCE-NSP 10
4 x 1.5 V AAA batteries
1 x carrying case
