Heat Pump Tester PCE-RVP 180 Vacuum Pump for Refrigerant Evacuation

Order no.: PCE-RVP 180
GTIN (EAN): 4250348733221
299,90 €
356,88 €
price ex. (VAT / delivery)
:
4250348733221
PCE-RVP 180
Delivery time: 5-7 working days

Description

Heat Pump Tester in Robust Housing / Flow Rate of 226 l/min / Filter for Reducing Oil Mist / Connections: 1/4" and 3/8"

The heat pump tester is equipped with a powerful motor that provides high torque. The motor power is 0.75 HP (550 W), ensuring reliable and efficient performance. With a high flow rate of 226 l/min., our heat pump tester is capable of efficiently extracting large volumes of refrigerants. The heat pump tester is equipped with connections of 1/4" and 3/8", allowing for versatility and adaptability to various refrigerant hoses and applications.

Our heat pump tester is equipped with a state-of-the-art filter element that effectively helps reduce oil mist. This filter element not only enhances the pump's lifespan but also ensures a cleaner working environment and contributes to environmental preservation. The ergonomically designed rubber handle enables secure transport and easy handling. An heat pump tester pump is used to evacuate air conditioning, refrigeration systems, or heat pumps before they are filled with refrigerant. This is crucial for removing moisture and air from the system, enhancing the efficiency of the air conditioning or heat pump.

Highlights

- For refrigerants (e.g., R12, R22, R134a)
- High torque and efficient motor
- Motor power: 0.75 HP (550 W)
- Flow rate: 226 l/min
- Connections: 1/4" and 3/8"
- Filter element to reduce oil mist
- Comfortable and sturdy rubber handle

Specification

General Technical Data
Connection Type1/4" SAE, 3/8" SAE
Motor Power0.75 HP
Flow Rate226 l/min
Oil Capacity660 ml
Ultimate Vacuum150 Microns
Protection ClassIP20
Power SupplySchuko Plug (230V AC)
Weight13.54 kg
Device Weight with Accessories13.6 kg
Device Weight with Accessories and Packaging15 kg
Dimensions (L x W x H)390 x 140 x 260 mm
Operating Conditions5 ... 40 °C, 20 ... 80 % r.F.
Storage Conditions5 ... 40 °C, 20 ... 80 % r.F.

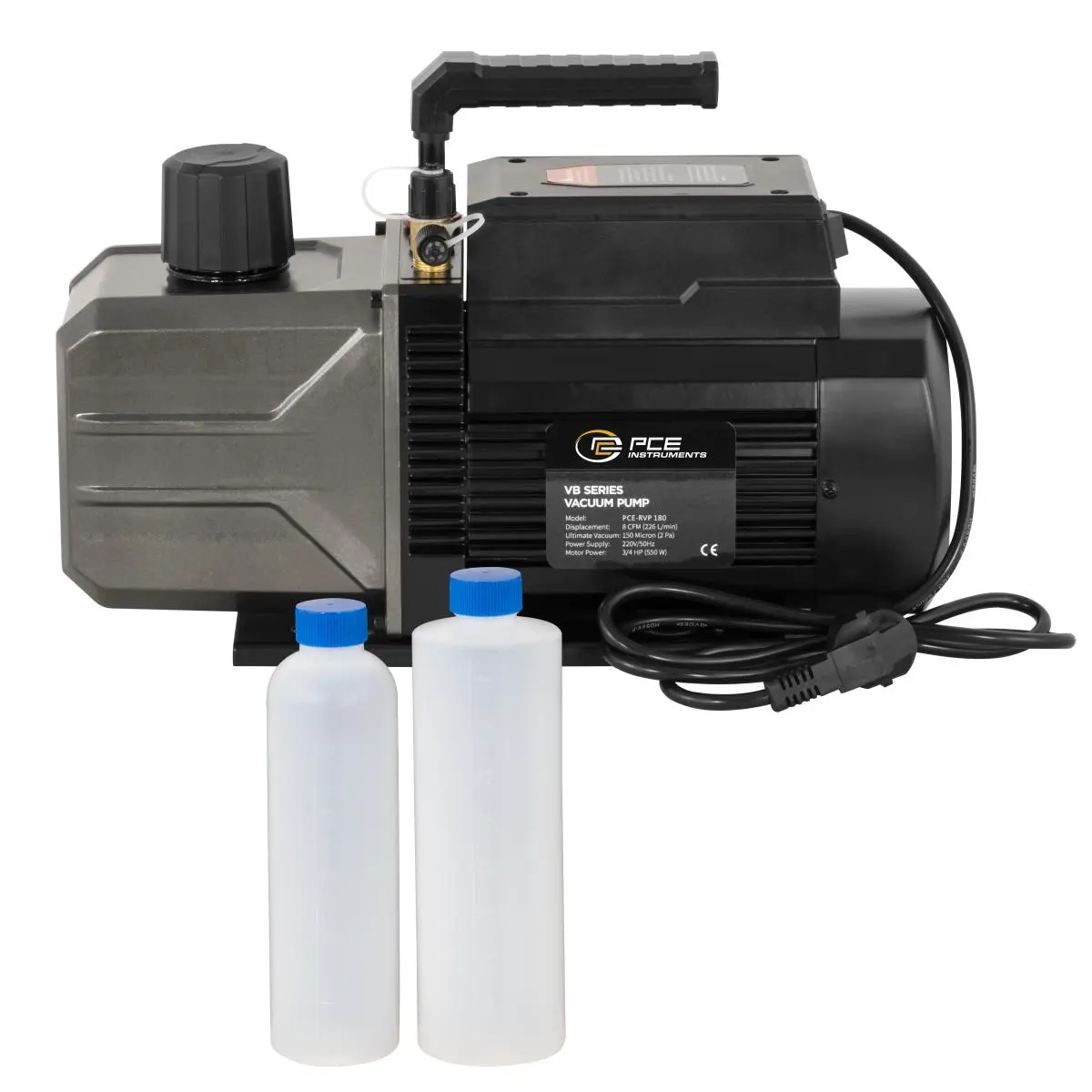

Delivery Scope

1 x Heat Pump Tester PCE-RVP 180
1 x 300 ml bottle
1 x 450 ml bottle
1 x User Manual
