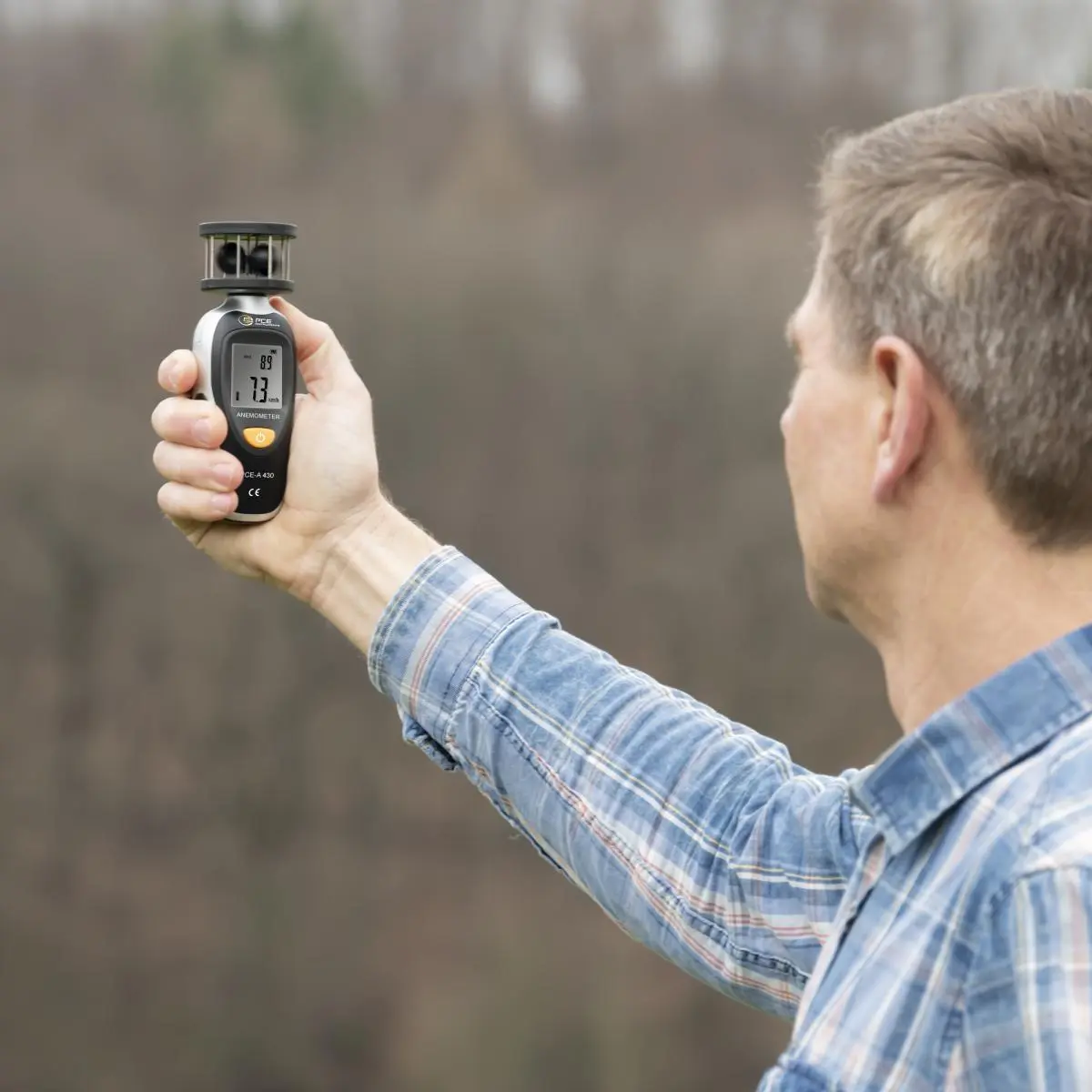

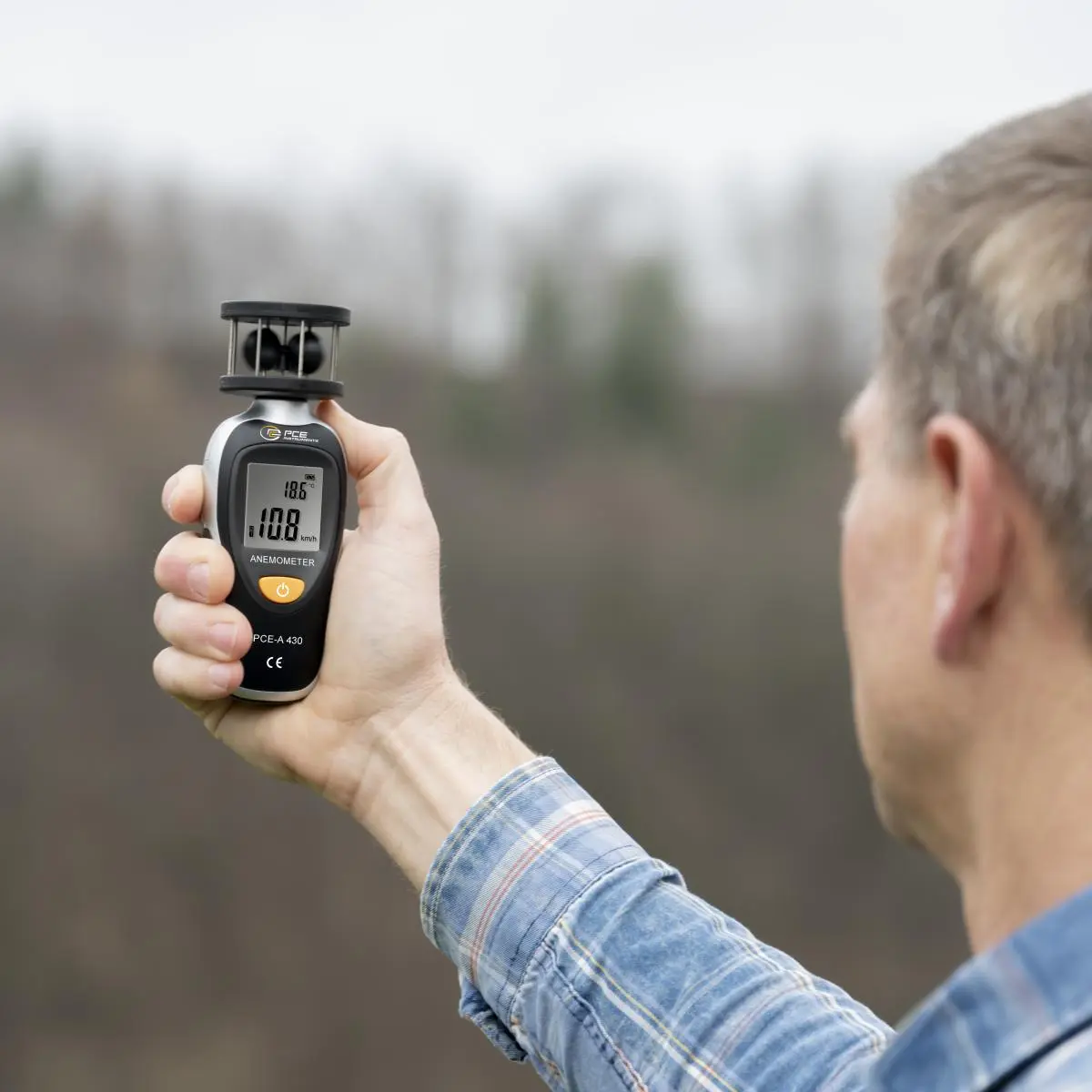

The HVAC meter enables wind speed measurements up to 105 km/h and is versatile in use. The HVAC meter is equipped with an integrated temperature sensor that measures both Celsius and Fahrenheit. The functions for maximum and average wind speed enable effective monitoring of the measurement results.

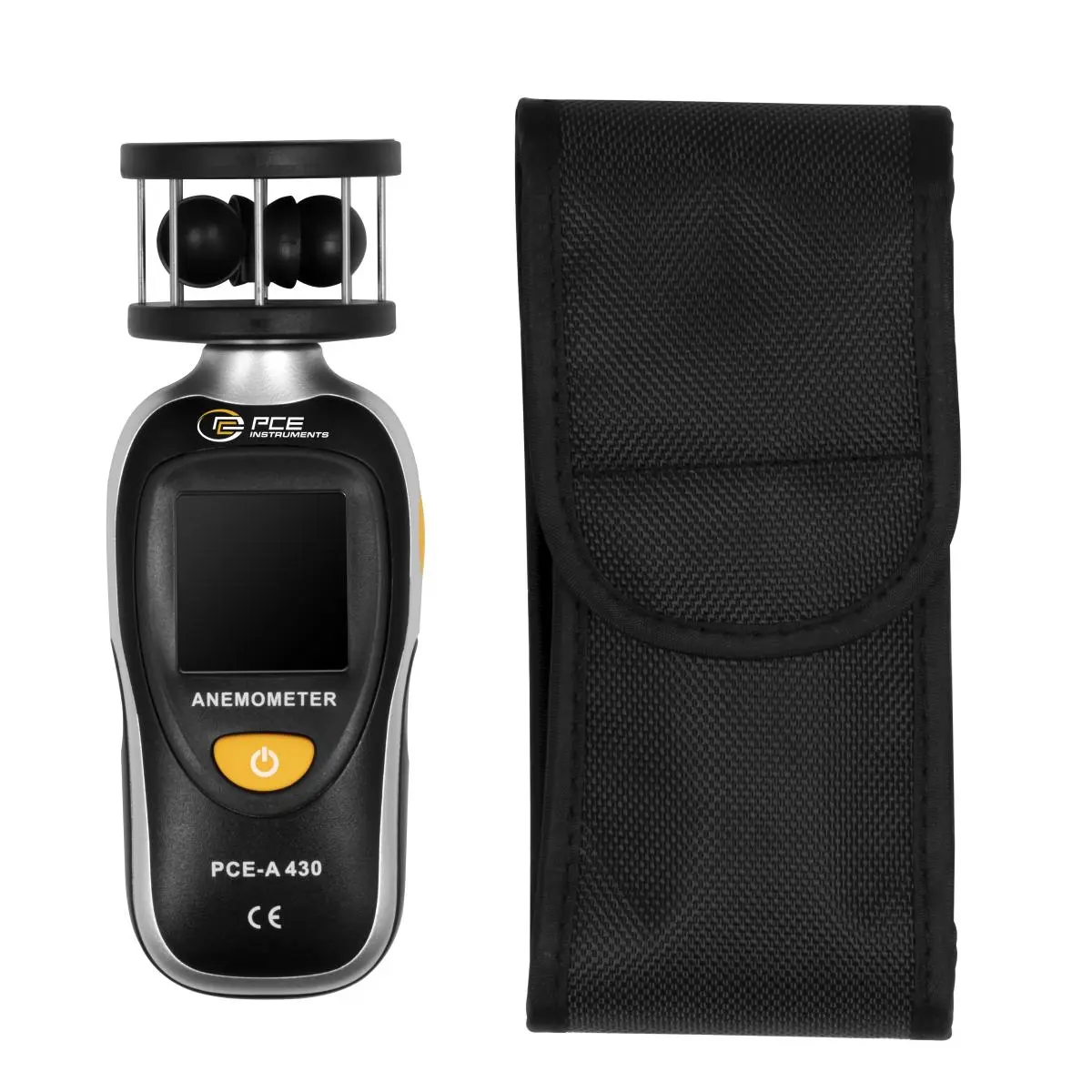

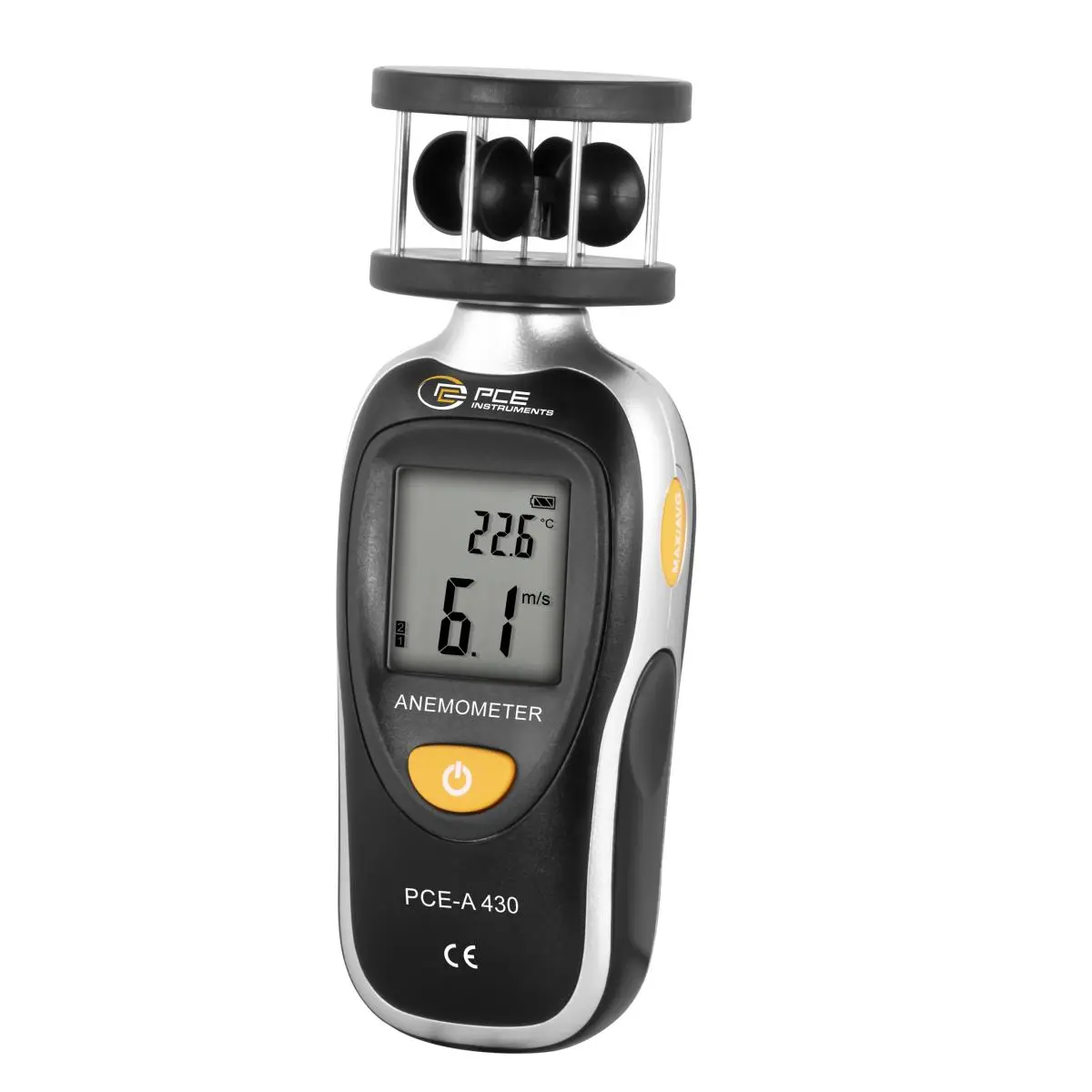

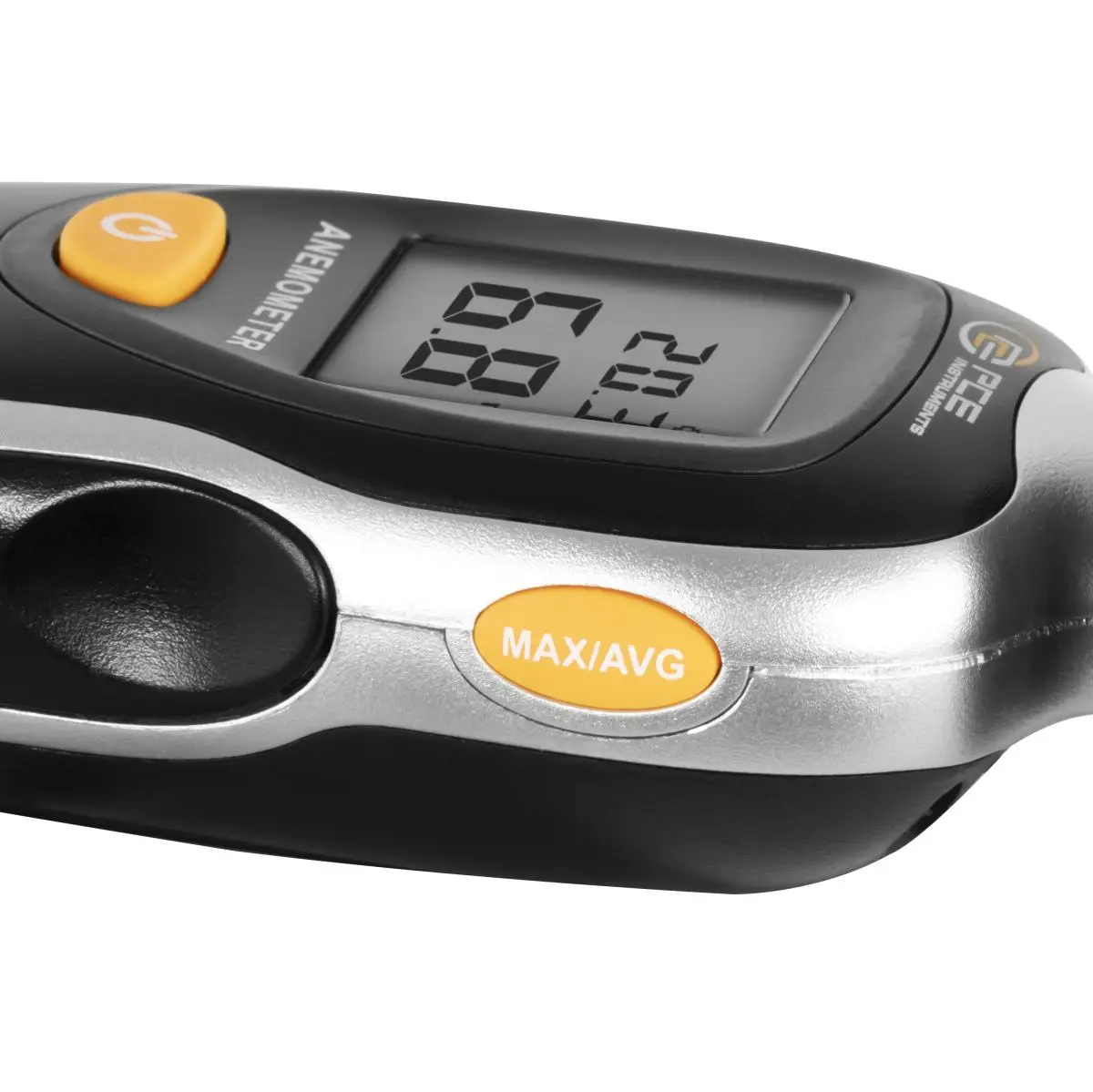

The HVAC meter enables measurements in various units such as m/s, km/h, kn and mph and also has a Beaufort scale for quick assessment of the wind force. The easy-to-read LCD display with backlighting ensures optimum readability in all lighting conditions. The automatic switch-off function after 15 minutes of inactivity extends the battery life to at least approx. 30 hours. The HVAC meter is supplied with a practical carrying case for travelling.
| Speed | |
| Measuring range | 0.7 m/s ... 30 m/s |
| Resolution | < 20: 0.1 m/s / > 20: 1 m/s |
| Accuracy | ±(4 % +2 digit) |
| Speed | |
| Measuring range | 2.5 km/h ... 105 km/h |
| Resolution | < 20: 0.1 km/h / > 20: 1 km/h |
| Accuracy | ±(4 % +2 digit) |
| Speed | |
| Measurement range | 1.5 mph ... 67 mph |
| Resolution | < 20: 0.1 mph / > 20: 1 mph |
| Accuracy | ±(4 % +2 digit) |
| Speed | |
| Measurement range | 1.3 knots ... 58.3 knots |
| Resolution | < 20: 0.1 nodes / > 20: 1 nodes |
| Accuracy | ±(4 % +2 digit) |
| Temperature | |
| Measuring range | -20 °C ... +50 °C |
| Resolution alt | 0.1 °C |
| Accuracy | ±1.5 °C |
| Temperature | |
| Measuring range | -4 °F ... +122 °F |
| Resolution | 0.1 °F |
| Accuracy | ±2.7 °F |
| General technical data | |
| Measurement functions | MAX, average value |
| Units | m/s, km/h, kn, mph |
| Display type | LCD with illumination |

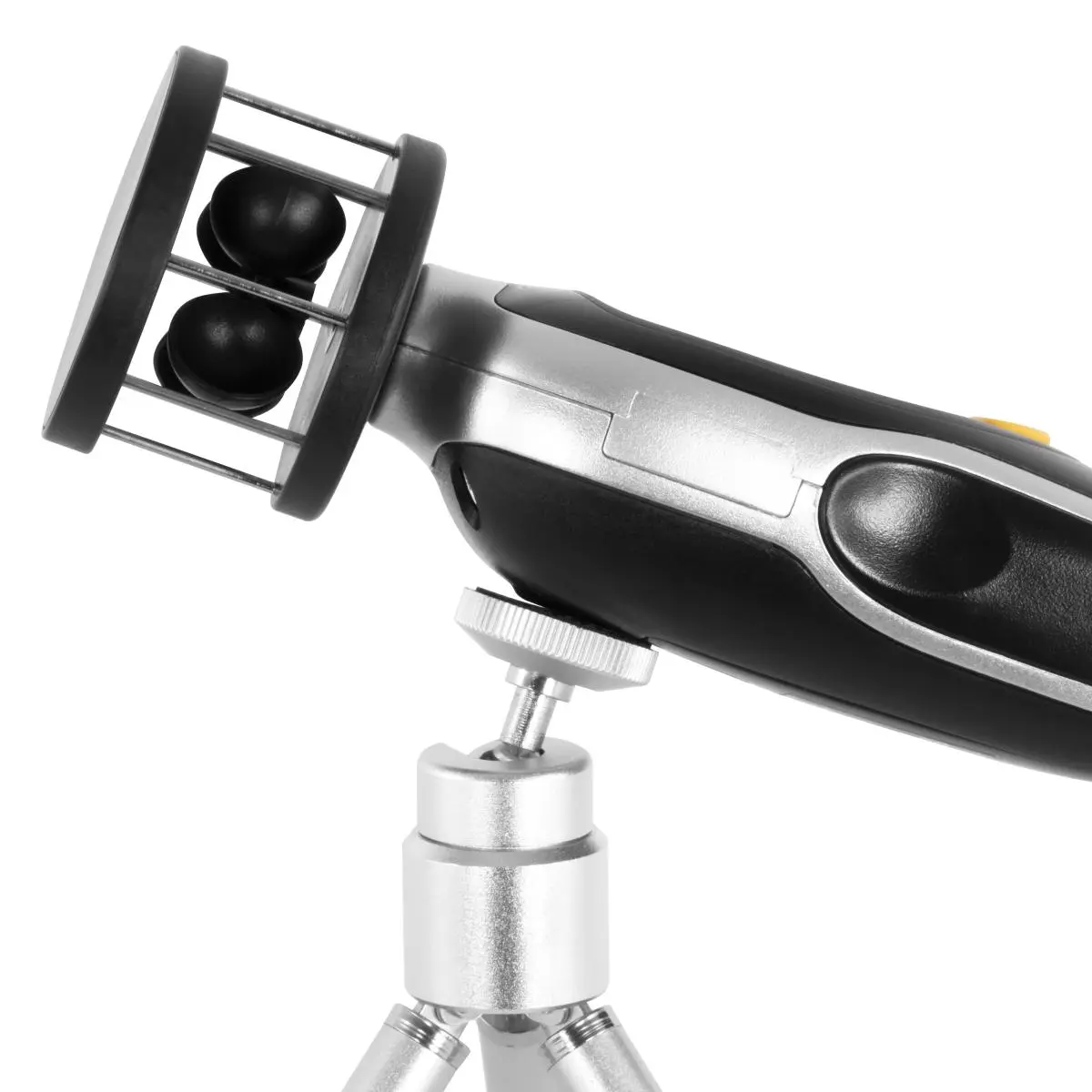

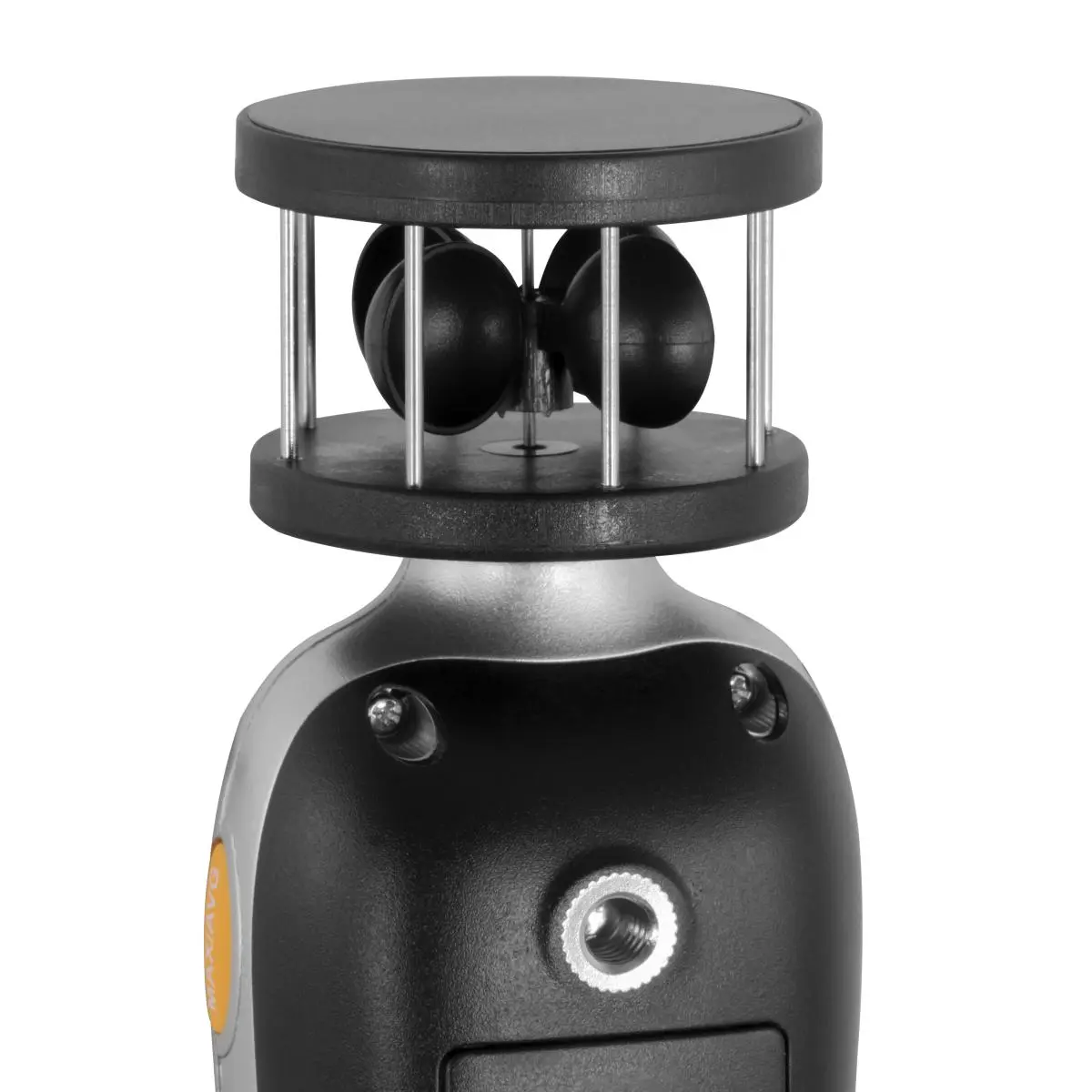

| Sensor | Shell cross |
| Automatic switch-off | 15 min |
| Menu language | English |
| Protection class (device) | IP20 |
| Weight | 36.5 g |
| Dimensions (L x W x H) | 145 x 55 x 48 mm |
| Operating conditions | -20 ... 60 °C , 10 ... 90 % r.H |
| Storage conditions | -20 ... 60 °C , 10 ... 75 % r.H |
