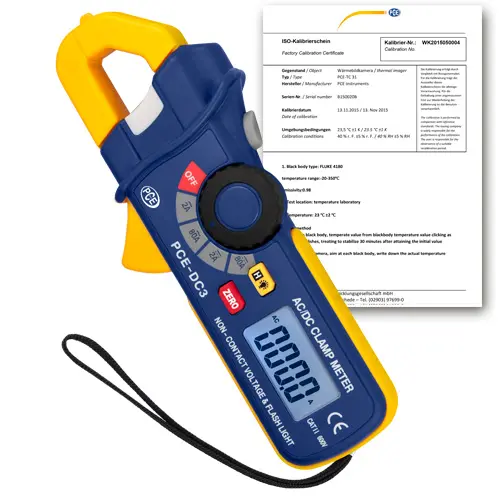

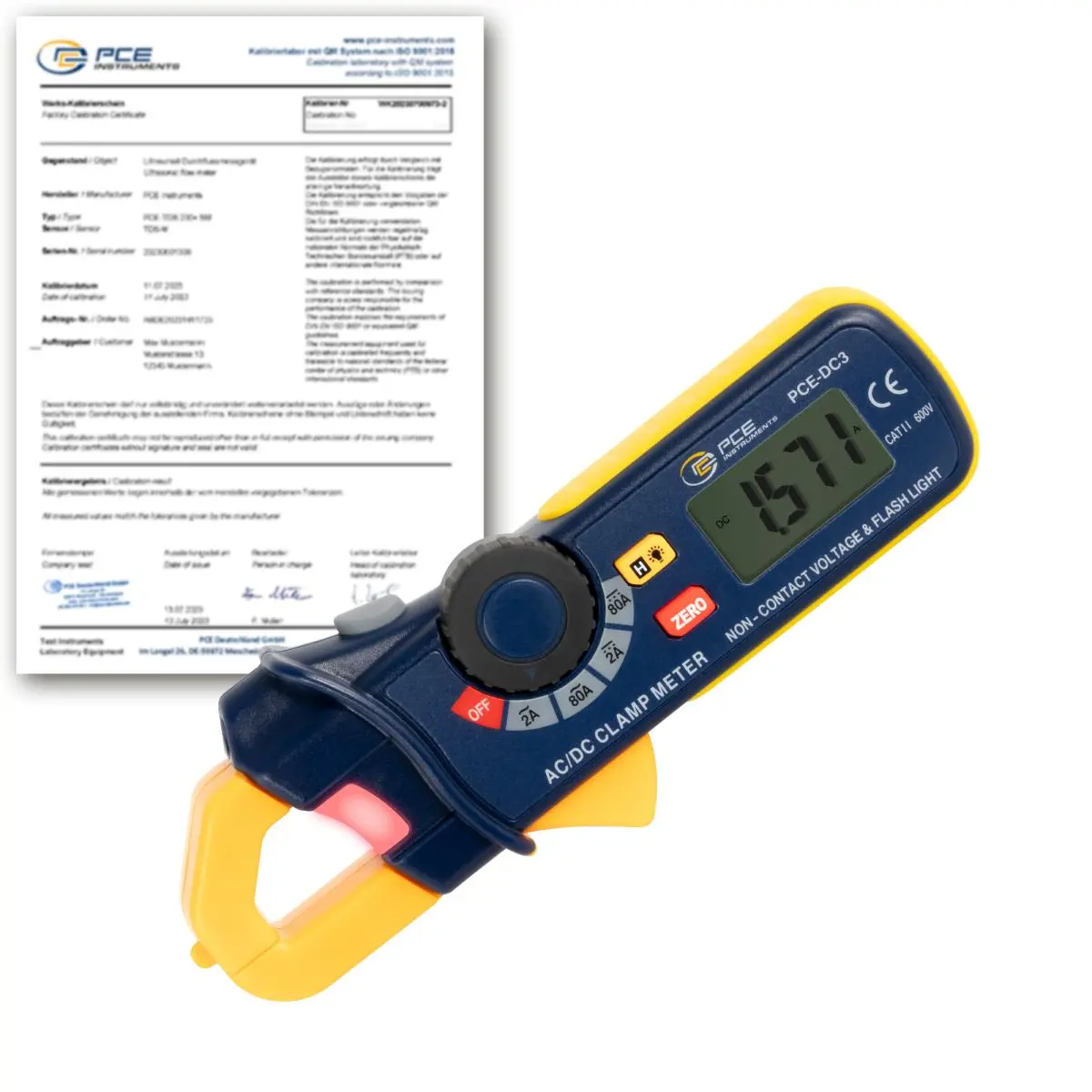

HVAC Meter PCE-DC3-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC3-ICA
GTIN (EAN):
256,90 €
305,71 €
ISO Calibration
price ex. (VAT / delivery)
PCE-DC3-ICA
Delivery time: 10 - 14 days

Description

HVAC Meter
DCA zero point function / AC/DC current measurement up to 80 A /
Automatic range selection / Clamp opening: 18 mm / 0.7" / incl. ISO Calibration Certificate

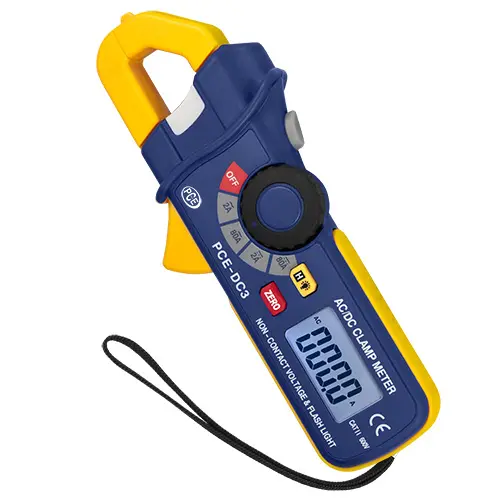

This HVAC meter was developed for the indirect measurement of AC/DC currents with high resolution. A non-contact voltage tester function and a torch/flashlight for illuminating the measuring point have also been integrated into this clamp meter. The small dimensions of this amperage clamp enable it to be used in places that are difficult to access.

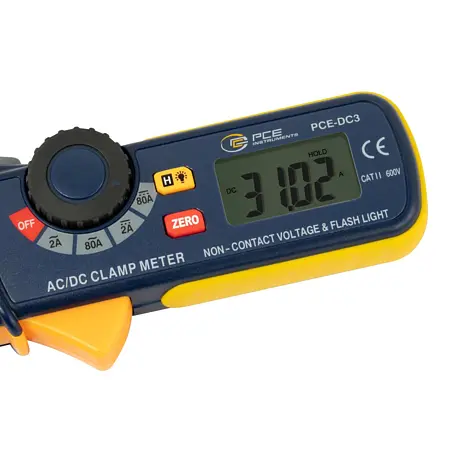

The large, illuminated display of these measuring clamps ensures very good readability even in dark locations, such as in switch cabinets and cable ducts. The non-contact voltage tester function not only supports you in the detection of dangerous voltage potentials, but also gives you a precise tool for determining cable break positions in cable reels, extension cables and appliance connection cables.

Highlights

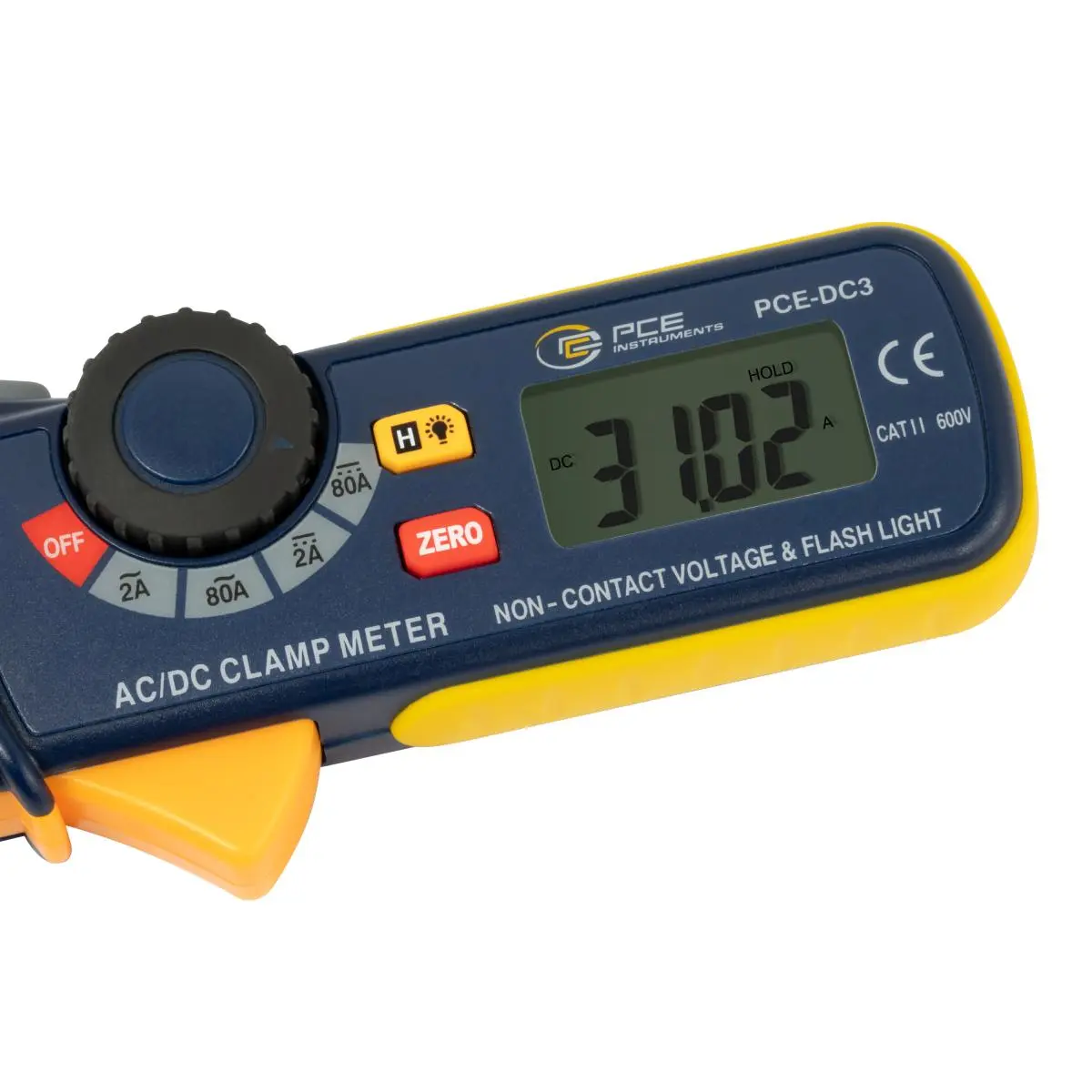

- 4 digit LCD display with backlighting
- AC/DC current measurement up to 80 Amps
- Save function
- DCA zero rest function
- Current tester, non-contact

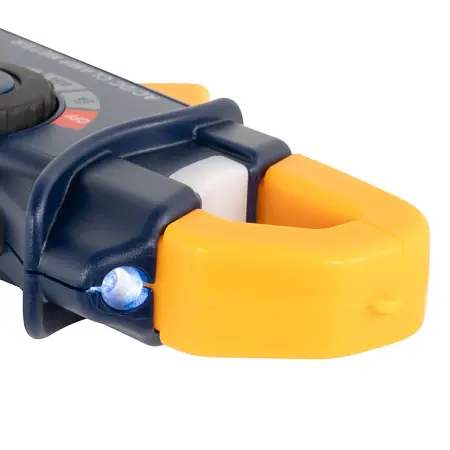

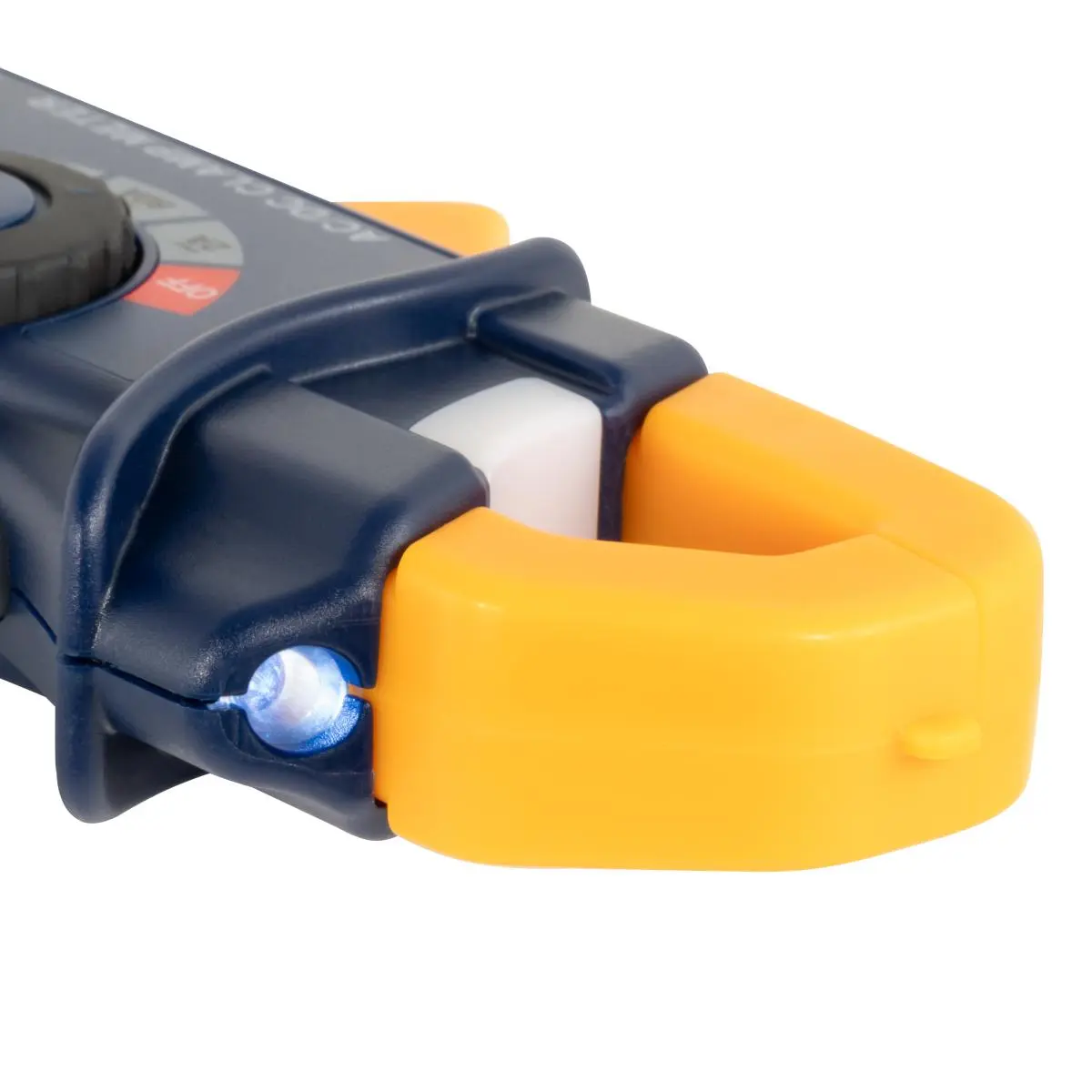

- Integrated light to illuminate measured area
- Automatic range selection
- Automatic disconnect

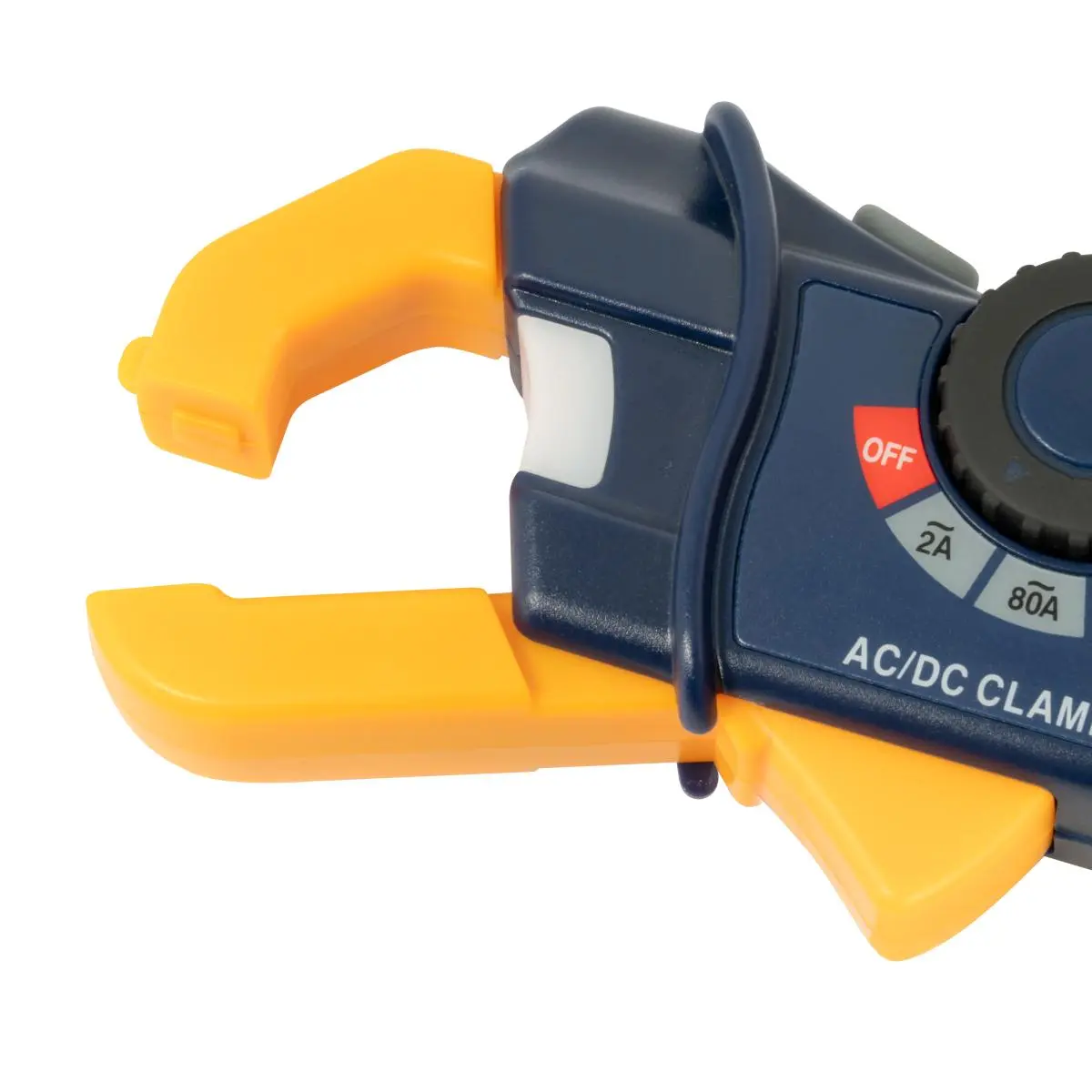

- Clamp diameter: 18 mm / .7 in
- Incl. ISO Calibration Certificate

Specification


AC current
(50 / 60 Hz)
Range / Resolution / Accuracy
2 A  / 1-mA / ± 2.8% + 10 dgt
80 A / 100-mA / ± 3.0% + 8 dgt
DC current Range / Resolution / Accuracy
2 A / 1-mA / ± 3.0% + 10 dgt
80 A / 100-mA / ± 3.0% + 8 dgt
AC overload protection
(Non-contact)
100V AC up to 600V AC 50 / 60 Hz
Flashlight illumination White LED
Conductor diameter 18 mm / 0.7 in maximum
Display 3 2/3 digit LCD display with backlighting

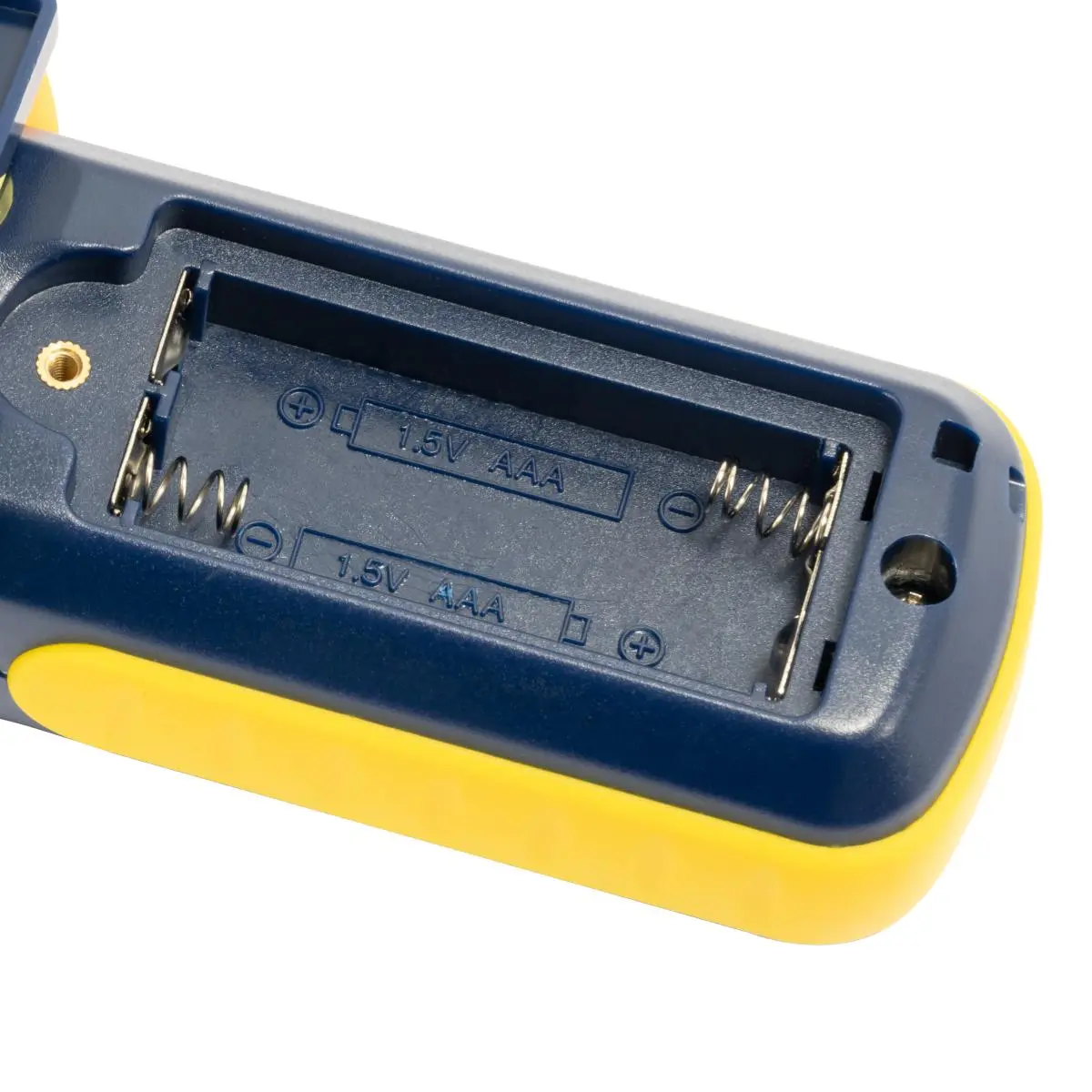

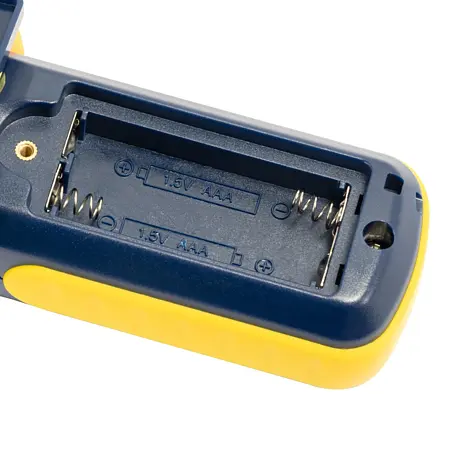

Power 2 - 1.5V AAA batteries
Casing PVC
Dimensions 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in
Weight 175 g / < 1 lb
Standards EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V

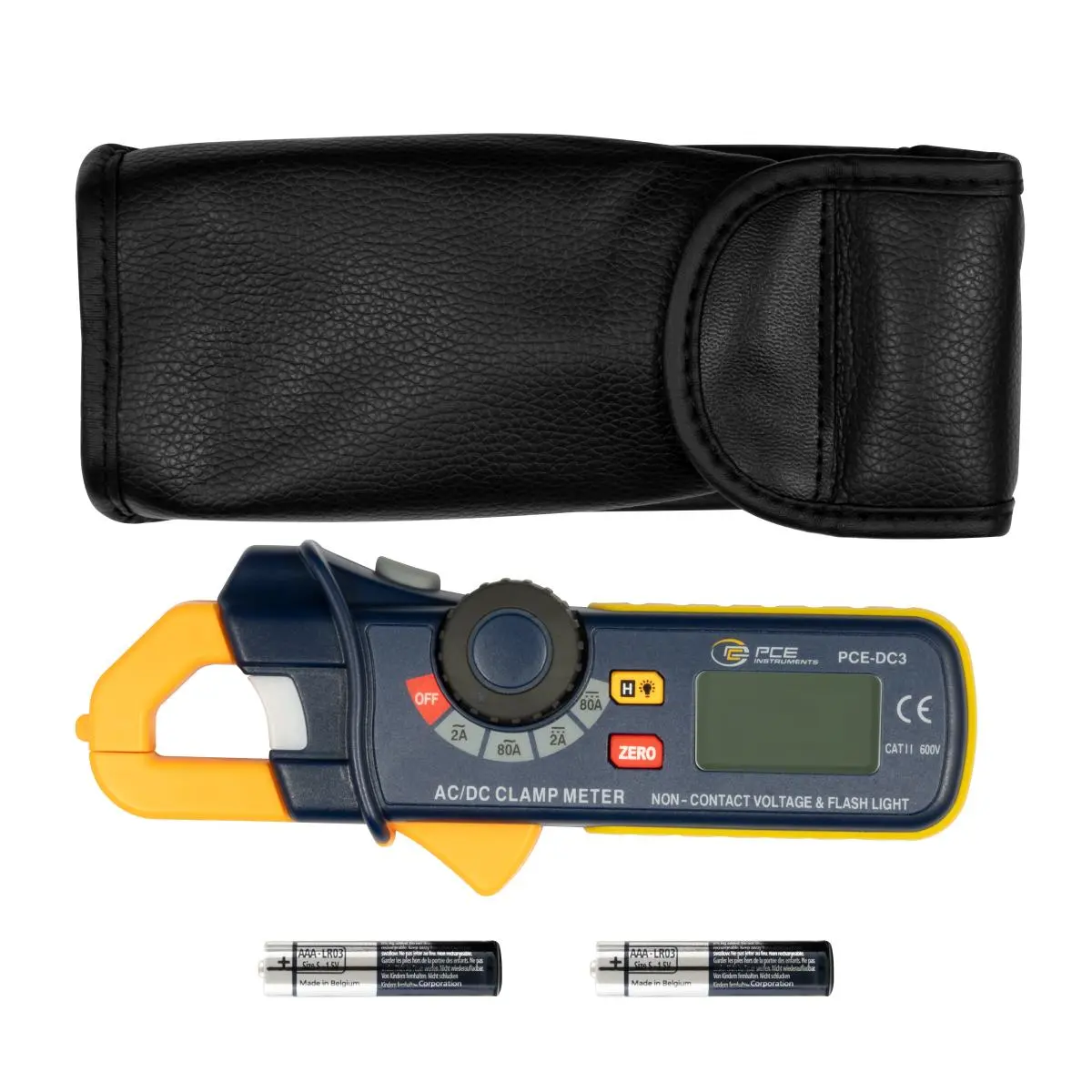

Delivery Scope

1 x HVAC meter PCE-DC 3
1 x Case
2 x Batteries
1 x User's manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
