HVAC Meter PCE-TC 30N

Order no.: PCE-TC 30N
GTIN (EAN): 4250348720313
756,90 €
900,71 €
price ex. (VAT / delivery)
:
4250348720313
PCE-TC 30N
Delivery time: 1-2 working days

Description

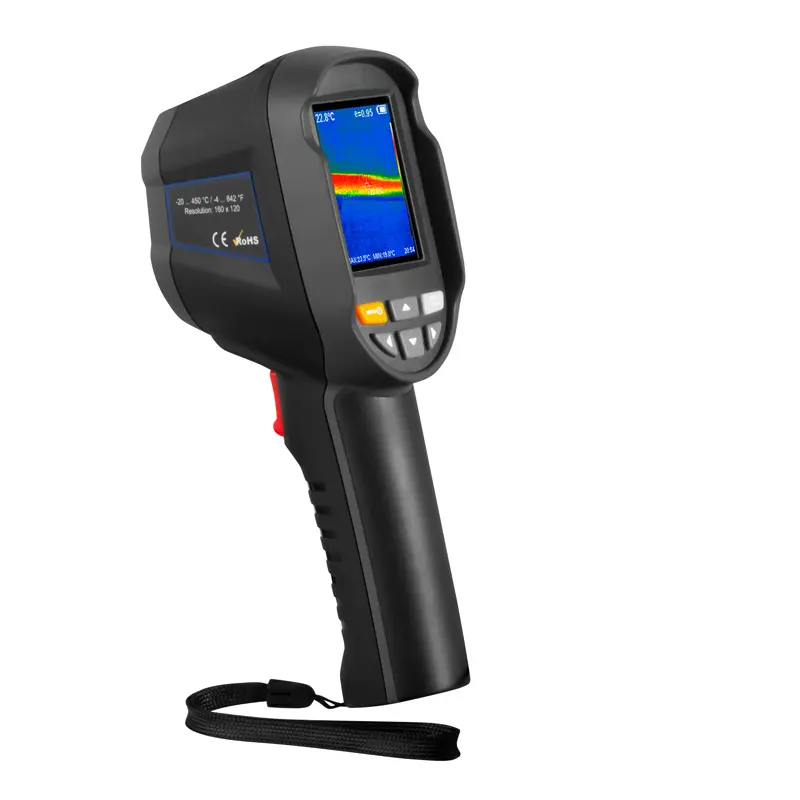

HVAC Meter PCE-TC 30N
Maintenance tool - Infrared thermometer for maintenance with a measuring range up to 450°C (842°F) / 160 x 120 pixels / Image memory for more than 20000 images / Thermal sensitivity ≤ 0.1°C (0.18°F) / Measuring rate 9 Hz / Fixed focus / Different color palettes / Image format JPG

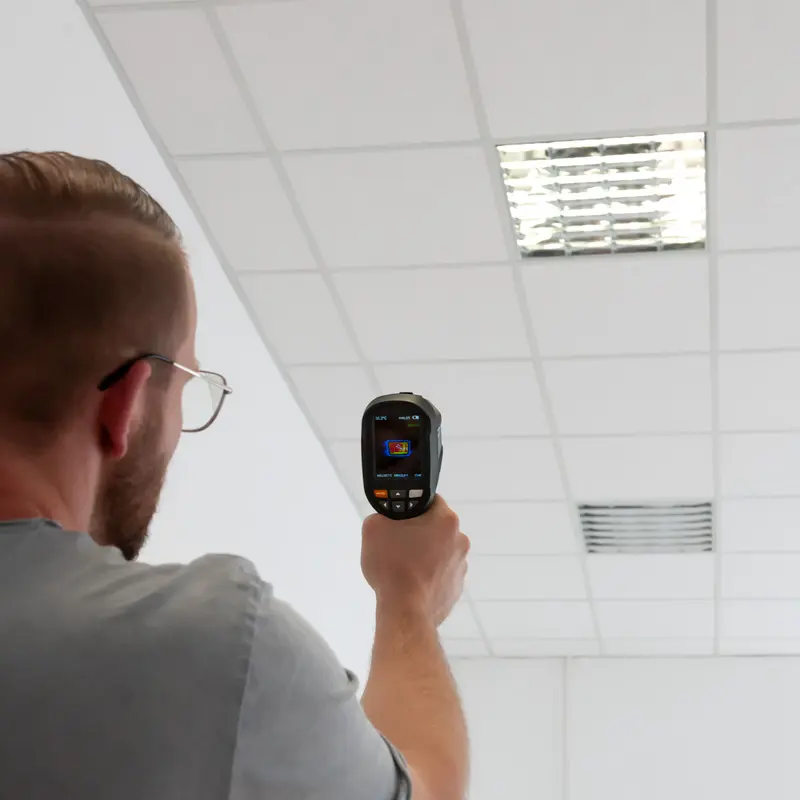

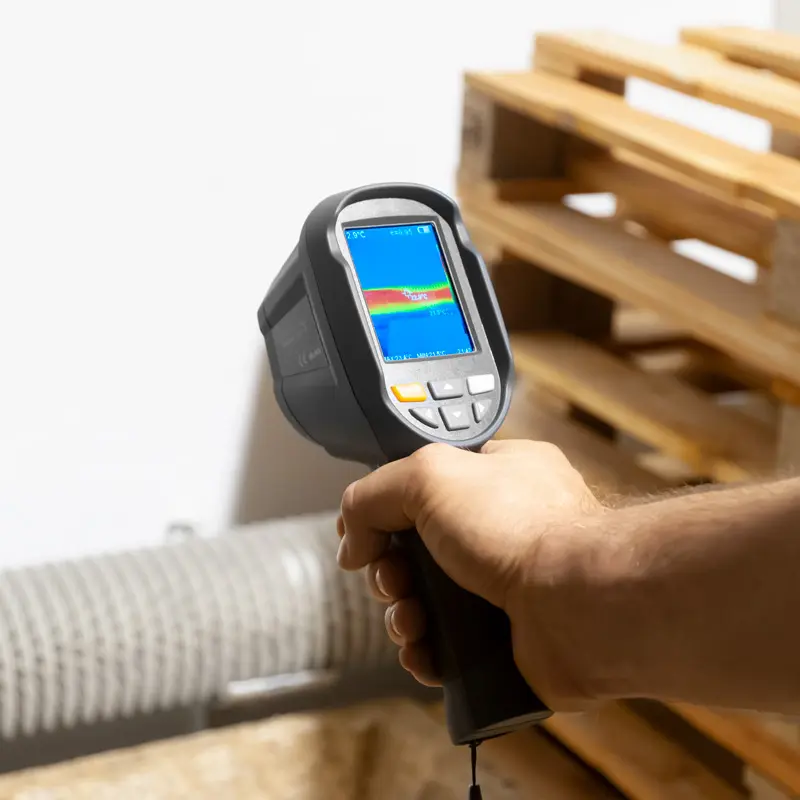

The HVAC meter for preventive maintenance is the ideal tool for preventative maintenance. This thermal imaging camera is a must-have for electricians, fitters, or general maintenance personnel for trouble shooting and fault prevention on electrical equipment, electromechanical equipment, production process machinery, heating, ventilation, and air conditioning systems, especially when working in harsh environments. The operator can use the PCE-TC 30N high-resolution thermal imaging camera for preventive maintenance, to detect evolving faults on machinery and equipment. The preventive maintenance and service is thus made easy.

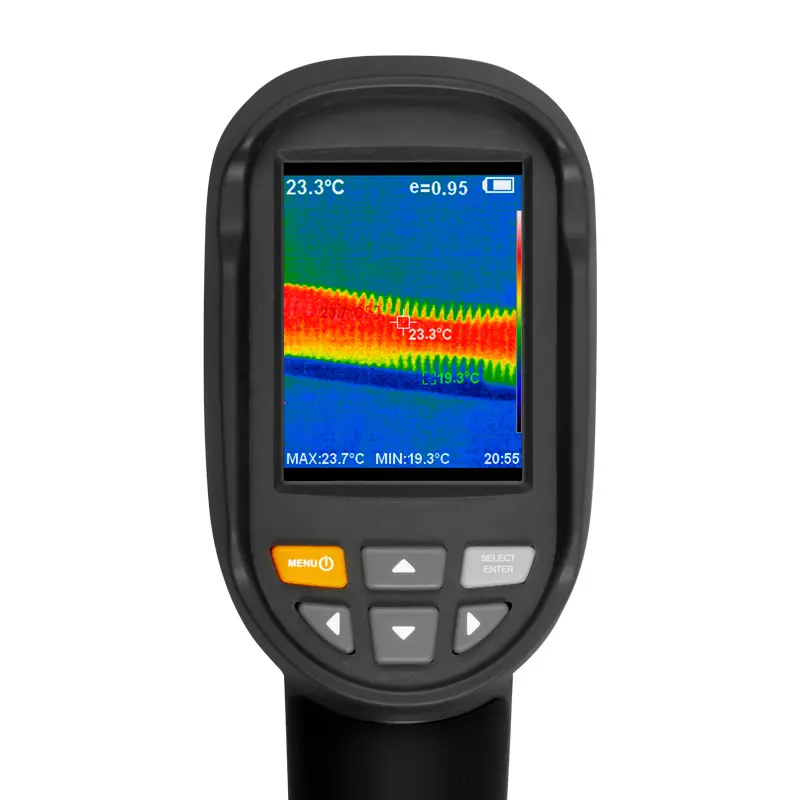

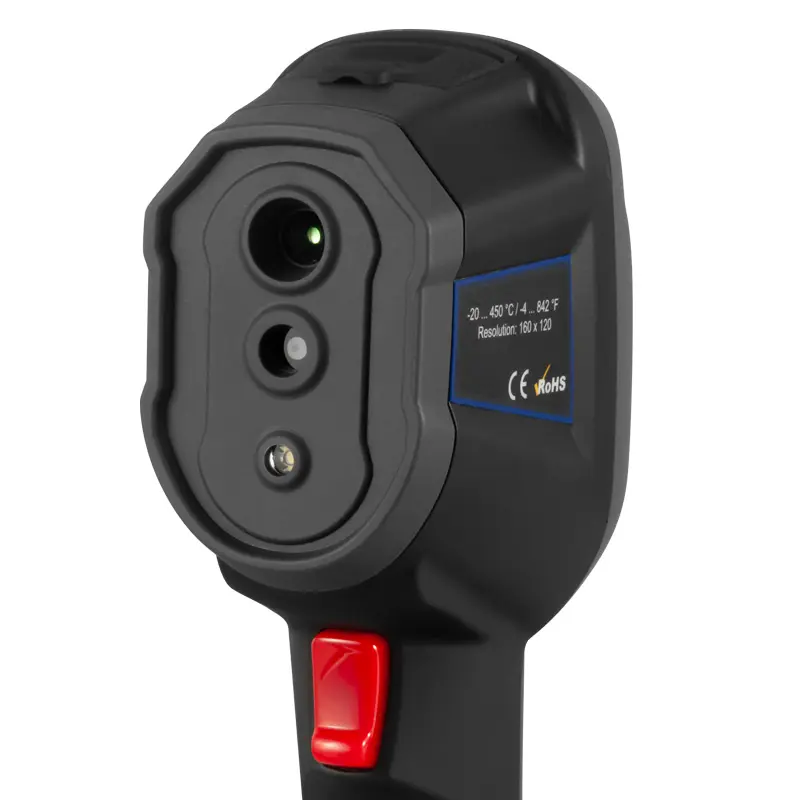

The HVAC meter was designed in ergonomic design for one-hand operation. Due to the very low weight of 389 g, it is ideal for analyzing machines and systems. In operational maintenance and servicing, this thermal imaging camera is used, for example, for the optical monitoring of bearings and bearing housings, heat exchangers, steam separators, ... or for checking electrical installations. The PCE-TC 30N Thermal Imager, with a sensitivity of less than 0.1°C / 0.18°F, offers a maximum accuracy of ± 2°C / 3.6°F or ± 2% in a temperature range of -20 ... 300°C / -4 ... 572°F. On the color display of this thermal imager there is the possibility to automatically find and display the warmest and coldest measuring point in the measurement image. The built-in LED allows a better location of sources of error in the dark. With the powerful features, machine irregularities are instantly recognized and appropriate action can be taken on the spot to prevent it. The stored thermal image recordings can be transmitted to a PC or laptop using the corresponding connection cable.

Highlights

- IR resolution: 160 x 120 pixels
- Measuring range: -20 ... 450°C / -4  ... 842°F
- Thermal sensitivity: 70 mK
- Memory: 3 GB memory for more than 20,000 pictures
- 5 different color palettes

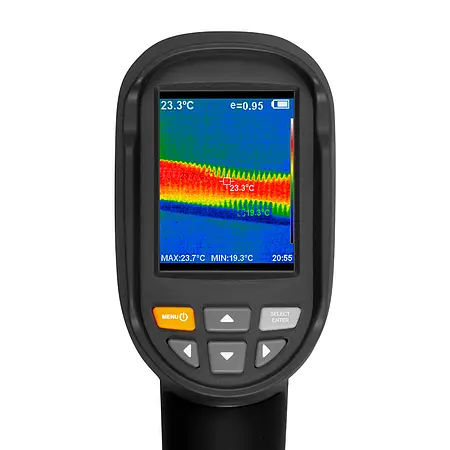

- Hot and cold spot location
- Picture in Picture function

Specification

Infrared sensor

Resolution

160 x 120 pixels

Wavelength

8 ... 14 μm

Thermal sensitivity

70 mk

Refresh rate

9 Hz

Field of view (FOV)

35° x 26°

Focusing

Firm focus

Smallest distance

0.15 m / 5.9 in

Temperature range

-20 ... 450°C / -4 ... 842°F

Accuracy

± 2°C / 3.6°F, ± 2%

From 300°C / 572°C, ± 5%

Calibration of the measurement

Auto

Number of spots

1

Number of measuring ranges

1

Emissivity

Range: 0.01 ... 1.00

Color palettes

Rainbow, iron oxide red, cold color, black & white, white & black

Other specifications



Picture in picture function

Adjustable 25%, 50%, 75%, 100%

Camera resolution

300,000 pixels

Screen

2.8" TFT

Screen resolution

320 x 240 pixels

Image memory

Built-in SD card with 3 Gb for more than 20,000 images

Image format

JPG

Power supply battery

Built-in 18650 battery, about 2800-mAh

Power supply power supply

Primary: 100 ... 240V AC 50/60 Hz
Secondary: 5V / 2 ADC

Interface

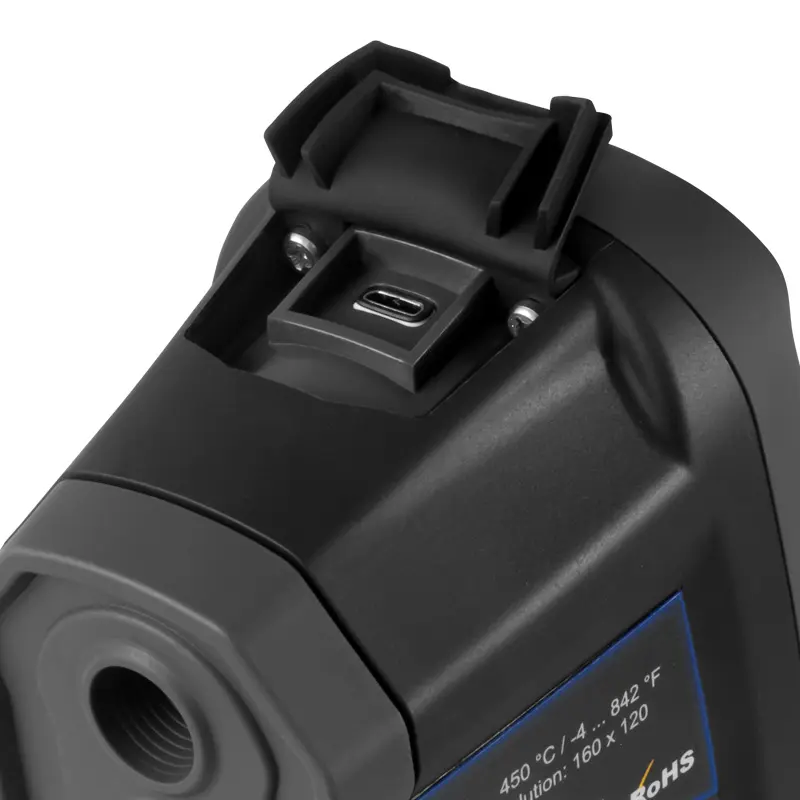

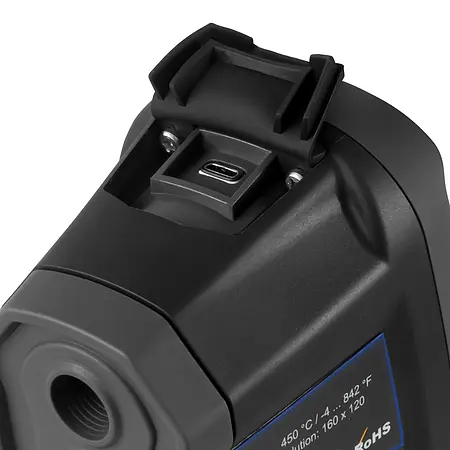

Micro USB for charging and memory readout on a PC

Operating time

Between 2 ... 3 hours

Menu languages

English, Chinese, Italian, German

Automatic shutdown

After 5, 20 minutes or disabled

Ambient temperature

0 ... 45°C / 32 ... 113°F

Storage conditions

-20 ... 60°C / -4 ... 140°F

Humidity

≤ 85% RH (non-condensing)

Dimensions

96 x 72 x 226 mm / 3.8 x 4.1 x 8.9 in

Weight

389 g / < 1 lb

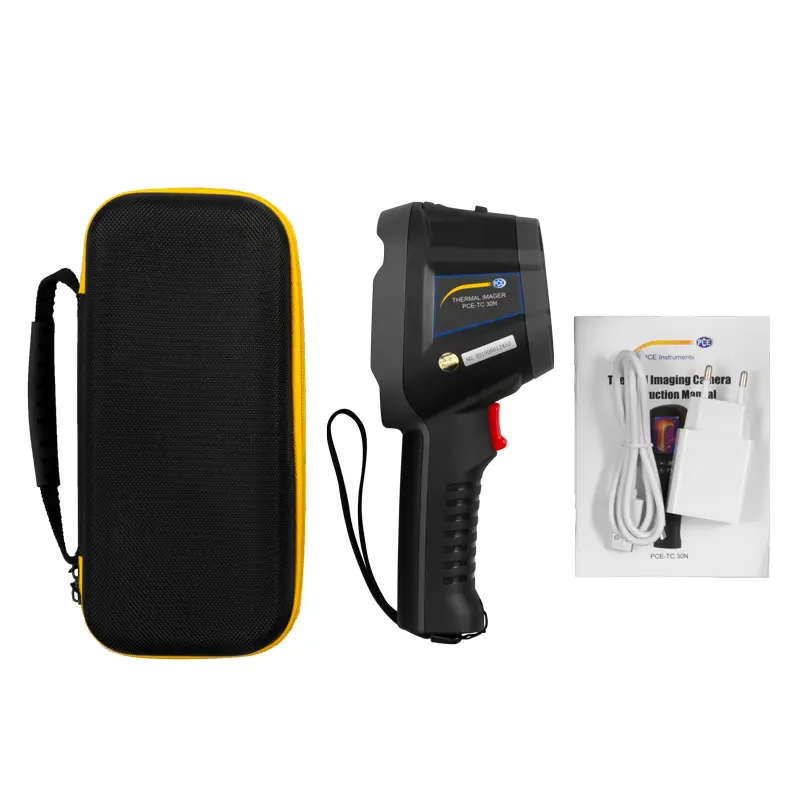

Delivery Scope

1 x HVAC Meter PCE-TC 30N
1 x Micro USB Cable
1 x USB Charging Adapter
1 x Carrying Case
1 x User Manual



N.B. Not available to UK or other countries outside EU. If inside EU, please purchase from one of our EU websites (Germany, France, Netherlands, Italy, Spain, etc). See "Country" in top-right of webpage.
