HVAC Meter PCE-VT 1100S

Order no.: PCE-VT 1100S
GTIN (EAN): 4250348718365
291,90 €
347,36 €
price ex. (VAT / delivery)
:
4250348718365
PCE-VT 1100S
Delivery time: 1-2 working days
–

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
215,90 €
Vibration Sensor PCE-VT-NF-10
Vibration Sensor PCE-VT-NF-10
36,90 €

Description

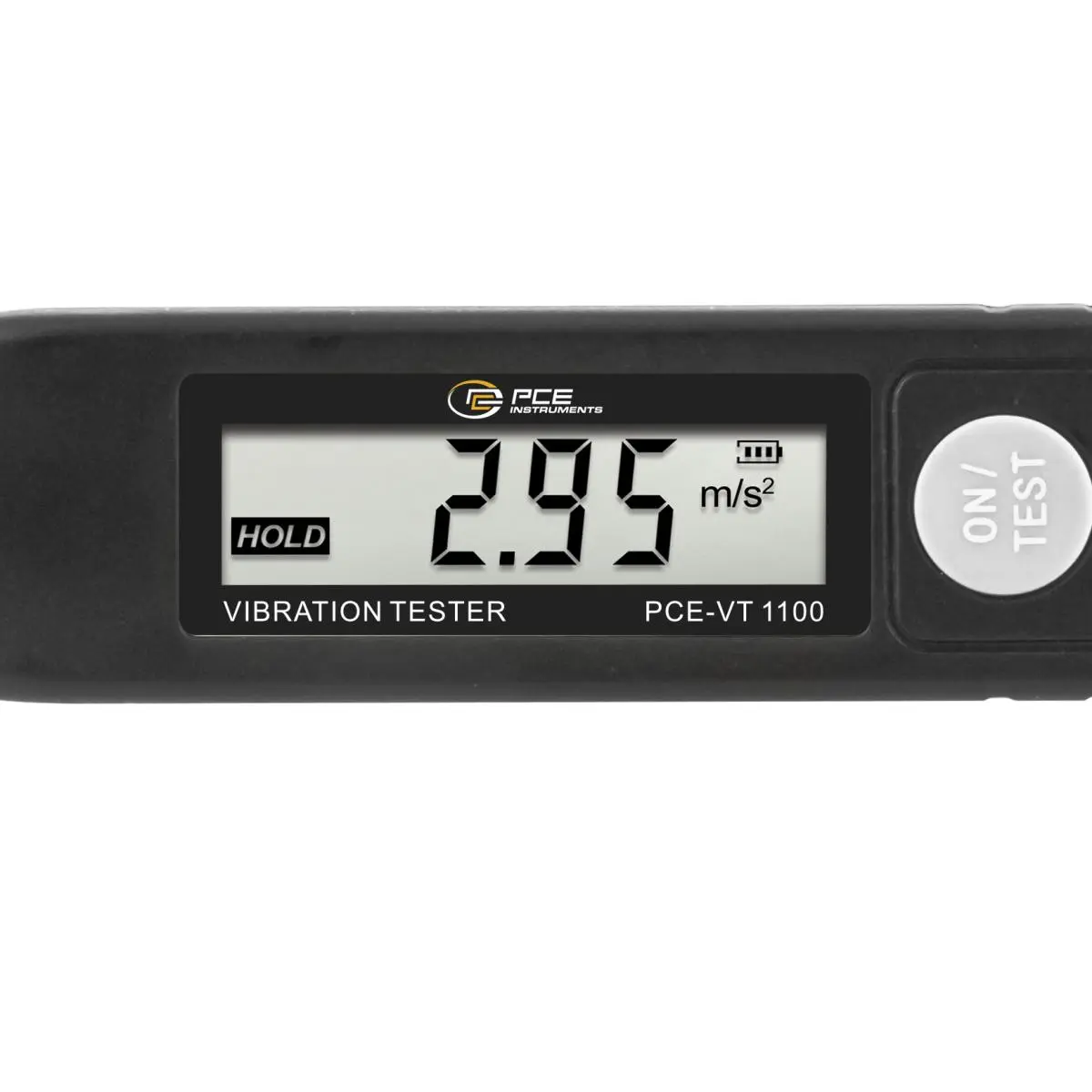

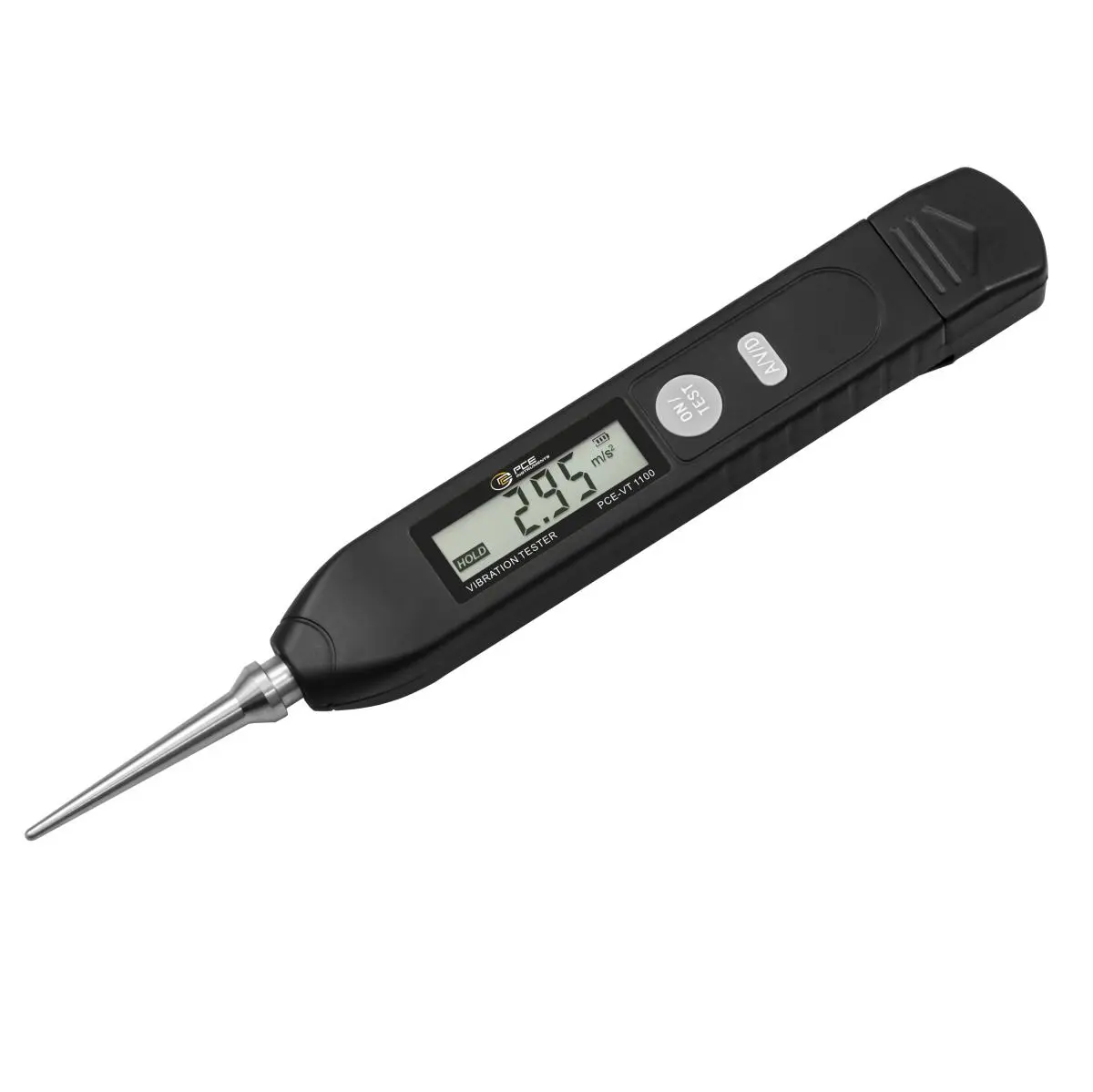

HVAC Meter PCE-VT 1100S
Vibration tester for vibration measurement / Measured values memory for previous measurements / Measurement of acceleration, vibration velocity and displacement / Large frequency range / Battery-operated hand-held measuring device / Automatic shutdown

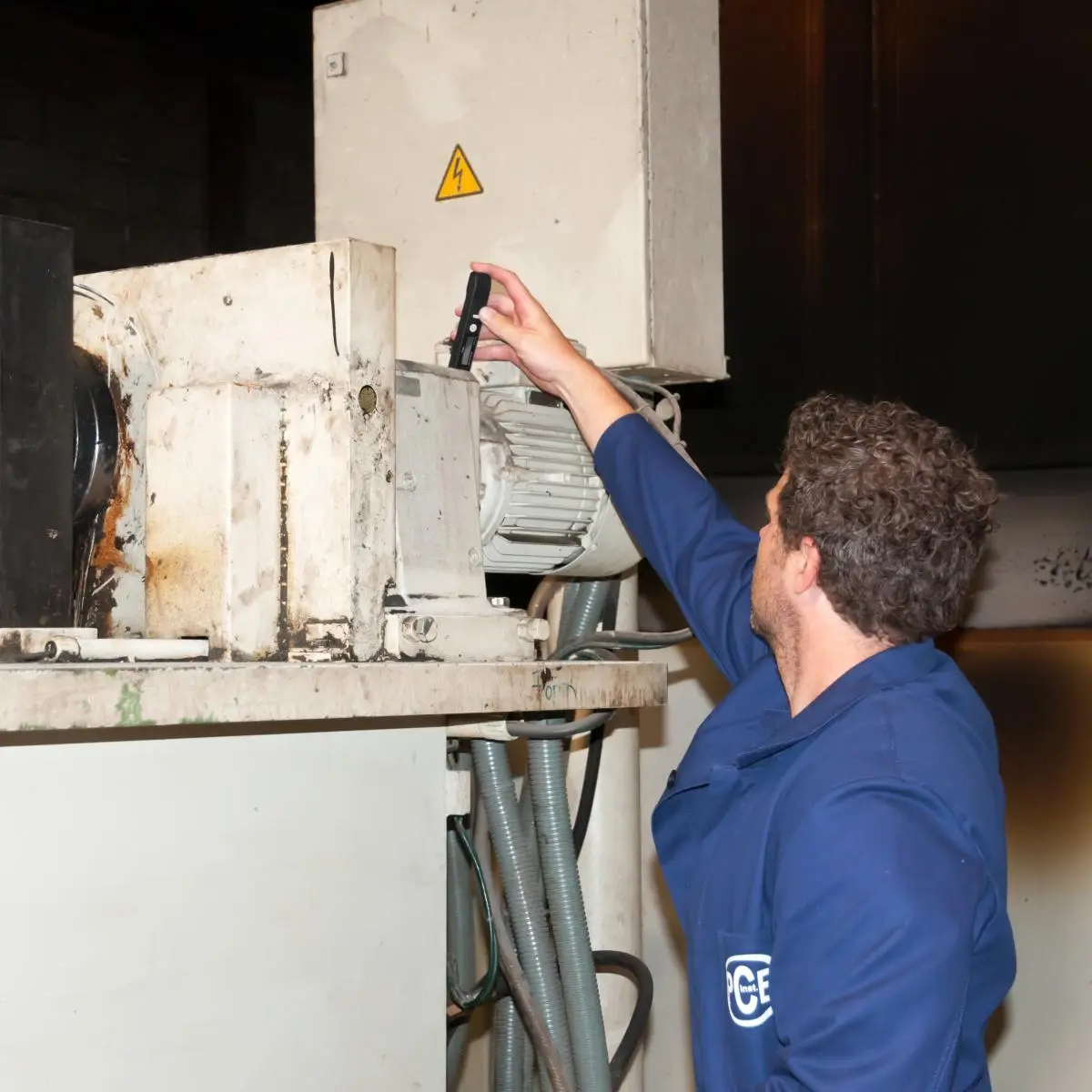

The HVAC meter is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this HVAC meter the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the HVAC meter serves as a measuring device for a relative measurement on different machines.

The HVAC meter is essentially for precautionary or preventive maintenance of production machines. This HVAC meter is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the HVAC meter is also used to assess the status of smaller electric motors.

Highlights

- Measures speed, distance, acceleration
- Keeps the value after every measurement

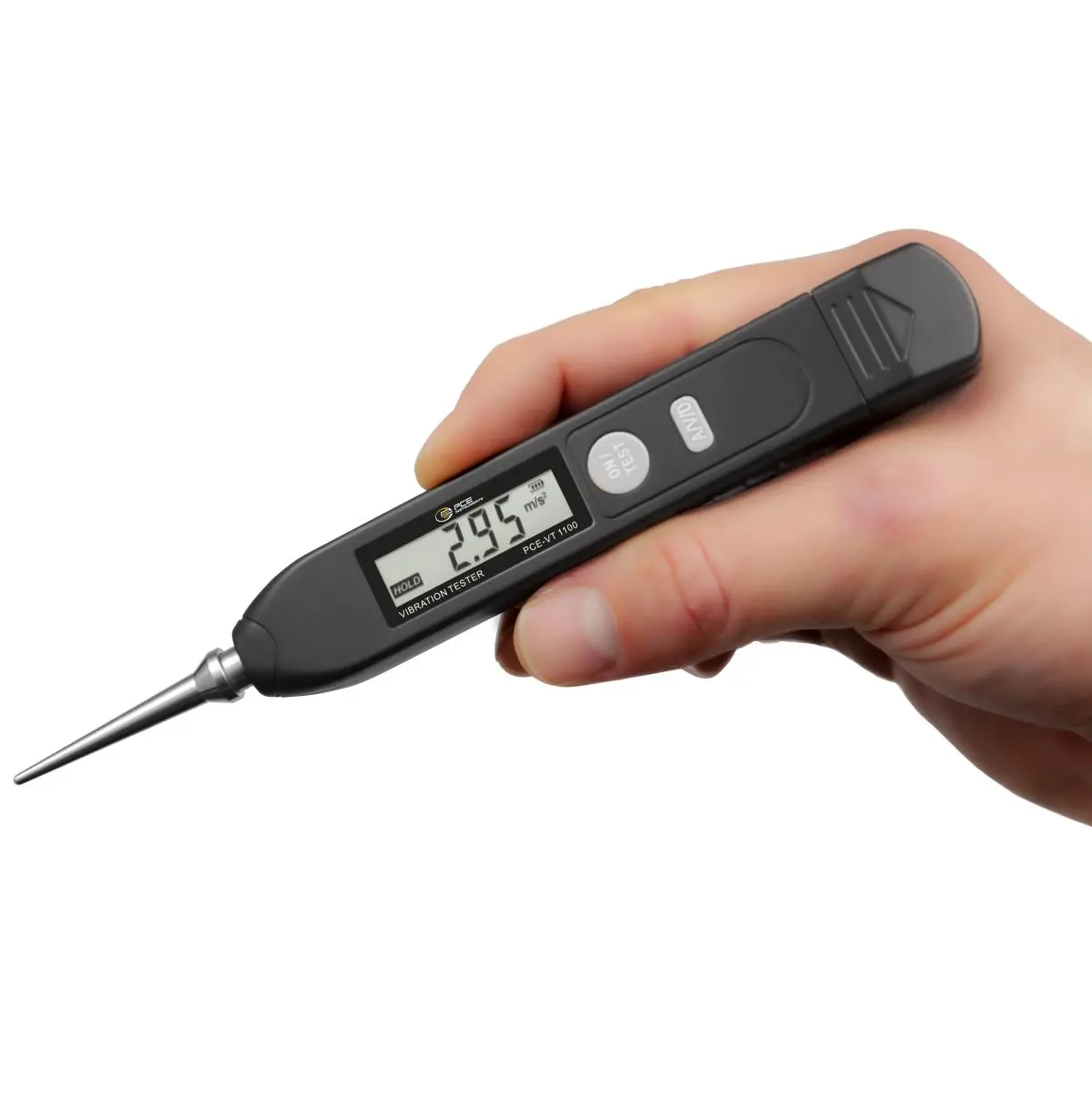

- Easy to handle and powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Battery level indicator

Specification

Parameter Measuring Range Frequency Range
Acceleration 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz
Vibration speed 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz
Displacement 0.001 ... 1.999 mm p-p 10 ... 500 Hz
Measurement accuracy Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
General specifications
Display LCD, Response time approx. 1 second
Power supply 2 x 6 V CR2032 button cell
Battery life about 5 hours (in continuous operation)
Environmental conditions       0 ... 40°C / 32 ... 104°F, 0 ... 84 % r.H.
Dimensions 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
Weight ca. 40 g / 1.4 oz (incl. batteries)

Delivery Scope

1 x HVAC Meter PCE-VT 1100S
1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77")
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
