129,90 €
- Humidity and temperature sensors
- 0 ... 10 V output
- simple wall mounting
- RS-485 interface
- for permanent monitoring
- various filters available
- small dimensions - Modbus RTU

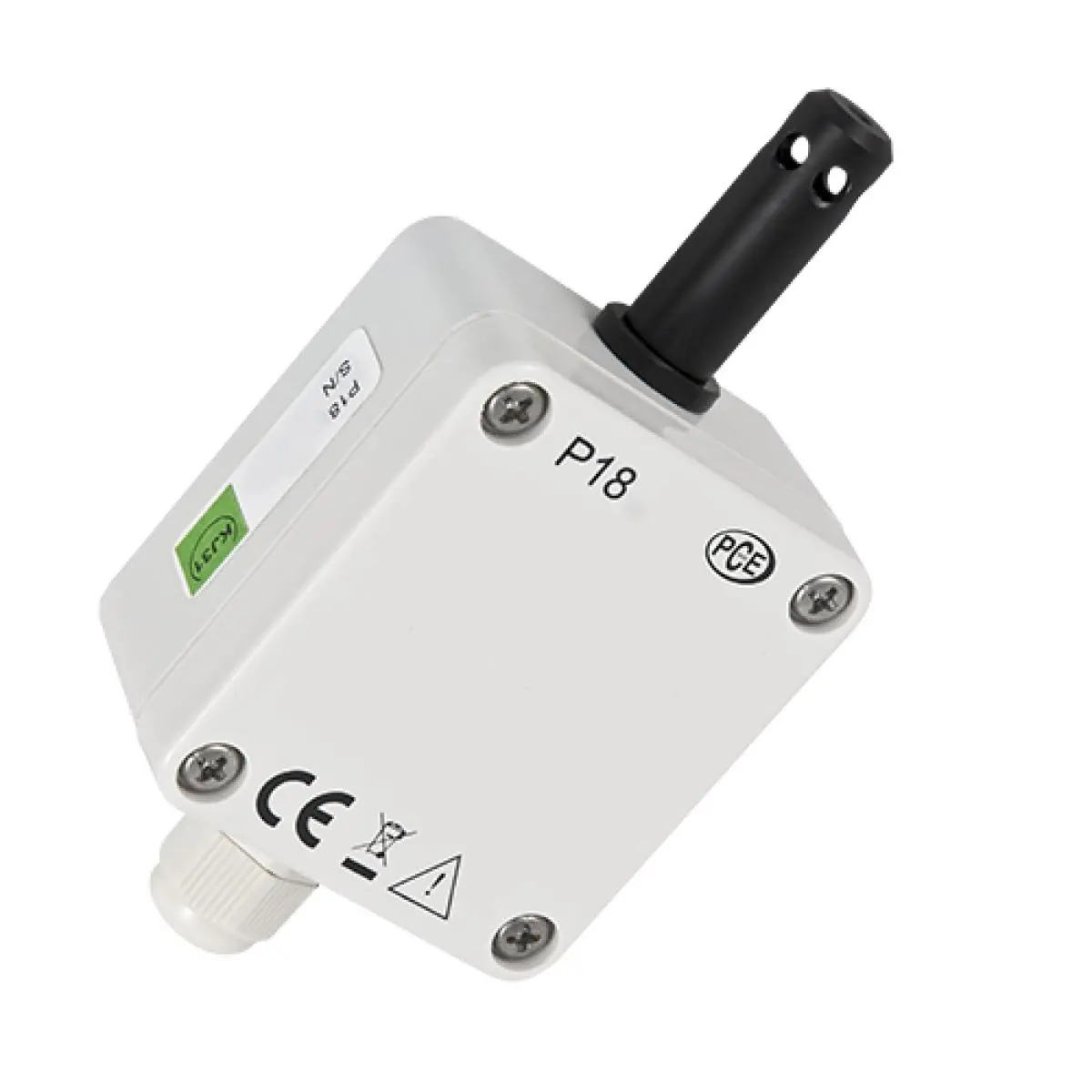

Technical data humidity sensor PCE-P18 | ||
humidity | ||
measuring range | 0 ... 100% RH | |
accuracy | ± 2% (in the range 10% .... 90% RH) ± 3% (remaining range) | |
hysteresis | ± 1% RH | |
temperature | ||
measuring range | - 20 ... 60 ° C | |
accuracy |
| |
temperature effect | ± 25% / 10 ° C | |
Humidity sensor output | ||
analog output | 0 ... 10 V | |
Data Interface | RS-485 Modbus RTU | |
transfer mode | 8N1, 8N2, 8E1, 8O1 | |
baud rate | 4800 bps 9600 bps 19200 bps 38400 bps 57600 bit / s | |
General technical data for humidity sensors | ||
supply voltage | 19 V ... 30 V DC | |
power | <1.5 W | |
ambient temperature | - 30 ° C ... 85 ° C | |
Max. humidity | ≤ 95% RH | |
preheat | 15 minutes | |
degree of protection | IP 65 | |
Assembly | wall mounting | |
Dimensions (wxhxd) | > 35 x 58 x 118 mm | |
Weight | 125 g |
