Industrial Borescope PCE-VE 200SV3

Order no.: PCE-VE 200SV3
GTIN (EAN): 4250348717771
499,90 €
594,88 €
price ex. (VAT / delivery)
:
4250348717771
PCE-VE 200SV3
Delivery time: 1-2 working days
Flexible
No
9 mm
3 m
640 x 480 pixels
Digital
No
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)

Description

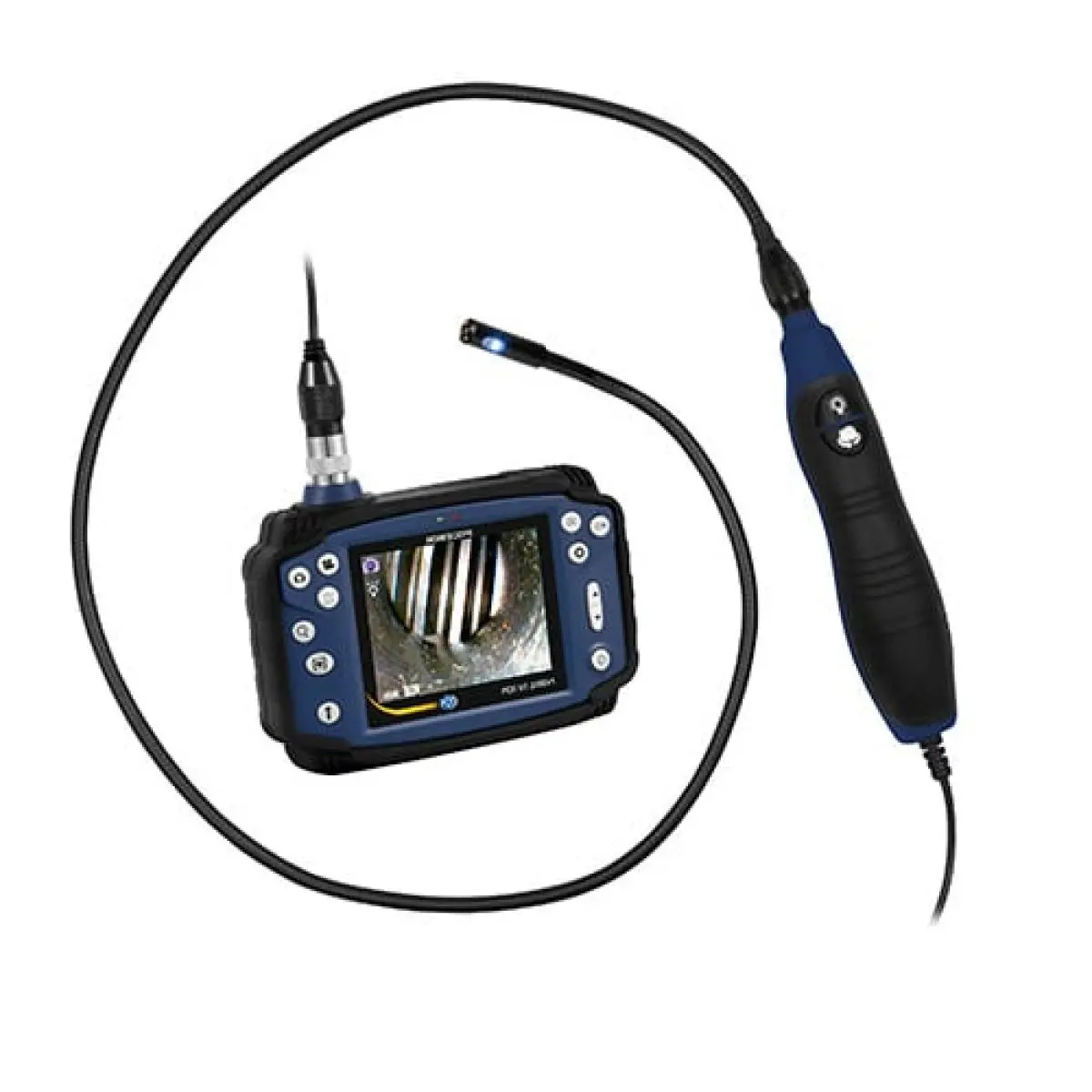

Industrial borescope for non-destructive machine diagnosis /
Camera head diameter: 9 mm (0.4") / 3.5" LC display / 2600 mAh battery / Cable length 3 m (9.9 ft) / Card slot for micro SD card


The industrial borescope is an inspection camera for non-destructive measurements. The video borescope is therefore the ideal instrument for diagnosing hard-to-reach places. Mechanical engineering, sanitary and heating engineering, and the entire building and construction industry are among the main areas of application for the video borescope. The video borescope is also suitable for use in the automotive industry.

Because it has a camera cable three meters long, it is possible to use the industrial borescope in such a way that in many cases it is not necessary to dismantle machines or motors. This saves time and money. There are bright LEDs on the camera head of the video borescope that can be controlled and set by the user on the device. The LEDs have different brightness levels so that optimal illumination is possible at the point to be examined.

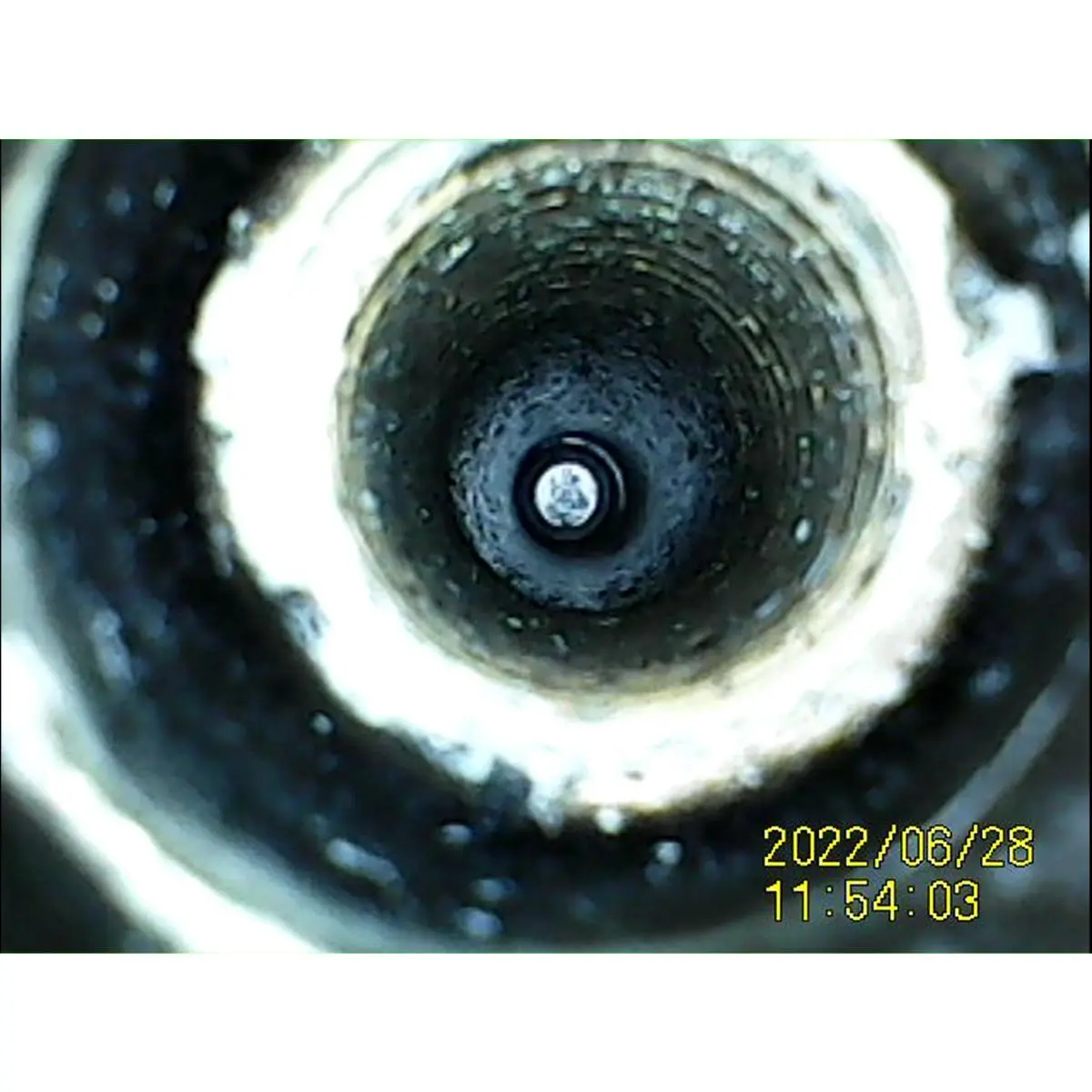

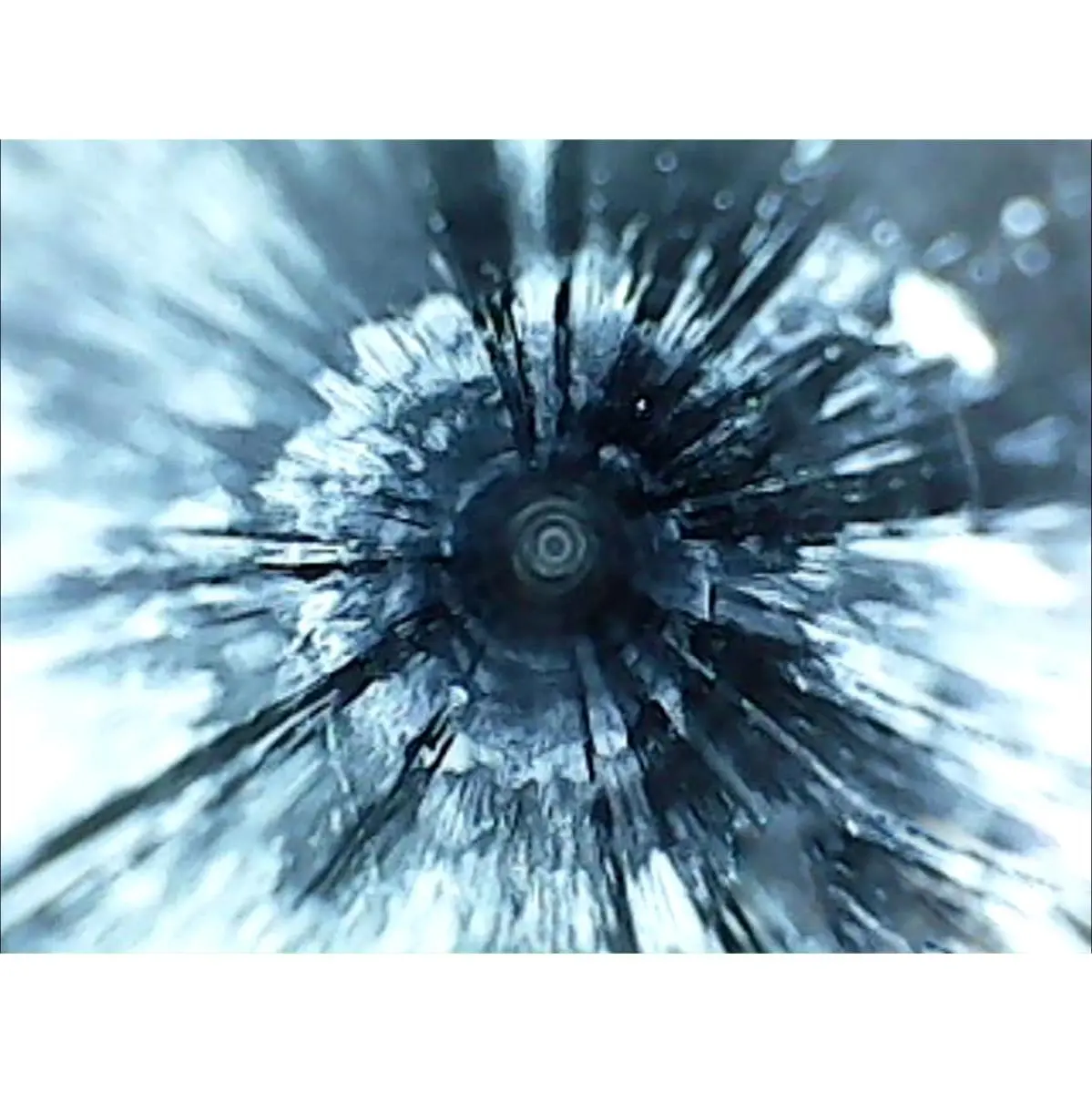

This means that overexposure cannot occur, which would lead to the image shown on the display no longer being recognizable because the camera of the industrial boroscope is dazzled. In addition to the lighting, there is also the function of digital enlargement for the current image section. Here you have 2-fold, 3-fold or 4-fold magnification available. The recorded images and videos are automatically saved on the micro SD card. This means that you can later read out and document the images from the video borescope.

Highlights

- 9 mm / 0.4 in cable diameter
- 3.5" display
- Brightness on the camera head adjustable
- 2600-mAh battery
- Cable length 3 m / 9.9 ft
- SD card slot for Micro SD card

Specification

Display3.5" LCD
Resolution video functionAVI (640x480)
Resolution picture functionJPEG (1600x1200)
Image rotation180° rotation and mirror function
Freeze functionYes
ZoomUp to 4 times
Storage mediumMicro SD card
menu languagesEnglish
German
Spanish
French
Russian
Japanese
Simplified Chinese
Traditional Chinese
InterfacesMicro USB 2.0, TV out, Micro SD card slot
TV outputPAL
Power supplyLi-ion battery
Battery Capacity2600-mAh
Operating conditions-10 ... 40°C / -10 ... 104°F, rel. Humidity <75%
Technical specification of the PCE-VE 200SV3 (borescope cable)
Cable diameter9 mm / 0.4 in
Image sensor1/8" CMOS chip
Resolution camera640 x 480 pixels

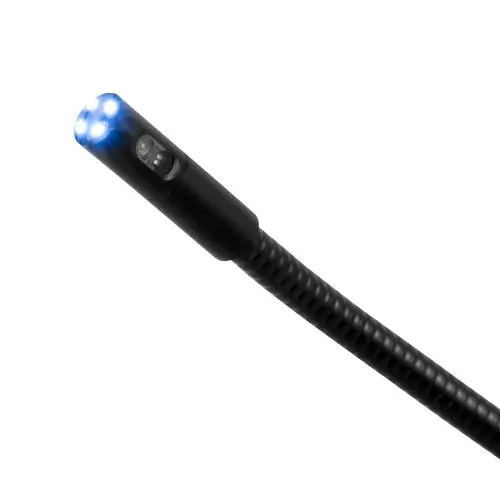

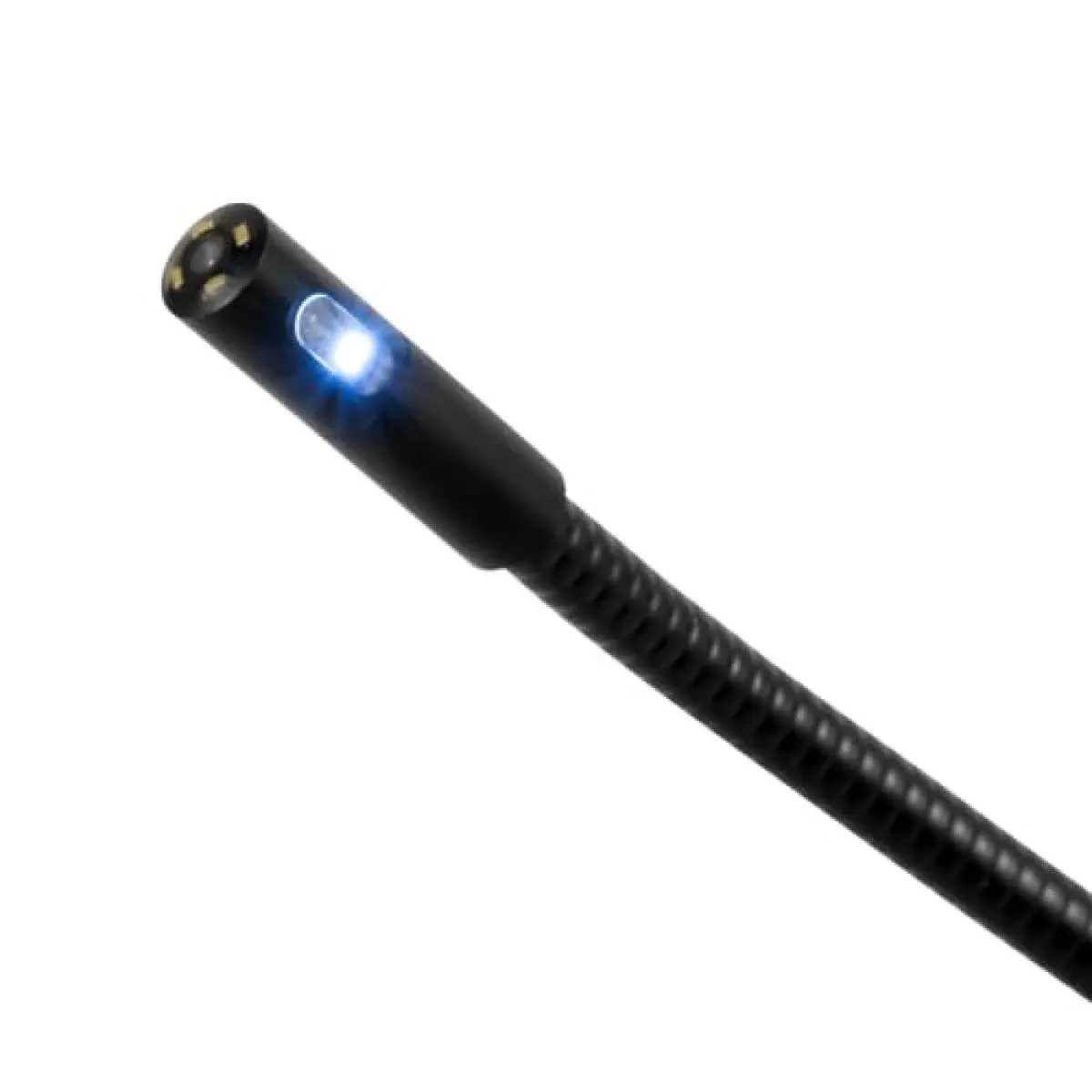

Lighting the camera4 LEDs on the front, 2 LEDs on the side
Field of view / angle of view90°
Brightness controlManually
Sight depth15 ... 100 mm / .6 ... 3.9 in, front camera; 3-50 mm / .1 ... 2 in side camera
Length of camera tube3 m / 9.9 ft
PushcableMalleable, soft metal
Ambient conditions of the PCE-VE 200SV3

Operating temperature

Probe

In air: -10 ... 50°C / 14 ... 122°F
In water: 5 ... 50°C / 41 ... 122°F

Main unit

In the air: -10 ... 50°C /              14 ... 122°F

Relative humidity

Probe and main unit

15 ... 90%

Fluid resistance

Probe and main unit

Machine oil, light oil or saline 5%

Protection against intrusion

Probe

Water, oil and dust, according to protection class IP67

Main unit

Rain in wind (battery compartment must be closed)
Not under water


Delivery Scope

1 x Industrial Borescope PCE-VE 200SV3
1 x USB cable
1 x USB adapter
1 x User manual
