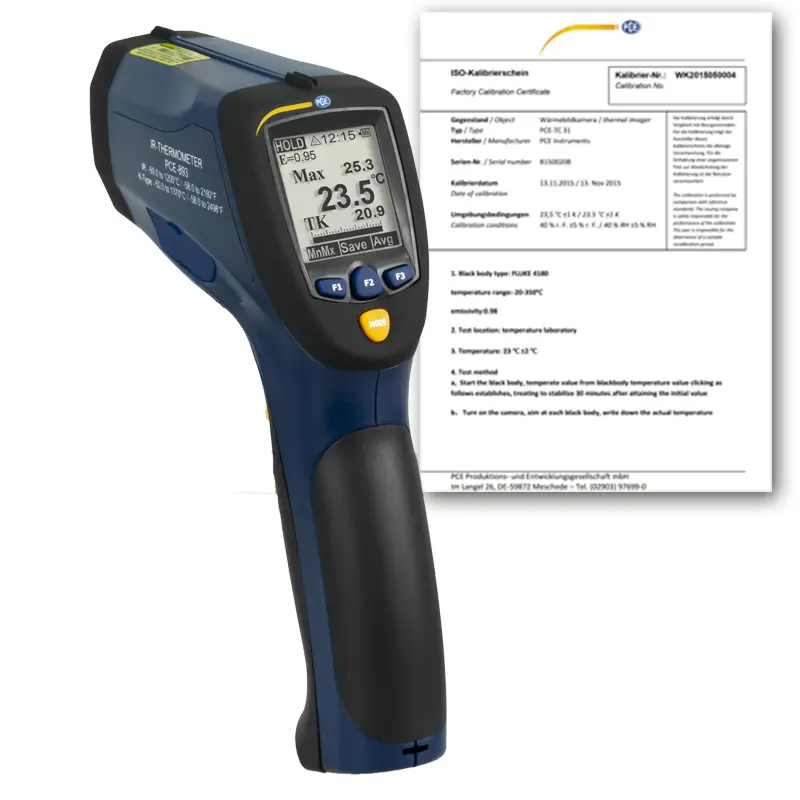

Infrared Thermometer PCE-893-ICA incl. ISO Calibration Certificate

Order no.: PCE-893-ICA
GTIN (EAN):
535,90 €
637,72 €
ISO Calibration
price ex. (VAT / delivery)
PCE-893-ICA
Delivery time: 10 - 14 days
Non-contact
Handheld
-50 ... 1200 °C / -58 ... 2192 °F
Yes (via PC)
Yes (USB)

Accessory

ISO Calibration Certificate for Infrared Thermometer
ISO Calibration Certificate for Infrared Thermometer
120,90 €
PCE-MS 25 Measuring Point Sticker
PCE-MS 25 Measuring Point Sticker
14,90 €

Description

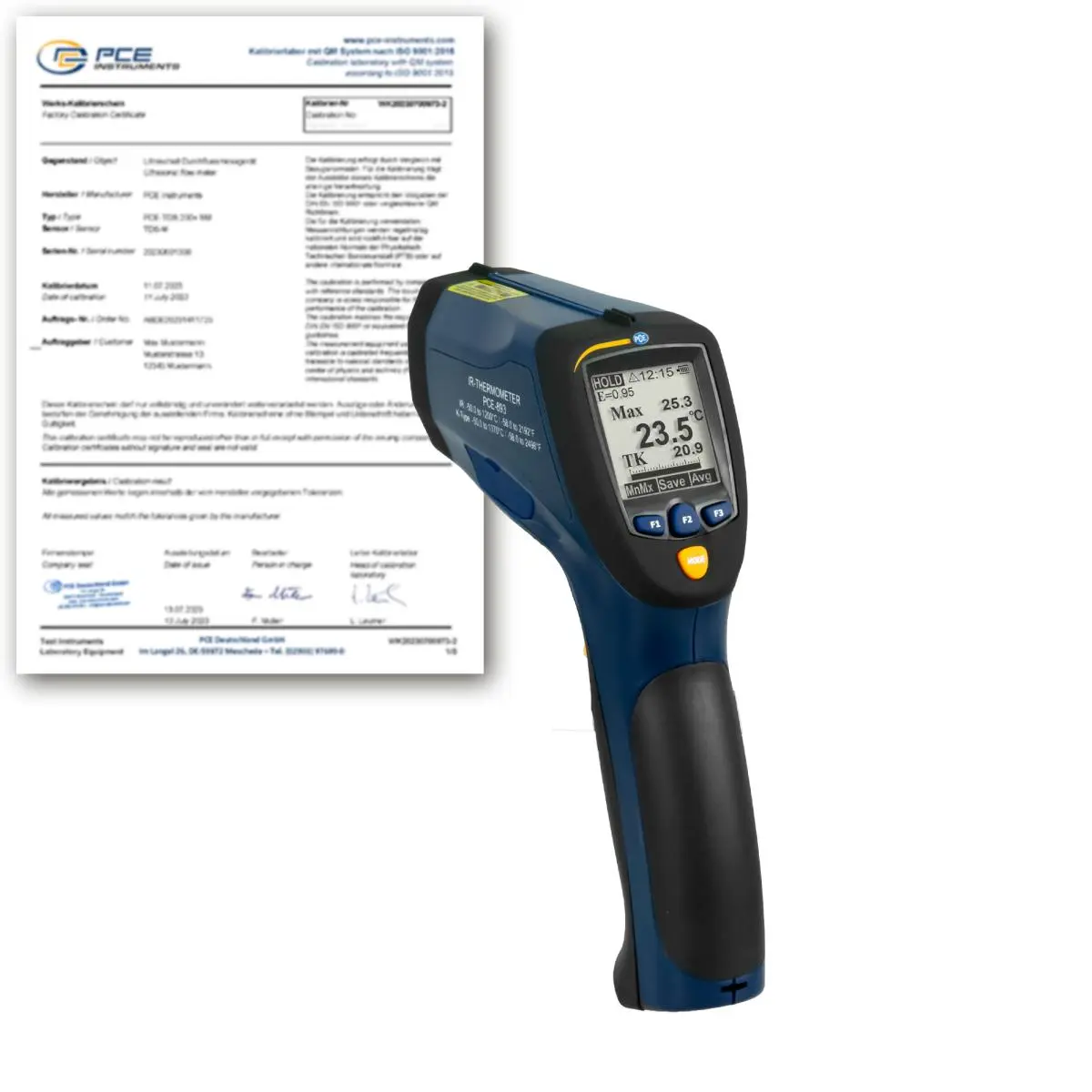

Infrared Thermometer PCE-893-ICA incl. ISO Calibration Certificate
Laser temperature meter for easy measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / Alarm function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable / Software for PC connection

The infrared thermometer PCE-893-ICA is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the PCE-893-ICA thermometer. Thus, the thermometer PCE-893-ICA is suitable for almost all surfaces. The dual laser of the thermometer PCE-893-ICA marks the exact center of the measurement spot. This helps the user considerably with non-contact temperature measurement. The thermometer PCE-893-ICA has a backlit display. In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the PCE-893-ICA thermometer. The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the thermometer PCE-893-ICA is 50:1.

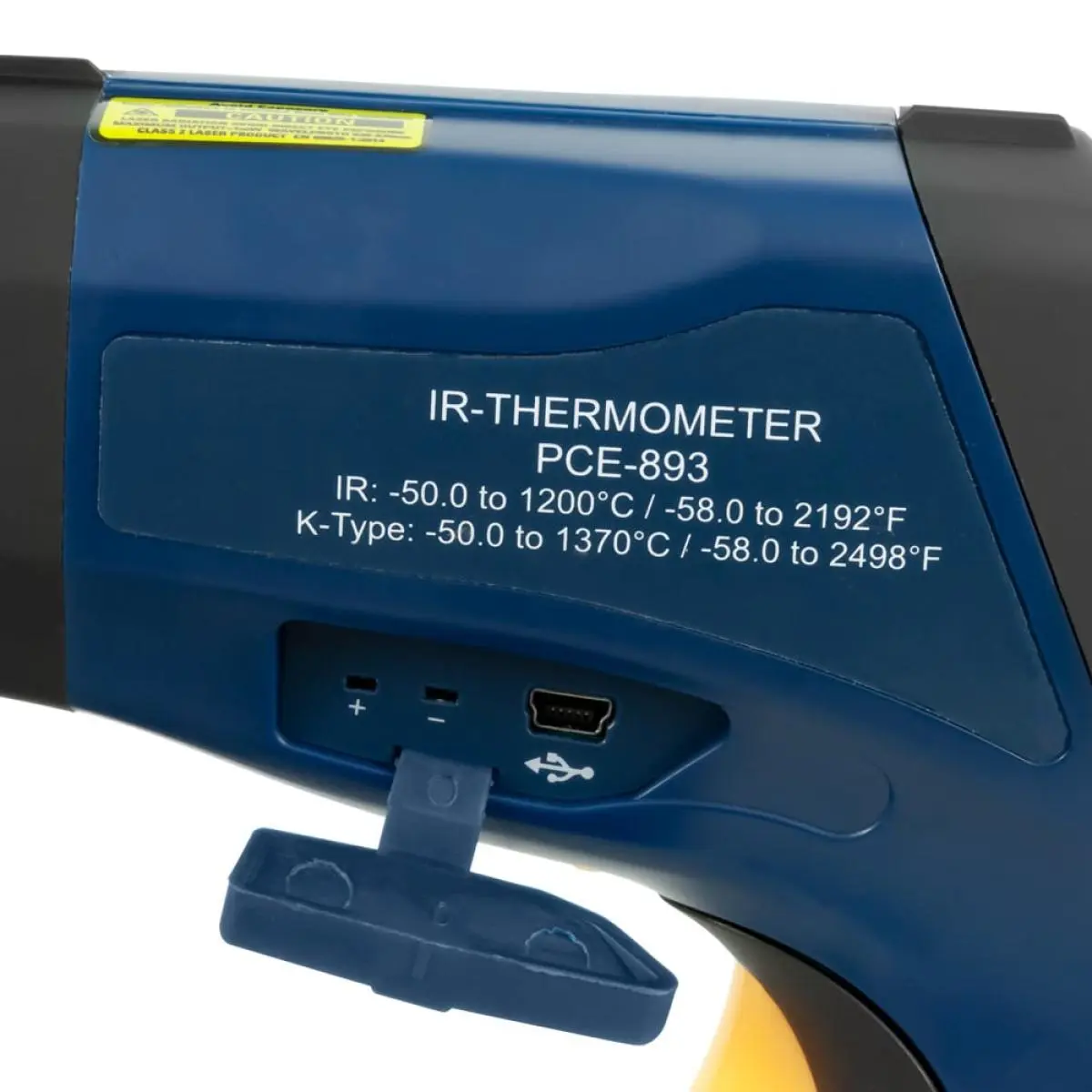

In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the thermometer. Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the thermometer allow the operator to analyze and store all measurement data on the PC both graphically and in a table.

Highlights

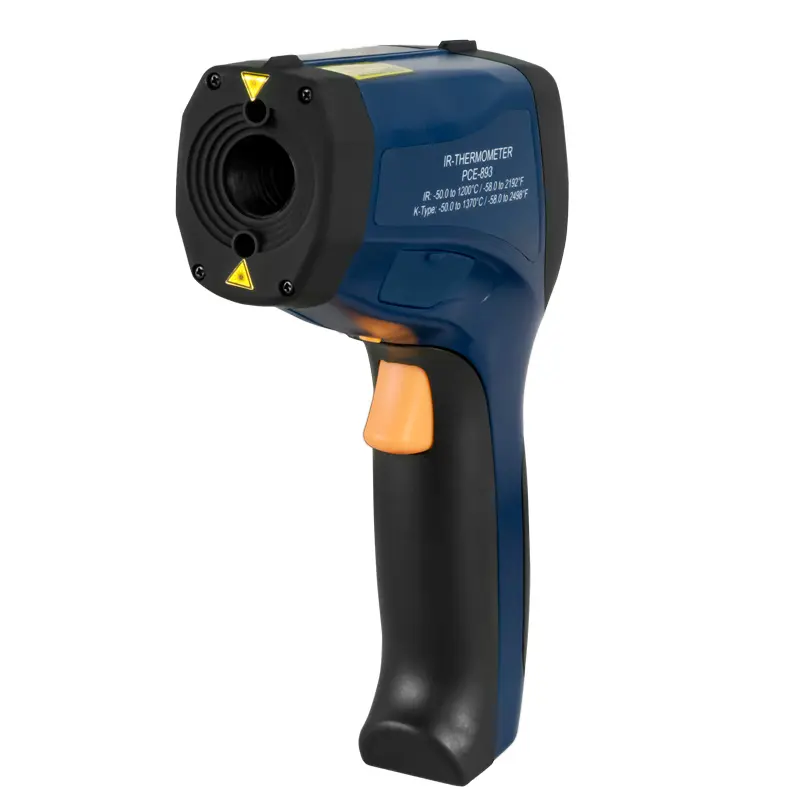

- Dual laser shows the spot center
- Adjustable emissivity

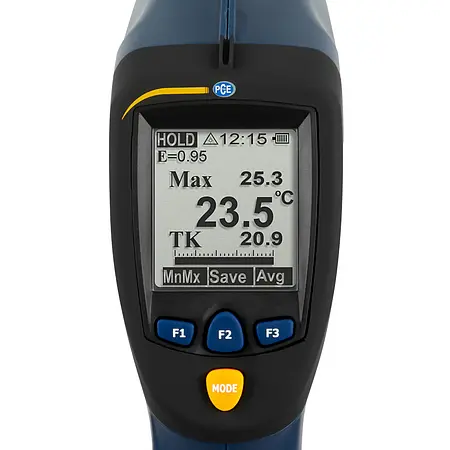

- Illuminated LCD
- Measured value transmission to a PC
- Non-contact temperature measurement
- Measurement spot ratio 50: 1 infrared optics
- Temperature measurement up to 1200 °C / 2192 °F
- Thermocouple type-K can be connected
- includes ISO Calibration Certificate

Typical applications of the infrared thermometer PCE-893

- Food monitoring
- Hygiene tests
- Road construction
- Control cabinet monitoring
- Heating and air conditioning technology
- Production monitoring
- Temperature measurement on motors
- Electronic components
- Fuse box

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Infrared measurement
Infrared measurement -50 ... 1200 °C / -58 ... 2192 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±3 °C / 5.4 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±1 % ±1 °C / ±1.8°F (20 ... 500 °C / 68 ... 932°F)
  ±1.5 % (500 ... 1000 °C / 932 ... 1832 °F)
  ±2 % (1000 ... 1600 °C / 1832 ... 2912 °F)
The accuracies apply at an ambient temperature of 23 ... 25 °C (73 ... 77 °F)

Repeatability ±1.5 °C / 2.7 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±0.5 % or ±0.5 °C / 0.9 °F
  (20 ... 1000 °C / 68 ... 1832 °F)
  ±1.0 % (1000 ... 1600 °C / 1832 ... 2912 °F)

Thermocouple
Measuring range -50 ... 1370 °C / -58 ... 2498 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±2.5 °C / ±3.6°F (-50 ... 0 °C / -58 ... 32°F)
  ±0.5 % ±1.5 °C / 3 °F
  (0 ... 1370 °C / 32 ... 2498 °F)

Measurement spot ratio 50:1
Response time 150 ms
Spectral range 8 ... 14 µm
Emissivity Adjustable 0.10 ... 1.0
Display overrange The display will show "----"
Display laser diode LCD with backlight
Output <1 mW
Wavelength 630 ... 670 nm
Classification Class 2
Power supply 9 V block battery
Operating conditions 0 ... +50 °C / 32 ... 122 °F
Storage conditions -10 ... +60 °C / 14 ... 140 °F
Weight ca. 282 g without battery
Dimensions 200 x 55 x 150 mm / 7.8 x 2.1 x 5.9"

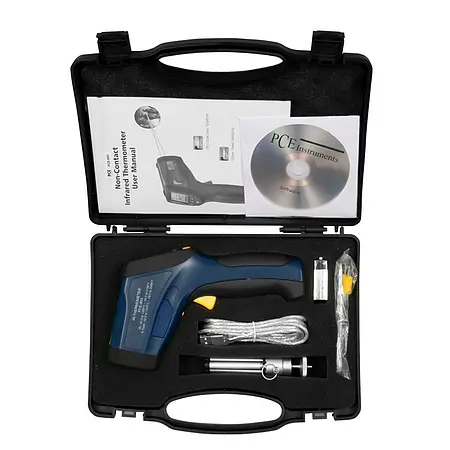

Delivery Scope

1 x Infrared Thermometer PCE-893-ICA
1 x Type-K thermocouple

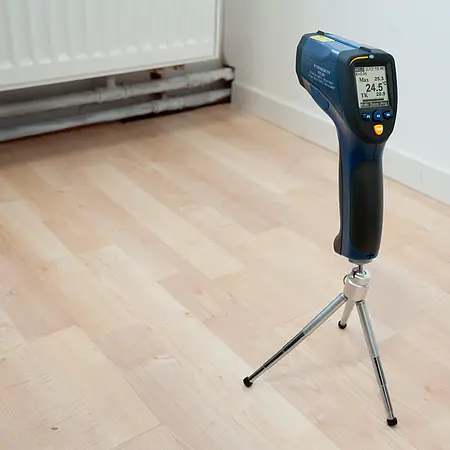

1 x Mini Tripod
1 x USB cable
1 x 9 V battery
1 x User manual
1 x ISO Calibration Certificate
