PCE-VM 21 Inspection Camera
Multipurpose microscope ideal for electronics repair, quality assurance testing, medical instrument reprocessing inspections and more

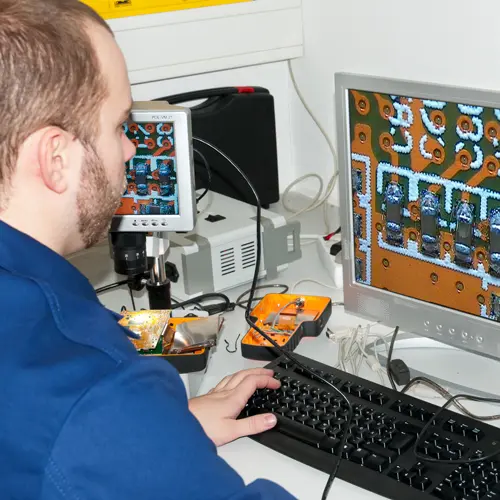

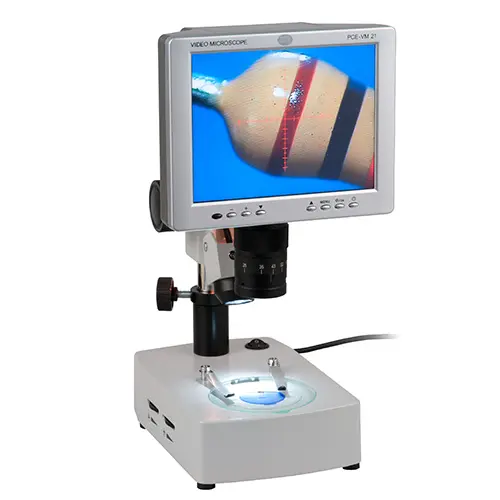

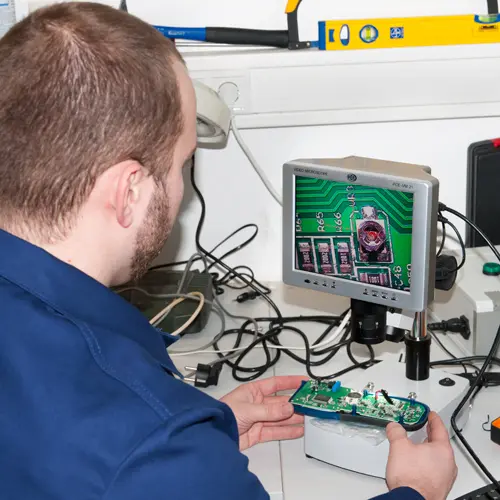

The PCE-VM 21 consists of an optical microscope, CCD camera and LCD screen. Due to the 75-fold magnification, it is possible to view very small parts, electronics and even medical instruments very clearly. The PCE-VM 21 inspection camera reduces eye strain during soldering of printed circuit boards (PCBs), investigating of material defects on metal surfaces, and inspecting surgical implements for reprocessing, making the PCE-VM 21 industrial, healthcare or food / hygiene microscope a vital addition to your plant, shop, production line, quality assurance laboratory or instrument reprocessing clean room.
- Continuous
magnification from 10 ... 75 times
- Adjustable height for viewing of larger objects
- Transmitted light and incident light illumination
- Data transfer to PC via USB 2.0 connection
- User-friendly menu in 8 different languages
- Screen resolution of 800 x 600 pixels

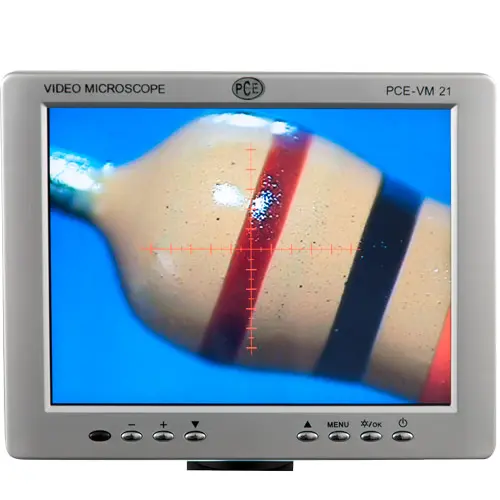

- Fixed-increment, crossed-scale reticle for orientation purposes
- Direct viewing on the LCD display
- Image recording functionality
- Aluminum carrying case
| Total unit | |
| Display | 8'' LCD |
| Resolution | 800 x 600 pixels |
| Magnification | 10 ... 75 times, continuous The magnification is the ratio between the object as observed on the screen and the actual size of the object. Relevant parameters are the enlargement of the lens / CCD eyepiece and size of the CCD lens / display. |
| Field of view | 13.5 mm x 10 mm / 2.1 mm x 1.5 mm 0.5 in x 0.4 in / 0.08 in x 0.06 in |
| Power supply | 100 ... 240V AC, 50/60 Hz |
| Optical object lens of the microscope | |
| Focus of the CCD eyepiece | 0.5 times |
| Focus the main optical lens | 0.7 times ... 4.5 times |
| Focus of the total optical lens | 0.35 times ... 2.25 times |
| Working distance | 95 mm / 3.7 in |
| CCD camera | |
| Display chip | Sony |
| Horizontal resolution | 700 TVL |
| Light source | Reflected and transmitted light, lighting adjustable |
| Video output | 1.0Vp-p, 75 Ω |
| Video mode | PAL |
| Operating voltage | 12V DC |

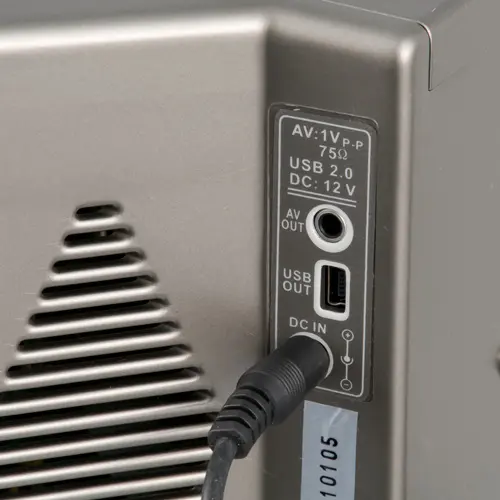

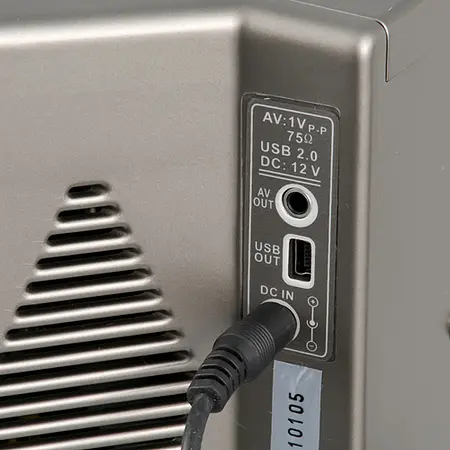

| Connections | USB 2.0, AV out |
| System requirements | Windows 2000 |
| Working height | Min. 40 mm, max. 210 mm / Min. 1.6 in, max. 8.3 in |
| Power supply | 100 ... 240V AC, 50/60 Hz |
| Dimensions | Baseplate: 235 mm x 155 mm x 64 mm / .3 in x 6.1 in x 2.5 in |
| Height of the vertical axis | 250 mm / 9.8 in |
| Weight | Approx. 4.8 kg / 10.6 lbs |
| Halogen lamp | |
| Operating voltage | 100 ... 240V AC, 50/60 Hz |
| Upper lamp | 10W / 12V |
| Lower lamp | 10W / 12V |

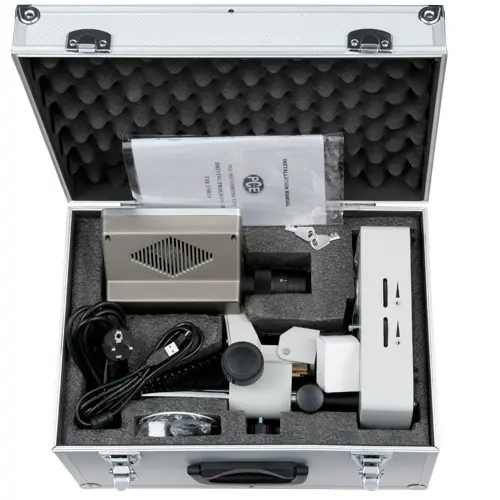

1 x PCE-VM 21 microscope
1 x USB interface cable
1 x Video cable
1 x Power cable

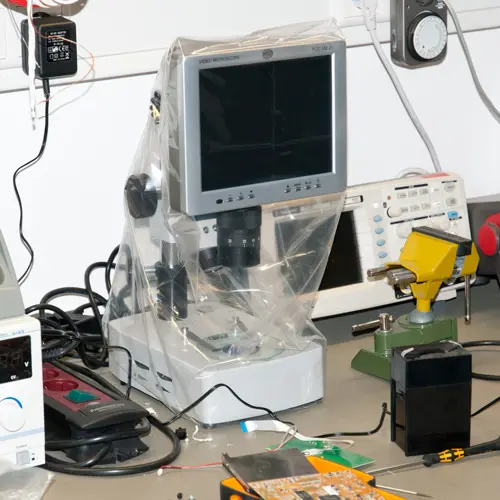

1 x Dust cover
1 x Aluminum carrying case with key
1 x Object plate, glass
1 x Contrast plate, black / white
1 x Spare bulb for incident light illumination
1 x Spare bulb for transmitted light illumination
1 x Spare fuse
1 x Cleaning cloth
1 x User manual
